1333-C2--30_0

DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

1333-C2--30_0

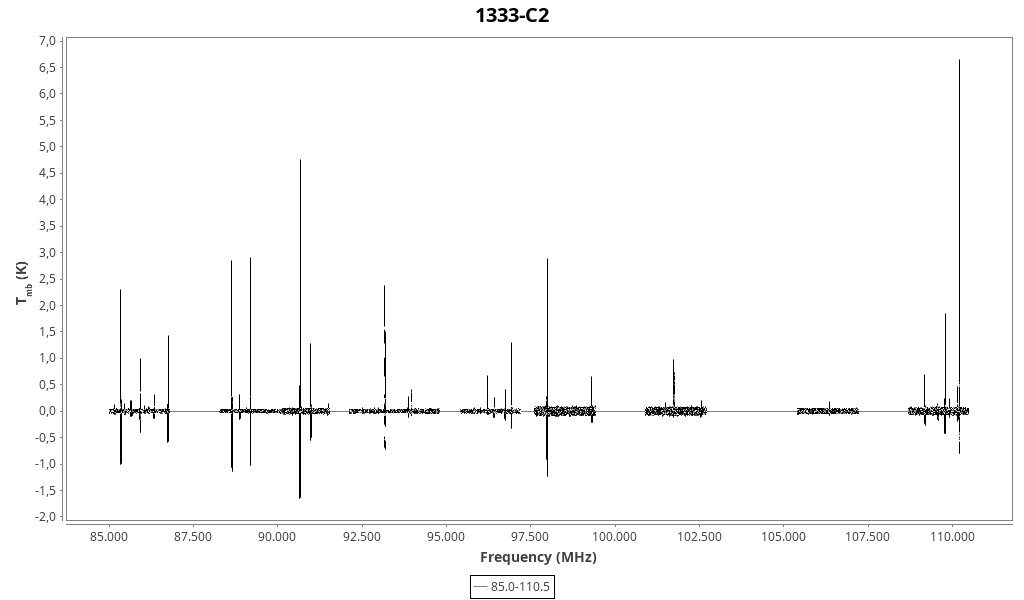

Backend 3mm (85.0-110.5 GHz)

Found 91 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.037 (0.012)	0.5 (0.5)	0.019 (0.018)	6.92 (0.06)	85138.84	85139.10	2.8	OCS 7→6
0.033 (0.010)	4.1 (1.9)	0.14 (0.05)	2.39 (0.18)	85140.13	85139.10	2.6	OCS 7→6
0.130 (0.014)	0.40 (0.12)	0.056 (0.016)	7.027 (0.014)	85161.93	85162.22	13.5	HC¹⁸O⁺ 1→0
0.031 (0.011)	1.3 (1.0)	0.04 (0.03)	9.77 (0.12)	85191.08	85192.15	2.6	o-D₂CS 3→2
2.482 (0.015)	0.479 (0.008)	1.266 (0.019)	7.0472 (0.0009)	85338.60	85338.90	169.4	c-C₃H₂ 2_1,2→1_0,1
0.067 (0.016)	0.4 (0.3)	0.030 (0.020)	7.10 (0.04)	85347.56	85347.87	0.6	HCS⁺ 2→1
0.134 (0.014)	0.44 (0.13)	0.063 (0.018)	6.993 (0.015)	85455.38	85455.66	13.4	CH₃C₂H 5₁→4₁
0.143 (0.016)	0.34 (0.11)	0.052 (0.016)	6.971 (0.013)	85457.01	85457.29	14.5	CH₃C₂H 5₀→4₀
0.034 (0.014)	0.6 (0.7)	0.021 (0.024)	7.90 (0.08)	85567.54	85568.08	2.2	CH₃OH 6_(-2,5)→7_(-1,7)
0.201 (0.012)	0.48 (0.08)	0.103 (0.016)	7.112 (0.009)	85633.69	85634.01	19.9	C₄H 9→8 J=19/2→17/2
0.207 (0.015)	0.45 (0.09)	0.100 (0.019)	7.098 (0.011)	85672.27	85672.58	16.9	C₄H 9→8 J=17/2→15/2
0.033 (0.019)	0.5 (0.6)	0.017 (0.019)	6.78 (0.08)	85723.09	85723.31	2.7	He(42)</sup>\alpha</sup>
0.461 (0.013)	0.42 (0.04)	0.205 (0.016)	7.062 (0.004)	85925.40	85925.70	12.5	NH₂D 1_1,1→1_0,1 F=2-1
1.025 (0.012)	0.554 (0.018)	0.605 (0.018)	7.0825 (0.0020)	85925.97	85926.28	27.8	NH₂D 1_1,1→1_0,1 F=2-2
0.428 (0.013)	0.44 (0.04)	0.198 (0.016)	7.133 (0.005)	85926.56	85926.88	11.6	NH₂D 1_1,1→1_0,1 F=1-2
0.384 (0.013)	0.45 (0.05)	0.185 (0.017)	7.040 (0.005)	85927.43	85927.73	10.5	NH₂D 1_1,1→1_0,1 F=1-0
0.109 (0.016)	0.42 (0.17)	0.049 (0.019)	7.012 (0.019)	86054.68	86054.97	8.5	HC¹⁵N 1→0
0.042 (0.011)	0.7 (0.5)	0.030 (0.021)	6.96 (0.06)	86093.68	86093.96	3.8	SO 2₂→1₁
0.068 (0.012)	3.4 (0.9)	0.24 (0.06)	12.77 (0.09)	86179.45	86181.39	4.7	CCS 6→5, N=7-6
0.079 (0.016)	0.38 (0.21)	0.032 (0.017)	7.016 (0.025)	86181.10	86181.39	5.6	CCS 6→5, N=7-6
0.196 (0.018)	0.40 (0.11)	0.083 (0.021)	7.043 (0.013)	86338.43	86338.73	8.2	H¹³CN 1₁→0₁
0.320 (0.018)	0.47 (0.07)	0.161 (0.023)	6.166 (0.009)	86339.87	86339.92	12.3	H¹³CN 1→0
0.084 (0.014)	2.6 (0.8)	0.24 (0.06)	6.90 (0.08)	86341.99	86342.25	3.2	H¹³CN 1₀→0₁
0.044 (0.014)	0.7 (0.6)	0.031 (0.023)	7.58 (0.06)	86670.34	86670.80	3.9	HCO 1_0,1→0_0,0 J=3/2→1/2 F=2→1
0.036 (0.013)	0.6 (0.7)	0.023 (0.023)	3.32 (0.08)	86709.14	86708.36	2.8	HCO 1_0,1→0_0,0 J=3/2→1/2 F=1→0
1.396 (0.016)	0.492 (0.016)	0.732 (0.022)	7.0076 (0.0018)	86754.00	86754.29	87.6	H¹³CO⁺ 1→0
1.715 (0.009)	0.603 (0.009)	1.101 (0.015)	6.9126 (0.0010)	88630.15	88630.42	58.2	HCN 1→0 F=1→1
0.077 (0.008)	0.69 (0.21)	0.057 (0.016)	7.80 (0.03)	88631.32	88631.85	2.6	HCN 1→0 F=2→1
2.882 (0.009)	0.548 (0.005)	1.680 (0.014)	6.8721 (0.0006)	88631.59	88631.85	97.9	HCN 1→0 F=2→1
0.432 (0.010)	0.54 (0.04)	0.249 (0.014)	6.265 (0.004)	88631.77	88631.85	14.7	HCN 1→0 F=2→1
1.773 (0.009)	0.548 (0.008)	1.033 (0.014)	6.9929 (0.0009)	88633.65	88633.94	60.4	HCN 1→0 F=0→1
0.314 (0.013)	0.44 (0.05)	0.148 (0.015)	7.050 (0.006)	88865.39	88865.70	25.6	H¹⁵NC 1→0
0.024 (0.012)	2.3 (2.0)	0.06 (0.05)	2.20 (0.21)	89065.48	89064.35	1.3	CCCN N=9-8, J=17/2-15/2 (3 components)
0.028 (0.012)	4 (3)	0.13 (0.06)	1.64 (0.24)	89065.65	89064.35	1.6	CCCN N=9-8, J=17/2-15/2 (3 components)
0.122 (0.009)	0.91 (0.19)	0.118 (0.023)	8.043 (0.022)	89187.92	89188.53	6.4	HCO⁺ 1→0
2.715 (0.011)	0.678 (0.008)	1.961 (0.020)	6.7911 (0.0009)	89188.29	89188.53	142.9	HCO⁺ 1→0
0.493 (0.009)	0.93 (0.05)	0.490 (0.023)	6.237 (0.006)	89188.46	89188.53	25.9	HCO⁺ 1→0
1.014 (0.021)	0.68 (0.04)	0.73 (0.04)	7.449 (0.005)	90663.12	90663.56	29.8	HNC 1→0
4.593 (0.022)	0.614 (0.008)	3.00 (0.04)	6.7992 (0.0009)	90663.32	90663.56	135.1	HNC 1→0
0.44 (0.03)	0.31 (0.06)	0.15 (0.03)	6.172 (0.009)	90663.51	90663.56	13.1	HNC 1→0
0.086 (0.021)	0.4 (0.3)	0.041 (0.024)	7.13 (0.04)	90686.04	90686.38	6.0	CCS N=7-6, J=7-6
1.32 (0.04)	0.44 (0.04)	0.62 (0.05)	7.071 (0.004)	90978.67	90979.00	39.4	HC₃N 10→9 (3 components around)
0.157 (0.020)	0.46 (0.17)	0.08 (0.03)	7.064 (0.020)	91494.02	91494.35	8.9	c-C₃H 2(1,2)-1(1,1), J=5/2-3/2, F=3-2
0.085 (0.025)	0.29 (0.25)	0.026 (0.022)	7.21 (0.03)	91497.24	91497.61	4.9	c-C₃H 2(1,2)-1(1,1), J=5/2-3/2, F=2-1
0.079 (0.011)	0.7 (0.3)	0.055 (0.022)	6.95 (0.04)	92493.98	92494.27	6.0	¹³CS 2→1
0.027 (0.011)	2.7 (1.9)	0.08 (0.05)	1.52 (0.19)	92495.65	92494.27	2.0	¹³CS 2→1
0.075 (0.015)	0.45 (0.25)	0.036 (0.019)	7.13 (0.03)	92872.02	92872.38	6.7	DC₃N J=11-10 (5 components around)
0.060 (0.012)	0.6 (0.4)	0.040 (0.022)	7.15 (0.05)	92981.25	92981.60	5.4	HDCS 3(0,3)-2(0,2) ? (CH3OCHO)
1.870 (0.010)	0.841 (0.013)	1.674 (0.023)	6.7681 (0.0014)	93171.64	93171.88	15.9	N₂H⁺ 1→0 F=1→1
1.914 (0.013)	0.426 (0.009)	0.867 (0.016)	7.7960 (0.0010)	93173.14	93173.70	16.3	N₂H⁺ 1→0 F=1→2
1.932 (0.010)	0.956 (0.013)	1.967 (0.024)	6.7020 (0.0015)	93173.48	93173.70	16.4	N₂H⁺ 1→0 F=1→2
1.539 (0.013)	0.460 (0.011)	0.753 (0.017)	6.6317 (0.0013)	93175.93	93176.13	13.1	N₂H⁺ 1→0 F=1→0
0.027 (0.009)	1.3 (1.1)	0.04 (0.03)	7.25 (0.12)	93453.94	93454.33	2.8	CH₃CCD 6(1)-5(1)
0.03 (0.19)	0.2 (1.0)	0.005 (0.011)	4.0 (0.4)	93654.65	93654.02	2.6	C(51)</sup>\beta</sup>
0.288 (0.012)	0.53 (0.06)	0.162 (0.018)	7.081 (0.007)	93869.76	93870.10	29.4	C₂S N=7→6 J=8→7
0.071 (0.012)	0.7 (0.4)	0.051 (0.024)	7.12 (0.04)	95993.71	95994.06	5.5	c-HCCCD 2(1,1)-1(1,0)
0.12 (0.03)	0.5 (0.4)	0.07 (0.04)	6.99 (0.04)	96222.89	96223.2	0.7	Unidentified
0.24 (0.05)	1.2 (0.6)	0.32 (0.12)	6.99 (0.07)	96225.77	96226.1	1.3	Unidentified
0.278 (0.022)	0.68 (0.15)	0.20 (0.05)	7.016 (0.017)	96412.63	96412.95	9.0	C³⁴S 2→1
0.047 (0.011)	2.2 (0.9)	0.11 (0.04)	7.10 (0.11)	96425.26	96425.62	2.4	CH₃CHO 5_(2,4)→4_(2,3) (2)
0.265 (0.013)	0.79 (0.09)	0.222 (0.025)	7.073 (0.011)	96739.01	96739.36	20.7	CH₃OH 2_(-1,2)→1_(-1,1)
0.408 (0.012)	0.92 (0.07)	0.40 (0.03)	7.054 (0.008)	96741.03	96741.37	30.3	CH₃OH 2_(0,2)→1_(0,1) ++
0.039 (0.012)	0.7 (0.6)	0.029 (0.024)	5.94 (0.07)	96741.39	96741.37	2.9	CH₃OH 2_(0,2)→1_(0,1) ++
1.92 (0.08)	0.215 (0.011)	0.439 (0.021)	6.9826 (0.0011)	96909.64	96910.0	41.3	Unidentified 96.911 GHz
0.43 (0.04)	0.30 (0.07)	0.14 (0.03)	6.982 (0.008)	96924.64	96925.0	15.0	Unidentified 96.926 GHz
0.029 (0.015)	0.3 (0.6)	0.010 (0.017)	6.84 (0.07)	97080.46	97080.73	2.5	CH₂DCCH 6(0,6)-5(0,5)
0.35 (0.04)	0.56 (0.15)	0.21 (0.06)	7.856 (0.017)	97980.35	97980.95	11.2	CS 2→1
2.74 (0.03)	0.725 (0.022)	2.11 (0.06)	7.0053 (0.0025)	97980.62	97980.95	86.8	CS 2→1
0.84 (0.03)	0.86 (0.08)	0.77 (0.07)	6.320 (0.009)	97980.85	97980.95	26.5	CS 2→1
0.53 (0.03)	1.19 (0.15)	0.67 (0.08)	7.071 (0.017)	99299.54	99299.89	18.5	SO 3₍₂₎→2₍₁₎
0.16 (0.03)	1.2 (0.5)	0.20 (0.08)	6.51 (0.06)	99299.72	99299.89	5.7	SO 3₍₂₎→2₍₁₎
0.157 (0.025)	0.6 (0.3)	0.11 (0.05)	7.01 (0.04)	101477.47	101477.81	7.5	H₂CS 3_(1,3)→2_(1,2)
0.12 (0.04)	0.4 (0.4)	0.05 (0.04)	7.07 (0.04)	102545.66	102546.02	4.8	CH₃CCH 6₍₁₎→5₍₁₎
0.21 (0.04)	0.36 (0.18)	0.08 (0.04)	7.013 (0.022)	102547.64	102547.98	8.9	CH₃CCH 6₍₀₎→5₍₀₎
0.186 (0.016)	0.54 (0.13)	0.108 (0.023)	7.048 (0.015)	106347.36	106347.73	16.0	C₂S N=8→7 J=9→8
0.105 (0.023)	0.4 (0.3)	0.04 (0.04)	7.05 (0.04)	108779.82	108780.20	5.4	¹³CN N=1→0 J=3/2→1/2
0.08 (0.04)	0.3 (0.4)	0.03 (0.04)	7.23 (0.05)	108893.50	108893.95	3.4	CH₃OH 0_0,0→1_-1,1
0.70 (0.03)	0.47 (0.06)	0.35 (0.04)	7.048 (0.007)	109173.26	109173.64	28.1	HC₃N 12→11
0.10 (0.06)	0.8 (0.8)	0.09 (0.09)	6.87 (0.09)	109560.99	109561.3	1.8	Unidentified 109.560 GHz
0.07 (0.05)	0.3 (0.4)	0.02 (0.03)	4.87 (0.05)	109591.06	109590.65	3.5	C(55)</sup>\gamma</sup>
0.634 (0.023)	2.01 (0.14)	1.36 (0.08)	7.008 (0.015)	109781.81	109782.18	9.7	C¹⁸O 1→0
0.996 (0.023)	1.76 (0.09)	1.86 (0.08)	6.904 (0.009)	109781.85	109782.18	15.2	C¹⁸O 1→0
0.25 (0.03)	0.47 (0.14)	0.12 (0.04)	7.050 (0.017)	109905.37	109905.75	11.6	HNCO 5→4
0.12 (0.03)	0.41 (0.25)	0.06 (0.04)	7.25 (0.03)	110151.63	110152.09	5.8	NH₂D 1(1,1)0a-1(0,1)0s, F=0-1
0.17 (0.03)	0.39 (0.18)	0.07 (0.03)	7.125 (0.021)	110152.61	110153.02	7.6	NH₂D 1(1,1)0a-1(0,1)0s, F=2-1
0.464 (0.023)	0.57 (0.08)	0.28 (0.04)	7.122 (0.009)	110153.18	110153.59	21.0	NH₂D 1(1,1)0a-1(0,1)0s, F=2-2 & 1-1
0.19 (0.03)	0.40 (0.16)	0.08 (0.04)	7.052 (0.018)	110153.79	110154.17	8.6	NH₂D 1(1,1)0a-1(0,1)0s, F=1-2
0.162 (0.025)	0.42 (0.19)	0.07 (0.04)	7.004 (0.022)	110154.66	110155.03	7.3	NH₂D 1(1,1)0a-1(0,1)0s, F=1-0
3.25 (0.03)	2.55 (0.04)	8.82 (0.11)	7.006 (0.004)	110200.98	110201.35	16.4	¹³CO 1→0
3.82 (0.03)	2.79 (0.04)	11.35 (0.12)	6.888 (0.004)	110201.03	110201.35	19.2	¹³CO 1→0
0.09 (0.06)	0.2 (0.3)	0.023 (0.025)	5.35 (0.04)	110375.23	110374.99	4.0	CH₃CN 6₂→5₂

Backend 2mm (134.6 GHz)

Found 1 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.11 (0.04)	0.2 (0.3)	0.03 (0.04)	7.268 (0.023)	135297.69	135298.26	4.8	H₂CS 4(1,4)-3(1,3)

Backend 2mm (137.9 GHz)

Found 5 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.093 (0.021)	0.3 (0.4)	0.03 (0.04)	7.14 (0.03)	137370.69	137371.21	4.6	H₂CS 4(0,4)-3(0,3)
0.09 (0.04)	0.2 (0.4)	0.02 (0.03)	7.82 (0.03)	137552.91	137553.75	4.1	CaNC N=17-16, J=33/2-31/2 (3x)
0.239 (0.021)	0.79 (0.23)	0.20 (0.06)	6.951 (0.018)	138178.22	138178.66	11.6	SO 4₃→3₂
0.415 (0.020)	0.06 (0.04)	0.027 (0.016)	7.13 (0.06)	138254.01	138254.5	20.4	Unidentified 138.254 GHz
0.12 (0.04)	0.15 (0.20)	0.018 (0.024)	7.128 (0.021)	138504.00	138504.5	5.7	Unidentified 138.504 GHz

Backend 2mm (144.1 GHz)

Found 9 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.2 (0.3)	0.11 (0.16)	0.020 (0.024)	7.026 (0.022)	143223.41	143223.9	8.9	Unidentified 143.224 GHz
0.789 (0.021)	0.058 (0.019)	0.048 (0.016)	7.03 (0.05)	143229.42	143229.9	49.5	Unidentified 143.229 GHz
0.134 (0.017)	0.8 (0.4)	0.12 (0.05)	7.16 (0.03)	144076.73	144077.29	6.2	DCO⁺ J=2-1 (multiple components around)
1.883 (0.018)	0.447 (0.019)	0.90 (0.04)	7.0201 (0.0014)	144076.80	144077.29	87.9	DCO⁺ J=2-1 (multiple components around)
0.101 (0.019)	0.5 (0.4)	0.05 (0.04)	6.92 (0.03)	144616.66	144617.10	5.7	C³⁴S 3→2
0.14 (0.03)	0.25 (0.19)	0.04 (0.03)	7.015 (0.015)	144826.31	144826.8	6.4	Unidentified 144.828 GHz
0.380 (0.018)	0.47 (0.10)	0.19 (0.04)	6.837 (0.008)	144827.60	144828.00	16.7	DCN 2→1
0.846 (0.019)	1.52 (0.09)	1.37 (0.08)	7.014 (0.006)	144912.72	144913.2	26.0	Unidentified 144.914 GHz
1.180 (0.019)	2.42 (0.09)	3.04 (0.09)	7.014 (0.006)	144913.07	144913.6	36.3	Unidentified 144.914 GHz

Backend 2mm (147.3 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
1.528 (0.018)	0.58 (0.03)	0.95 (0.05)	6.9734 (0.0020)	146968.55	146969.03	47.6	CS 3→2
0.433 (0.018)	1.41 (0.16)	0.65 (0.07)	6.771 (0.011)	146968.65	146969.03	13.5	CS 3→2
0.053 (0.018)	0.3 (0.6)	0.02 (0.03)	7.06 (0.04)	148220.93	148221.45	3.2	HCNH⁺ J=2-1

Backend 2mm (168.2 GHz)
