DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B1B-CAL--20_0

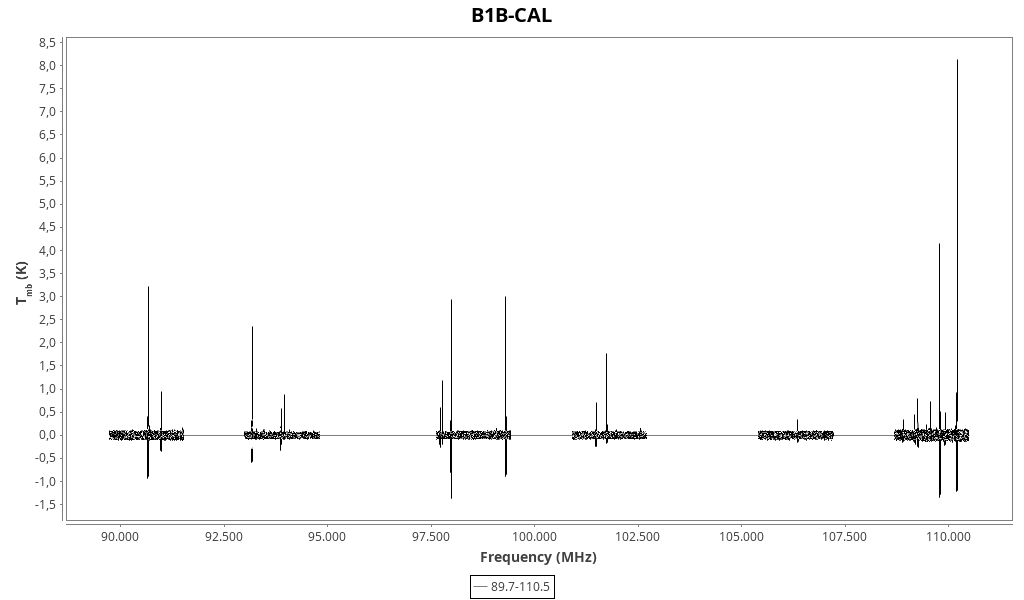

Backend 3mm (89.7-110.5 GHz)

Found 55 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
1.52 (0.04) 1.11 (0.06) 1.81 (0.09) 7.091 (0.006) 90663.38 90663.56 45.5 HNC 1→0 b1b-cal--20_0:3mm_red_0.png b1b-cal--20_0:3mm_ori_0.png
3.15 (0.04) 0.731 (0.022) 2.45 (0.07) 5.8545 (0.0024) 90663.76 90663.56 92.4 HNC 1→0 b1b-cal--20_0:3mm_red_1.png b1b-cal--20_0:3mm_ori_1.png
0.19 (0.04) 0.5 (0.3) 0.09 (0.05) 6.55 (0.03) 90686.36 90686.38 6.5 CCS N=7-6, J=7-6 b1b-cal--20_0:3mm_red_2.png b1b-cal--20_0:3mm_ori_2.png
0.30 (0.04) 0.09 (0.08) 0.030 (0.025) 9.31 (0.08) 90978.15 90979.00 9.1 HC3N 10→9 (3 components around) b1b-cal--20_0:3mm_red_3.png b1b-cal--20_0:3mm_ori_3.png
0.21 (0.04) 0.5 (0.3) 0.12 (0.06) 6.87 (0.04) 90978.89 90979.00 6.3 HC3N 10→9 (3 components around) b1b-cal--20_0:3mm_red_4.png b1b-cal--20_0:3mm_ori_4.png
0.94 (0.04) 0.64 (0.07) 0.64 (0.07) 6.222 (0.008) 90979.08 90979.00 28.9 HC3N 10→9 (3 components around) b1b-cal--20_0:3mm_red_5.png b1b-cal--20_0:3mm_ori_5.png
0.15 (0.05) 0.5 (0.5) 0.08 (0.07) 6.43 (0.06) 91494.37 91494.35 3.3 c-C3H 2(1,2)-1(1,1), J=5/2-3/2, F=3-2 b1b-cal--20_0:3mm_red_6.png b1b-cal--20_0:3mm_ori_6.png
2.010 (0.024) 1.26 (0.04) 2.69 (0.07) 6.135 (0.004) 93171.99 93171.88 15.4 N2H+ 1→0 F=1→1 b1b-cal--20_0:3mm_red_7.png b1b-cal--20_0:3mm_ori_7.png
2.234 (0.024) 1.98 (0.05) 4.71 (0.09) 6.356 (0.005) 93173.74 93173.70 17.2 N2H+ 1→0 F=1→2 b1b-cal--20_0:3mm_red_8.png b1b-cal--20_0:3mm_ori_8.png
1.33 (0.03) 0.50 (0.04) 0.71 (0.05) 6.161 (0.004) 93176.24 93176.13 10.2 N2H+ 1→0 F=1→0 b1b-cal--20_0:3mm_red_9.png b1b-cal--20_0:3mm_ori_9.png
1.00 (0.03) 0.40 (0.04) 0.43 (0.04) 5.751 (0.005) 93176.36 93176.13 7.7 N2H+ 1→0 F=1→0 b1b-cal--20_0:3mm_red_10.png b1b-cal--20_0:3mm_ori_10.png
0.14 (0.05) 0.4 (0.4) 0.06 (0.05) 6.37 (0.05) 93267.35 93267.3 4.4 Unidentified b1b-cal--20_0:3mm_red_11.png b1b-cal--20_0:3mm_ori_11.png
0.07 (0.03) 4 (3) 0.32 (0.16) 3.37 (0.24) 93457.02 93456.04 1.7 CH3CCD 6(0)-5(0) b1b-cal--20_0:3mm_red_12.png b1b-cal--20_0:3mm_ori_12.png
0.10 (0.03) 0.5 (0.5) 0.05 (0.05) 6.21 (0.06) 93580.95 93580.86 3.8 CH3CHO 5(1,5)→4(1,4) (1) b1b-cal--20_0:3mm_red_13.png b1b-cal--20_0:3mm_ori_13.png
0.056 (0.012) 2.5 (0.9) 0.15 (0.05) 2.37 (0.09) 93849.98 93848.69 1.4 CNCHO 17(1,16)-17(0,17) b1b-cal--20_0:3mm_red_14.png b1b-cal--20_0:3mm_ori_14.png
0.110 (0.017) 4.3 (1.1) 0.51 (0.09) 10.00 (0.09) 93850.97 93852.07 2.9 34SO2 17(5,13)-18(4,14) b1b-cal--20_0:3mm_red_15.png b1b-cal--20_0:3mm_ori_15.png
0.143 (0.012) 2.8 (0.4) 0.43 (0.05) 6.37 (0.04) 93854.42 93854.4 3.0 Unidentified 93.853 GHz b1b-cal--20_0:3mm_red_16.png b1b-cal--20_0:3mm_ori_16.png
0.055 (0.014) 0.4 (0.4) 0.023 (0.019) 6.37 (0.05) 93856.07 93856.0 1.1 Unidentified 93.857 GHz b1b-cal--20_0:3mm_red_17.png b1b-cal--20_0:3mm_ori_17.png
0.51 (0.03) 0.76 (0.11) 0.41 (0.06) 6.477 (0.012) 93870.11 93870.10 22.1 C2S N=7→6 J=8→7 b1b-cal--20_0:3mm_red_18.png b1b-cal--20_0:3mm_ori_18.png
0.10 (0.03) 0.5 (0.5) 0.06 (0.05) 6.23 (0.06) 93870.18 93870.10 4.4 C2S N=7→6 J=8→7 b1b-cal--20_0:3mm_red_19.png b1b-cal--20_0:3mm_ori_19.png
0.35 (0.04) 2.1 (0.4) 0.78 (0.12) 6.37 (0.04) 93955.90 93955.9 2.5 Unidentified 93.956 GHz b1b-cal--20_0:3mm_red_20.png b1b-cal--20_0:3mm_ori_20.png
0.73 (0.04) 4.6 (0.3) 3.59 (0.18) 6.37 (0.03) 93956.58 93956.5 5.2 Unidentified 93.956 GHz b1b-cal--20_0:3mm_red_21.png b1b-cal--20_0:3mm_ori_21.png
0.27 (0.04) 3.6 (0.7) 1.03 (0.15) 6.37 (0.07) 93957.87 93957.8 1.9 Unidentified 93.959 GHz b1b-cal--20_0:3mm_red_22.png b1b-cal--20_0:3mm_ori_22.png
0.06 (0.04) 0.4 (0.7) 0.02 (0.04) 6.37 (0.07) 94084.85 94084.8 2.4 Unidentified 94.084 GHz b1b-cal--20_0:3mm_red_23.png b1b-cal--20_0:3mm_ori_23.png
0.59 (0.03) 0.70 (0.09) 0.44 (0.06) 6.604 (0.011) 97715.37 97715.40 21.9 34SO 3(2)→2(1) b1b-cal--20_0:3mm_red_24.png b1b-cal--20_0:3mm_ori_24.png
1.37 (0.06) 0.221 (0.021) 0.32 (0.03) 6.238 (0.003) 97762.07 97761.99 57.5 c-C3D2 3→2 b1b-cal--20_0:3mm_red_25.png b1b-cal--20_0:3mm_ori_25.png
1.537 (0.024) 1.06 (0.05) 1.73 (0.07) 7.047 (0.005) 97980.77 97980.95 50.5 CS 2→1 b1b-cal--20_0:3mm_red_26.png b1b-cal--20_0:3mm_ori_26.png
2.74 (0.03) 0.610 (0.018) 1.78 (0.05) 6.0686 (0.0019) 97981.09 97980.95 90.5 CS 2→1 b1b-cal--20_0:3mm_red_27.png b1b-cal--20_0:3mm_ori_27.png
0.28 (0.04) 0.39 (0.14) 0.12 (0.04) 5.522 (0.017) 97981.27 97980.95 9.3 CS 2→1 b1b-cal--20_0:3mm_red_28.png b1b-cal--20_0:3mm_ori_28.png
0.07 (0.03) 0.7 (0.9) 0.06 (0.07) 6.58 (0.09) 98863.30 98863.33 2.8 CH3CHO 5(1,4)→4(1,3) (1) b1b-cal--20_0:3mm_red_29.png b1b-cal--20_0:3mm_ori_29.png
1.43 (0.04) 0.58 (0.04) 0.89 (0.06) 6.976 (0.005) 99299.73 99299.89 37.9 SO 3(2)→2(1) b1b-cal--20_0:3mm_red_30.png b1b-cal--20_0:3mm_ori_30.png
3.06 (0.03) 0.807 (0.021) 2.63 (0.07) 6.3899 (0.0023) 99299.93 99299.89 80.7 SO 3(2)→2(1) b1b-cal--20_0:3mm_red_31.png b1b-cal--20_0:3mm_ori_31.png
0.69 (0.03) 0.71 (0.08) 0.53 (0.06) 6.538 (0.009) 101477.80 101477.81 29.6 H2CS 3(1,3)→2(1,2) b1b-cal--20_0:3mm_red_32.png b1b-cal--20_0:3mm_ori_32.png
0.13 (0.04) 0.4 (0.3) 0.05 (0.04) 6.16 (0.04) 101477.93 101477.81 5.6 H2CS 3(1,3)→2(1,2) b1b-cal--20_0:3mm_red_33.png b1b-cal--20_0:3mm_ori_33.png
0.46 (0.07) 1.8 (0.6) 0.88 (0.22) 6.39 (0.07) 101737.21 101737.17 0.9 CH3OH 9(-2,8)-9(1,8) b1b-cal--20_0:3mm_red_34.png b1b-cal--20_0:3mm_ori_34.png
0.64 (0.07) 3.8 (0.6) 2.6 (0.4) -0.15 (0.06) 101739.43 101737.17 1.3 CH3OH 9(-2,8)-9(1,8) b1b-cal--20_0:3mm_red_35.png b1b-cal--20_0:3mm_ori_35.png
0.110 (0.025) 0.8 (0.6) 0.10 (0.06) 6.37 (0.06) 101981.47 101981.43 4.3 H2CCO 5(1,4)→4(1,3) b1b-cal--20_0:3mm_red_36.png b1b-cal--20_0:3mm_ori_36.png
0.09 (0.03) 0.8 (0.7) 0.08 (0.06) 6.36 (0.07) 102546.07 102546.02 3.6 CH3CCH 6(1)→5(1) b1b-cal--20_0:3mm_red_37.png b1b-cal--20_0:3mm_ori_37.png
0.16 (0.03) 0.7 (0.4) 0.11 (0.06) 6.18 (0.04) 102548.09 102547.98 6.3 CH3CCH 6(0)→5(0) b1b-cal--20_0:3mm_red_38.png b1b-cal--20_0:3mm_ori_38.png
0.33 (0.03) 0.70 (0.18) 0.25 (0.06) 6.384 (0.019) 106347.77 106347.73 11.2 C2S N=8→7 J=9→8 b1b-cal--20_0:3mm_red_39.png b1b-cal--20_0:3mm_ori_39.png
0.13 (0.06) 0.3 (0.4) 0.03 (0.05) 8.79 (0.04) 108893.11 108893.95 3.5 CH3OH 00,0→1-1,1 b1b-cal--20_0:3mm_red_40.png b1b-cal--20_0:3mm_ori_40.png
0.32 (0.04) 0.71 (0.23) 0.24 (0.08) 6.509 (0.025) 108893.94 108893.95 8.9 CH3OH 00,0→1-1,1 b1b-cal--20_0:3mm_red_41.png b1b-cal--20_0:3mm_ori_41.png
0.46 (0.05) 0.60 (0.19) 0.30 (0.09) 6.174 (0.020) 109173.76 109173.64 9.3 HC3N 12→11 b1b-cal--20_0:3mm_red_42.png b1b-cal--20_0:3mm_ori_42.png
0.76 (0.04) 0.80 (0.12) 0.65 (0.09) 6.612 (0.013) 109252.14 109252.18 19.7 SO 23→12 b1b-cal--20_0:3mm_red_43.png b1b-cal--20_0:3mm_ori_43.png
0.10 (0.04) 0.9 (0.9) 0.10 (0.09) 6.16 (0.10) 109252.31 109252.18 2.6 SO 23→12 b1b-cal--20_0:3mm_red_44.png b1b-cal--20_0:3mm_ori_44.png
0.22 (0.05) 0.6 (0.4) 0.14 (0.09) 6.52 (0.05) 109463.05 109463.06 5.4 OCS 9→8 b1b-cal--20_0:3mm_red_45.png b1b-cal--20_0:3mm_ori_45.png
0.31 (0.05) 2.3 (0.6) 0.75 (0.16) 6.39 (0.06) 109560.51 109560.5 7.3 Unidentified 109.560 GHz b1b-cal--20_0:3mm_red_46.png b1b-cal--20_0:3mm_ori_46.png
0.37 (0.05) 4.2 (0.8) 1.64 (0.21) 6.39 (0.07) 109560.77 109560.7 8.7 Unidentified 109.560 GHz b1b-cal--20_0:3mm_red_47.png b1b-cal--20_0:3mm_ori_47.png
0.44 (0.05) 0.63 (0.18) 0.29 (0.08) 7.385 (0.021) 109781.85 109782.18 10.0 C18O 1→0 b1b-cal--20_0:3mm_red_48.png b1b-cal--20_0:3mm_ori_48.png
3.64 (0.04) 0.818 (0.024) 3.17 (0.09) 6.664 (0.003) 109782.12 109782.18 83.2 C18O 1→0 b1b-cal--20_0:3mm_red_49.png b1b-cal--20_0:3mm_ori_49.png
0.57 (0.04) 1.44 (0.22) 0.87 (0.12) 6.338 (0.022) 109782.24 109782.18 12.9 C18O 1→0 b1b-cal--20_0:3mm_red_50.png b1b-cal--20_0:3mm_ori_50.png
0.45 (0.05) 0.77 (0.20) 0.37 (0.09) 6.301 (0.022) 109905.82 109905.75 11.1 HNCO 5→4 b1b-cal--20_0:3mm_red_51.png b1b-cal--20_0:3mm_ori_51.png
0.19 (0.04) 0.6 (0.4) 0.12 (0.08) 6.40 (0.05) 110153.63 110153.59 4.5 NH2D 1(1,1)0a-1(0,1)0s, F=2-2 & 1-1 b1b-cal--20_0:3mm_red_52.png b1b-cal--20_0:3mm_ori_52.png
5.69 (0.05) 1.558 (0.025) 9.43 (0.13) 6.7986 (0.0025) 110201.24 110201.35 35.3 13CO 1→0 b1b-cal--20_0:3mm_red_53.png b1b-cal--20_0:3mm_ori_53.png
3.57 (0.05) 2.85 (0.06) 10.83 (0.18) 6.098 (0.006) 110201.50 110201.35 22.2 13CO 1→0 b1b-cal--20_0:3mm_red_54.png b1b-cal--20_0:3mm_ori_54.png

Backend 1mm (215.9-220.9 GHz)

Found 12 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.98 (0.09) 0.48 (0.22) 0.50 (0.23) 6.651 (0.011) 216112.47 216112.58 14.3 DCO+ J=3-2 (multiple components around) b1b-cal--20_0:1mm_red_0.png b1b-cal--20_0:1mm_ori_0.png
1.79 (0.09) 0.40 (0.11) 0.77 (0.21) 6.186 (0.006) 216112.81 216112.58 25.9 DCO+ J=3-2 (multiple components around) b1b-cal--20_0:1mm_red_1.png b1b-cal--20_0:1mm_ori_1.png
0.47 (0.11) 0.2 (0.3) 0.09 (0.13) 6.112 (0.013) 216279.04 216278.76 5.9 c-HCCCH 3(3,0)-2(2,1) b1b-cal--20_0:1mm_red_2.png b1b-cal--20_0:1mm_ori_2.png
0.40 (0.15) 0.1 (0.3) 0.06 (0.12) 6.488 (0.014) 216794.98 216795.0 4.5 Unidentified 216.795 GHz b1b-cal--20_0:1mm_red_3.png b1b-cal--20_0:1mm_ori_3.png
1.13 (0.16) 0.10 (0.09) 0.12 (0.11) 6.488 (0.005) 217219.96 217220.0 14.1 Unidentified 217.220 GHz b1b-cal--20_0:1mm_red_4.png b1b-cal--20_0:1mm_ori_4.png
1.95 (0.06) 0.73 (0.09) 1.51 (0.20) 6.655 (0.005) 219560.25 219560.36 27.1 C18O 2→1 b1b-cal--20_0:1mm_red_5.png b1b-cal--20_0:1mm_ori_5.png
1.41 (0.06) 1.08 (0.17) 1.62 (0.24) 6.488 (0.008) 219560.37 219560.36 19.2 C18O 2→1 b1b-cal--20_0:1mm_red_6.png b1b-cal--20_0:1mm_ori_6.png
0.56 (0.06) 0.46 (0.25) 0.27 (0.15) 6.696 (0.013) 219949.30 219949.44 10.7 SO 65 →54 b1b-cal--20_0:1mm_red_7.png b1b-cal--20_0:1mm_ori_7.png
0.31 (0.06) 0.4 (0.4) 0.12 (0.13) 6.304 (0.020) 219949.58 219949.44 5.7 SO 65 →54 b1b-cal--20_0:1mm_red_8.png b1b-cal--20_0:1mm_ori_8.png
4.88 (0.06) 1.33 (0.06) 6.91 (0.25) 6.9196 (0.0024) 220398.37 220398.68 37.8 13CO 2→1 b1b-cal--20_0:1mm_red_9.png b1b-cal--20_0:1mm_ori_9.png
2.97 (0.06) 0.89 (0.07) 2.81 (0.21) 6.039 (0.004) 220399.02 220398.68 23.1 13CO 2→1 b1b-cal--20_0:1mm_red_10.png b1b-cal--20_0:1mm_ori_10.png
0.87 (0.06) 0.92 (0.24) 0.85 (0.21) 4.927 (0.011) 220399.84 220398.68 6.8 13CO 2→1 b1b-cal--20_0:1mm_red_11.png b1b-cal--20_0:1mm_ori_11.png
