B213-C5-6-0_0

DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B213-C5-6-0_0

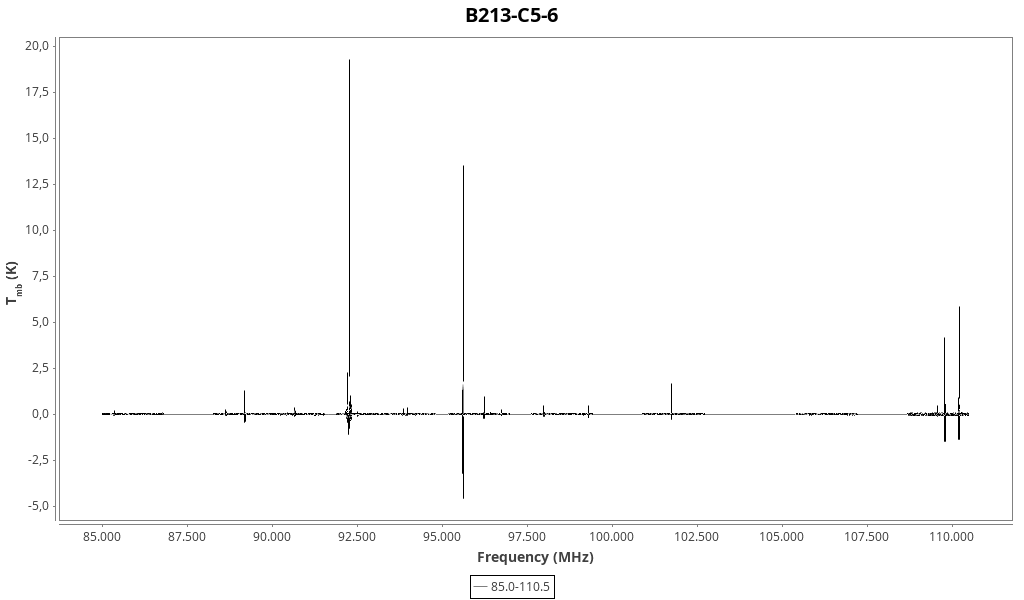

Backend 3mm (85.0-110.5 GHz)

Found 67 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.205 (0.017)	0.35 (0.09)	0.076 (0.018)	7.285 (0.009)	85338.39	85338.90	17.1	c-C₃H₂ 2_1,2→1_0,1
0.051 (0.013)	0.6 (0.4)	0.033 (0.021)	7.53 (0.05)	86670.21	86670.80	4.5	HCO 1_0,1→0_0,0 J=3/2→1/2 F=2→1
0.111 (0.013)	0.41 (0.15)	0.049 (0.017)	7.199 (0.017)	86753.80	86754.29	10.0	H¹³CO⁺ 1→0
0.128 (0.009)	0.84 (0.16)	0.114 (0.020)	7.097 (0.017)	88629.95	88630.42	11.2	HCN 1→0 F=1→1
0.233 (0.009)	0.09 (0.03)	0.023 (0.007)	7.66 (0.08)	88631.21	88631.85	20.4	HCN 1→0 F=2→1
0.216 (0.009)	0.86 (0.09)	0.198 (0.021)	7.054 (0.011)	88631.39	88631.85	19.0	HCN 1→0 F=2→1
0.041 (0.011)	0.5 (0.4)	0.022 (0.016)	7.52 (0.05)	88633.34	88633.94	3.6	HCN 1→0 F=0→1
0.126 (0.011)	0.46 (0.12)	0.061 (0.015)	7.043 (0.013)	88633.48	88633.94	11.1	HCN 1→0 F=0→1
0.023 (0.012)	0.3 (0.5)	0.006 (0.012)	5.73 (0.07)	89045.51	89045.58	2.5	CCCN N=9-8, J=19/2-17/2 (3 components)
0.302 (0.014)	0.45 (0.06)	0.146 (0.018)	7.656 (0.007)	89187.88	89188.53	20.2	HCO⁺ 1→0
1.316 (0.014)	0.426 (0.013)	0.597 (0.018)	7.0214 (0.0015)	89188.07	89188.53	88.2	HCO⁺ 1→0
0.173 (0.016)	0.32 (0.09)	0.060 (0.016)	6.587 (0.011)	89188.20	89188.53	11.6	HCO⁺ 1→0
0.064 (0.012)	0.5 (0.3)	0.034 (0.018)	2.72 (0.04)	89199.37	89198.54	1.4	H(59)</sup>\gamma</sup>
0.093 (0.010)	0.69 (0.23)	0.068 (0.021)	1.79 (0.03)	89199.64	89198.54	2.0	H(59)</sup>\gamma</sup>
0.502 (0.009)	0.040 (0.012)	0.021 (0.005)	Unavailable	90004.12	Unavailable	62.1	¹³CO 1→0 (image band)
0.221 (0.015)	1.02 (0.17)	0.24 (0.04)	7.188 (0.019)	90663.05	90663.56	12.2	HNC 1→0
0.087 (0.015)	2.4 (0.8)	0.22 (0.06)	6.53 (0.07)	90663.25	90663.56	4.8	HNC 1→0
0.23 (0.09)	0.20 (0.21)	0.05 (0.06)	7.10 (0.04)	92168.58	92169.1	5.6	Unidentified
1.5 (0.4)	0.18 (0.11)	0.29 (0.16)	7.098 (0.021)	92201.25	92201.7	27.1	Unidentified
2.3 (0.3)	0.19 (0.07)	0.46 (0.17)	7.098 (0.013)	92201.73	92202.2	41.1	Unidentified
0.43 (0.06)	0.02 (0.05)	0.010 (0.023)	7.10 (0.08)	92202.22	92202.7	7.7	Unidentified
2.24 (0.07)	0.088 (0.022)	0.21 (0.06)	7.10 (0.08)	92219.24	92219.7	60.5	Unidentified
3.68 (0.07)	0.090 (0.014)	0.35 (0.06)	7.10 (0.08)	92219.73	92220.2	107.5	Unidentified
50.0 (1.1)	0.058 (0.013)	3.1 (0.7)	7.10 (0.08)	92258.49	92259.0	1348.6	Unidentified
10.4 (1.1)	0.10 (0.08)	1.1 (0.9)	7.10 (0.08)	92258.63	92259.1	281.0	Unidentified
0.66 (0.19)	0.17 (0.13)	0.12 (0.09)	7.10 (0.03)	92277.96	92278.4	9.0	Unidentified
2.4 (0.5)	0.22 (0.09)	0.58 (0.22)	7.097 (0.010)	92279.39	92279.9	31.7	Unidentified
2.2 (0.4)	0.18 (0.09)	0.42 (0.20)	7.097 (0.018)	92279.86	92280.4	28.6	Unidentified
0.54 (0.09)	0.03 (0.07)	0.02 (0.04)	7.09698 (0.00013)	92280.35	92280.8	6.9	Unidentified
0.59 (0.15)	0.21 (0.16)	0.14 (0.10)	7.097 (0.023)	92281.32	92281.8	6.9	Unidentified
1.01 (0.16)	0.22 (0.11)	0.23 (0.12)	7.097 (0.016)	92297.39	92297.9	17.2	Unidentified
4.08 (0.09)	0.094 (0.018)	0.41 (0.08)	7.10 (0.08)	92297.86	92298.4	70.6	Unidentified
0.19 (0.08)	0.18 (0.19)	0.04 (0.04)	7.10 (0.04)	92311.99	92312.5	4.3	Unidentified
0.30 (0.06)	0.5 (0.4)	0.16 (0.11)	7.10 (0.04)	92312.54	92313.0	6.6	Unidentified
0.52 (0.04)	0.06 (0.05)	0.032 (0.020)	7.10 (0.08)	92313.91	92314.4	10.8	Unidentified
0.32 (0.10)	0.21 (0.20)	0.07 (0.07)	7.10 (0.03)	92314.38	92314.9	6.5	Unidentified
0.42 (0.18)	0.15 (0.13)	0.07 (0.06)	7.10 (0.05)	92315.56	92316.0	8.0	Unidentified
0.51 (0.13)	0.20 (0.15)	0.11 (0.08)	7.10 (0.03)	92317.76	92318.2	9.5	Unidentified
0.148 (0.022)	0.20 (0.09)	0.031 (0.014)	7.093 (0.015)	92496.58	92497.1	15.3	Unidentified
0.031 (0.007)	1.0 (0.6)	0.034 (0.016)	6.87 (0.06)	93171.45	93171.88	4.7	N₂H⁺ 1→0 F=1→1
0.034 (0.007)	1.9 (0.7)	0.067 (0.022)	7.23 (0.07)	93173.16	93173.70	5.1	N₂H⁺ 1→0 F=1→2
0.026 (0.010)	0.3 (0.4)	0.007 (0.009)	6.82 (0.04)	93175.72	93176.13	4.0	N₂H⁺ 1→0 F=1→0
0.128 (0.013)	4.4 (0.7)	0.59 (0.07)	4.03 (0.06)	93849.15	93848.69	9.7	CNCHO 17(1,16)-17(0,17)
0.160 (0.013)	1.31 (0.23)	0.22 (0.04)	3.788 (0.024)	93849.23	93848.69	12.2	CNCHO 17(1,16)-17(0,17)
0.222 (0.013)	1.05 (0.15)	0.25 (0.04)	5.312 (0.016)	93959.99	93959.93	18.5	CH₃OOH (2)
0.149 (0.013)	3.8 (0.5)	0.60 (0.07)	5.27 (0.05)	93960.00	93959.93	12.4	CH₃OOH (2)
0.040 (0.016)	0.3 (0.4)	0.013 (0.016)	7.61 (0.05)	94083.03	94083.69	3.2	ONCN 9-8 in atmosphere ?
13.3 (1.7)	1.2 (0.4)	17 (5)	7.04 (0.04)	95606.44	95606.9	23.9	Unidentified
8.2 (1.2)	1.2 (0.4)	11 (4)	7.04 (0.05)	95616.66	95617.1	10.4	Unidentified
0.73 (0.11)	1.7 (0.5)	1.3 (0.4)	7.03 (0.05)	96232.87	96233.4	18.9	Unidentified
0.070 (0.008)	0.64 (0.23)	0.047 (0.017)	7.078 (0.025)	96412.44	96412.95	8.2	C³⁴S 2→1
0.180 (0.009)	0.55 (0.09)	0.105 (0.015)	7.103 (0.009)	96738.84	96739.36	23.2	CH₃OH 2_(-1,2)→1_(-1,1)
0.243 (0.009)	0.55 (0.07)	0.144 (0.015)	7.092 (0.007)	96740.86	96741.37	31.3	CH₃OH 2_(0,2)→1_(0,1) ++
0.397 (0.012)	0.83 (0.07)	0.35 (0.03)	7.094 (0.008)	97980.43	97980.95	27.3	CS 2→1
0.052 (0.012)	3.0 (1.1)	0.17 (0.05)	6.93 (0.11)	97980.49	97980.95	3.6	CS 2→1
0.472 (0.016)	0.53 (0.06)	0.264 (0.025)	7.077 (0.006)	99299.37	99299.89	27.2	SO 3₍₂₎→2₍₁₎
0.056 (0.015)	0.5 (0.5)	0.028 (0.024)	6.09 (0.05)	99299.70	99299.89	3.2	SO 3₍₂₎→2₍₁₎
0.033 (0.011)	0.5 (0.6)	0.017 (0.018)	7.02 (0.07)	101477.30	101477.81	3.4	H₂CS 3_(1,3)→2_(1,2)
0.12 (0.04)	2.5 (1.5)	0.31 (0.16)	4.30 (0.15)	101745.37	101744.97	0.3	D₂CO 10(2,8)-10(2,9)
0.113 (0.018)	1.7 (0.6)	0.20 (0.06)	6.85 (0.06)	109564.25	109564.7	5.3	Unidentified 109.563 GHz
0.408 (0.018)	1.98 (0.17)	0.86 (0.07)	6.845 (0.017)	109564.91	109565.4	18.5	Unidentified 109.563 GHz
0.085 (0.018)	0.8 (0.5)	0.07 (0.04)	6.85 (0.05)	109565.47	109566.0	3.9	Unidentified 109.563 GHz
4.356 (0.021)	0.648 (0.009)	3.01 (0.04)	7.1952 (0.0010)	109781.56	109782.18	132.4	C¹⁸O 1→0
1.32 (0.04)	0.236 (0.018)	0.332 (0.024)	6.9073 (0.0022)	109781.66	109782.18	40.1	C¹⁸O 1→0
5.784 (0.021)	0.760 (0.008)	4.68 (0.05)	7.3989 (0.0009)	110200.65	110201.35	41.7	¹³CO 1→0
4.527 (0.023)	0.598 (0.009)	2.88 (0.05)	6.8487 (0.0010)	110200.86	110201.35	32.6	¹³CO 1→0
1.555 (0.021)	0.79 (0.04)	1.31 (0.05)	5.992 (0.004)	110201.17	110201.35	11.2	¹³CO 1→0

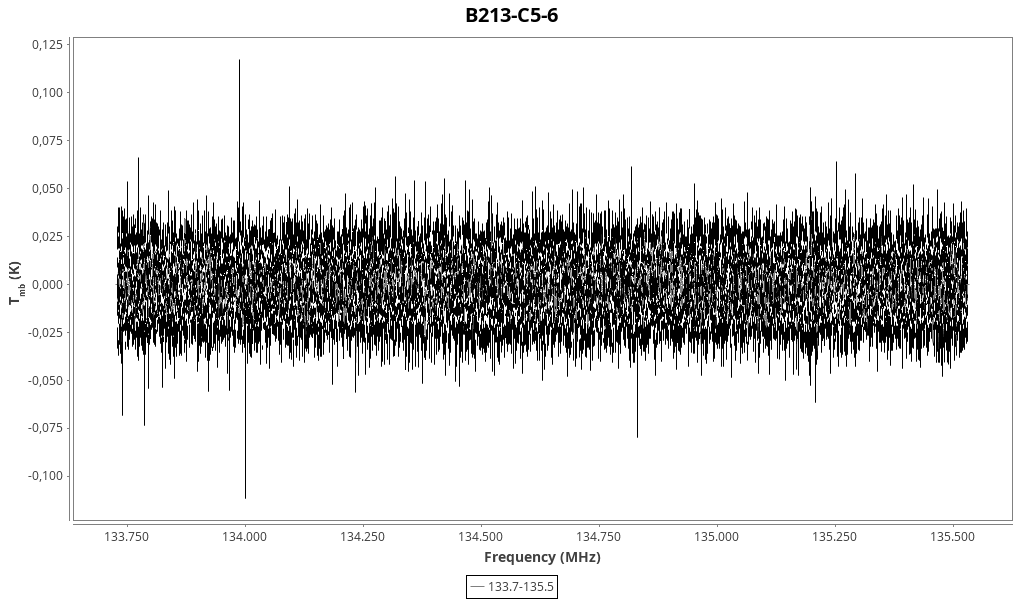

Backend 2mm (134.6 GHz)

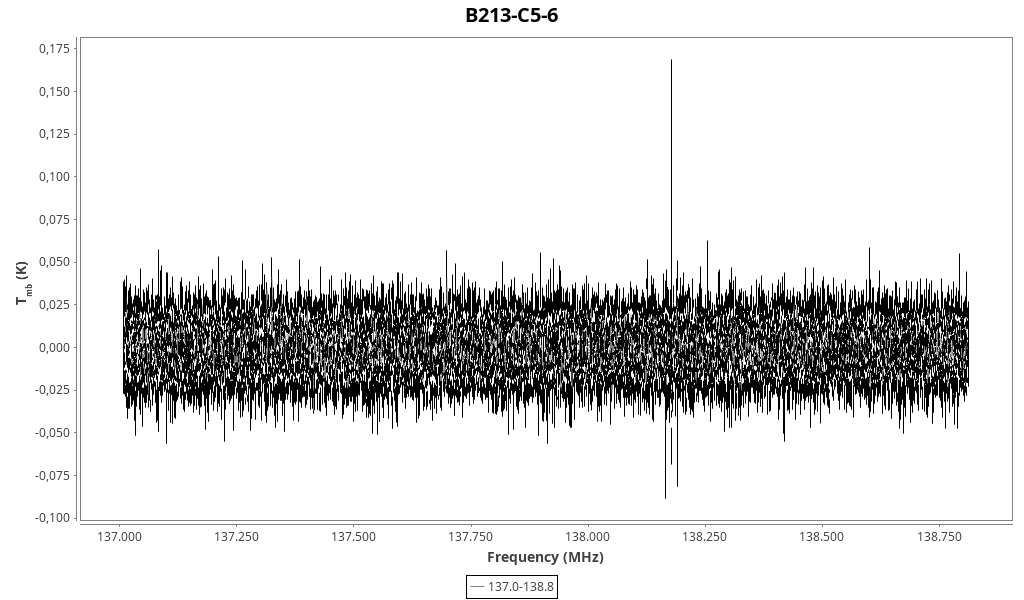

Backend 2mm (137.9 GHz)

Found 1 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.164 (0.021)	0.33 (0.19)	0.06 (0.04)	7.096 (0.016)	138177.92	138178.66	8.4	SO 4₃→3₂

Backend 2mm (144.1 GHz)

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.180 (0.019)	0.62 (0.25)	0.12 (0.05)	7.066 (0.018)	146968.26	146969.03	9.0	CS 3→2
0.3 (1.6)	0.03 (0.13)	0.010 (0.017)	7.05 (0.05)	148162.85	148163.6	19.5	Unidentified

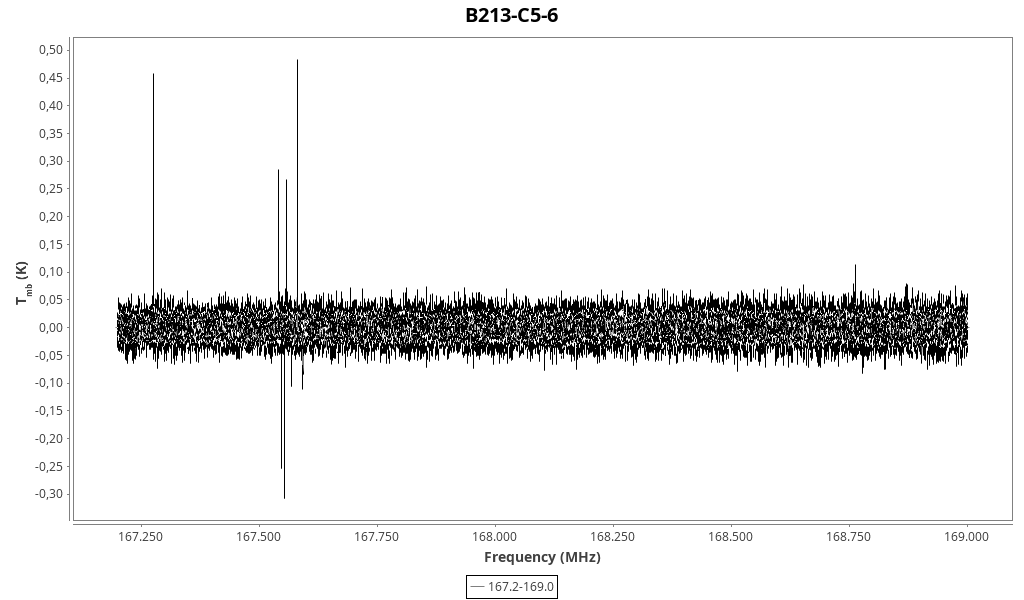

Backend 2mm (168.1 GHz)

Found 5 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.54 (0.10)	0.11 (0.07)	0.06 (0.04)	6.962 (0.007)	167275.06	167275.9	25.0	Unidentified
0.31 (0.13)	0.09 (0.09)	0.03 (0.04)	6.959 (0.023)	167540.58	167541.4	13.8	Unidentified
0.27 (0.09)	0.09 (0.12)	0.03 (0.04)	6.959 (0.020)	167558.59	167559.4	12.5	Unidentified
0.41 (0.06)	1.1 (0.6)	0.47 (0.21)	6.96 (0.04)	167580.54	167581.4	16.1	Unidentified
0.11 (0.04)	0.3 (0.4)	0.03 (0.05)	6.949 (0.025)	168761.94	168762.75	4.3	H₂S 1_(1,0)→1_(0,1)
