TMC1-C2-30_0

DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

TMC1-C2-30_0

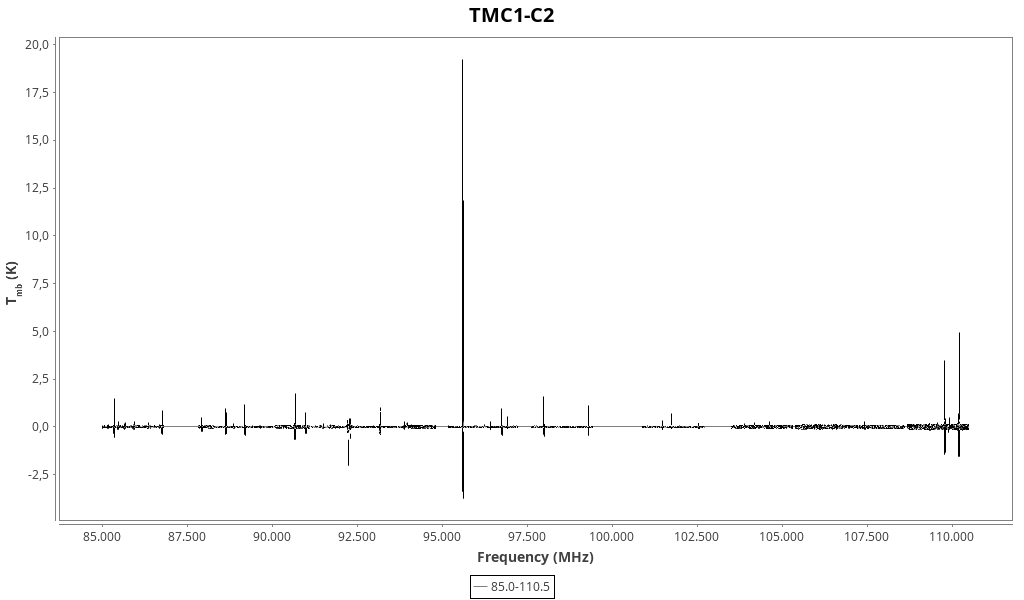

Backend 3mm (85.0-110.5 GHz)

Found 122 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.030 (0.021)	0.3 (0.6)	0.009 (0.019)	6.14 (0.07)	85139.06	85139.10	1.9	OCS 7→6
0.152 (0.020)	0.34 (0.14)	0.055 (0.021)	5.174 (0.015)	85162.46	85162.22	11.6	HC¹⁸O⁺ 1→0
1.459 (0.021)	0.362 (0.016)	0.563 (0.023)	5.1610 (0.0017)	85339.14	85338.90	79.8	c-C₃H₂ 2_1,2→1_0,1
0.202 (0.020)	0.39 (0.12)	0.083 (0.024)	5.206 (0.013)	85348.10	85347.87	3.6	HCS⁺ 2→1
0.273 (0.023)	0.29 (0.08)	0.083 (0.021)	5.143 (0.009)	85455.90	85455.66	17.5	CH₃C₂H 5₁→4₁
0.268 (0.023)	0.33 (0.08)	0.094 (0.023)	5.155 (0.009)	85457.53	85457.29	17.1	CH₃C₂H 5₀→4₀
0.066 (0.020)	0.3 (0.3)	0.021 (0.020)	5.18 (0.04)	85531.75	85531.51	4.5	HOCO⁺ 4(0,4)-3(0,3)
0.213 (0.017)	0.38 (0.09)	0.086 (0.020)	5.206 (0.011)	85634.24	85634.01	17.5	C₄H 9→8 J=19/2→17/2
0.253 (0.019)	0.36 (0.08)	0.097 (0.021)	5.179 (0.009)	85672.81	85672.58	18.6	C₄H 9→8 J=17/2→15/2
0.07 (0.03)	0.3 (0.3)	0.020 (0.022)	5.31 (0.04)	85924.98	85924.79	3.9	NH₂D 1_1,1→1_0,1 F=0-1
0.13 (0.03)	0.33 (0.18)	0.047 (0.024)	5.198 (0.020)	85925.93	85925.70	7.6	NH₂D 1_1,1→1_0,1 F=2-1
0.36 (0.06)	0.21 (0.05)	0.078 (0.019)	5.349 (0.007)	85926.46	85926.28	20.7	NH₂D 1_1,1→1_0,1 F=2-2
0.34 (0.17)	0.16 (0.08)	0.056 (0.016)	5.06 (0.03)	85926.55	85926.28	19.6	NH₂D 1_1,1→1_0,1 F=2-2
0.112 (0.022)	0.44 (0.23)	0.05 (0.03)	5.20 (0.03)	85927.11	85926.88	6.4	NH₂D 1_1,1→1_0,1 F=1-2
0.069 (0.016)	0.9 (0.6)	0.07 (0.04)	5.15 (0.06)	85927.97	85927.73	3.9	NH₂D 1_1,1→1_0,1 F=1-0
0.067 (0.022)	0.3 (0.4)	0.022 (0.023)	5.15 (0.04)	86055.21	86054.97	4.3	HC¹⁵N 1→0
0.062 (0.023)	0.5 (0.5)	0.03 (0.03)	5.17 (0.05)	86094.20	86093.96	3.9	SO 2₂→1₁
0.081 (0.020)	0.26 (0.21)	0.022 (0.018)	5.130 (0.025)	86181.64	86181.39	5.9	CCS 6→5, N=7-6
0.13 (0.04)	0.27 (0.19)	0.037 (0.025)	5.106 (0.022)	86338.99	86338.73	6.3	H¹³CN 1₁→0₁
0.3 (0.8)	0.1 (0.3)	0.05 (0.06)	4.36 (0.08)	86340.39	86339.92	16.2	H¹³CN 1→0
0.151 (0.020)	0.38 (0.15)	0.061 (0.024)	5.507 (0.017)	86670.94	86670.80	9.8	HCO 1_0,1→0_0,0 J=3/2→1/2 F=2→1
0.07 (0.03)	0.5 (0.5)	0.04 (0.04)	5.50 (0.05)	86708.51	86708.36	3.9	HCO 1_0,1→0_0,0 J=3/2→1/2 F=1→0
0.875 (0.018)	0.46 (0.03)	0.430 (0.025)	5.141 (0.004)	86754.54	86754.29	45.0	H¹³CO⁺ 1→0
0.530 (0.025)	0.35 (0.05)	0.20 (0.03)	5.169 (0.006)	87925.48	87925.24	31.4	HNCO 4_(0,4)→3_(0,3)
0.035 (0.014)	0.4 (0.5)	0.015 (0.017)	4.09 (0.06)	88406.25	88405.69	3.6	H(52)</sup>\beta</sup>
0.113 (0.017)	0.26 (0.12)	0.031 (0.014)	5.518 (0.016)	88630.56	88630.42	7.9	HCN 1→0 F=1→1
0.640 (0.018)	0.37 (0.03)	0.249 (0.018)	5.033 (0.003)	88630.71	88630.42	44.9	HCN 1→0 F=1→1
0.159 (0.016)	0.34 (0.10)	0.058 (0.017)	5.482 (0.012)	88632.00	88631.85	11.5	HCN 1→0 F=2→1
0.952 (0.019)	0.335 (0.017)	0.340 (0.017)	4.9802 (0.0020)	88632.15	88631.85	69.0	HCN 1→0 F=2→1
0.18 (0.04)	0.21 (0.08)	0.040 (0.014)	5.449 (0.010)	88634.10	88633.94	12.9	HCN 1→0 F=0→1
0.762 (0.017)	0.328 (0.022)	0.266 (0.017)	5.0699 (0.0025)	88634.21	88633.94	55.5	HCN 1→0 F=0→1
0.208 (0.016)	0.30 (0.07)	0.066 (0.015)	5.160 (0.008)	88865.95	88865.70	20.4	H¹⁵NC 1→0
0.251 (0.016)	0.52 (0.09)	0.139 (0.024)	5.446 (0.011)	89188.69	89188.53	17.8	HCO⁺ 1→0
1.155 (0.020)	0.317 (0.016)	0.390 (0.019)	4.9721 (0.0018)	89188.83	89188.53	82.6	HCO⁺ 1→0
0.024 (0.016)	0.3 (0.7)	0.007 (0.016)	5.49 (0.07)	89198.69	89198.54	0.5	H(59)</sup>\gamma</sup>
0.056 (0.017)	0.3 (0.3)	0.018 (0.015)	4.79 (0.03)	89408.18	89407.82	5.0	CH₂DOH 2(0,2)-1(0,1), e₀
0.96 (0.03)	0.49 (0.04)	0.51 (0.04)	5.594 (0.005)	90663.68	90663.56	36.6	HNC 1→0
1.75 (0.04)	0.351 (0.018)	0.65 (0.04)	4.8477 (0.0020)	90663.91	90663.56	66.6	HNC 1→0
0.74 (0.03)	0.29 (0.04)	0.23 (0.03)	5.179 (0.004)	90979.25	90979.00	37.5	HC₃N 10→9 (3 components around)
0.183 (0.018)	0.38 (0.12)	0.073 (0.021)	5.214 (0.013)	91494.59	91494.35	14.2	c-C₃H 2(1,2)-1(1,1), J=5/2-3/2, F=3-2
0.115 (0.018)	0.34 (0.17)	0.042 (0.019)	5.308 (0.018)	91497.82	91497.61	9.3	c-C₃H 2(1,2)-1(1,1), J=5/2-3/2, F=2-1
0.07 (0.03)	0.2 (0.4)	0.018 (0.023)	5.23 (0.04)	91692.99	91692.75	3.9	c-C₃H 2(1,2)-1(1,1), J=3/2-1/2, F=1-0
0.126 (0.024)	0.39 (0.21)	0.05 (0.03)	5.227 (0.024)	91699.71	91699.47	7.3	c-C₃H 2(1,2)-1(1,1), J=3/2-1/2, F=2-1
0.030 (0.011)	0.4 (0.4)	0.012 (0.012)	5.27 (0.05)	91985.53	91985.31	3.8	CH₃CN 5₁→4₁
0.025 (0.009)	0.4 (0.5)	0.010 (0.012)	5.22 (0.05)	91987.33	91987.09	3.2	CH₃CN 5₀→4₀
0.022 (0.008)	0.4 (0.5)	0.010 (0.011)	6.85 (0.07)	92071.68	92071.94	3.1	He(41)</sup>\alpha</sup>
0.4 (0.3)	0.16 (0.11)	0.07 (0.04)	5.19 (0.04)	92218.76	92218.5	14.9	Unidentified
0.7 (0.4)	0.18 (0.09)	0.12 (0.07)	5.19 (0.03)	92278.39	92278.1	23.7	Unidentified
0.33 (0.07)	0.02 (0.07)	0.008 (0.024)	5.19144 (0.00009)	92278.86	92278.6	11.6	Unidentified
0.40 (0.09)	0.18 (0.11)	0.08 (0.05)	5.192 (0.023)	92296.39	92296.1	14.3	Unidentified
0.43 (0.10)	0.18 (0.12)	0.08 (0.06)	5.192 (0.024)	92296.88	92296.6	15.4	Unidentified
0.084 (0.009)	0.31 (0.09)	0.027 (0.009)	5.078 (0.011)	92494.55	92494.27	16.9	¹³CS 2→1
0.021 (0.011)	0.2 (0.4)	0.005 (0.008)	1.69 (0.05)	92495.60	92494.27	4.1	¹³CS 2→1
0.037 (0.007)	0.28 (0.15)	0.011 (0.006)	5.250 (0.018)	92872.61	92872.38	8.5	DC₃N J=11-10 (5 components around)
0.059 (0.008)	0.26 (0.12)	0.016 (0.008)	5.208 (0.014)	92981.85	92981.60	10.6	HDCS 3(0,3)-2(0,2) ? (CH3OCHO)
0.527 (0.009)	0.267 (0.015)	0.150 (0.008)	6.0354 (0.0018)	93171.87	93171.88	8.1	N₂H⁺ 1→0 F=1→1
0.738 (0.007)	0.726 (0.018)	0.570 (0.014)	4.8680 (0.0020)	93172.23	93171.88	11.4	N₂H⁺ 1→0 F=1→1
0.717 (0.011)	0.236 (0.011)	0.180 (0.008)	5.8953 (0.0014)	93173.73	93173.70	11.1	N₂H⁺ 1→0 F=1→2
0.338 (0.007)	2.13 (0.08)	0.767 (0.023)	5.203 (0.008)	93173.95	93173.70	5.2	N₂H⁺ 1→0 F=1→2
1.018 (0.025)	0.205 (0.007)	0.223 (0.008)	4.9173 (0.0008)	93174.04	93173.70	15.7	N₂H⁺ 1→0 F=1→2
0.871 (0.010)	0.306 (0.010)	0.284 (0.009)	4.7575 (0.0011)	93176.52	93176.13	13.5	N₂H⁺ 1→0 F=1→0
0.028 (0.011)	0.3 (0.3)	0.008 (0.009)	5.12 (0.04)	93454.60	93454.33	4.6	CH₃CCD 6(1)-5(1)
0.020 (0.009)	0.3 (0.4)	0.007 (0.008)	5.21 (0.05)	93456.29	93456.04	3.4	CH₃CCD 6(0)-5(0)
0.016 (0.006)	0.6 (0.7)	0.011 (0.010)	6.76 (0.08)	93580.62	93580.86	3.1	CH₃CHO 5_(1,5)→4_(1,4) (1)
0.028 (0.009)	0.4 (0.3)	0.011 (0.008)	4.96 (0.03)	93581.18	93580.86	5.3	CH₃CHO 5_(1,5)→4_(1,4) (1)
0.025 (0.007)	0.5 (0.4)	0.014 (0.010)	5.29 (0.05)	93595.50	93595.28	4.5	CH₃CHO 5_(1,5)→4_(1,4) (2)
0.054 (0.011)	0.9 (0.5)	0.053 (0.025)	5.21 (0.06)	93852.98	93852.7	5.6	Unidentified 93.853 GHz
0.270 (0.012)	0.33 (0.05)	0.094 (0.012)	5.144 (0.005)	93870.37	93870.10	33.0	C₂S N=7→6 J=8→7
0.074 (0.022)	3.8 (1.8)	0.30 (0.11)	5.21 (0.16)	93958.48	93958.2	3.7	Unidentified 93.959 GHz
0.144 (0.022)	1.7 (0.6)	0.26 (0.07)	5.21 (0.06)	93958.89	93958.6	7.0	Unidentified 93.959 GHz
0.059 (0.022)	1.0 (0.9)	0.06 (0.06)	5.21 (0.10)	93959.53	93959.3	2.8	Unidentified 93.959 GHz
0.10 (0.03)	0.4 (0.3)	0.05 (0.04)	5.95 (0.04)	94083.71	94083.69	5.3	ONCN 9-8 in atmosphere ?
0.45 (0.08)	0.32 (0.19)	0.15 (0.09)	5.220 (0.021)	95604.04	95603.8	0.8	Unidentified
0.21 (0.07)	1.7 (1.2)	0.38 (0.23)	5.22 (0.12)	95604.62	95604.4	0.4	Unidentified
19.1 (2.5)	0.9 (0.4)	17 (6)	5.22 (0.04)	95605.74	95605.5	35.5	Unidentified
12.0 (1.6)	0.8 (0.3)	10 (4)	5.22 (0.04)	95616.41	95616.2	19.4	Unidentified
0.022 (0.009)	0.3 (0.4)	0.008 (0.009)	4.50 (0.05)	95806.28	95805.80	3.7	C₈H (1)
0.051 (0.009)	0.40 (0.21)	0.022 (0.011)	4.850 (0.023)	95947.71	95947.34	7.0	CH₃CHO 5_(0,5)→4_(0,4)
0.051 (0.011)	0.28 (0.17)	0.015 (0.009)	5.144 (0.020)	95963.73	95963.46	7.5	CH₃CHO 5(0,5)-4(0,4)
0.057 (0.009)	0.36 (0.16)	0.022 (0.009)	5.090 (0.018)	95994.35	95994.06	10.6	c-HCCCD 2(1,1)-1(1,0)
0.08 (0.03)	1.7 (1.2)	0.15 (0.09)	5.22 (0.12)	96237.31	96237.1	4.4	Unidentified 96.237 GHz
0.311 (0.008)	0.39 (0.03)	0.128 (0.009)	5.120 (0.004)	96413.23	96412.95	48.5	C³⁴S 2→1
0.012 (0.006)	0.6 (0.9)	0.008 (0.012)	3.46 (0.11)	96633.45	96632.63	2.0	CH₃CHO 5_(2,3)→4_(2,2) (2)
0.038 (0.009)	0.25 (0.19)	0.010 (0.008)	5.116 (0.023)	96691.87	96691.59	6.5	CH₂DCCH 6(1,6)-5(1,5)
0.780 (0.009)	0.375 (0.012)	0.312 (0.009)	5.1269 (0.0013)	96739.64	96739.36	129.1	CH₃OH 2_(-1,2)→1_(-1,1)
1.011 (0.008)	0.380 (0.009)	0.410 (0.009)	5.1268 (0.0009)	96741.65	96741.37	158.3	CH₃OH 2_(0,2)→1_(0,1) ++
0.070 (0.008)	0.33 (0.11)	0.025 (0.009)	5.143 (0.013)	96744.83	96744.55	11.3	CH₃OH 2_(0,2)→1_(0,1)
0.015 (0.006)	0.6 (0.7)	0.010 (0.011)	5.42 (0.08)	96755.70	96755.51	0.3	CH₃OH 2_(1,1)→1_(1,0) (1)
0.048 (0.015)	0.23 (0.17)	0.012 (0.009)	5.230 (0.022)	96904.20	96904.0	7.5	Unidentified 96.904 GHz
0.545 (0.011)	0.194 (0.012)	0.113 (0.007)	5.2301 (0.0020)	96910.71	96910.5	65.8	Unidentified 96.911 GHz
0.013 (0.006)	1.8 (1.7)	0.026 (0.020)	5.23 (0.17)	96911.84	96911.6	1.6	Unidentified 96.911 GHz
2.380 (0.006)	0.0913 (0.0017)	0.231 (0.005)	5.23 (0.08)	96925.73	96925.5	267.8	Unidentified 96.926 GHz
0.054 (0.018)	0.19 (0.12)	0.011 (0.007)	5.230 (0.025)	96947.23	96947.0	9.2	Unidentified 96.947 GHz
0.064 (0.009)	0.29 (0.15)	0.020 (0.009)	5.132 (0.017)	97081.01	97080.73	9.8	CH₂DCCH 6(0,6)-5(0,5)
0.058 (0.009)	0.49 (0.21)	0.030 (0.012)	5.935 (0.023)	97172.08	97172.06	8.8	C³³S 2→1
0.075 (0.017)	0.32 (0.20)	0.026 (0.016)	5.154 (0.024)	97715.68	97715.40	6.9	³⁴SO 3₍₂₎→2₍₁₎
0.033 (0.017)	0.6 (0.6)	0.021 (0.020)	5.29 (0.10)	97762.22	97761.99	3.4	c-C₃D₂ 3→2
0.338 (0.012)	0.34 (0.04)	0.122 (0.013)	5.435 (0.005)	97981.14	97980.95	27.2	CS 2→1
1.655 (0.012)	0.406 (0.009)	0.715 (0.014)	5.0421 (0.0009)	97981.27	97980.95	133.1	CS 2→1
0.046 (0.013)	0.4 (0.3)	0.017 (0.014)	5.07 (0.04)	97995.47	97995.17	0.7	l-C₃H J=9/2-7/2, Omega=1/2, F=5-4, l=e
0.059 (0.013)	0.31 (0.20)	0.019 (0.013)	5.108 (0.023)	98011.90	98011.61	6.4	l-C₃H J=9/2-7/2, Omega=1/2, F=5-4, l=f
0.034 (0.012)	0.3 (0.4)	0.009 (0.012)	5.20 (0.04)	98863.59	98863.33	4.0	CH₃CHO 5_(1,4)→4_(1,3) (1)
0.037 (0.015)	0.3 (0.4)	0.011 (0.014)	5.67 (0.04)	99274.83	99274.72	3.7	C(50)</sup>\beta</sup>
1.120 (0.012)	0.407 (0.013)	0.485 (0.015)	5.1447 (0.0014)	99300.17	99299.89	114.9	SO 3₍₂₎→2₍₁₎
0.334 (0.013)	0.41 (0.05)	0.147 (0.017)	5.149 (0.006)	101478.10	101477.81	30.9	H₂CS 3_(1,3)→2_(1,2)
0.29 (0.08)	3.2 (1.4)	1.0 (0.4)	5.27 (0.14)	101739.66	101739.4	1.6	Unidentified
0.086 (0.016)	0.33 (0.17)	0.030 (0.015)	5.163 (0.019)	101981.71	101981.43	7.7	H₂CCO 5_(1,4)→4_(1,3)
0.212 (0.013)	0.35 (0.07)	0.078 (0.014)	5.169 (0.007)	102546.31	102546.02	23.7	CH₃CCH 6₍₁₎→5₍₁₎
0.224 (0.013)	0.33 (0.06)	0.078 (0.013)	5.178 (0.007)	102548.27	102547.98	24.8	CH₃CCH 6₍₀₎→5₍₀₎
0.12 (0.03)	2.4 (1.1)	0.31 (0.12)	5.28 (0.10)	103882.14	103881.9	6.5	Unidentified
0.073 (0.023)	0.3 (0.3)	0.020 (0.022)	5.25 (0.04)	103957.44	103957.18	4.6	He(56)</sup>\gamma</sup>
0.22 (0.04)	0.27 (0.12)	0.07 (0.03)	5.113 (0.013)	104187.42	104187.11	11.2	c-HCCCD 3(0,3)-2(1,2)
0.30 (0.03)	0.40 (0.11)	0.13 (0.04)	5.384 (0.012)	104617.33	104617.11	14.2	H₂CS 3_1,2→2_1,1
0.073 (0.023)	0.5 (0.5)	0.04 (0.04)	5.22 (0.06)	104666.84	104666.57	3.6	C₄H N=11→10 J=23/2→21/2
0.10 (0.24)	0.2 (0.4)	0.017 (0.021)	5.09 (0.14)	106811.39	106811.07	5.0	c-HCCCD 3(0,3)-2(0,2)
0.26 (0.04)	0.37 (0.14)	0.10 (0.04)	5.135 (0.015)	107423.96	107423.65	12.2	c-HCCCD 3(1,3)-2(0,2)
0.16 (0.06)	0.3 (0.4)	0.06 (0.06)	5.21 (0.05)	109173.93	109173.64	3.8	HC₃N 12→11
0.15 (0.04)	1.9 (0.9)	0.30 (0.13)	5.32 (0.10)	109563.61	109563.4	4.1	Unidentified 109.563 GHz
3.83 (0.06)	0.533 (0.024)	2.17 (0.09)	5.199 (0.003)	109782.47	109782.18	61.7	C¹⁸O 1→0
0.53 (0.06)	0.34 (0.11)	0.19 (0.06)	5.150 (0.013)	109906.06	109905.75	13.1	HNCO 5→4
0.89 (0.05)	1.35 (0.17)	1.27 (0.15)	5.744 (0.018)	110201.45	110201.35	6.5	¹³CO 1→0
4.89 (0.05)	0.821 (0.024)	4.28 (0.12)	5.1929 (0.0025)	110201.65	110201.35	35.6	¹³CO 1→0

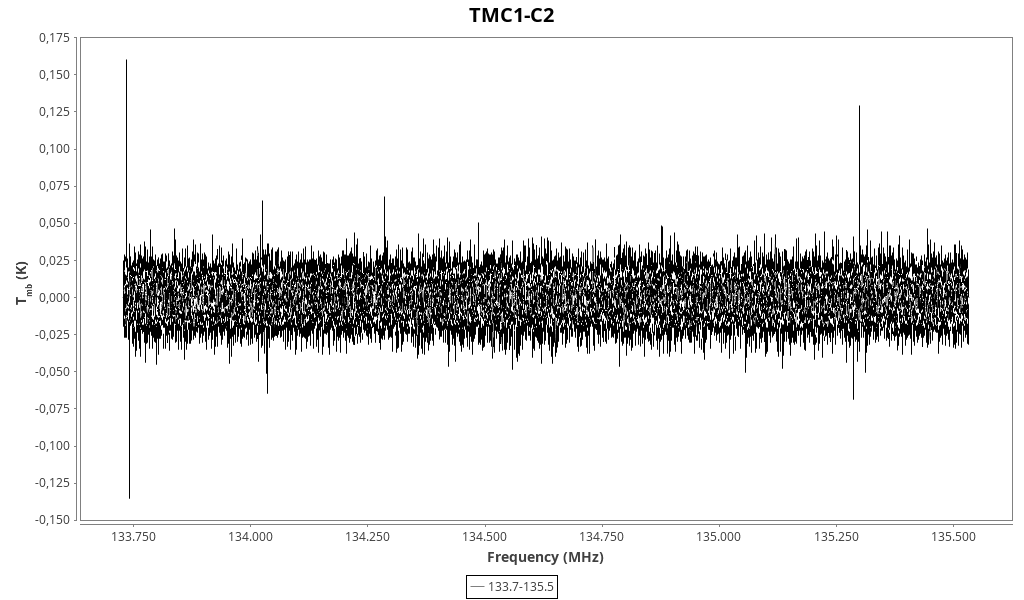

Backend 2mm (134.6 GHz)

Found 6 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.702 (0.016)	0.060 (0.016)	0.045 (0.012)	5.21 (0.06)	133734.62	133734.3	59.8	Unidentified 133.735 GHz
0.046 (0.024)	0.1 (0.4)	0.007 (0.015)	5.21 (0.04)	133786.25	133785.90	3.5	OCS 11→10
0.046 (0.023)	0.2 (0.4)	0.008 (0.017)	5.21 (0.04)	133837.62	133837.3	3.5	Unidentified 133.838 GHz
0.07 (0.03)	0.14 (0.23)	0.010 (0.017)	5.373 (0.024)	134023.99	134023.71	4.6	C₄H v₇=1 J=29/2-27/2
0.067 (0.018)	0.3 (0.3)	0.018 (0.019)	4.416 (0.021)	134285.61	134284.90	5.1	HDCO 2(1,1)-1(1,0)
0.134 (0.019)	0.27 (0.16)	0.039 (0.022)	4.576 (0.012)	135298.90	135298.26	10.6	H₂CS 4(1,4)-3(1,3)

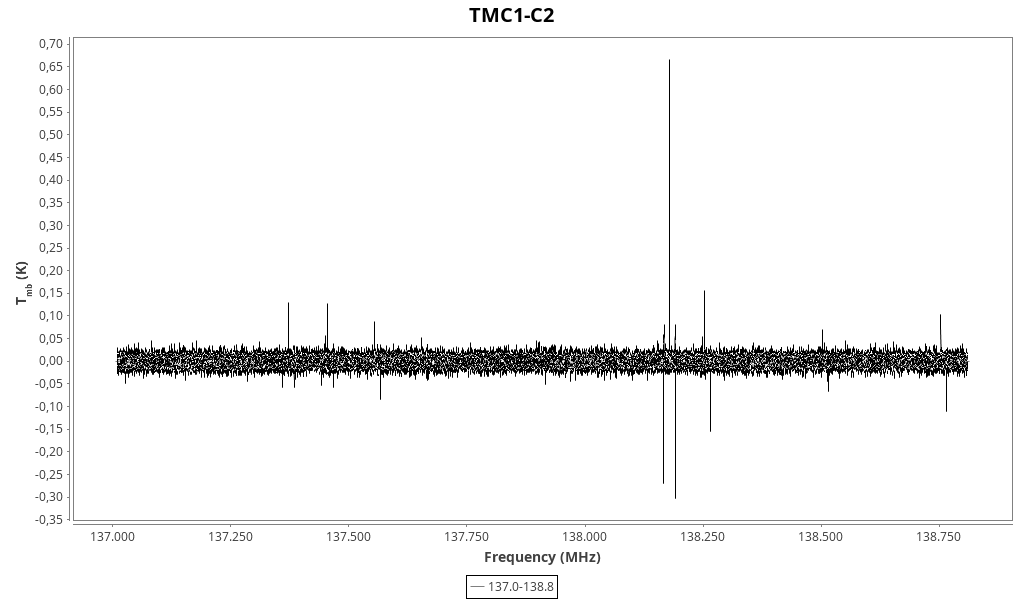

Backend 2mm (137.9 GHz)

Found 9 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.131 (0.017)	0.25 (0.14)	0.035 (0.020)	5.132 (0.011)	137371.61	137371.21	10.5	H₂CS 4(0,4)-3(0,3)
0.065 (0.015)	0.3 (0.4)	0.020 (0.022)	5.048 (0.024)	137450.39	137449.95	5.0	H₂¹³CO 2(1,2)-1(1,1)
0.118 (0.019)	0.25 (0.17)	0.032 (0.021)	5.288 (0.014)	137454.79	137454.46	8.8	c-HCCCD 2(2,0)-1(1,1)
0.260 (0.014)	0.05 (0.04)	0.015 (0.009)	5.43 (0.06)	137554.01	137553.75	21.1	CaNC N=17-16, J=33/2-31/2 (3x)
0.178 (0.013)	0.06 (0.05)	0.011 (0.009)	5.29 (0.06)	137903.39	137903.06	14.4	CH₃OH 7(-4,4)-8(-3,6) (?)
0.716 (0.017)	0.27 (0.03)	0.204 (0.020)	5.2201 (0.0021)	138179.02	138178.66	57.2	SO 4₃→3₂
0.665 (0.013)	0.060 (0.014)	0.043 (0.009)	5.29 (0.06)	138254.01	138253.7	54.5	Unidentified 138.254 GHz
0.071 (0.025)	0.13 (0.18)	0.010 (0.014)	5.290 (0.024)	138504.00	138503.7	6.0	Unidentified 138.504 GHz
0.10 (0.05)	0.10 (0.11)	0.011 (0.012)	5.29 (0.04)	138754.00	138753.7	8.6	Unidentified 138.754 GHz

Backend 2mm (144.1 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
1.14 (0.05)	0.05 (0.03)	0.07 (0.04)	4.87 (0.05)	143305.08	143304.5	26.1	Unidentified 143.305 GHz
0.89 (0.04)	0.05 (0.04)	0.05 (0.03)	4.87 (0.05)	143333.07	143332.5	21.8	Unidentified 143.333 GHz
0.70 (0.04)	0.37 (0.11)	0.28 (0.08)	4.873 (0.008)	144077.83	144077.29	14.9	DCO⁺ J=2-1 (multiple components around)

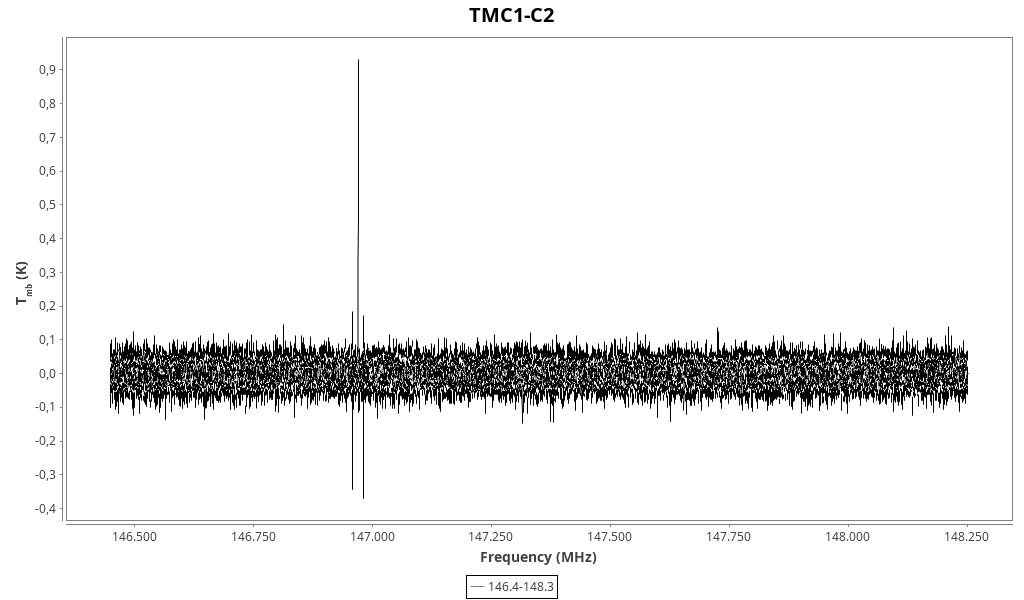

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.24 (0.04)	0.26 (0.22)	0.07 (0.06)	5.300 (0.016)	146969.37	146969.03	6.9	CS 3→2
0.91 (0.05)	0.30 (0.07)	0.29 (0.06)	4.991 (0.005)	146969.52	146969.03	26.2	CS 3→2

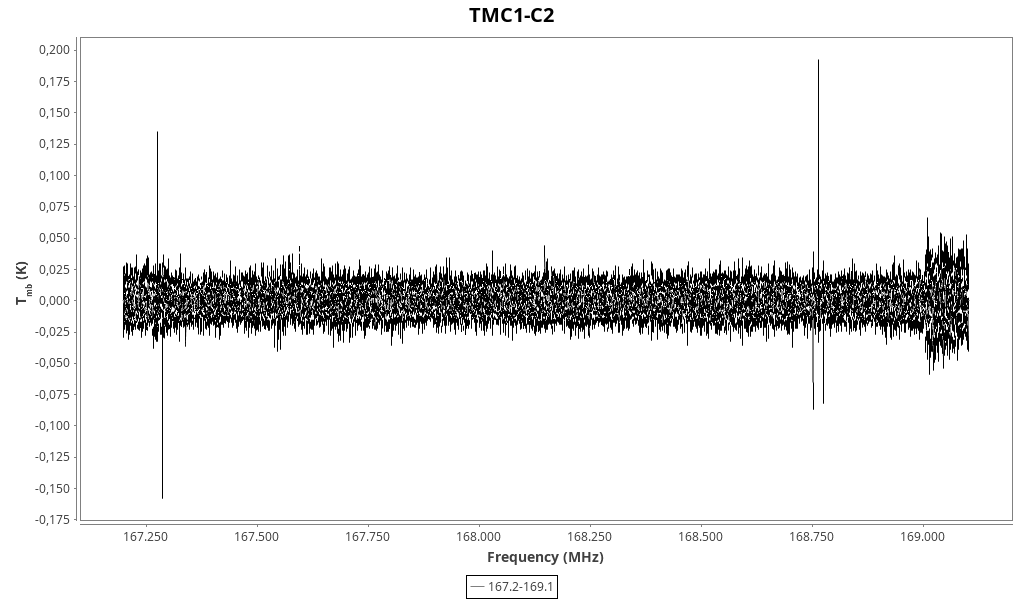

Backend 2mm (168.1 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0 (50)	0.0 (0.6)	0.1 (2.4)	5.072 (0.004)	167275.09	167274.6	101.0	Unidentified
0.038 (0.018)	0.2 (0.4)	0.007 (0.015)	5.073 (0.024)	167570.65	167570.1	3.4	Unidentified 167.570 GHz
0.204 (0.011)	0.30 (0.09)	0.066 (0.018)	5.080 (0.006)	168763.27	168762.75	18.7	H₂S 1_(1,0)→1_(0,1)

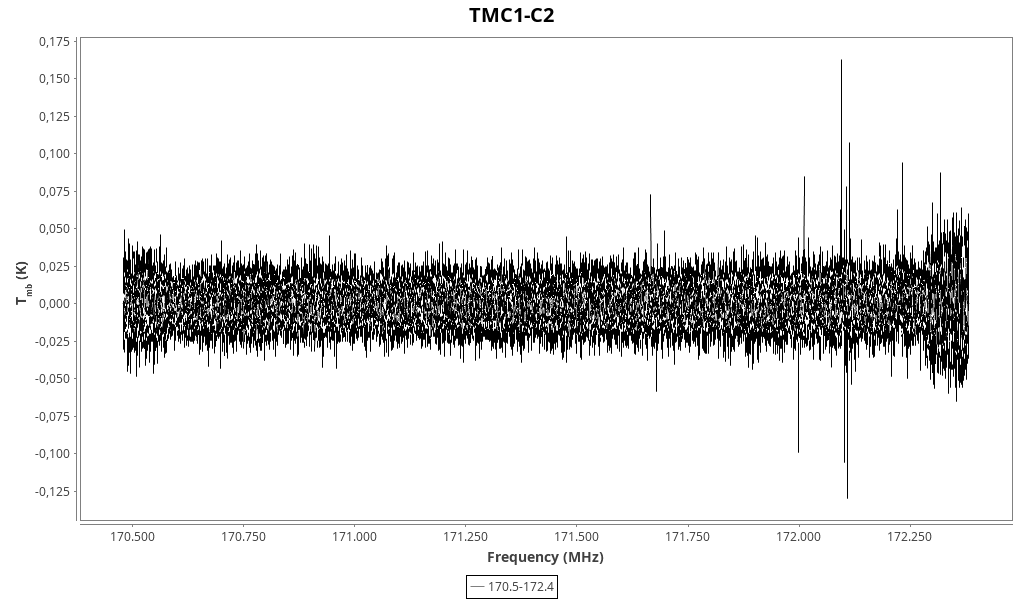

Backend 2mm (171.4 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.08 (0.04)	0.1 (0.3)	0.012 (0.023)	4.810 (0.017)	172106.25	172105.56	4.0	HS₂ 11(2,9)-10(2,8), J=21/2-19/2, F=11-10
0.18 (0.24)	0.10 (0.13)	0.018 (0.020)	4.810 (0.011)	172114.26	172113.6	11.3	Unidentified
0.098 (0.024)	0.13 (0.16)	0.013 (0.016)	5.041 (0.011)	172233.10	172232.55	7.5	S₂O 17(3,14)-17(2,15)

Backend 1mm (212.7-220.9 GHz)

Found 10 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
3.7 (1.4)	0.069 (0.025)	0.27 (0.08)	5.149 (0.004)	213141.09	213140.5	46.2	Unidentified 213.141 GHz
0.85 (0.23)	0.09 (0.11)	0.08 (0.10)	5.153 (0.007)	214040.88	214040.3	9.3	Unidentified 214.041 GHz
9.11 (0.08)	0.037 (0.007)	0.36 (0.06)	5.15 (0.04)	214439.19	214438.6	89.8	Unidentified 214.439 GHz
1.24 (0.14)	0.11 (0.08)	0.15 (0.10)	5.155 (0.004)	214459.21	214458.6	14.6	Unidentified 214.459 GHz
0.47 (0.05)	0.31 (0.22)	0.15 (0.11)	5.161 (0.011)	216113.19	216112.58	9.4	DCO⁺ J=3-2 (multiple components around)
0.27 (0.09)	0.11 (0.23)	0.03 (0.07)	5.161 (0.011)	216153.13	216152.5	5.5	Unidentified 216.153 GHz
1.33 (0.12)	0.23 (0.14)	0.32 (0.20)	5.359 (0.007)	219560.83	219560.36	12.5	C¹⁸O 2→1
2.42 (0.11)	0.32 (0.09)	0.83 (0.23)	5.103 (0.005)	219561.02	219560.36	22.8	C¹⁸O 2→1
2.41 (0.10)	0.40 (0.09)	1.03 (0.24)	5.457 (0.005)	220399.08	220398.68	25.0	¹³CO 2→1
3.37 (0.10)	0.37 (0.07)	1.34 (0.23)	5.028 (0.004)	220399.39	220398.68	34.7	¹³CO 2→1
