TMC1-CAL-240_0

DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

TMC1-CAL-240_0

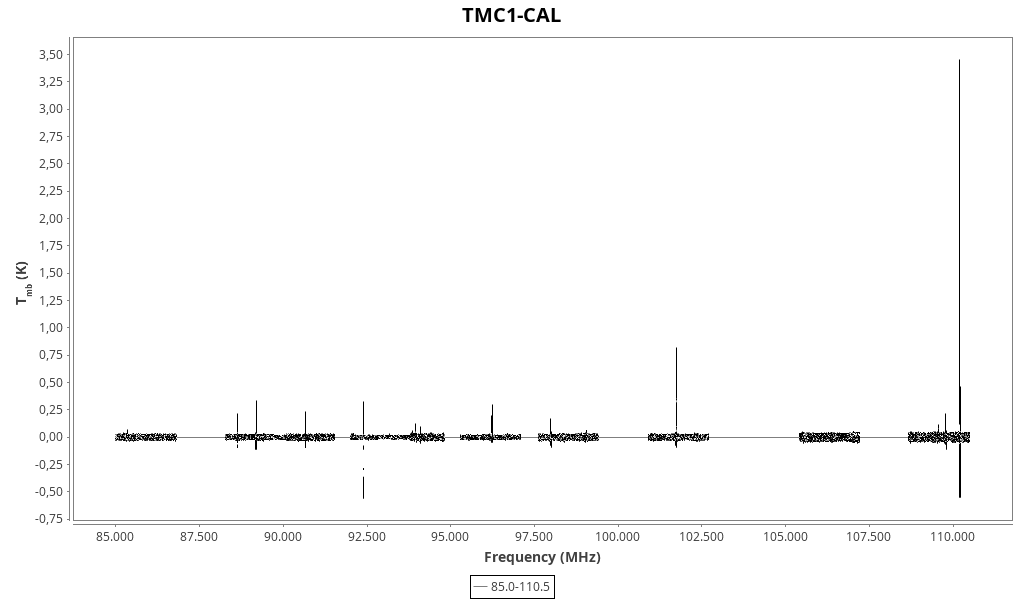

Backend 3mm (85.0-110.5 GHz)

Found 39 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.020 (0.009)	3.0 (2.2)	0.06 (0.04)	9.04 (0.21)	85153.06	85153.92	2.1	D₂CS 3-2
0.061 (0.010)	0.7 (0.4)	0.048 (0.020)	5.77 (0.04)	85338.96	85338.90	6.6	c-C₃H₂ 2_1,2→1_0,1
0.024 (0.023)	0.3 (0.5)	0.007 (0.013)	6.31 (0.06)	85672.49	85672.58	2.4	C₄H 9→8 J=17/2→15/2
0.033 (0.012)	0.5 (0.5)	0.018 (0.017)	4.96 (0.07)	85926.00	85925.70	3.7	NH₂D 1_1,1→1_0,1 F=2-1
0.168 (0.013)	0.52 (0.09)	0.093 (0.016)	5.625 (0.011)	88630.53	88630.42	16.4	HCN 1→0 F=1→1
0.041 (0.011)	0.5 (0.4)	0.021 (0.015)	6.27 (0.05)	88631.77	88631.85	4.0	HCN 1→0 F=2→1
0.209 (0.012)	0.55 (0.08)	0.123 (0.016)	5.550 (0.009)	88631.98	88631.85	20.6	HCN 1→0 F=2→1
0.112 (0.014)	0.37 (0.11)	0.044 (0.013)	5.632 (0.013)	88634.05	88633.94	11.6	HCN 1→0 F=0→1
0.131 (0.010)	0.48 (0.11)	0.067 (0.014)	6.340 (0.012)	89188.42	89188.53	13.1	HCO⁺ 1→0
0.330 (0.008)	0.82 (0.06)	0.286 (0.018)	5.501 (0.007)	89188.67	89188.53	33.0	HCO⁺ 1→0
0.023 (0.010)	0.8 (0.9)	0.019 (0.021)	3.35 (0.11)	89408.61	89407.82	2.3	CH₂DOH 2(0,2)-1(0,1), e₀
0.086 (0.013)	0.50 (0.20)	0.046 (0.018)	6.218 (0.023)	90663.50	90663.56	9.0	HNC 1→0
0.250 (0.011)	0.62 (0.08)	0.165 (0.020)	5.486 (0.009)	90663.72	90663.56	26.8	HNC 1→0
0.169 (0.006)	0.093 (0.024)	0.017 (0.005)	5.63 (0.09)	92544.02	92543.91	32.2	CH₃OCHO v=1 9(1,8)-8(2,7)
0.014 (0.007)	4 (4)	0.06 (0.04)	8.6 (0.3)	92980.79	92981.60	1.7	HDCS 3(0,3)-2(0,2) ? (CH3OCHO)
0.021 (0.006)	4.2 (1.6)	0.10 (0.03)	6.42 (0.15)	93173.57	93173.70	3.4	N₂H⁺ 1→0 F=1→2
0.014 (0.007)	0.4 (0.5)	0.006 (0.007)	5.05 (0.07)	93454.63	93454.33	2.4	CH₃CCD 6(1)-5(1)
0.08 (0.03)	4.4 (2.5)	0.37 (0.15)	5.65 (0.25)	93958.88	93958.8	2.6	Unidentified 93.959 GHz
0.100 (0.020)	0.21 (0.11)	0.022 (0.012)	5.653 (0.020)	94084.01	94083.9	9.8	Unidentified 94.084 GHz
0.013 (0.007)	0.5 (0.9)	0.007 (0.011)	5.04 (0.09)	95914.62	95914.31	2.2	CH₃OH 2_(1,2)→1_(1,1)
0.167 (0.012)	0.82 (0.15)	0.147 (0.024)	5.661 (0.019)	96234.53	96234.4	2.2	Unidentified 96.237 GHz
0.194 (0.011)	2.7 (0.3)	0.56 (0.05)	5.66 (0.03)	96234.94	96234.8	2.5	Unidentified 96.237 GHz
0.120 (0.011)	3.0 (0.5)	0.38 (0.05)	5.66 (0.05)	96235.83	96235.7	1.6	Unidentified 96.237 GHz
0.019 (0.008)	3.5 (2.3)	0.07 (0.04)	2.14 (0.22)	96692.83	96691.59	2.1	CH₂DCCH 6(1,6)-5(1,5)
0.013 (0.007)	3 (3)	0.04 (0.03)	8.1 (0.3)	97061.42	97062.11	1.9	C₇H J=111/2-109/2, F=56-55 (2)
0.174 (0.013)	0.53 (0.09)	0.099 (0.016)	5.663 (0.011)	97981.06	97980.95	16.4	CS 2→1
0.032 (0.013)	0.4 (0.4)	0.013 (0.014)	2.75 (0.05)	99275.80	99274.72	3.0	C(50)</sup>\beta</sup>
0.040 (0.009)	0.7 (0.5)	0.031 (0.020)	5.69 (0.06)	99299.99	99299.89	4.8	SO 3₍₂₎→2₍₁₎
0.08 (0.04)	0.9 (0.9)	0.07 (0.07)	8.62 (0.12)	101736.28	101737.17	0.3	CH₃OH 9(-2,8)-9(1,8)
0.32 (0.04)	0.87 (0.22)	0.30 (0.07)	13.32 (0.03)	101742.48	101744.97	1.7	D₂CO 10(2,8)-10(2,9)
0.38 (0.03)	2.8 (0.4)	1.14 (0.13)	12.06 (0.04)	101742.91	101744.97	2.1	D₂CO 10(2,8)-10(2,9)
0.27 (0.03)	2.9 (0.6)	0.83 (0.13)	9.47 (0.06)	101743.79	101744.97	1.5	D₂CO 10(2,8)-10(2,9)
0.073 (0.016)	2.8 (1.0)	0.21 (0.07)	5.70 (0.10)	109562.07	109562.0	4.8	Unidentified 109.563 GHz
0.098 (0.016)	3.6 (0.9)	0.37 (0.08)	5.70 (0.09)	109563.86	109563.8	6.6	Unidentified 109.563 GHz
0.189 (0.015)	0.83 (0.16)	0.17 (0.03)	5.681 (0.018)	109782.29	109782.18	12.5	C¹⁸O 1→0
0.107 (0.016)	0.59 (0.22)	0.067 (0.024)	5.09 (0.03)	109782.51	109782.18	7.1	C¹⁸O 1→0
0.050 (0.023)	0.3 (0.4)	0.014 (0.019)	4.96 (0.05)	110154.56	110154.17	3.1	NH₂D 1(1,1)0a-1(0,1)0s, F=1-2
2.087 (0.017)	2.03 (0.03)	4.51 (0.06)	6.218 (0.004)	110201.27	110201.35	23.6	¹³CO 1→0
2.316 (0.017)	1.380 (0.022)	3.40 (0.05)	5.3200 (0.0024)	110201.60	110201.35	26.2	¹³CO 1→0

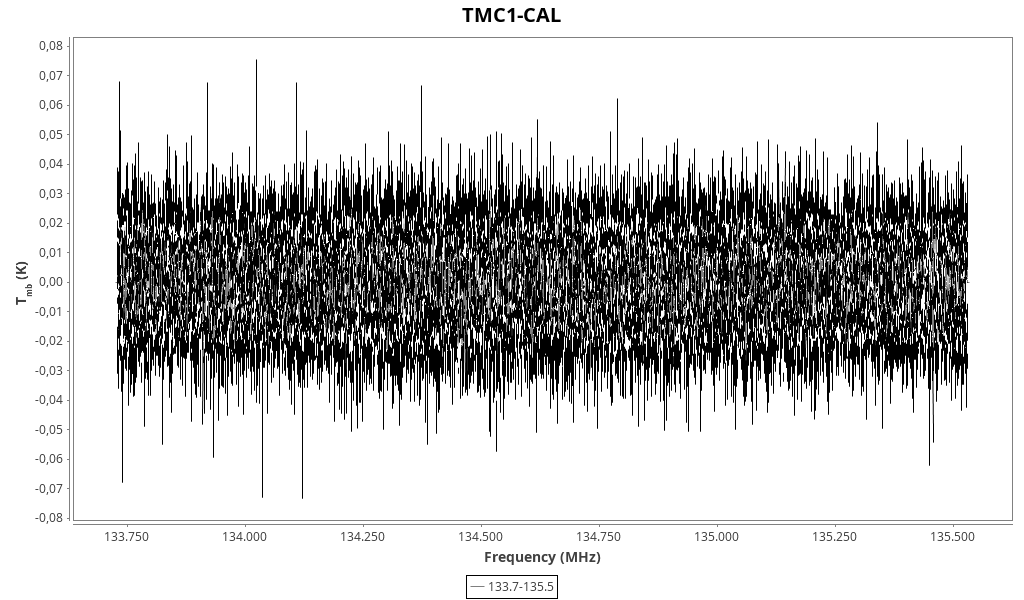

Backend 2mm (134.6 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.204 (0.014)	0.06 (0.05)	0.014 (0.011)	5.32 (0.06)	134024.01	134023.71	14.5	C₄H v₇=1 J=29/2-27/2
0.112 (0.015)	0.06 (0.09)	0.007 (0.011)	5.32 (0.06)	135110.89	135110.58	7.5	H(60)</sup>\epsilon</sup>

Backend 2mm (137.9 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.199 (0.014)	0.06 (0.05)	0.013 (0.011)	5.51 (0.06)	137553.97	137553.75	14.4	CaNC N=17-16, J=33/2-31/2 (3x)
0.11 (0.04)	0.11 (0.11)	0.013 (0.013)	5.512 (0.022)	138254.00	138253.8	9.3	Unidentified 138.254 GHz
0.418 (0.014)	0.057 (0.023)	0.025 (0.010)	5.51 (0.06)	138754.01	138753.8	30.7	Unidentified 138.754 GHz

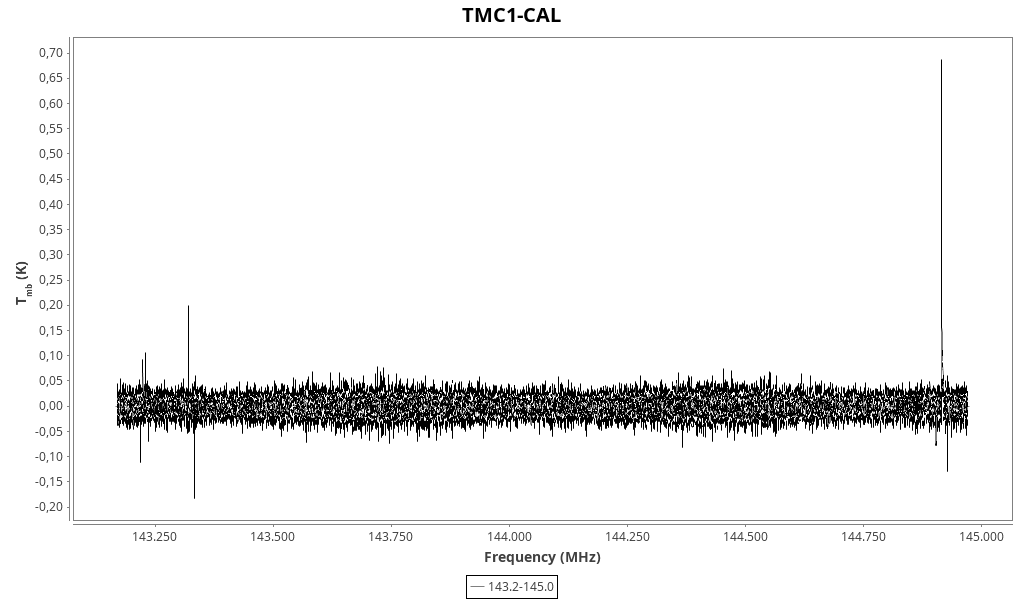

Backend 2mm (144.1 GHz)

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.048 (0.014)	0.4 (0.6)	0.02 (0.03)	5.95 (0.06)	146969.05	146969.03	3.5	CS 3→2
0.088 (0.023)	0.16 (0.21)	0.015 (0.020)	5.954 (0.017)	148193.98	148194.0	6.4	Unidentified

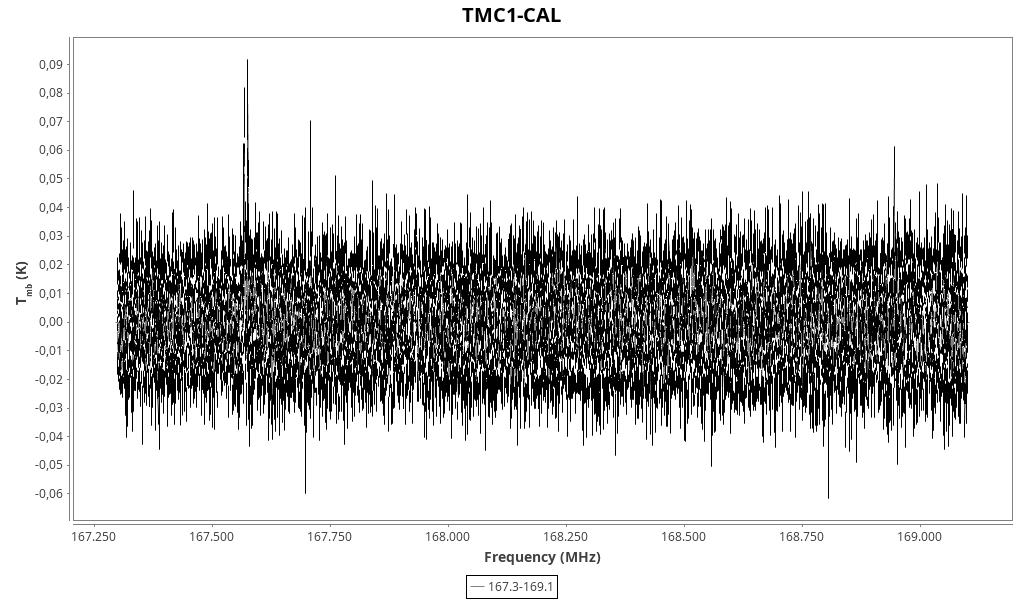

Backend 2mm (168.2 GHz)

Backend 2mm (171.5 GHz)

Backend 1mm (212.7-220.9 GHz)

Found 7 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
2.50 (0.20)	0.11 (0.05)	0.28 (0.12)	5.3741 (0.0020)	213141.09	213140.6	27.7	Unidentified 213.141 GHz
0.9 (0.3)	0.10 (0.13)	0.10 (0.13)	5.377 (0.006)	214040.88	214040.4	9.5	Unidentified 214.041 GHz
1.23 (0.14)	0.11 (0.09)	0.14 (0.11)	5.378 (0.005)	214439.21	214438.8	9.2	Unidentified 214.439 GHz
9.67 (0.10)	0.039 (0.008)	0.40 (0.08)	5.38 (0.04)	214459.21	214458.8	73.9	Unidentified 214.459 GHz
0.32 (0.10)	0.12 (0.22)	0.04 (0.08)	5.383 (0.013)	216153.12	216152.7	5.9	Unidentified 216.153 GHz
1.17 (0.09)	1.4 (0.4)	1.8 (0.5)	5.912 (0.017)	220398.74	220398.68	10.7	¹³CO 2→1
0.85 (0.09)	1.0 (0.4)	0.9 (0.4)	5.395 (0.019)	220399.13	220398.68	7.9	¹³CO 2→1
