Table of Contents
DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.
CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

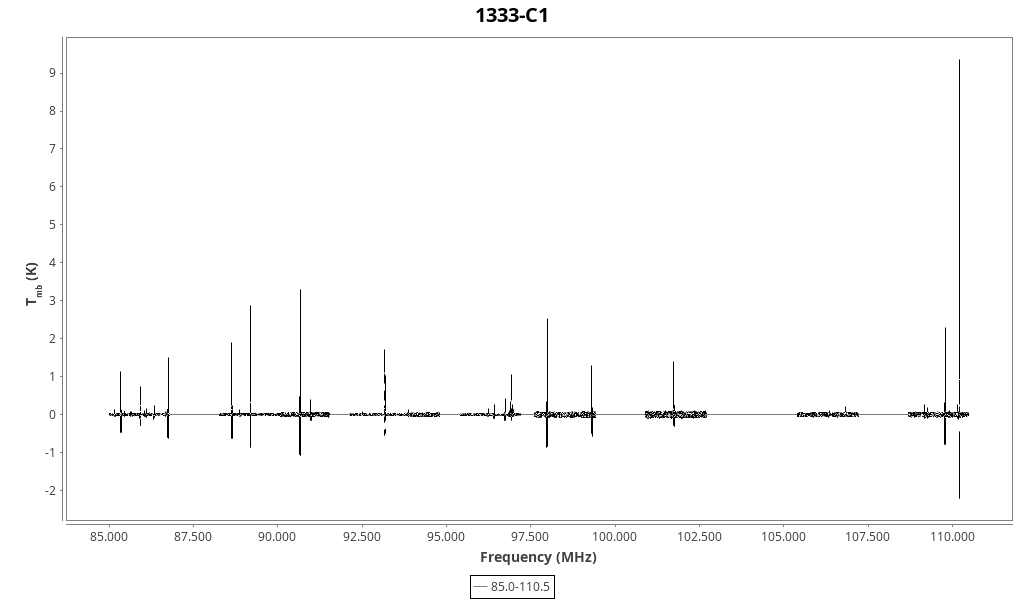

1333-C1-0_0
Backend 3mm (85.0-110.5 GHz)
Found 102 lines:
Tmb (K) | Width (km/s) | I (K km/s) | Vlsr (km/s) | Obs. freq (MHz) | Rest freq (MHz) | S/N ratio | Transition | Reduced spectrum | Original spectrum |
---|---|---|---|---|---|---|---|---|---|
0.135 (0.010) | 0.44 (0.09) | 0.063 (0.013) | 7.564 (0.011) | 85161.78 | 85162.22 | 17.4 | HC18O+ 1→0 | ![]() | ![]() |
1.170 (0.011) | 0.486 (0.013) | 0.605 (0.015) | 7.6174 (0.0014) | 85338.44 | 85338.90 | 136.6 | c-C3H2 21,2→10,1 | ![]() | ![]() |
0.042 (0.009) | 0.7 (0.5) | 0.033 (0.019) | 7.58 (0.05) | 85347.43 | 85347.87 | 0.8 | HCS+ 2→1 | ![]() | ![]() |
0.082 (0.010) | 0.55 (0.19) | 0.048 (0.016) | 7.495 (0.021) | 85455.23 | 85455.66 | 10.8 | CH3C2H 51→41 | ![]() | ![]() |
0.083 (0.011) | 0.50 (0.18) | 0.044 (0.015) | 7.538 (0.020) | 85456.85 | 85457.29 | 10.9 | CH3C2H 50→40 | ![]() | ![]() |
0.090 (0.008) | 0.60 (0.17) | 0.057 (0.015) | 7.571 (0.019) | 85633.56 | 85634.01 | 11.7 | C4H 9→8 J=19/2→17/2 | ![]() | ![]() |
0.068 (0.011) | 0.7 (0.3) | 0.048 (0.018) | 7.65 (0.03) | 85672.11 | 85672.58 | 7.6 | C4H 9→8 J=17/2→15/2 | ![]() | ![]() |
0.253 (0.011) | 0.43 (0.06) | 0.116 (0.014) | 7.705 (0.006) | 85924.30 | 85924.79 | 29.9 | NH2D 11,1→10,1 F=0-1 | ![]() | ![]() |
0.304 (0.011) | 0.41 (0.05) | 0.133 (0.014) | 7.634 (0.005) | 85925.23 | 85925.70 | 35.4 | NH2D 11,1→10,1 F=2-1 | ![]() | ![]() |
0.746 (0.009) | 0.522 (0.020) | 0.414 (0.015) | 7.6594 (0.0022) | 85925.80 | 85926.28 | 87.5 | NH2D 11,1→10,1 F=2-2 | ![]() | ![]() |
0.313 (0.011) | 0.40 (0.05) | 0.133 (0.014) | 7.702 (0.005) | 85926.40 | 85926.88 | 36.8 | NH2D 11,1→10,1 F=1-2 | ![]() | ![]() |
0.252 (0.011) | 0.41 (0.06) | 0.111 (0.014) | 7.619 (0.006) | 85927.26 | 85927.73 | 29.2 | NH2D 11,1→10,1 F=1-0 | ![]() | ![]() |
0.120 (0.013) | 0.44 (0.13) | 0.056 (0.016) | 7.565 (0.015) | 86054.52 | 86054.97 | 13.0 | HC15N 1→0 | ![]() | ![]() |
0.163 (0.012) | 0.40 (0.08) | 0.070 (0.014) | 7.529 (0.009) | 86093.52 | 86093.96 | 19.5 | SO 22→11 | ![]() | ![]() |
0.062 (0.009) | 0.38 (0.18) | 0.025 (0.012) | 7.486 (0.020) | 86180.96 | 86181.39 | 8.1 | CCS 6→5, N=7-6 | ![]() | ![]() |
0.172 (0.013) | 0.50 (0.11) | 0.091 (0.018) | 7.553 (0.012) | 86338.29 | 86338.73 | 18.5 | H13CN 11→01 | ![]() | ![]() |
0.250 (0.012) | 0.54 (0.08) | 0.143 (0.019) | 6.687 (0.009) | 86339.72 | 86339.92 | 24.7 | H13CN 1→0 | ![]() | ![]() |
0.120 (0.011) | 0.10 (0.07) | 0.013 (0.009) | 6.07 (0.08) | 86339.90 | 86339.92 | 11.9 | H13CN 1→0 | ![]() | ![]() |
0.078 (0.011) | 0.49 (0.21) | 0.041 (0.017) | 7.974 (0.023) | 86670.23 | 86670.80 | 9.1 | HCO 10,1→00,0 J=3/2→1/2 F=2→1 | ![]() | ![]() |
0.054 (0.010) | 0.7 (0.4) | 0.041 (0.021) | 7.82 (0.05) | 86707.83 | 86708.36 | 6.5 | HCO 10,1→00,0 J=3/2→1/2 F=1→0 | ![]() | ![]() |
1.523 (0.009) | 0.498 (0.009) | 0.807 (0.014) | 7.5537 (0.0009) | 86753.84 | 86754.29 | 185.4 | H13CO+ 1→0 | ![]() | ![]() |
1.229 (0.007) | 0.670 (0.011) | 0.876 (0.013) | 7.5409 (0.0011) | 88629.96 | 88630.42 | 82.7 | HCN 1→0 F=1→1 | ![]() | ![]() |
0.220 (0.007) | 0.59 (0.06) | 0.139 (0.012) | 7.150 (0.006) | 88630.08 | 88630.42 | 14.8 | HCN 1→0 F=1→1 | ![]() | ![]() |
1.781 (0.007) | 0.782 (0.009) | 1.483 (0.015) | 7.4486 (0.0009) | 88631.42 | 88631.85 | 119.1 | HCN 1→0 F=2→1 | ![]() | ![]() |
0.177 (0.007) | 1.40 (0.12) | 0.263 (0.020) | 7.016 (0.013) | 88631.55 | 88631.85 | 11.8 | HCN 1→0 F=2→1 | ![]() | ![]() |
1.415 (0.007) | 0.526 (0.007) | 0.792 (0.010) | 7.5660 (0.0008) | 88633.48 | 88633.94 | 96.0 | HCN 1→0 F=0→1 | ![]() | ![]() |
0.164 (0.008) | 0.41 (0.06) | 0.072 (0.009) | 7.118 (0.006) | 88633.61 | 88633.94 | 11.1 | HCN 1→0 F=0→1 | ![]() | ![]() |
0.133 (0.011) | 0.42 (0.09) | 0.059 (0.013) | 7.612 (0.011) | 88865.22 | 88865.70 | 18.9 | H15NC 1→0 | ![]() | ![]() |
2.771 (0.008) | 0.881 (0.007) | 2.598 (0.018) | 7.5427 (0.0007) | 89188.07 | 89188.53 | 71.9 | HCO+ 1→0 | ![]() | ![]() |
0.330 (0.008) | 2.00 (0.09) | 0.70 (0.03) | 6.769 (0.009) | 89188.30 | 89188.53 | 8.6 | HCO+ 1→0 | ![]() | ![]() |
0.024 (0.003) | 0.23 (0.09) | 0.0058 (0.0024) | 5.336 (0.013) | 89826.75 | 89826.55 | 4.0 | C8H- 77-76 (!?) | ![]() | ![]() |
0.05 (0.03) | 0.12 (0.05) | 0.006 (0.003) | Unavailable | 89828.00 | Unavailable | 7.6 | CH3CN 62→52 (image band) | ![]() | ![]() |
1.282 (0.017) | 0.438 (0.018) | 0.598 (0.023) | 8.1136 (0.0020) | 90662.92 | 90663.56 | 58.8 | HNC 1→0 | ![]() | ![]() |
3.364 (0.014) | 0.741 (0.009) | 2.65 (0.03) | 7.4583 (0.0010) | 90663.12 | 90663.56 | 154.4 | HNC 1→0 | ![]() | ![]() |
0.073 (0.015) | 0.6 (0.4) | 0.04 (0.03) | 7.72 (0.05) | 90685.86 | 90686.38 | 5.0 | CCS N=7-6, J=7-6 | ![]() | ![]() |
0.415 (0.016) | 0.58 (0.07) | 0.26 (0.03) | 7.569 (0.008) | 90978.52 | 90979.00 | 29.4 | HC3N 10→9 (3 components around) | ![]() | ![]() |
0.081 (0.007) | 0.58 (0.15) | 0.050 (0.013) | 7.493 (0.017) | 92493.81 | 92494.27 | 14.2 | 13CS 2→1 | ![]() | ![]() |
0.034 (0.007) | 0.5 (0.3) | 0.017 (0.009) | 7.67 (0.04) | 92981.08 | 92981.60 | 6.4 | HDCS 3(0,3)-2(0,2) ? (CH3OCHO) | ![]() | ![]() |
1.302 (0.006) | 0.758 (0.010) | 1.050 (0.013) | 7.3133 (0.0011) | 93171.47 | 93171.88 | 27.0 | N2H+ 1→0 F=1→1 | ![]() | ![]() |
1.327 (0.008) | 0.443 (0.008) | 0.626 (0.010) | 8.3159 (0.0008) | 93172.98 | 93173.70 | 27.5 | N2H+ 1→0 F=1→2 | ![]() | ![]() |
1.761 (0.008) | 0.429 (0.006) | 0.804 (0.009) | 7.3641 (0.0006) | 93173.28 | 93173.70 | 36.5 | N2H+ 1→0 F=1→2 | ![]() | ![]() |
0.856 (0.008) | 0.443 (0.011) | 0.403 (0.010) | 6.7598 (0.0013) | 93173.46 | 93173.70 | 17.7 | N2H+ 1→0 F=1→2 | ![]() | ![]() |
1.045 (0.008) | 0.424 (0.009) | 0.472 (0.009) | 7.1682 (0.0010) | 93175.77 | 93176.13 | 21.7 | N2H+ 1→0 F=1→0 | ![]() | ![]() |
0.013 (0.006) | 2.5 (2.1) | 0.034 (0.024) | 3.45 (0.20) | 93849.49 | 93848.69 | 2.1 | CNCHO 17(1,16)-17(0,17) | ![]() | ![]() |
0.032 (0.006) | 0.9 (0.5) | 0.031 (0.015) | 3.39 (0.05) | 93849.51 | 93848.69 | 5.1 | CNCHO 17(1,16)-17(0,17) | ![]() | ![]() |
0.136 (0.007) | 0.59 (0.09) | 0.085 (0.012) | 7.562 (0.009) | 93869.61 | 93870.10 | 22.9 | C2S N=7→6 J=8→7 | ![]() | ![]() |
0.023 (0.009) | 0.3 (0.4) | 0.008 (0.009) | 7.22 (0.05) | 95946.95 | 95947.34 | 3.6 | CH3CHO 5(0,5)→4(0,4) | ![]() | ![]() |
0.021 (0.008) | 0.4 (0.5) | 0.010 (0.010) | 7.52 (0.06) | 95993.58 | 95994.06 | 3.3 | c-HCCCD 2(1,1)-1(1,0) | ![]() | ![]() |
0.13 (0.03) | 2.1 (0.9) | 0.30 (0.11) | 7.48 (0.09) | 96233.71 | 96234.2 | 16.6 | Unidentified | ![]() | ![]() |
0.09 (0.04) | 1.9 (1.3) | 0.18 (0.11) | 7.48 (0.13) | 96238.16 | 96238.6 | 11.4 | Unidentified 96.239 GHz | ![]() | ![]() |
0.260 (0.006) | 0.61 (0.04) | 0.169 (0.009) | 7.567 (0.004) | 96412.45 | 96412.95 | 49.5 | C34S 2→1 | ![]() | ![]() |
0.053 (0.006) | 0.49 (0.16) | 0.028 (0.009) | 7.165 (0.018) | 96412.58 | 96412.95 | 10.1 | C34S 2→1 | ![]() | ![]() |
0.029 (0.005) | 1.5 (0.6) | 0.047 (0.015) | 7.96 (0.06) | 96424.99 | 96425.62 | 2.0 | CH3CHO 5(2,4)→4(2,3) (2) | ![]() | ![]() |
0.282 (0.006) | 0.63 (0.04) | 0.188 (0.010) | 7.518 (0.004) | 96738.87 | 96739.36 | 43.5 | CH3OH 2(-1,2)→1(-1,1) | ![]() | ![]() |
0.410 (0.006) | 0.609 (0.024) | 0.266 (0.010) | 7.510 (0.003) | 96740.88 | 96741.37 | 62.1 | CH3OH 2(0,2)→1(0,1) ++ | ![]() | ![]() |
0.055 (0.006) | 0.47 (0.15) | 0.028 (0.009) | 7.537 (0.017) | 96744.05 | 96744.55 | 8.9 | CH3OH 2(0,2)→1(0,1) | ![]() | ![]() |
0.019 (0.009) | 0.4 (0.5) | 0.007 (0.009) | 12.64 (0.06) | 96753.37 | 96755.51 | 0.8 | CH3OH 2(1,1)→1(1,0) (1) | ![]() | ![]() |
0.019 (0.009) | 0.5 (0.6) | 0.011 (0.011) | 7.59 (0.07) | 96755.00 | 96755.51 | 0.8 | CH3OH 2(1,1)→1(1,0) (1) | ![]() | ![]() |
0.049 (0.014) | 0.20 (0.17) | 0.010 (0.009) | 7.47 (0.03) | 96845.83 | 96846.3 | 6.9 | Unidentified | ![]() | ![]() |
0.101 (0.018) | 0.19 (0.09) | 0.020 (0.010) | 7.474 (0.017) | 96860.82 | 96861.3 | 16.6 | Unidentified | ![]() | ![]() |
0.168 (0.008) | 0.07 (0.05) | 0.013 (0.005) | 7.47 (0.08) | 96867.38 | 96867.9 | 24.6 | Unidentified | ![]() | ![]() |
0.12 (0.03) | 0.16 (0.09) | 0.020 (0.011) | 7.47 (0.03) | 96882.36 | 96882.8 | 17.6 | Unidentified | ![]() | ![]() |
0.21 (0.05) | 0.18 (0.10) | 0.041 (0.022) | 7.474 (0.022) | 96888.91 | 96889.4 | 28.2 | Unidentified | ![]() | ![]() |
0.3576 (0.0016) | 0.1685 (0.0018) | 0.0641 (0.0007) | 7.4733 (0.0005) | 96903.89 | 96904.4 | 48.8 | Unidentified 96.904 GHz | ![]() | ![]() |
0.5115 (0.0019) | 0.1750 (0.0015) | 0.0953 (0.0008) | 7.4732 (0.0004) | 96910.44 | 96910.9 | 40.2 | Unidentified 96.911 GHz | ![]() | ![]() |
0.6291 (0.0015) | 0.2609 (0.0015) | 0.1747 (0.0009) | 7.47319 (0.00016) | 96910.80 | 96911.3 | 49.5 | Unidentified 96.911 GHz | ![]() | ![]() |
0.381 (0.009) | 0.164 (0.004) | 0.0665 (0.0011) | 7.4730 (0.0025) | 96925.42 | 96925.9 | 23.3 | Unidentified 96.926 GHz | ![]() | ![]() |
2.6799 (0.0004) | 0.11949 (0.00012) | 0.3409 (0.0004) | 7.47 (0.08) | 96925.79 | 96926.3 | 163.6 | Unidentified 96.926 GHz | ![]() | ![]() |
0.16 (0.05) | 0.17 (0.12) | 0.030 (0.019) | 7.47 (0.03) | 96931.97 | 96932.4 | 24.5 | Unidentified | ![]() | ![]() |
0.263 (0.004) | 0.160 (0.005) | 0.0447 (0.0013) | 7.4726 (0.0016) | 96946.96 | 96947.4 | 40.1 | Unidentified 96.947 GHz | ![]() | ![]() |
0.07 (0.04) | 0.15 (0.12) | 0.012 (0.009) | 7.47 (0.05) | 96953.50 | 96954.0 | 11.5 | Unidentified | ![]() | ![]() |
0.15 (0.07) | 0.15 (0.07) | 0.024 (0.011) | 7.47 (0.05) | 96968.49 | 96969.0 | 20.8 | Unidentified | ![]() | ![]() |
0.045 (0.014) | 0.19 (0.16) | 0.009 (0.008) | 7.47 (0.03) | 96990.03 | 96990.5 | 7.3 | Unidentified | ![]() | ![]() |
0.042 (0.010) | 0.23 (0.18) | 0.010 (0.008) | 7.472 (0.023) | 97011.56 | 97012.0 | 7.2 | Unidentified | ![]() | ![]() |
0.030 (0.007) | 0.6 (0.4) | 0.020 (0.013) | 8.29 (0.05) | 97171.32 | 97172.06 | 5.4 | C33S 2→1 | ![]() | ![]() |
2.467 (0.020) | 0.798 (0.018) | 2.09 (0.05) | 7.5546 (0.0020) | 97980.44 | 97980.95 | 107.6 | CS 2→1 | ![]() | ![]() |
0.402 (0.025) | 0.51 (0.09) | 0.22 (0.04) | 7.183 (0.010) | 97980.57 | 97980.95 | 17.4 | CS 2→1 | ![]() | ![]() |
0.08 (0.03) | 0.3 (0.4) | 0.02 (0.03) | 8.09 (0.04) | 99299.20 | 99299.89 | 3.8 | SO 3(2)→2(1) | ![]() | ![]() |
1.375 (0.023) | 0.508 (0.024) | 0.74 (0.04) | 7.564 (0.003) | 99299.37 | 99299.89 | 67.6 | SO 3(2)→2(1) | ![]() | ![]() |
0.20 (0.03) | 0.32 (0.14) | 0.07 (0.03) | 7.201 (0.015) | 99299.49 | 99299.89 | 9.6 | SO 3(2)→2(1) | ![]() | ![]() |
0.07 (0.06) | 0.2 (0.5) | 0.02 (0.04) | 7.41 (0.05) | 101326.48 | 101327.0 | 2.6 | Unidentified 101.327 GHz | ![]() | ![]() |
0.09 (0.05) | 0.4 (0.5) | 0.04 (0.04) | 7.63 (0.05) | 101477.26 | 101477.81 | 3.8 | H2CS 3(1,3)→2(1,2) | ![]() | ![]() |
1.17 (0.23) | 2.0 (0.8) | 2.5 (0.8) | 7.40 (0.08) | 101732.77 | 101733.2 | 17.1 | Unidentified | ![]() | ![]() |
0.117 (0.015) | 0.54 (0.20) | 0.068 (0.024) | 7.528 (0.023) | 106347.19 | 106347.73 | 8.1 | C2S N=8→7 J=9→8 | ![]() | ![]() |
0.195 (0.015) | 0.10 (0.06) | 0.021 (0.012) | 7.35 (0.08) | 106810.59 | 106811.07 | 13.1 | c-HCCCD 3(0,3)-2(0,2) | ![]() | ![]() |
0.25 (0.07) | 0.18 (0.07) | 0.049 (0.017) | 7.336 (0.015) | 106834.11 | 106834.6 | 16.2 | Unidentified 106.835 GHz | ![]() | ![]() |
0.09 (0.03) | 0.6 (0.4) | 0.06 (0.04) | 7.44 (0.06) | 108893.42 | 108893.95 | 4.9 | CH3OH 00,0→1-1,1 | ![]() | ![]() |
0.273 (0.024) | 0.47 (0.13) | 0.14 (0.04) | 7.598 (0.014) | 109173.06 | 109173.64 | 15.3 | HC3N 12→11 | ![]() | ![]() |
0.11 (0.03) | 0.5 (0.3) | 0.06 (0.04) | 7.18 (0.04) | 109173.21 | 109173.64 | 6.4 | HC3N 12→11 | ![]() | ![]() |
0.187 (0.020) | 0.52 (0.18) | 0.10 (0.04) | 7.551 (0.019) | 109251.62 | 109252.18 | 10.7 | SO 23→12 | ![]() | ![]() |
2.112 (0.023) | 0.806 (0.024) | 1.81 (0.06) | 7.695 (0.003) | 109781.56 | 109782.18 | 81.4 | C18O 1→0 | ![]() | ![]() |
0.337 (0.025) | 0.56 (0.13) | 0.20 (0.05) | 7.420 (0.014) | 109781.66 | 109782.18 | 13.0 | C18O 1→0 | ![]() | ![]() |
0.11 (0.04) | 0.4 (0.3) | 0.04 (0.03) | 7.59 (0.03) | 109905.17 | 109905.75 | 6.1 | HNCO 5→4 | ![]() | ![]() |
0.447 (0.017) | 0.09 (0.03) | 0.042 (0.013) | 8.15 (0.08) | 110023.80 | 110024.59 | 27.1 | C15N N=1→0 J=3/2→1/2 F=2→1 | ![]() | ![]() |
0.11 (0.04) | 0.4 (0.3) | 0.05 (0.04) | 7.70 (0.04) | 110151.47 | 110152.09 | 5.0 | NH2D 1(1,1)0a-1(0,1)0s, F=0-1 | ![]() | ![]() |
0.34 (0.22) | 0.17 (0.11) | 0.061 (0.022) | 7.822 (0.025) | 110152.92 | 110153.59 | 15.0 | NH2D 1(1,1)0a-1(0,1)0s, F=2-2 & 1-1 | ![]() | ![]() |
0.32 (0.07) | 0.24 (0.09) | 0.08 (0.03) | 7.586 (0.009) | 110153.01 | 110153.59 | 13.7 | NH2D 1(1,1)0a-1(0,1)0s, F=2-2 & 1-1 | ![]() | ![]() |
0.08 (0.04) | 0.2 (0.4) | 0.02 (0.03) | 7.74 (0.04) | 110153.53 | 110154.17 | 3.6 | NH2D 1(1,1)0a-1(0,1)0s, F=1-2 | ![]() | ![]() |
0.14 (0.06) | 0.25 (0.18) | 0.04 (0.03) | 7.615 (0.020) | 110154.43 | 110155.03 | 6.4 | NH2D 1(1,1)0a-1(0,1)0s, F=1-0 | ![]() | ![]() |
6.881 (0.021) | 0.920 (0.008) | 6.74 (0.05) | 7.6316 (0.0008) | 110200.75 | 110201.35 | 28.7 | 13CO 1→0 | ![]() | ![]() |
2.958 (0.021) | 3.78 (0.05) | 11.89 (0.10) | 7.545 (0.004) | 110200.79 | 110201.35 | 12.3 | 13CO 1→0 | ![]() | ![]() |
0.049 (0.021) | 1.6 (1.5) | 0.08 (0.07) | 7.3 (0.3) | 110202.81 | 110203.3 | 0.2 | Unidentified 110.203 GHz | ![]() | ![]() |
Backend 2mm (134.6 GHz)
Found 6 lines:
Tmb (K) | Width (km/s) | I (K km/s) | Vlsr (km/s) | Obs. freq (MHz) | Rest freq (MHz) | S/N ratio | Transition | Reduced spectrum | Original spectrum |
---|---|---|---|---|---|---|---|---|---|
0.442 (0.009) | 0.060 (0.015) | 0.028 (0.007) | 7.60 (0.06) | 133734.00 | 133734.7 | 48.1 | Unidentified 133.735 GHz | ![]() | ![]() |
0.07 (0.03) | 0.13 (0.16) | 0.009 (0.012) | 7.603 (0.023) | 133825.06 | 133825.8 | 7.3 | Unidentified | ![]() | ![]() |
0.026 (0.011) | 0.2 (0.4) | 0.005 (0.010) | 8.07 (0.03) | 134022.78 | 134023.71 | 3.4 | C4H v7=1 J=29/2-27/2 | ![]() | ![]() |
0.369 (0.008) | 0.059 (0.015) | 0.023 (0.006) | 7.60 (0.06) | 134023.78 | 134024.5 | 47.4 | Unidentified 134.024 GHz | ![]() | ![]() |
0.201 (0.010) | 0.37 (0.09) | 0.079 (0.018) | 7.597 (0.007) | 134284.18 | 134284.90 | 21.6 | HDCO 2(1,1)-1(1,0) | ![]() | ![]() |
0.083 (0.009) | 0.39 (0.19) | 0.035 (0.017) | 7.522 (0.015) | 135297.57 | 135298.26 | 9.8 | H2CS 4(1,4)-3(1,3) | ![]() | ![]() |
Backend 2mm (137.9 GHz)
Found 13 lines:
Tmb (K) | Width (km/s) | I (K km/s) | Vlsr (km/s) | Obs. freq (MHz) | Rest freq (MHz) | S/N ratio | Transition | Reduced spectrum | Original spectrum |
---|---|---|---|---|---|---|---|---|---|
0.059 (0.008) | 0.46 (0.25) | 0.029 (0.016) | 7.673 (0.019) | 137370.44 | 137371.21 | 7.6 | H2CS 4(0,4)-3(0,3) | ![]() | ![]() |
0.023 (0.009) | 0.4 (0.7) | 0.010 (0.016) | 10.06 (0.06) | 137448.09 | 137449.95 | 2.8 | H213CO 2(1,2)-1(1,1) | ![]() | ![]() |
0.057 (0.009) | 0.40 (0.25) | 0.024 (0.015) | 7.612 (0.019) | 137449.21 | 137449.95 | 6.9 | H213CO 2(1,2)-1(1,1) | ![]() | ![]() |
0.053 (0.009) | 0.3 (0.3) | 0.020 (0.015) | 7.894 (0.021) | 137453.60 | 137454.46 | 6.7 | c-HCCCD 2(2,0)-1(1,1) | ![]() | ![]() |
0.145 (0.008) | 0.06 (0.04) | 0.009 (0.006) | 7.61 (0.06) | 137553.98 | 137554.7 | 19.3 | Unidentified 137.554 GHz | ![]() | ![]() |
0.056 (0.013) | 0.19 (0.17) | 0.011 (0.011) | 8.018 (0.015) | 138177.73 | 138178.66 | 7.0 | SO 43→32 | ![]() | ![]() |
0.999 (0.009) | 0.424 (0.015) | 0.450 (0.015) | 7.5649 (0.0012) | 138177.94 | 138178.66 | 126.1 | SO 43→32 | ![]() | ![]() |
0.216 (0.011) | 0.25 (0.06) | 0.058 (0.012) | 7.241 (0.004) | 138178.09 | 138178.66 | 27.5 | SO 43→32 | ![]() | ![]() |
0.017 (0.009) | 0.3 (0.7) | 0.005 (0.013) | 7.34 (0.06) | 138252.55 | 138253.17 | 2.2 | CH3OOH (3) | ![]() | ![]() |
0.095 (0.013) | 0.16 (0.09) | 0.016 (0.009) | 7.602 (0.009) | 138254.03 | 138254.8 | 12.1 | Unidentified 138.254 GHz | ![]() | ![]() |
0.017 (0.011) | 0.2 (0.6) | 0.003 (0.010) | 7.60 (0.05) | 138503.28 | 138504.0 | 2.1 | Unidentified 138.504 GHz | ![]() | ![]() |
0.041 (0.009) | 0.5 (0.5) | 0.023 (0.018) | 7.59 (0.04) | 138738.53 | 138739.26 | 4.9 | 13CS 3→2 | ![]() | ![]() |
0.07 (0.04) | 0.15 (0.15) | 0.012 (0.012) | 7.597 (0.009) | 138754.06 | 138754.8 | 8.5 | Unidentified | ![]() | ![]() |
Backend 2mm (144.1 GHz)
Found 11 lines:
Tmb (K) | Width (km/s) | I (K km/s) | Vlsr (km/s) | Obs. freq (MHz) | Rest freq (MHz) | S/N ratio | Transition | Reduced spectrum | Original spectrum |
---|---|---|---|---|---|---|---|---|---|
0.122 (0.024) | 0.19 (0.17) | 0.025 (0.022) | 7.603 (0.013) | 143223.42 | 143224.2 | 8.1 | Unidentified 143.224 GHz | ![]() | ![]() |
0.172 (0.023) | 0.17 (0.11) | 0.032 (0.020) | 7.603 (0.009) | 143229.41 | 143230.2 | 12.0 | Unidentified 143.229 GHz | ![]() | ![]() |
0.17 (0.06) | 0.10 (0.10) | 0.019 (0.018) | 7.602 (0.021) | 143320.39 | 143321.2 | 12.0 | Unidentified | ![]() | ![]() |
0.14 (0.05) | 0.13 (0.13) | 0.019 (0.018) | 7.601 (0.013) | 143474.67 | 143475.4 | 10.1 | Unidentified | ![]() | ![]() |
2.021 (0.014) | 0.436 (0.013) | 0.94 (0.03) | 7.6154 (0.0009) | 144076.51 | 144077.29 | 152.6 | DCO+ J=2-1 (multiple components around) | ![]() | ![]() |
0.136 (0.014) | 0.35 (0.17) | 0.051 (0.025) | 7.337 (0.013) | 144076.65 | 144077.29 | 10.2 | DCO+ J=2-1 (multiple components around) | ![]() | ![]() |
0.136 (0.013) | 0.50 (0.21) | 0.07 (0.03) | 7.588 (0.015) | 144616.34 | 144617.10 | 10.3 | C34S 3→2 | ![]() | ![]() |
0.076 (0.022) | 0.4 (0.5) | 0.03 (0.04) | 7.59 (0.04) | 144826.03 | 144826.8 | 4.3 | Unidentified 144.828 GHz | ![]() | ![]() |
0.333 (0.019) | 0.47 (0.12) | 0.17 (0.04) | 7.453 (0.009) | 144827.30 | 144828.00 | 18.8 | DCN 2→1 | ![]() | ![]() |
0.10 (0.03) | 0.5 (0.7) | 0.06 (0.07) | 7.58 (0.05) | 144912.47 | 144913.2 | 6.4 | Unidentified 144.914 GHz | ![]() | ![]() |
0.10 (0.03) | 0.5 (0.6) | 0.05 (0.06) | 7.58 (0.05) | 144912.60 | 144913.4 | 6.7 | Unidentified 144.914 GHz | ![]() | ![]() |
Backend 2mm (147.3 GHz)
Found 2 lines:
Tmb (K) | Width (km/s) | I (K km/s) | Vlsr (km/s) | Obs. freq (MHz) | Rest freq (MHz) | S/N ratio | Transition | Reduced spectrum | Original spectrum |
---|---|---|---|---|---|---|---|---|---|
1.485 (0.011) | 0.671 (0.019) | 1.06 (0.03) | 7.6157 (0.0014) | 146968.23 | 146969.03 | 116.8 | CS 3→2 | ![]() | ![]() |
0.665 (0.011) | 0.49 (0.04) | 0.350 (0.025) | 7.236 (0.003) | 146968.42 | 146969.03 | 52.7 | CS 3→2 | ![]() | ![]() |
Backend 2mm (168.2 GHz)
Found 2 lines:
Tmb (K) | Width (km/s) | I (K km/s) | Vlsr (km/s) | Obs. freq (MHz) | Rest freq (MHz) | S/N ratio | Transition | Reduced spectrum | Original spectrum |
---|---|---|---|---|---|---|---|---|---|
0.56 (0.06) | 0.49 (0.23) | 0.29 (0.14) | 7.636 (0.015) | 168761.83 | 168762.75 | 9.9 | H2S 1(1,0)→1(0,1) | ![]() | ![]() |
0.23 (0.06) | 0.4 (0.5) | 0.10 (0.13) | 7.23 (0.04) | 168762.06 | 168762.75 | 4.1 | H2S 1(1,0)→1(0,1) | ![]() | ![]() |
Backend 2mm (171.5 GHz)
Found 9 lines:
Tmb (K) | Width (km/s) | I (K km/s) | Vlsr (km/s) | Obs. freq (MHz) | Rest freq (MHz) | S/N ratio | Transition | Reduced spectrum | Original spectrum |
---|---|---|---|---|---|---|---|---|---|
0.83 (0.03) | 0.055 (0.025) | 0.049 (0.022) | 7.30 (0.05) | 172200.29 | 172201.0 | 10.1 | Unidentified 172.203 GHz | ![]() | ![]() |
0.19 (0.04) | 0.18 (0.20) | 0.037 (0.005) | 7.296 (0.012) | 172201.87 | 172202.6 | 2.4 | Unidentified 172.203 GHz | ![]() | ![]() |
1.2448 (0.0005) | 0.04596 (0.00023) | 0.0609 (0.0003) | 7.30 (0.05) | 172215.08 | 172215.8 | 14.9 | Unidentified 172.218 GHz | ![]() | ![]() |
0.115 (0.017) | 0.20 (0.15) | 0.0247 (0.0025) | 7.296 (0.012) | 172216.74 | 172217.5 | 1.5 | Unidentified 172.218 GHz | ![]() | ![]() |
0.170 (0.008) | 0.31 (0.08) | 0.055 (0.014) | 7.296 (0.006) | 172220.83 | 172221.6 | 2.2 | Unidentified 172.223 GHz | ![]() | ![]() |
0.229 (0.024) | 0.23 (0.13) | 0.06 (0.04) | 7.296 (0.009) | 172221.92 | 172222.7 | 3.0 | Unidentified 172.223 GHz | ![]() | ![]() |
0.245 (0.021) | 0.24 (0.13) | 0.06 (0.04) | 7.296 (0.008) | 172223.39 | 172224.1 | 3.2 | Unidentified 172.223 GHz | ![]() | ![]() |
0.994 (0.011) | 0.046 (0.008) | 0.049 (0.008) | 7.30 (0.05) | 172225.87 | 172226.6 | 12.4 | Unidentified 172.227 GHz | ![]() | ![]() |
0.027 (0.011) | 0.9 (0.8) | 0.025 (0.008) | 7.30 (0.16) | 172234.78 | 172235.52 | 0.3 | NaCN/NaNC 11(3,9)-10(3,8) | ![]() | ![]() |
