DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B213-C17-7-0_0

Backend 3mm (85.0-110.5 GHz)

Found 61 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
1.104 (0.016)	0.345 (0.015)	0.405 (0.017)	7.1974 (0.0017)	85338.42	85338.90	91.5	c-C₃H₂ 2_1,2→1_0,1
0.056 (0.020)	0.3 (0.4)	0.019 (0.019)	7.24 (0.04)	85347.38	85347.87	1.2	HCS⁺ 2→1
0.173 (0.016)	0.33 (0.09)	0.061 (0.017)	7.233 (0.011)	85633.52	85634.01	15.4	C₄H 9→8 J=19/2→17/2
0.165 (0.016)	0.33 (0.10)	0.058 (0.017)	7.197 (0.011)	85672.09	85672.58	16.2	C₄H 9→8 J=17/2→15/2
0.024 (0.013)	0.3 (0.5)	0.008 (0.013)	4.02 (0.06)	85925.21	85924.79	2.6	NH₂D 1_1,1→1_0,1 F=0-1
0.046 (0.011)	0.5 (0.4)	0.023 (0.016)	5.20 (0.04)	85925.79	85925.70	4.9	NH₂D 1_1,1→1_0,1 F=2-1
0.022 (0.014)	0.3 (0.6)	0.007 (0.014)	5.61 (0.07)	85927.70	85927.73	2.4	NH₂D 1_1,1→1_0,1 F=1-0
0.069 (0.016)	0.31 (0.21)	0.023 (0.015)	6.333 (0.025)	86339.68	86339.92	6.3	H¹³CN 1→0
0.578 (0.017)	0.38 (0.04)	0.232 (0.019)	7.190 (0.004)	86753.80	86754.29	49.9	H¹³CO⁺ 1→0
0.758 (0.010)	0.477 (0.019)	0.385 (0.015)	7.2093 (0.0021)	88629.91	88630.42	73.8	HCN 1→0 F=1→1
1.152 (0.010)	0.505 (0.013)	0.619 (0.015)	7.1930 (0.0014)	88631.35	88631.85	111.3	HCN 1→0 F=2→1
0.041 (0.012)	0.5 (0.4)	0.020 (0.014)	6.52 (0.04)	88631.55	88631.85	3.9	HCN 1→0 F=2→1
0.660 (0.011)	0.415 (0.020)	0.291 (0.014)	7.1936 (0.0022)	88633.44	88633.94	64.5	HCN 1→0 F=0→1
2.217 (0.013)	0.535 (0.009)	1.262 (0.020)	7.2133 (0.0010)	89188.02	89188.53	177.3	HCO⁺ 1→0
0.193 (0.012)	0.55 (0.11)	0.114 (0.021)	6.628 (0.012)	89188.19	89188.53	15.4	HCO⁺ 1→0
0.767 (0.016)	0.323 (0.019)	0.264 (0.015)	7.6994 (0.0022)	90662.90	90663.56	50.8	HNC 1→0
2.279 (0.011)	0.679 (0.009)	1.648 (0.022)	7.1459 (0.0011)	90663.06	90663.56	150.2	HNC 1→0
0.286 (0.015)	0.36 (0.06)	0.109 (0.016)	7.166 (0.006)	90978.49	90979.00	28.9	HC₃N 10→9 (3 components around)
0.128 (0.020)	0.44 (0.18)	0.059 (0.024)	7.237 (0.020)	91493.82	91494.35	9.0	c-C₃H 2(1,2)-1(1,1), J=5/2-3/2, F=3-2
0.078 (0.024)	0.27 (0.23)	0.022 (0.019)	7.31 (0.03)	91497.06	91497.61	6.7	c-C₃H 2(1,2)-1(1,1), J=5/2-3/2, F=2-1
0.052 (0.018)	0.27 (0.21)	0.015 (0.012)	5.83 (0.03)	91986.99	91987.09	5.9	CH₃CN 5₀→4₀
0.79 (0.24)	0.25 (0.16)	0.21 (0.14)	7.114 (0.019)	92200.30	92200.8	18.6	Unidentified
1.1 (0.4)	0.22 (0.11)	0.27 (0.13)	7.114 (0.011)	92200.78	92201.3	26.5	Unidentified
1.0 (0.4)	0.21 (0.13)	0.22 (0.13)	7.114 (0.016)	92218.31	92218.8	18.6	Unidentified
1.09 (0.17)	0.28 (0.13)	0.33 (0.15)	7.114 (0.015)	92218.79	92219.3	21.1	Unidentified
1.0 (0.5)	0.20 (0.11)	0.22 (0.11)	7.113 (0.010)	92278.43	92278.9	19.4	Unidentified
1.15 (0.16)	0.28 (0.12)	0.34 (0.14)	7.112 (0.013)	92296.44	92296.9	14.3	Unidentified
1.29 (0.08)	0.013 (0.016)	0.018 (0.022)	7.112290 (0.000007)	92296.92	92297.4	15.9	Unidentified
0.23 (0.05)	0.22 (0.09)	0.054 (0.020)	7.108 (0.009)	92545.66	92546.2	20.4	Unidentified
0.492 (0.007)	0.71 (0.04)	0.371 (0.015)	6.886 (0.004)	93171.45	93171.88	7.1	N₂H⁺ 1→0 F=1→1
0.424 (0.007)	1.72 (0.06)	0.779 (0.024)	7.047 (0.007)	93173.22	93173.70	6.1	N₂H⁺ 1→0 F=1→2
0.455 (0.011)	0.353 (0.023)	0.171 (0.011)	6.726 (0.003)	93175.75	93176.13	6.5	N₂H⁺ 1→0 F=1→0
0.083 (0.009)	1.3 (0.4)	0.11 (0.03)	3.08 (0.04)	93849.45	93848.69	8.7	CNCHO 17(1,16)-17(0,17)
0.047 (0.009)	3.4 (1.1)	0.17 (0.05)	2.88 (0.10)	93849.51	93848.69	4.9	CNCHO 17(1,16)-17(0,17)
0.145 (0.016)	0.36 (0.12)	0.056 (0.017)	7.175 (0.013)	93869.58	93870.10	13.0	C₂S N=7→6 J=8→7
0.092 (0.012)	2.1 (0.6)	0.20 (0.05)	4.62 (0.06)	93960.20	93959.93	7.7	CH₃OOH (2)
0.088 (0.012)	3.3 (0.8)	0.31 (0.06)	4.06 (0.07)	93960.38	93959.93	7.3	CH₃OOH (2)
0.136 (0.019)	0.30 (0.13)	0.043 (0.019)	7.063 (0.016)	95188.41	95188.9	12.6	Unidentified
21.5 (2.5)	1.1 (0.4)	25 (7)	7.06 (0.04)	95606.24	95606.7	26.6	Unidentified
13.5 (1.7)	1.1 (0.4)	16 (5)	7.06 (0.04)	95616.91	95617.4	13.8	Unidentified
0.039 (0.009)	2.7 (1.1)	0.11 (0.04)	4.78 (0.11)	95810.64	95810.41	3.9	³⁴SO₂ 2(2,0)-3(1,3)
0.065 (0.009)	1.3 (0.5)	0.09 (0.03)	4.47 (0.05)	95810.74	95810.41	6.4	³⁴SO₂ 2(2,0)-3(1,3)
0.024 (0.016)	0.2 (0.5)	0.006 (0.011)	3.64 (0.06)	95813.12	95812.53	2.3	C₈H (2)
0.051 (0.016)	0.7 (0.7)	0.04 (0.04)	7.63 (0.08)	96240.13	96240.81	0.5	CNCHO 22(3,19)-23(2,22)
0.916 (0.016)	1.37 (0.06)	1.34 (0.05)	-0.542 (0.006)	96242.75	96240.81	9.8	CNCHO 22(3,19)-23(2,22)
0.149 (0.015)	0.40 (0.12)	0.063 (0.018)	7.209 (0.014)	96412.40	96412.95	12.8	C³⁴S 2→1
0.341 (0.015)	0.37 (0.05)	0.134 (0.016)	7.158 (0.005)	96738.82	96739.36	34.4	CH₃OH 2_(-1,2)→1_(-1,1)
0.433 (0.015)	0.36 (0.04)	0.167 (0.015)	7.161 (0.004)	96740.83	96741.37	41.8	CH₃OH 2_(0,2)→1_(0,1) ++
1.634 (0.013)	0.484 (0.011)	0.842 (0.018)	7.2334 (0.0012)	97980.39	97980.95	156.8	CS 2→1
0.045 (0.018)	0.3 (0.4)	0.015 (0.017)	7.17 (0.04)	98011.06	98011.61	3.6	l-C₃H J=9/2-7/2, Omega=1/2, F=5-4, l=f
0.043 (0.016)	0.4 (0.4)	0.016 (0.018)	4.17 (0.05)	98012.04	98011.61	3.6	l-C₃H J=9/2-7/2, Omega=1/2, F=5-4, l=f
0.436 (0.016)	0.40 (0.05)	0.186 (0.019)	7.201 (0.005)	99299.33	99299.89	37.0	SO 3₍₂₎→2₍₁₎
0.115 (0.015)	0.37 (0.13)	0.045 (0.016)	7.174 (0.015)	101477.24	101477.81	12.2	H₂CS 3_(1,3)→2_(1,2)
0.081 (0.021)	0.38 (0.25)	0.033 (0.021)	7.11 (0.03)	106347.16	106347.73	6.2	C₂S N=8→7 J=9→8
0.07 (0.03)	0.28 (0.25)	0.022 (0.019)	7.12 (0.03)	108893.36	108893.95	5.2	CH₃OH 0_0,0→1_-1,1
0.091 (0.022)	0.34 (0.23)	0.033 (0.022)	7.16 (0.03)	109173.04	109173.64	6.3	HC₃N 12→11
0.235 (0.024)	0.32 (0.11)	0.081 (0.025)	7.552 (0.013)	109781.42	109782.18	11.2	C¹⁸O 1→0
1.280 (0.020)	0.548 (0.025)	0.75 (0.04)	7.204 (0.003)	109781.55	109782.18	61.2	C¹⁸O 1→0
0.051 (0.019)	0.3 (0.4)	0.015 (0.017)	5.61 (0.04)	110023.50	110023.54	3.7	C¹⁵N N=1→0 J=3/2→1/2 F=1→0
4.749 (0.017)	0.845 (0.009)	4.27 (0.04)	7.2753 (0.0009)	110200.70	110201.35	80.5	¹³CO 1→0
0.732 (0.017)	0.99 (0.06)	0.77 (0.05)	6.802 (0.007)	110200.87	110201.35	12.4	¹³CO 1→0

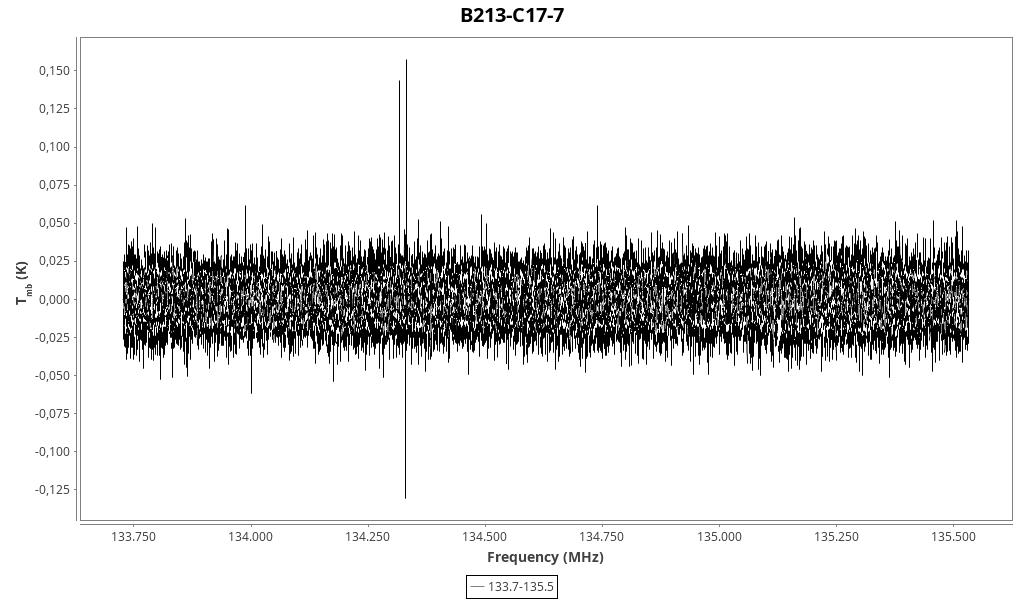

Backend 2mm (134.6 GHz)

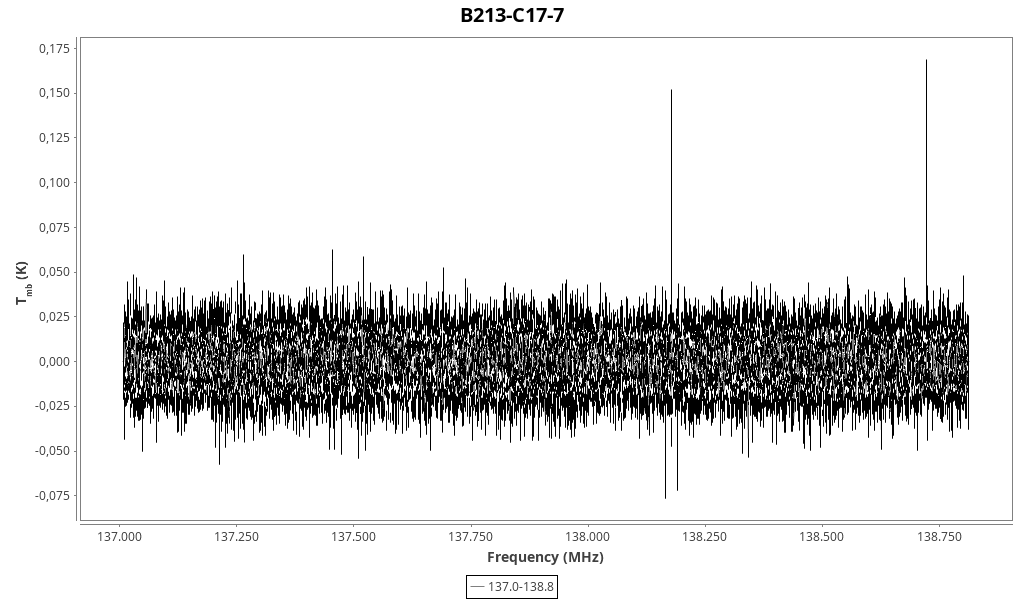

Backend 2mm (137.9 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.232 (0.015)	0.07 (0.05)	0.016 (0.012)	7.25 (0.06)	137453.66	137454.46	15.8	c-HCCCD 2(2,0)-1(1,1)
0.160 (0.019)	0.26 (0.14)	0.045 (0.023)	7.202 (0.011)	138177.87	138178.66	10.7	SO 4₃→3₂
0.182 (0.023)	0.22 (0.13)	0.042 (0.024)	7.231 (0.010)	138722.91	138723.7	13.9	Unidentified

Backend 2mm (144.1 GHz)

Found 7 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.15 (0.05)	0.12 (0.15)	0.018 (0.023)	6.349 (0.020)	143224.89	143225.3	7.4	Unidentified 143.224 GHz
0.16 (0.11)	0.09 (0.14)	0.016 (0.023)	6.35 (0.05)	143230.90	143231.3	7.7	Unidentified
0.21 (0.07)	0.12 (0.12)	0.026 (0.025)	6.348 (0.017)	143321.87	143322.3	10.7	Unidentified
0.266 (0.025)	0.02 (0.05)	0.006 (0.012)	6.35 (0.05)	143336.61	143337.0	11.0	Unidentified
0.58 (0.12)	0.11 (0.07)	0.07 (0.05)	6.347 (0.013)	143530.51	143530.9	28.8	Unidentified
0.644 (0.023)	0.32 (0.06)	0.22 (0.04)	6.344 (0.004)	144076.88	144077.29	32.3	DCO⁺ J=2-1 (multiple components around)
0.32 (0.07)	1.2 (0.7)	0.41 (0.21)	6.34 (0.05)	144937.56	144938.0	13.9	Unidentified

Backend 2mm (147.3 GHz)

Found 1 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.749 (0.021)	0.38 (0.05)	0.30 (0.04)	7.154 (0.004)	146968.21	146969.03	39.4	CS 3→2

Backend 2mm (168.1 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.52 (0.14)	0.10 (0.06)	0.06 (0.04)	7.339 (0.007)	167275.12	167276.1	34.8	Unidentified
0.40 (0.11)	0.9 (0.8)	0.4 (0.4)	7.34 (0.05)	167597.85	167598.9	21.9	Unidentified
0.31 (0.11)	1.8 (1.5)	0.6 (0.5)	7.34 (0.09)	167597.87	167598.9	17.1	Unidentified
0.192 (0.021)	0.22 (0.13)	0.04 (0.03)	7.323 (0.009)	168761.73	168762.75	10.4	H₂S 1_(1,0)→1_(0,1)

Backend 2mm (171.4 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
1.46 (0.03)	0.047 (0.015)	0.073 (0.022)	7.00 (0.05)	172095.69	172096.6	66.0	Unidentified
1.57 (0.03)	0.025 (0.009)	0.041 (0.016)	7.001915 (0.000024)	172113.70	172114.6	75.8	Unidentified
0.32 (0.10)	0.09 (0.09)	0.03 (0.03)	7.002 (0.016)	172147.15	172148.0	13.4	Unidentified
0.071 (0.006)	0.14 (0.05)	0.011 (0.004)	7.001 (0.003)	172234.66	172235.52	3.4	NaCN/NaNC 11(3,9)-10(3,8)
