ORI-C1-4-0_0

Backend 3mm (85.0-110.5 GHz)

Found 54 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.056 (0.013) 1.7 (0.8) 0.10 (0.05) 11.77 (0.08) 85338.40 85338.90 4.1 c-C3H2 21,2→10,1 ori-c1-4-0_0:3mm_red_0.png ori-c1-4-0_0:3mm_ori_0.png
0.117 (0.013) 1.3 (0.4) 0.16 (0.04) 11.13 (0.04) 85338.58 85338.90 8.6 c-C3H2 21,2→10,1 ori-c1-4-0_0:3mm_red_1.png ori-c1-4-0_0:3mm_ori_1.png
0.070 (0.014) 0.41 (0.23) 0.030 (0.017) 9.36 (0.03) 85925.89 85925.70 5.6 NH2D 11,1→10,1 F=2-1 ori-c1-4-0_0:3mm_red_2.png ori-c1-4-0_0:3mm_ori_2.png
0.091 (0.014) 0.36 (0.17) 0.035 (0.016) 10.922 (0.019) 85926.01 85926.28 7.3 NH2D 11,1→10,1 F=2-2 ori-c1-4-0_0:3mm_red_3.png ori-c1-4-0_0:3mm_ori_3.png
0.037 (0.016) 0.2 (0.4) 0.009 (0.013) 9.00 (0.05) 85926.57 85926.28 3.0 NH2D 11,1→10,1 F=2-2 ori-c1-4-0_0:3mm_red_4.png ori-c1-4-0_0:3mm_ori_4.png
0.023 (0.011) 0.7 (0.9) 0.017 (0.022) 11.21 (0.11) 85927.38 85927.73 1.9 NH2D 11,1→10,1 F=1-0 ori-c1-4-0_0:3mm_red_5.png ori-c1-4-0_0:3mm_ori_5.png
0.091 (0.012) 1.0 (0.4) 0.10 (0.03) 10.40 (0.04) 86093.84 86093.96 8.2 SO 22→11 ori-c1-4-0_0:3mm_red_6.png ori-c1-4-0_0:3mm_ori_6.png
0.054 (0.012) 0.4 (0.4) 0.026 (0.017) 10.89 (0.04) 86339.66 86339.92 5.4 H13CN 1→0 ori-c1-4-0_0:3mm_red_7.png ori-c1-4-0_0:3mm_ori_7.png
0.063 (0.011) 1.1 (0.5) 0.07 (0.03) 9.90 (0.05) 86339.95 86339.92 6.3 H13CN 1→0 ori-c1-4-0_0:3mm_red_8.png ori-c1-4-0_0:3mm_ori_8.png
0.056 (0.016) 0.5 (0.4) 0.027 (0.021) 7.98 (0.04) 86489.00 86488.42 4.5 H(70)</sup>\epsilon</sup> ori-c1-4-0_0:3mm_red_9.png ori-c1-4-0_0:3mm_ori_9.png
0.059 (0.013) 1.5 (0.7) 0.09 (0.04) 11.25 (0.08) 86670.44 86670.80 4.7 HCO 10,1→00,0 J=3/2→1/2 F=2→1 ori-c1-4-0_0:3mm_red_10.png ori-c1-4-0_0:3mm_ori_10.png
0.075 (0.014) 0.6 (0.4) 0.05 (0.03) 11.57 (0.04) 86753.83 86754.29 6.0 H13CO+ 1→0 ori-c1-4-0_0:3mm_red_11.png ori-c1-4-0_0:3mm_ori_11.png
0.410 (0.014) 0.67 (0.07) 0.29 (0.03) 10.713 (0.007) 86754.08 86754.29 33.4 H13CO+ 1→0 ori-c1-4-0_0:3mm_red_12.png ori-c1-4-0_0:3mm_ori_12.png
0.744 (0.010) 1.72 (0.05) 1.36 (0.04) 10.962 (0.005) 88630.14 88630.42 36.1 HCN 1→0 F=1→1 ori-c1-4-0_0:3mm_red_13.png ori-c1-4-0_0:3mm_ori_13.png
0.697 (0.010) 1.23 (0.05) 0.91 (0.03) 11.741 (0.005) 88631.33 88631.85 33.8 HCN 1→0 F=2→1 ori-c1-4-0_0:3mm_red_14.png ori-c1-4-0_0:3mm_ori_14.png
1.460 (0.010) 1.339 (0.021) 2.08 (0.03) 10.6512 (0.0022) 88631.65 88631.85 70.7 HCN 1→0 F=2→1 ori-c1-4-0_0:3mm_red_15.png ori-c1-4-0_0:3mm_ori_15.png
0.095 (0.010) 0.67 (0.22) 0.067 (0.021) 9.06 (0.03) 88632.12 88631.85 4.6 HCN 1→0 F=2→1 ori-c1-4-0_0:3mm_red_16.png ori-c1-4-0_0:3mm_ori_16.png
0.127 (0.010) 0.98 (0.20) 0.132 (0.025) 11.620 (0.022) 88633.46 88633.94 6.1 HCN 1→0 F=0→1 ori-c1-4-0_0:3mm_red_17.png ori-c1-4-0_0:3mm_ori_17.png
0.326 (0.010) 1.03 (0.08) 0.36 (0.03) 10.773 (0.009) 88633.71 88633.94 15.8 HCN 1→0 F=0→1 ori-c1-4-0_0:3mm_red_18.png ori-c1-4-0_0:3mm_ori_18.png
0.907 (0.009) 2.71 (0.05) 2.62 (0.04) 11.036 (0.005) 89188.22 89188.53 19.6 HCO+ 1→0 ori-c1-4-0_0:3mm_red_19.png ori-c1-4-0_0:3mm_ori_19.png
1.532 (0.009) 1.489 (0.020) 2.43 (0.03) 10.8024 (0.0021) 89188.29 89188.53 33.1 HCO+ 1→0 ori-c1-4-0_0:3mm_red_20.png ori-c1-4-0_0:3mm_ori_20.png
0.288 (0.009) 1.64 (0.11) 0.50 (0.03) 7.808 (0.012) 89199.19 89198.54 2.9 H(59)</sup>\gamma</sup> ori-c1-4-0_0:3mm_red_21.png ori-c1-4-0_0:3mm_ori_21.png
0.65 (0.03) 1.20 (0.12) 0.83 (0.08) 11.608 (0.013) 90663.08 90663.56 20.6 HNC 1→0 ori-c1-4-0_0:3mm_red_22.png ori-c1-4-0_0:3mm_ori_22.png
1.74 (0.03) 1.01 (0.04) 1.88 (0.07) 10.729 (0.005) 90663.34 90663.56 54.9 HNC 1→0 ori-c1-4-0_0:3mm_red_23.png ori-c1-4-0_0:3mm_ori_23.png
0.11 (0.04) 0.4 (0.4) 0.05 (0.05) 9.53 (0.05) 90663.70 90663.56 3.5 HNC 1→0 ori-c1-4-0_0:3mm_red_24.png ori-c1-4-0_0:3mm_ori_24.png
0.287 (0.012) 0.98 (0.10) 0.30 (0.03) 10.627 (0.011) 93171.68 93171.88 14.8 N2H+ 1→0 F=1→1 ori-c1-4-0_0:3mm_red_25.png ori-c1-4-0_0:3mm_ori_25.png
0.322 (0.012) 1.82 (0.13) 0.62 (0.04) 10.848 (0.013) 93173.44 93173.70 16.7 N2H+ 1→0 F=1→2 ori-c1-4-0_0:3mm_red_26.png ori-c1-4-0_0:3mm_ori_26.png
0.202 (0.014) 0.59 (0.11) 0.128 (0.022) 10.558 (0.012) 93175.96 93176.13 10.5 N2H+ 1→0 F=1→0 ori-c1-4-0_0:3mm_red_27.png ori-c1-4-0_0:3mm_ori_27.png
0.14 (0.03) 2.8 (0.9) 0.40 (0.11) 10.78 (0.09) 93956.55 93956.8 5.5 Unidentified 93.956 GHz ori-c1-4-0_0:3mm_red_28.png ori-c1-4-0_0:3mm_ori_28.png
0.12 (0.03) 1.4 (0.8) 0.17 (0.08) 10.78 (0.08) 93956.99 93957.2 4.7 Unidentified 93.956 GHz ori-c1-4-0_0:3mm_red_29.png ori-c1-4-0_0:3mm_ori_29.png
0.81 (0.13) 2.0 (0.7) 1.8 (0.5) 10.76 (0.07) 96232.29 96232.5 19.5 Unidentified ori-c1-4-0_0:3mm_red_30.png ori-c1-4-0_0:3mm_ori_30.png
0.058 (0.017) 3.2 (1.5) 0.20 (0.08) 11.11 (0.15) 96412.60 96412.95 3.8 C34S 2→1 ori-c1-4-0_0:3mm_red_31.png ori-c1-4-0_0:3mm_ori_31.png
0.076 (0.018) 1.2 (0.7) 0.10 (0.05) 10.70 (0.08) 96412.73 96412.95 5.0 C34S 2→1 ori-c1-4-0_0:3mm_red_32.png ori-c1-4-0_0:3mm_ori_32.png
0.077 (0.014) 0.8 (0.5) 0.07 (0.04) 10.73 (0.05) 96739.12 96739.36 5.7 CH3OH 2(-1,2)→1(-1,1) ori-c1-4-0_0:3mm_red_33.png ori-c1-4-0_0:3mm_ori_33.png
0.098 (0.014) 1.0 (0.4) 0.10 (0.04) 10.62 (0.04) 96741.17 96741.37 7.4 CH3OH 2(0,2)→1(0,1) ++ ori-c1-4-0_0:3mm_red_34.png ori-c1-4-0_0:3mm_ori_34.png
0.057 (0.011) 0.6 (0.4) 0.039 (0.021) 10.47 (0.05) 97715.25 97715.40 5.8 34SO 3(2)→2(1) ori-c1-4-0_0:3mm_red_35.png ori-c1-4-0_0:3mm_ori_35.png
0.480 (0.010) 2.18 (0.09) 1.11 (0.04) 11.144 (0.009) 97980.58 97980.95 23.1 CS 2→1 ori-c1-4-0_0:3mm_red_36.png ori-c1-4-0_0:3mm_ori_36.png
0.967 (0.010) 1.34 (0.04) 1.38 (0.03) 10.725 (0.004) 97980.72 97980.95 46.4 CS 2→1 ori-c1-4-0_0:3mm_red_37.png ori-c1-4-0_0:3mm_ori_37.png
0.07 (0.13) 0.2 (0.4) 0.014 (0.012) 16.46 (0.03) 97993.06 97995.17 1.4 l-C3H J=9/2-7/2, Omega=1/2, F=5-4, l=e ori-c1-4-0_0:3mm_red_38.png ori-c1-4-0_0:3mm_ori_38.png
0.117 (0.012) 1.1 (0.3) 0.14 (0.03) 16.08 (0.04) 97993.18 97995.17 2.3 l-C3H J=9/2-7/2, Omega=1/2, F=5-4, l=e ori-c1-4-0_0:3mm_red_39.png ori-c1-4-0_0:3mm_ori_39.png
0.266 (0.015) 1.46 (0.18) 0.41 (0.05) 11.120 (0.018) 99299.52 99299.89 19.0 SO 3(2)→2(1) ori-c1-4-0_0:3mm_red_40.png ori-c1-4-0_0:3mm_ori_40.png
0.860 (0.015) 0.89 (0.04) 0.81 (0.04) 10.390 (0.005) 99299.76 99299.89 61.6 SO 3(2)→2(1) ori-c1-4-0_0:3mm_red_41.png ori-c1-4-0_0:3mm_ori_41.png
0.051 (0.011) 0.9 (0.6) 0.05 (0.03) 10.80 (0.06) 101477.54 101477.81 4.5 H2CS 3(1,3)→2(1,2) ori-c1-4-0_0:3mm_red_42.png ori-c1-4-0_0:3mm_ori_42.png
1.5 (0.3) 2.0 (0.7) 3.2 (0.9) 10.72 (0.07) 101741.42 101741.7 12.9 Unidentified ori-c1-4-0_0:3mm_red_43.png ori-c1-4-0_0:3mm_ori_43.png
0.043 (0.020) 0.2 (0.3) 0.010 (0.014) 11.01 (0.05) 102545.68 102546.02 3.9 CH3CCH 6(1)→5(1) ori-c1-4-0_0:3mm_red_44.png ori-c1-4-0_0:3mm_ori_44.png
0.19 (0.05) 1.1 (0.6) 0.22 (0.10) 10.49 (0.07) 109252.01 109252.18 5.1 SO 23→12 ori-c1-4-0_0:3mm_red_45.png ori-c1-4-0_0:3mm_ori_45.png
0.11 (0.04) 0.4 (0.5) 0.05 (0.06) 10.90 (0.06) 109535.67 109536.00 3.1 H(55)</sup>\gamma</sup> ori-c1-4-0_0:3mm_red_46.png ori-c1-4-0_0:3mm_ori_46.png
0.12 (0.04) 3.5 (1.8) 0.44 (0.17) 10.67 (0.17) 109561.23 109561.5 3.7 Unidentified 109.560 GHz ori-c1-4-0_0:3mm_red_47.png ori-c1-4-0_0:3mm_ori_47.png
0.27 (0.04) 4.8 (0.9) 1.37 (0.20) 10.67 (0.08) 109561.65 109561.9 8.2 Unidentified 109.560 GHz ori-c1-4-0_0:3mm_red_48.png ori-c1-4-0_0:3mm_ori_48.png
0.27 (0.04) 2.1 (0.6) 0.62 (0.14) 10.88 (0.06) 109781.85 109782.18 6.9 C18O 1→0 ori-c1-4-0_0:3mm_red_49.png ori-c1-4-0_0:3mm_ori_49.png
1.00 (0.04) 0.89 (0.09) 0.94 (0.09) 10.666 (0.009) 109781.93 109782.18 25.5 C18O 1→0 ori-c1-4-0_0:3mm_red_50.png ori-c1-4-0_0:3mm_ori_50.png
3.38 (0.04) 2.22 (0.05) 7.98 (0.15) 11.105 (0.005) 110200.95 110201.35 52.9 13CO 1→0 ori-c1-4-0_0:3mm_red_51.png ori-c1-4-0_0:3mm_ori_51.png
6.06 (0.04) 1.166 (0.019) 7.53 (0.11) 10.5762 (0.0020) 110201.14 110201.35 95.1 13CO 1→0 ori-c1-4-0_0:3mm_red_52.png ori-c1-4-0_0:3mm_ori_52.png
0.42 (0.04) 1.7 (0.4) 0.77 (0.14) 9.18 (0.04) 110201.66 110201.35 6.6 13CO 1→0 ori-c1-4-0_0:3mm_red_53.png ori-c1-4-0_0:3mm_ori_53.png

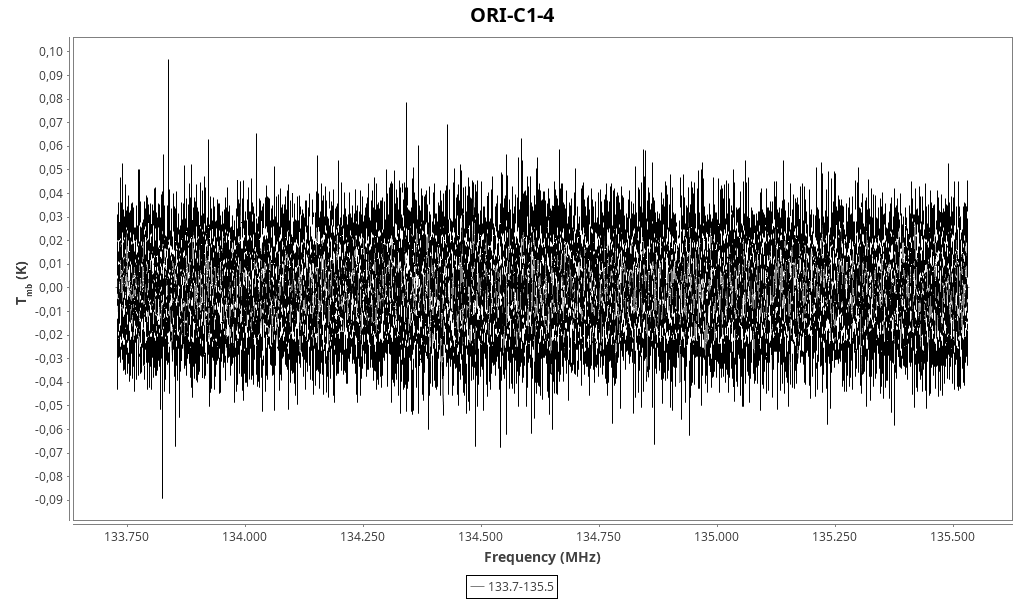

Backend 2mm (134.6 GHz)

Found 2 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.05 (0.03) 0.2 (0.4) 0.009 (0.019) 9.69 (0.03) 133775.55 133775.42 3.2 13CCS N=11-10, J=10-9, F=19/2-19/2 ori-c1-4-0_0:2mm_134.6_red_0.png ori-c1-4-0_0:2mm_134.6_ori_0.png
0.490 (0.016) 0.058 (0.022) 0.030 (0.012) 9.69 (0.06) 133836.97 133836.8 33.6 Unidentified 133.838 GHz ori-c1-4-0_0:2mm_134.6_red_1.png ori-c1-4-0_0:2mm_134.6_ori_1.png

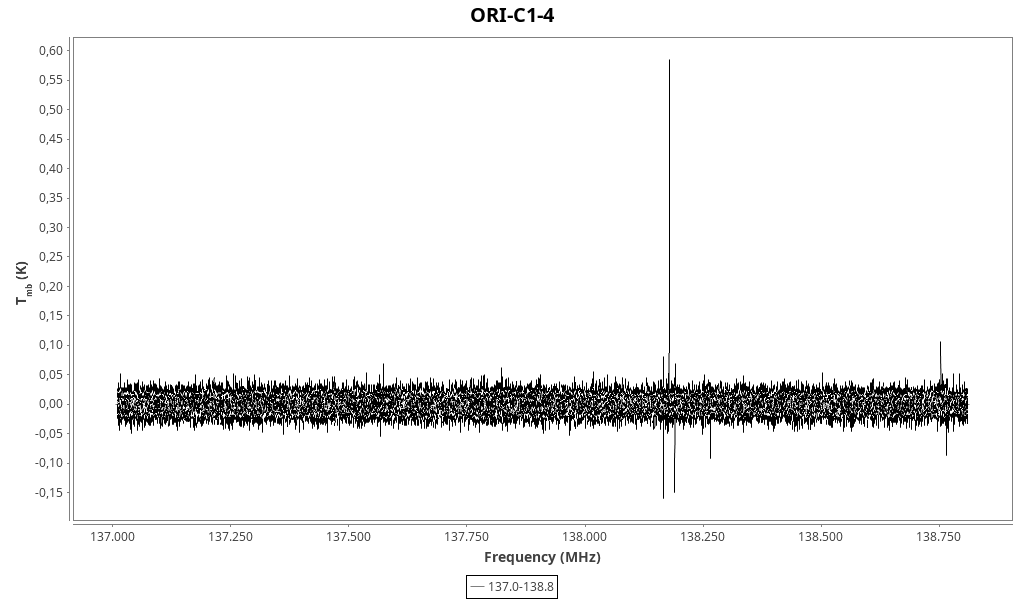

Backend 2mm (137.9 GHz)

Found 4 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.184 (0.016) 1.3 (0.3) 0.26 (0.06) 10.832 (0.022) 138178.28 138178.66 12.1 SO 43→32 ori-c1-4-0_0:2mm_137.9_red_0.png ori-c1-4-0_0:2mm_137.9_ori_0.png
0.457 (0.016) 0.74 (0.09) 0.36 (0.04) 10.305 (0.007) 138178.52 138178.66 30.3 SO 43→32 ori-c1-4-0_0:2mm_137.9_red_1.png ori-c1-4-0_0:2mm_137.9_ori_1.png
0.06 (0.06) 0.11 (0.24) 0.007 (0.015) 10.30 (0.06) 138504.03 138504.2 4.6 Unidentified 138.504 GHz ori-c1-4-0_0:2mm_137.9_red_2.png ori-c1-4-0_0:2mm_137.9_ori_2.png
0.11 (0.03) 0.13 (0.16) 0.015 (0.018) 10.304 (0.019) 138754.03 138754.2 7.3 Unidentified 138.754 GHz ori-c1-4-0_0:2mm_137.9_red_3.png ori-c1-4-0_0:2mm_137.9_ori_3.png

Backend 2mm (144.1 GHz)

Found 5 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.657 (0.023) 0.057 (0.025) 0.040 (0.018) 11.00 (0.05) 143229.80 143230.3 32.7 Unidentified 143.229 GHz ori-c1-4-0_0:2mm_144.1_red_0.png ori-c1-4-0_0:2mm_144.1_ori_0.png
3.01 (0.03) 0.027 (0.005) 0.087 (0.015) 10.997341 (0.000011) 143320.78 143321.3 140.6 Unidentified ori-c1-4-0_0:2mm_144.1_red_1.png ori-c1-4-0_0:2mm_144.1_ori_1.png
0.167 (0.022) 0.7 (0.4) 0.13 (0.06) 10.992 (0.024) 144076.81 144077.29 8.1 DCO+ J=2-1 (multiple components around) ori-c1-4-0_0:2mm_144.1_red_2.png ori-c1-4-0_0:2mm_144.1_ori_2.png
0.087 (0.022) 0.5 (0.6) 0.04 (0.05) 10.76 (0.04) 144076.93 144077.29 4.2 DCO+ J=2-1 (multiple components around) ori-c1-4-0_0:2mm_144.1_red_3.png ori-c1-4-0_0:2mm_144.1_ori_3.png
0.24 (0.04) 0.7 (0.5) 0.18 (0.11) 10.99 (0.04) 144922.54 144923.0 9.4 Unidentified ori-c1-4-0_0:2mm_144.1_red_4.png ori-c1-4-0_0:2mm_144.1_ori_4.png

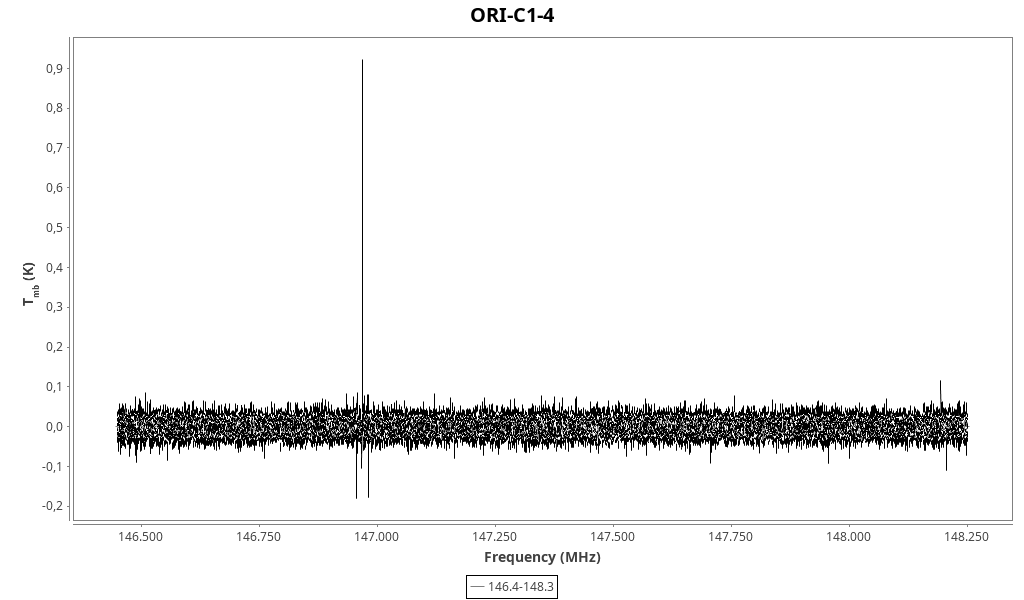

Backend 2mm (147.3 GHz)

Found 3 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.440 (0.023) 1.73 (0.22) 0.81 (0.09) 11.092 (0.015) 146968.49 146969.03 16.7 CS 3→2 ori-c1-4-0_0:2mm_147.3_red_0.png ori-c1-4-0_0:2mm_147.3_ori_0.png
0.534 (0.023) 1.08 (0.14) 0.61 (0.08) 10.706 (0.009) 146968.68 146969.03 20.3 CS 3→2 ori-c1-4-0_0:2mm_147.3_red_1.png ori-c1-4-0_0:2mm_147.3_ori_1.png
0.12 (0.05) 0.13 (0.21) 0.02 (0.03) 10.700 (0.023) 148194.00 148194.3 5.4 Unidentified ori-c1-4-0_0:2mm_147.3_red_2.png ori-c1-4-0_0:2mm_147.3_ori_2.png

Backend 2mm (168.1 GHz)

Found 6 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.069 (0.025) 0.9 (1.1) 0.06 (0.08) 7.99 (0.08) 167578.92 167577.80 2.5 He(52)</sup>\delta</sup> (NO2 in atmosphere?) ori-c1-4-0_0:2mm_168.1_red_0.png ori-c1-4-0_0:2mm_168.1_ori_0.png
0.641 (0.025) 1.02 (0.13) 0.70 (0.09) 6.909 (0.008) 167579.53 167577.80 23.1 He(52)</sup>\delta</sup> (NO2 in atmosphere?) ori-c1-4-0_0:2mm_168.1_red_1.png ori-c1-4-0_0:2mm_168.1_ori_1.png
0.097 (0.025) 0.8 (0.8) 0.08 (0.08) 5.86 (0.06) 167580.11 167577.80 3.6 He(52)</sup>\delta</sup> (NO2 in atmosphere?) ori-c1-4-0_0:2mm_168.1_red_2.png ori-c1-4-0_0:2mm_168.1_ori_2.png
1.61 (0.04) 0.047 (0.014) 0.080 (0.024) 7.99 (0.05) 167658.62 167657.5 68.0 Unidentified ori-c1-4-0_0:2mm_168.1_red_3.png ori-c1-4-0_0:2mm_168.1_ori_3.png
0.260 (0.024) 1.7 (0.4) 0.47 (0.11) 11.162 (0.024) 168762.10 168762.75 9.7 H2S 1(1,0)→1(0,1) ori-c1-4-0_0:2mm_168.1_red_4.png ori-c1-4-0_0:2mm_168.1_ori_4.png
0.267 (0.024) 0.9 (0.3) 0.26 (0.08) 10.391 (0.017) 168762.53 168762.75 10.0 H2S 1(1,0)→1(0,1) ori-c1-4-0_0:2mm_168.1_red_5.png ori-c1-4-0_0:2mm_168.1_ori_5.png

Backend 2mm (171.4 GHz)
