DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

TMC1-P6-0_0

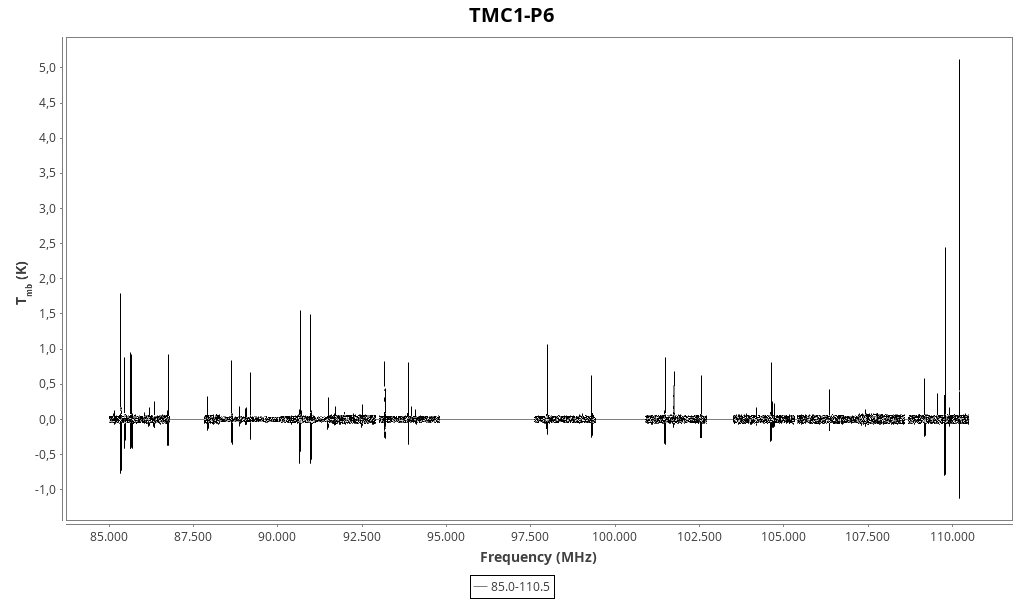

Backend 3mm (85.0-110.5 GHz)

Found 82 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.079 (0.022)	0.4 (0.3)	0.034 (0.022)	6.00 (0.04)	85139.10	85139.10	5.5	OCS 7→6
0.116 (0.018)	0.43 (0.19)	0.053 (0.023)	5.698 (0.021)	85162.31	85162.22	8.3	HC¹⁸O⁺ 1→0
1.961 (0.019)	0.444 (0.013)	0.93 (0.03)	5.7671 (0.0015)	85338.97	85338.90	51.3	c-C₃H₂ 2_1,2→1_0,1
0.658 (0.019)	0.43 (0.04)	0.30 (0.03)	5.817 (0.005)	85347.93	85347.87	7.3	HCS⁺ 2→1
0.089 (0.022)	0.33 (0.25)	0.031 (0.023)	5.75 (0.03)	85450.84	85450.77	5.5	CH₃CCH 5(2)-4(2)
0.867 (0.023)	0.35 (0.03)	0.325 (0.023)	5.701 (0.003)	85455.75	85455.66	41.0	CH₃C₂H 5₁→4₁
0.845 (0.020)	0.37 (0.03)	0.335 (0.023)	5.675 (0.003)	85457.38	85457.29	39.8	CH₃C₂H 5₀→4₀
0.952 (0.023)	0.339 (0.024)	0.343 (0.023)	5.779 (0.003)	85634.07	85634.01	60.1	C₄H 9→8 J=19/2→17/2
0.93 (0.03)	0.33 (0.03)	0.32 (0.03)	5.739 (0.004)	85672.65	85672.58	53.0	C₄H 9→8 J=17/2→15/2
0.103 (0.017)	0.6 (0.4)	0.07 (0.04)	5.72 (0.04)	86055.05	86054.97	6.4	HC¹⁵N 1→0
0.178 (0.022)	0.39 (0.16)	0.07 (0.03)	5.710 (0.018)	86181.47	86181.39	9.7	CCS 6→5, N=7-6
0.190 (0.020)	0.41 (0.14)	0.08 (0.03)	5.767 (0.016)	86338.80	86338.73	13.0	H¹³CN 1₁→0₁
0.275 (0.020)	0.48 (0.11)	0.14 (0.03)	4.899 (0.012)	86340.24	86339.92	18.9	H¹³CN 1→0
0.137 (0.021)	0.37 (0.18)	0.054 (0.025)	5.706 (0.020)	86342.34	86342.25	8.9	H¹³CN 1₀→0₁
0.991 (0.020)	0.52 (0.04)	0.55 (0.04)	5.758 (0.004)	86754.36	86754.29	45.3	H¹³CO⁺ 1→0
0.34 (0.03)	0.34 (0.08)	0.12 (0.03)	5.715 (0.009)	87925.32	87925.24	20.4	HNCO 4_(0,4)→3_(0,3)
0.517 (0.014)	0.323 (0.024)	0.178 (0.013)	5.500 (0.003)	88630.57	88630.42	32.8	HCN 1→0 F=1→1
0.089 (0.009)	0.66 (0.20)	0.063 (0.018)	6.152 (0.022)	88631.80	88631.85	5.7	HCN 1→0 F=2→1
0.830 (0.014)	0.303 (0.015)	0.268 (0.013)	5.4507 (0.0016)	88632.01	88631.85	53.4	HCN 1→0 F=2→1
0.039 (0.012)	0.3 (0.4)	0.013 (0.013)	4.94 (0.04)	88632.16	88631.85	2.5	HCN 1→0 F=2→1
0.112 (0.012)	0.36 (0.12)	0.043 (0.014)	6.077 (0.016)	88633.92	88633.94	7.2	HCN 1→0 F=0→1
0.802 (0.013)	0.401 (0.018)	0.342 (0.015)	5.6048 (0.0020)	88634.06	88633.94	51.6	HCN 1→0 F=0→1
0.198 (0.012)	0.47 (0.09)	0.100 (0.017)	5.761 (0.009)	88865.77	88865.70	19.7	H¹⁵NC 1→0
0.165 (0.016)	0.34 (0.09)	0.060 (0.016)	5.681 (0.011)	89045.67	89045.58	15.5	CCCN N=9-8, J=19/2-17/2 (3 components)
0.167 (0.018)	0.32 (0.11)	0.057 (0.018)	5.688 (0.012)	89064.45	89064.35	14.1	CCCN N=9-8, J=17/2-15/2 (3 components)
0.255 (0.013)	0.53 (0.08)	0.143 (0.020)	6.161 (0.009)	89188.48	89188.53	21.1	HCO⁺ 1→0
0.685 (0.015)	0.42 (0.03)	0.308 (0.018)	5.436 (0.003)	89188.69	89188.53	56.2	HCO⁺ 1→0
0.024 (0.019)	0.2 (0.5)	0.005 (0.012)	4.85 (0.08)	89198.88	89198.54	0.8	H(59)</sup>\gamma</sup>
0.046 (0.013)	0.5 (0.5)	0.023 (0.020)	5.83 (0.05)	89419.35	89419.30	4.3	HCCNC J=9-8, F=9-8 (4 components around)
0.09 (0.04)	0.23 (0.21)	0.021 (0.019)	5.636 (0.025)	90601.89	90601.78	5.8	HCC¹³CN J=10-9 (4 components around)
0.577 (0.022)	0.41 (0.04)	0.251 (0.023)	6.365 (0.005)	90663.45	90663.56	27.1	HNC 1→0
1.629 (0.021)	0.377 (0.014)	0.654 (0.023)	5.3684 (0.0015)	90663.75	90663.56	76.2	HNC 1→0
0.134 (0.019)	0.43 (0.19)	0.06 (0.03)	5.755 (0.021)	90686.46	90686.38	8.7	CCS N=7-6, J=7-6
1.554 (0.018)	0.442 (0.016)	0.730 (0.024)	5.7691 (0.0017)	90979.07	90979.00	103.5	HC₃N 10→9 (3 components around)
0.323 (0.017)	0.39 (0.06)	0.134 (0.019)	5.799 (0.007)	91494.41	91494.35	25.6	c-C₃H 2(1,2)-1(1,1), J=5/2-3/2, F=3-2
0.200 (0.018)	0.39 (0.09)	0.082 (0.020)	5.881 (0.011)	91497.64	91497.61	16.1	c-C₃H 2(1,2)-1(1,1), J=5/2-3/2, F=2-1
0.043 (0.020)	2.5 (2.1)	0.11 (0.08)	10.49 (0.22)	91691.38	91692.75	1.9	c-C₃H 2(1,2)-1(1,1), J=3/2-1/2, F=1-0
0.14 (0.04)	0.36 (0.22)	0.05 (0.04)	5.76 (0.03)	91692.82	91692.75	6.5	c-C₃H 2(1,2)-1(1,1), J=3/2-1/2, F=1-0
0.19 (0.03)	0.39 (0.15)	0.08 (0.03)	5.781 (0.018)	91699.54	91699.47	10.7	c-C₃H 2(1,2)-1(1,1), J=3/2-1/2, F=2-1
0.105 (0.021)	0.4 (0.3)	0.04 (0.03)	5.68 (0.03)	91985.41	91985.31	6.1	CH₃CN 5₁→4₁
0.097 (0.020)	0.5 (0.4)	0.05 (0.04)	5.68 (0.04)	91987.19	91987.09	5.6	CH₃CN 5₀→4₀
0.23 (0.03)	0.45 (0.16)	0.11 (0.04)	5.828 (0.018)	92494.32	92494.27	10.5	¹³CS 2→1
0.319 (0.016)	0.33 (0.06)	0.112 (0.018)	6.569 (0.007)	93171.70	93171.88	4.9	N₂H⁺ 1→0 F=1→1
0.538 (0.013)	0.77 (0.05)	0.44 (0.03)	5.448 (0.006)	93172.05	93171.88	8.2	N₂H⁺ 1→0 F=1→1
0.488 (0.013)	1.72 (0.09)	0.89 (0.04)	5.620 (0.009)	93173.82	93173.70	7.5	N₂H⁺ 1→0 F=1→2
0.467 (0.017)	0.37 (0.04)	0.184 (0.019)	5.295 (0.005)	93176.35	93176.13	7.1	N₂H⁺ 1→0 F=1→0
0.052 (0.014)	1.3 (0.9)	0.07 (0.05)	7.84 (0.09)	93848.11	93848.69	4.0	CNCHO 17(1,16)-17(0,17)
0.028 (0.014)	2.5 (2.3)	0.08 (0.06)	7.71 (0.22)	93848.15	93848.69	2.2	CNCHO 17(1,16)-17(0,17)
0.857 (0.017)	0.44 (0.03)	0.401 (0.023)	5.789 (0.003)	93870.17	93870.10	56.5	C₂S N=7→6 J=8→7
0.123 (0.015)	1.8 (0.5)	0.23 (0.05)	5.73 (0.05)	93958.87	93958.8	8.3	Unidentified 93.959 GHz
0.064 (0.015)	2.9 (1.2)	0.20 (0.07)	5.73 (0.11)	93959.21	93959.1	4.3	Unidentified 93.959 GHz
0.17 (0.04)	0.22 (0.09)	0.040 (0.015)	5.713 (0.010)	94083.78	94083.69	13.3	ONCN 9-8 in atmosphere ?
0.055 (0.020)	0.3 (0.4)	0.019 (0.020)	6.06 (0.04)	97715.39	97715.40	4.0	³⁴SO 3₍₂₎→2₍₁₎
0.241 (0.017)	0.59 (0.12)	0.15 (0.03)	6.085 (0.014)	97980.93	97980.95	15.2	CS 2→1
1.104 (0.022)	0.384 (0.021)	0.451 (0.024)	5.5374 (0.0023)	97981.10	97980.95	69.9	CS 2→1
0.052 (0.023)	0.3 (0.5)	0.018 (0.025)	5.60 (0.06)	97996.04	97995.91	1.8	l-C₃H J=9/2-7/2, Omega=1/2, F=4-3, l=e
0.059 (0.024)	0.4 (0.5)	0.023 (0.025)	5.68 (0.06)	98011.72	98011.61	3.5	l-C₃H J=9/2-7/2, Omega=1/2, F=5-4, l=f
0.062 (0.022)	0.3 (0.4)	0.020 (0.023)	5.53 (0.04)	98012.68	98012.52	4.0	l-C₃H J=9/2-7/2, Omega=1/2, F=4-3, l=f
0.068 (0.020)	0.5 (0.4)	0.04 (0.03)	4.29 (0.05)	99023.52	99022.95	4.8	H(40)</sup>\alpha</sup>
0.595 (0.018)	0.52 (0.05)	0.33 (0.03)	5.961 (0.005)	99299.90	99299.89	38.6	SO 3₍₂₎→2₍₁₎
0.235 (0.023)	0.31 (0.09)	0.077 (0.021)	5.586 (0.010)	99300.03	99299.89	15.4	SO 3₍₂₎→2₍₁₎
0.923 (0.018)	0.54 (0.04)	0.53 (0.04)	5.755 (0.004)	101477.89	101477.81	39.4	H₂CS 3_(1,3)→2_(1,2)
0.57 (0.12)	3.5 (1.2)	2.1 (0.6)	5.75 (0.11)	101740.70	101740.6	21.6	Unidentified
0.066 (0.020)	0.3 (0.4)	0.023 (0.022)	5.65 (0.04)	102540.26	102540.14	2.1	CH₃CCH 6₍₂₎→5₍₂₎
0.640 (0.019)	0.45 (0.04)	0.307 (0.025)	5.709 (0.005)	102546.12	102546.02	31.8	CH₃CCH 6₍₁₎→5₍₁₎
0.628 (0.019)	0.45 (0.04)	0.30 (0.03)	5.712 (0.005)	102548.08	102547.98	31.5	CH₃CCH 6₍₀₎→5₍₀₎
0.067 (0.025)	0.4 (0.5)	0.03 (0.04)	5.76 (0.06)	103640.84	103640.76	3.5	CCS N=8→7, J=8→7
0.19 (0.04)	0.28 (0.13)	0.06 (0.03)	5.629 (0.015)	104187.24	104187.11	10.5	c-HCCCD 3(0,3)-2(1,2)
0.894 (0.018)	0.54 (0.04)	0.52 (0.04)	5.997 (0.004)	104617.11	104617.11	45.1	H₂CS 3_1,2→2_1,1
0.254 (0.025)	0.38 (0.09)	0.102 (0.025)	5.777 (0.011)	104666.65	104666.57	17.2	C₄H N=11→10 J=23/2→21/2
0.238 (0.023)	0.40 (0.11)	0.10 (0.03)	5.727 (0.013)	104705.21	104705.11	15.0	C₄H N=11→10 J=21/2→19/2
0.398 (0.021)	0.49 (0.08)	0.21 (0.04)	5.739 (0.009)	106347.82	106347.73	20.3	C₂S N=8→7 J=9→8
0.15 (0.04)	0.37 (0.25)	0.06 (0.04)	5.67 (0.03)	107423.77	107423.65	6.2	c-HCCCD 3(1,3)-2(0,2)
0.579 (0.024)	0.44 (0.06)	0.27 (0.04)	5.726 (0.006)	109173.74	109173.64	29.8	HC₃N 12→11
0.199 (0.023)	4.8 (0.8)	1.01 (0.13)	5.77 (0.07)	109563.53	109563.4	11.4	Unidentified 109.563 GHz
0.140 (0.023)	2.4 (0.8)	0.36 (0.09)	5.77 (0.07)	109563.67	109563.6	7.9	Unidentified 109.563 GHz
2.404 (0.023)	0.528 (0.015)	1.35 (0.04)	6.0376 (0.0017)	109782.16	109782.18	86.2	C¹⁸O 1→0
2.003 (0.025)	0.466 (0.017)	0.99 (0.04)	5.5494 (0.0019)	109782.34	109782.18	72.1	C¹⁸O 1→0
0.181 (0.025)	0.46 (0.19)	0.09 (0.04)	5.687 (0.021)	109905.86	109905.75	9.5	HNCO 5→4
2.057 (0.019)	1.60 (0.04)	3.51 (0.06)	6.318 (0.004)	110201.24	110201.35	19.0	¹³CO 1→0
4.223 (0.019)	1.234 (0.013)	5.54 (0.06)	5.5605 (0.0014)	110201.51	110201.35	39.1	¹³CO 1→0
0.08 (0.04)	0.4 (0.4)	0.04 (0.04)	5.72 (0.05)	110383.60	110383.49	3.9	CH₃CN 6₀→5₀

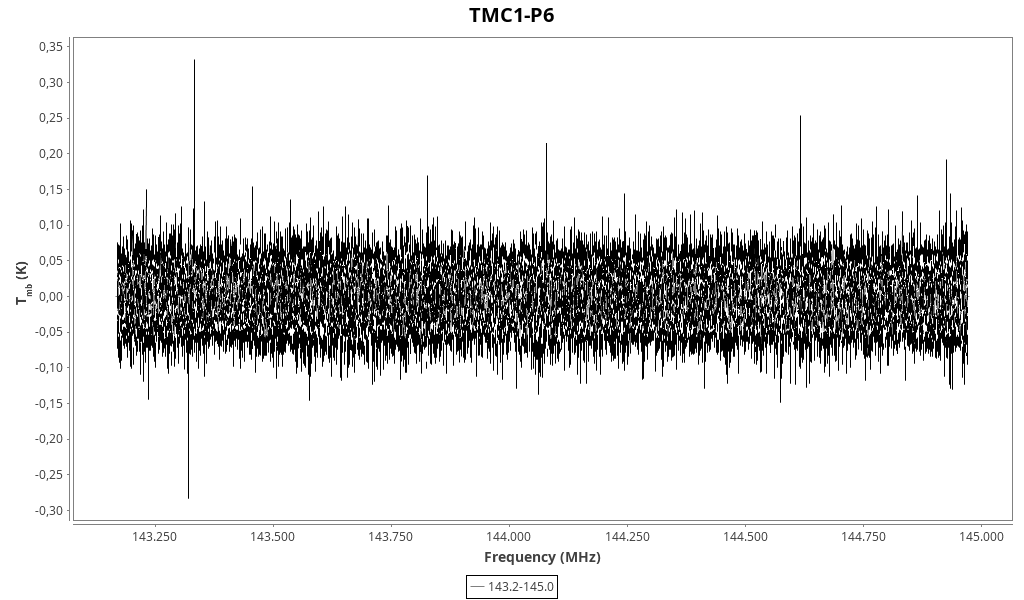

Backend 2mm (144.1 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
1.00 (0.04)	0.05 (0.03)	0.06 (0.03)	5.43 (0.05)	143230.09	143229.8	27.6	Unidentified 143.229 GHz
1.48 (0.04)	0.057 (0.017)	0.09 (0.03)	5.43 (0.05)	143333.07	143332.8	43.9	Unidentified 143.333 GHz
0.23 (0.04)	0.3 (0.3)	0.08 (0.07)	5.433 (0.021)	144077.56	144077.29	5.9	DCO⁺ J=2-1 (multiple components around)
0.23 (0.08)	0.23 (0.24)	0.06 (0.06)	5.663 (0.018)	144617.26	144617.10	6.1	C³⁴S 3→2

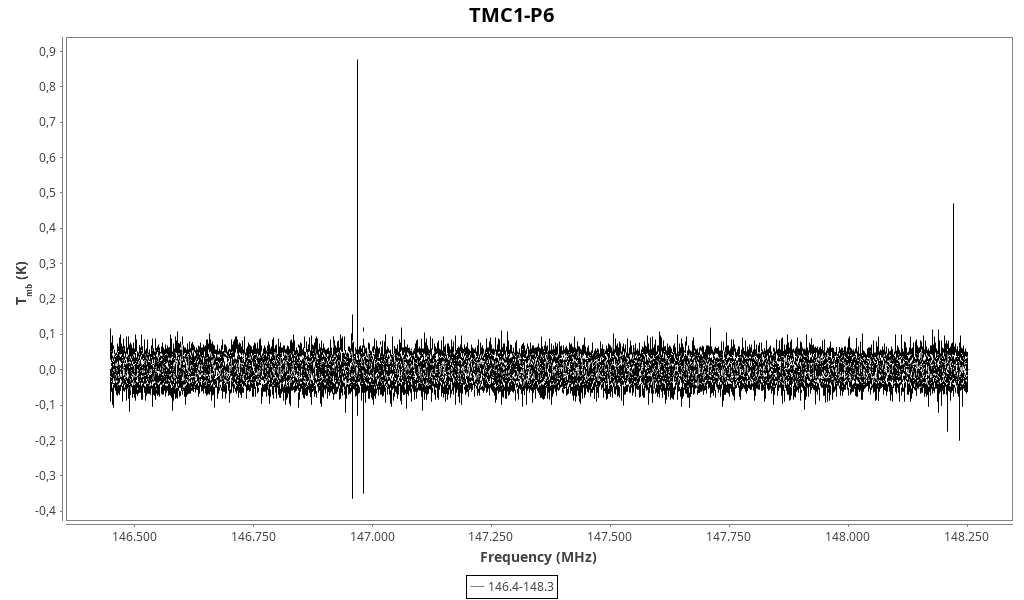

Backend 2mm (147.3 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.80 (0.06)	0.18 (0.05)	0.15 (0.05)	5.803 (0.004)	146969.12	146969.03	22.8	CS 3→2
0.96 (0.05)	0.25 (0.05)	0.26 (0.05)	5.540 (0.004)	146969.25	146969.03	27.2	CS 3→2
0.12 (0.04)	0.2 (0.4)	0.02 (0.04)	6.047 (0.024)	148221.43	148221.45	4.1	HCNH⁺ J=2-1
0.46 (0.05)	0.21 (0.09)	0.10 (0.05)	5.743 (0.007)	148221.58	148221.45	15.7	HCNH⁺ J=2-1

Backend 2mm (168.2 GHz)

Backend 2mm (171.5 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
1.04 (0.04)	0.05 (0.03)	0.05 (0.03)	6.15 (0.05)	171688.03	171688.12	28.2	H₂CS 5_(0,5)→4_(0,4)
2.02 (0.05)	0.048 (0.015)	0.10 (0.04)	6.15 (0.05)	172035.35	172035.4	50.0	Unidentified 172.035 GHz
0.3 (0.3)	0.09 (0.13)	0.03 (0.05)	5.13 (0.04)	172106.06	172105.56	7.6	HS₂ 11(2,9)-10(2,8), J=21/2-19/2, F=11-10
0.80 (0.05)	0.05 (0.04)	0.04 (0.04)	6.15 (0.05)	172203.08	172203.2	19.8	Unidentified 172.203 GHz

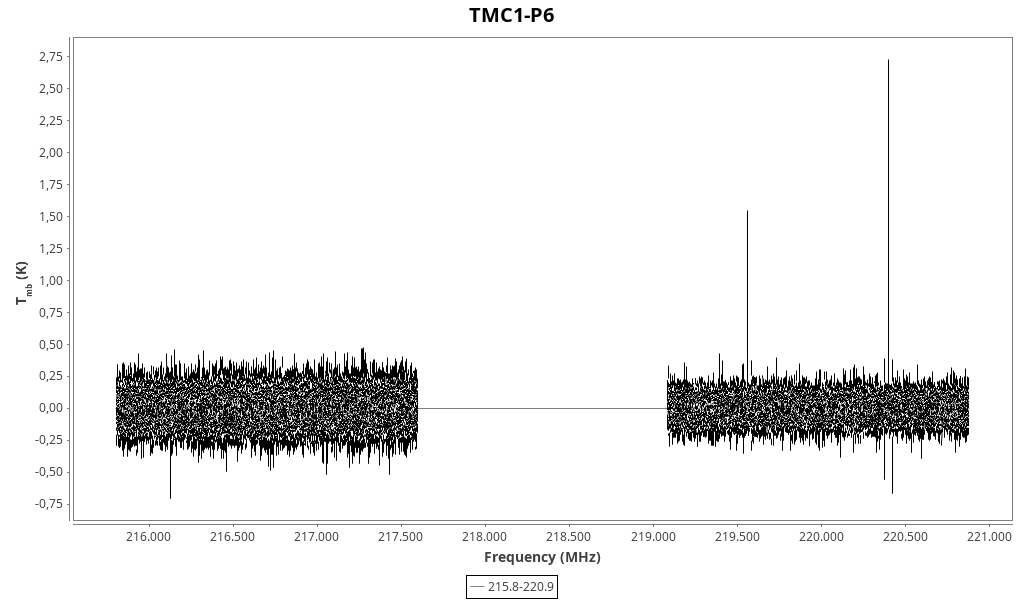

Backend 1mm (215.8-220.9 GHz)

Found 5 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
1.38 (0.09)	0.34 (0.13)	0.50 (0.19)	6.048 (0.007)	219560.32	219560.36	17.1	C¹⁸O 2→1
1.43 (0.09)	0.38 (0.13)	0.58 (0.20)	5.597 (0.007)	219560.66	219560.36	17.6	C¹⁸O 2→1
0.39 (0.09)	0.4 (0.5)	0.16 (0.20)	7.10 (0.03)	220397.87	220398.68	3.6	¹³CO 2→1
2.07 (0.09)	0.88 (0.14)	1.9 (0.3)	6.014 (0.007)	220398.67	220398.68	19.2	¹³CO 2→1
2.18 (0.09)	0.45 (0.09)	1.05 (0.22)	5.393 (0.005)	220399.13	220398.68	19.9	¹³CO 2→1
