DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

1333-C1-40_0

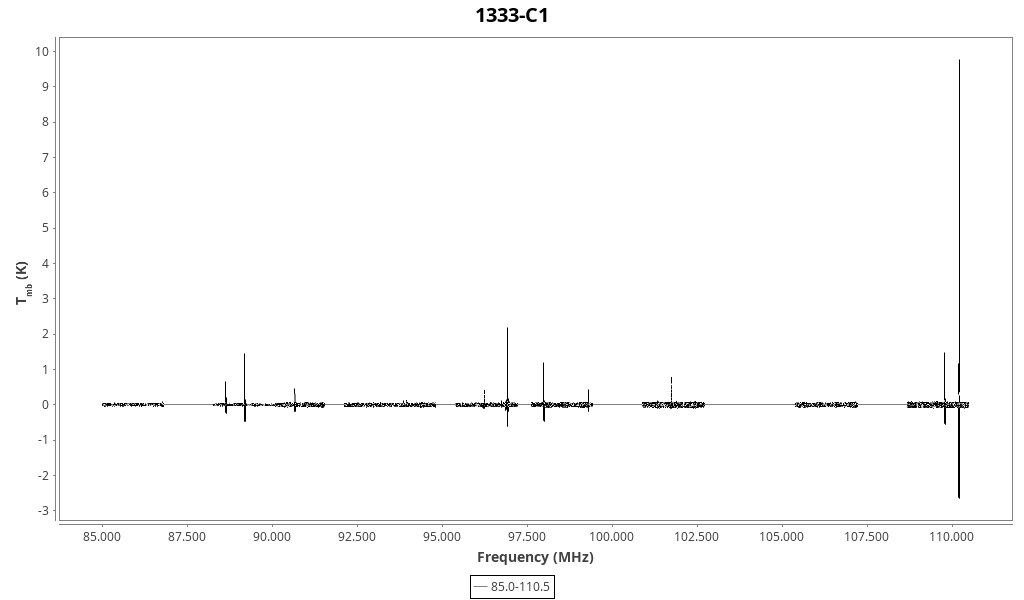

Backend 3mm (85.0-110.5 GHz)

Found 41 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.072 (0.009) 0.52 (0.21) 0.040 (0.015) 7.533 (0.023) 85338.46 85338.90 8.1 c-C3H2 21,2→10,1 1333-c1-40_0:3mm_red_0.png 1333-c1-40_0:3mm_ori_0.png
0.036 (0.011) 0.4 (0.4) 0.015 (0.014) 7.62 (0.05) 86670.33 86670.80 3.9 HCO 10,1→00,0 J=3/2→1/2 F=2→1 1333-c1-40_0:3mm_red_1.png 1333-c1-40_0:3mm_ori_1.png
0.104 (0.009) 0.56 (0.16) 0.063 (0.017) 7.315 (0.018) 86753.91 86754.29 9.7 H13CO+ 1→0 1333-c1-40_0:3mm_red_2.png 1333-c1-40_0:3mm_ori_2.png
0.038 (0.011) 0.5 (0.4) 0.019 (0.016) 7.32 (0.05) 86777.06 86777.44 4.1 HCO 10,1→00,0 J=1/2→1/2 F=1→1 1333-c1-40_0:3mm_red_3.png 1333-c1-40_0:3mm_ori_3.png
0.400 (0.010) 0.69 (0.05) 0.292 (0.019) 7.177 (0.006) 88630.07 88630.42 36.7 HCN 1→0 F=1→1 1333-c1-40_0:3mm_red_4.png 1333-c1-40_0:3mm_ori_4.png
0.680 (0.009) 0.81 (0.04) 0.583 (0.021) 7.169 (0.004) 88631.50 88631.85 62.6 HCN 1→0 F=2→1 1333-c1-40_0:3mm_red_5.png 1333-c1-40_0:3mm_ori_5.png
0.10 (0.11) 0.17 (0.17) 0.018 (0.009) 6.43 (0.04) 88631.72 88631.85 9.3 HCN 1→0 F=2→1 1333-c1-40_0:3mm_red_6.png 1333-c1-40_0:3mm_ori_6.png
0.089 (0.011) 0.46 (0.17) 0.044 (0.016) 6.012 (0.020) 88631.84 88631.85 8.2 HCN 1→0 F=2→1 1333-c1-40_0:3mm_red_7.png 1333-c1-40_0:3mm_ori_7.png
0.210 (0.009) 0.67 (0.09) 0.150 (0.019) 7.272 (0.009) 88633.56 88633.94 19.1 HCN 1→0 F=0→1 1333-c1-40_0:3mm_red_8.png 1333-c1-40_0:3mm_ori_8.png
0.026 (0.013) 0.5 (0.6) 0.013 (0.015) 7.89 (0.07) 88865.14 88865.70 3.0 H15NC 1→0 1333-c1-40_0:3mm_red_9.png 1333-c1-40_0:3mm_ori_9.png
0.025 (0.012) 0.6 (0.8) 0.017 (0.020) 9.82 (0.09) 89063.22 89064.35 2.5 CCCN N=9-8, J=17/2-15/2 (3 components) 1333-c1-40_0:3mm_red_10.png 1333-c1-40_0:3mm_ori_10.png
1.220 (0.009) 0.739 (0.015) 0.960 (0.018) 7.2122 (0.0016) 89188.17 89188.53 52.9 HCO+ 1→0 1333-c1-40_0:3mm_red_11.png 1333-c1-40_0:3mm_ori_11.png
0.253 (0.009) 2.24 (0.14) 0.60 (0.04) 6.927 (0.014) 89188.25 89188.53 10.9 HCO+ 1→0 1333-c1-40_0:3mm_red_12.png 1333-c1-40_0:3mm_ori_12.png
0.109 (0.020) 0.46 (0.25) 0.05 (0.03) 7.89 (0.03) 90662.99 90663.56 5.8 HNC 1→0 1333-c1-40_0:3mm_red_13.png 1333-c1-40_0:3mm_ori_13.png
0.486 (0.016) 0.72 (0.07) 0.37 (0.04) 7.252 (0.008) 90663.18 90663.56 25.9 HNC 1→0 1333-c1-40_0:3mm_red_14.png 1333-c1-40_0:3mm_ori_14.png
0.061 (0.012) 0.6 (0.4) 0.042 (0.024) 7.21 (0.05) 93171.50 93171.88 4.6 N2H+ 1→0 F=1→1 1333-c1-40_0:3mm_red_15.png 1333-c1-40_0:3mm_ori_15.png
0.046 (0.012) 1.8 (0.9) 0.09 (0.04) 7.59 (0.09) 93173.21 93173.70 3.4 N2H+ 1→0 F=1→2 1333-c1-40_0:3mm_red_16.png 1333-c1-40_0:3mm_ori_16.png
0.07 (0.03) 1.4 (1.3) 0.10 (0.09) 5.41 (0.14) 93848.87 93848.69 2.2 CNCHO 17(1,16)-17(0,17) 1333-c1-40_0:3mm_red_17.png 1333-c1-40_0:3mm_ori_17.png
0.058 (0.023) 0.2 (0.4) 0.015 (0.020) 4.65 (0.05) 93980.19 93979.77 3.6 PN 2→1 (?) 1333-c1-40_0:3mm_red_18.png 1333-c1-40_0:3mm_ori_18.png
0.054 (0.019) 0.6 (0.7) 0.03 (0.04) 11.46 (0.08) 96411.20 96412.95 3.1 C34S 2→1 1333-c1-40_0:3mm_red_19.png 1333-c1-40_0:3mm_ori_19.png
0.077 (0.021) 0.4 (0.4) 0.03 (0.03) 7.24 (0.04) 96412.55 96412.95 4.5 C34S 2→1 1333-c1-40_0:3mm_red_20.png 1333-c1-40_0:3mm_ori_20.png
0.098 (0.019) 0.44 (0.25) 0.046 (0.025) 7.20 (0.03) 96738.97 96739.36 7.0 CH3OH 2(-1,2)→1(-1,1) 1333-c1-40_0:3mm_red_21.png 1333-c1-40_0:3mm_ori_21.png
0.124 (0.019) 0.52 (0.22) 0.07 (0.03) 7.256 (0.024) 96740.97 96741.37 8.6 CH3OH 2(0,2)→1(0,1) ++ 1333-c1-40_0:3mm_red_22.png 1333-c1-40_0:3mm_ori_22.png
0.15 (0.03) 0.21 (0.13) 0.034 (0.020) 7.233 (0.019) 96903.93 96904.3 8.1 Unidentified 96.904 GHz 1333-c1-40_0:3mm_red_23.png 1333-c1-40_0:3mm_ori_23.png
2.91 (0.22) 0.151 (0.011) 0.467 (0.016) 7.233 (0.005) 96910.45 96910.8 49.5 Unidentified 96.911 GHz 1333-c1-40_0:3mm_red_24.png 1333-c1-40_0:3mm_ori_24.png
1.27 (0.04) 0.212 (0.015) 0.286 (0.020) 7.2324 (0.0023) 96925.43 96925.8 40.2 Unidentified 96.926 GHz 1333-c1-40_0:3mm_red_25.png 1333-c1-40_0:3mm_ori_25.png
0.18 (0.04) 0.19 (0.10) 0.038 (0.019) 7.232 (0.019) 96946.96 96947.4 10.2 Unidentified 96.947 GHz 1333-c1-40_0:3mm_red_26.png 1333-c1-40_0:3mm_ori_26.png
0.11 (0.04) 0.4 (0.3) 0.04 (0.04) 7.85 (0.04) 97980.35 97980.95 5.2 CS 2→1 1333-c1-40_0:3mm_red_27.png 1333-c1-40_0:3mm_ori_27.png
1.179 (0.024) 0.58 (0.04) 0.73 (0.05) 7.195 (0.004) 97980.56 97980.95 56.3 CS 2→1 1333-c1-40_0:3mm_red_28.png 1333-c1-40_0:3mm_ori_28.png
0.130 (0.022) 0.7 (0.4) 0.10 (0.05) 6.64 (0.04) 97980.74 97980.95 6.2 CS 2→1 1333-c1-40_0:3mm_red_29.png 1333-c1-40_0:3mm_ori_29.png
0.402 (0.022) 0.63 (0.10) 0.27 (0.04) 7.222 (0.011) 99299.49 99299.89 21.8 SO 3(2)→2(1) 1333-c1-40_0:3mm_red_30.png 1333-c1-40_0:3mm_ori_30.png
0.604 (0.025) 0.09 (0.03) 0.061 (0.019) 7.18 (0.08) 101325.89 101326.3 24.0 Unidentified 101.327 GHz 1333-c1-40_0:3mm_red_31.png 1333-c1-40_0:3mm_ori_31.png
0.28 (0.05) 0.5 (0.3) 0.15 (0.08) 12.54 (0.03) 101742.75 101744.97 1.1 D2CO 10(2,8)-10(2,9) 1333-c1-40_0:3mm_red_32.png 1333-c1-40_0:3mm_ori_32.png
0.37 (0.04) 1.6 (0.4) 0.64 (0.13) 11.74 (0.04) 101743.02 101744.97 1.5 D2CO 10(2,8)-10(2,9) 1333-c1-40_0:3mm_red_33.png 1333-c1-40_0:3mm_ori_33.png
0.21 (0.04) 1.7 (0.7) 0.37 (0.13) 10.22 (0.07) 101743.53 101744.97 0.8 D2CO 10(2,8)-10(2,9) 1333-c1-40_0:3mm_red_34.png 1333-c1-40_0:3mm_ori_34.png
0.07 (0.04) 0.5 (0.7) 0.04 (0.05) 7.38 (0.08) 109251.68 109252.18 2.8 SO 23→12 1333-c1-40_0:3mm_red_35.png 1333-c1-40_0:3mm_ori_35.png
1.42 (0.03) 0.61 (0.04) 0.92 (0.06) 7.248 (0.004) 109781.72 109782.18 52.4 C18O 1→0 1333-c1-40_0:3mm_red_36.png 1333-c1-40_0:3mm_ori_36.png
0.11 (0.03) 1.2 (0.7) 0.14 (0.08) 6.82 (0.08) 109781.88 109782.18 4.1 C18O 1→0 1333-c1-40_0:3mm_red_37.png 1333-c1-40_0:3mm_ori_37.png
2.822 (0.025) 4.15 (0.06) 12.47 (0.13) 7.484 (0.005) 110200.81 110201.35 9.2 13CO 1→0 1333-c1-40_0:3mm_red_38.png 1333-c1-40_0:3mm_ori_38.png
7.05 (0.03) 0.661 (0.008) 4.96 (0.06) 7.2491 (0.0009) 110200.89 110201.35 23.0 13CO 1→0 1333-c1-40_0:3mm_red_39.png 1333-c1-40_0:3mm_ori_39.png
0.13 (0.07) 0.5 (0.8) 0.07 (0.11) 7.08 (0.09) 110202.63 110203.0 0.4 Unidentified 110.203 GHz 1333-c1-40_0:3mm_red_40.png 1333-c1-40_0:3mm_ori_40.png

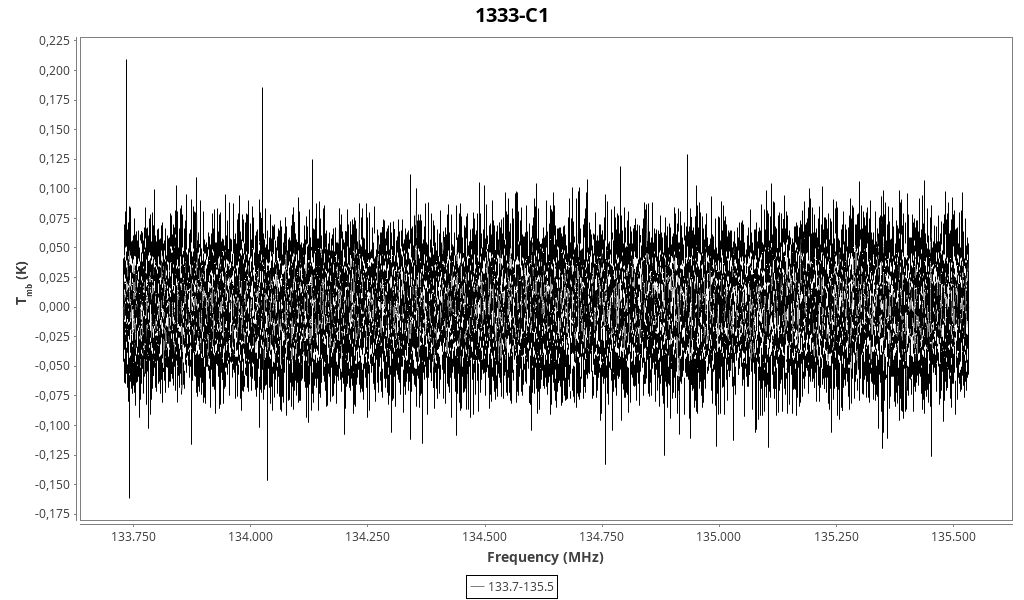

Backend 2mm (134.6 GHz)

Found 3 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.25 (0.20) 0.11 (0.12) 0.03 (0.04) 8.25 (0.04) 133734.28 133735.3 8.4 Unidentified 133.735 GHz 1333-c1-40_0:2mm_134.6_red_0.png 1333-c1-40_0:2mm_134.6_ori_0.png
0.47 (0.04) 0.06 (0.05) 0.031 (0.024) 8.25 (0.06) 134022.70 134023.71 15.5 C4H v7=1 J=29/2-27/2 1333-c1-40_0:2mm_134.6_red_1.png 1333-c1-40_0:2mm_134.6_ori_1.png
0.22 (0.11) 0.13 (0.15) 0.03 (0.04) 8.250 (0.019) 134023.98 134025.0 8.0 Unidentified 134.024 GHz 1333-c1-40_0:2mm_134.6_red_2.png 1333-c1-40_0:2mm_134.6_ori_2.png

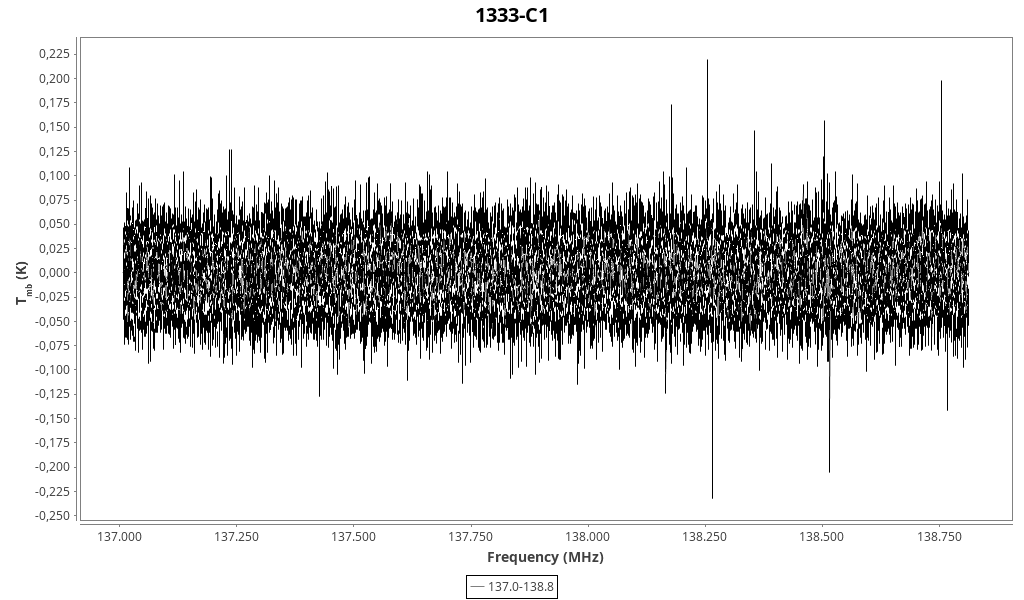

Backend 2mm (137.9 GHz)

Found 4 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.18 (0.03) 0.6 (0.4) 0.12 (0.07) 7.31 (0.03) 138178.05 138178.66 5.8 SO 43→32 1333-c1-40_0:2mm_137.9_red_0.png 1333-c1-40_0:2mm_137.9_ori_0.png
0.19 (0.03) 0.09 (0.14) 0.02 (0.03) 5.52 (0.06) 138178.88 138178.66 6.0 SO 43→32 1333-c1-40_0:2mm_137.9_red_1.png 1333-c1-40_0:2mm_137.9_ori_1.png
1.02 (0.04) 0.059 (0.022) 0.064 (0.024) 7.31 (0.06) 138254.01 138254.6 35.1 Unidentified 138.254 GHz 1333-c1-40_0:2mm_137.9_red_2.png 1333-c1-40_0:2mm_137.9_ori_2.png
0.88 (0.04) 0.06 (0.03) 0.058 (0.024) 7.31 (0.06) 138754.01 138754.6 30.8 Unidentified 1333-c1-40_0:2mm_137.9_red_3.png 1333-c1-40_0:2mm_137.9_ori_3.png

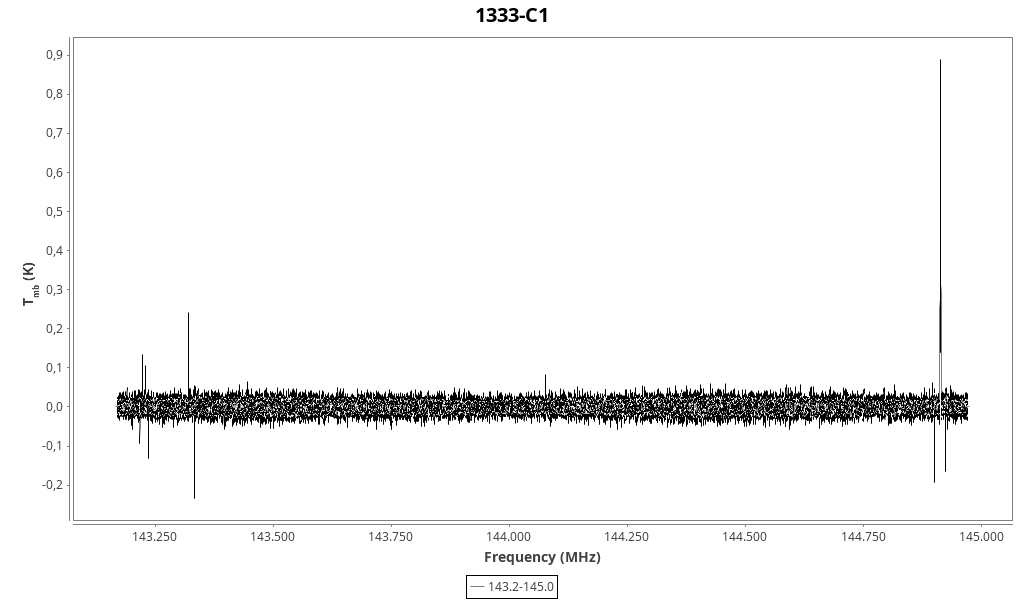

Backend 2mm (144.1 GHz)

Found 7 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.755 (0.014) 0.058 (0.014) 0.047 (0.011) 7.51 (0.05) 143223.38 143224.1 52.5 Unidentified 143.224 GHz 1333-c1-40_0:2mm_144.1_red_0.png 1333-c1-40_0:2mm_144.1_ori_0.png
0.054 (0.018) 0.3 (0.5) 0.017 (0.025) 7.51 (0.04) 143228.20 143228.9 3.3 Unidentified 143.229 GHz 1333-c1-40_0:2mm_144.1_red_1.png 1333-c1-40_0:2mm_144.1_ori_1.png
0.981 (0.021) 0.056 (0.015) 0.059 (0.016) 7.51 (0.05) 143320.40 143321.1 65.0 Unidentified 1333-c1-40_0:2mm_144.1_red_2.png 1333-c1-40_0:2mm_144.1_ori_2.png
0.070 (0.013) 0.7 (0.5) 0.05 (0.04) 7.50 (0.04) 144076.57 144077.29 5.2 DCO+ J=2-1 (multiple components around) 1333-c1-40_0:2mm_144.1_red_3.png 1333-c1-40_0:2mm_144.1_ori_3.png
0.549 (0.022) 0.88 (0.12) 0.52 (0.07) 7.489 (0.009) 144912.29 144913.0 22.3 Unidentified 144.914 GHz 1333-c1-40_0:2mm_144.1_red_4.png 1333-c1-40_0:2mm_144.1_ori_4.png
0.254 (0.022) 3.3 (0.6) 0.88 (0.13) 7.49 (0.04) 144913.29 144914.0 10.2 Unidentified 144.914 GHz 1333-c1-40_0:2mm_144.1_red_5.png 1333-c1-40_0:2mm_144.1_ori_5.png
0.653 (0.022) 1.55 (0.14) 1.07 (0.09) 7.489 (0.009) 144913.63 144914.4 26.5 Unidentified 144.914 GHz 1333-c1-40_0:2mm_144.1_red_6.png 1333-c1-40_0:2mm_144.1_ori_6.png

Backend 2mm (147.3 GHz)

Found 3 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.086 (0.013) 0.4 (0.3) 0.035 (0.025) 7.691 (0.020) 146968.20 146969.03 7.3 CS 3→2 1333-c1-40_0:2mm_147.3_red_0.png 1333-c1-40_0:2mm_147.3_ori_0.png
0.616 (0.013) 0.48 (0.05) 0.32 (0.03) 7.154 (0.004) 146968.46 146969.03 51.4 CS 3→2 1333-c1-40_0:2mm_147.3_red_1.png 1333-c1-40_0:2mm_147.3_ori_1.png
0.124 (0.013) 0.53 (0.23) 0.07 (0.03) 6.803 (0.017) 146968.63 146969.03 10.3 CS 3→2 1333-c1-40_0:2mm_147.3_red_2.png 1333-c1-40_0:2mm_147.3_ori_2.png

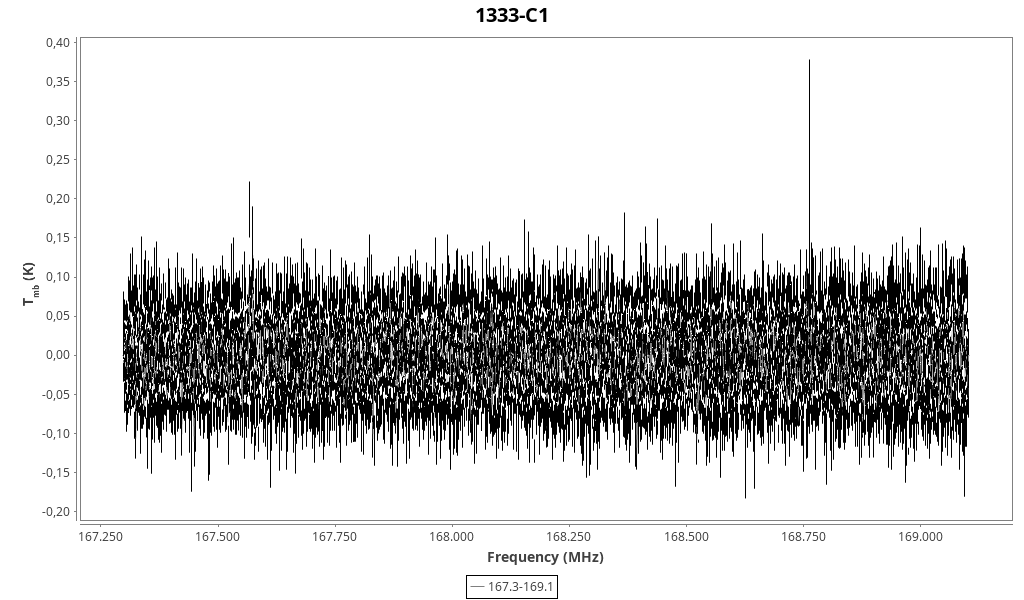

Backend 2mm (168.2 GHz)

Found 2 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.65 (0.06) 0.05 (0.06) 0.03 (0.05) 7.09 (0.05) 167569.12 167569.7 12.1 Unidentified 167.570 GHz 1333-c1-40_0:2mm_168.2_red_0.png 1333-c1-40_0:2mm_168.2_ori_0.png
0.35 (0.05) 0.5 (0.4) 0.20 (0.12) 7.086 (0.021) 168762.14 168762.75 7.8 H2S 1(1,0)→1(0,1) 1333-c1-40_0:2mm_168.2_red_1.png 1333-c1-40_0:2mm_168.2_ori_1.png

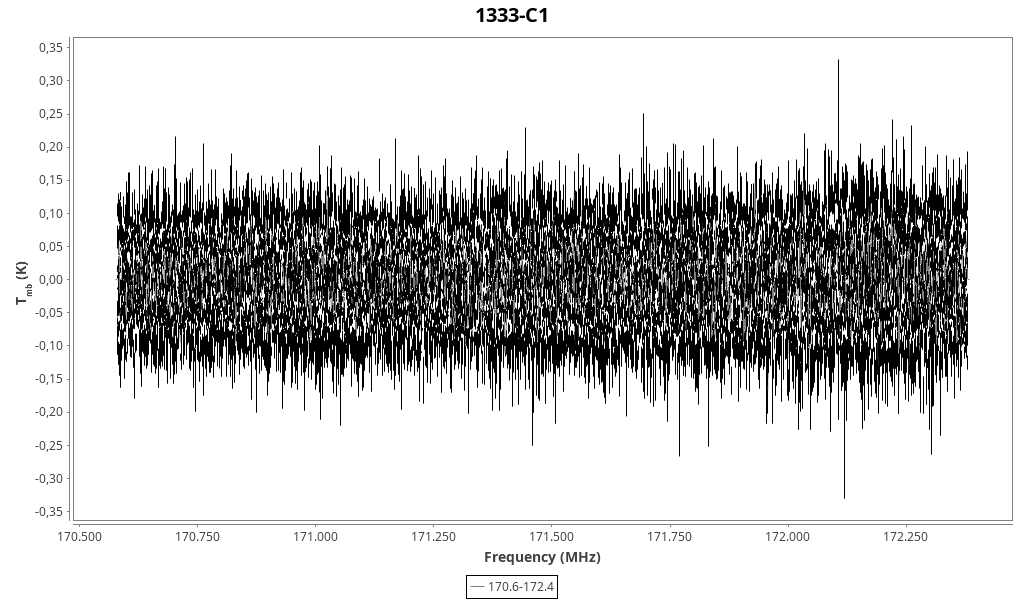

Backend 2mm (171.5 GHz)

Found 5 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.127 (0.005) 0.14 (0.03) 0.019 (0.004) 7.8710 (0.0019) 172214.73 172215.8 2.0 Unidentified 172.214 GHz 1333-c1-40_0:2mm_171.5_red_0.png 1333-c1-40_0:2mm_171.5_ori_0.png
0.175 (0.010) 0.24 (0.08) 0.046 (0.015) 7.871 (0.005) 172219.41 172220.5 2.5 Unidentified 172.220 GHz 1333-c1-40_0:2mm_171.5_red_1.png 1333-c1-40_0:2mm_171.5_ori_1.png
0.076 (0.017) 1.2 (0.8) 0.09 (0.06) 7.87 (0.05) 172221.74 172222.8 1.1 Unidentified 172.223 GHz 1333-c1-40_0:2mm_171.5_red_2.png 1333-c1-40_0:2mm_171.5_ori_2.png
0.961 (0.017) 0.047 (0.012) 0.048 (0.013) 7.87 (0.05) 172226.02 172227.1 14.1 Unidentified 172.227 GHz 1333-c1-40_0:2mm_171.5_red_3.png 1333-c1-40_0:2mm_171.5_ori_3.png
0.076 (0.010) 0.28 (0.22) 0.022 (0.018) 7.871 (0.016) 172234.45 172235.52 1.1 NaCN/NaNC 11(3,9)-10(3,8) 1333-c1-40_0:2mm_171.5_red_4.png 1333-c1-40_0:2mm_171.5_ori_4.png
