DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

1333-C2--180_0

Backend 3mm (85.0-110.5 GHz)

Found 32 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.027 (0.013)	0.4 (0.7)	0.011 (0.017)	5.61 (0.07)	85455.77	85455.66	2.5	CH₃C₂H 5₁→4₁
0.027 (0.011)	2.5 (1.8)	0.07 (0.05)	7.04 (0.17)	85456.99	85457.29	2.4	CH₃C₂H 5₀→4₀
0.071 (0.011)	0.50 (0.18)	0.038 (0.013)	7.172 (0.020)	88630.07	88630.42	8.9	HCN 1→0 F=1→1
0.145 (0.008)	0.80 (0.12)	0.123 (0.017)	7.118 (0.012)	88631.52	88631.85	17.5	HCN 1→0 F=2→1
0.034 (0.009)	0.5 (0.4)	0.018 (0.013)	5.86 (0.05)	88631.89	88631.85	4.2	HCN 1→0 F=2→1
0.038 (0.011)	0.4 (0.3)	0.016 (0.012)	7.10 (0.04)	88633.62	88633.94	4.7	HCN 1→0 F=0→1
0.044 (0.014)	0.3 (0.3)	0.014 (0.012)	10.35 (0.03)	88864.41	88865.70	5.4	H¹⁵NC 1→0
0.119 (0.009)	0.92 (0.19)	0.117 (0.023)	8.267 (0.020)	89187.85	89188.53	10.5	HCO⁺ 1→0
0.598 (0.009)	0.71 (0.04)	0.452 (0.020)	7.138 (0.004)	89188.19	89188.53	53.6	HCO⁺ 1→0
0.189 (0.009)	1.03 (0.13)	0.207 (0.024)	6.241 (0.013)	89188.45	89188.53	17.0	HCO⁺ 1→0
0.291 (0.018)	0.82 (0.15)	0.26 (0.05)	7.133 (0.015)	90663.22	90663.56	17.2	HNC 1→0
0.039 (0.015)	0.2 (0.4)	0.010 (0.014)	7.00 (0.04)	93173.39	93173.70	3.3	N₂H⁺ 1→0 F=1→2
0.359 (0.025)	4.9 (0.5)	1.89 (0.14)	Unavailable	93953.68	Unavailable	5.2	CCS N=7-6, J=7-6 (image band)
0.070 (0.025)	3.5 (2.0)	0.26 (0.12)	7.11 (0.19)	93957.79	93958.1	1.0	Unidentified 93.959 GHz
0.049 (0.025)	0.3 (0.4)	0.013 (0.018)	7.22 (0.04)	94406.16	94406.55	3.5	CH₂¹³CHCN 10_(5,x)→9_(5,x-1) x=6,5
0.037 (0.015)	0.6 (0.8)	0.02 (0.03)	9.02 (0.08)	96273.23	96274.20	2.4	CH₃CHO 5_(2,4)→4_(2,3) (1)
0.037 (0.015)	1.6 (1.5)	0.06 (0.05)	7.43 (0.14)	96412.49	96412.95	2.2	C³⁴S 2→1
0.042 (0.016)	3.9 (2.3)	0.18 (0.08)	2.33 (0.20)	96426.80	96425.62	2.3	CH₃CHO 5_(2,4)→4_(2,3) (2)
0.05 (0.09)	0.2 (0.4)	0.008 (0.018)	9.05 (0.10)	96690.60	96691.59	2.3	CH₂DCCH 6(1,6)-5(1,5)
0.040 (0.016)	0.9 (0.9)	0.04 (0.04)	6.95 (0.12)	96739.05	96739.36	2.3	CH₃OH 2_(-1,2)→1_(-1,1)
0.108 (0.018)	0.49 (0.25)	0.06 (0.03)	7.15 (0.03)	96741.00	96741.37	6.0	CH₃OH 2_(0,2)→1_(0,1) ++
4.3 (0.3)	0.154 (0.009)	0.709 (0.020)	7.0731 (0.0020)	96909.64	96910.0	111.0	Unidentified 96.911 GHz
1.00 (0.03)	0.274 (0.020)	0.291 (0.021)	7.0730 (0.0021)	96924.64	96925.0	24.0	Unidentified 96.926 GHz
0.28 (0.03)	0.47 (0.13)	0.14 (0.04)	7.120 (0.014)	97980.59	97980.95	14.1	CS 2→1
0.082 (0.020)	1.8 (0.9)	0.16 (0.07)	7.06 (0.09)	97980.61	97980.95	4.2	CS 2→1
0.442 (0.019)	0.09 (0.04)	0.041 (0.015)	8.28 (0.08)	97994.42	97995.17	19.8	l-C₃H J=9/2-7/2, Omega=1/2, F=5-4, l=e
0.05 (0.04)	1.2 (1.2)	0.07 (0.06)	9.67 (0.17)	98862.12	98863.33	2.2	CH₃CHO 5_(1,4)→4_(1,3) (1)
0.046 (0.024)	0.7 (0.9)	0.04 (0.05)	6.85 (0.13)	101314.53	101314.82	2.0	DC₃N J=12-11
0.270 (0.023)	0.47 (0.12)	0.14 (0.04)	7.195 (0.013)	109781.74	109782.18	11.7	C¹⁸O 1→0
0.167 (0.018)	2.4 (0.5)	0.43 (0.08)	7.19 (0.05)	109781.74	109782.18	7.2	C¹⁸O 1→0
2.048 (0.024)	1.73 (0.05)	3.77 (0.08)	7.793 (0.005)	110200.69	110201.35	14.1	¹³CO 1→0
2.514 (0.024)	2.79 (0.05)	7.48 (0.11)	6.711 (0.005)	110201.09	110201.35	17.3	¹³CO 1→0

Backend 2mm (134.6 GHz)

Backend 2mm (137.9 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.15 (0.13)	0.13 (0.24)	0.02 (0.04)	6.10 (0.03)	137454.42	137454.46	4.6	c-HCCCD 2(2,0)-1(1,1)
0.65 (0.03)	0.06 (0.03)	0.039 (0.020)	6.10 (0.06)	138254.01	138254.1	24.0	Unidentified 138.254 GHz
0.18 (0.05)	0.15 (0.18)	0.03 (0.04)	6.101 (0.018)	138504.00	138504.0	6.4	Unidentified 138.504 GHz
0.25 (0.07)	0.12 (0.11)	0.03 (0.03)	6.101 (0.018)	138754.00	138754.0	9.5	Unidentified 138.754 GHz

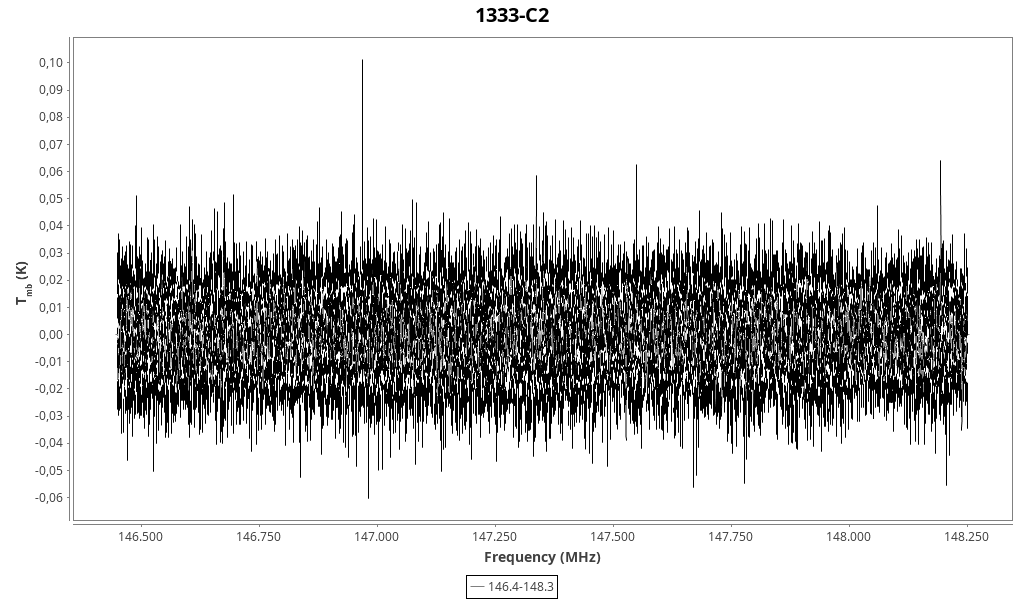

Backend 2mm (144.1 GHz)

Backend 2mm (147.3 GHz)

Found 1 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.108 (0.014)	0.37 (0.23)	0.04 (0.03)	7.183 (0.017)	146968.45	146969.03	8.0	CS 3→2

Backend 2mm (168.2 GHz)

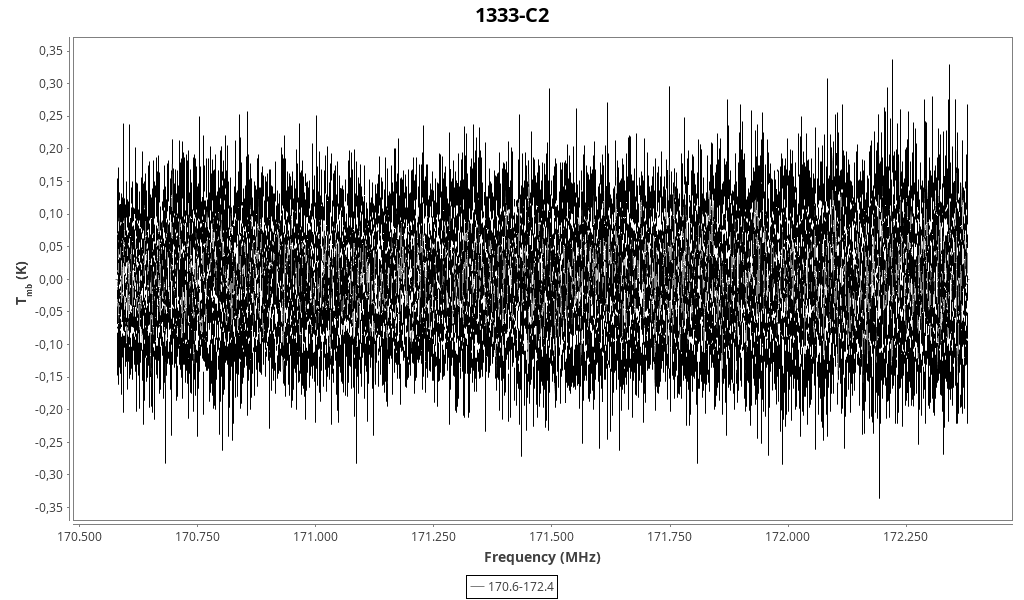

Backend 2mm (171.5 GHz)

Found 10 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
1.22 (0.08)	0.05 (0.05)	0.06 (0.06)	7.58 (0.05)	171780.42	171781.3	17.7	Unidentified 171.781 GHz
0.098 (0.025)	0.6 (0.7)	0.06 (0.07)	7.58 (0.05)	172094.67	172095.6	1.2	Unidentified 172.097 GHz
0.066 (0.025)	0.6 (0.9)	0.04 (0.07)	7.58 (0.06)	172096.74	172097.6	0.8	Unidentified 172.097 GHz
0.231 (0.024)	0.20 (0.10)	0.050 (0.025)	7.582 (0.007)	172100.00	172100.9	2.9	Unidentified 172.100 GHz
0.050 (0.016)	1.7 (1.4)	0.09 (0.07)	7.58 (0.09)	172101.37	172102.3	0.6	Unidentified 172.102 GHz
0.07 (0.04)	0.9 (1.4)	0.07 (0.10)	7.58 (0.09)	172102.10	172103.0	0.9	Unidentified 172.102 GHz
0.152 (0.009)	0.25 (0.08)	0.040 (0.013)	10.002 (0.005)	172103.26	172105.56	1.9	HS₂ 11(2,9)-10(2,8), J=21/2-19/2, F=11-10
0.148 (0.008)	0.29 (0.09)	0.046 (0.014)	7.175 (0.006)	172104.89	172105.56	1.8	HS₂ 11(2,9)-10(2,8), J=21/2-19/2, F=11-10
0.117 (0.013)	0.6 (0.3)	0.07 (0.04)	7.582 (0.018)	172107.05	172107.96	1.4	HC¹⁵N 2→1
0.34 (0.16)	0.1 (0.3)	0.05 (0.11)	7.581 (0.023)	172221.89	172222.8	4.0	Unidentified 172.223 GHz
