DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

1333-C2--240_0

Backend 3mm (85.0-110.5 GHz)

Found 45 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.032 (0.013)	0.3 (0.5)	0.012 (0.014)	-155.43 (0.05)	85238.02	85192.15	3.6	o-D₂CS 3→2
0.018 (0.013)	0.6 (0.9)	0.012 (0.018)	4.66 (0.12)	85811.93	85811.55	1.9	CH₃NCO 10→9
0.080 (0.012)	0.50 (0.18)	0.043 (0.015)	7.262 (0.021)	88630.05	88630.42	8.7	HCN 1→0 F=1→1
0.138 (0.008)	0.87 (0.14)	0.127 (0.019)	7.334 (0.015)	88631.45	88631.85	14.5	HCN 1→0 F=2→1
0.019 (0.008)	0.8 (1.0)	0.016 (0.019)	5.45 (0.10)	88632.01	88631.85	2.0	HCN 1→0 F=2→1
0.033 (0.010)	0.5 (0.5)	0.018 (0.015)	7.28 (0.06)	88633.56	88633.94	3.4	HCN 1→0 F=0→1
0.015 (0.008)	2.4 (2.2)	0.04 (0.03)	8.82 (0.21)	88864.86	88865.70	1.4	H¹⁵NC 1→0
0.493 (0.010)	0.52 (0.03)	0.272 (0.015)	7.226 (0.004)	89188.16	89188.53	38.7	HCO⁺ 1→0
0.162 (0.008)	2.24 (0.21)	0.39 (0.04)	6.953 (0.020)	89188.24	89188.53	12.7	HCO⁺ 1→0
0.057 (0.018)	2.1 (1.3)	0.13 (0.07)	7.28 (0.12)	90663.18	90663.56	3.5	HNC 1→0
0.237 (0.020)	0.55 (0.14)	0.14 (0.04)	7.201 (0.015)	90663.20	90663.56	14.5	HNC 1→0
0.034 (0.007)	0.24 (0.16)	0.009 (0.006)	Unavailable	92663.06	Unavailable	2.9	CH₃CN 5₃→4₃ (image band)
0.061 (0.017)	0.4 (0.4)	0.027 (0.020)	3.53 (0.04)	92873.14	92872.38	3.4	DC₃N J=11-10 (5 components around)
0.032 (0.015)	2.6 (2.2)	0.09 (0.07)	5.07 (0.21)	92983.19	92982.90	2.0	CH₃OCHO v=1 9(3,7)-9(1,8)
0.026 (0.011)	3.7 (2.4)	0.10 (0.06)	7.2 (0.4)	93171.51	93171.88	2.1	N₂H⁺ 1→0 F=1→1
0.033 (0.009)	4.9 (2.0)	0.17 (0.06)	6.27 (0.17)	93455.96	93456.04	3.3	CH₃CCD 6(0)-5(0)
0.038 (0.018)	0.3 (0.5)	0.012 (0.016)	9.21 (0.05)	93821.66	93822.66	3.7	C(58)</sup>\gamma</sup>
0.256 (0.022)	2.8 (0.5)	0.78 (0.09)	Unavailable	93950.13	Unavailable	3.7	CCS N=7-6, J=7-6 (image band)
0.13 (0.03)	1.7 (0.8)	0.25 (0.11)	7.19 (0.08)	93952.42	93952.8	2.0	Unidentified
0.052 (0.011)	0.31 (0.20)	0.017 (0.011)	Unavailable	95580.95	Unavailable	4.1	CCCN N=9-8, J=17/2-15/2 (3 components) (image band)
0.033 (0.017)	4 (4)	0.16 (0.09)	8.8 (0.3)	95809.53	95810.41	1.6	³⁴SO₂ 2(2,0)-3(1,3)
0.034 (0.016)	4 (3)	0.14 (0.09)	5.67 (0.25)	96413.06	96412.95	1.7	C³⁴S 2→1
0.033 (0.024)	0.7 (0.9)	0.02 (0.04)	4.08 (0.14)	96426.23	96425.62	2.0	CH₃CHO 5_(2,4)→4_(2,3) (2)
0.046 (0.016)	0.6 (0.7)	0.03 (0.04)	7.34 (0.08)	96738.92	96739.36	2.7	CH₃OH 2_(-1,2)→1_(-1,1)
0.059 (0.022)	0.6 (0.5)	0.04 (0.03)	7.19 (0.06)	96740.99	96741.37	3.5	CH₃OH 2_(0,2)→1_(0,1) ++
0.039 (0.018)	0.4 (0.6)	0.017 (0.024)	7.16 (0.07)	96909.87	96910.2	0.2	Unidentified 96.911 GHz
1.05 (0.06)	0.27 (0.05)	0.31 (0.05)	7.157 (0.005)	96924.64	96925.0	29.0	Unidentified 96.926 GHz
0.408 (0.010)	0.085 (0.018)	0.037 (0.008)	Unavailable	97933.14	Unavailable	22.8	HCO 1_0,1→0_0,0 J=3/2→1/2 F=1→0 (image band)
0.138 (0.025)	0.52 (0.24)	0.08 (0.04)	7.78 (0.03)	97980.37	97980.95	7.2	CS 2→1
0.368 (0.021)	0.53 (0.09)	0.21 (0.04)	7.196 (0.009)	97980.56	97980.95	19.3	CS 2→1
0.09 (0.03)	0.3 (0.4)	0.03 (0.03)	8.52 (0.04)	98862.50	98863.33	4.1	CH₃CHO 5_(1,4)→4_(1,3) (1)
0.045 (0.009)	0.27 (0.04)	0.0130 (0.0019)	Unavailable	99107.49	Unavailable	2.3	HOCO⁺ 4(0,4)-3(0,3) (image band)
0.110 (0.025)	0.5 (0.3)	0.06 (0.04)	7.80 (0.04)	99299.29	99299.89	5.5	SO 3₍₂₎→2₍₁₎
0.14 (0.04)	0.24 (0.18)	0.04 (0.03)	7.107 (0.021)	101325.91	101326.3	7.4	Unidentified 101.327 GHz
0.28 (0.09)	0.5 (0.5)	0.15 (0.13)	2.56 (0.05)	101738.34	101737.17	0.8	CH₃OH 9(-2,8)-9(1,8)
0.37 (0.20)	0.24 (0.23)	0.09 (0.09)	2.170 (0.025)	101738.47	101737.17	1.1	CH₃OH 9(-2,8)-9(1,8)
0.14 (0.04)	0.21 (0.19)	0.03 (0.03)	7.098 (0.025)	102194.98	102195.4	6.6	Unidentified
0.08 (0.04)	0.4 (0.5)	0.03 (0.04)	8.11 (0.05)	102547.26	102547.98	3.3	CH₃CCH 6₍₀₎→5₍₀₎
0.115 (0.017)	0.7 (0.3)	0.08 (0.04)	7.95 (0.04)	109781.46	109782.18	6.5	C¹⁸O 1→0
0.400 (0.017)	0.80 (0.09)	0.34 (0.04)	7.324 (0.010)	109781.69	109782.18	22.6	C¹⁸O 1→0
0.050 (0.024)	0.2 (0.5)	0.013 (0.022)	7.49 (0.05)	110151.55	110152.09	2.8	NH₂D 1(1,1)0a-1(0,1)0s, F=0-1
0.066 (0.022)	0.4 (0.5)	0.03 (0.03)	6.78 (0.05)	110153.31	110153.59	3.5	NH₂D 1(1,1)0a-1(0,1)0s, F=2-2 & 1-1
0.052 (0.018)	1.1 (0.9)	0.06 (0.05)	6.68 (0.10)	110153.92	110154.17	2.8	NH₂D 1(1,1)0a-1(0,1)0s, F=1-2
2.81 (0.03)	1.18 (0.03)	3.53 (0.08)	7.601 (0.003)	110200.76	110201.35	23.9	¹³CO 1→0
1.63 (0.03)	3.49 (0.09)	6.05 (0.13)	6.731 (0.009)	110201.08	110201.35	13.8	¹³CO 1→0

Backend 2mm (134.6 GHz)

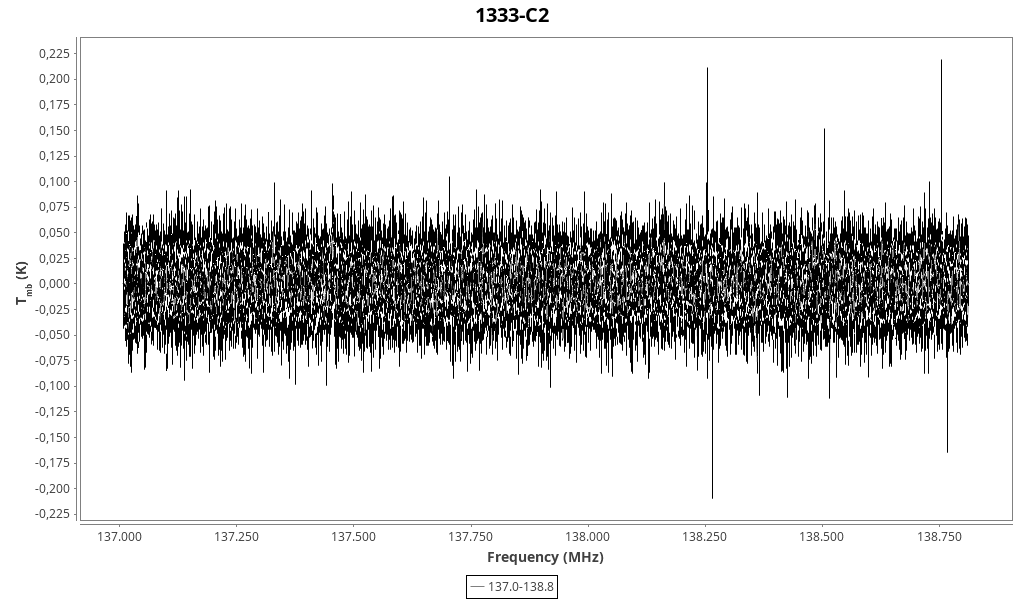

Backend 2mm (137.9 GHz)

Found 5 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.10 (0.12)	0.1 (0.3)	0.01 (0.03)	6.37 (0.08)	137454.29	137454.46	3.5	c-HCCCD 2(2,0)-1(1,1)
0.12 (0.09)	0.14 (0.24)	0.02 (0.03)	8.477 (0.020)	138252.02	138253.17	4.1	CH₃OOH (3)
0.75 (0.03)	0.06 (0.03)	0.051 (0.020)	6.37 (0.06)	138253.97	138254.1	25.7	Unidentified 138.254 GHz
0.18 (0.03)	0.03 (0.09)	0.007 (0.016)	6.37 (0.06)	138503.99	138504.2	7.4	Unidentified 138.504 GHz
0.22 (0.05)	0.13 (0.12)	0.03 (0.03)	6.368 (0.014)	138754.00	138754.2	8.8	Unidentified 138.754 GHz
