DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

1333-C2-3-0_0

Backend 3mm (85.0-110.5 GHz)

Found 25 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.063 (0.019)	0.28 (0.25)	0.019 (0.017)	7.17 (0.04)	86708.17	86708.36	5.2	HCO 1_0,1→0_0,0 J=3/2→1/2 F=1→0
0.088 (0.009)	0.90 (0.22)	0.085 (0.019)	8.132 (0.025)	88629.94	88630.42	9.1	HCN 1→0 F=1→1
0.109 (0.009)	1.02 (0.19)	0.119 (0.021)	8.099 (0.021)	88631.37	88631.85	11.0	HCN 1→0 F=2→1
0.018 (0.009)	0.8 (1.1)	0.016 (0.019)	6.73 (0.17)	88631.78	88631.85	1.8	HCN 1→0 F=2→1
0.056 (0.009)	1.0 (0.4)	0.062 (0.021)	8.02 (0.05)	88633.49	88633.94	5.6	HCN 1→0 F=0→1
0.148 (0.009)	1.43 (0.19)	0.23 (0.03)	7.717 (0.021)	89188.16	89188.53	14.7	HCO⁺ 1→0
0.114 (0.009)	2.2 (0.4)	0.27 (0.04)	6.53 (0.04)	89188.52	89188.53	11.6	HCO⁺ 1→0
0.094 (0.022)	1.0 (0.6)	0.10 (0.06)	7.95 (0.07)	90663.12	90663.56	4.8	HNC 1→0
0.071 (0.012)	0.27 (0.14)	0.020 (0.010)	7.957 (0.017)	92398.57	92399.0	10.7	Unidentified
1.48 (0.14)	0.32 (0.08)	0.50 (0.12)	7.957 (0.009)	92420.04	92420.5	153.8	Unidentified
1.36 (0.18)	0.31 (0.12)	0.44 (0.17)	7.957 (0.014)	92438.03	92438.5	271.6	Unidentified
0.19 (0.04)	3.4 (1.0)	0.70 (0.16)	7.90 (0.10)	96223.33	96223.8	13.2	Unidentified
0.026 (0.007)	0.7 (0.6)	0.019 (0.014)	8.13 (0.06)	96738.83	96739.36	3.8	CH₃OH 2_(-1,2)→1_(-1,1)
0.038 (0.011)	0.7 (0.4)	0.027 (0.014)	7.98 (0.05)	96740.89	96741.37	5.4	CH₃OH 2_(0,2)→1_(0,1) ++
0.198 (0.010)	0.79 (0.12)	0.167 (0.022)	8.131 (0.013)	97980.42	97980.95	17.5	CS 2→1
0.061 (0.010)	1.9 (0.6)	0.12 (0.04)	7.02 (0.07)	97980.78	97980.95	5.4	CS 2→1
0.022 (0.016)	0.3 (0.7)	0.007 (0.014)	7.28 (0.08)	97994.91	97995.17	1.5	l-C₃H J=9/2-7/2, Omega=1/2, F=5-4, l=e
0.139 (0.013)	0.37 (0.10)	0.055 (0.015)	8.496 (0.012)	99299.23	99299.89	13.7	SO 3₍₂₎→2₍₁₎
0.327 (0.012)	0.55 (0.06)	0.191 (0.018)	8.029 (0.007)	99299.38	99299.89	32.0	SO 3₍₂₎→2₍₁₎
1.05 (0.22)	4.5 (1.4)	5.0 (1.2)	7.82 (0.12)	101731.41	101731.9	17.7	Unidentified
0.38 (0.06)	0.55 (0.24)	0.22 (0.09)	7.82 (0.03)	101731.44	101731.9	6.4	Unidentified
0.822 (0.022)	0.80 (0.06)	0.70 (0.05)	8.272 (0.007)	109781.53	109782.18	31.8	C¹⁸O 1→0
0.134 (0.022)	1.8 (0.6)	0.25 (0.08)	7.35 (0.06)	109781.86	109782.18	5.2	C¹⁸O 1→0
5.008 (0.023)	1.028 (0.012)	5.48 (0.06)	8.1518 (0.0013)	110200.75	110201.35	47.7	¹³CO 1→0
1.536 (0.023)	3.61 (0.09)	5.91 (0.11)	6.656 (0.008)	110201.30	110201.35	14.6	¹³CO 1→0

Backend 2mm (134.6 GHz)

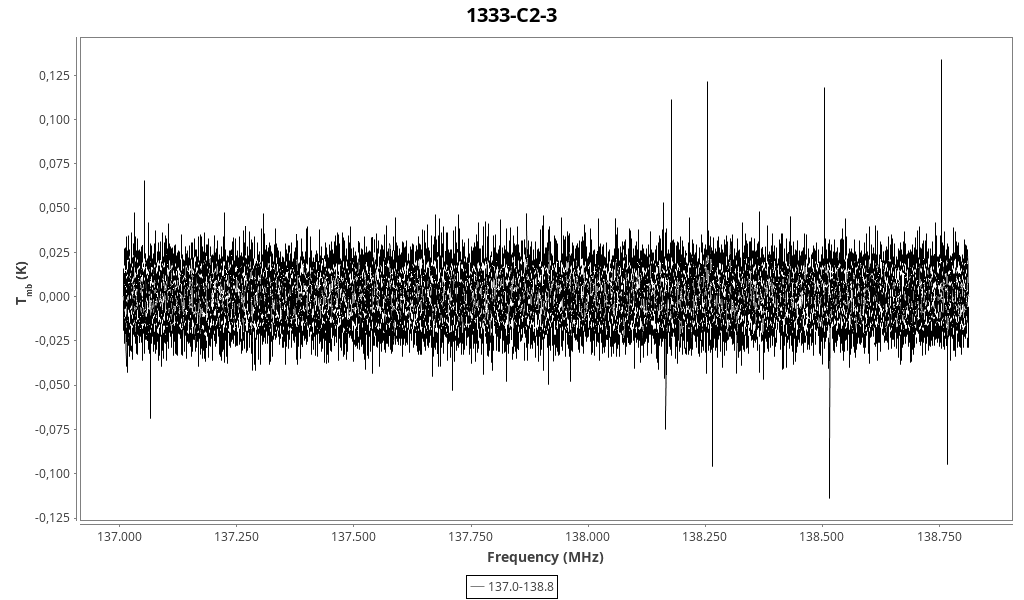

Backend 2mm (137.9 GHz)

Found 5 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.238 (0.013)	0.06 (0.04)	0.014 (0.010)	8.04 (0.06)	137054.01	137054.7	18.9	Unidentified
0.097 (0.013)	0.5 (0.3)	0.05 (0.03)	8.025 (0.022)	138177.96	138178.66	7.3	SO 4₃→3₂
0.499 (0.014)	0.059 (0.019)	0.031 (0.010)	8.02 (0.06)	138254.01	138254.7	36.7	Unidentified 138.254 GHz
0.13 (0.05)	0.11 (0.11)	0.015 (0.014)	8.02 (0.03)	138504.00	138504.7	10.2	Unidentified 138.504 GHz
0.14 (0.05)	0.11 (0.10)	0.016 (0.015)	8.019 (0.023)	138753.99	138754.7	11.0	Unidentified 138.754 GHz

Backend 2mm (144.1 GHz)

Backend 2mm (147.3 GHz)

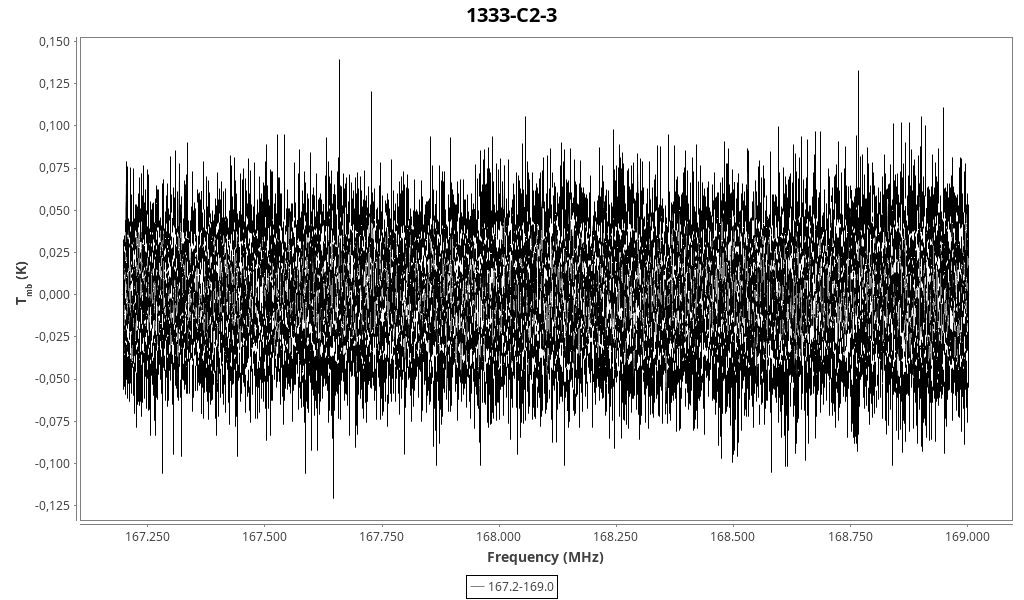

Backend 2mm (168.1 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.0444 (0.0015)	0.21 (0.04)	0.0098 (0.0019)	4.283 (0.003)	167569.51	167568.3	1.7	Unidentified 167.570 GHz
0.0908 (0.0016)	0.157 (0.015)	0.0152 (0.0014)	4.2834 (0.0009)	167574.77	167573.53	3.3	c-¹³CCCH 13(7,6)-13(7,7)
0.0094 (0.0011)	0.7 (0.3)	0.007 (0.003)	7.518 (0.019)	167577.23	167577.80	0.4	He(52)</sup>\delta</sup> (NO₂ in atmosphere?)
