DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

1333-C3-12-0_0

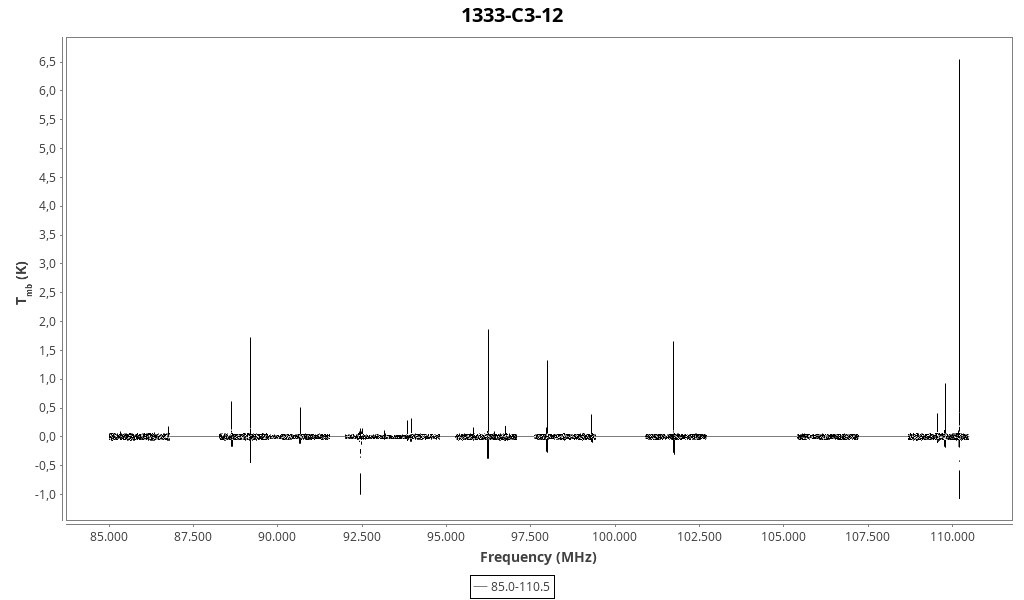

Backend 3mm (85.0-110.5 GHz)

Found 42 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.063 (0.015) 0.8 (0.6) 0.06 (0.04) -152.19 (0.06) 85237.24 85192.15 4.7 o-D2CS 3→2 1333-c3-12-0_0:3mm_red_0.png 1333-c3-12-0_0:3mm_ori_0.png
0.086 (0.021) 0.4 (0.3) 0.04 (0.03) 7.57 (0.04) 85338.59 85338.90 6.4 c-C3H2 21,2→10,1 1333-c3-12-0_0:3mm_red_1.png 1333-c3-12-0_0:3mm_ori_1.png
0.166 (0.021) 0.63 (0.19) 0.11 (0.04) 7.626 (0.022) 86753.96 86754.29 10.4 H13CO+ 1→0 1333-c3-12-0_0:3mm_red_2.png 1333-c3-12-0_0:3mm_ori_2.png
0.291 (0.014) 1.31 (0.15) 0.40 (0.04) 7.644 (0.015) 88630.08 88630.42 15.5 HCN 1→0 F=1→1 1333-c3-12-0_0:3mm_red_3.png 1333-c3-12-0_0:3mm_ori_3.png
0.564 (0.014) 1.35 (0.08) 0.81 (0.05) 7.603 (0.008) 88631.52 88631.85 29.6 HCN 1→0 F=2→1 1333-c3-12-0_0:3mm_red_4.png 1333-c3-12-0_0:3mm_ori_4.png
0.058 (0.016) 0.5 (0.5) 0.032 (0.025) 8.39 (0.05) 88633.38 88633.94 3.1 HCN 1→0 F=0→1 1333-c3-12-0_0:3mm_red_5.png 1333-c3-12-0_0:3mm_ori_5.png
0.164 (0.014) 0.86 (0.20) 0.15 (0.04) 7.678 (0.022) 88633.59 88633.94 8.8 HCN 1→0 F=0→1 1333-c3-12-0_0:3mm_red_6.png 1333-c3-12-0_0:3mm_ori_6.png
0.395 (0.016) 2.83 (0.20) 1.19 (0.07) 8.095 (0.019) 89188.05 89188.53 16.8 HCO+ 1→0 1333-c3-12-0_0:3mm_red_7.png 1333-c3-12-0_0:3mm_ori_7.png
1.345 (0.016) 1.07 (0.04) 1.54 (0.05) 7.380 (0.004) 89188.26 89188.53 57.2 HCO+ 1→0 1333-c3-12-0_0:3mm_red_8.png 1333-c3-12-0_0:3mm_ori_8.png
0.181 (0.014) 0.10 (0.06) 0.018 (0.011) 8.29 (0.08) 90173.80 90174.34 13.6 H(69)</sup>\epsilon</sup> 1333-c3-12-0_0:3mm_red_9.png 1333-c3-12-0_0:3mm_ori_9.png
0.144 (0.011) 2.0 (0.3) 0.31 (0.04) 8.01 (0.03) 90663.11 90663.56 11.8 HNC 1→0 1333-c3-12-0_0:3mm_red_10.png 1333-c3-12-0_0:3mm_ori_10.png
0.369 (0.011) 1.28 (0.09) 0.50 (0.04) 7.677 (0.009) 90663.21 90663.56 30.0 HNC 1→0 1333-c3-12-0_0:3mm_red_11.png 1333-c3-12-0_0:3mm_ori_11.png
0.2 (0.4) 0.2 (0.4) 0.027 (0.018) 7.654 (0.023) 92495.69 92496.0 13.1 Unidentified 1333-c3-12-0_0:3mm_red_12.png 1333-c3-12-0_0:3mm_ori_12.png
0.147 (0.025) 0.27 (0.15) 0.042 (0.023) 7.654 (0.018) 92496.15 92496.5 12.2 Unidentified 1333-c3-12-0_0:3mm_red_13.png 1333-c3-12-0_0:3mm_ori_13.png
0.093 (0.009) 0.91 (0.25) 0.090 (0.023) 7.51 (0.03) 93171.57 93171.88 11.3 N2H+ 1→0 F=1→1 1333-c3-12-0_0:3mm_red_14.png 1333-c3-12-0_0:3mm_ori_14.png
0.100 (0.009) 1.8 (0.4) 0.19 (0.04) 7.68 (0.04) 93173.33 93173.70 12.1 N2H+ 1→0 F=1→2 1333-c3-12-0_0:3mm_red_15.png 1333-c3-12-0_0:3mm_ori_15.png
0.022 (0.014) 0.2 (0.6) 0.006 (0.012) 7.42 (0.07) 93173.41 93173.70 2.6 N2H+ 1→0 F=1→2 1333-c3-12-0_0:3mm_red_16.png 1333-c3-12-0_0:3mm_ori_16.png
0.064 (0.009) 0.9 (0.4) 0.064 (0.023) 7.30 (0.04) 93175.88 93176.13 7.1 N2H+ 1→0 F=1→0 1333-c3-12-0_0:3mm_red_17.png 1333-c3-12-0_0:3mm_ori_17.png
0.22 (0.04) 2.8 (0.9) 0.63 (0.17) 7.64 (0.09) 93839.35 93839.7 13.9 Unidentified 1333-c3-12-0_0:3mm_red_18.png 1333-c3-12-0_0:3mm_ori_18.png
0.26 (0.05) 2.2 (0.7) 0.62 (0.17) 7.64 (0.07) 93950.15 93950.5 12.2 Unidentified 1333-c3-12-0_0:3mm_red_19.png 1333-c3-12-0_0:3mm_ori_19.png
0.136 (0.025) 1.8 (0.7) 0.26 (0.09) 7.61 (0.07) 95798.80 95799.2 8.7 Unidentified 1333-c3-12-0_0:3mm_red_20.png 1333-c3-12-0_0:3mm_ori_20.png
1.42 (0.24) 2.4 (0.8) 3.6 (0.9) 7.61 (0.07) 96230.80 96231.2 21.9 Unidentified 1333-c3-12-0_0:3mm_red_21.png 1333-c3-12-0_0:3mm_ori_21.png
0.16 (0.05) 1.2 (0.9) 0.20 (0.14) 7.61 (0.11) 96231.57 96231.9 2.4 Unidentified 1333-c3-12-0_0:3mm_red_22.png 1333-c3-12-0_0:3mm_ori_22.png
0.082 (0.016) 1.4 (0.6) 0.12 (0.05) 7.88 (0.07) 96412.51 96412.95 5.1 C34S 2→1 1333-c3-12-0_0:3mm_red_23.png 1333-c3-12-0_0:3mm_ori_23.png
0.108 (0.016) 1.2 (0.4) 0.13 (0.05) 8.22 (0.05) 96738.80 96739.36 7.6 CH3OH 2(-1,2)→1(-1,1) 1333-c3-12-0_0:3mm_red_24.png 1333-c3-12-0_0:3mm_ori_24.png
0.089 (0.016) 1.1 (0.5) 0.10 (0.05) 7.27 (0.05) 96739.11 96739.36 6.4 CH3OH 2(-1,2)→1(-1,1) 1333-c3-12-0_0:3mm_red_25.png 1333-c3-12-0_0:3mm_ori_25.png
0.175 (0.016) 1.5 (0.3) 0.27 (0.05) 7.69 (0.03) 96740.99 96741.37 11.9 CH3OH 2(0,2)→1(0,1) ++ 1333-c3-12-0_0:3mm_red_26.png 1333-c3-12-0_0:3mm_ori_26.png
0.506 (0.012) 2.07 (0.09) 1.11 (0.05) 7.972 (0.009) 97980.47 97980.95 31.0 CS 2→1 1333-c3-12-0_0:3mm_red_27.png 1333-c3-12-0_0:3mm_ori_27.png
0.860 (0.012) 1.56 (0.05) 1.43 (0.04) 7.549 (0.005) 97980.61 97980.95 52.4 CS 2→1 1333-c3-12-0_0:3mm_red_28.png 1333-c3-12-0_0:3mm_ori_28.png
0.024 (0.014) 0.5 (0.8) 0.012 (0.019) 7.16 (0.09) 97994.95 97995.17 0.5 l-C3H J=9/2-7/2, Omega=1/2, F=5-4, l=e 1333-c3-12-0_0:3mm_red_29.png 1333-c3-12-0_0:3mm_ori_29.png
0.048 (0.019) 0.3 (0.4) 0.017 (0.019) 7.33 (0.05) 99274.45 99274.72 3.5 C(50)</sup>\beta</sup> 1333-c3-12-0_0:3mm_red_30.png 1333-c3-12-0_0:3mm_ori_30.png
0.132 (0.014) 0.88 (0.25) 0.12 (0.04) 8.45 (0.03) 99299.24 99299.89 10.4 SO 3(2)→2(1) 1333-c3-12-0_0:3mm_red_31.png 1333-c3-12-0_0:3mm_ori_31.png
0.361 (0.014) 1.04 (0.10) 0.40 (0.04) 7.696 (0.011) 99299.49 99299.89 28.8 SO 3(2)→2(1) 1333-c3-12-0_0:3mm_red_32.png 1333-c3-12-0_0:3mm_ori_32.png
0.78 (0.25) 1.2 (0.9) 1.0 (0.7) 7.55 (0.09) 101731.31 101731.7 27.9 Unidentified 1333-c3-12-0_0:3mm_red_33.png 1333-c3-12-0_0:3mm_ori_33.png
0.78 (0.25) 4.9 (2.3) 4.1 (1.4) 7.55 (0.19) 101731.32 101731.7 27.8 Unidentified 1333-c3-12-0_0:3mm_red_34.png 1333-c3-12-0_0:3mm_ori_34.png
0.35 (0.06) 2.1 (0.7) 0.77 (0.21) 7.47 (0.07) 109553.47 109553.8 14.7 Unidentified 1333-c3-12-0_0:3mm_red_35.png 1333-c3-12-0_0:3mm_ori_35.png
0.327 (0.015) 2.67 (0.22) 0.93 (0.07) 8.038 (0.021) 109781.61 109782.18 17.5 C18O 1→0 1333-c3-12-0_0:3mm_red_36.png 1333-c3-12-0_0:3mm_ori_36.png
0.596 (0.015) 1.65 (0.09) 1.05 (0.05) 7.861 (0.009) 109781.68 109782.18 31.9 C18O 1→0 1333-c3-12-0_0:3mm_red_37.png 1333-c3-12-0_0:3mm_ori_37.png
0.216 (0.015) 0.75 (0.15) 0.17 (0.04) 5.531 (0.017) 109782.53 109782.18 11.8 C18O 1→0 1333-c3-12-0_0:3mm_red_38.png 1333-c3-12-0_0:3mm_ori_38.png
2.730 (0.019) 2.10 (0.03) 6.09 (0.07) 8.070 (0.003) 110200.78 110201.35 18.5 13CO 1→0 1333-c3-12-0_0:3mm_red_39.png 1333-c3-12-0_0:3mm_ori_39.png
3.946 (0.019) 4.17 (0.03) 17.52 (0.09) 7.648 (0.003) 110200.93 110201.35 26.7 13CO 1→0 1333-c3-12-0_0:3mm_red_40.png 1333-c3-12-0_0:3mm_ori_40.png
3.394 (0.019) 0.815 (0.013) 2.94 (0.05) 5.5078 (0.0014) 110201.72 110201.35 23.0 13CO 1→0 1333-c3-12-0_0:3mm_red_41.png 1333-c3-12-0_0:3mm_ori_41.png

Backend 2mm (134.6 GHz)

Found 4 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.07 (0.04) 0.2 (0.4) 0.01 (0.03) 8.26 (0.04) 133829.70 133830.49 3.5 CH3CHO 7(0,7)→6(0,6) (1) 1333-c3-12-0_0:2mm_134.6_red_0.png 1333-c3-12-0_0:2mm_134.6_ori_0.png
0.16 (0.04) 0.14 (0.16) 0.02 (0.03) 5.854 (0.017) 134024.00 134023.71 7.2 C4H v7=1 J=29/2-27/2 1333-c3-12-0_0:2mm_134.6_red_1.png 1333-c3-12-0_0:2mm_134.6_ori_1.png
0.18 (0.11) 0.10 (0.13) 0.019 (0.023) 5.85 (0.05) 134107.63 134107.3 8.2 Unidentified 1333-c3-12-0_0:2mm_134.6_red_2.png 1333-c3-12-0_0:2mm_134.6_ori_2.png
0.453 (0.023) 0.06 (0.04) 0.029 (0.018) 4.61 (0.06) 135299.11 135298.26 20.3 H2CS 4(1,4)-3(1,3) 1333-c3-12-0_0:2mm_134.6_red_3.png 1333-c3-12-0_0:2mm_134.6_ori_3.png

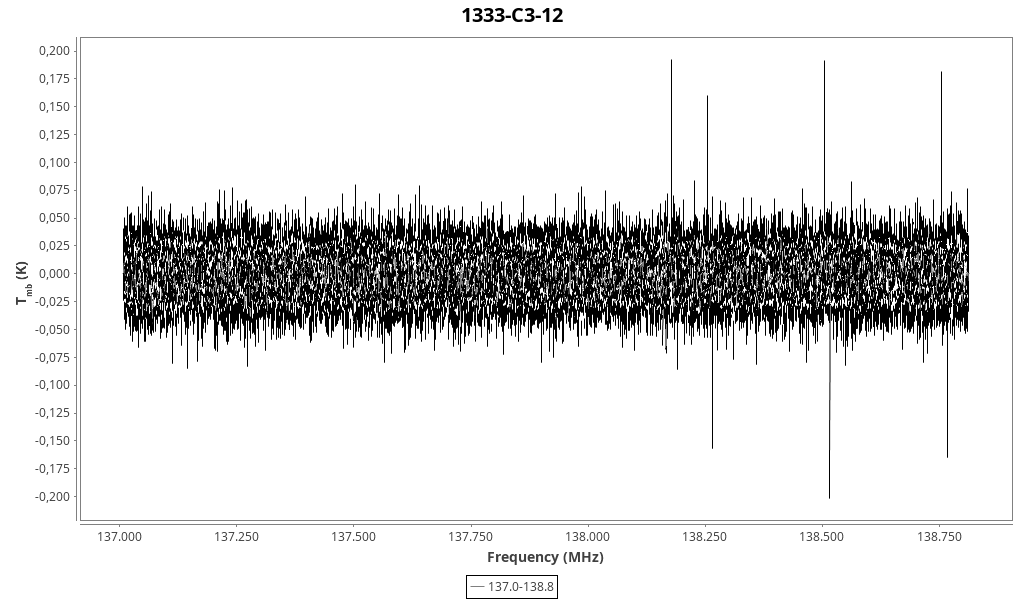

Backend 2mm (137.9 GHz)

Found 4 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.155 (0.022) 0.8 (0.4) 0.13 (0.06) 7.72 (0.03) 138178.10 138178.66 7.3 SO 43→32 1333-c3-12-0_0:2mm_137.9_red_0.png 1333-c3-12-0_0:2mm_137.9_ori_0.png
0.483 (0.020) 0.06 (0.03) 0.029 (0.015) 7.72 (0.06) 138254.01 138254.6 24.9 Unidentified 138.254 GHz 1333-c3-12-0_0:2mm_137.9_red_1.png 1333-c3-12-0_0:2mm_137.9_ori_1.png
0.19 (0.04) 0.14 (0.13) 0.028 (0.025) 7.720 (0.014) 138503.99 138504.6 9.0 Unidentified 138.504 GHz 1333-c3-12-0_0:2mm_137.9_red_2.png 1333-c3-12-0_0:2mm_137.9_ori_2.png
0.654 (0.020) 0.059 (0.022) 0.041 (0.015) 7.72 (0.06) 138754.01 138754.6 31.9 Unidentified 138.754 GHz 1333-c3-12-0_0:2mm_137.9_red_3.png 1333-c3-12-0_0:2mm_137.9_ori_3.png

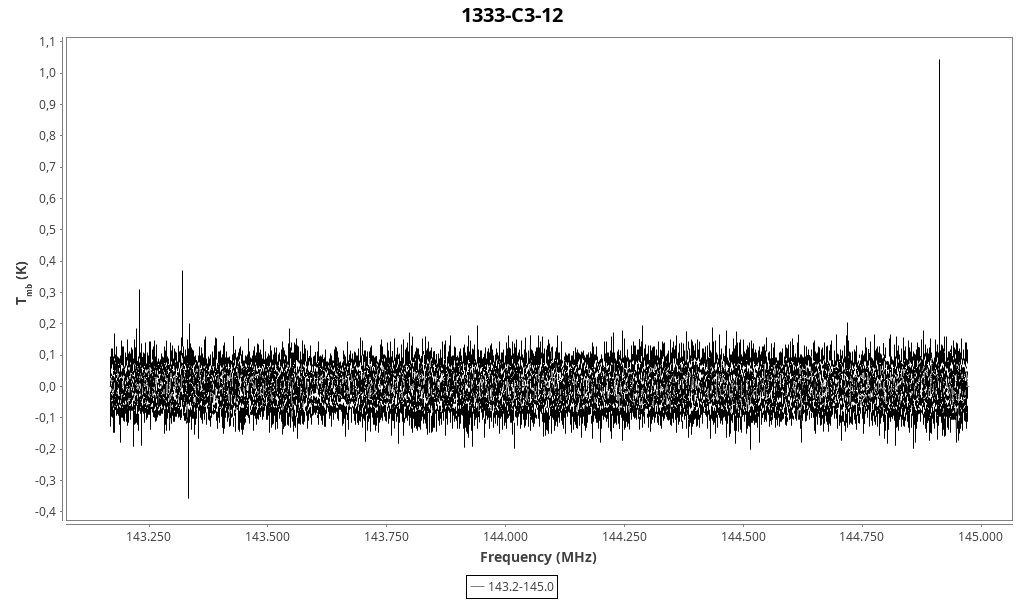

Backend 2mm (144.1 GHz)

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.36 (0.05) 1.5 (0.5) 0.59 (0.16) 7.91 (0.03) 146968.33 146969.03 8.2 CS 3→2 1333-c3-12-0_0:2mm_147.3_red_0.png 1333-c3-12-0_0:2mm_147.3_ori_0.png
0.37 (0.05) 1.3 (0.4) 0.50 (0.15) 7.51 (0.03) 146968.53 146969.03 8.2 CS 3→2 1333-c3-12-0_0:2mm_147.3_red_1.png 1333-c3-12-0_0:2mm_147.3_ori_1.png

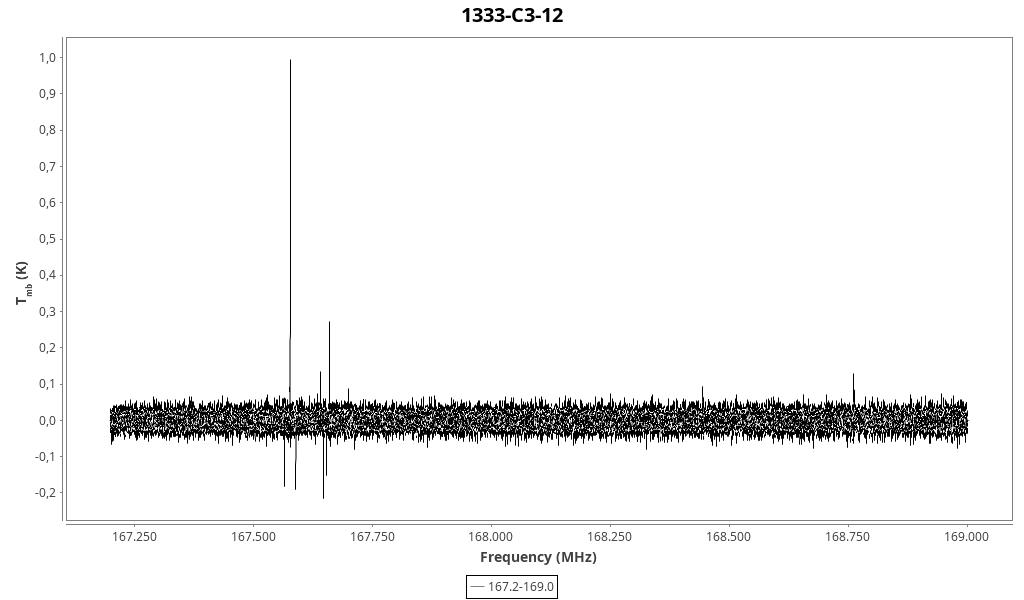

Backend 2mm (168.1 GHz)

Found 4 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.560 (0.022) 0.75 (0.12) 0.45 (0.07) 8.009 (0.007) 167576.96 167577.80 22.6 He(52)</sup>\delta</sup> (NO2 in atmosphere?) 1333-c3-12-0_0:2mm_168.1_red_0.png 1333-c3-12-0_0:2mm_168.1_ori_0.png
0.402 (0.022) 2.1 (0.3) 0.88 (0.11) 7.940 (0.017) 167576.99 167577.80 16.2 He(52)</sup>\delta</sup> (NO2 in atmosphere?) 1333-c3-12-0_0:2mm_168.1_red_1.png 1333-c3-12-0_0:2mm_168.1_ori_1.png
0.046 (0.020) 1.4 (1.8) 0.07 (0.08) 7.84 (0.11) 168762.00 168762.75 1.8 H2S 1(1,0)→1(0,1) 1333-c3-12-0_0:2mm_168.1_red_2.png 1333-c3-12-0_0:2mm_168.1_ori_2.png
0.061 (0.020) 1.1 (1.2) 0.07 (0.07) 7.69 (0.07) 168762.08 168762.75 2.4 H2S 1(1,0)→1(0,1) 1333-c3-12-0_0:2mm_168.1_red_3.png 1333-c3-12-0_0:2mm_168.1_ori_3.png

Backend 2mm (171.4 GHz)

Found 6 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.2393 (0.0017) 0.057 (0.006) 0.0146 (0.0014) 5.83 (0.05) 172097.07 172096.7 9.4 Unidentified 172.097 GHz 1333-c3-12-0_0:2mm_171.4_red_0.png 1333-c3-12-0_0:2mm_171.4_ori_0.png
0.063 (0.013) 0.140 (0.022) 0.0094 (0.0012) 5.826 (0.010) 172099.66 172099.3 2.3 Unidentified 172.100 GHz 1333-c3-12-0_0:2mm_171.4_red_1.png 1333-c3-12-0_0:2mm_171.4_ori_1.png
0.3836 (0.0009) 0.0451 (0.0015) 0.0184 (0.0007) 5.15 (0.05) 172106.34 172105.56 12.4 HS2 11(2,9)-10(2,8), J=21/2-19/2, F=11-10 1333-c3-12-0_0:2mm_171.4_red_2.png 1333-c3-12-0_0:2mm_171.4_ori_2.png
0.2 (0.6) 0.06 (0.07) 0.01 (0.04) 5.826 (0.006) 172108.34 172107.96 7.9 HC15N 2→1 1333-c3-12-0_0:2mm_171.4_red_3.png 1333-c3-12-0_0:2mm_171.4_ori_3.png
-0.004 (0.004) 2 (3) -0.010 (0.007) 5.5 (0.9) 172108.51 172107.96 -0.2 HC15N 2→1 1333-c3-12-0_0:2mm_171.4_red_4.png 1333-c3-12-0_0:2mm_171.4_ori_4.png
0.0246 (0.0013) 0.23 (0.08) 0.0061 (0.0021) 7.262 (0.006) 172235.09 172235.52 0.9 NaCN/NaNC 11(3,9)-10(3,8) 1333-c3-12-0_0:2mm_171.4_red_5.png 1333-c3-12-0_0:2mm_171.4_ori_5.png
