DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

79-C1-2-0_0

Backend 3mm (85.0-110.5 GHz)

Found 88 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.210 (0.010)	0.14 (0.05)	0.031 (0.009)	10.13 (0.09)	85138.07	85139.10	17.7	OCS 7→6
0.182 (0.010)	0.12 (0.05)	0.024 (0.009)	10.21 (0.09)	85152.87	85153.92	14.8	D₂CS 3-2
0.629 (0.010)	0.099 (0.012)	0.066 (0.008)	10.20 (0.09)	85161.17	85162.22	56.7	HC¹⁸O⁺ 1→0
2.673 (0.015)	0.121 (0.005)	0.345 (0.013)	10.13 (0.09)	85337.87	85338.90	23.2	c-C₃H₂ 2_1,2→1_0,1
0.24 (0.25)	0.17 (0.17)	0.043 (0.014)	10.26 (0.04)	85346.80	85347.87	4.8	HCS⁺ 2→1
0.107 (0.019)	0.33 (0.16)	0.038 (0.018)	10.221 (0.019)	85454.60	85455.66	8.8	CH₃C₂H 5₁→4₁
0.069 (0.016)	0.4 (0.3)	0.028 (0.019)	4.55 (0.04)	85456.22	85455.66	5.5	CH₃C₂H 5₁→4₁
0.065 (0.011)	0.10 (0.12)	0.007 (0.008)	4.98 (0.09)	85634.44	85634.01	3.3	C₄H 9→8 J=19/2→17/2
0.175 (0.017)	0.34 (0.09)	0.063 (0.016)	10.328 (0.011)	85671.49	85672.58	16.0	C₄H 9→8 J=17/2→15/2
0.172 (0.022)	0.34 (0.12)	0.063 (0.021)	10.360 (0.014)	85923.68	85924.79	12.2	NH₂D 1_1,1→1_0,1 F=0-1
0.222 (0.022)	0.36 (0.09)	0.085 (0.021)	7.077 (0.011)	85924.62	85924.79	14.7	NH₂D 1_1,1→1_0,1 F=0-1
0.447 (0.017)	0.53 (0.06)	0.25 (0.03)	5.109 (0.007)	85925.18	85924.79	29.6	NH₂D 1_1,1→1_0,1 F=0-1
0.218 (0.021)	0.36 (0.09)	0.083 (0.021)	6.237 (0.011)	85925.78	85925.70	14.5	NH₂D 1_1,1→1_0,1 F=2-1
0.179 (0.022)	0.32 (0.11)	0.062 (0.020)	7.325 (0.013)	85926.65	85926.88	12.0	NH₂D 1_1,1→1_0,1 F=1-2
0.124 (0.018)	0.31 (0.13)	0.041 (0.017)	10.266 (0.016)	86053.88	86054.97	10.2	HC¹⁵N 1→0
0.447 (0.016)	0.30 (0.04)	0.143 (0.015)	10.201 (0.004)	86092.90	86093.96	38.3	SO 2₂→1₁
0.197 (0.016)	0.40 (0.09)	0.084 (0.019)	10.211 (0.011)	86337.66	86338.73	17.6	H¹³CN 1₁→0₁
0.279 (0.016)	0.44 (0.07)	0.129 (0.020)	5.246 (0.008)	86339.09	86338.73	25.9	H¹³CN 1₁→0₁
0.074 (0.017)	0.41 (0.25)	0.032 (0.019)	10.20 (0.03)	86341.19	86342.25	7.4	H¹³CN 1₀→0₁
0.042 (0.012)	4.0 (1.8)	0.18 (0.06)	8.31 (0.16)	86341.73	86342.25	4.3	H¹³CN 1₀→0₁
0.022 (0.014)	0.5 (0.8)	0.011 (0.018)	3.80 (0.09)	86671.58	86670.80	1.6	HCO 1_0,1→0_0,0 J=3/2→1/2 F=2→1
1.038 (0.016)	0.433 (0.018)	0.478 (0.019)	10.2357 (0.0021)	86753.21	86754.29	80.8	H¹³CO⁺ 1→0
0.121 (0.012)	0.09 (0.07)	0.012 (0.009)	5.56 (0.09)	86777.71	86777.44	10.4	HCO 1_0,1→0_0,0 J=1/2→1/2 F=1→1
0.838 (0.009)	0.677 (0.018)	0.604 (0.015)	10.3334 (0.0021)	88629.29	88630.42	54.9	HCN 1→0 F=1→1
1.283 (0.009)	0.619 (0.011)	0.846 (0.015)	5.5451 (0.0013)	88630.70	88630.42	83.2	HCN 1→0 F=1→1
0.161 (0.008)	0.93 (0.12)	0.159 (0.018)	4.660 (0.013)	88630.96	88630.42	10.4	HCN 1→0 F=1→1
0.827 (0.009)	0.581 (0.017)	0.511 (0.014)	3.1918 (0.0019)	88632.83	88631.85	53.9	HCN 1→0 F=2→1
0.205 (0.012)	0.43 (0.07)	0.094 (0.014)	10.281 (0.008)	88864.58	88865.70	25.4	H¹⁵NC 1→0
2.444 (0.009)	0.630 (0.007)	1.638 (0.017)	10.3883 (0.0008)	89187.37	89188.53	243.1	HCO⁺ 1→0
0.252 (0.009)	1.01 (0.09)	0.270 (0.022)	9.616 (0.010)	89187.60	89188.53	25.1	HCO⁺ 1→0
0.046 (0.009)	1.3 (0.6)	0.065 (0.024)	5.58 (0.07)	89198.81	89198.54	0.4	H(59)</sup>\gamma</sup>
0.047 (0.012)	0.4 (0.3)	0.018 (0.013)	10.00 (0.04)	89406.77	89407.82	6.0	CH₂DOH 2(0,2)-1(0,1), e₀
2.120 (0.013)	0.873 (0.015)	1.97 (0.03)	10.4676 (0.0016)	90662.36	90663.56	68.8	HNC 1→0
0.825 (0.016)	0.49 (0.03)	0.430 (0.023)	9.931 (0.004)	90662.52	90663.56	26.8	HNC 1→0
0.096 (0.017)	0.34 (0.18)	0.035 (0.018)	10.281 (0.021)	90685.24	90686.38	7.0	CCS N=7-6, J=7-6
0.063 (0.017)	0.4 (0.3)	0.024 (0.018)	5.44 (0.04)	90686.70	90686.38	4.5	CCS N=7-6, J=7-6
0.648 (0.021)	0.39 (0.04)	0.268 (0.023)	5.154 (0.004)	90977.85	90977.44	45.9	HC₃N J=10-9, F=10-10
0.071 (0.025)	0.24 (0.25)	0.018 (0.018)	6.18 (0.04)	91971.43	91971.33	4.5	CH₃CN 5₃→4₃
0.26 (0.04)	0.20 (0.09)	0.054 (0.022)	9.852 (0.016)	92220.58	92221.6	16.6	Unidentified
40.5 (1.4)	0.103 (0.025)	4.4 (1.1)	9.85 (0.09)	92241.49	92242.5	996.0	Unidentified
0.178 (0.015)	0.04 (0.04)	0.007 (0.007)	9.85 (0.09)	92298.21	92299.2	18.3	Unidentified
0.14 (0.05)	0.18 (0.10)	0.027 (0.015)	9.85 (0.04)	92298.70	92299.7	14.4	Unidentified
0.18 (0.07)	0.24 (0.16)	0.05 (0.03)	9.845 (0.022)	92402.10	92403.1	11.0	Unidentified
0.36 (0.09)	0.19 (0.09)	0.07 (0.04)	9.845 (0.022)	92402.57	92403.6	21.8	Unidentified
0.259 (0.024)	0.04 (0.05)	0.012 (0.013)	9.84457 (0.00019)	92420.58	92421.6	13.4	Unidentified
16.8 (0.6)	0.103 (0.025)	1.8 (0.5)	9.84 (0.09)	92441.48	92442.5	389.7	Unidentified
0.211 (0.017)	0.36 (0.07)	0.080 (0.015)	10.241 (0.008)	92493.12	92494.27	12.5	¹³CS 2→1
0.162 (0.018)	0.05 (0.06)	0.008 (0.010)	9.84176 (0.00020)	92498.21	92499.2	15.1	Unidentified
0.499 (0.018)	0.10 (0.03)	0.050 (0.014)	9.84 (0.09)	92498.68	92499.7	46.5	Unidentified
0.037 (0.012)	0.3 (0.4)	0.012 (0.013)	10.32 (0.04)	92871.19	92872.38	4.4	DC₃N J=11-10 (5 components around)
0.165 (0.015)	0.27 (0.07)	0.047 (0.011)	10.280 (0.008)	92980.43	92981.60	19.7	HDCS 3(0,3)-2(0,2) ? (CH3OCHO)
1.074 (0.007)	0.785 (0.015)	0.898 (0.015)	9.9723 (0.0016)	93170.80	93171.88	7.5	N₂H⁺ 1→0 F=1→1
0.912 (0.007)	1.85 (0.03)	1.794 (0.023)	4.308 (0.003)	93172.56	93171.88	6.4	N₂H⁺ 1→0 F=1→1
0.014 (0.008)	0.3 (0.7)	0.005 (0.010)	7.25 (0.09)	93173.47	93173.70	0.1	N₂H⁺ 1→0 F=1→2
1.072 (0.010)	0.374 (0.009)	0.426 (0.011)	9.8458 (0.0011)	93175.09	93176.13	7.5	N₂H⁺ 1→0 F=1→0
0.04 (0.22)	0.2 (0.9)	0.007 (0.017)	9.2 (0.3)	93869.26	93870.10	1.2	C₂S N=7→6 J=8→7
0.37 (0.07)	2.8 (0.9)	1.1 (0.3)	9.79 (0.09)	93951.36	93952.4	17.0	Unidentified
0.018 (0.018)	0.2 (0.5)	0.004 (0.009)	6.04 (0.11)	95994.21	95994.06	2.1	c-HCCCD 2(1,1)-1(1,0)
0.032 (0.009)	1.0 (0.8)	0.033 (0.023)	9.71 (0.09)	96235.85	96236.9	1.7	Unidentified 96.237 GHz
0.030 (0.009)	0.8 (0.7)	0.027 (0.021)	9.71 (0.08)	96236.69	96237.7	1.6	Unidentified 96.237 GHz
0.576 (0.015)	0.48 (0.04)	0.297 (0.019)	10.241 (0.004)	96411.75	96412.95	45.9	C³⁴S 2→1
0.030 (0.014)	0.3 (0.4)	0.010 (0.011)	3.18 (0.05)	96633.70	96632.63	3.9	CH₃CHO 5_(2,3)→4_(2,2) (2)
0.853 (0.011)	0.462 (0.015)	0.419 (0.013)	10.1954 (0.0017)	96738.17	96739.36	89.5	CH₃OH 2_(-1,2)→1_(-1,1)
1.171 (0.011)	0.447 (0.011)	0.557 (0.013)	3.9582 (0.0013)	96740.18	96739.36	125.2	CH₃OH 2_(-1,2)→1_(-1,1)
0.073 (0.012)	0.44 (0.17)	0.034 (0.013)	3.501 (0.021)	96740.33	96739.36	7.8	CH₃OH 2_(-1,2)→1_(-1,1)
0.101 (0.010)	0.47 (0.13)	0.050 (0.013)	10.212 (0.015)	96743.35	96744.55	11.4	CH₃OH 2_(0,2)→1_(0,1)
0.38 (0.05)	0.32 (0.09)	0.13 (0.04)	10.211 (0.011)	97714.19	97715.40	38.2	³⁴SO 3₍₂₎→2₍₁₎
0.054 (0.009)	0.10 (0.14)	0.006 (0.008)	6.50 (0.09)	97761.98	97761.99	5.4	c-C₃D₂ 3→2
0.3 (1.7)	0.1 (0.8)	0.04 (0.15)	9.0 (0.3)	97980.13	97980.95	0.9	CS 2→1
0.026 (0.017)	0.2 (0.5)	0.007 (0.013)	7.36 (0.06)	98011.33	98011.61	2.6	l-C₃H J=9/2-7/2, Omega=1/2, F=5-4, l=f
2.370 (0.015)	0.496 (0.009)	1.252 (0.020)	10.1999 (0.0009)	99298.66	99299.89	135.4	SO 3₍₂₎→2₍₁₎
0.250 (0.017)	0.32 (0.07)	0.085 (0.016)	9.614 (0.008)	99298.86	99299.89	14.3	SO 3₍₂₎→2₍₁₎
0.40 (0.04)	0.42 (0.12)	0.18 (0.05)	9.546 (0.013)	101476.55	101477.6	49.2	Unidentified
0.27 (0.04)	0.48 (0.22)	0.14 (0.06)	9.538 (0.025)	101732.54	101733.6	7.2	Unidentified
1.10 (0.21)	3.6 (1.1)	4.2 (1.0)	9.54 (0.11)	101732.58	101733.6	29.6	Unidentified
0.085 (0.013)	0.38 (0.15)	0.035 (0.013)	10.255 (0.017)	102544.74	102546.02	10.5	CH₃CCH 6₍₁₎→5₍₁₎
0.090 (0.014)	0.36 (0.14)	0.035 (0.013)	4.530 (0.016)	102546.70	102546.02	11.1	CH₃CCH 6₍₁₎→5₍₁₎
0.22 (0.04)	0.39 (0.16)	0.09 (0.04)	9.407 (0.019)	106346.41	106347.4	12.6	Unidentified
0.20 (0.04)	0.48 (0.20)	0.10 (0.04)	9.339 (0.023)	108892.62	108893.6	11.9	Unidentified
0.04 (0.05)	0.3 (0.7)	0.01 (0.03)	5.80 (0.08)	109173.89	109173.64	1.7	HC₃N 12→11
0.48 (0.03)	0.39 (0.07)	0.20 (0.04)	Unavailable	109250.83	Unavailable	32.2	CCS N=6→5, J→7-6 (image band)
0.48 (0.09)	2.5 (0.8)	1.3 (0.4)	9.32 (0.08)	109554.86	109555.9	23.0	Unidentified
2.9 (0.3)	0.85 (0.23)	2.6 (0.7)	9.32 (0.03)	109780.81	109781.8	66.9	Unidentified
0.46 (0.07)	0.33 (0.13)	0.16 (0.07)	9.316 (0.019)	109781.05	109782.1	10.5	Unidentified
0.33 (0.04)	0.42 (0.14)	0.15 (0.05)	9.313 (0.016)	109904.38	109905.4	19.2	Unidentified
0.147 (0.017)	0.64 (0.22)	0.10 (0.04)	6.24 (0.03)	110152.19	110152.09	8.9	NH₂D 1(1,1)0a-1(0,1)0s, F=0-1
7.128 (0.019)	1.508 (0.009)	11.44 (0.06)	10.1189 (0.0009)	110200.02	110201.35	44.6	¹³CO 1→0
1.385 (0.019)	0.98 (0.04)	1.45 (0.05)	9.220 (0.004)	110200.35	110201.35	8.7	¹³CO 1→0

Backend 2mm (134.6 GHz)

Backend 2mm (137.9 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.186 (0.024)	0.23 (0.13)	0.046 (0.024)	4.884 (0.009)	137369.44	137368.7	17.9	Unidentified
0.112 (0.020)	0.28 (0.21)	0.033 (0.025)	4.885 (0.017)	137452.62	137451.9	7.9	Unidentified
0.026 (0.019)	0.2 (0.6)	0.005 (0.014)	4.89 (0.05)	138179.40	138178.66	0.2	SO 4₃→3₂
0.077 (0.018)	0.22 (0.22)	0.018 (0.018)	4.900 (0.017)	138737.58	138736.8	6.9	Unidentified

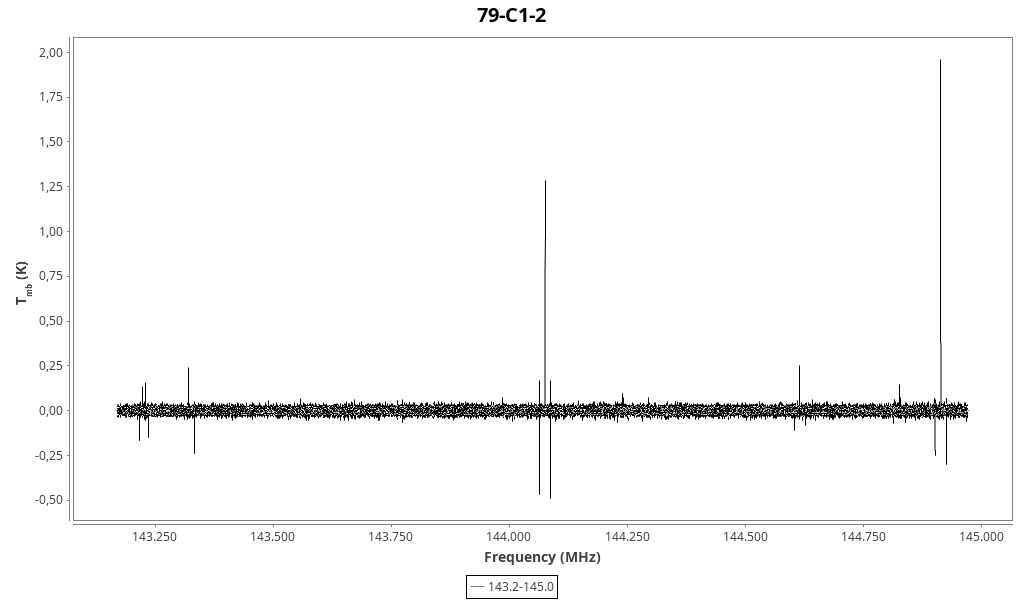

Backend 2mm (144.1 GHz)

Found 6 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.29 (0.10)	0.11 (0.08)	0.033 (0.023)	5.609 (0.016)	143320.26	143319.8	17.7	Unidentified
1.34 (0.15)	0.45 (0.23)	0.6 (0.4)	5.614 (0.017)	144075.34	144074.9	61.4	Unidentified
0.25 (0.04)	0.34 (0.21)	0.09 (0.06)	5.617 (0.016)	144615.17	144614.7	15.8	Unidentified
0.057 (0.025)	0.3 (0.6)	0.02 (0.04)	5.62 (0.05)	144828.43	144828.00	2.2	DCN 2→1
1.018 (0.020)	1.05 (0.07)	1.14 (0.07)	5.619 (0.005)	144913.37	144912.9	28.6	Unidentified 144.914 GHz
0.833 (0.020)	2.16 (0.12)	1.91 (0.09)	5.619 (0.008)	144913.40	144913.0	23.4	Unidentified 144.914 GHz

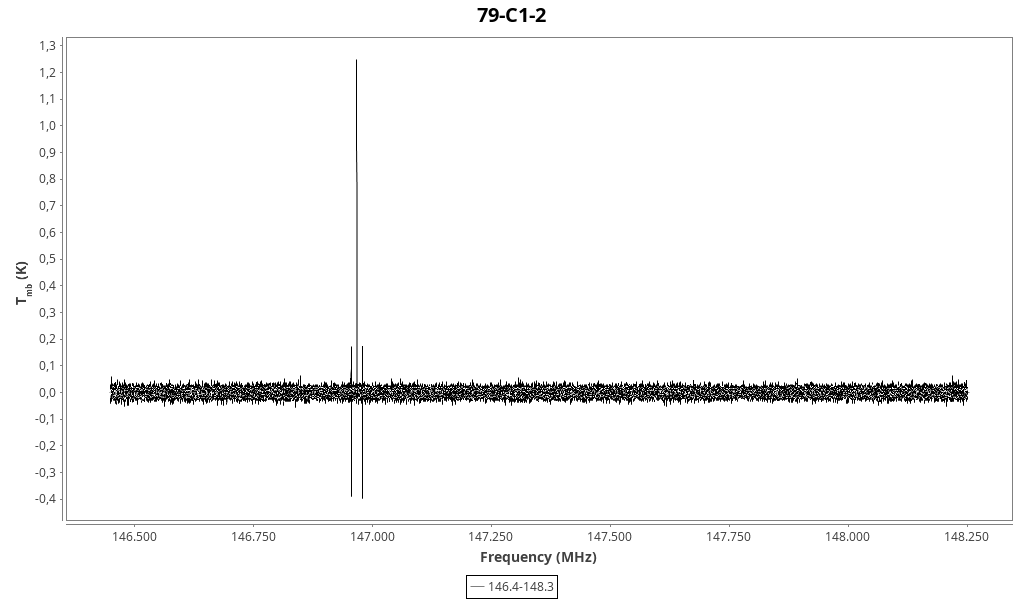

Backend 2mm (147.3 GHz)

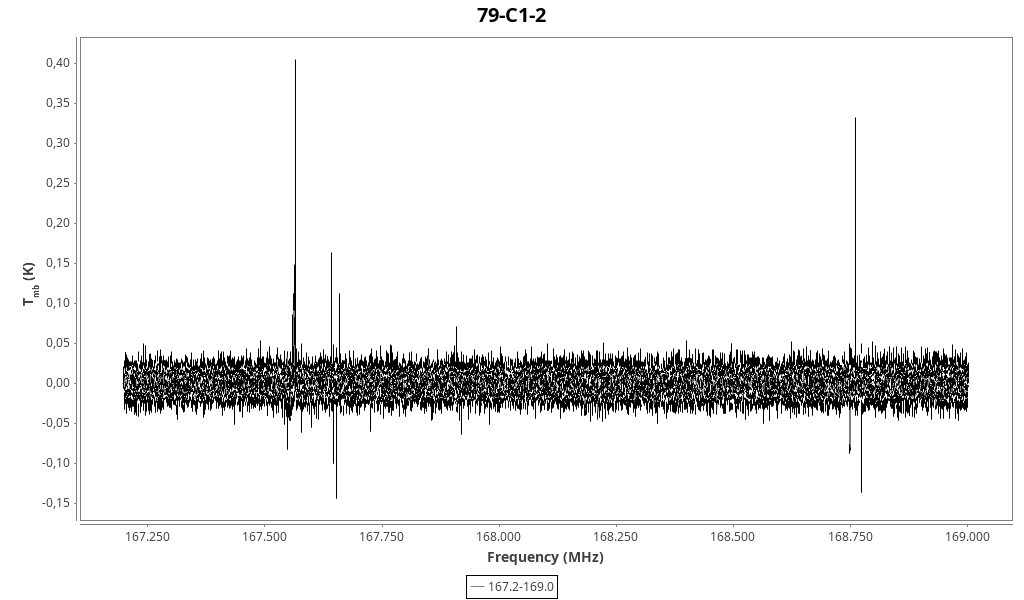

Backend 2mm (168.1 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.38 (0.07)	1.4 (0.7)	0.6 (0.3)	5.59 (0.04)	167565.60	167565.1	10.6	Unidentified
0.20 (0.12)	0.09 (0.09)	0.020 (0.019)	5.594 (0.020)	167641.37	167640.9	13.2	Unidentified
0.11 (0.05)	0.09 (0.15)	0.011 (0.018)	5.594 (0.024)	167659.38	167658.9	7.6	Unidentified
0.120 (0.019)	0.05 (0.12)	0.007 (0.015)	5.60 (0.05)	168763.26	168762.75	2.2	H₂S 1_(1,0)→1_(0,1)

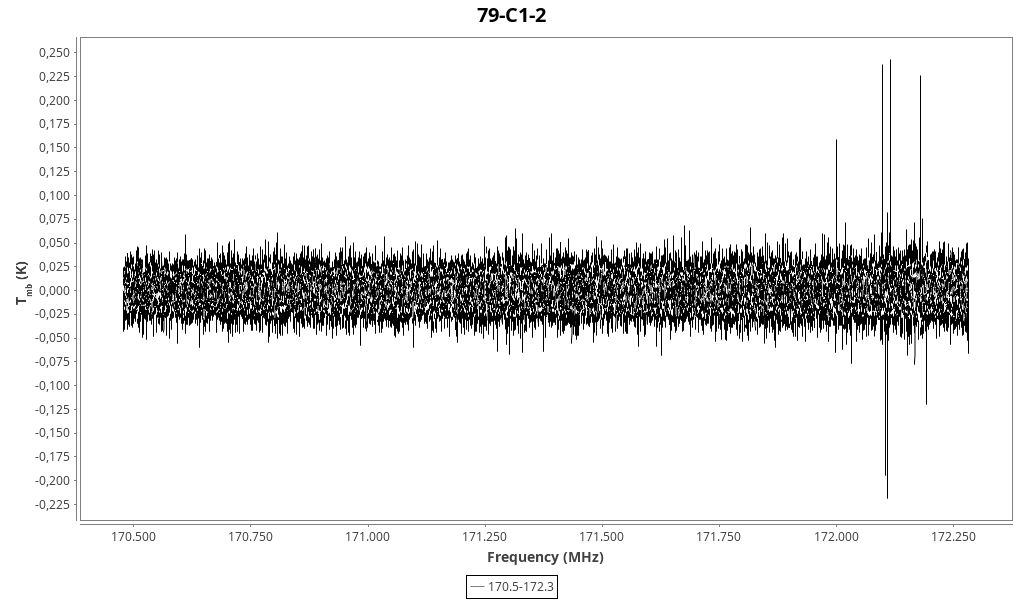

Backend 2mm (171.4 GHz)

Found 5 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.036 (0.018)	0.2 (0.7)	0.01 (0.03)	5.99 (0.05)	171688.41	171688.12	2.0	H₂CS 5_(0,5)→4_(0,4)
0.16 (0.04)	0.11 (0.13)	0.018 (0.021)	5.990 (0.013)	172000.54	172000.2	9.0	Unidentified
0.24 (0.04)	0.12 (0.09)	0.031 (0.023)	5.991 (0.007)	172097.51	172097.2	13.1	Unidentified 172.097 GHz
0.24 (0.06)	0.10 (0.11)	0.03 (0.03)	5.991 (0.012)	172115.53	172115.2	12.7	Unidentified
0.25 (0.04)	0.23 (0.17)	0.06 (0.05)	5.991 (0.011)	172179.27	172179.0	11.5	Unidentified
