DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B1B-CAL--55_-240

Backend 3mm (85.0-110.5 GHz)

Found 32 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.338 (0.025) 0.09 (0.06) 0.033 (0.020) 4.04 (0.08) 85634.71 85634.01 13.1 C4H 9→8 J=19/2→17/2 b1b-cal--55_-240:3mm_red_0.png b1b-cal--55_-240:3mm_ori_0.png
0.121 (0.014) 0.74 (0.25) 0.10 (0.04) 6.97 (0.03) 88630.28 88630.42 7.1 HCN 1→0 F=1→1 b1b-cal--55_-240:3mm_red_1.png b1b-cal--55_-240:3mm_ori_1.png
0.227 (0.014) 0.76 (0.14) 0.18 (0.04) 7.146 (0.014) 88631.66 88631.85 13.5 HCN 1→0 F=2→1 b1b-cal--55_-240:3mm_red_2.png b1b-cal--55_-240:3mm_ori_2.png
0.087 (0.014) 2.4 (0.8) 0.22 (0.06) 5.87 (0.08) 88632.03 88631.85 5.0 HCN 1→0 F=2→1 b1b-cal--55_-240:3mm_red_3.png b1b-cal--55_-240:3mm_ori_3.png
0.057 (0.016) 0.4 (0.4) 0.024 (0.023) 10.14 (0.04) 88632.86 88633.94 3.3 HCN 1→0 F=0→1 b1b-cal--55_-240:3mm_red_4.png b1b-cal--55_-240:3mm_ori_4.png
0.083 (0.014) 1.4 (0.6) 0.12 (0.05) 6.76 (0.06) 88633.86 88633.94 4.8 HCN 1→0 F=0→1 b1b-cal--55_-240:3mm_red_5.png b1b-cal--55_-240:3mm_ori_5.png
0.303 (0.013) 0.81 (0.11) 0.26 (0.04) 7.225 (0.011) 89188.31 89188.53 21.4 HCO+ 1→0 b1b-cal--55_-240:3mm_red_6.png b1b-cal--55_-240:3mm_ori_6.png
0.049 (0.013) 1.6 (0.9) 0.08 (0.05) 6.82 (0.09) 89188.43 89188.53 3.5 HCO+ 1→0 b1b-cal--55_-240:3mm_red_7.png b1b-cal--55_-240:3mm_ori_7.png
0.236 (0.016) 1.02 (0.18) 0.26 (0.05) 7.002 (0.018) 90663.41 90663.56 14.8 HNC 1→0 b1b-cal--55_-240:3mm_red_8.png b1b-cal--55_-240:3mm_ori_8.png
0.126 (0.016) 1.1 (0.4) 0.15 (0.05) 5.98 (0.04) 90663.72 90663.56 8.0 HNC 1→0 b1b-cal--55_-240:3mm_red_9.png b1b-cal--55_-240:3mm_ori_9.png
0.29 (0.06) 0.6 (0.4) 0.18 (0.11) 6.80 (0.05) 93956.41 93956.5 1.0 Unidentified 93.956 GHz b1b-cal--55_-240:3mm_red_10.png b1b-cal--55_-240:3mm_ori_10.png
0.63 (0.06) 3.0 (0.5) 1.99 (0.24) 6.80 (0.04) 93956.84 93956.9 2.2 Unidentified 93.956 GHz b1b-cal--55_-240:3mm_red_11.png b1b-cal--55_-240:3mm_ori_11.png
0.21 (0.06) 1.4 (0.8) 0.30 (0.16) 6.80 (0.08) 93957.65 93957.7 0.7 Unidentified 93.959 GHz b1b-cal--55_-240:3mm_red_12.png b1b-cal--55_-240:3mm_ori_12.png
0.06 (0.05) 0.2 (0.3) 0.012 (0.016) 8.55 (0.04) 93979.13 93979.77 3.6 PN 2→1 (?) b1b-cal--55_-240:3mm_red_13.png b1b-cal--55_-240:3mm_ori_13.png
0.11 (0.04) 0.20 (0.15) 0.024 (0.018) 6.803 (0.021) 94080.55 94080.6 8.0 Unidentified b1b-cal--55_-240:3mm_red_14.png b1b-cal--55_-240:3mm_ori_14.png
0.369 (0.011) 0.92 (0.07) 0.36 (0.03) 6.989 (0.007) 97980.79 97980.95 36.4 CS 2→1 b1b-cal--55_-240:3mm_red_15.png b1b-cal--55_-240:3mm_ori_15.png
0.211 (0.011) 1.08 (0.14) 0.24 (0.03) 6.257 (0.014) 97981.03 97980.95 20.7 CS 2→1 b1b-cal--55_-240:3mm_red_16.png b1b-cal--55_-240:3mm_ori_16.png
0.043 (0.022) 0.19 (0.25) 0.009 (0.012) 6.42 (0.04) 98199.41 98199.38 4.2 H(67)</sup>\epsilon</sup> b1b-cal--55_-240:3mm_red_17.png b1b-cal--55_-240:3mm_ori_17.png
0.331 (0.011) 0.74 (0.07) 0.259 (0.024) 6.852 (0.007) 99299.77 99299.89 29.8 SO 3(2)→2(1) b1b-cal--55_-240:3mm_red_18.png b1b-cal--55_-240:3mm_ori_18.png
0.105 (0.011) 0.74 (0.23) 0.083 (0.024) 6.030 (0.023) 99300.05 99299.89 9.5 SO 3(2)→2(1) b1b-cal--55_-240:3mm_red_19.png b1b-cal--55_-240:3mm_ori_19.png
0.96 (0.06) 3.5 (0.4) 3.6 (0.3) 5.72 (0.03) 101737.44 101737.17 9.4 CH3OH 9(-2,8)-9(1,8) b1b-cal--55_-240:3mm_red_20.png b1b-cal--55_-240:3mm_ori_20.png
0.10 (0.05) 2.7 (2.1) 0.27 (0.18) 8.06 (0.19) 103878.78 103879.33 1.9 CH213CHCN 11(3,9)-10(3,8) b1b-cal--55_-240:3mm_red_21.png b1b-cal--55_-240:3mm_ori_21.png
0.09 (0.05) 2.3 (1.9) 0.23 (0.17) 7.95 (0.18) 103878.82 103879.33 1.9 CH213CHCN 11(3,9)-10(3,8) b1b-cal--55_-240:3mm_red_22.png b1b-cal--55_-240:3mm_ori_22.png
0.290 (0.024) 2.4 (0.4) 0.74 (0.10) 6.76 (0.04) 109559.57 109559.7 9.4 Unidentified 109.560 GHz b1b-cal--55_-240:3mm_red_23.png b1b-cal--55_-240:3mm_ori_23.png
0.592 (0.024) 4.0 (0.3) 2.52 (0.13) 6.761 (0.022) 109560.40 109560.5 19.2 Unidentified 109.560 GHz b1b-cal--55_-240:3mm_red_24.png b1b-cal--55_-240:3mm_ori_24.png
0.93 (0.03) 0.83 (0.08) 0.82 (0.07) 6.936 (0.008) 109782.02 109782.18 32.8 C18O 1→0 b1b-cal--55_-240:3mm_red_25.png b1b-cal--55_-240:3mm_ori_25.png
0.48 (0.03) 0.87 (0.15) 0.44 (0.08) 6.399 (0.015) 109782.21 109782.18 17.1 C18O 1→0 b1b-cal--55_-240:3mm_red_26.png b1b-cal--55_-240:3mm_ori_26.png
3.17 (0.03) 1.93 (0.04) 6.50 (0.11) 6.706 (0.004) 110201.28 110201.35 25.2 13CO 1→0 b1b-cal--55_-240:3mm_red_27.png b1b-cal--55_-240:3mm_ori_27.png
2.95 (0.03) 2.11 (0.05) 6.62 (0.12) 6.417 (0.004) 110201.38 110201.35 23.4 13CO 1→0 b1b-cal--55_-240:3mm_red_28.png b1b-cal--55_-240:3mm_ori_28.png
0.87 (0.05) 0.27 (0.05) 0.25 (0.05) 5.729 (0.005) 110201.64 110201.35 7.0 13CO 1→0 b1b-cal--55_-240:3mm_red_29.png b1b-cal--55_-240:3mm_ori_29.png
0.55 (0.03) 1.66 (0.19) 0.97 (0.10) 6.759 (0.019) 110202.47 110202.6 4.4 Unidentified 110.203 GHz b1b-cal--55_-240:3mm_red_30.png b1b-cal--55_-240:3mm_ori_30.png
0.50 (0.05) 0.28 (0.08) 0.15 (0.05) 6.759 (0.009) 110202.61 110202.7 4.0 Unidentified 110.203 GHz b1b-cal--55_-240:3mm_red_31.png b1b-cal--55_-240:3mm_ori_31.png

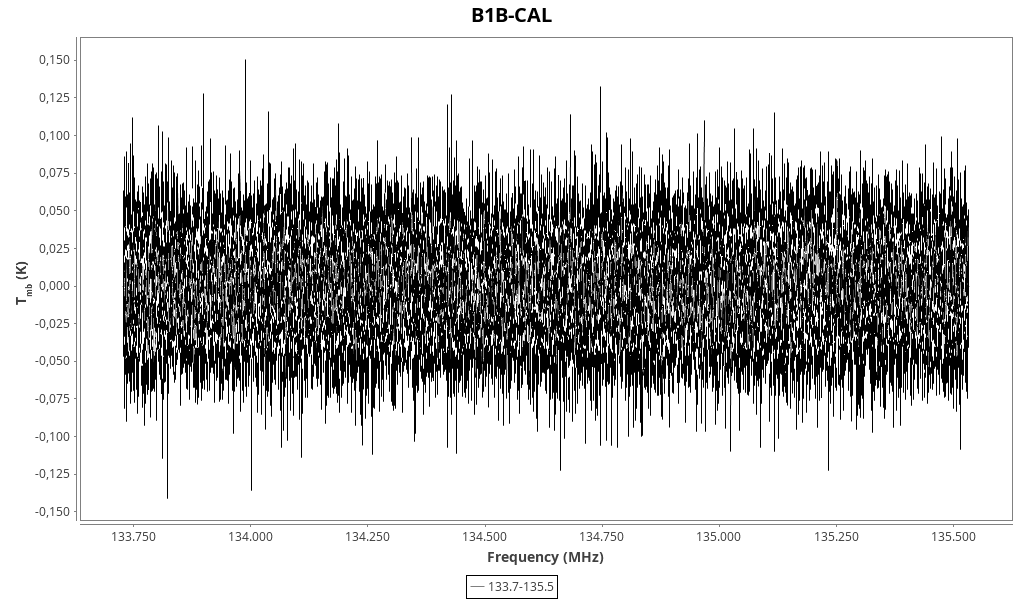

Backend 2mm (134.6 GHz)

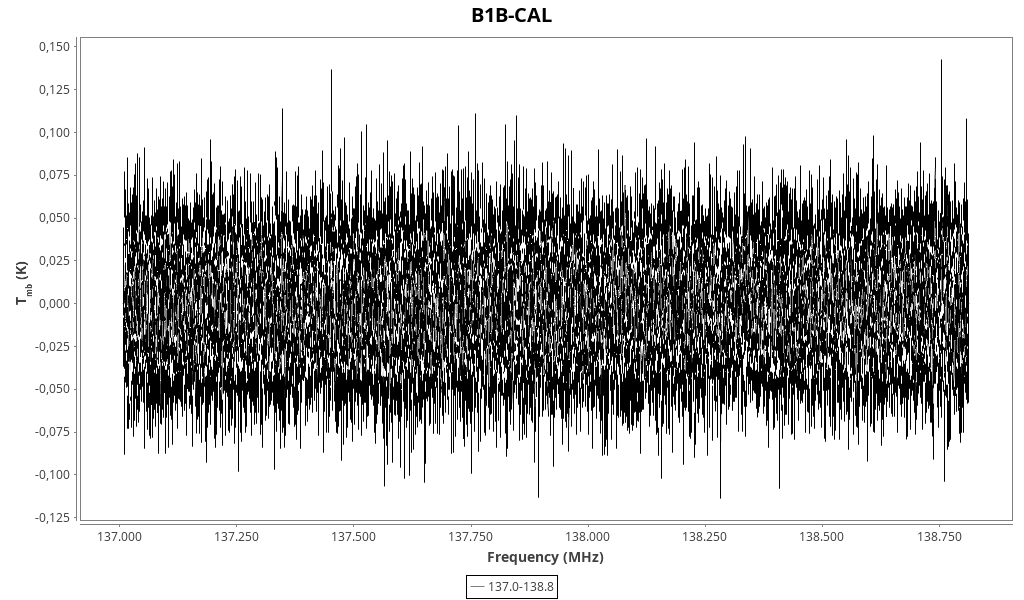

Backend 2mm (137.9 GHz)

Backend 2mm (144.1 GHz)

Backend 2mm (147.3 GHz)

Found 1 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.18 (0.05) 0.6 (0.6) 0.12 (0.11) 6.93 (0.05) 146968.81 146969.03 4.5 CS 3→2 b1b-cal--55_-240:2mm_147.3_red_0.png b1b-cal--55_-240:2mm_147.3_ori_0.png

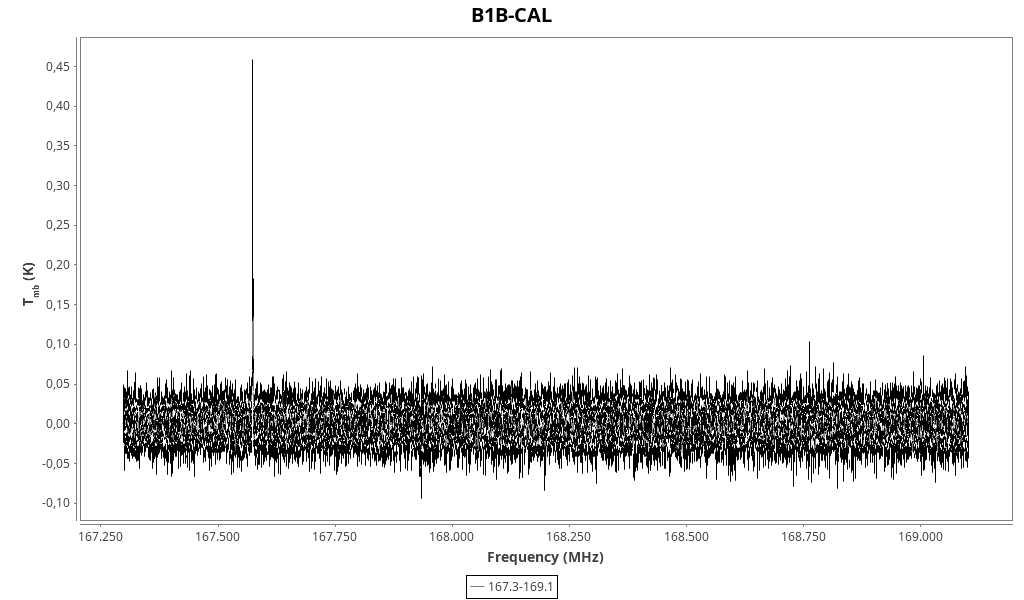

Backend 2mm (168.2 GHz)

Found 3 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.175 (0.020) 1.5 (0.5) 0.28 (0.08) 5.93 (0.03) 167573.85 167573.53 8.6 c-13CCCH 13(7,6)-13(7,7) b1b-cal--55_-240:2mm_168.2_red_0.png b1b-cal--55_-240:2mm_168.2_ori_0.png
0.275 (0.020) 2.8 (0.5) 0.83 (0.12) 5.842 (0.025) 167573.90 167573.53 13.4 c-13CCCH 13(7,6)-13(7,7) b1b-cal--55_-240:2mm_168.2_red_1.png b1b-cal--55_-240:2mm_168.2_ori_1.png
0.078 (0.021) 1.0 (0.9) 0.08 (0.07) 6.72 (0.06) 168762.63 168762.75 3.7 H2S 1(1,0)→1(0,1) b1b-cal--55_-240:2mm_168.2_red_2.png b1b-cal--55_-240:2mm_168.2_ori_2.png

Backend 2mm (171.5 GHz)

Found 4 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.30 (0.06) 0.11 (0.11) 0.04 (0.04) 7.005 (0.009) 172035.38 172035.7 10.0 Unidentified 172.035 GHz b1b-cal--55_-240:2mm_171.5_red_0.png b1b-cal--55_-240:2mm_171.5_ori_0.png
0.24 (0.16) 0.08 (0.10) 0.02 (0.03) 5.02 (0.04) 172106.41 172105.56 8.6 HS2 11(2,9)-10(2,8), J=21/2-19/2, F=11-10 b1b-cal--55_-240:2mm_171.5_red_1.png b1b-cal--55_-240:2mm_171.5_ori_1.png
0.24 (0.03) 0.05 (0.08) 0.012 (0.021) 7.00 (0.05) 172107.67 172107.96 8.6 HC15N 2→1 b1b-cal--55_-240:2mm_171.5_red_2.png b1b-cal--55_-240:2mm_171.5_ori_2.png
0.57 (0.04) 0.05 (0.04) 0.032 (0.025) 7.00 (0.05) 172203.42 172203.7 18.6 Unidentified 172.203 GHz b1b-cal--55_-240:2mm_171.5_red_3.png b1b-cal--55_-240:2mm_171.5_ori_3.png
