DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B1B-CAL-0_0

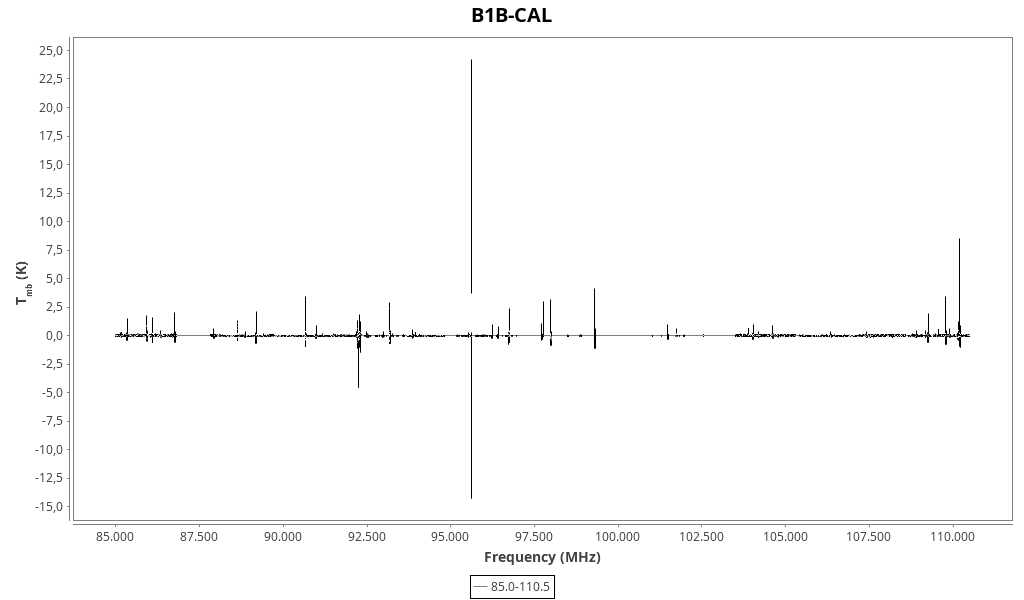

Backend 3mm (85.0-110.5 GHz)

Found 176 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.262 (0.025) 0.64 (0.19) 0.18 (0.05) 6.556 (0.021) 85139.09 85139.10 8.8 OCS 7→6 b1b-cal-0_0:3mm_red_0.png b1b-cal-0_0:3mm_ori_0.png
0.24 (0.03) 0.74 (0.25) 0.19 (0.06) 6.64 (0.03) 85153.88 85153.92 7.4 D2CS 3-2 b1b-cal-0_0:3mm_red_1.png b1b-cal-0_0:3mm_ori_1.png
0.09 (0.04) 0.4 (0.5) 0.04 (0.05) 7.22 (0.06) 85162.02 85162.22 3.6 HC18O+ 1→0 b1b-cal-0_0:3mm_red_2.png b1b-cal-0_0:3mm_ori_2.png
0.27 (0.03) 0.63 (0.19) 0.18 (0.06) 6.449 (0.021) 85162.24 85162.22 10.5 HC18O+ 1→0 b1b-cal-0_0:3mm_red_3.png b1b-cal-0_0:3mm_ori_3.png
0.773 (0.025) 0.56 (0.06) 0.46 (0.05) 7.383 (0.006) 85338.65 85338.90 26.5 c-C3H2 21,2→10,1 b1b-cal-0_0:3mm_red_4.png b1b-cal-0_0:3mm_ori_4.png
1.579 (0.023) 0.83 (0.04) 1.40 (0.06) 6.511 (0.004) 85338.90 85338.90 54.4 c-C3H2 21,2→10,1 b1b-cal-0_0:3mm_red_5.png b1b-cal-0_0:3mm_ori_5.png
0.225 (0.021) 0.65 (0.18) 0.16 (0.04) 6.623 (0.019) 85347.84 85347.87 3.4 HCS+ 2→1 b1b-cal-0_0:3mm_red_6.png b1b-cal-0_0:3mm_ori_6.png
0.110 (0.020) 1.2 (0.5) 0.14 (0.06) -1.30 (0.06) 85350.09 85347.87 1.7 HCS+ 2→1 b1b-cal-0_0:3mm_red_7.png b1b-cal-0_0:3mm_ori_7.png
0.366 (0.020) 0.84 (0.13) 0.33 (0.05) -2.477 (0.014) 85350.43 85347.87 5.6 HCS+ 2→1 b1b-cal-0_0:3mm_red_8.png b1b-cal-0_0:3mm_ori_8.png
0.140 (0.021) 0.6 (0.3) 0.09 (0.04) 6.33 (0.04) 85455.71 85455.66 6.2 CH3C2H 51→41 b1b-cal-0_0:3mm_red_9.png b1b-cal-0_0:3mm_ori_9.png
0.118 (0.025) 0.6 (0.4) 0.08 (0.04) 6.28 (0.04) 85457.35 85457.29 5.1 CH3C2H 50→40 b1b-cal-0_0:3mm_red_10.png b1b-cal-0_0:3mm_ori_10.png
0.134 (0.023) 0.7 (0.4) 0.10 (0.05) 6.50 (0.05) 85531.51 85531.51 5.9 HOCO+ 4(0,4)-3(0,3) b1b-cal-0_0:3mm_red_11.png b1b-cal-0_0:3mm_ori_11.png
0.16 (0.03) 0.9 (0.4) 0.17 (0.07) 6.72 (0.05) 85633.95 85634.01 6.9 C4H 9→8 J=19/2→17/2 b1b-cal-0_0:3mm_red_12.png b1b-cal-0_0:3mm_ori_12.png
0.123 (0.025) 0.9 (0.6) 0.12 (0.07) 6.72 (0.06) 85672.52 85672.58 4.8 C4H 9→8 J=17/2→15/2 b1b-cal-0_0:3mm_red_13.png b1b-cal-0_0:3mm_ori_13.png
0.82 (0.03) 0.78 (0.08) 0.68 (0.07) 6.829 (0.009) 85924.69 85924.79 20.2 NH2D 11,1→10,1 F=0-1 b1b-cal-0_0:3mm_red_14.png b1b-cal-0_0:3mm_ori_14.png
1.00 (0.03) 0.72 (0.06) 0.77 (0.06) 6.714 (0.007) 85925.64 85925.70 24.1 NH2D 11,1→10,1 F=2-1 b1b-cal-0_0:3mm_red_15.png b1b-cal-0_0:3mm_ori_15.png
1.81 (0.03) 0.97 (0.04) 1.87 (0.07) 6.734 (0.005) 85926.21 85926.28 43.9 NH2D 11,1→10,1 F=2-2 b1b-cal-0_0:3mm_red_16.png b1b-cal-0_0:3mm_ori_16.png
0.42 (0.03) 0.87 (0.16) 0.39 (0.07) 6.890 (0.018) 85926.77 85926.88 10.3 NH2D 11,1→10,1 F=1-2 b1b-cal-0_0:3mm_red_17.png b1b-cal-0_0:3mm_ori_17.png
0.70 (0.04) 0.44 (0.07) 0.33 (0.05) 6.702 (0.008) 85926.83 85926.88 17.1 NH2D 11,1→10,1 F=1-2 b1b-cal-0_0:3mm_red_18.png b1b-cal-0_0:3mm_ori_18.png
0.90 (0.03) 0.75 (0.07) 0.71 (0.06) 6.686 (0.008) 85927.67 85927.73 21.9 NH2D 11,1→10,1 F=1-0 b1b-cal-0_0:3mm_red_19.png b1b-cal-0_0:3mm_ori_19.png
0.20 (0.03) 0.8 (0.3) 0.17 (0.06) 6.70 (0.04) 86054.91 86054.97 8.0 HC15N 1→0 b1b-cal-0_0:3mm_red_20.png b1b-cal-0_0:3mm_ori_20.png
0.06 (0.04) 0.4 (0.7) 0.03 (0.05) 6.02 (0.07) 86055.10 86054.97 2.5 HC15N 1→0 b1b-cal-0_0:3mm_red_21.png b1b-cal-0_0:3mm_ori_21.png
0.23 (0.03) 0.47 (0.18) 0.12 (0.05) 7.106 (0.021) 86093.78 86093.96 9.7 SO 22→11 b1b-cal-0_0:3mm_red_22.png b1b-cal-0_0:3mm_ori_22.png
1.677 (0.025) 0.66 (0.03) 1.18 (0.05) 6.533 (0.004) 86093.95 86093.96 69.3 SO 22→11 b1b-cal-0_0:3mm_red_23.png b1b-cal-0_0:3mm_ori_23.png
0.197 (0.021) 0.65 (0.22) 0.14 (0.05) 6.482 (0.025) 86181.40 86181.39 9.1 CCS 6→5, N=7-6 b1b-cal-0_0:3mm_red_24.png b1b-cal-0_0:3mm_ori_24.png
0.269 (0.023) 0.90 (0.21) 0.26 (0.06) 6.554 (0.022) 86338.72 86338.73 11.0 H13CN 11→01 b1b-cal-0_0:3mm_red_25.png b1b-cal-0_0:3mm_ori_25.png
0.443 (0.023) 1.02 (0.14) 0.48 (0.06) 5.754 (0.015) 86340.14 86339.92 18.7 H13CN 1→0 b1b-cal-0_0:3mm_red_26.png b1b-cal-0_0:3mm_ori_26.png
0.15 (0.03) 1.0 (0.5) 0.17 (0.08) 6.97 (0.06) 86670.66 86670.80 4.7 HCO 10,1→00,0 J=3/2→1/2 F=2→1 b1b-cal-0_0:3mm_red_27.png b1b-cal-0_0:3mm_ori_27.png
0.18 (0.04) 0.8 (0.4) 0.16 (0.08) 6.75 (0.05) 86708.29 86708.36 6.6 HCO 10,1→00,0 J=3/2→1/2 F=1→0 b1b-cal-0_0:3mm_red_28.png b1b-cal-0_0:3mm_ori_28.png
0.95 (0.03) 0.73 (0.06) 0.74 (0.06) 7.205 (0.007) 86754.08 86754.29 21.8 H13CO+ 1→0 b1b-cal-0_0:3mm_red_29.png b1b-cal-0_0:3mm_ori_29.png
2.12 (0.03) 0.76 (0.03) 1.72 (0.06) 6.416 (0.003) 86754.31 86754.29 48.3 H13CO+ 1→0 b1b-cal-0_0:3mm_red_30.png b1b-cal-0_0:3mm_ori_30.png
0.136 (0.025) 0.7 (0.4) 0.10 (0.06) 6.59 (0.05) 86777.42 86777.44 5.2 HCO 10,1→00,0 J=1/2→1/2 F=1→1 b1b-cal-0_0:3mm_red_31.png b1b-cal-0_0:3mm_ori_31.png
0.221 (0.022) 0.55 (0.18) 0.13 (0.04) 7.218 (0.019) 87925.03 87925.24 9.7 HNCO 4(0,4)→3(0,3) b1b-cal-0_0:3mm_red_32.png b1b-cal-0_0:3mm_ori_32.png
0.647 (0.021) 0.68 (0.07) 0.47 (0.05) 6.524 (0.008) 87925.23 87925.24 28.3 HNCO 4(0,4)→3(0,3) b1b-cal-0_0:3mm_red_33.png b1b-cal-0_0:3mm_ori_33.png
0.791 (0.018) 1.10 (0.06) 0.93 (0.05) 7.179 (0.007) 88630.22 88630.42 9.3 HCN 1→0 F=1→1 b1b-cal-0_0:3mm_red_34.png b1b-cal-0_0:3mm_ori_34.png
1.032 (0.021) 0.54 (0.04) 0.59 (0.04) 6.142 (0.004) 88630.53 88630.42 12.1 HCN 1→0 F=1→1 b1b-cal-0_0:3mm_red_35.png b1b-cal-0_0:3mm_ori_35.png
1.030 (0.018) 1.91 (0.07) 2.09 (0.06) 6.858 (0.007) 88631.74 88631.85 12.1 HCN 1→0 F=2→1 b1b-cal-0_0:3mm_red_36.png b1b-cal-0_0:3mm_ori_36.png
0.85 (0.04) 0.253 (0.025) 0.230 (0.022) 6.084 (0.003) 88631.97 88631.85 10.0 HCN 1→0 F=2→1 b1b-cal-0_0:3mm_red_37.png b1b-cal-0_0:3mm_ori_37.png
0.957 (0.018) 0.71 (0.04) 0.72 (0.04) 7.122 (0.005) 88633.76 88633.94 11.2 HCN 1→0 F=0→1 b1b-cal-0_0:3mm_red_38.png b1b-cal-0_0:3mm_ori_38.png
1.047 (0.018) 0.67 (0.04) 0.75 (0.04) 6.280 (0.004) 88634.01 88633.94 12.3 HCN 1→0 F=0→1 b1b-cal-0_0:3mm_red_39.png b1b-cal-0_0:3mm_ori_39.png
0.124 (0.021) 0.40 (0.20) 0.052 (0.025) 7.360 (0.022) 88865.45 88865.70 8.7 H15NC 1→0 b1b-cal-0_0:3mm_red_40.png b1b-cal-0_0:3mm_ori_40.png
0.379 (0.016) 0.78 (0.09) 0.31 (0.04) 6.606 (0.010) 88865.67 88865.70 26.4 H15NC 1→0 b1b-cal-0_0:3mm_red_41.png b1b-cal-0_0:3mm_ori_41.png
0.098 (0.017) 0.6 (0.3) 0.07 (0.03) 8.64 (0.04) 89187.89 89188.53 2.9 HCO+ 1→0 b1b-cal-0_0:3mm_red_42.png b1b-cal-0_0:3mm_ori_42.png
2.058 (0.015) 0.789 (0.016) 1.73 (0.04) 7.5166 (0.0017) 89188.22 89188.53 61.6 HCO+ 1→0 b1b-cal-0_0:3mm_red_43.png b1b-cal-0_0:3mm_ori_43.png
0.488 (0.015) 0.98 (0.08) 0.51 (0.04) 6.501 (0.009) 89188.53 89188.53 14.6 HCO+ 1→0 b1b-cal-0_0:3mm_red_44.png b1b-cal-0_0:3mm_ori_44.png
0.038 (0.021) 0.5 (0.7) 0.02 (0.03) 6.78 (0.09) 89198.46 89198.54 0.4 H(59)</sup>\gamma</sup> b1b-cal-0_0:3mm_red_45.png b1b-cal-0_0:3mm_ori_45.png
0.177 (0.020) 0.58 (0.19) 0.11 (0.04) 6.224 (0.021) 89407.90 89407.82 10.8 CH2DOH 2(0,2)-1(0,1), e0 b1b-cal-0_0:3mm_red_46.png b1b-cal-0_0:3mm_ori_46.png
0.0132 (0.0024) 0.42 (0.25) 0.006 (0.004) Unavailable 89826.50 Unavailable 1.1 CH3CN 61→51 (image band) b1b-cal-0_0:3mm_red_47.png b1b-cal-0_0:3mm_ori_47.png
2.563 (0.016) 1.340 (0.019) 3.65 (0.05) 7.2241 (0.0020) 90663.34 90663.56 38.6 HNC 1→0 b1b-cal-0_0:3mm_red_48.png b1b-cal-0_0:3mm_ori_48.png
3.135 (0.018) 0.667 (0.011) 2.22 (0.04) 6.0436 (0.0012) 90663.70 90663.56 47.1 HNC 1→0 b1b-cal-0_0:3mm_red_49.png b1b-cal-0_0:3mm_ori_49.png
0.191 (0.017) 0.94 (0.22) 0.19 (0.05) 6.583 (0.024) 90686.36 90686.38 11.7 CCS N=7-6, J=7-6 b1b-cal-0_0:3mm_red_50.png b1b-cal-0_0:3mm_ori_50.png
0.373 (0.018) 0.46 (0.07) 0.183 (0.024) 7.394 (0.007) 90978.73 90979.00 25.5 HC3N 10→9 (3 components around) b1b-cal-0_0:3mm_red_51.png b1b-cal-0_0:3mm_ori_51.png
0.909 (0.014) 0.83 (0.04) 0.80 (0.04) 6.550 (0.004) 90978.98 90979.00 62.2 HC3N 10→9 (3 components around) b1b-cal-0_0:3mm_red_52.png b1b-cal-0_0:3mm_ori_52.png
0.069 (0.018) 0.3 (0.3) 0.024 (0.019) 7.29 (0.03) 91170.83 91171.07 6.0 HDCS 3(1,3)-2(1,2) b1b-cal-0_0:3mm_red_53.png b1b-cal-0_0:3mm_ori_53.png
0.170 (0.013) 0.71 (0.16) 0.13 (0.03) 6.617 (0.018) 91171.03 91171.07 15.0 HDCS 3(1,3)-2(1,2) b1b-cal-0_0:3mm_red_54.png b1b-cal-0_0:3mm_ori_54.png
0.109 (0.013) 0.69 (0.25) 0.08 (0.03) 7.46 (0.03) 91494.06 91494.35 8.0 c-C3H 2(1,2)-1(1,1), J=5/2-3/2, F=3-2 b1b-cal-0_0:3mm_red_55.png b1b-cal-0_0:3mm_ori_55.png
0.159 (0.013) 0.76 (0.18) 0.13 (0.03) 6.567 (0.020) 91494.33 91494.35 11.9 c-C3H 2(1,2)-1(1,1), J=5/2-3/2, F=3-2 b1b-cal-0_0:3mm_red_56.png b1b-cal-0_0:3mm_ori_56.png
0.05 (0.05) 0.20 (0.25) 0.011 (0.015) 12.04 (0.05) 91495.92 91497.61 4.2 c-C3H 2(1,2)-1(1,1), J=5/2-3/2, F=2-1 b1b-cal-0_0:3mm_red_57.png b1b-cal-0_0:3mm_ori_57.png
0.079 (0.025) 0.33 (0.23) 0.028 (0.019) 7.54 (0.04) 91497.29 91497.61 6.0 c-C3H 2(1,2)-1(1,1), J=5/2-3/2, F=2-1 b1b-cal-0_0:3mm_red_58.png b1b-cal-0_0:3mm_ori_58.png
0.094 (0.013) 0.8 (0.3) 0.08 (0.03) 6.74 (0.04) 91497.53 91497.61 7.2 c-C3H 2(1,2)-1(1,1), J=5/2-3/2, F=2-1 b1b-cal-0_0:3mm_red_59.png b1b-cal-0_0:3mm_ori_59.png
0.08 (0.03) 0.4 (0.4) 0.03 (0.03) 6.44 (0.05) 91699.49 91699.47 4.0 c-C3H 2(1,2)-1(1,1), J=3/2-1/2, F=2-1 b1b-cal-0_0:3mm_red_60.png b1b-cal-0_0:3mm_ori_60.png
0.376 (0.022) 0.12 (0.05) 0.049 (0.019) 6.62 (0.08) 92183.12 92183.2 21.1 Unidentified b1b-cal-0_0:3mm_red_61.png b1b-cal-0_0:3mm_ori_61.png
2 (22) 0.0 (0.4) 0.06 (0.25) 6.6176 (0.0005) 92201.07 92201.1 24.3 Unidentified b1b-cal-0_0:3mm_red_62.png b1b-cal-0_0:3mm_ori_62.png
1.36 (0.21) 0.23 (0.12) 0.33 (0.16) 6.618 (0.016) 92201.56 92201.6 18.4 Unidentified b1b-cal-0_0:3mm_red_63.png b1b-cal-0_0:3mm_ori_63.png
2.50 (0.10) 0.09 (0.03) 0.25 (0.08) 6.62 (0.08) 92203.00 92203.0 22.9 Unidentified b1b-cal-0_0:3mm_red_64.png b1b-cal-0_0:3mm_ori_64.png
0.77 (0.13) 0.04 (0.08) 0.03 (0.07) 6.61755 (0.00024) 92219.10 92219.1 9.2 Unidentified b1b-cal-0_0:3mm_red_65.png b1b-cal-0_0:3mm_ori_65.png
0.9 (0.4) 0.22 (0.16) 0.22 (0.15) 6.618 (0.019) 92219.55 92219.6 11.5 Unidentified b1b-cal-0_0:3mm_red_66.png b1b-cal-0_0:3mm_ori_66.png
2.2 (1.1) 0.16 (0.08) 0.37 (0.16) 6.62 (0.04) 92279.22 92279.3 29.0 Unidentified b1b-cal-0_0:3mm_red_67.png b1b-cal-0_0:3mm_ori_67.png
1.0 (0.3) 0.21 (0.17) 0.23 (0.18) 6.617 (0.025) 92279.69 92279.7 13.1 Unidentified b1b-cal-0_0:3mm_red_68.png b1b-cal-0_0:3mm_ori_68.png
1.3 (0.3) 0.20 (0.13) 0.27 (0.17) 6.617 (0.021) 92297.22 92297.3 17.7 Unidentified b1b-cal-0_0:3mm_red_69.png b1b-cal-0_0:3mm_ori_69.png
0.9 (0.3) 0.24 (0.20) 0.22 (0.19) 6.617 (0.024) 92297.68 92297.7 12.3 Unidentified b1b-cal-0_0:3mm_red_70.png b1b-cal-0_0:3mm_ori_70.png
0.084 (0.011) 0.8 (0.3) 0.068 (0.024) 7.26 (0.03) 92494.04 92494.27 9.4 13CS 2→1 b1b-cal-0_0:3mm_red_71.png b1b-cal-0_0:3mm_ori_71.png
0.354 (0.011) 0.80 (0.07) 0.300 (0.024) 6.477 (0.008) 92494.28 92494.27 39.3 13CS 2→1 b1b-cal-0_0:3mm_red_72.png b1b-cal-0_0:3mm_ori_72.png
0.032 (0.013) 0.4 (0.5) 0.012 (0.014) 7.29 (0.05) 92872.13 92872.38 3.5 DC3N J=11-10 (5 components around) b1b-cal-0_0:3mm_red_73.png b1b-cal-0_0:3mm_ori_73.png
0.089 (0.012) 0.54 (0.19) 0.051 (0.017) 6.493 (0.021) 92872.38 92872.38 9.4 DC3N J=11-10 (5 components around) b1b-cal-0_0:3mm_red_74.png b1b-cal-0_0:3mm_ori_74.png
0.095 (0.011) 0.69 (0.23) 0.069 (0.022) 7.30 (0.03) 92981.35 92981.60 9.9 HDCS 3(0,3)-2(0,2) ? (CH3OCHO) b1b-cal-0_0:3mm_red_75.png b1b-cal-0_0:3mm_ori_75.png
0.397 (0.011) 0.74 (0.06) 0.310 (0.023) 6.556 (0.007) 92981.58 92981.60 41.2 HDCS 3(0,3)-2(0,2) ? (CH3OCHO) b1b-cal-0_0:3mm_red_76.png b1b-cal-0_0:3mm_ori_76.png
2.681 (0.008) 1.408 (0.009) 4.018 (0.023) 6.3635 (0.0010) 93171.92 93171.88 17.4 N2H+ 1→0 F=1→1 b1b-cal-0_0:3mm_red_77.png b1b-cal-0_0:3mm_ori_77.png
3.023 (0.008) 2.099 (0.011) 6.75 (0.03) 6.5678 (0.0011) 93173.68 93173.70 19.6 N2H+ 1→0 F=1→2 b1b-cal-0_0:3mm_red_78.png b1b-cal-0_0:3mm_ori_78.png
2.115 (0.008) 0.936 (0.009) 2.108 (0.019) 6.1907 (0.0009) 93176.23 93176.13 13.8 N2H+ 1→0 F=1→0 b1b-cal-0_0:3mm_red_79.png b1b-cal-0_0:3mm_ori_79.png
0.218 (0.023) 0.67 (0.21) 0.16 (0.05) 6.616 (0.023) 93267.35 93267.4 23.2 Unidentified b1b-cal-0_0:3mm_red_80.png b1b-cal-0_0:3mm_ori_80.png
0.086 (0.011) 0.68 (0.23) 0.063 (0.020) 6.303 (0.025) 93580.92 93580.86 9.4 CH3CHO 5(1,5)→4(1,4) (1) b1b-cal-0_0:3mm_red_81.png b1b-cal-0_0:3mm_ori_81.png
0.083 (0.009) 0.66 (0.22) 0.059 (0.018) 6.656 (0.023) 93595.23 93595.28 8.3 CH3CHO 5(1,5)→4(1,4) (2) b1b-cal-0_0:3mm_red_82.png b1b-cal-0_0:3mm_ori_82.png
0.249 (0.019) 0.56 (0.13) 0.15 (0.04) 7.307 (0.014) 93869.85 93870.10 17.0 C2S N=7→6 J=8→7 b1b-cal-0_0:3mm_red_83.png b1b-cal-0_0:3mm_ori_83.png
0.589 (0.017) 0.76 (0.07) 0.48 (0.04) 6.476 (0.007) 93870.11 93870.10 40.3 C2S N=7→6 J=8→7 b1b-cal-0_0:3mm_red_84.png b1b-cal-0_0:3mm_ori_84.png
0.131 (0.015) 2.3 (0.5) 0.33 (0.06) 6.62 (0.05) 93955.50 93955.5 8.4 Unidentified 93.956 GHz b1b-cal-0_0:3mm_red_85.png b1b-cal-0_0:3mm_ori_85.png
0.206 (0.015) 2.9 (0.4) 0.63 (0.07) 6.62 (0.04) 93956.08 93956.1 13.0 Unidentified 93.956 GHz b1b-cal-0_0:3mm_red_86.png b1b-cal-0_0:3mm_ori_86.png
0.048 (0.021) 0.2 (0.4) 0.013 (0.019) 8.04 (0.05) 93959.45 93959.93 3.2 CH3OOH (2) b1b-cal-0_0:3mm_red_87.png b1b-cal-0_0:3mm_ori_87.png
0.14 (0.05) 1.2 (0.9) 0.18 (0.13) 6.61 (0.10) 95531.84 95531.9 14.6 Unidentified b1b-cal-0_0:3mm_red_88.png b1b-cal-0_0:3mm_ori_88.png
0.28 (0.05) 1.2 (0.5) 0.36 (0.13) 6.61 (0.05) 95532.12 95532.2 29.5 Unidentified b1b-cal-0_0:3mm_red_89.png b1b-cal-0_0:3mm_ori_89.png
3 (5) 0.15 (0.24) 0.5 (0.4) 6.61 (0.08) 95614.71 95614.7 1.6 Unidentified b1b-cal-0_0:3mm_red_90.png b1b-cal-0_0:3mm_ori_90.png
40 (220) 0.1 (0.7) 5 (17) 6.6 (0.3) 95614.81 95614.8 20.5 Unidentified b1b-cal-0_0:3mm_red_91.png b1b-cal-0_0:3mm_ori_91.png
10 (130) 0.1 (0.9) 2 (10) 6.6 (0.4) 95614.99 95615.0 8.1 Unidentified b1b-cal-0_0:3mm_red_92.png b1b-cal-0_0:3mm_ori_92.png
0.37 (0.08) 0.28 (0.19) 0.11 (0.08) 6.613 (0.023) 95617.58 95617.6 0.2 Unidentified b1b-cal-0_0:3mm_red_93.png b1b-cal-0_0:3mm_ori_93.png
0.19 (0.06) 0.4 (0.5) 0.08 (0.09) 6.61 (0.06) 95618.40 95618.4 0.1 Unidentified b1b-cal-0_0:3mm_red_94.png b1b-cal-0_0:3mm_ori_94.png
0.046 (0.011) 0.4 (0.4) 0.021 (0.015) 6.47 (0.04) 95914.32 95914.31 5.0 CH3OH 2(1,2)→1(1,1) b1b-cal-0_0:3mm_red_95.png b1b-cal-0_0:3mm_ori_95.png
0.029 (0.013) 0.4 (0.5) 0.012 (0.014) 6.83 (0.06) 95947.23 95947.34 3.0 CH3CHO 5(0,5)→4(0,4) b1b-cal-0_0:3mm_red_96.png b1b-cal-0_0:3mm_ori_96.png
0.122 (0.009) 0.65 (0.14) 0.084 (0.017) 6.183 (0.016) 95947.44 95947.34 12.6 CH3CHO 5(0,5)→4(0,4) b1b-cal-0_0:3mm_red_97.png b1b-cal-0_0:3mm_ori_97.png
0.114 (0.010) 0.64 (0.17) 0.077 (0.019) 6.544 (0.019) 95963.44 95963.46 10.2 CH3CHO 5(0,5)-4(0,4) b1b-cal-0_0:3mm_red_98.png b1b-cal-0_0:3mm_ori_98.png
0.037 (0.009) 0.7 (0.6) 0.029 (0.019) 7.35 (0.06) 95993.79 95994.06 3.8 c-HCCCD 2(1,1)-1(1,0) b1b-cal-0_0:3mm_red_99.png b1b-cal-0_0:3mm_ori_99.png
0.072 (0.010) 0.50 (0.22) 0.038 (0.016) 6.554 (0.024) 95994.05 95994.06 7.4 c-HCCCD 2(1,1)-1(1,0) b1b-cal-0_0:3mm_red_100.png b1b-cal-0_0:3mm_ori_100.png
0.766 (0.009) 2.01 (0.05) 1.64 (0.04) 6.613 (0.005) 96234.76 96234.8 23.5 Unidentified 96.237 GHz b1b-cal-0_0:3mm_red_101.png b1b-cal-0_0:3mm_ori_101.png
0.101 (0.009) 1.4 (0.3) 0.15 (0.03) 6.61 (0.04) 96235.45 96235.5 3.1 Unidentified 96.237 GHz b1b-cal-0_0:3mm_red_102.png b1b-cal-0_0:3mm_ori_102.png
0.329 (0.008) 0.79 (0.06) 0.278 (0.017) 7.252 (0.006) 96412.71 96412.95 39.0 C34S 2→1 b1b-cal-0_0:3mm_red_103.png b1b-cal-0_0:3mm_ori_103.png
0.819 (0.008) 0.796 (0.021) 0.693 (0.017) 6.4700 (0.0023) 96412.96 96412.95 97.7 C34S 2→1 b1b-cal-0_0:3mm_red_104.png b1b-cal-0_0:3mm_ori_104.png
0.128 (0.008) 0.89 (0.14) 0.121 (0.018) 7.716 (0.015) 96425.23 96425.62 3.7 CH3CHO 5(2,4)→4(2,3) (2) b1b-cal-0_0:3mm_red_105.png b1b-cal-0_0:3mm_ori_105.png
0.079 (0.008) 1.8 (0.4) 0.149 (0.025) 6.84 (0.04) 96425.51 96425.62 2.3 CH3CHO 5(2,4)→4(2,3) (2) b1b-cal-0_0:3mm_red_106.png b1b-cal-0_0:3mm_ori_106.png
1.785 (0.008) 0.835 (0.010) 1.587 (0.018) 6.5627 (0.0011) 96739.34 96739.36 68.8 CH3OH 2(-1,2)→1(-1,1) b1b-cal-0_0:3mm_red_107.png b1b-cal-0_0:3mm_ori_107.png
0.299 (0.009) 0.89 (0.07) 0.284 (0.019) 7.431 (0.007) 96741.07 96741.37 11.5 CH3OH 2(0,2)→1(0,1) ++ b1b-cal-0_0:3mm_red_108.png b1b-cal-0_0:3mm_ori_108.png
2.419 (0.008) 0.826 (0.008) 2.127 (0.018) 6.5473 (0.0008) 96741.36 96741.37 93.2 CH3OH 2(0,2)→1(0,1) ++ b1b-cal-0_0:3mm_red_109.png b1b-cal-0_0:3mm_ori_109.png
0.045 (0.008) 1.2 (0.5) 0.056 (0.021) 7.32 (0.06) 96744.29 96744.55 2.1 CH3OH 2(0,2)→1(0,1) b1b-cal-0_0:3mm_red_110.png b1b-cal-0_0:3mm_ori_110.png
0.421 (0.008) 0.70 (0.04) 0.313 (0.017) 6.540 (0.005) 96744.54 96744.55 23.1 CH3OH 2(0,2)→1(0,1) b1b-cal-0_0:3mm_red_111.png b1b-cal-0_0:3mm_ori_111.png
0.541 (0.009) 1.07 (0.05) 0.616 (0.023) 11.947 (0.007) 96753.75 96755.51 4.1 CH3OH 2(1,1)→1(1,0) (1) b1b-cal-0_0:3mm_red_112.png b1b-cal-0_0:3mm_ori_112.png
0.086 (0.009) 0.57 (0.19) 0.052 (0.017) 6.602 (0.021) 96755.48 96755.51 0.7 CH3OH 2(1,1)→1(1,0) (1) b1b-cal-0_0:3mm_red_113.png b1b-cal-0_0:3mm_ori_113.png
0.251 (0.009) 0.47 (0.05) 0.127 (0.013) 7.057 (0.006) 97715.22 97715.40 26.2 34SO 3(2)→2(1) b1b-cal-0_0:3mm_red_114.png b1b-cal-0_0:3mm_ori_114.png
1.090 (0.008) 0.702 (0.014) 0.815 (0.016) 6.5344 (0.0015) 97715.39 97715.40 113.9 34SO 3(2)→2(1) b1b-cal-0_0:3mm_red_115.png b1b-cal-0_0:3mm_ori_115.png
3.1 (0.7) 0.23 (0.11) 0.8 (0.4) 6.611 (0.014) 97756.07 97756.1 350.1 Unidentified b1b-cal-0_0:3mm_red_116.png b1b-cal-0_0:3mm_ori_116.png
0.0153 (0.0017) 0.51 (0.20) 0.008 (0.004) 7.656 (0.024) 97761.61 97761.99 2.1 c-C3D2 3→2 b1b-cal-0_0:3mm_red_117.png b1b-cal-0_0:3mm_ori_117.png
0.081 (0.007) 1.07 (0.21) 0.092 (0.017) 6.740 (0.024) 97761.91 97761.99 10.7 c-C3D2 3→2 b1b-cal-0_0:3mm_red_118.png b1b-cal-0_0:3mm_ori_118.png
0.222 (0.013) 0.23 (0.04) 0.055 (0.008) 7.338 (0.005) 97762.07 97762.35 29.5 S4 28(4,24)-27(5,23) ? b1b-cal-0_0:3mm_red_119.png b1b-cal-0_0:3mm_ori_119.png
0.596 (0.022) 0.080 (0.025) 0.050 (0.016) 6.61 (0.08) 97779.99 97780.0 43.5 Unidentified b1b-cal-0_0:3mm_red_120.png b1b-cal-0_0:3mm_ori_120.png
4.1 (1.2) 0.22 (0.10) 0.9 (0.5) 6.611 (0.010) 97780.08 97780.1 296.1 Unidentified b1b-cal-0_0:3mm_red_121.png b1b-cal-0_0:3mm_ori_121.png
2.146 (0.007) 1.290 (0.010) 2.946 (0.020) 7.2056 (0.0010) 97980.72 97980.95 51.0 CS 2→1 b1b-cal-0_0:3mm_red_122.png b1b-cal-0_0:3mm_ori_122.png
2.919 (0.008) 0.683 (0.005) 2.123 (0.015) 6.1542 (0.0006) 97981.07 97980.95 69.3 CS 2→1 b1b-cal-0_0:3mm_red_123.png b1b-cal-0_0:3mm_ori_123.png
0.143 (0.007) 0.72 (0.11) 0.109 (0.015) 5.014 (0.012) 97981.44 97980.95 3.4 CS 2→1 b1b-cal-0_0:3mm_red_124.png b1b-cal-0_0:3mm_ori_124.png
0.378 (0.008) 0.71 (0.05) 0.285 (0.016) 11.927 (0.005) 97993.39 97995.17 3.4 l-C3H J=9/2-7/2, Omega=1/2, F=5-4, l=e b1b-cal-0_0:3mm_red_125.png b1b-cal-0_0:3mm_ori_125.png
0.025 (0.008) 2.5 (1.3) 0.07 (0.03) 10.97 (0.13) 97993.70 97995.17 0.2 l-C3H J=9/2-7/2, Omega=1/2, F=5-4, l=e b1b-cal-0_0:3mm_red_126.png b1b-cal-0_0:3mm_ori_126.png
0.031 (0.010) 0.3 (0.4) 0.011 (0.011) 6.37 (0.04) 97995.21 97995.17 0.3 l-C3H J=9/2-7/2, Omega=1/2, F=5-4, l=e b1b-cal-0_0:3mm_red_127.png b1b-cal-0_0:3mm_ori_127.png
0.028 (0.008) 0.9 (0.7) 0.027 (0.018) 6.50 (0.08) 97995.91 97995.91 0.3 l-C3H J=9/2-7/2, Omega=1/2, F=4-3, l=e b1b-cal-0_0:3mm_red_128.png b1b-cal-0_0:3mm_ori_128.png
0.092 (0.007) 0.70 (0.16) 0.068 (0.015) 6.557 (0.017) 98863.31 98863.33 13.1 CH3CHO 5(1,4)→4(1,3) (1) b1b-cal-0_0:3mm_red_129.png b1b-cal-0_0:3mm_ori_129.png
0.098 (0.008) 0.58 (0.14) 0.061 (0.014) 6.552 (0.016) 98900.93 98900.95 13.9 CH3CHO 5(1,4)→4(1,3) (2) b1b-cal-0_0:3mm_red_130.png b1b-cal-0_0:3mm_ori_130.png
2.216 (0.008) 0.764 (0.008) 1.803 (0.017) 7.0913 (0.0009) 99299.69 99299.89 37.7 SO 3(2)→2(1) b1b-cal-0_0:3mm_red_131.png b1b-cal-0_0:3mm_ori_131.png
4.122 (0.008) 0.843 (0.005) 3.698 (0.018) 6.4051 (0.0005) 99299.92 99299.89 70.2 SO 3(2)→2(1) b1b-cal-0_0:3mm_red_132.png b1b-cal-0_0:3mm_ori_132.png
0.050 (0.008) 0.60 (0.25) 0.032 (0.013) 6.56 (0.03) 101314.80 101314.82 8.2 DC3N J=12-11 b1b-cal-0_0:3mm_red_133.png b1b-cal-0_0:3mm_ori_133.png
0.227 (0.006) 0.77 (0.06) 0.188 (0.014) 7.231 (0.007) 101477.56 101477.81 29.0 H2CS 3(1,3)→2(1,2) b1b-cal-0_0:3mm_red_134.png b1b-cal-0_0:3mm_ori_134.png
0.959 (0.006) 0.770 (0.014) 0.786 (0.014) 6.4815 (0.0015) 101477.82 101477.81 122.6 H2CS 3(1,3)→2(1,2) b1b-cal-0_0:3mm_red_135.png b1b-cal-0_0:3mm_ori_135.png
0.111 (0.008) 0.77 (0.15) 0.091 (0.016) 6.511 (0.016) 101981.43 101981.43 17.6 H2CCO 5(1,4)→4(1,3) b1b-cal-0_0:3mm_red_136.png b1b-cal-0_0:3mm_ori_136.png
0.069 (0.007) 1.5 (0.3) 0.107 (0.020) 6.58 (0.04) 102546.00 102546.02 8.3 CH3CCH 6(1)→5(1) b1b-cal-0_0:3mm_red_137.png b1b-cal-0_0:3mm_ori_137.png
0.079 (0.007) 1.20 (0.24) 0.102 (0.018) 6.61 (0.03) 102547.95 102547.98 9.5 CH3CCH 6(0)→5(0) b1b-cal-0_0:3mm_red_138.png b1b-cal-0_0:3mm_ori_138.png
0.154 (0.022) 0.9 (0.4) 0.14 (0.06) 6.46 (0.04) 103640.77 103640.76 6.3 CCS N=8→7, J=8→7 b1b-cal-0_0:3mm_red_139.png b1b-cal-0_0:3mm_ori_139.png
0.35 (0.04) 5.0 (0.8) 1.86 (0.20) 8.09 (0.06) 103878.78 103879.33 11.6 CH213CHCN 11(3,9)-10(3,8) b1b-cal-0_0:3mm_red_140.png b1b-cal-0_0:3mm_ori_140.png
0.24 (0.04) 2.5 (0.7) 0.64 (0.14) 7.92 (0.07) 103878.83 103879.33 7.8 CH213CHCN 11(3,9)-10(3,8) b1b-cal-0_0:3mm_red_141.png b1b-cal-0_0:3mm_ori_141.png
0.88 (0.03) 0.78 (0.08) 0.73 (0.07) 6.601 (0.009) 104029.39 104029.42 30.2 SO2 31,3→20,2 b1b-cal-0_0:3mm_red_142.png b1b-cal-0_0:3mm_ori_142.png
0.18 (0.05) 0.36 (0.25) 0.07 (0.05) 6.32 (0.03) 104029.48 104029.42 6.1 SO2 31,3→20,2 b1b-cal-0_0:3mm_red_143.png b1b-cal-0_0:3mm_ori_143.png
0.20 (0.03) 0.55 (0.23) 0.12 (0.05) 7.315 (0.025) 104186.82 104187.11 8.6 c-HCCCD 3(0,3)-2(1,2) b1b-cal-0_0:3mm_red_144.png b1b-cal-0_0:3mm_ori_144.png
0.348 (0.025) 0.72 (0.16) 0.27 (0.06) 6.505 (0.017) 104187.11 104187.11 15.0 c-HCCCD 3(0,3)-2(1,2) b1b-cal-0_0:3mm_red_145.png b1b-cal-0_0:3mm_ori_145.png
0.276 (0.024) 0.79 (0.20) 0.23 (0.06) 7.460 (0.021) 104616.77 104617.11 12.1 H2CS 31,2→21,1 b1b-cal-0_0:3mm_red_146.png b1b-cal-0_0:3mm_ori_146.png
0.863 (0.024) 0.78 (0.07) 0.72 (0.06) 6.698 (0.007) 104617.04 104617.11 38.2 H2CS 31,2→21,1 b1b-cal-0_0:3mm_red_147.png b1b-cal-0_0:3mm_ori_147.png
0.143 (0.017) 0.60 (0.20) 0.09 (0.03) 7.360 (0.022) 106347.42 106347.73 8.1 C2S N=8→7 J=9→8 b1b-cal-0_0:3mm_red_148.png b1b-cal-0_0:3mm_ori_148.png
0.368 (0.015) 0.83 (0.09) 0.33 (0.04) 6.466 (0.011) 106347.74 106347.73 20.5 C2S N=8→7 J=9→8 b1b-cal-0_0:3mm_red_149.png b1b-cal-0_0:3mm_ori_149.png
0.105 (0.016) 0.9 (0.4) 0.10 (0.04) 6.57 (0.04) 106743.34 106743.37 6.7 34SO 32-21 b1b-cal-0_0:3mm_red_150.png b1b-cal-0_0:3mm_ori_150.png
0.23 (0.06) 0.40 (0.25) 0.10 (0.06) 7.30 (0.03) 107423.36 107423.65 6.6 c-HCCCD 3(1,3)-2(0,2) b1b-cal-0_0:3mm_red_151.png b1b-cal-0_0:3mm_ori_151.png
0.33 (0.04) 0.71 (0.24) 0.25 (0.08) 6.53 (0.03) 107423.64 107423.65 9.3 c-HCCCD 3(1,3)-2(0,2) b1b-cal-0_0:3mm_red_152.png b1b-cal-0_0:3mm_ori_152.png
0.158 (0.023) 0.9 (0.4) 0.14 (0.06) 6.66 (0.04) 108780.14 108780.20 7.6 13CN N=1→0 J=3/2→1/2 b1b-cal-0_0:3mm_red_153.png b1b-cal-0_0:3mm_ori_153.png
0.414 (0.021) 0.92 (0.13) 0.41 (0.06) 6.581 (0.014) 108893.92 108893.95 20.4 CH3OH 00,0→1-1,1 b1b-cal-0_0:3mm_red_154.png b1b-cal-0_0:3mm_ori_154.png
0.148 (0.022) 0.50 (0.25) 0.08 (0.04) 6.27 (0.03) 108894.03 108893.95 7.3 CH3OH 00,0→1-1,1 b1b-cal-0_0:3mm_red_155.png b1b-cal-0_0:3mm_ori_155.png
0.20 (0.03) 0.36 (0.14) 0.08 (0.03) 7.387 (0.015) 109173.32 109173.64 11.5 HC3N 12→11 b1b-cal-0_0:3mm_red_156.png b1b-cal-0_0:3mm_ori_156.png
0.446 (0.019) 0.89 (0.10) 0.42 (0.05) 6.511 (0.011) 109173.64 109173.64 24.5 HC3N 12→11 b1b-cal-0_0:3mm_red_157.png b1b-cal-0_0:3mm_ori_157.png
0.276 (0.021) 1.14 (0.21) 0.34 (0.06) 6.882 (0.022) 109252.04 109252.18 10.5 SO 23→12 b1b-cal-0_0:3mm_red_158.png b1b-cal-0_0:3mm_ori_158.png
1.690 (0.021) 0.92 (0.04) 1.66 (0.06) 6.573 (0.004) 109252.16 109252.18 63.2 SO 23→12 b1b-cal-0_0:3mm_red_159.png b1b-cal-0_0:3mm_ori_159.png
0.157 (0.021) 0.9 (0.4) 0.16 (0.05) 6.65 (0.04) 109463.01 109463.06 7.9 OCS 9→8 b1b-cal-0_0:3mm_red_160.png b1b-cal-0_0:3mm_ori_160.png
0.156 (0.020) 4.5 (0.9) 0.75 (0.11) 6.60 (0.08) 109559.96 109560.0 6.9 Unidentified 109.560 GHz b1b-cal-0_0:3mm_red_161.png b1b-cal-0_0:3mm_ori_161.png
0.404 (0.020) 4.9 (0.4) 2.09 (0.12) 6.60 (0.03) 109560.08 109560.1 18.1 Unidentified 109.560 GHz b1b-cal-0_0:3mm_red_162.png b1b-cal-0_0:3mm_ori_162.png
2.436 (0.024) 0.810 (0.022) 2.10 (0.06) 7.3238 (0.0024) 109781.87 109782.18 103.4 C18O 1→0 b1b-cal-0_0:3mm_red_163.png b1b-cal-0_0:3mm_ori_163.png
3.337 (0.024) 0.959 (0.018) 3.41 (0.06) 6.5420 (0.0019) 109782.16 109782.18 140.6 C18O 1→0 b1b-cal-0_0:3mm_red_164.png b1b-cal-0_0:3mm_ori_164.png
0.16 (0.04) 0.48 (0.25) 0.08 (0.05) 4.90 (0.03) 109782.76 109782.18 6.8 C18O 1→0 b1b-cal-0_0:3mm_red_165.png b1b-cal-0_0:3mm_ori_165.png
0.190 (0.019) 1.0 (0.3) 0.21 (0.05) 7.11 (0.03) 109905.52 109905.75 10.6 HNCO 5→4 b1b-cal-0_0:3mm_red_166.png b1b-cal-0_0:3mm_ori_166.png
0.575 (0.019) 0.85 (0.08) 0.52 (0.05) 6.510 (0.009) 109905.75 109905.75 31.9 HNCO 5→4 b1b-cal-0_0:3mm_red_167.png b1b-cal-0_0:3mm_ori_167.png
0.14 (0.11) 0.19 (0.19) 0.03 (0.03) 6.47 (0.04) 110024.60 110024.59 5.6 C15N N=1→0 J=3/2→1/2 F=2→1 b1b-cal-0_0:3mm_red_168.png b1b-cal-0_0:3mm_ori_168.png
0.461 (0.022) 0.77 (0.11) 0.38 (0.05) 6.776 (0.011) 110151.99 110152.09 17.4 NH2D 1(1,1)0a-1(0,1)0s, F=0-1 b1b-cal-0_0:3mm_red_169.png b1b-cal-0_0:3mm_ori_169.png
0.530 (0.022) 0.61 (0.08) 0.34 (0.05) 6.743 (0.009) 110152.93 110153.02 20.3 NH2D 1(1,1)0a-1(0,1)0s, F=2-1 b1b-cal-0_0:3mm_red_170.png b1b-cal-0_0:3mm_ori_170.png
1.235 (0.022) 0.99 (0.05) 1.30 (0.06) 6.774 (0.005) 110153.49 110153.59 47.2 NH2D 1(1,1)0a-1(0,1)0s, F=2-2 &amp; 1-1 b1b-cal-0_0:3mm_red_171.png b1b-cal-0_0:3mm_ori_171.png
0.512 (0.022) 0.71 (0.09) 0.39 (0.05) 6.718 (0.010) 110154.09 110154.17 19.6 NH2D 1(1,1)0a-1(0,1)0s, F=1-2 b1b-cal-0_0:3mm_red_172.png b1b-cal-0_0:3mm_ori_172.png
0.457 (0.022) 0.84 (0.11) 0.41 (0.05) 6.670 (0.012) 110154.97 110155.03 17.3 NH2D 1(1,1)0a-1(0,1)0s, F=1-0 b1b-cal-0_0:3mm_red_173.png b1b-cal-0_0:3mm_ori_173.png
5.052 (0.024) 1.855 (0.018) 9.98 (0.09) 6.9633 (0.0018) 110201.18 110201.35 20.8 13CO 1→0 b1b-cal-0_0:3mm_red_174.png b1b-cal-0_0:3mm_ori_174.png
4.418 (0.024) 2.95 (0.03) 13.86 (0.11) 6.289 (0.003) 110201.43 110201.35 18.2 13CO 1→0 b1b-cal-0_0:3mm_red_175.png b1b-cal-0_0:3mm_ori_175.png

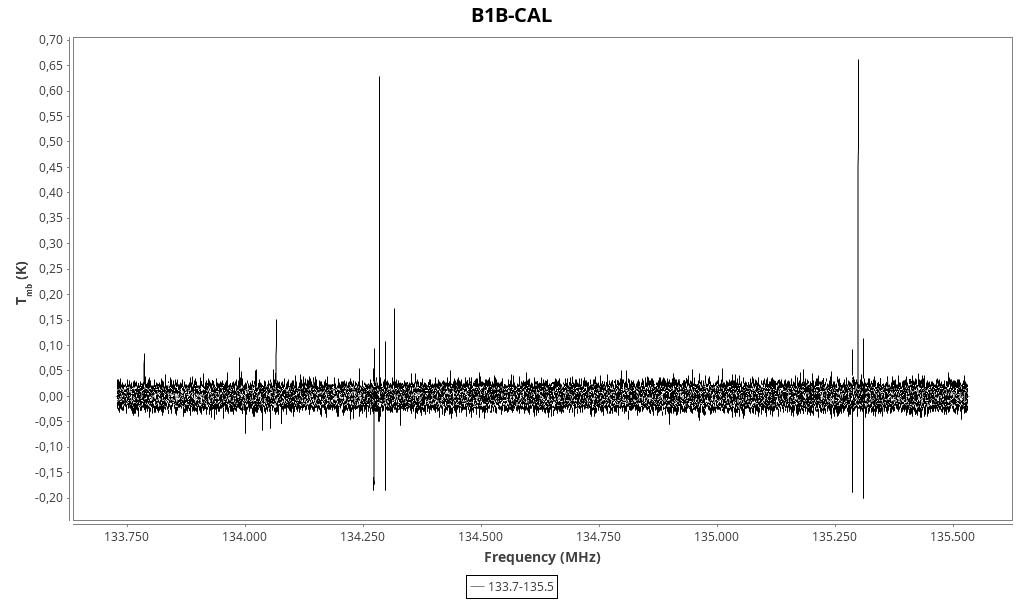

Backend 2mm (134.6 GHz)

Found 8 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.075 (0.014) 0.6 (0.5) 0.05 (0.04) 6.60 (0.04) 133785.85 133785.90 5.8 OCS 11→10 b1b-cal-0_0:2mm_134.6_red_0.png b1b-cal-0_0:2mm_134.6_ori_0.png
0.10 (0.09) 0.12 (0.14) 0.013 (0.015) 6.60 (0.03) 133988.51 133988.6 7.6 Unidentified b1b-cal-0_0:2mm_134.6_red_1.png b1b-cal-0_0:2mm_134.6_ori_1.png
0.146 (0.017) 0.5 (0.3) 0.08 (0.04) 6.600 (0.020) 134065.47 134065.5 10.1 Unidentified b1b-cal-0_0:2mm_134.6_red_2.png b1b-cal-0_0:2mm_134.6_ori_2.png
0.228 (0.013) 0.86 (0.15) 0.21 (0.04) 7.031 (0.012) 134284.66 134284.90 14.4 HDCO 2(1,1)-1(1,0) b1b-cal-0_0:2mm_134.6_red_3.png b1b-cal-0_0:2mm_134.6_ori_3.png
0.588 (0.013) 0.61 (0.05) 0.38 (0.03) 6.439 (0.004) 134284.93 134284.90 37.0 HDCO 2(1,1)-1(1,0) b1b-cal-0_0:2mm_134.6_red_4.png b1b-cal-0_0:2mm_134.6_ori_4.png
0.250 (0.016) 0.007 (0.016) 0.002 (0.005) 6.5994387 (0.0000006) 134321.12 134321.2 13.7 Unidentified b1b-cal-0_0:2mm_134.6_red_5.png b1b-cal-0_0:2mm_134.6_ori_5.png
0.176 (0.013) 0.87 (0.21) 0.16 (0.04) 7.050 (0.016) 135298.01 135298.26 11.2 H2CS 4(1,4)-3(1,3) b1b-cal-0_0:2mm_134.6_red_6.png b1b-cal-0_0:2mm_134.6_ori_6.png
0.630 (0.013) 0.62 (0.05) 0.42 (0.04) 6.419 (0.004) 135298.30 135298.26 39.4 H2CS 4(1,4)-3(1,3) b1b-cal-0_0:2mm_134.6_red_7.png b1b-cal-0_0:2mm_134.6_ori_7.png

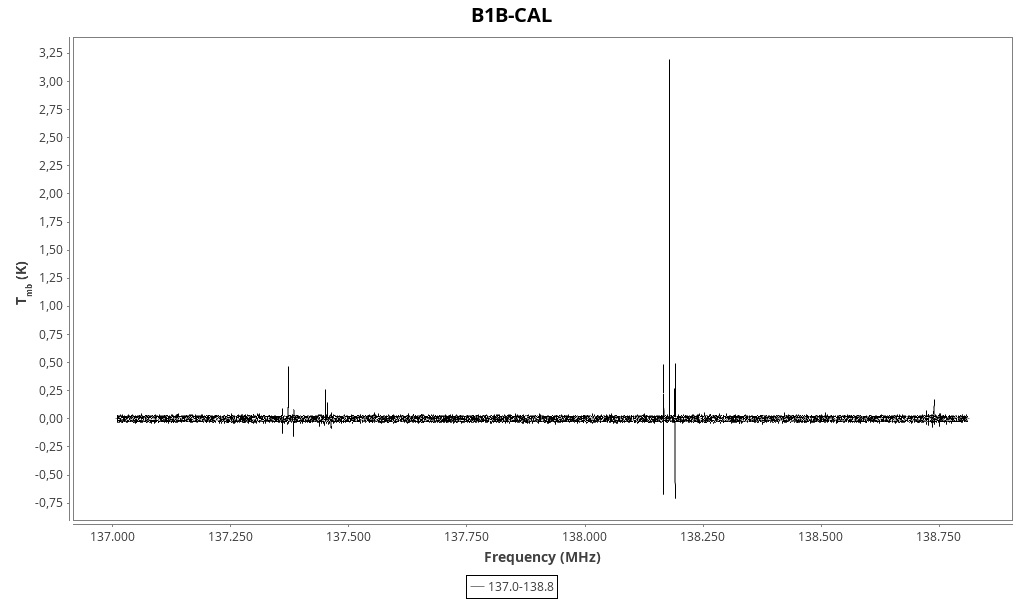

Backend 2mm (137.9 GHz)

Found 12 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.114 (0.013) 0.7 (0.3) 0.09 (0.04) 7.165 (0.022) 137370.91 137371.21 7.7 H2CS 4(0,4)-3(0,3) b1b-cal-0_0:2mm_137.9_red_0.png b1b-cal-0_0:2mm_137.9_ori_0.png
0.454 (0.013) 0.62 (0.07) 0.30 (0.04) 6.545 (0.005) 137371.19 137371.21 30.5 H2CS 4(0,4)-3(0,3) b1b-cal-0_0:2mm_137.9_red_1.png b1b-cal-0_0:2mm_137.9_ori_1.png
0.054 (0.014) 1.1 (0.9) 0.06 (0.05) 7.06 (0.07) 137449.69 137449.95 2.9 H213CO 2(1,2)-1(1,1) b1b-cal-0_0:2mm_137.9_red_2.png b1b-cal-0_0:2mm_137.9_ori_2.png
0.234 (0.014) 0.67 (0.15) 0.17 (0.04) 6.510 (0.011) 137449.95 137449.95 12.4 H213CO 2(1,2)-1(1,1) b1b-cal-0_0:2mm_137.9_red_3.png b1b-cal-0_0:2mm_137.9_ori_3.png
0.112 (0.014) 1.3 (0.5) 0.15 (0.05) 7.04 (0.04) 137454.22 137454.46 6.6 c-HCCCD 2(2,0)-1(1,1) b1b-cal-0_0:2mm_137.9_red_4.png b1b-cal-0_0:2mm_137.9_ori_4.png
0.444 (0.015) 0.39 (0.06) 0.184 (0.025) 7.567 (0.005) 138178.17 138178.66 13.8 SO 43→32 b1b-cal-0_0:2mm_137.9_red_5.png b1b-cal-0_0:2mm_137.9_ori_5.png
2.580 (0.013) 0.655 (0.013) 1.80 (0.04) 6.9120 (0.0009) 138178.47 138178.66 80.0 SO 43→32 b1b-cal-0_0:2mm_137.9_red_6.png b1b-cal-0_0:2mm_137.9_ori_6.png
3.055 (0.013) 0.594 (0.010) 1.93 (0.04) 6.3152 (0.0008) 138178.74 138178.66 94.8 SO 43→32 b1b-cal-0_0:2mm_137.9_red_7.png b1b-cal-0_0:2mm_137.9_ori_7.png
0.038 (0.012) 0.6 (0.8) 0.03 (0.03) 6.59 (0.07) 138422.39 138422.43 3.1 p-D2CS 5→4 b1b-cal-0_0:2mm_137.9_red_8.png b1b-cal-0_0:2mm_137.9_ori_8.png
0.041 (0.016) 0.6 (0.9) 0.03 (0.04) 7.06 (0.07) 138739.00 138739.26 2.3 13CS 3→2 b1b-cal-0_0:2mm_137.9_red_9.png b1b-cal-0_0:2mm_137.9_ori_9.png
0.152 (0.016) 0.54 (0.23) 0.09 (0.04) 6.462 (0.017) 138739.28 138739.26 8.6 13CS 3→2 b1b-cal-0_0:2mm_137.9_red_10.png b1b-cal-0_0:2mm_137.9_ori_10.png
0.06 (0.21) 0.1 (0.4) 0.005 (0.012) 6.91 (0.21) 138754.01 138754.2 3.6 Unidentified 138.754 GHz b1b-cal-0_0:2mm_137.9_red_11.png b1b-cal-0_0:2mm_137.9_ori_11.png

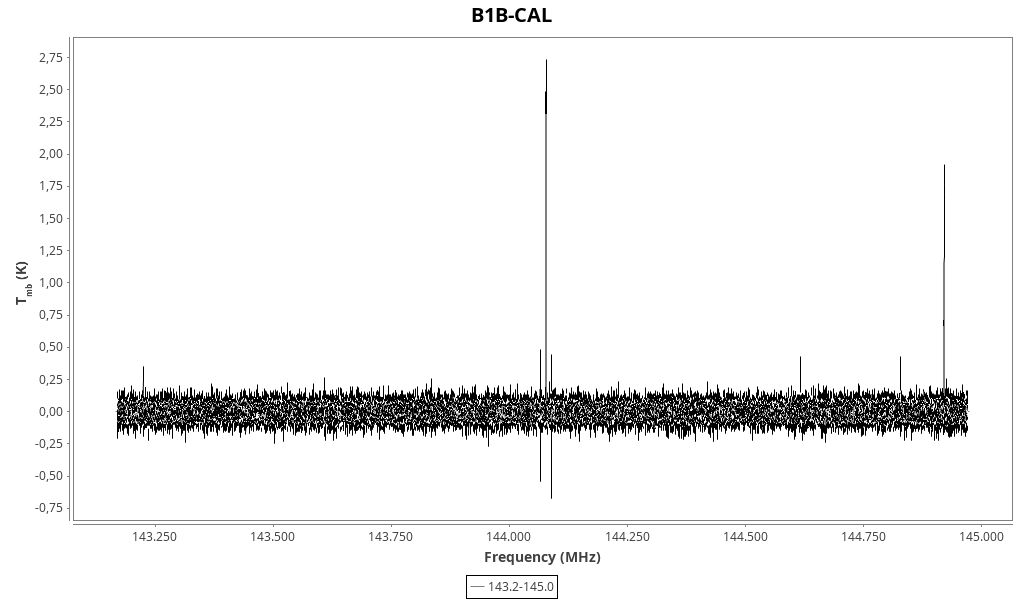

Backend 2mm (144.1 GHz)

Found 6 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
2.19 (0.06) 0.97 (0.09) 2.27 (0.19) 6.856 (0.006) 144077.12 144077.29 25.2 DCO+ J=2-1 (multiple components around) b1b-cal-0_0:2mm_144.1_red_0.png b1b-cal-0_0:2mm_144.1_ori_0.png
2.24 (0.06) 0.56 (0.07) 1.32 (0.14) 6.137 (0.005) 144077.46 144077.29 25.8 DCO+ J=2-1 (multiple components around) b1b-cal-0_0:2mm_144.1_red_1.png b1b-cal-0_0:2mm_144.1_ori_1.png
0.39 (0.07) 0.8 (0.5) 0.32 (0.19) 6.38 (0.04) 144617.16 144617.10 5.6 C34S 3→2 b1b-cal-0_0:2mm_144.1_red_2.png b1b-cal-0_0:2mm_144.1_ori_2.png
0.29 (0.07) 0.7 (0.6) 0.23 (0.17) 6.77 (0.04) 144827.87 144828.00 4.3 DCN 2→1 b1b-cal-0_0:2mm_144.1_red_3.png b1b-cal-0_0:2mm_144.1_ori_3.png
0.28 (0.07) 0.5 (0.5) 0.16 (0.15) 6.10 (0.04) 144828.19 144828.00 4.1 DCN 2→1 b1b-cal-0_0:2mm_144.1_red_4.png b1b-cal-0_0:2mm_144.1_ori_4.png
0.49 (0.15) 2.8 (1.8) 1.5 (0.8) 6.38 (0.12) 144920.65 144920.6 1.6 Unidentified b1b-cal-0_0:2mm_144.1_red_5.png b1b-cal-0_0:2mm_144.1_ori_5.png

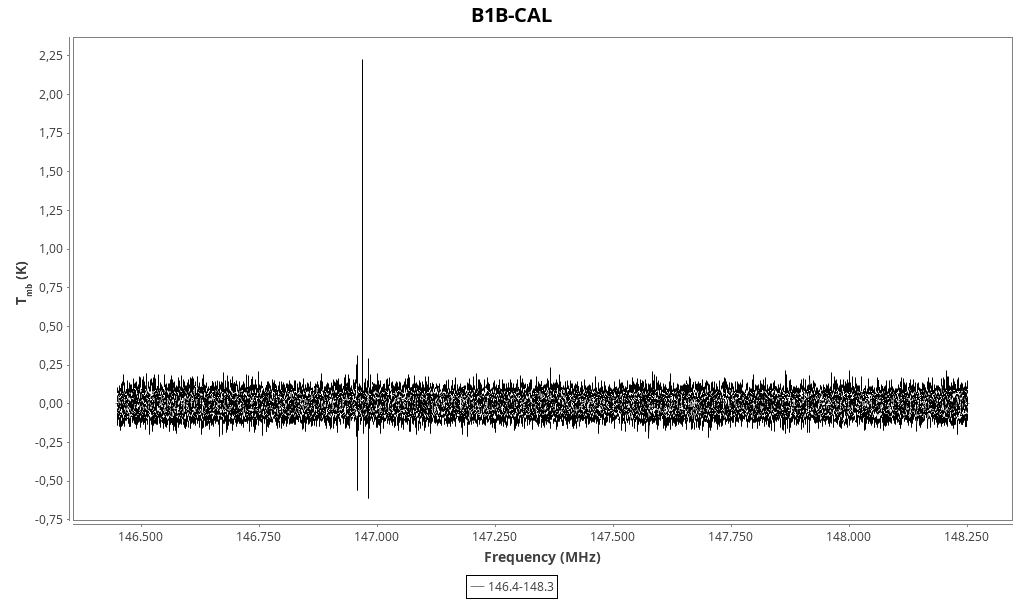

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
1.05 (0.06) 1.25 (0.19) 1.41 (0.20) 7.027 (0.013) 146968.77 146969.03 16.6 CS 3→2 b1b-cal-0_0:2mm_147.3_red_0.png b1b-cal-0_0:2mm_147.3_ori_0.png
1.93 (0.06) 0.51 (0.07) 1.06 (0.13) 6.111 (0.005) 146969.22 146969.03 30.4 CS 3→2 b1b-cal-0_0:2mm_147.3_red_1.png b1b-cal-0_0:2mm_147.3_ori_1.png

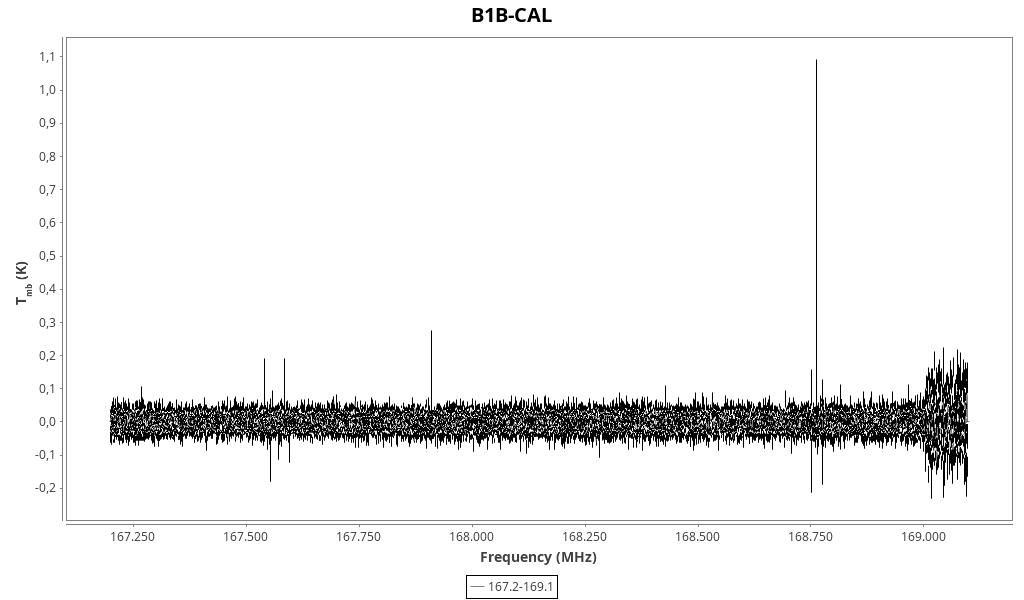

Backend 2mm (168.1 GHz)

Found 5 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.252 (0.022) 0.58 (0.22) 0.16 (0.06) 6.707 (0.014) 167910.40 167910.52 11.8 H234S 1(1,0)→1(0,1) b1b-cal-0_0:2mm_168.1_red_0.png b1b-cal-0_0:2mm_168.1_ori_0.png
0.113 (0.023) 0.4 (0.4) 0.04 (0.05) 6.27 (0.03) 167910.64 167910.52 5.3 H234S 1(1,0)→1(0,1) b1b-cal-0_0:2mm_168.1_red_1.png b1b-cal-0_0:2mm_168.1_ori_1.png
0.64 (0.03) 1.04 (0.14) 0.71 (0.09) 6.834 (0.009) 168762.56 168762.75 15.6 H2S 1(1,0)→1(0,1) b1b-cal-0_0:2mm_168.1_red_2.png b1b-cal-0_0:2mm_168.1_ori_2.png
0.87 (0.03) 0.54 (0.07) 0.50 (0.07) 6.218 (0.005) 168762.91 168762.75 21.2 H2S 1(1,0)→1(0,1) b1b-cal-0_0:2mm_168.1_red_3.png b1b-cal-0_0:2mm_168.1_ori_3.png
0.10 (0.03) 0.4 (0.6) 0.04 (0.06) 6.59 (0.04) 168815.06 168815.11 3.6 34SO 4(4)→3(3) b1b-cal-0_0:2mm_168.1_red_4.png b1b-cal-0_0:2mm_168.1_ori_4.png

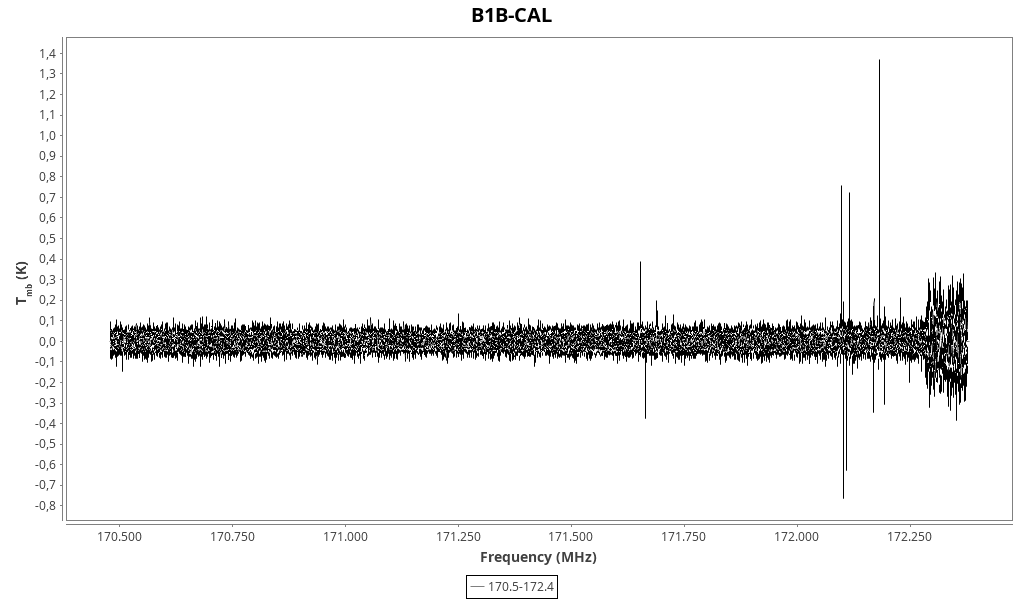

Backend 2mm (171.4 GHz)

Found 8 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.40 (0.08) 0.11 (0.10) 0.04 (0.05) 6.508 (0.011) 171652.06 171652.1 11.2 Unidentified b1b-cal-0_0:2mm_171.4_red_0.png b1b-cal-0_0:2mm_171.4_ori_0.png
0.20 (0.04) 0.6 (0.5) 0.14 (0.09) 6.50 (0.03) 171688.12 171688.12 5.2 H2CS 5(0,5)→4(0,4) b1b-cal-0_0:2mm_171.4_red_1.png b1b-cal-0_0:2mm_171.4_ori_1.png
0.14 (0.06) 0.2 (0.4) 0.04 (0.06) 3.36 (0.03) 171689.91 171688.12 3.6 H2CS 5(0,5)→4(0,4) b1b-cal-0_0:2mm_171.4_red_2.png b1b-cal-0_0:2mm_171.4_ori_2.png
0.34 (0.04) 0.05 (0.07) 0.018 (0.024) 8.04 (0.05) 171710.34 171711.22 10.0 H2CS 5(3,x)→4(3,x-1) x=2,3 b1b-cal-0_0:2mm_171.4_red_3.png b1b-cal-0_0:2mm_171.4_ori_3.png
0.78 (0.10) 0.10 (0.06) 0.08 (0.05) 6.508 (0.008) 172096.82 172096.8 20.2 Unidentified 172.097 GHz b1b-cal-0_0:2mm_171.4_red_4.png b1b-cal-0_0:2mm_171.4_ori_4.png
0.20 (0.06) 0.16 (0.25) 0.03 (0.06) 6.508 (0.017) 172102.43 172102.4 3.1 Unidentified 172.102 GHz b1b-cal-0_0:2mm_171.4_red_5.png b1b-cal-0_0:2mm_171.4_ori_5.png
0.35 (0.04) 0.8 (0.4) 0.29 (0.12) 6.679 (0.020) 172181.30 172181.41 7.9 SO 4(4)→3(3) b1b-cal-0_0:2mm_171.4_red_6.png b1b-cal-0_0:2mm_171.4_ori_6.png
1.10 (0.04) 0.65 (0.09) 0.77 (0.11) 6.508 (0.006) 172181.40 172181.41 25.1 SO 4(4)→3(3) b1b-cal-0_0:2mm_171.4_red_7.png b1b-cal-0_0:2mm_171.4_ori_7.png

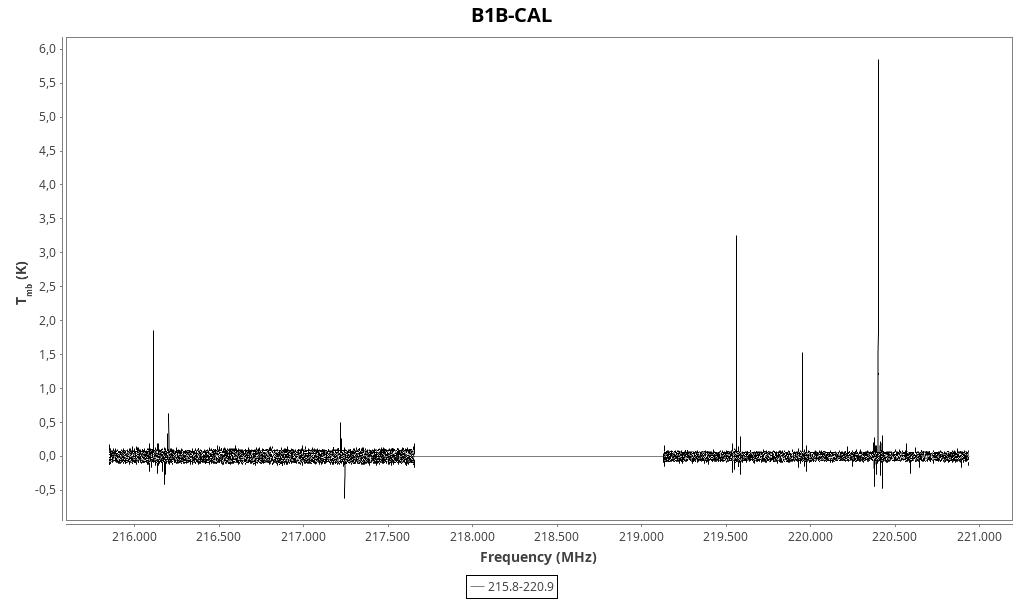

Backend 1mm (215.8-220.9 GHz)

Found 17 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
1.74 (0.04) 0.92 (0.08) 1.71 (0.13) 6.814 (0.004) 216112.36 216112.58 36.0 DCO+ J=3-2 (multiple components around) b1b-cal-0_0:1mm_red_0.png b1b-cal-0_0:1mm_ori_0.png
1.43 (0.04) 0.41 (0.06) 0.63 (0.09) 6.159 (0.003) 216112.83 216112.58 29.7 DCO+ J=3-2 (multiple components around) b1b-cal-0_0:1mm_red_1.png b1b-cal-0_0:1mm_ori_1.png
0.34 (0.12) 0.07 (0.14) 0.03 (0.06) 6.814 (0.015) 216196.60 216196.8 9.2 Unidentified b1b-cal-0_0:1mm_red_2.png b1b-cal-0_0:1mm_ori_2.png
0.021 (0.004) 2.1 (1.1) 0.046 (0.022) 6.81 (0.06) 216201.24 216201.5 0.6 Unidentified 216.203 GHz b1b-cal-0_0:1mm_red_3.png b1b-cal-0_0:1mm_ori_3.png
0.637 (0.008) 0.079 (0.007) 0.054 (0.005) 6.8137 (0.0006) 216202.61 216202.8 18.3 Unidentified 216.203 GHz b1b-cal-0_0:1mm_red_4.png b1b-cal-0_0:1mm_ori_4.png
0.048 (0.004) 0.28 (0.14) 0.014 (0.007) 6.812 (0.007) 217219.67 217219.9 1.3 Unidentified 217.220 GHz b1b-cal-0_0:1mm_red_5.png b1b-cal-0_0:1mm_ori_5.png
3.854 (0.004) 0.0360 (0.0006) 0.1478 (0.0024) 6.81 (0.04) 217219.98 217220.2 106.1 Unidentified 217.220 GHz b1b-cal-0_0:1mm_red_6.png b1b-cal-0_0:1mm_ori_6.png
0.30 (0.12) 0.08 (0.16) 0.03 (0.05) 6.812 (0.012) 217225.95 217226.2 8.1 Unidentified b1b-cal-0_0:1mm_red_7.png b1b-cal-0_0:1mm_ori_7.png
0.47 (0.04) 0.31 (0.14) 0.16 (0.07) 7.409 (0.007) 219559.69 219560.36 13.0 C18O 2→1 b1b-cal-0_0:1mm_red_8.png b1b-cal-0_0:1mm_ori_8.png
2.45 (0.04) 1.00 (0.05) 2.61 (0.13) 6.9913 (0.0024) 219560.00 219560.36 67.3 C18O 2→1 b1b-cal-0_0:1mm_red_9.png b1b-cal-0_0:1mm_ori_9.png
1.95 (0.04) 0.70 (0.06) 1.46 (0.11) 6.4435 (0.0025) 219560.40 219560.36 54.7 C18O 2→1 b1b-cal-0_0:1mm_red_10.png b1b-cal-0_0:1mm_ori_10.png
1.07 (0.03) 0.61 (0.07) 0.69 (0.08) 6.873 (0.004) 219949.17 219949.44 31.4 SO 65 →54 b1b-cal-0_0:1mm_red_11.png b1b-cal-0_0:1mm_ori_11.png
1.33 (0.03) 0.51 (0.06) 0.72 (0.08) 6.4031 (0.0025) 219949.51 219949.44 39.4 SO 65 →54 b1b-cal-0_0:1mm_red_12.png b1b-cal-0_0:1mm_ori_12.png
5.57 (0.04) 1.33 (0.03) 7.89 (0.15) 7.1455 (0.0012) 220398.21 220398.68 51.2 13CO 2→1 b1b-cal-0_0:1mm_red_13.png b1b-cal-0_0:1mm_ori_13.png
4.31 (0.04) 0.680 (0.024) 3.12 (0.11) 6.1778 (0.0012) 220398.92 220398.68 39.7 13CO 2→1 b1b-cal-0_0:1mm_red_14.png b1b-cal-0_0:1mm_ori_14.png
1.33 (0.04) 1.07 (0.10) 1.52 (0.14) 5.163 (0.005) 220399.66 220398.68 12.2 13CO 2→1 b1b-cal-0_0:1mm_red_15.png b1b-cal-0_0:1mm_ori_15.png
0.19 (0.05) 0.15 (0.25) 0.03 (0.05) 6.807 (0.013) 220565.01 220565.2 6.9 Unidentified 220.565 GHz b1b-cal-0_0:1mm_red_16.png b1b-cal-0_0:1mm_ori_16.png
Last modified: le 2021/06/23 15:08

Page Tools
