DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.
CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.
B1B-CAL-100_0

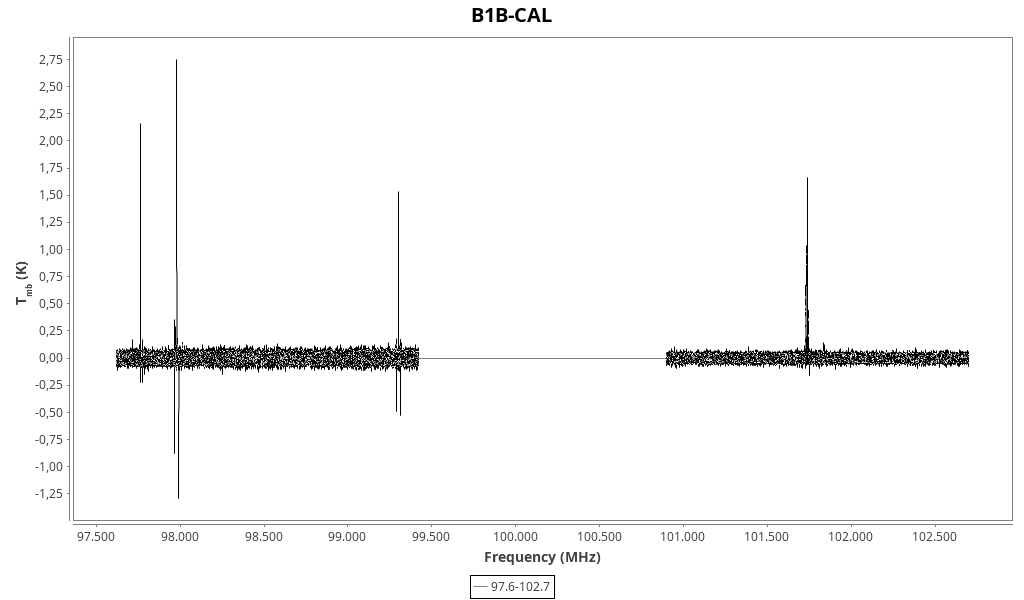

Backend 3mm (97.6-102.7 GHz)
Found 7 lines:
| Tmb (K) | Width (km/s) | I (K km/s) | Vlsr (km/s) | Obs. freq (MHz) | Rest freq (MHz) | S/N ratio | Transition | Reduced spectrum | Original spectrum |
|---|---|---|---|---|---|---|---|---|---|
| 0.16 (0.08) | 0.3 (0.3) | 0.05 (0.05) | 6.69 (0.04) | 97715.34 | 97715.40 | 5.1 | 34SO 3(2)→2(1) |  |  |
| 9.07 (0.04) | 0.078 (0.003) | 0.76 (0.03) | 7.30 (0.08) | 97762.09 | 97762.35 | 220.9 | S4 28(4,24)-27(5,23) ? |  |  |
| 2.46 (0.04) | 0.69 (0.04) | 1.81 (0.09) | 6.741 (0.004) | 97980.87 | 97980.95 | 47.9 | CS 2→1 |  |  |
| 0.71 (0.04) | 0.90 (0.13) | 0.69 (0.09) | 6.029 (0.013) | 97981.11 | 97980.95 | 13.9 | CS 2→1 |  |  |
| 1.45 (0.05) | 0.64 (0.06) | 0.99 (0.09) | 6.783 (0.007) | 99299.80 | 99299.89 | 35.4 | SO 3(2)→2(1) |  |  |
| 0.53 (0.05) | 0.76 (0.18) | 0.43 (0.10) | 6.085 (0.019) | 99300.03 | 99299.89 | 13.0 | SO 3(2)→2(1) |  |  |
| 0.44 (0.08) | 2.8 (0.9) | 1.3 (0.4) | 3.10 (0.08) | 101746.12 | 101744.97 | 5.5 | D2CO 10(2,8)-10(2,9) |  |  |
Backend 1mm (215.9-220.9 GHz)
Found 10 lines:
| Tmb (K) | Width (km/s) | I (K km/s) | Vlsr (km/s) | Obs. freq (MHz) | Rest freq (MHz) | S/N ratio | Transition | Reduced spectrum | Original spectrum |
|---|---|---|---|---|---|---|---|---|---|
| 0.64 (0.08) | 0.3 (0.3) | 0.22 (0.18) | 6.895 (0.013) | 216112.30 | 216112.58 | 8.4 | DCO+ J=3-2 (multiple components around) |  |  |
| 3.90 (0.08) | 0.036 (0.014) | 0.15 (0.06) | 6.89 (0.04) | 216202.59 | 216202.9 | 55.5 | Unidentified 216.203 GHz |  |  |
| 0.36 (0.11) | 0.1 (0.4) | 0.05 (0.12) | 6.893 (0.016) | 216794.98 | 216795.3 | 4.6 | Unidentified 216.795 GHz |  |  |
| 6.52 (0.09) | 0.039 (0.009) | 0.27 (0.07) | 6.89 (0.04) | 217219.98 | 217220.3 | 82.1 | Unidentified 217.220 GHz |  |  |
| 2.08 (0.07) | 0.57 (0.09) | 1.26 (0.18) | 6.859 (0.004) | 219560.10 | 219560.36 | 33.4 | C18O 2→1 |  |  |
| 1.81 (0.07) | 0.76 (0.11) | 1.46 (0.21) | 6.228 (0.006) | 219560.56 | 219560.36 | 28.7 | C18O 2→1 |  |  |
| 0.41 (0.06) | 0.6 (0.5) | 0.28 (0.18) | 7.921 (0.020) | 220397.64 | 220398.68 | 4.9 | 13CO 2→1 |  |  |
| 3.35 (0.06) | 0.71 (0.06) | 2.53 (0.19) | 7.1381 (0.0025) | 220398.21 | 220398.68 | 39.1 | 13CO 2→1 |  |  |
| 5.10 (0.06) | 1.58 (0.06) | 8.6 (0.3) | 6.2410 (0.0025) | 220398.87 | 220398.68 | 59.4 | 13CO 2→1 |  |  |
| 0.40 (0.09) | 0.14 (0.20) | 0.06 (0.09) | 6.887 (0.009) | 220564.99 | 220565.3 | 7.8 | Unidentified 220.565 GHz |  |  |
