DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B1B-CAL-500_0

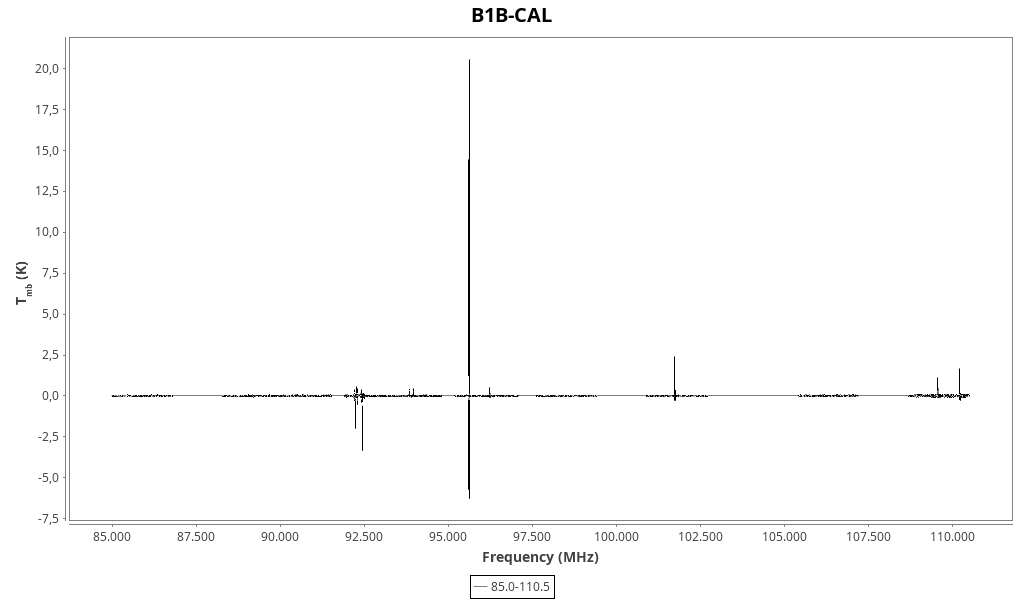

Backend 3mm (85.0-110.5 GHz)

Found 47 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.034 (0.025)	0.3 (0.5)	0.010 (0.018)	7.21 (0.07)	85926.07	85926.28	2.3	NH₂D 1_1,1→1_0,1 F=2-2
0.030 (0.012)	1.5 (1.2)	0.05 (0.04)	9.73 (0.13)	88404.74	88405.69	2.3	H(52)</sup>\beta</sup>
0.036 (0.009)	1.3 (0.7)	0.048 (0.025)	7.06 (0.09)	88631.68	88631.85	3.8	HCN 1→0 F=2→1
0.040 (0.011)	0.7 (0.5)	0.028 (0.018)	4.85 (0.05)	88632.33	88631.85	4.1	HCN 1→0 F=2→1
0.05 (0.03)	0.3 (0.3)	0.012 (0.013)	6.69 (0.03)	88865.64	88865.70	4.2	H¹⁵NC 1→0
0.035 (0.022)	1.4 (1.6)	0.05 (0.06)	3.34 (0.25)	89065.29	89064.35	1.4	CCCN N=9-8, J=17/2-15/2 (3 components)
0.074 (0.012)	1.2 (0.5)	0.09 (0.03)	7.75 (0.05)	89188.15	89188.53	6.5	HCO⁺ 1→0
0.041 (0.012)	1.7 (0.9)	0.07 (0.04)	6.76 (0.10)	89188.45	89188.53	3.7	HCO⁺ 1→0
0.082 (0.014)	2.7 (0.9)	0.24 (0.06)	Unavailable	90665.57	Unavailable	4.4	H₂CCO 5_(1,5)→4_(1,4) (image band)
0.043 (0.025)	0.5 (0.6)	0.02 (0.03)	3.13 (0.08)	90687.40	90686.38	2.7	CCS N=7-6, J=7-6
0.05 (0.04)	0.4 (0.5)	0.019 (0.025)	4.32 (0.08)	91343.13	91342.47	2.9	CH₃CH₂CN 14(3,12)-15(0,15)
0.046 (0.021)	4 (3)	0.18 (0.10)	4.5 (0.3)	91494.95	91494.35	1.8	c-C₃H 2(1,2)-1(1,1), J=5/2-3/2, F=3-2
0.10 (0.15)	0.17 (0.24)	0.017 (0.015)	9.70 (0.09)	91970.35	91971.33	7.8	CH₃CN 5₃→4₃
0.27 (0.05)	0.01 (0.04)	0.004 (0.012)	5.93 (0.09)	92219.11	92218.9	7.6	Unidentified
0.35 (0.07)	0.32 (0.16)	0.12 (0.06)	5.932 (0.019)	92219.56	92219.4	9.9	Unidentified
0.68 (0.11)	0.24 (0.10)	0.17 (0.08)	5.933 (0.015)	92279.22	92279.0	15.4	Unidentified
0.78 (0.12)	0.005 (0.012)	0.004 (0.010)	5.9328403 (0.0000004)	92279.71	92279.5	17.4	Unidentified
0.69 (0.21)	0.21 (0.09)	0.16 (0.07)	5.933 (0.014)	92297.22	92297.0	14.3	Unidentified
0.40 (0.06)	0.03 (0.06)	0.012 (0.025)	5.93295 (0.00004)	92297.68	92297.5	8.3	Unidentified
1.23 (0.04)	0.093 (0.020)	0.123 (0.025)	5.93 (0.09)	92420.61	92420.4	58.1	Unidentified
0.21 (0.04)	0.30 (0.13)	0.07 (0.03)	5.934 (0.016)	92480.25	92480.1	14.6	Unidentified
0.16 (0.04)	0.28 (0.18)	0.05 (0.03)	5.934 (0.022)	92480.70	92480.5	10.9	Unidentified
0.016 (0.011)	0.4 (0.8)	0.007 (0.012)	4.65 (0.09)	92983.47	92982.90	1.8	CH₃OCHO v=1 9(3,7)-9(1,8)
0.020 (0.008)	3.2 (2.0)	0.07 (0.04)	6.23 (0.20)	93173.78	93173.70	2.1	N₂H⁺ 1→0 F=1→2
23.2 (1.1)	0.13 (0.04)	3.3 (0.9)	5.95 (0.09)	95604.62	95604.4	35.9	Unidentified
17.7 (1.1)	0.14 (0.06)	2.6 (0.9)	5.95 (0.09)	95604.80	95604.6	27.5	Unidentified
1.49 (0.15)	0.11 (0.08)	0.17 (0.12)	5.95 (0.09)	95604.90	95604.7	2.3	Unidentified
20.1 (2.4)	0.36 (0.11)	7.8 (2.3)	5.953 (0.013)	95614.89	95614.7	26.2	Unidentified
0.017 (0.009)	2.1 (1.9)	0.04 (0.03)	3.37 (0.20)	95965.63	95964.63	1.8	H(63)</sup>\delta</sup>
0.038 (0.009)	0.6 (0.5)	0.025 (0.016)	3.23 (0.05)	95995.11	95994.06	4.2	c-HCCCD 2(1,1)-1(1,0)
0.030 (0.009)	4.0 (1.7)	0.13 (0.05)	0.24 (0.16)	95996.07	95994.06	3.4	c-HCCCD 2(1,1)-1(1,0)
0.222 (0.020)	4.2 (0.6)	0.99 (0.10)	16.09 (0.10)	96224.49	96227.57	5.2	CH₃CHO vt=1 5(3,2)-4(3,1)
0.086 (0.020)	1.9 (0.9)	0.18 (0.07)	12.45 (0.10)	96225.66	96227.57	2.0	CH₃CHO vt=1 5(3,2)-4(3,1)
0.053 (0.021)	1.1 (1.0)	0.06 (0.06)	5.96 (0.12)	96236.73	96236.6	0.5	Unidentified 96.237 GHz
0.156 (0.021)	3.9 (0.8)	0.64 (0.10)	5.96 (0.08)	96237.38	96237.2	1.4	Unidentified 96.237 GHz
0.068 (0.021)	3.0 (1.5)	0.21 (0.09)	5.96 (0.15)	96238.63	96238.5	0.6	Unidentified 96.239 GHz
0.107 (0.010)	0.10 (0.07)	0.011 (0.008)	9.60 (0.09)	97061.10	97062.11	8.5	C₇H J=111/2-109/2, F=56-55 (2)
0.029 (0.009)	1.0 (0.8)	0.030 (0.022)	5.97 (0.09)	97981.13	97980.95	3.3	CS 2→1
0.040 (0.009)	0.8 (0.5)	0.032 (0.020)	4.88 (0.06)	97981.48	97980.95	4.5	CS 2→1
0.024 (0.009)	1.0 (0.9)	0.027 (0.022)	6.35 (0.11)	101477.86	101477.81	2.4	H₂CS 3_(1,3)→2_(1,2)
1.9 (0.4)	4.3 (1.2)	8.8 (1.9)	5.99 (0.11)	101732.27	101732.1	13.5	Unidentified
0.042 (0.023)	0.2 (0.3)	0.010 (0.012)	4.06 (0.04)	102546.86	102546.02	4.3	CH₃CCH 6₍₁₎→5₍₁₎
0.20 (0.07)	0.4 (0.4)	0.08 (0.07)	6.02 (0.06)	109553.77	109553.6	0.6	Unidentified
0.061 (0.020)	0.7 (0.7)	0.05 (0.05)	4.99 (0.09)	109782.73	109782.18	3.0	C¹⁸O 1→0
0.39 (0.04)	0.54 (0.15)	0.22 (0.06)	7.527 (0.017)	110200.98	110201.35	6.5	¹³CO 1→0
0.58 (0.04)	3.3 (0.3)	2.05 (0.15)	5.99 (0.03)	110201.54	110201.35	9.7	¹³CO 1→0
1.07 (0.04)	2.55 (0.14)	2.90 (0.13)	5.423 (0.014)	110201.75	110201.35	17.9	¹³CO 1→0

Backend 2mm (134.6 GHz)

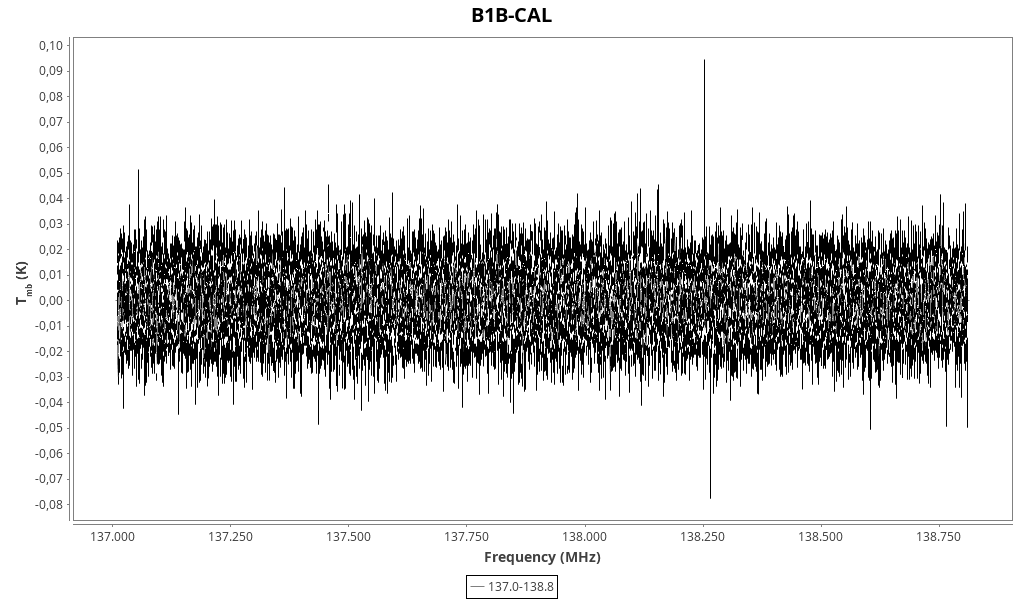

Backend 2mm (137.9 GHz)

Backend 2mm (144.1 GHz)

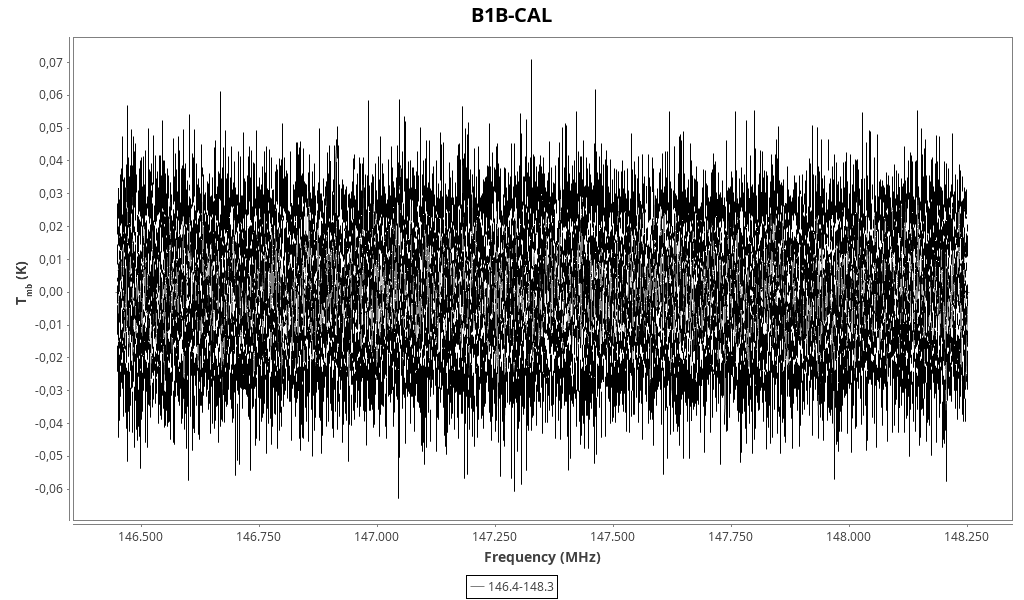

Backend 2mm (147.3 GHz)

Found 1 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.06 (0.03)	0.2 (0.4)	0.010 (0.022)	6.72 (0.03)	147046.77	147046.88	3.4	H(35)</sup>\alpha</sup>

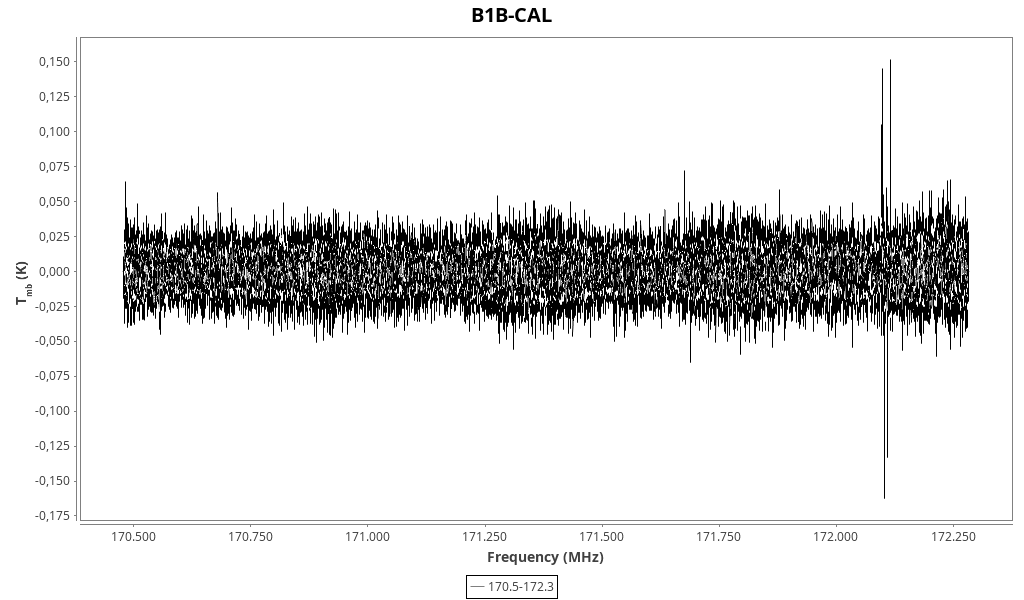

Backend 2mm (168.1 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.26 (0.04)	1.1 (0.5)	0.31 (0.13)	5.82 (0.04)	167566.93	167566.6	3.2	Unidentified 167.570 GHz
0.11 (0.04)	1.4 (1.3)	0.17 (0.14)	5.82 (0.08)	167569.53	167569.2	1.4	Unidentified 167.570 GHz
0.16 (0.04)	3.2 (1.4)	0.52 (0.21)	5.82 (0.08)	167569.81	167569.4	1.9	Unidentified 167.570 GHz
0.15 (0.04)	2.0 (1.2)	0.30 (0.17)	5.82 (0.07)	167573.91	167573.53	7.9	c-¹³CCCH 13(7,6)-13(7,7)
