DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

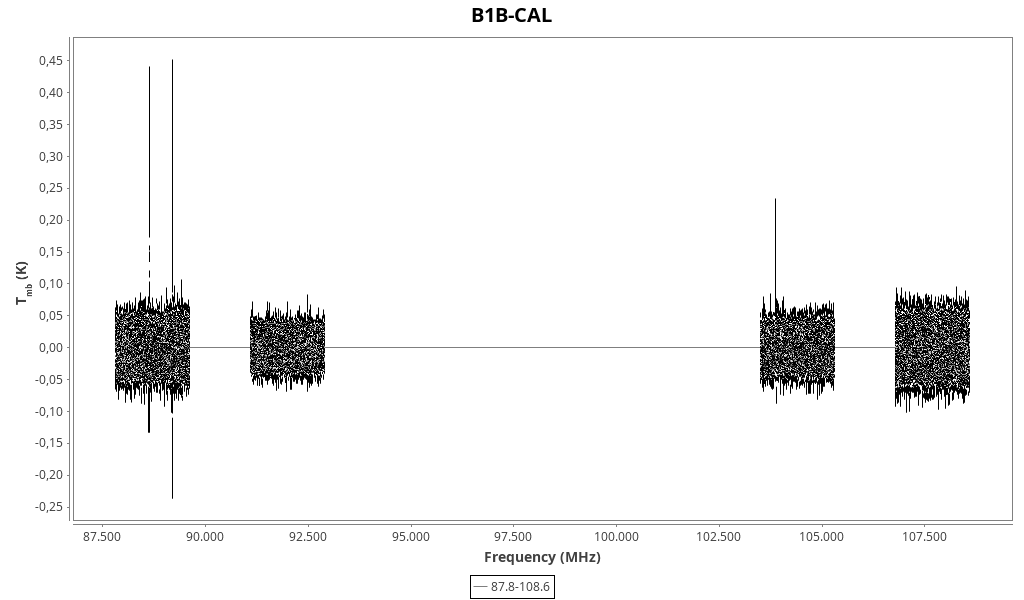

B1B-CAL-50_120

Backend 3mm (87.8-108.6 GHz)

Found 11 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.233 (0.022)	1.6 (0.4)	0.39 (0.07)	6.70 (0.04)	88630.36	88630.42	9.1	HCN 1→0 F=1→1
0.363 (0.022)	1.35 (0.19)	0.52 (0.07)	6.907 (0.020)	88631.73	88631.85	14.0	HCN 1→0 F=2→1
0.12 (0.03)	0.3 (0.3)	0.04 (0.04)	5.66 (0.03)	88632.09	88631.85	4.7	HCN 1→0 F=2→1
0.10 (0.03)	0.4 (0.4)	0.04 (0.04)	5.21 (0.04)	88632.23	88631.85	3.7	HCN 1→0 F=2→1
0.136 (0.022)	0.9 (0.4)	0.13 (0.06)	6.40 (0.05)	88633.97	88633.94	5.0	HCN 1→0 F=0→1
0.33 (0.03)	1.5 (0.3)	0.52 (0.09)	7.48 (0.03)	89188.23	89188.53	14.1	HCO+ 1→0
0.19 (0.03)	2.5 (0.7)	0.50 (0.12)	6.46 (0.07)	89188.54	89188.53	8.1	HCO+ 1→0
0.115 (0.022)	2.1 (0.8)	0.26 (0.08)	8.26 (0.08)	103878.72	103879.33	5.3	CH213CHCN 11(3,9)-10(3,8)
0.123 (0.022)	3.4 (1.0)	0.44 (0.10)	7.66 (0.09)	103878.92	103879.33	5.6	CH213CHCN 11(3,9)-10(3,8)
0.06 (0.03)	0.6 (0.7)	0.04 (0.04)	6.70 (0.09)	104029.35	104029.42	2.6	SO2 31,3→20,2
0.049 (0.020)	0.7 (0.9)	0.04 (0.05)	6.44 (0.09)	104617.13	104617.11	2.6	H2CS 31,2→21,1
