DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B1B-CAL-80_0

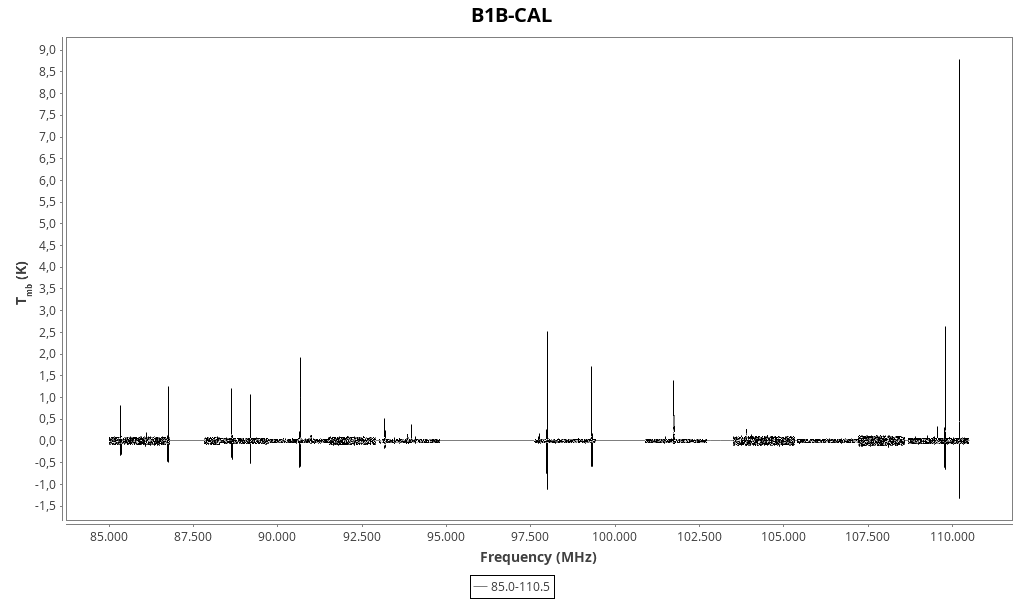

Backend 3mm (85.0-110.5 GHz)

Found 66 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.11 (0.03)	0.4 (0.4)	0.04 (0.05)	6.75 (0.05)	85162.15	85162.22	4.4	HC¹⁸O⁺ 1→0
0.09 (0.04)	0.2 (0.4)	0.02 (0.04)	-151.42 (0.05)	85237.02	85192.15	3.7	o-D₂CS 3→2
0.86 (0.03)	0.54 (0.06)	0.50 (0.05)	6.724 (0.006)	85338.84	85338.90	32.2	c-C₃H₂ 2_1,2→1_0,1
0.053 (0.024)	0.5 (0.9)	0.03 (0.05)	6.85 (0.11)	85457.19	85457.29	2.1	CH₃C₂H 5₀→4₀
0.07 (0.03)	0.6 (0.7)	0.05 (0.05)	6.70 (0.08)	85672.52	85672.58	2.7	C₄H 9→8 J=17/2→15/2
0.11 (0.04)	0.4 (0.4)	0.05 (0.05)	6.82 (0.04)	85926.19	85926.28	5.1	NH₂D 1_1,1→1_0,1 F=2-2
0.33 (0.03)	0.09 (0.06)	0.031 (0.020)	4.10 (0.08)	85928.42	85927.73	14.0	NH₂D 1_1,1→1_0,1 F=1-0
0.08 (0.03)	0.5 (0.6)	0.04 (0.05)	6.70 (0.07)	86054.91	86054.97	3.0	HC¹⁵N 1→0
0.22 (0.04)	0.41 (0.19)	0.09 (0.05)	6.727 (0.021)	86093.89	86093.96	8.5	SO 2₂→1₁
1.24 (0.03)	0.52 (0.04)	0.69 (0.05)	6.692 (0.004)	86754.23	86754.29	47.8	H¹³CO⁺ 1→0
0.738 (0.020)	0.93 (0.07)	0.73 (0.05)	6.717 (0.007)	88630.36	88630.42	16.6	HCN 1→0 F=1→1
1.007 (0.020)	1.06 (0.06)	1.13 (0.05)	6.706 (0.006)	88631.79	88631.85	22.8	HCN 1→0 F=2→1
0.59 (0.04)	0.35 (0.05)	0.22 (0.03)	6.919 (0.008)	88633.82	88633.94	13.2	HCN 1→0 F=0→1
0.55 (0.03)	0.36 (0.06)	0.21 (0.03)	6.564 (0.007)	88633.92	88633.94	12.3	HCN 1→0 F=0→1
0.492 (0.019)	1.08 (0.11)	0.56 (0.05)	7.671 (0.012)	89188.18	89188.53	21.1	HCO⁺ 1→0
0.937 (0.019)	0.86 (0.05)	0.86 (0.05)	6.807 (0.006)	89188.43	89188.53	40.2	HCO⁺ 1→0
0.11 (0.03)	0.5 (0.4)	0.06 (0.04)	5.61 (0.05)	89188.79	89188.53	4.8	HCO⁺ 1→0
0.031 (0.016)	0.4 (0.8)	0.014 (0.025)	9.65 (0.09)	90600.82	90601.78	2.0	HCC¹³CN J=10-9 (4 components around)
0.396 (0.015)	1.70 (0.14)	0.72 (0.05)	6.962 (0.014)	90663.42	90663.56	10.1	HNC 1→0
1.470 (0.015)	0.916 (0.025)	1.43 (0.04)	6.619 (0.003)	90663.53	90663.56	37.3	HNC 1→0
0.064 (0.019)	2.1 (1.2)	0.14 (0.07)	6.71 (0.12)	90980.56	90980.6	1.6	Unidentified
0.059 (0.017)	1.3 (0.8)	0.08 (0.05)	6.84 (0.08)	91494.24	91494.35	3.7	c-C₃H 2(1,2)-1(1,1), J=5/2-3/2, F=3-2
0.434 (0.015)	0.84 (0.08)	0.39 (0.04)	6.523 (0.009)	93171.87	93171.88	11.2	N₂H⁺ 1→0 F=1→1
0.422 (0.015)	1.64 (0.12)	0.74 (0.05)	6.679 (0.013)	93173.64	93173.70	11.1	N₂H⁺ 1→0 F=1→2
0.263 (0.018)	0.47 (0.09)	0.13 (0.03)	6.417 (0.011)	93176.16	93176.13	7.0	N₂H⁺ 1→0 F=1→0
0.064 (0.020)	0.3 (0.4)	0.023 (0.022)	6.02 (0.04)	93176.28	93176.13	1.7	N₂H⁺ 1→0 F=1→0
0.091 (0.024)	0.4 (0.4)	0.04 (0.03)	6.81 (0.04)	93870.00	93870.10	4.4	C₂S N=7→6 J=8→7
0.035 (0.011)	0.7 (0.7)	0.026 (0.023)	6.70 (0.07)	93954.69	93954.8	0.5	Unidentified 93.956 GHz
0.128 (0.011)	2.9 (0.5)	0.39 (0.05)	6.70 (0.04)	93956.20	93956.3	1.7	Unidentified 93.956 GHz
0.07 (0.08)	0.17 (0.19)	0.013 (0.011)	6.70 (0.06)	93957.80	93957.9	0.9	Unidentified 93.959 GHz
0.074 (0.011)	1.1 (0.4)	0.08 (0.03)	6.70 (0.05)	93957.99	93958.1	1.0	Unidentified 93.959 GHz
0.022 (0.011)	1.2 (1.5)	0.03 (0.03)	6.70 (0.17)	93958.52	93958.6	0.3	Unidentified 93.959 GHz
0.103 (0.022)	0.28 (0.18)	0.030 (0.019)	6.701 (0.021)	94081.14	94081.2	8.0	Unidentified
0.103 (0.014)	0.47 (0.21)	0.051 (0.022)	6.756 (0.023)	97715.32	97715.40	8.6	³⁴SO 3₍₂₎→2₍₁₎
0.20 (0.04)	0.19 (0.06)	0.041 (0.013)	6.247 (0.012)	97762.07	97761.99	17.9	c-C₃D₂ 3→2
1.880 (0.011)	0.928 (0.015)	1.86 (0.03)	6.7156 (0.0015)	97980.88	97980.95	53.0	CS 2→1
0.488 (0.011)	2.21 (0.09)	1.15 (0.05)	6.663 (0.009)	97980.90	97980.95	13.8	CS 2→1
0.021 (0.011)	0.5 (0.7)	0.010 (0.014)	8.09 (0.08)	98720.60	98721.12	1.6	C(57)</sup>\gamma</sup>
0.046 (0.023)	0.3 (0.4)	0.016 (0.017)	5.76 (0.06)	99274.97	99274.72	3.5	C(50)</sup>\beta</sup>
1.584 (0.013)	0.774 (0.018)	1.30 (0.03)	6.7857 (0.0019)	99299.80	99299.89	62.4	SO 3₍₂₎→2₍₁₎
0.279 (0.013)	1.06 (0.12)	0.31 (0.04)	6.018 (0.013)	99300.05	99299.89	11.0	SO 3₍₂₎→2₍₁₎
0.041 (0.018)	0.4 (0.5)	0.016 (0.018)	6.55 (0.06)	101314.80	101314.82	3.5	DC₃N J=12-11
0.087 (0.015)	0.54 (0.25)	0.050 (0.022)	6.79 (0.03)	101477.71	101477.81	7.8	H₂CS 3_(1,3)→2_(1,2)
0.036 (0.014)	0.5 (0.6)	0.020 (0.022)	6.29 (0.07)	101477.88	101477.81	3.2	H₂CS 3_(1,3)→2_(1,2)
0.55 (0.07)	3.3 (0.7)	1.9 (0.4)	-0.11 (0.07)	101739.41	101737.17	1.4	CH₃OH 9(-2,8)-9(1,8)
0.39 (0.07)	1.2 (0.6)	0.51 (0.20)	-1.79 (0.06)	101739.98	101737.17	1.0	CH₃OH 9(-2,8)-9(1,8)
0.046 (0.015)	0.3 (0.4)	0.016 (0.016)	7.55 (0.04)	101769.55	101769.91	3.7	H(70)</sup>\zeta</sup>
0.10 (0.03)	2.2 (1.3)	0.22 (0.11)	8.01 (0.13)	103878.80	103879.33	3.4	CH₂¹³CHCN 11(3,9)-10(3,8)
0.15 (0.03)	4.8 (1.4)	0.78 (0.17)	7.00 (0.12)	103879.15	103879.33	5.6	CH₂¹³CHCN 11(3,9)-10(3,8)
0.14 (0.05)	0.4 (0.4)	0.07 (0.06)	6.55 (0.05)	104029.40	104029.42	4.5	SO₂ 3_1,3→2_0,2
0.12 (0.05)	0.5 (0.5)	0.06 (0.06)	7.07 (0.07)	104616.91	104617.11	3.2	H₂CS 3_1,2→2_1,1
0.025 (0.020)	0.2 (0.5)	0.006 (0.013)	5.15 (0.08)	106348.21	106347.73	1.6	C₂S N=8→7 J=9→8
0.030 (0.020)	0.3 (0.6)	0.010 (0.018)	7.21 (0.08)	106810.82	106811.07	2.3	c-HCCCD 3(0,3)-2(0,2)
0.07 (0.03)	0.6 (0.9)	0.04 (0.06)	6.63 (0.09)	107206.06	107206.11	2.0	H(65)</sup>\epsilon</sup>
0.112 (0.019)	0.5 (0.3)	0.06 (0.04)	6.67 (0.03)	108893.88	108893.95	6.3	CH₃OH 0_0,0→1_-1,1
0.11 (0.03)	0.5 (0.4)	0.06 (0.04)	6.72 (0.04)	109252.10	109252.18	5.4	SO 2₃→1₂
0.204 (0.022)	2.0 (0.5)	0.42 (0.08)	6.67 (0.05)	109560.49	109560.6	10.5	Unidentified 109.560 GHz
0.196 (0.022)	2.4 (0.5)	0.49 (0.09)	6.67 (0.05)	109560.90	109561.0	10.0	Unidentified 109.560 GHz
2.255 (0.021)	1.019 (0.024)	2.45 (0.06)	6.786 (0.003)	109782.07	109782.18	71.5	C¹⁸O 1→0
1.412 (0.021)	0.95 (0.04)	1.43 (0.06)	6.127 (0.004)	109782.31	109782.18	44.7	C¹⁸O 1→0
0.203 (0.021)	0.82 (0.24)	0.18 (0.05)	5.22 (0.03)	109782.65	109782.18	6.4	C¹⁸O 1→0
0.070 (0.020)	0.6 (0.6)	0.05 (0.04)	6.88 (0.06)	109905.61	109905.75	3.5	HNCO 5→4
0.74 (0.04)	0.85 (0.12)	0.67 (0.09)	8.344 (0.013)	110200.68	110201.35	7.4	¹³CO 1→0
6.41 (0.04)	1.320 (0.017)	9.00 (0.11)	7.1355 (0.0018)	110201.12	110201.35	63.6	¹³CO 1→0
5.96 (0.04)	2.024 (0.024)	12.83 (0.13)	6.0662 (0.0024)	110201.51	110201.35	59.2	¹³CO 1→0
0.343 (0.021)	0.10 (0.05)	0.035 (0.016)	5.22 (0.08)	110364.94	110364.47	16.6	CH₃CN 6₃→5₃

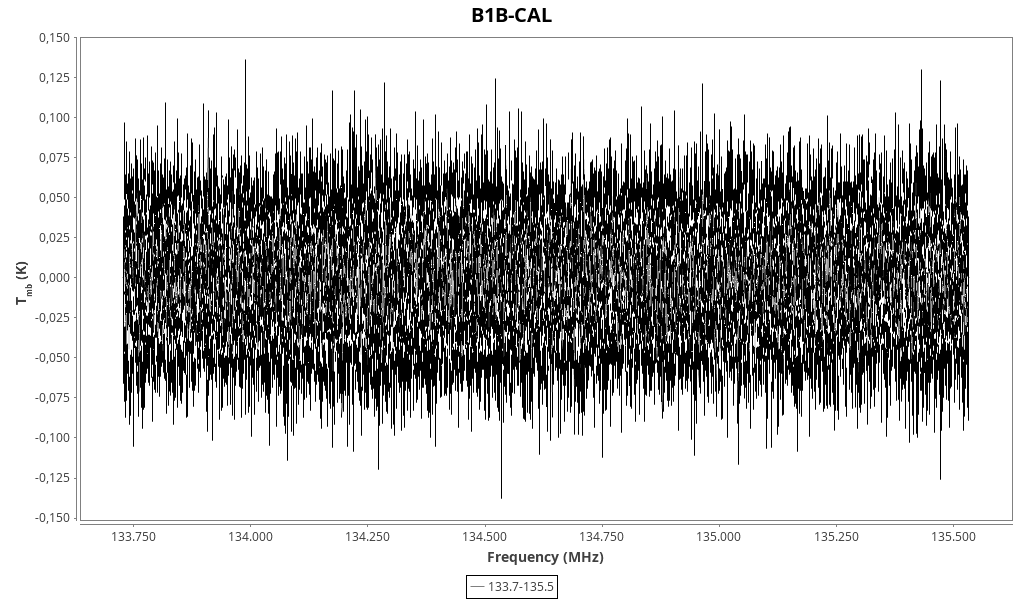

Backend 2mm (134.6 GHz)

Found 1 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.11 (0.05)	0.3 (0.6)	0.03 (0.06)	6.60 (0.04)	134284.86	134284.90	2.9	HDCO 2(1,1)-1(1,0)

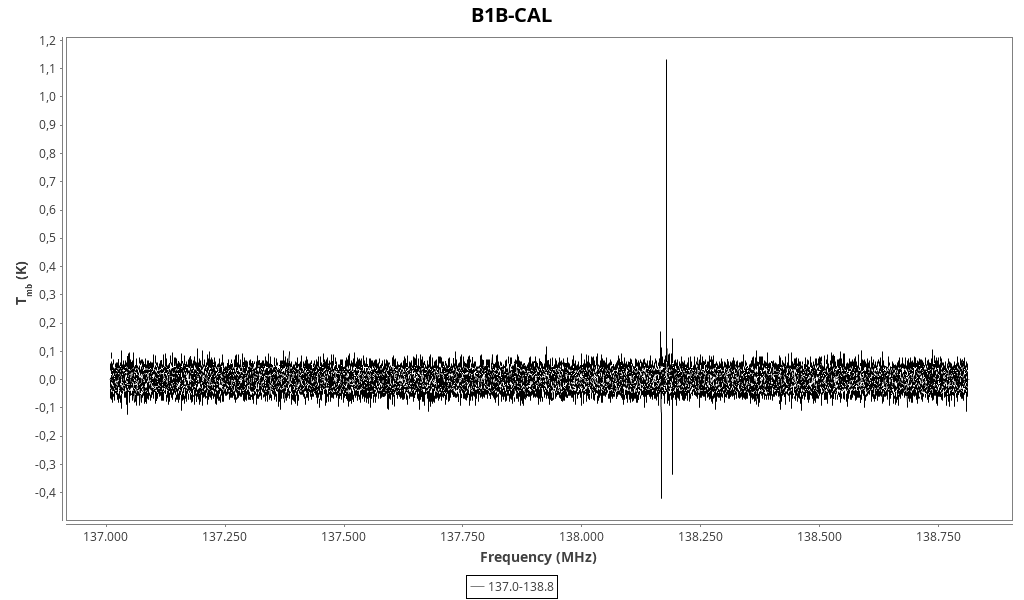

Backend 2mm (137.9 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.88 (0.04)	0.48 (0.08)	0.46 (0.07)	6.778 (0.006)	138178.53	138178.66	25.5	SO 4₃→3₂
0.20 (0.04)	1.6 (0.7)	0.34 (0.13)	6.71 (0.05)	138178.56	138178.66	5.8	SO 4₃→3₂

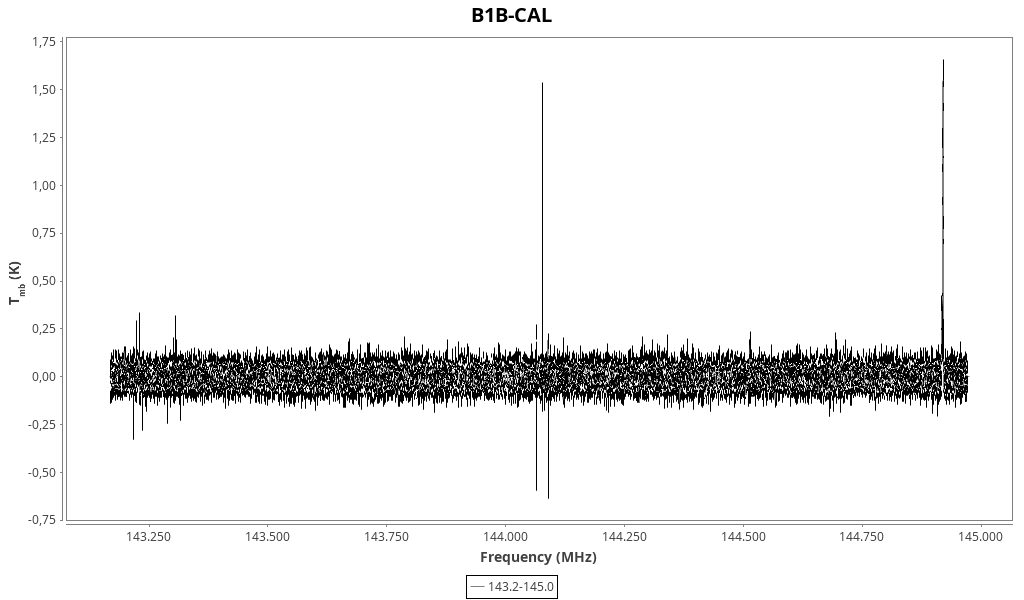

Backend 2mm (144.1 GHz)

Found 7 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
1.24 (0.07)	0.06 (0.04)	0.07 (0.05)	6.64 (0.05)	143229.75	143229.8	21.7	Unidentified 143.229 GHz
1.80 (0.06)	0.054 (0.022)	0.10 (0.05)	6.64 (0.05)	143305.08	143305.1	31.8	Unidentified 143.305 GHz
1.55 (0.07)	0.41 (0.08)	0.68 (0.12)	6.638 (0.006)	144077.22	144077.29	26.0	DCO⁺ J=2-1 (multiple components around)
0.31 (0.08)	0.3 (0.4)	0.10 (0.10)	6.314 (0.023)	144077.38	144077.29	5.2	DCO⁺ J=2-1 (multiple components around)
0 (60)	0.1 (1.9)	0 (4)	7.92 (0.04)	144287.90	144288.58	11.7	H(62)</sup>\zeta</sup>
0.28 (0.06)	1.3 (0.8)	0.40 (0.21)	6.64 (0.05)	144917.35	144917.4	0.8	Unidentified 144.916 GHz
0.97 (0.06)	0.69 (0.15)	0.71 (0.15)	6.637 (0.012)	144918.99	144919.1	2.8	Unidentified 144.916 GHz

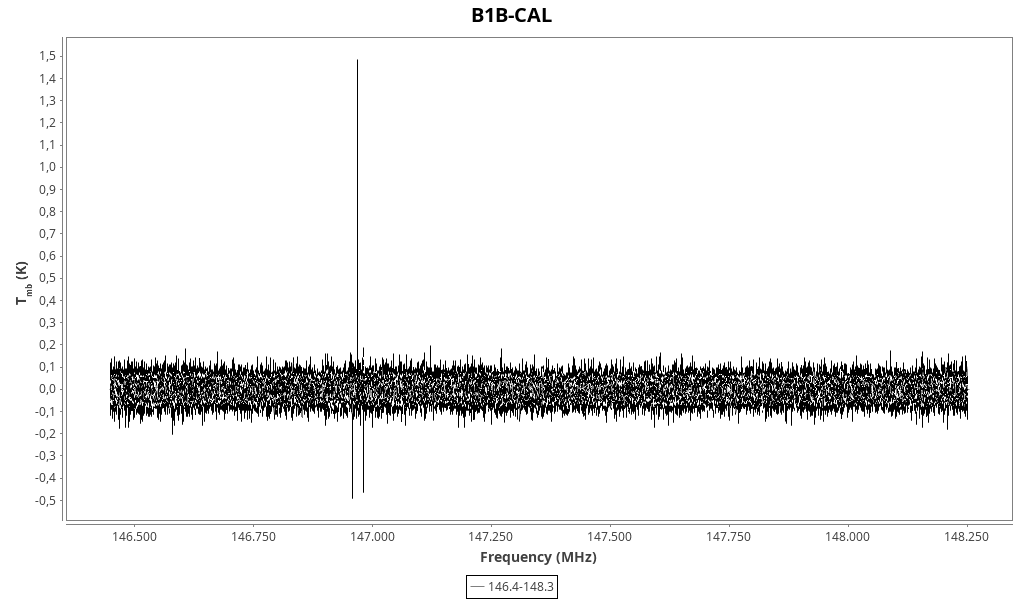

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.33 (0.05)	1.4 (0.6)	0.51 (0.18)	6.84 (0.04)	146968.86	146969.03	6.5	CS 3→2
1.07 (0.05)	0.63 (0.11)	0.72 (0.12)	6.698 (0.008)	146968.93	146969.03	20.8	CS 3→2

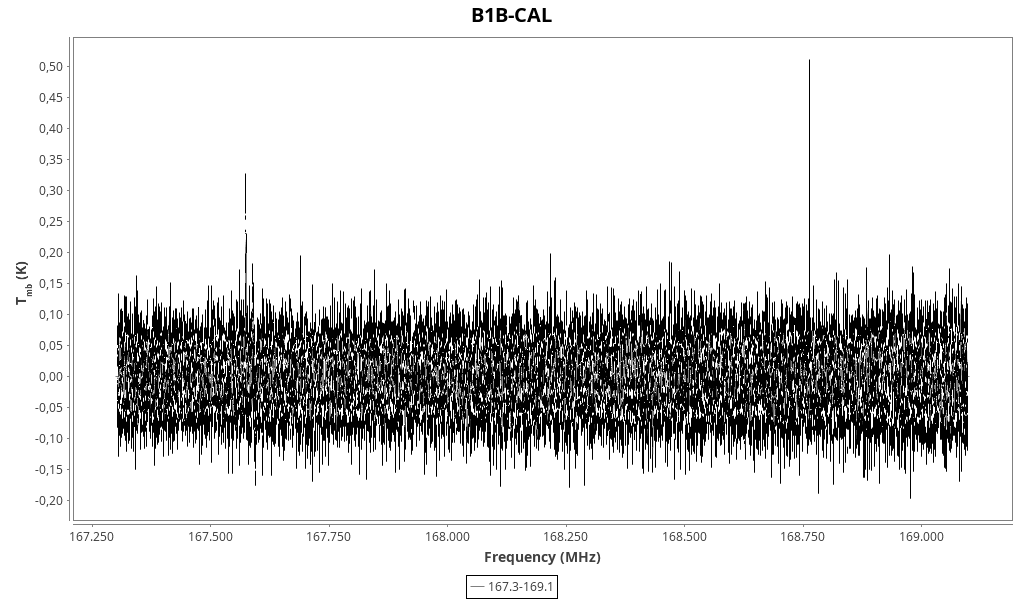

Backend 2mm (168.2 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.23 (0.05)	1.9 (1.1)	0.47 (0.24)	5.53 (0.07)	167574.07	167573.53	5.1	c-¹³CCCH 13(7,6)-13(7,7)
0.15 (0.05)	0.8 (0.9)	0.13 (0.15)	4.62 (0.06)	167574.58	167573.53	3.4	c-¹³CCCH 13(7,6)-13(7,7)
0.17 (0.05)	1.1 (1.0)	0.19 (0.17)	6.89 (0.07)	168762.53	168762.75	3.6	H₂S 1_(1,0)→1_(0,1)
0.35 (0.06)	0.4 (0.3)	0.14 (0.10)	6.689 (0.017)	168762.65	168762.75	7.3	H₂S 1_(1,0)→1_(0,1)

Backend 2mm (171.5 GHz)

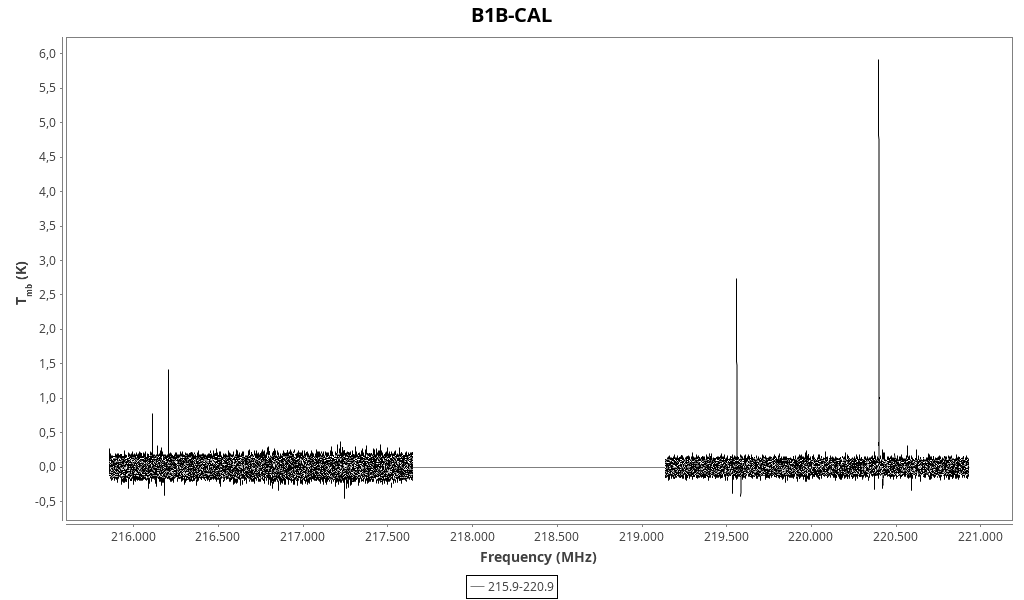

Backend 1mm (215.9-220.9 GHz)

Found 10 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.80 (0.08)	0.32 (0.19)	0.28 (0.16)	6.713 (0.009)	216112.43	216112.58	12.1	DCO⁺ J=3-2 (multiple components around)
0.36 (0.09)	0.2 (0.4)	0.06 (0.12)	6.345 (0.015)	216112.69	216112.58	5.3	DCO⁺ J=3-2 (multiple components around)
1.49 (0.15)	0.09 (0.06)	0.14 (0.09)	6.713 (0.004)	216202.60	216202.8	19.6	Unidentified 216.203 GHz
0.37 (0.15)	0.1 (0.3)	0.05 (0.12)	6.713 (0.014)	216794.97	216795.1	4.3	Unidentified 216.795 GHz
2.23 (0.09)	0.04 (0.03)	0.09 (0.07)	6.71 (0.04)	217219.98	217220.1	25.2	Unidentified 217.220 GHz
1.50 (0.06)	0.70 (0.13)	1.12 (0.19)	6.828 (0.006)	219560.12	219560.36	21.1	C¹⁸O 2→1
1.24 (0.06)	1.36 (0.22)	1.8 (0.3)	6.470 (0.010)	219560.38	219560.36	17.4	C¹⁸O 2→1
2.08 (0.06)	1.27 (0.11)	2.81 (0.24)	7.199 (0.006)	220398.17	220398.68	22.6	¹³CO 2→1
4.32 (0.06)	2.26 (0.08)	10.4 (0.4)	6.569 (0.004)	220398.63	220398.68	47.3	¹³CO 2→1
0.32 (0.08)	0.14 (0.24)	0.05 (0.08)	6.709 (0.012)	220564.99	220565.1	5.2	Unidentified 220.565 GHz
