DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B213-C1-6-0_0

Backend 3mm (85.0-110.5 GHz)

Found 43 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.425 (0.019)	0.28 (0.04)	0.127 (0.017)	6.670 (0.005)	85338.57	85338.90	38.4	c-C₃H₂ 2_1,2→1_0,1
0.095 (0.019)	0.28 (0.16)	0.028 (0.016)	6.690 (0.019)	86093.62	86093.96	9.2	SO 2₂→1₁
0.04 (0.03)	0.2 (0.3)	0.009 (0.013)	6.61 (0.05)	86181.07	86181.39	3.9	CCS 6→5, N=7-6
0.046 (0.023)	0.3 (0.3)	0.012 (0.014)	6.65 (0.04)	86338.40	86338.73	3.9	H¹³CN 1₁→0₁
0.054 (0.013)	0.5 (0.4)	0.027 (0.019)	5.66 (0.04)	86339.88	86339.92	4.6	H¹³CN 1→0
0.463 (0.017)	0.35 (0.04)	0.173 (0.018)	6.632 (0.005)	86753.96	86754.29	38.1	H¹³CO⁺ 1→0
0.046 (0.008)	0.9 (0.4)	0.045 (0.018)	7.29 (0.05)	88631.32	88631.85	4.8	HCN 1→0 F=2→1
0.058 (0.008)	1.2 (0.4)	0.072 (0.021)	5.89 (0.04)	88631.73	88631.85	6.1	HCN 1→0 F=2→1
0.033 (0.011)	0.4 (0.4)	0.013 (0.012)	7.13 (0.04)	88633.46	88633.94	3.5	HCN 1→0 F=0→1
0.198 (0.010)	0.39 (0.06)	0.082 (0.012)	6.654 (0.007)	88633.60	88633.94	21.5	HCN 1→0 F=0→1
0.136 (0.008)	1.00 (0.15)	0.144 (0.020)	6.904 (0.016)	89188.11	89188.53	16.3	HCO⁺ 1→0
0.121 (0.008)	0.98 (0.17)	0.127 (0.020)	5.581 (0.018)	89188.50	89188.53	14.4	HCO⁺ 1→0
0.158 (0.025)	0.35 (0.17)	0.06 (0.03)	7.235 (0.019)	90663.04	90663.56	8.2	HNC 1→0
0.460 (0.022)	0.59 (0.08)	0.29 (0.04)	6.526 (0.009)	90663.25	90663.56	24.0	HNC 1→0
0.26 (0.04)	0.21 (0.09)	0.06 (0.03)	6.678 (0.015)	92419.96	92420.3	34.3	Unidentified
0.037 (0.009)	0.6 (0.5)	0.024 (0.016)	6.68 (0.05)	92493.91	92494.27	4.9	¹³CS 2→1
0 (16)	0 (6)	0.0 (1.5)	6.67 (0.05)	92981.24	92981.60	14.9	HDCS 3(0,3)-2(0,2) ? (CH3OCHO)
0.125 (0.007)	0.71 (0.11)	0.094 (0.014)	6.442 (0.012)	93171.59	93171.88	15.3	N₂H⁺ 1→0 F=1→1
0.138 (0.009)	0.36 (0.07)	0.053 (0.010)	7.402 (0.008)	93173.11	93173.70	16.9	N₂H⁺ 1→0 F=1→2
0.187 (0.010)	0.40 (0.06)	0.080 (0.011)	6.415 (0.006)	93173.42	93173.70	22.9	N₂H⁺ 1→0 F=1→2
0.066 (0.009)	0.28 (0.13)	0.020 (0.009)	5.813 (0.015)	93173.60	93173.70	8.2	N₂H⁺ 1→0 F=1→2
0.10 (0.04)	0.18 (0.08)	0.018 (0.007)	6.349 (0.019)	93175.87	93176.13	11.5	N₂H⁺ 1→0 F=1→0
0.10 (0.15)	0.15 (0.21)	0.015 (0.009)	6.08 (0.08)	93175.95	93176.13	11.7	N₂H⁺ 1→0 F=1→0
0.08 (0.04)	0.25 (0.21)	0.022 (0.018)	6.681 (0.022)	93869.73	93870.10	7.3	C₂S N=7→6 J=8→7
0.204 (0.012)	0.35 (0.06)	0.076 (0.013)	6.639 (0.007)	96412.59	96412.95	21.8	C³⁴S 2→1
0.026 (0.009)	0.6 (0.6)	0.016 (0.014)	9.15 (0.06)	96738.18	96739.36	3.6	CH₃OH 2_(-1,2)→1_(-1,1)
0.182 (0.010)	0.41 (0.06)	0.079 (0.012)	6.635 (0.007)	96738.99	96739.36	25.2	CH₃OH 2_(-1,2)→1_(-1,1)
0.253 (0.009)	0.45 (0.05)	0.120 (0.012)	6.637 (0.005)	96741.00	96741.37	35.9	CH₃OH 2_(0,2)→1_(0,1) ++
0.040 (0.012)	0.3 (0.4)	0.015 (0.013)	6.76 (0.04)	97714.99	97715.40	5.0	³⁴SO 3₍₂₎→2₍₁₎
1.044 (0.012)	0.555 (0.018)	0.616 (0.019)	6.6799 (0.0020)	97980.57	97980.95	92.1	CS 2→1
0.158 (0.014)	0.45 (0.11)	0.075 (0.017)	5.839 (0.013)	97980.84	97980.95	14.0	CS 2→1
0.030 (0.014)	0.3 (0.4)	0.009 (0.012)	6.10 (0.05)	98011.41	98011.61	3.3	l-C₃H J=9/2-7/2, Omega=1/2, F=5-4, l=f
0.029 (0.009)	1.0 (0.8)	0.031 (0.023)	6.27 (0.09)	98012.27	98012.52	3.2	l-C₃H J=9/2-7/2, Omega=1/2, F=4-3, l=f
0.13 (0.04)	0.22 (0.12)	0.031 (0.016)	7.027 (0.014)	99299.38	99299.89	11.0	SO 3₍₂₎→2₍₁₎
1.036 (0.019)	0.359 (0.019)	0.396 (0.020)	6.6572 (0.0021)	99299.51	99299.89	86.7	SO 3₍₂₎→2₍₁₎
0.105 (0.019)	0.33 (0.18)	0.037 (0.019)	5.823 (0.020)	99299.78	99299.89	9.1	SO 3₍₂₎→2₍₁₎
0.114 (0.016)	0.42 (0.16)	0.051 (0.019)	6.649 (0.018)	101477.42	101477.81	11.3	H₂CS 3_(1,3)→2_(1,2)
0.61 (0.11)	3.2 (1.0)	2.1 (0.5)	6.57 (0.09)	101732.41	101732.8	19.3	Unidentified
0 (20)	0 (6)	0.0 (1.9)	6.46 (0.18)	108779.85	108780.20	5.4	¹³CN N=1→0 J=3/2→1/2
0.296 (0.023)	0.58 (0.14)	0.18 (0.05)	7.124 (0.015)	109781.58	109782.18	14.6	C¹⁸O 1→0
1.30 (0.03)	0.46 (0.03)	0.64 (0.04)	6.615 (0.003)	109781.77	109782.18	63.4	C¹⁸O 1→0
2.125 (0.017)	1.61 (0.03)	3.64 (0.06)	6.812 (0.003)	110200.87	110201.35	18.8	¹³CO 1→0
1.331 (0.017)	2.57 (0.06)	3.65 (0.07)	6.647 (0.006)	110200.93	110201.35	11.8	¹³CO 1→0

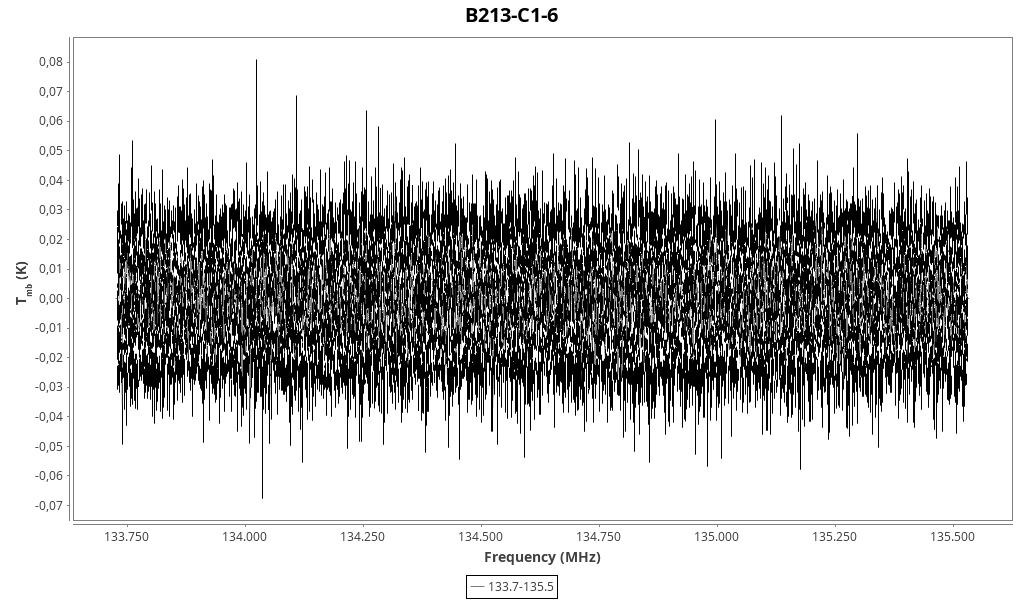

Backend 2mm (134.6 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.316 (0.014)	0.06 (0.04)	0.020 (0.011)	6.97 (0.06)	134024.01	134024.7	21.5	Unidentified 134.024 GHz
0.057 (0.018)	0.3 (0.4)	0.015 (0.024)	6.95 (0.03)	135297.60	135298.26	3.9	H₂CS 4(1,4)-3(1,3)

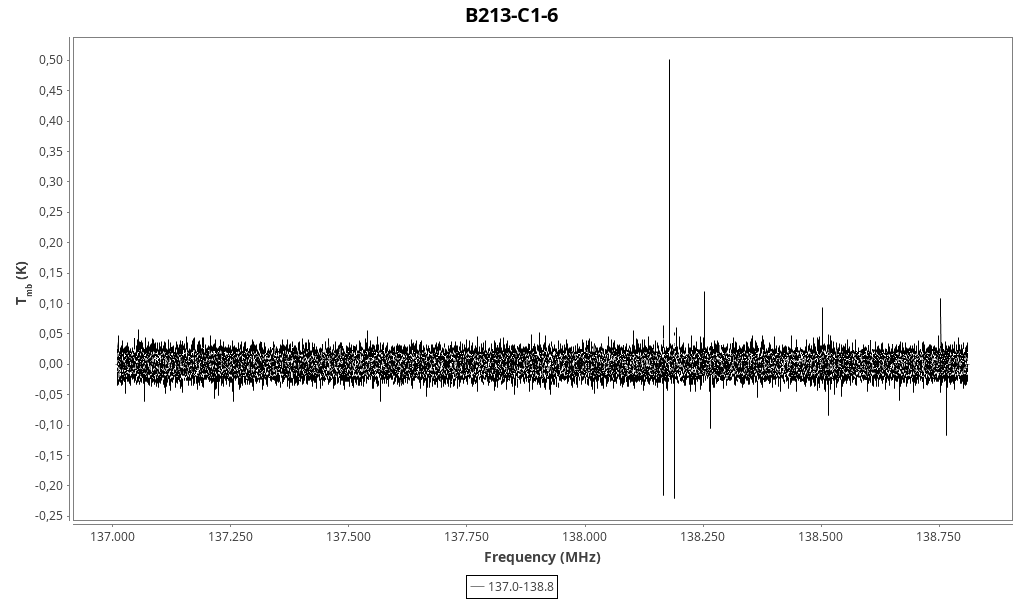

Backend 2mm (137.9 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.527 (0.019)	0.30 (0.05)	0.171 (0.024)	6.635 (0.004)	138178.14	138178.66	36.3	SO 4₃→3₂
0.442 (0.013)	0.058 (0.021)	0.027 (0.009)	6.63 (0.06)	138254.01	138254.5	34.8	Unidentified 138.254 GHz
0.09 (0.04)	0.12 (0.15)	0.012 (0.015)	6.633 (0.024)	138504.00	138504.5	6.5	Unidentified 138.504 GHz
0.11 (0.10)	0.09 (0.12)	0.011 (0.014)	6.63 (0.07)	138754.00	138754.5	7.7	Unidentified 138.754 GHz

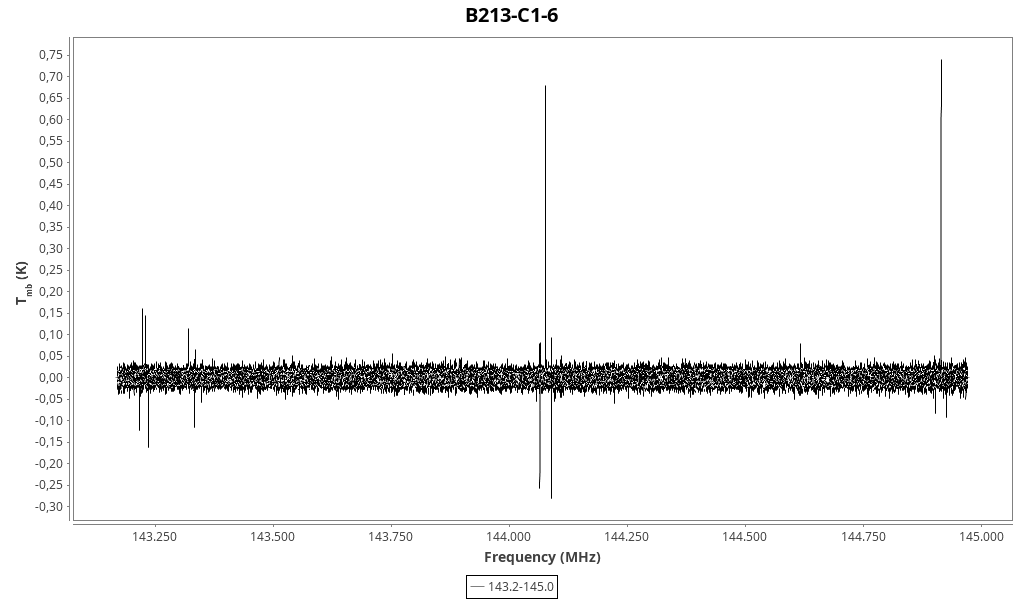

Backend 2mm (144.1 GHz)

Found 6 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.797 (0.016)	0.054 (0.014)	0.046 (0.012)	6.63 (0.05)	143223.48	143224.0	54.1	Unidentified 143.224 GHz
0.13 (0.03)	0.16 (0.15)	0.022 (0.020)	6.625 (0.011)	143320.46	143321.0	10.0	Unidentified
0.734 (0.018)	0.27 (0.03)	0.213 (0.023)	6.6192 (0.0023)	144076.75	144077.29	28.9	DCO⁺ J=2-1 (multiple components around)
0.080 (0.021)	0.3 (0.3)	0.024 (0.025)	6.571 (0.023)	144616.58	144617.10	5.4	C³⁴S 3→2
0.348 (0.015)	1.47 (0.16)	0.55 (0.06)	6.613 (0.011)	144914.29	144914.8	23.5	Unidentified 144.914 GHz
0.375 (0.015)	1.86 (0.18)	0.74 (0.07)	6.613 (0.012)	144914.38	144914.9	25.3	Unidentified 144.914 GHz
