DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B213-C10-9-0_0

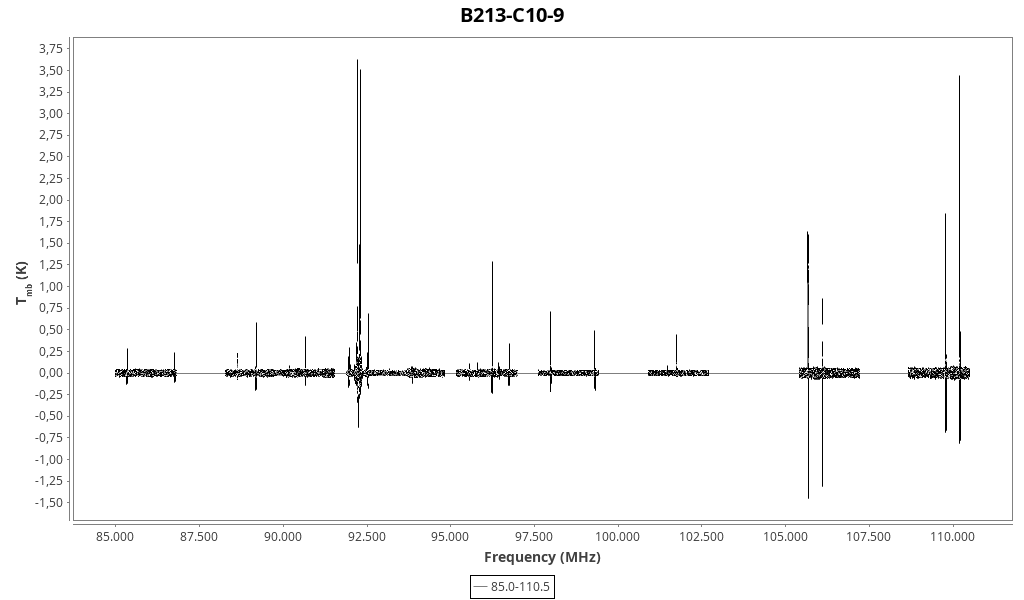

Backend 3mm (85.0-110.5 GHz)

Found 87 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.303 (0.017)	0.36 (0.07)	0.117 (0.020)	6.852 (0.007)	85338.52	85338.90	24.0	c-C₃H₂ 2_1,2→1_0,1
0.251 (0.015)	0.41 (0.08)	0.110 (0.019)	6.804 (0.008)	86753.91	86754.29	23.5	H¹³CO⁺ 1→0
0.162 (0.011)	0.81 (0.16)	0.139 (0.025)	6.663 (0.017)	88630.08	88630.42	8.0	HCN 1→0 F=1→1
0.155 (0.012)	0.66 (0.15)	0.109 (0.023)	5.472 (0.016)	88630.43	88630.42	7.7	HCN 1→0 F=1→1
0.188 (0.011)	1.89 (0.22)	0.38 (0.04)	6.157 (0.022)	88631.65	88631.85	9.4	HCN 1→0 F=2→1
0.101 (0.017)	0.34 (0.16)	0.036 (0.016)	5.352 (0.020)	88631.89	88631.85	5.0	HCN 1→0 F=2→1
0.174 (0.013)	0.43 (0.11)	0.080 (0.019)	6.799 (0.012)	88633.56	88633.94	8.8	HCN 1→0 F=0→1
0.533 (0.012)	0.63 (0.05)	0.357 (0.022)	6.629 (0.005)	89188.19	89188.53	31.3	HCO⁺ 1→0
0.400 (0.014)	0.55 (0.05)	0.234 (0.021)	5.462 (0.006)	89188.54	89188.53	23.4	HCO⁺ 1→0
0.077 (0.012)	0.10 (0.11)	0.008 (0.009)	4.70 (0.08)	89198.78	89198.54	2.6	H(59)</sup>\gamma</sup>
0.424 (0.014)	0.84 (0.08)	0.38 (0.04)	6.694 (0.009)	90663.20	90663.56	29.9	HNC 1→0
0.122 (0.014)	0.72 (0.25)	0.09 (0.03)	5.41 (0.03)	90663.59	90663.56	8.6	HNC 1→0
0.27 (0.07)	0.23 (0.10)	0.07 (0.03)	6.362 (0.010)	91951.58	91951.8	23.0	Unidentified
0.37 (0.09)	0.21 (0.08)	0.08 (0.04)	6.362 (0.013)	91969.59	91969.9	27.3	Unidentified
0 (3)	0.1 (1.1)	0.0 (0.3)	6.36 (0.11)	91973.60	91973.9	23.6	Unidentified
0.716 (0.014)	0.091 (0.014)	0.069 (0.010)	6.36 (0.08)	92001.59	92001.9	65.7	Unidentified
0.12 (0.03)	0.25 (0.13)	0.033 (0.016)	6.360 (0.014)	92137.60	92137.9	13.3	Unidentified
0.42 (0.07)	0.26 (0.11)	0.11 (0.05)	6.360 (0.012)	92182.33	92182.6	15.3	Unidentified
1.7 (0.5)	0.23 (0.12)	0.41 (0.22)	6.360 (0.014)	92200.30	92200.6	21.3	Unidentified
2.6 (0.6)	0.23 (0.08)	0.61 (0.21)	6.360 (0.008)	92200.78	92201.0	32.3	Unidentified
0.49 (0.12)	0.31 (0.23)	0.16 (0.12)	6.36 (0.03)	92202.23	92202.5	5.3	Unidentified
0.52 (0.16)	0.25 (0.21)	0.14 (0.12)	6.359 (0.025)	92216.89	92217.2	6.7	Unidentified
1.94 (0.07)	0.096 (0.024)	0.20 (0.05)	6.36 (0.08)	92217.83	92218.1	26.7	Unidentified
2.8 (0.8)	0.22 (0.12)	0.7 (0.4)	6.359 (0.014)	92218.31	92218.6	40.4	Unidentified
4.2 (0.6)	0.24 (0.09)	1.1 (0.4)	6.359 (0.010)	92218.80	92219.1	60.5	Unidentified
0.77 (0.17)	0.24 (0.14)	0.20 (0.11)	6.359 (0.017)	92219.28	92219.5	11.7	Unidentified
0.44 (0.09)	0.32 (0.21)	0.15 (0.09)	6.359 (0.024)	92219.76	92220.0	7.0	Unidentified
0.98 (0.22)	0.26 (0.13)	0.27 (0.14)	6.359 (0.014)	92220.22	92220.5	16.2	Unidentified
0.61 (0.24)	0.21 (0.12)	0.13 (0.08)	6.359 (0.016)	92220.71	92221.0	10.0	Unidentified
0.6 (0.5)	0.19 (0.12)	0.13 (0.08)	6.359 (0.012)	92277.02	92277.3	11.8	Unidentified
2.0 (0.5)	0.23 (0.08)	0.49 (0.17)	6.359 (0.009)	92278.44	92278.7	31.2	Unidentified
5.13 (0.15)	0.100 (0.021)	0.55 (0.12)	6.36 (0.08)	92278.92	92279.2	74.1	Unidentified
0.51 (0.15)	0.26 (0.19)	0.14 (0.10)	6.359 (0.021)	92294.54	92294.8	8.8	Unidentified
0.96 (0.18)	0.28 (0.15)	0.28 (0.15)	6.359 (0.017)	92295.02	92295.3	17.0	Unidentified
0.38 (0.09)	0.34 (0.24)	0.14 (0.09)	6.36 (0.03)	92295.49	92295.7	6.7	Unidentified
0.8 (0.3)	0.23 (0.14)	0.19 (0.12)	6.359 (0.016)	92295.96	92296.2	14.4	Unidentified
4.2 (0.7)	0.24 (0.09)	1.1 (0.4)	6.359 (0.009)	92296.45	92296.7	79.5	Unidentified
2.8 (0.5)	0.26 (0.13)	0.8 (0.4)	6.359 (0.015)	92296.93	92297.2	53.9	Unidentified
0.44 (0.14)	0.22 (0.16)	0.10 (0.08)	6.359 (0.024)	92297.42	92297.7	8.6	Unidentified
0.57 (0.19)	0.24 (0.17)	0.15 (0.11)	6.359 (0.018)	92298.36	92298.6	11.4	Unidentified
0.70 (0.20)	0.22 (0.14)	0.17 (0.10)	6.359 (0.017)	92298.84	92299.1	14.0	Unidentified
0.70 (0.09)	0.24 (0.09)	0.18 (0.06)	6.359 (0.010)	92314.90	92315.2	26.7	Unidentified
0.83 (0.04)	0.10 (0.03)	0.089 (0.025)	6.36 (0.08)	92333.37	92333.6	25.6	Unidentified
0.18 (0.04)	0.24 (0.12)	0.047 (0.023)	6.357 (0.015)	92513.67	92513.9	17.5	Unidentified
0.116 (0.025)	0.25 (0.16)	0.031 (0.019)	6.357 (0.021)	92523.65	92523.9	9.0	Unidentified
0.4 (0.7)	0.16 (0.24)	0.07 (0.04)	6.357 (0.014)	92527.64	92527.9	17.9	Unidentified
0.185 (0.016)	0.09 (0.06)	0.018 (0.012)	6.30 (0.08)	92543.66	92543.91	2.8	CH₃OCHO v=1 9(1,8)-8(2,7)
0.031 (0.009)	0.7 (0.6)	0.024 (0.019)	5.44 (0.07)	92982.92	92982.90	3.2	CH₃OCHO v=1 9(3,7)-9(1,8)
0.049 (0.008)	0.7 (0.4)	0.037 (0.017)	6.50 (0.04)	93171.57	93171.88	5.4	N₂H⁺ 1→0 F=1→1
0.059 (0.011)	0.34 (0.20)	0.021 (0.012)	6.560 (0.022)	93173.37	93173.70	6.3	N₂H⁺ 1→0 F=1→2
0.033 (0.012)	0.3 (0.4)	0.010 (0.012)	6.35 (0.04)	93175.87	93176.13	3.7	N₂H⁺ 1→0 F=1→0
0.108 (0.018)	0.6 (0.4)	0.07 (0.04)	6.33 (0.04)	95564.26	95564.5	7.8	Unidentified
0.037 (0.014)	3.1 (2.0)	0.12 (0.07)	5.18 (0.18)	95810.52	95810.41	2.5	³⁴SO₂ 2(2,0)-3(1,3)
0.074 (0.014)	1.2 (0.6)	0.09 (0.04)	5.03 (0.06)	95810.56	95810.41	5.0	³⁴SO₂ 2(2,0)-3(1,3)
0.137 (0.014)	0.09 (0.07)	0.013 (0.011)	3.28 (0.08)	95813.24	95812.53	8.9	C₈H (2)
0.036 (0.015)	1.6 (1.5)	0.06 (0.05)	6.32 (0.15)	96239.78	96240.0	0.3	Unidentified 96.239 GHz
0.049 (0.014)	0.7 (0.7)	0.04 (0.03)	7.44 (0.07)	96240.19	96240.81	0.5	CNCHO 22(3,19)-23(2,22)
1.112 (0.014)	2.16 (0.06)	2.56 (0.06)	-0.044 (0.006)	96242.59	96240.81	9.0	CNCHO 22(3,19)-23(2,22)
0.284 (0.023)	0.35 (0.08)	0.107 (0.021)	-1.250 (0.010)	96242.98	96240.81	2.3	CNCHO 22(3,19)-23(2,22)
0.125 (0.016)	0.39 (0.15)	0.052 (0.019)	6.727 (0.017)	96412.56	96412.95	10.6	C³⁴S 2→1
0.060 (0.018)	0.4 (0.3)	0.023 (0.019)	5.44 (0.04)	96412.97	96412.95	5.2	C³⁴S 2→1
0.10 (0.04)	0.23 (0.16)	0.023 (0.016)	6.322 (0.020)	96458.54	96458.8	7.9	Unidentified
0.274 (0.019)	0.30 (0.06)	0.086 (0.017)	6.714 (0.007)	96738.97	96739.36	22.6	CH₃OH 2_(-1,2)→1_(-1,1)
0.342 (0.017)	0.33 (0.05)	0.120 (0.018)	6.718 (0.006)	96740.98	96741.37	27.1	CH₃OH 2_(0,2)→1_(0,1) ++
0.740 (0.009)	0.78 (0.03)	0.616 (0.021)	6.697 (0.003)	97980.56	97980.95	42.3	CS 2→1
0.459 (0.011)	0.61 (0.04)	0.298 (0.018)	5.486 (0.005)	97980.96	97980.95	26.3	CS 2→1
0.037 (0.009)	0.11 (0.18)	0.004 (0.007)	6.64 (0.08)	97994.79	97995.17	1.0	l-C₃H J=9/2-7/2, Omega=1/2, F=5-4, l=e
0.502 (0.014)	0.39 (0.04)	0.209 (0.017)	6.754 (0.004)	99299.47	99299.89	43.9	SO 3₍₂₎→2₍₁₎
0.267 (0.016)	0.31 (0.06)	0.089 (0.015)	5.436 (0.006)	99299.91	99299.89	23.4	SO 3₍₂₎→2₍₁₎
0.088 (0.014)	0.34 (0.15)	0.032 (0.014)	6.701 (0.017)	101477.40	101477.81	9.7	H₂CS 3_(1,3)→2_(1,2)
0.20 (0.05)	1.7 (0.9)	0.38 (0.17)	6.28 (0.09)	101752.12	101752.4	2.2	Unidentified
1.37 (0.25)	0.8 (0.5)	1.2 (0.6)	6.25 (0.05)	105666.99	105667.3	30.3	Unidentified
1.24 (0.25)	1.8 (0.8)	2.3 (0.9)	6.25 (0.08)	105667.42	105667.7	27.5	Unidentified
0.32 (0.08)	0.27 (0.19)	0.09 (0.07)	6.250 (0.022)	105667.55	105667.8	7.2	Unidentified
0.33 (0.06)	0.46 (0.25)	0.16 (0.09)	6.25 (0.03)	105667.87	105668.1	7.4	Unidentified
0.28 (0.06)	0.7 (0.5)	0.21 (0.12)	6.25 (0.06)	105680.17	105680.4	1.1	Unidentified
1.34 (0.25)	0.9 (0.5)	1.2 (0.6)	6.25 (0.05)	105690.99	105691.3	29.3	Unidentified
1.25 (0.25)	1.8 (0.8)	2.3 (0.9)	6.25 (0.08)	105691.41	105691.7	27.3	Unidentified
0.33 (0.07)	0.25 (0.17)	0.09 (0.06)	6.250 (0.020)	105691.56	105691.8	7.1	Unidentified
0.33 (0.06)	0.43 (0.22)	0.15 (0.08)	6.250 (0.024)	105691.87	105692.1	7.3	Unidentified
0.86 (0.03)	0.47 (0.05)	0.43 (0.04)	Unavailable	106110.66	Unavailable	13.3	ONCN 9-8 in atmosphere ? (image band)
1.83 (0.03)	0.473 (0.019)	0.92 (0.04)	6.7555 (0.0021)	109781.72	109782.18	87.9	C¹⁸O 1→0
0.169 (0.021)	0.9 (0.3)	0.17 (0.05)	6.01 (0.04)	109781.99	109782.18	8.2	C¹⁸O 1→0
1.35 (0.03)	0.365 (0.023)	0.52 (0.04)	5.4577 (0.0025)	109782.19	109782.18	65.9	C¹⁸O 1→0
1.04 (0.03)	0.47 (0.04)	0.52 (0.04)	7.800 (0.005)	110200.51	110201.35	12.3	¹³CO 1→0
2.920 (0.023)	1.425 (0.025)	4.43 (0.07)	6.580 (0.003)	110200.96	110201.35	34.4	¹³CO 1→0
3.180 (0.023)	0.890 (0.018)	3.01 (0.06)	5.4188 (0.0019)	110201.38	110201.35	37.5	¹³CO 1→0

Backend 2mm (134.6 GHz)

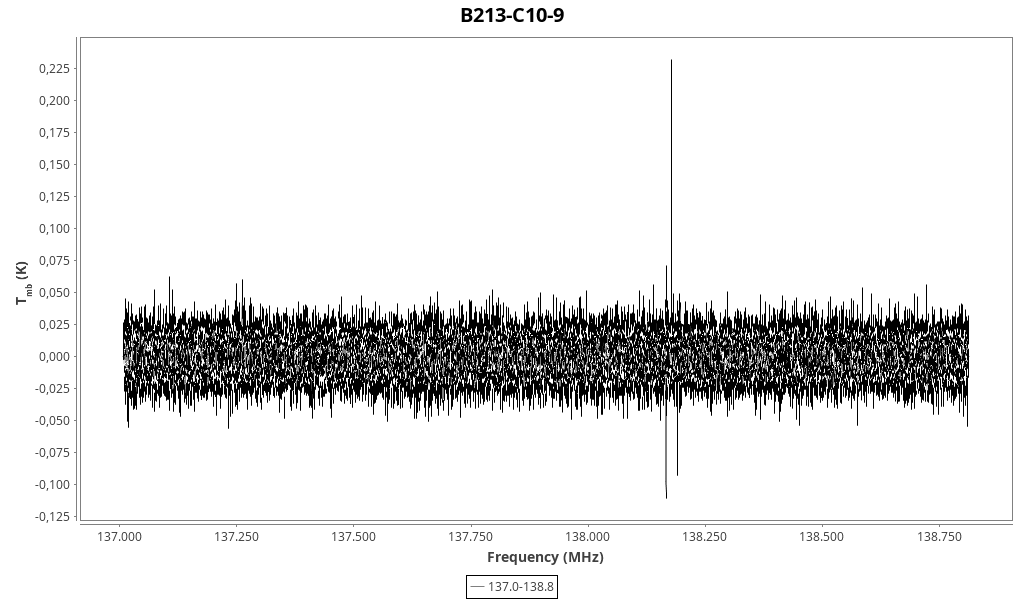

Backend 2mm (137.9 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.244 (0.017)	0.33 (0.11)	0.08 (0.03)	6.857 (0.008)	138178.03	138178.66	16.4	SO 4₃→3₂
0.123 (0.021)	0.23 (0.17)	0.029 (0.022)	5.531 (0.013)	138178.64	138178.66	8.2	SO 4₃→3₂

Backend 2mm (144.1 GHz)

Found 1 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.129 (0.017)	0.36 (0.24)	0.05 (0.04)	5.884 (0.017)	144077.10	144077.29	7.1	DCO⁺ J=2-1 (multiple components around)

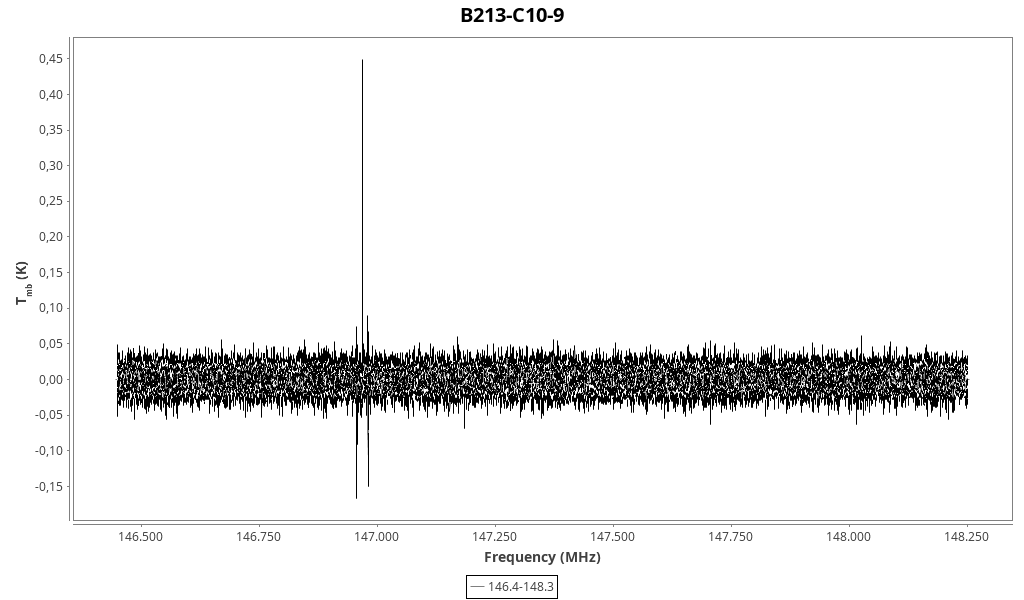

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.411 (0.018)	0.52 (0.09)	0.23 (0.05)	6.629 (0.007)	146968.47	146969.03	19.6	CS 3→2
0.223 (0.022)	0.46 (0.17)	0.11 (0.04)	5.372 (0.013)	146969.09	146969.03	10.6	CS 3→2

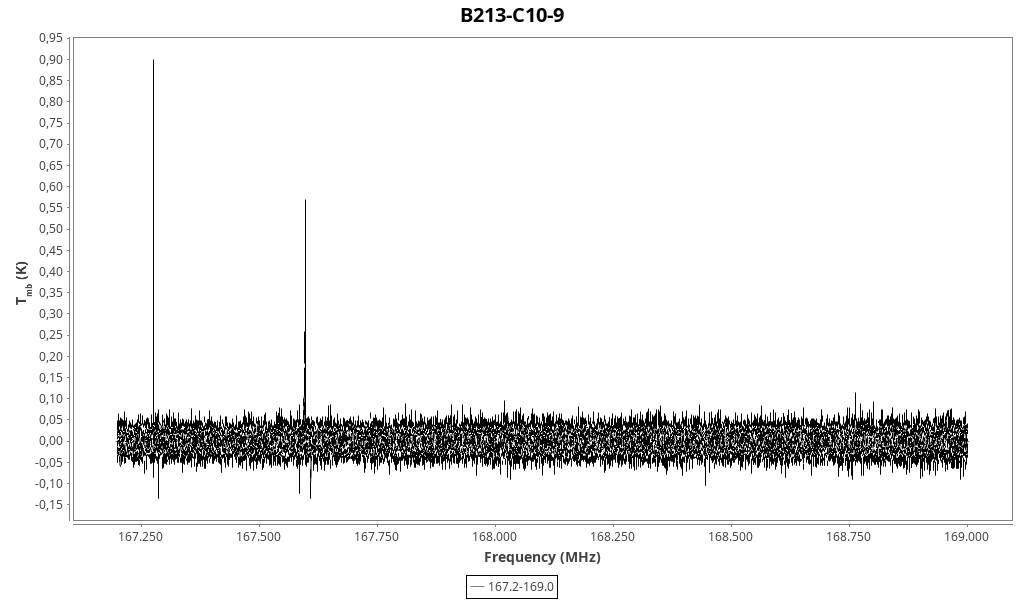

Backend 2mm (168.1 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
3.73 (0.05)	0.049 (0.009)	0.19 (0.04)	5.57 (0.05)	167275.07	167275.1	162.1	Unidentified
0.52 (0.09)	1.1 (0.6)	0.6 (0.3)	5.57 (0.04)	167597.49	167597.5	8.8	Unidentified
0.11 (0.03)	0.3 (0.4)	0.03 (0.05)	5.565 (0.024)	168762.72	168762.75	4.5	H₂S 1_(1,0)→1_(0,1)
