DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B213-C16-3-0_0

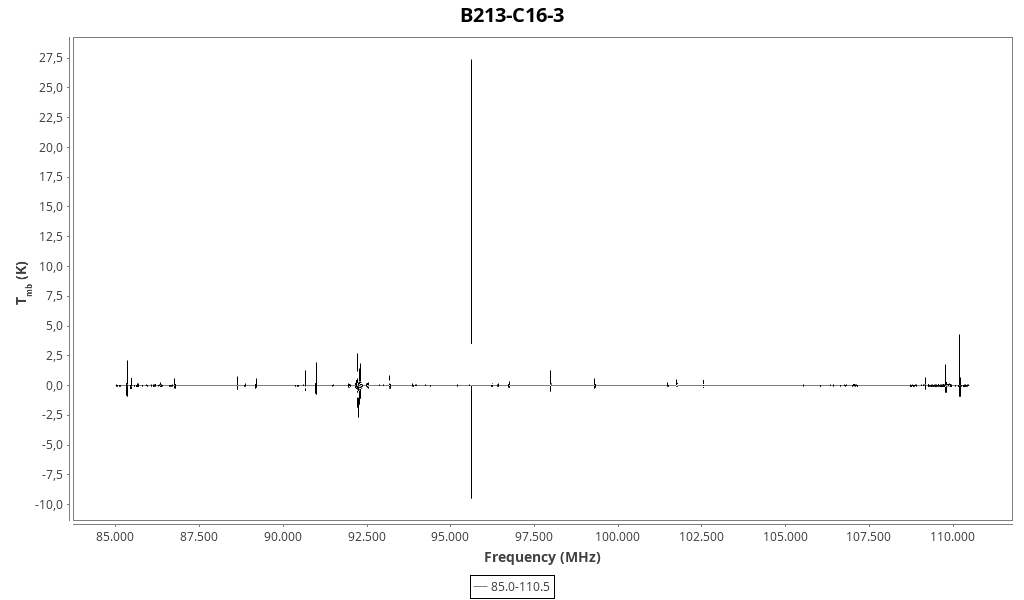

Backend 3mm (85.0-110.5 GHz)

Found 89 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.028 (0.013)	2.4 (2.0)	0.07 (0.05)	13.88 (0.20)	85336.51	85338.90	1.6	c-C₃H₂ 2_1,2→1_0,1
2.150 (0.017)	0.415 (0.009)	0.951 (0.021)	6.6724 (0.0011)	85338.57	85338.90	121.0	c-C₃H₂ 2_1,2→1_0,1
0.107 (0.013)	0.61 (0.23)	0.070 (0.025)	6.68 (0.03)	85347.54	85347.87	1.1	HCS⁺ 2→1
0.163 (0.013)	1.12 (0.22)	0.19 (0.04)	-3.013 (0.023)	85350.30	85347.87	1.8	HCS⁺ 2→1
0.070 (0.013)	0.38 (0.20)	0.028 (0.015)	6.686 (0.023)	85450.43	85450.77	5.7	CH₃CCH 5(2)-4(2)
0.593 (0.012)	0.387 (0.024)	0.244 (0.015)	6.669 (0.003)	85455.33	85455.66	46.9	CH₃C₂H 5₁→4₁
0.657 (0.014)	0.357 (0.021)	0.249 (0.014)	6.6598 (0.0023)	85456.96	85457.29	51.3	CH₃C₂H 5₀→4₀
0.229 (0.015)	0.42 (0.08)	0.102 (0.019)	6.743 (0.009)	85633.65	85634.01	19.0	C₄H 9→8 J=19/2→17/2
0.177 (0.013)	0.45 (0.10)	0.085 (0.018)	6.725 (0.011)	85672.23	85672.58	14.7	C₄H 9→8 J=17/2→15/2
0.047 (0.013)	0.4 (0.4)	0.019 (0.018)	6.53 (0.04)	85688.09	85688.39	3.4	H(42)</sup>\alpha</sup>
0.086 (0.012)	0.10 (0.10)	0.009 (0.009)	6.84 (0.08)	85811.16	85811.55	7.8	CH₃NCO 10→9
0.032 (0.021)	0.3 (0.5)	0.010 (0.016)	6.76 (0.07)	85925.34	85925.70	2.7	NH₂D 1_1,1→1_0,1 F=2-1
0.058 (0.017)	0.5 (0.4)	0.031 (0.021)	4.71 (0.05)	85925.93	85925.70	5.0	NH₂D 1_1,1→1_0,1 F=2-1
0.134 (0.012)	0.09 (0.07)	0.013 (0.009)	6.68 (0.08)	85927.39	85927.73	11.6	NH₂D 1_1,1→1_0,1 F=1-0
0.080 (0.020)	0.33 (0.22)	0.028 (0.018)	6.653 (0.025)	86054.64	86054.97	6.9	HC¹⁵N 1→0
0.061 (0.015)	0.6 (0.4)	0.038 (0.025)	6.60 (0.06)	86181.07	86181.39	4.9	CCS 6→5, N=7-6
0.154 (0.018)	0.46 (0.14)	0.075 (0.022)	6.665 (0.016)	86338.40	86338.73	10.7	H¹³CN 1₁→0₁
0.249 (0.017)	0.41 (0.09)	0.109 (0.021)	5.792 (0.009)	86339.84	86339.92	17.4	H¹³CN 1→0
0.045 (0.016)	0.5 (0.6)	0.025 (0.023)	6.57 (0.07)	86341.94	86342.25	3.2	H¹³CN 1₀→0₁
0.634 (0.015)	0.51 (0.04)	0.342 (0.023)	6.727 (0.004)	86753.93	86754.29	43.4	H¹³CO⁺ 1→0
0.299 (0.023)	0.28 (0.06)	0.088 (0.017)	6.383 (0.007)	86754.03	86754.29	20.6	H¹³CO⁺ 1→0
0.032 (0.014)	0.4 (0.5)	0.015 (0.015)	1.71 (0.06)	88406.81	88405.69	3.5	H(52)</sup>\beta</sup>
0.033 (0.016)	0.2 (0.4)	0.009 (0.012)	-1.90 (0.04)	88407.87	88405.69	3.6	H(52)</sup>\beta</sup>
0.375 (0.012)	0.64 (0.06)	0.255 (0.020)	6.518 (0.006)	88630.12	88630.42	22.9	HCN 1→0 F=1→1
0.457 (0.012)	0.70 (0.05)	0.340 (0.021)	6.449 (0.005)	88631.57	88631.85	28.0	HCN 1→0 F=2→1
0.067 (0.013)	0.29 (0.19)	0.021 (0.014)	5.790 (0.024)	88631.76	88631.85	4.1	HCN 1→0 F=2→1
0.069 (0.016)	0.25 (0.17)	0.018 (0.013)	7.055 (0.022)	88633.48	88633.94	4.3	HCN 1→0 F=0→1
0.731 (0.013)	0.465 (0.023)	0.361 (0.017)	6.5910 (0.0025)	88633.62	88633.94	45.4	HCN 1→0 F=0→1
0.076 (0.014)	0.38 (0.20)	0.030 (0.015)	6.053 (0.022)	88633.78	88633.94	4.7	HCN 1→0 F=0→1
0.180 (0.014)	0.45 (0.10)	0.086 (0.019)	6.667 (0.011)	88865.35	88865.70	17.0	H¹⁵NC 1→0
0.133 (0.021)	0.25 (0.09)	0.035 (0.012)	7.179 (0.009)	89188.03	89188.53	12.7	HCO⁺ 1→0
0.605 (0.012)	0.51 (0.03)	0.326 (0.017)	6.473 (0.004)	89188.24	89188.53	57.3	HCO⁺ 1→0
0.243 (0.012)	0.49 (0.07)	0.128 (0.017)	5.912 (0.008)	89188.40	89188.53	23.1	HCO⁺ 1→0
0.052 (0.018)	0.26 (0.22)	0.015 (0.012)	6.787 (0.025)	89418.92	89419.30	5.9	HCCNC J=9-8, F=9-8 (4 components around)
0.054 (0.013)	0.33 (0.24)	0.019 (0.014)	6.61 (0.03)	90601.44	90601.78	5.8	HCC¹³CN J=10-9 (4 components around)
1.320 (0.015)	0.448 (0.014)	0.630 (0.019)	7.2128 (0.0016)	90663.04	90663.56	106.5	HNC 1→0
0.897 (0.013)	0.636 (0.025)	0.607 (0.023)	6.395 (0.003)	90663.29	90663.56	74.5	HNC 1→0
0.025 (0.013)	0.4 (0.7)	0.010 (0.016)	6.78 (0.08)	90977.06	90977.44	1.6	HC₃N J=10-9, F=10-10
1.975 (0.014)	0.414 (0.008)	0.870 (0.017)	6.6591 (0.0009)	90978.65	90979.00	121.2	HC₃N 10→9 (3 components around)
0.091 (0.015)	0.40 (0.20)	0.039 (0.019)	6.743 (0.023)	91493.97	91494.35	8.4	c-C₃H 2(1,2)-1(1,1), J=5/2-3/2, F=3-2
0.21 (0.04)	0.20 (0.09)	0.045 (0.020)	6.594 (0.016)	91951.58	91951.9	18.6	Unidentified
0.059 (0.019)	0.22 (0.22)	0.014 (0.014)	5.83 (0.04)	91986.99	91987.09	5.1	CH₃CN 5₀→4₀
0.32 (0.08)	0.24 (0.14)	0.08 (0.05)	6.591 (0.017)	92182.35	92182.7	9.7	Unidentified
1.5 (0.4)	0.25 (0.18)	0.4 (0.3)	6.591 (0.022)	92200.32	92200.7	14.5	Unidentified
2.7 (0.4)	0.21 (0.09)	0.61 (0.25)	6.591 (0.014)	92200.79	92201.1	26.8	Unidentified
1.7 (1.1)	0.17 (0.11)	0.32 (0.19)	6.59 (0.04)	92218.31	92218.6	14.5	Unidentified
3.0 (1.2)	0.17 (0.07)	0.54 (0.19)	6.591 (0.023)	92218.80	92219.1	25.8	Unidentified
1.5 (0.3)	0.25 (0.14)	0.39 (0.21)	6.590 (0.017)	92278.45	92278.8	17.9	Unidentified
1.4 (0.4)	0.19 (0.13)	0.27 (0.19)	6.59 (0.03)	92278.92	92279.3	16.1	Unidentified
2.2 (0.4)	0.21 (0.09)	0.50 (0.20)	6.590 (0.014)	92296.45	92296.8	20.4	Unidentified
2.3 (1.4)	0.17 (0.11)	0.42 (0.18)	6.59 (0.03)	92296.93	92297.3	20.8	Unidentified
1.98 (0.05)	0.092 (0.018)	0.19 (0.04)	6.59 (0.08)	92314.90	92315.2	42.6	Unidentified
0.27 (0.04)	0.26 (0.11)	0.08 (0.03)	6.587 (0.013)	92545.67	92546.0	23.0	Unidentified
0.052 (0.011)	0.31 (0.21)	0.017 (0.011)	6.614 (0.024)	92872.03	92872.38	7.0	DC₃N J=11-10 (5 components around)
0.056 (0.009)	0.42 (0.23)	0.025 (0.014)	6.67 (0.03)	92981.24	92981.60	6.7	HDCS 3(0,3)-2(0,2) ? (CH3OCHO)
0.524 (0.007)	0.80 (0.03)	0.447 (0.016)	6.377 (0.004)	93171.61	93171.88	7.7	N₂H⁺ 1→0 F=1→1
0.557 (0.007)	1.65 (0.05)	0.981 (0.023)	6.561 (0.005)	93173.37	93173.70	8.2	N₂H⁺ 1→0 F=1→2
0.411 (0.009)	0.47 (0.03)	0.205 (0.012)	6.233 (0.004)	93175.90	93176.13	6.1	N₂H⁺ 1→0 F=1→0
0.013 (0.008)	0.4 (0.7)	0.005 (0.009)	6.72 (0.08)	93453.95	93454.33	2.5	CH₃CCD 6(1)-5(1)
0.05 (0.10)	0.2 (0.4)	0.009 (0.007)	6.63 (0.04)	93455.69	93456.04	9.1	CH₃CCD 6(0)-5(0)
0.219 (0.012)	0.57 (0.09)	0.133 (0.020)	6.666 (0.010)	93869.74	93870.10	20.9	C₂S N=7→6 J=8→7
0.028 (0.012)	1.6 (1.4)	0.05 (0.04)	6.57 (0.15)	93956.93	93957.3	2.2	Unidentified 93.956 GHz
0.032 (0.015)	1.6 (1.6)	0.05 (0.05)	5.55 (0.17)	93959.91	93959.93	2.5	CH₃OOH (2)
43.4 (1.3)	0.089 (0.021)	4.1 (0.9)	6.55 (0.08)	95616.02	95616.4	29.4	Unidentified
32 (9)	0.23 (0.09)	8 (4)	6.552 (0.010)	95616.12	95616.5	21.7	Unidentified
155 (3)	0.091 (0.013)	15.0 (2.0)	6.55 (0.08)	95616.26	95616.6	105.1	Unidentified
10 (13)	0.16 (0.21)	1.7 (1.3)	6.55 (0.07)	95616.35	95616.7	6.8	Unidentified
0.185 (0.011)	0.68 (0.12)	0.133 (0.021)	6.503 (0.013)	96412.63	96412.95	18.6	C³⁴S 2→1
0.264 (0.012)	0.47 (0.06)	0.131 (0.015)	6.450 (0.007)	96739.05	96739.36	22.0	CH₃OH 2_(-1,2)→1_(-1,1)
0.344 (0.011)	0.51 (0.05)	0.186 (0.016)	6.462 (0.005)	96741.06	96741.37	29.2	CH₃OH 2_(0,2)→1_(0,1) ++
0.018 (0.009)	0.1 (0.4)	0.002 (0.007)	6.64 (0.08)	96755.14	96755.51	0.8	CH₃OH 2_(1,1)→1_(1,0) (1)
0.235 (0.013)	0.29 (0.05)	0.072 (0.013)	7.051 (0.006)	97980.45	97980.95	24.7	CS 2→1
1.267 (0.011)	0.571 (0.014)	0.770 (0.017)	6.5360 (0.0015)	97980.61	97980.95	133.4	CS 2→1
0.248 (0.012)	0.47 (0.07)	0.124 (0.016)	5.982 (0.007)	97980.80	97980.95	25.9	CS 2→1
0.520 (0.012)	0.53 (0.04)	0.294 (0.017)	6.451 (0.004)	99299.58	99299.89	38.2	SO 3₍₂₎→2₍₁₎
0.100 (0.013)	0.25 (0.11)	0.026 (0.012)	5.958 (0.014)	99299.74	99299.89	7.4	SO 3₍₂₎→2₍₁₎
0.263 (0.008)	0.66 (0.07)	0.186 (0.017)	6.528 (0.007)	101477.46	101477.81	27.2	H₂CS 3_(1,3)→2_(1,2)
0.030 (0.011)	0.4 (0.5)	0.013 (0.015)	6.56 (0.06)	101981.07	101981.43	3.5	H₂CCO 5_(1,4)→4_(1,3)
0.040 (0.008)	0.5 (0.4)	0.021 (0.013)	6.63 (0.04)	102539.76	102540.14	2.0	CH₃CCH 6₍₂₎→5₍₂₎
0.409 (0.009)	0.46 (0.03)	0.199 (0.013)	6.695 (0.004)	102545.62	102546.02	44.2	CH₃CCH 6₍₁₎→5₍₁₎
0.412 (0.009)	0.47 (0.03)	0.205 (0.013)	6.695 (0.004)	102547.58	102547.98	44.1	CH₃CCH 6₍₀₎→5₍₀₎
0.102 (0.011)	0.71 (0.22)	0.077 (0.023)	6.673 (0.025)	106347.31	106347.73	9.3	C₂S N=8→7 J=9→8
0.086 (0.021)	0.31 (0.22)	0.028 (0.020)	6.39 (0.03)	108893.62	108893.95	6.6	CH₃OH 0_0,0→1_-1,1
0.691 (0.018)	0.42 (0.03)	0.306 (0.021)	6.621 (0.004)	109173.23	109173.64	52.6	HC₃N 12→11
0.282 (0.016)	1.19 (0.16)	0.36 (0.05)	6.519 (0.016)	109781.80	109782.18	6.8	C¹⁸O 1→0
1.269 (0.016)	1.00 (0.04)	1.34 (0.04)	6.400 (0.004)	109781.85	109782.18	30.5	C¹⁸O 1→0
0.175 (0.017)	0.47 (0.14)	0.088 (0.024)	6.686 (0.015)	109905.32	109905.75	12.7	HNCO 5→4
1.464 (0.013)	1.47 (0.03)	2.29 (0.04)	6.461 (0.003)	110201.00	110201.35	11.4	¹³CO 1→0
3.271 (0.013)	1.414 (0.012)	4.92 (0.04)	6.3858 (0.0013)	110201.03	110201.35	25.4	¹³CO 1→0

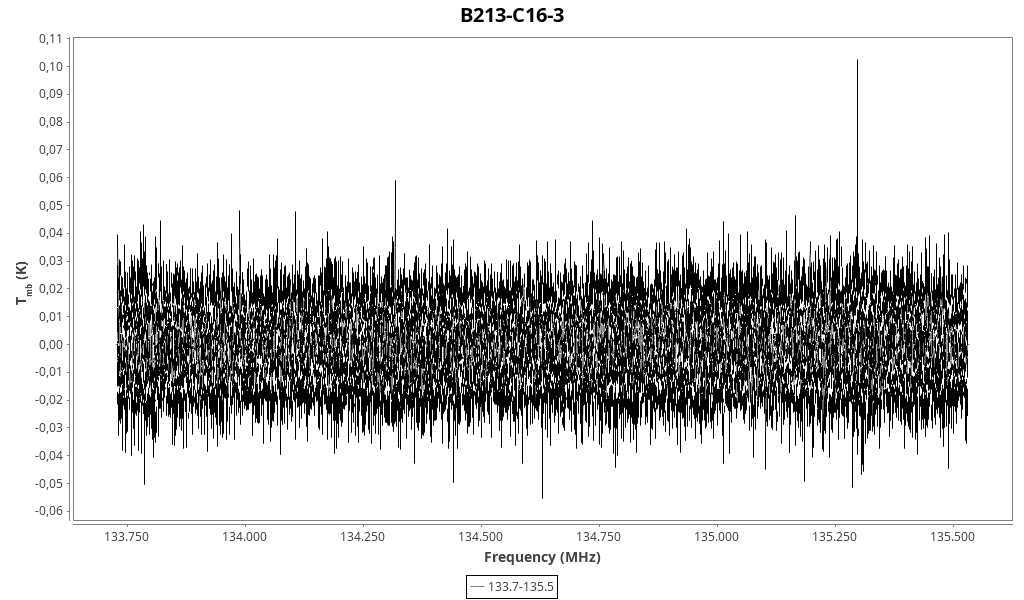

Backend 2mm (134.6 GHz)

Found 1 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.094 (0.015)	0.5 (0.4)	0.05 (0.03)	6.482 (0.024)	135297.82	135298.26	6.4	H₂CS 4(1,4)-3(1,3)

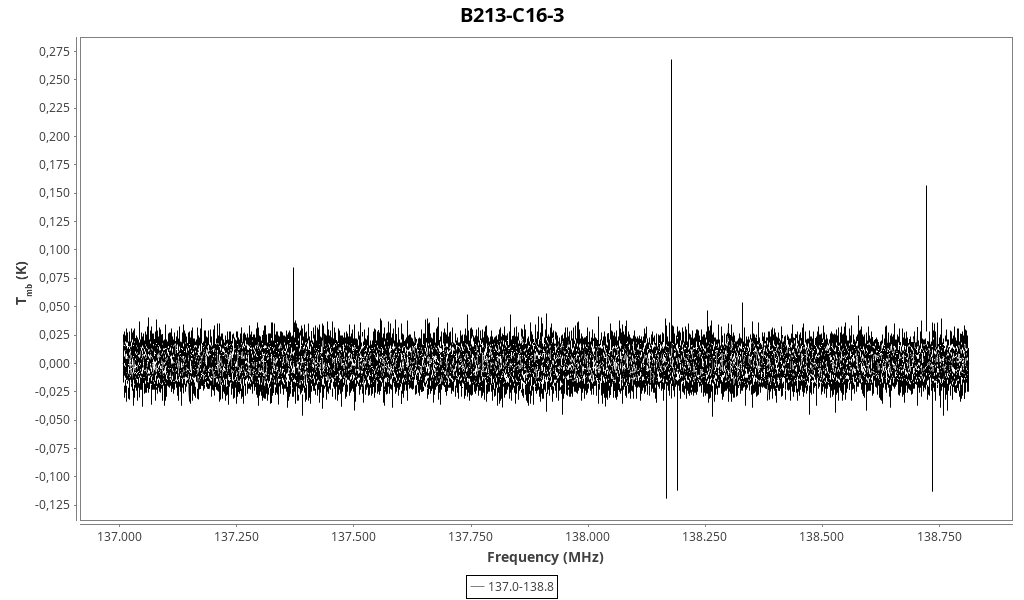

Backend 2mm (137.9 GHz)

Found 6 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.080 (0.014)	0.5 (0.4)	0.05 (0.04)	6.60 (0.03)	137370.71	137371.21	5.9	H₂CS 4(0,4)-3(0,3)
0.03 (0.05)	0.1 (0.4)	0.003 (0.012)	6.60 (0.10)	137554.87	137555.4	2.3	Unidentified 137.554 GHz
0.259 (0.017)	0.29 (0.07)	0.081 (0.019)	6.449 (0.006)	138178.22	138178.66	21.9	SO 4₃→3₂
0.119 (0.013)	0.06 (0.08)	0.008 (0.009)	6.59 (0.06)	138253.54	138254.0	9.4	Unidentified 138.254 GHz
0.17 (0.03)	0.19 (0.12)	0.034 (0.022)	6.590 (0.009)	138722.90	138723.4	14.3	Unidentified
0.267 (0.012)	0.06 (0.03)	0.017 (0.009)	6.59 (0.06)	138754.15	138754.7	23.3	Unidentified 138.754 GHz

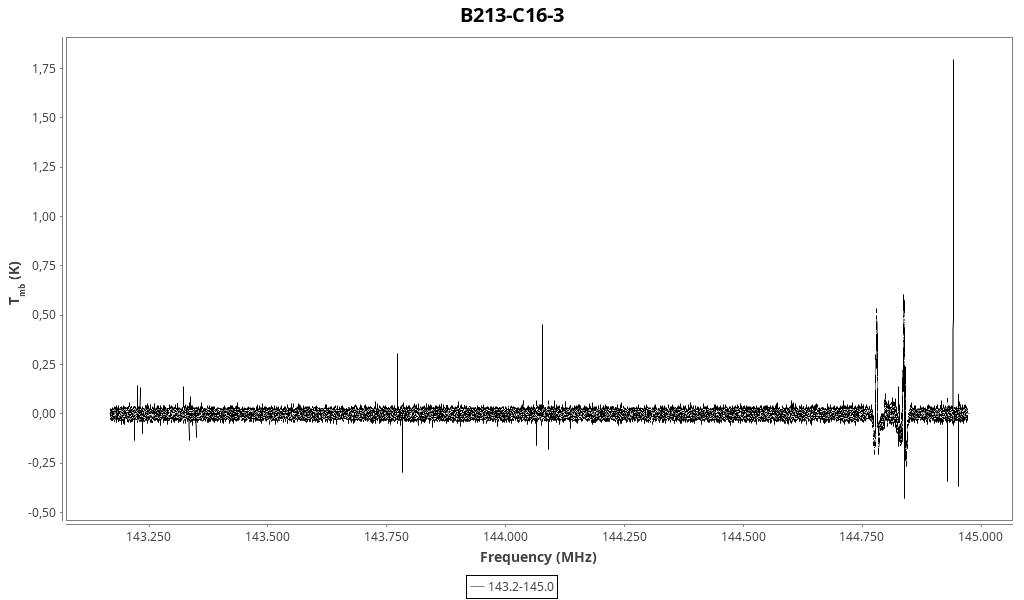

Backend 2mm (144.1 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.419 (0.017)	0.44 (0.08)	0.20 (0.04)	5.601 (0.006)	144077.24	144077.29	21.3	DCO⁺ J=2-1 (multiple components around)
1.59 (0.22)	1.2 (0.5)	2.0 (0.8)	5.60 (0.04)	144940.75	144940.8	41.3	Unidentified

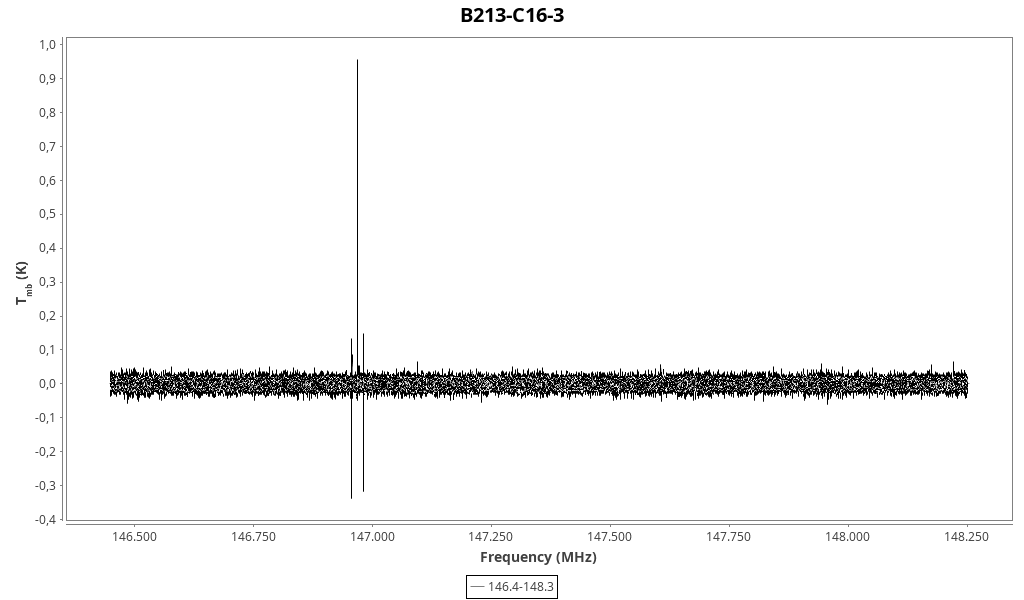

Backend 2mm (147.3 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.761 (0.016)	0.54 (0.05)	0.44 (0.04)	6.514 (0.004)	146968.53	146969.03	33.8	CS 3→2
0.110 (0.016)	1.1 (0.5)	0.13 (0.06)	6.30 (0.04)	146968.63	146969.03	4.9	CS 3→2
0.086 (0.015)	0.06 (0.14)	0.006 (0.012)	6.67 (0.05)	148220.87	148221.45	5.0	HCNH⁺ J=2-1

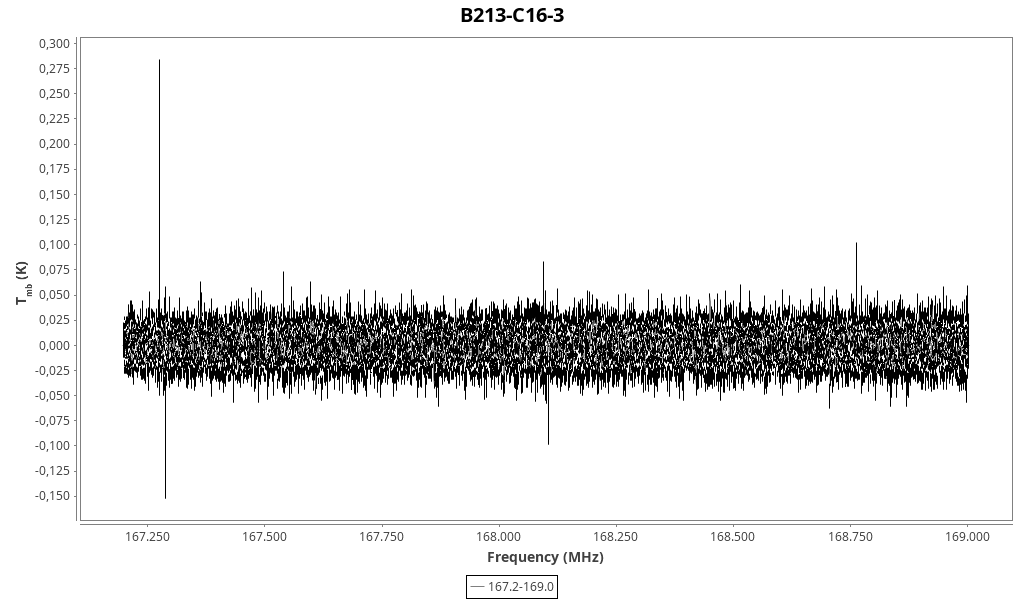

Backend 2mm (168.1 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.31 (0.05)	0.13 (0.09)	0.04 (0.03)	6.634 (0.006)	167275.11	167275.7	20.1	Unidentified
0.097 (0.020)	0.3 (0.3)	0.03 (0.03)	6.624 (0.019)	168762.12	168762.75	5.9	H₂S 1_(1,0)→1_(0,1)
0.038 (0.018)	0.3 (0.8)	0.01 (0.03)	6.26 (0.05)	168762.33	168762.75	2.3	H₂S 1_(1,0)→1_(0,1)

Backend 2mm (171.4 GHz)

Found 14 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.664 (0.021)	0.047 (0.022)	0.033 (0.015)	4.94 (0.05)	172010.69	172010.4	35.3	Unidentified
0.25 (0.06)	0.10 (0.11)	0.03 (0.03)	4.944 (0.012)	172095.72	172095.4	12.1	Unidentified
1.48 (0.03)	0.048 (0.013)	0.076 (0.021)	4.94 (0.05)	172113.72	172113.4	67.3	Unidentified
0.26 (0.05)	0.11 (0.11)	0.03 (0.03)	4.944 (0.010)	172147.13	172146.8	11.9	Unidentified
0.0201 (0.0017)	1.2 (0.4)	0.026 (0.007)	4.944 (0.021)	172214.43	172214.1	1.0	Unidentified 172.214 GHz
0.0192 (0.0017)	1.4 (0.4)	0.029 (0.007)	4.944 (0.022)	172216.18	172215.9	1.0	Unidentified 172.218 GHz
0.0614 (0.0022)	0.14 (0.03)	0.0089 (0.0020)	4.9442 (0.0022)	172216.91	172216.6	3.2	Unidentified 172.218 GHz
0.0168 (0.0016)	0.57 (0.23)	0.010 (0.004)	4.944 (0.015)	172218.79	172218.5	0.8	Unidentified 172.218 GHz
0.052 (0.005)	0.13 (0.04)	0.0070 (0.0019)	4.9442 (0.0021)	172219.47	172219.2	2.6	Unidentified 172.220 GHz
0.091 (0.020)	0.087 (0.019)	0.0084 (0.0017)	4.944 (0.007)	172220.06	172219.7	4.8	Unidentified 172.220 GHz
0.0346 (0.0017)	0.78 (0.15)	0.029 (0.006)	4.944 (0.009)	172221.30	172221.0	1.9	Unidentified 172.220 GHz
0.0224 (0.0017)	0.58 (0.19)	0.014 (0.005)	4.944 (0.012)	172222.41	172222.1	1.2	Unidentified 172.223 GHz
0.05 (0.04)	0.2 (0.5)	0.010 (0.021)	4.94 (0.05)	172227.08	172226.8	2.2	Unidentified 172.227 GHz
0.0544 (0.0023)	0.096 (0.008)	0.0055 (0.0005)	4.9442 (0.0016)	172232.87	172232.55	2.4	S₂O 17(3,14)-17(2,15)
