DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B213-C16-9-0_0

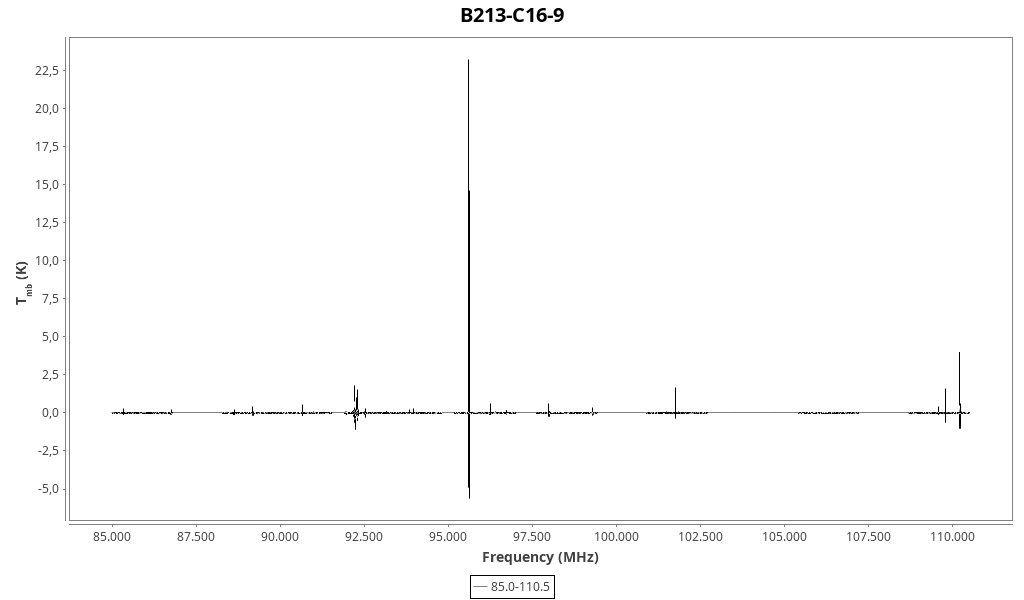

Backend 3mm (85.0-110.5 GHz)

Found 72 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.289 (0.020)	0.36 (0.08)	0.110 (0.022)	6.574 (0.009)	85338.59	85338.90	18.1	c-C₃H₂ 2_1,2→1_0,1
0.229 (0.019)	0.40 (0.09)	0.099 (0.022)	6.531 (0.011)	86753.99	86754.29	17.8	H¹³CO⁺ 1→0
0.179 (0.011)	0.76 (0.13)	0.145 (0.023)	6.292 (0.015)	88630.19	88630.42	16.4	HCN 1→0 F=1→1
0.235 (0.011)	0.89 (0.11)	0.223 (0.025)	6.271 (0.012)	88631.62	88631.85	21.3	HCN 1→0 F=2→1
0.170 (0.012)	0.54 (0.12)	0.098 (0.020)	6.482 (0.013)	88633.65	88633.94	14.6	HCN 1→0 F=0→1
0.071 (0.011)	1.9 (0.6)	0.14 (0.04)	6.77 (0.06)	89188.15	89188.53	6.6	HCO⁺ 1→0
0.380 (0.011)	0.76 (0.07)	0.307 (0.023)	6.197 (0.007)	89188.32	89188.53	34.7	HCO⁺ 1→0
0.077 (0.012)	0.09 (0.11)	0.008 (0.009)	5.39 (0.08)	89198.57	89198.54	3.5	H(59)</sup>\gamma</sup>
0.244 (0.012)	0.50 (0.07)	0.130 (0.018)	7.067 (0.008)	90663.09	90663.56	23.6	HNC 1→0
0.535 (0.010)	0.75 (0.04)	0.426 (0.022)	6.356 (0.005)	90663.30	90663.56	51.9	HNC 1→0
0.027 (0.014)	0.3 (0.5)	0.009 (0.014)	7.08 (0.06)	90976.96	90977.44	2.7	HC₃N J=10-9, F=10-10
0.107 (0.015)	0.41 (0.15)	0.047 (0.016)	6.630 (0.017)	90978.66	90979.00	10.4	HC₃N 10→9 (3 components around)
0.020 (0.012)	0.4 (0.8)	0.008 (0.016)	6.27 (0.09)	91985.07	91985.31	1.9	CH₃CN 5₁→4₁
0.12 (0.12)	0.21 (0.24)	0.03 (0.03)	6.46 (0.04)	92180.46	92180.8	4.3	Unidentified
0.16 (0.03)	0.02 (0.06)	0.003 (0.009)	6.459810 (0.000003)	92182.34	92182.6	5.9	Unidentified
0.27 (0.03)	0.06 (0.06)	0.017 (0.016)	6.46 (0.08)	92182.38	92182.7	10.4	Unidentified
0.81 (0.16)	0.28 (0.17)	0.24 (0.15)	6.460 (0.020)	92200.32	92200.6	14.6	Unidentified
1.33 (0.21)	0.22 (0.09)	0.32 (0.13)	6.460 (0.013)	92200.79	92201.1	23.9	Unidentified
1.4 (0.7)	0.19 (0.11)	0.28 (0.16)	6.459 (0.023)	92218.31	92218.6	20.1	Unidentified
2.7 (1.7)	0.17 (0.11)	0.48 (0.15)	6.459 (0.018)	92218.80	92219.1	39.5	Unidentified
1.07 (0.16)	0.22 (0.09)	0.25 (0.11)	6.459 (0.014)	92278.44	92278.7	23.3	Unidentified
0.8 (0.4)	0.18 (0.12)	0.15 (0.09)	6.46 (0.03)	92278.92	92279.2	16.8	Unidentified
1.73 (0.13)	0.014 (0.020)	0.03 (0.04)	6.46 (0.08)	92296.47	92296.8	11.9	Unidentified
6.62 (0.13)	0.094 (0.014)	0.66 (0.10)	6.46 (0.08)	92296.93	92297.2	45.4	Unidentified
0.26 (0.07)	0.26 (0.16)	0.07 (0.05)	6.458 (0.019)	92314.90	92315.2	9.9	Unidentified
0.15 (0.12)	0.17 (0.13)	0.028 (0.012)	6.456 (0.021)	92513.67	92514.0	19.8	Unidentified
0.125 (0.024)	0.23 (0.13)	0.030 (0.016)	6.456 (0.017)	92541.66	92542.0	13.8	Unidentified
0.181 (0.007)	0.09 (0.03)	0.018 (0.006)	0.16 (0.08)	92545.55	92543.91	25.5	CH₃OCHO v=1 9(1,8)-8(2,7)
0.333 (0.019)	0.217 (0.023)	0.077 (0.008)	-0.174 (0.003)	92545.66	92543.91	47.4	CH₃OCHO v=1 9(1,8)-8(2,7)
0.062 (0.007)	0.74 (0.22)	0.049 (0.014)	6.381 (0.024)	93171.61	93171.88	8.9	N₂H⁺ 1→0 F=1→1
0.068 (0.009)	0.37 (0.14)	0.027 (0.009)	7.367 (0.016)	93173.12	93173.70	9.7	N₂H⁺ 1→0 F=1→2
0.070 (0.007)	0.92 (0.22)	0.069 (0.015)	6.333 (0.025)	93173.44	93173.70	10.0	N₂H⁺ 1→0 F=1→2
0.025 (0.011)	0.2 (0.3)	0.005 (0.007)	5.66 (0.05)	93173.65	93173.70	3.5	N₂H⁺ 1→0 F=1→2
0.047 (0.023)	0.21 (0.15)	0.011 (0.008)	6.324 (0.017)	93175.87	93176.13	6.6	N₂H⁺ 1→0 F=1→0
0.141 (0.011)	1.20 (0.21)	0.18 (0.03)	6.443 (0.023)	93855.48	93855.8	11.2	Unidentified 93.857 GHz
0.069 (0.011)	4.3 (1.0)	0.32 (0.06)	6.44 (0.09)	93855.64	93855.9	5.6	Unidentified 93.857 GHz
0.057 (0.012)	0.44 (0.23)	0.027 (0.013)	6.61 (0.03)	93869.75	93870.10	5.2	C₂S N=7→6 J=8→7
0.053 (0.015)	3.6 (1.6)	0.20 (0.07)	6.44 (0.15)	93955.98	93956.3	2.2	Unidentified 93.956 GHz
0.044 (0.015)	2.4 (1.5)	0.11 (0.06)	6.44 (0.15)	93957.65	93957.9	1.9	Unidentified 93.959 GHz
0.042 (0.016)	1.4 (1.2)	0.06 (0.05)	5.64 (0.12)	93959.89	93959.93	2.2	CH₃OOH (2)
23 (3)	1.0 (0.3)	25 (7)	6.43 (0.04)	95606.12	95606.4	27.6	Unidentified
14.6 (1.7)	1.0 (0.3)	15 (5)	6.43 (0.04)	95616.81	95617.1	14.7	Unidentified
0.38 (0.11)	1.3 (0.9)	0.5 (0.4)	6.43 (0.09)	95617.28	95617.6	0.4	Unidentified
0.036 (0.015)	0.7 (0.7)	0.027 (0.023)	5.25 (0.08)	95810.49	95810.41	3.2	³⁴SO₂ 2(2,0)-3(1,3)
0.04 (0.03)	0.2 (0.3)	0.009 (0.013)	6.42 (0.06)	95812.23	95812.53	3.5	C₈H (2)
0 (18)	0 (5)	0.0 (1.7)	7.85 (0.04)	95946.59	95947.34	13.1	CH₃CHO 5_(0,5)→4_(0,4)
0.025 (0.009)	0.5 (0.7)	0.014 (0.017)	4.99 (0.08)	95948.36	95948.20	2.6	H¹³C₅N 37→36
0.120 (0.011)	1.6 (0.4)	0.20 (0.04)	2.00 (0.04)	96241.93	96240.81	1.6	CNCHO 22(3,19)-23(2,22)
0.578 (0.011)	1.93 (0.08)	1.19 (0.04)	0.135 (0.008)	96242.53	96240.81	7.9	CNCHO 22(3,19)-23(2,22)
0.171 (0.013)	0.53 (0.12)	0.097 (0.020)	-1.127 (0.014)	96242.94	96240.81	2.3	CNCHO 22(3,19)-23(2,22)
0.109 (0.013)	0.31 (0.11)	0.036 (0.013)	6.578 (0.013)	96412.61	96412.95	12.3	C³⁴S 2→1
0.134 (0.013)	0.46 (0.12)	0.066 (0.016)	6.569 (0.013)	96739.01	96739.36	13.4	CH₃OH 2_(-1,2)→1_(-1,1)
0.148 (0.013)	0.42 (0.10)	0.066 (0.015)	6.568 (0.011)	96741.03	96741.37	15.3	CH₃OH 2_(0,2)→1_(0,1) ++
0.566 (0.009)	0.73 (0.04)	0.441 (0.019)	6.438 (0.004)	97980.65	97980.95	59.4	CS 2→1
0.103 (0.012)	0.35 (0.13)	0.038 (0.013)	6.175 (0.014)	97980.73	97980.95	10.8	CS 2→1
0.02 (0.03)	0.2 (0.5)	0.005 (0.011)	6.48 (0.07)	97994.85	97995.17	0.8	l-C₃H J=9/2-7/2, Omega=1/2, F=5-4, l=e
0.339 (0.013)	0.42 (0.05)	0.151 (0.016)	6.532 (0.006)	99299.55	99299.89	38.2	SO 3₍₂₎→2₍₁₎
0.120 (0.013)	0.38 (0.13)	0.048 (0.015)	6.092 (0.014)	99299.69	99299.89	13.2	SO 3₍₂₎→2₍₁₎
0.104 (0.013)	0.49 (0.16)	0.054 (0.017)	6.544 (0.018)	101477.46	101477.81	10.0	H₂CS 3_(1,3)→2_(1,2)
0.23 (0.06)	3.1 (1.3)	0.75 (0.25)	6.37 (0.13)	101741.82	101742.1	4.8	Unidentified
0.92 (0.22)	1.1 (0.7)	1.1 (0.6)	6.37 (0.07)	101751.65	101751.9	31.3	Unidentified
0.67 (0.22)	3.9 (2.1)	2.8 (1.1)	6.37 (0.18)	101751.72	101752.0	22.8	Unidentified
0.087 (0.018)	2.4 (0.9)	0.22 (0.07)	6.37 (0.09)	101850.26	101850.6	8.1	Unidentified
0.037 (0.015)	0.3 (0.4)	0.011 (0.013)	6.54 (0.04)	102545.67	102546.02	3.4	CH₃CCH 6₍₁₎→5₍₁₎
0.056 (0.022)	0.3 (0.3)	0.016 (0.018)	6.52 (0.04)	106347.37	106347.73	4.0	C₂S N=8→7 J=9→8
0.049 (0.014)	0.7 (0.6)	0.04 (0.03)	8.70 (0.07)	109534.83	109536.00	3.6	H(55)</sup>\gamma</sup>
0.34 (0.07)	2.6 (0.9)	0.97 (0.25)	6.31 (0.08)	109572.24	109572.5	18.3	Unidentified
1.622 (0.017)	0.528 (0.016)	0.91 (0.03)	6.5543 (0.0018)	109781.79	109782.18	110.8	C¹⁸O 1→0
0.473 (0.019)	0.47 (0.06)	0.234 (0.025)	6.096 (0.006)	109781.96	109782.18	32.4	C¹⁸O 1→0
0.179 (0.018)	0.40 (0.13)	0.075 (0.023)	7.514 (0.016)	110200.61	110201.35	6.9	¹³CO 1→0
3.911 (0.015)	0.933 (0.009)	3.88 (0.04)	6.5424 (0.0010)	110200.97	110201.35	152.9	¹³CO 1→0
2.729 (0.015)	0.623 (0.011)	1.81 (0.03)	5.9654 (0.0012)	110201.18	110201.35	106.5	¹³CO 1→0

Backend 2mm (134.6 GHz)

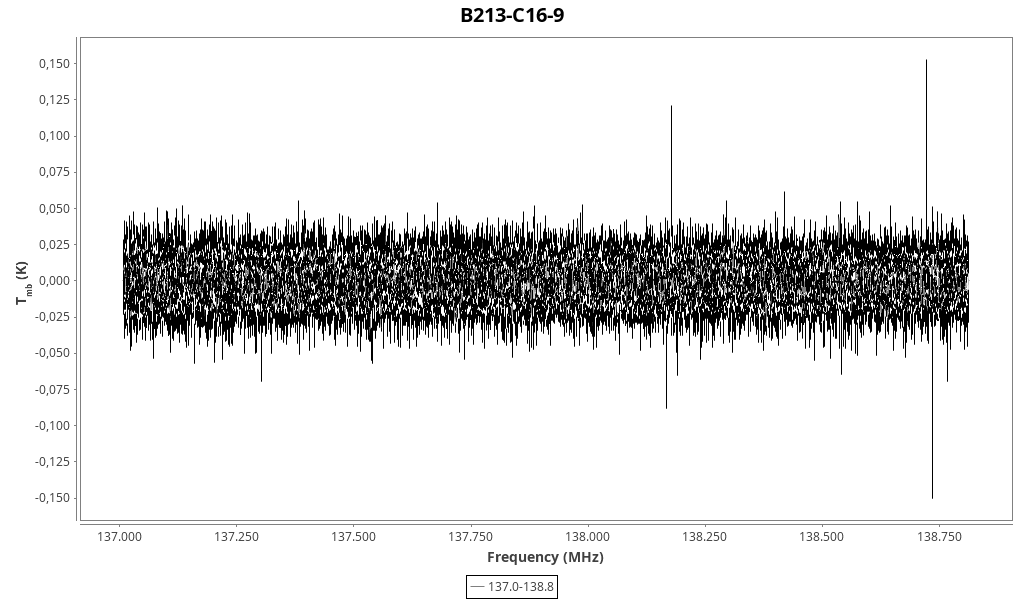

Backend 2mm (137.9 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.05 (0.03)	0.2 (0.4)	0.009 (0.019)	9.56 (0.03)	138176.79	138178.66	3.5	SO 4₃→3₂
0.131 (0.023)	0.24 (0.16)	0.034 (0.023)	6.633 (0.013)	138178.14	138178.66	9.1	SO 4₃→3₂
0.16 (0.04)	0.13 (0.11)	0.023 (0.018)	6.628 (0.014)	138722.80	138723.3	11.0	Unidentified

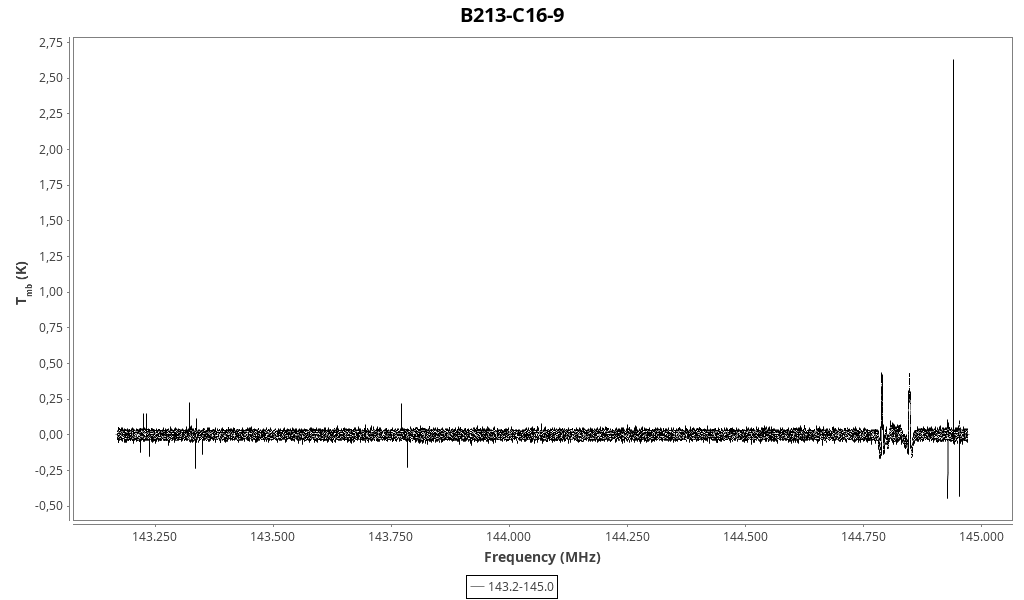

Backend 2mm (144.1 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.06 (0.04)	0.2 (0.5)	0.01 (0.03)	5.65 (0.04)	144617.03	144617.10	3.1	C³⁴S 3→2
2.4 (0.5)	1.3 (0.7)	3.3 (1.6)	5.65 (0.05)	144940.78	144940.9	44.4	Unidentified

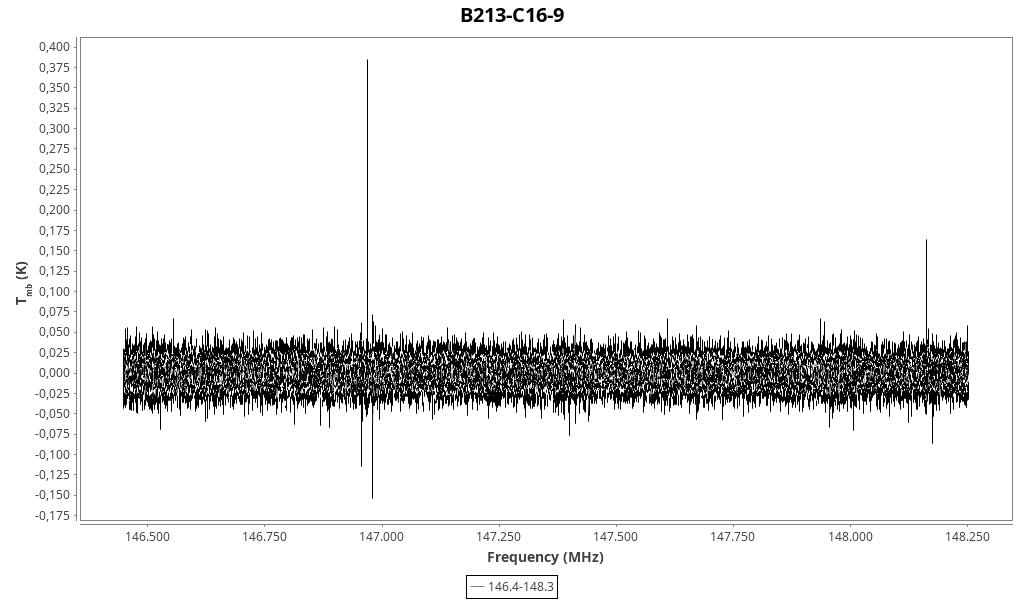

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.395 (0.017)	0.57 (0.09)	0.24 (0.04)	6.381 (0.007)	146968.59	146969.03	22.1	CS 3→2
0.372 (0.020)	0.07 (0.05)	0.029 (0.017)	6.37 (0.05)	148162.76	148163.2	18.9	Unidentified

Backend 2mm (168.1 GHz)

Found 9 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
5.33 (0.04)	0.019 (0.003)	0.109 (0.017)	8.1416723 (0.0000004)	167275.11	167276.6	398.4	Unidentified
0.330 (0.015)	0.032 (0.025)	0.011 (0.009)	8.14167 (0.00012)	167275.13	167276.6	24.7	Unidentified
0.017 (0.004)	0.7 (0.7)	0.014 (0.012)	8.14 (0.05)	167567.78	167569.3	0.9	Unidentified 167.570 GHz
0.023 (0.004)	2.9 (1.1)	0.073 (0.023)	8.14 (0.06)	167568.59	167570.1	1.2	Unidentified 167.570 GHz
0.031 (0.005)	0.26 (0.21)	0.009 (0.007)	8.137 (0.014)	167570.02	167571.5	1.7	Unidentified 167.570 GHz
0.010 (0.005)	4 (3)	0.04 (0.03)	3.00 (0.17)	167574.93	167573.53	0.7	c-¹³CCCH 13(7,6)-13(7,7)
0.018 (0.007)	0.2 (0.4)	0.004 (0.007)	8.748 (0.022)	167575.98	167577.80	1.3	He(52)</sup>\delta</sup> (NO₂ in atmosphere?)
0.049 (0.024)	0.1 (0.3)	0.006 (0.015)	8.12 (0.03)	168761.28	168762.75	3.2	H₂S 1_(1,0)→1_(0,1)
0.042 (0.013)	0.4 (0.7)	0.02 (0.03)	6.34 (0.05)	168762.28	168762.75	2.7	H₂S 1_(1,0)→1_(0,1)
