DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B213-C2-7-0_0

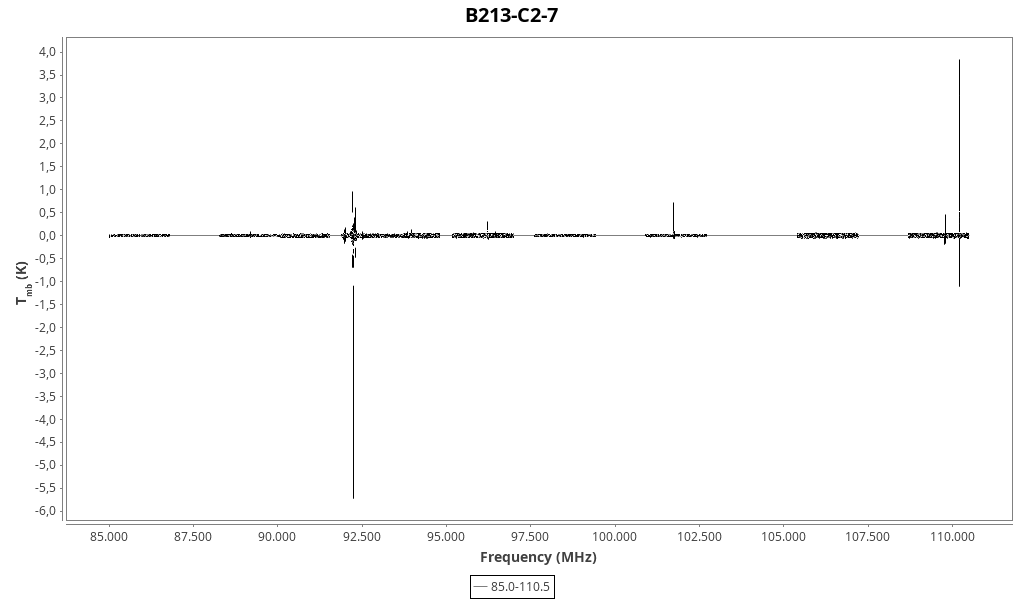

Backend 3mm (85.0-110.5 GHz)

Found 36 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.035 (0.017)	0.2 (0.3)	0.009 (0.009)	7.61 (0.04)	85456.69	85457.29	5.1	CH₃C₂H 5₀→4₀
0.020 (0.007)	0.5 (0.6)	0.012 (0.012)	3.72 (0.07)	85532.02	85531.51	3.0	HOCO⁺ 4(0,4)-3(0,3)
0.054 (0.007)	0.9 (0.3)	0.050 (0.016)	7.09 (0.04)	88631.38	88631.85	7.6	HCN 1→0 F=2→1
0.044 (0.007)	0.9 (0.4)	0.044 (0.016)	4.77 (0.05)	88632.06	88631.85	6.4	HCN 1→0 F=2→1
0.022 (0.007)	1.0 (0.8)	0.023 (0.017)	7.27 (0.09)	88633.42	88633.94	3.2	HCN 1→0 F=0→1
0.083 (0.007)	1.07 (0.22)	0.095 (0.018)	6.997 (0.024)	89188.08	89188.53	13.5	HCO⁺ 1→0
0.079 (0.007)	0.88 (0.20)	0.074 (0.016)	4.687 (0.023)	89188.77	89188.53	11.9	HCO⁺ 1→0
0.036 (0.008)	0.7 (0.5)	0.029 (0.016)	6.60 (0.05)	90663.23	90663.56	3.4	HNC 1→0
0.05 (0.03)	0.3 (0.7)	0.02 (0.04)	7.53 (0.08)	91979.37	91979.99	2.4	CH₃CN 5₂→4₂
1.045 (0.023)	0.099 (0.016)	0.110 (0.018)	6.95 (0.09)	91999.35	91999.8	53.1	Unidentified
0.57 (0.16)	0.28 (0.20)	0.17 (0.12)	6.948 (0.023)	92202.02	92202.5	13.4	Unidentified
0.58 (0.13)	0.35 (0.21)	0.22 (0.13)	6.948 (0.025)	92202.48	92202.9	13.7	Unidentified
0.63 (0.13)	0.31 (0.19)	0.21 (0.13)	6.948 (0.023)	92220.02	92220.5	13.5	Unidentified
1.09 (0.17)	0.28 (0.11)	0.32 (0.12)	6.948 (0.013)	92220.48	92220.9	23.6	Unidentified
0.48 (0.13)	0.26 (0.14)	0.13 (0.07)	6.947 (0.016)	92280.15	92280.6	18.7	Unidentified
0.32 (0.10)	0.25 (0.20)	0.09 (0.07)	6.95 (0.03)	92280.63	92281.1	12.4	Unidentified
0.66 (0.11)	0.27 (0.11)	0.19 (0.08)	6.947 (0.013)	92298.16	92298.6	22.9	Unidentified
0.36 (0.09)	0.31 (0.21)	0.12 (0.08)	6.947 (0.025)	92298.62	92299.1	12.6	Unidentified
0.11 (0.04)	0.4 (0.3)	0.05 (0.04)	6.95 (0.04)	92335.06	92335.5	5.3	Unidentified
0.12 (0.06)	0.22 (0.14)	0.030 (0.018)	6.943 (0.014)	92519.30	92519.7	8.7	Unidentified
0.037 (0.011)	0.8 (0.7)	0.030 (0.023)	7.68 (0.08)	93453.65	93454.33	3.5	CH₃CCD 6(1)-5(1)
0.120 (0.023)	2.2 (0.8)	0.28 (0.09)	6.92 (0.08)	93952.20	93952.6	8.3	Unidentified
0.028 (0.016)	0.4 (0.7)	0.011 (0.019)	6.86 (0.09)	95964.19	95964.63	2.0	H(63)</sup>\delta</sup>
0.042 (0.013)	0.6 (0.6)	0.027 (0.024)	4.22 (0.07)	95965.04	95964.63	3.0	H(63)</sup>\delta</sup>
0.25 (0.06)	3.0 (1.1)	0.79 (0.22)	6.89 (0.11)	96225.24	96225.7	11.2	Unidentified
0.087 (0.017)	1.0 (0.5)	0.09 (0.05)	6.88 (0.06)	96451.83	96452.3	6.4	Unidentified
0.015 (0.016)	0.3 (0.6)	0.004 (0.008)	5.34 (0.06)	97762.40	97762.35	2.3	S₄ 28(4,24)-27(5,23) ?
0.040 (0.008)	0.6 (0.4)	0.027 (0.013)	7.12 (0.04)	97980.42	97980.95	6.0	CS 2→1
0.024 (0.009)	0.4 (0.5)	0.010 (0.011)	6.64 (0.06)	97980.58	97980.95	3.5	CS 2→1
0.71 (0.14)	3.6 (1.1)	2.8 (0.7)	6.81 (0.10)	101733.39	101733.8	29.8	Unidentified
0.469 (0.017)	0.56 (0.06)	0.28 (0.03)	7.146 (0.007)	109781.57	109782.18	33.6	C¹⁸O 1→0
0.144 (0.023)	0.41 (0.16)	0.063 (0.024)	6.726 (0.020)	109781.73	109782.18	10.4	C¹⁸O 1→0
3.765 (0.014)	0.773 (0.009)	3.10 (0.04)	7.1608 (0.0009)	110200.74	110201.35	74.9	¹³CO 1→0
2.151 (0.017)	0.501 (0.012)	1.147 (0.025)	6.6948 (0.0013)	110200.91	110201.35	42.8	¹³CO 1→0
0.187 (0.014)	4.9 (0.6)	0.98 (0.08)	6.70 (0.05)	110200.91	110201.35	3.7	¹³CO 1→0
0.071 (0.015)	0.10 (0.15)	0.008 (0.012)	6.71 (0.09)	110202.94	110203.4	1.4	Unidentified 110.203 GHz

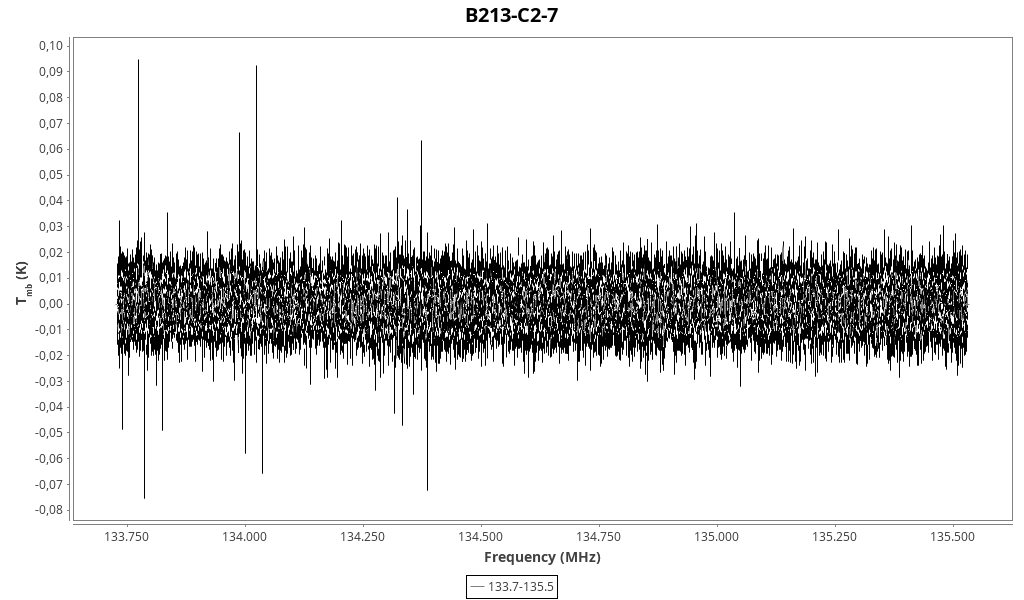

Backend 2mm (134.6 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.017 (0.012)	0.3 (0.8)	0.005 (0.014)	5.57 (0.07)	133775.38	133775.42	1.5	¹³CCS N=11-10, J=10-9, F=19/2-19/2
0.074 (0.025)	0.13 (0.13)	0.010 (0.010)	5.571 (0.017)	133988.19	133988.2	8.9	Unidentified
0.094 (0.014)	0.15 (0.09)	0.015 (0.009)	5.571 (0.009)	134024.12	134024.2	11.5	Unidentified 134.024 GHz
0.064 (0.018)	0.14 (0.17)	0.010 (0.012)	5.571 (0.018)	134374.11	134374.1	7.5	Unidentified

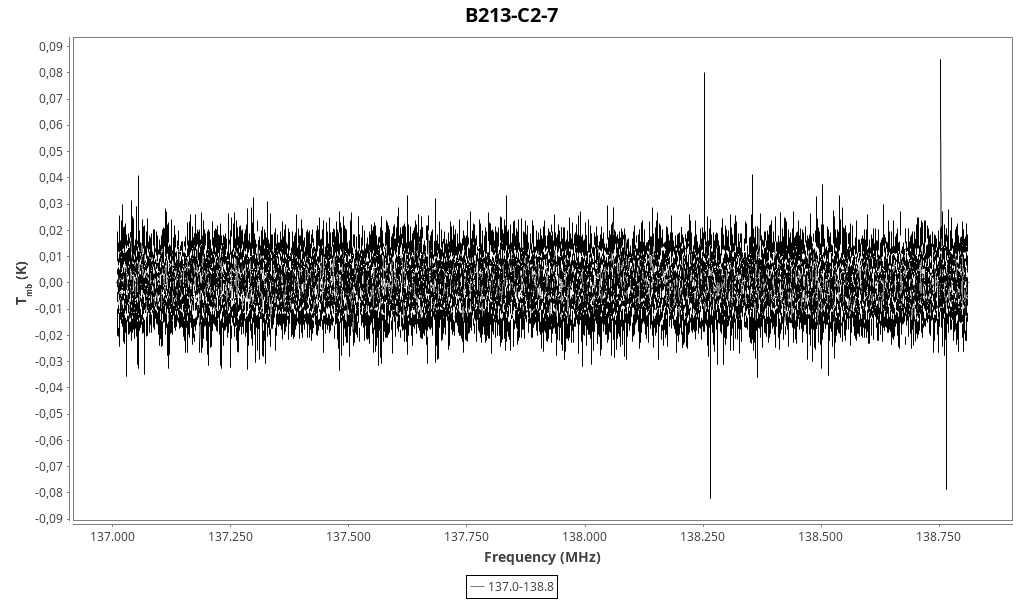

Backend 2mm (137.9 GHz)

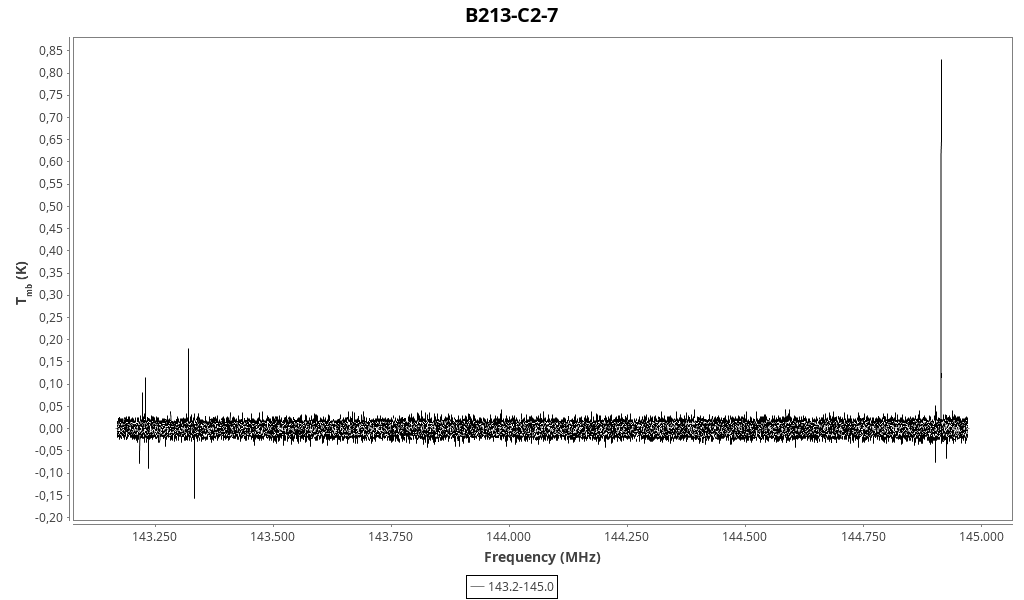

Backend 2mm (144.1 GHz)

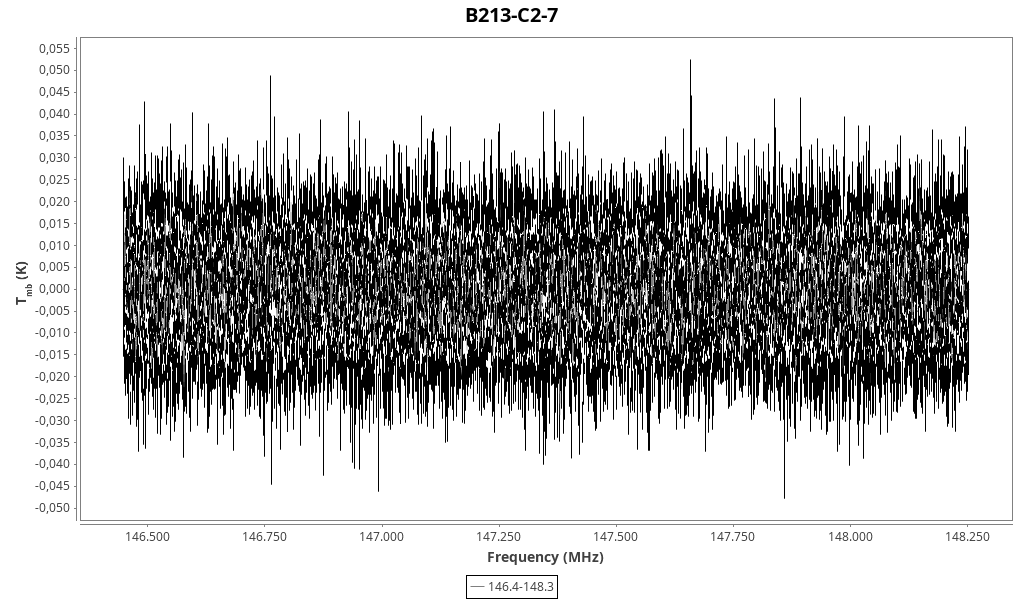

Backend 2mm (147.3 GHz)

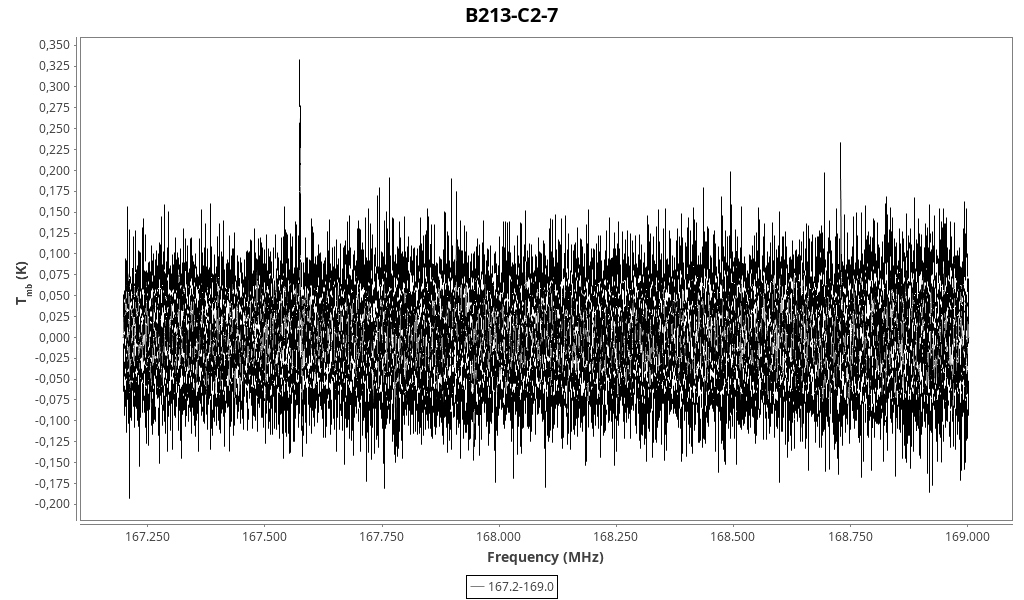

Backend 2mm (168.1 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.11 (0.05)	1.3 (1.7)	0.15 (0.19)	3.78 (0.10)	167574.49	167573.53	2.0	c-¹³CCCH 13(7,6)-13(7,7)
0.22 (0.05)	2.2 (1.2)	0.52 (0.25)	2.66 (0.07)	167575.11	167573.53	3.9	c-¹³CCCH 13(7,6)-13(7,7)
