DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B213-C5-7-0_0

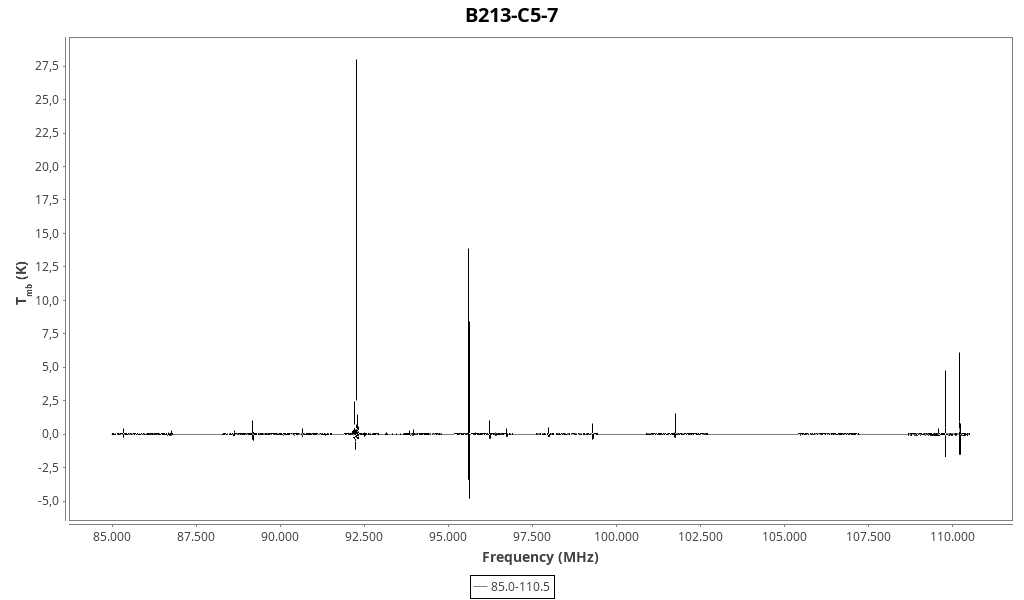

Backend 3mm (85.0-110.5 GHz)

Found 86 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.141 (0.012)	0.09 (0.06)	0.013 (0.009)	-156.59 (0.08)	85238.21	85192.15	11.8	o-D₂CS 3→2
0.08 (0.04)	0.19 (0.17)	0.016 (0.015)	7.68 (0.04)	85338.28	85338.90	6.6	c-C₃H₂ 2_1,2→1_0,1
0.446 (0.019)	0.31 (0.04)	0.149 (0.019)	7.321 (0.005)	85338.38	85338.90	37.0	c-C₃H₂ 2_1,2→1_0,1
0.046 (0.025)	0.2 (0.4)	0.011 (0.015)	7.24 (0.05)	85456.79	85457.29	3.6	CH₃C₂H 5₀→4₀
0.05 (0.08)	0.2 (0.3)	0.011 (0.014)	7.129 (0.023)	85633.54	85634.01	4.4	C₄H 9→8 J=19/2→17/2
0.062 (0.020)	0.22 (0.22)	0.014 (0.015)	7.38 (0.04)	85672.04	85672.58	5.5	C₄H 9→8 J=17/2→15/2
0.044 (0.017)	0.3 (0.4)	0.012 (0.016)	7.23 (0.05)	86093.46	86093.96	3.4	SO 2₂→1₁
0.103 (0.016)	0.38 (0.18)	0.042 (0.018)	7.488 (0.020)	86670.23	86670.80	8.9	HCO 1_0,1→0_0,0 J=3/2→1/2 F=2→1
0.077 (0.016)	0.43 (0.24)	0.035 (0.019)	7.55 (0.03)	86707.77	86708.36	7.0	HCO 1_0,1→0_0,0 J=3/2→1/2 F=1→0
0.271 (0.016)	0.44 (0.08)	0.128 (0.021)	7.245 (0.009)	86753.78	86754.29	25.6	H¹³CO⁺ 1→0
0.074 (0.016)	0.35 (0.23)	0.027 (0.018)	7.31 (0.03)	86776.92	86777.44	6.3	HCO 1_0,1→0_0,0 J=1/2→1/2 F=1→1
0.148 (0.010)	1.00 (0.18)	0.158 (0.025)	7.231 (0.019)	88629.91	88630.42	8.5	HCN 1→0 F=1→1
0.192 (0.010)	1.01 (0.14)	0.21 (0.03)	7.207 (0.015)	88631.34	88631.85	11.0	HCN 1→0 F=2→1
0.024 (0.016)	0.4 (0.7)	0.010 (0.016)	2.95 (0.08)	88632.60	88631.85	1.4	HCN 1→0 F=2→1
0.157 (0.010)	0.72 (0.14)	0.120 (0.022)	7.223 (0.015)	88633.43	88633.94	9.0	HCN 1→0 F=0→1
0.460 (0.015)	0.33 (0.04)	0.162 (0.016)	7.613 (0.004)	89187.90	89188.53	29.0	HCO⁺ 1→0
1.039 (0.014)	0.455 (0.017)	0.503 (0.018)	7.0013 (0.0019)	89188.08	89188.53	65.6	HCO⁺ 1→0
0.174 (0.015)	0.31 (0.08)	0.057 (0.015)	6.568 (0.009)	89188.21	89188.53	10.9	HCO⁺ 1→0
0.080 (0.017)	0.50 (0.23)	0.042 (0.019)	2.68 (0.04)	89199.38	89198.54	1.6	H(59)</sup>\gamma</sup>
0.218 (0.011)	0.09 (0.04)	0.022 (0.009)	8.49 (0.08)	89670.28	89671.17	20.1	HC₄NC J=32-31 (3 components)
0.350 (0.018)	0.53 (0.08)	0.20 (0.03)	7.629 (0.009)	90662.92	90663.56	22.5	HNC 1→0
0.422 (0.023)	0.35 (0.06)	0.157 (0.023)	6.965 (0.006)	90663.12	90663.56	27.2	HNC 1→0
0.06 (0.05)	0.18 (0.15)	0.011 (0.009)	7.97 (0.05)	91984.55	91985.31	7.2	CH₃CN 5₁→4₁
0.10 (0.04)	0.18 (0.16)	0.018 (0.016)	7.16 (0.04)	92154.66	92155.2	8.4	Unidentified
0.26 (0.09)	0.19 (0.18)	0.05 (0.05)	7.16 (0.04)	92164.82	92165.3	6.5	Unidentified
0.15 (0.13)	0.15 (0.21)	0.02 (0.04)	7.16 (0.09)	92165.30	92165.8	3.7	Unidentified
0.26 (0.09)	0.18 (0.17)	0.05 (0.05)	7.16 (0.04)	92165.55	92166.1	6.8	Unidentified
0.24 (0.08)	0.24 (0.22)	0.06 (0.06)	7.16 (0.03)	92168.58	92169.1	6.7	Unidentified
1.48 (0.05)	0.080 (0.020)	0.13 (0.04)	7.16 (0.08)	92199.32	92199.8	36.4	Unidentified
0.41 (0.13)	0.16 (0.12)	0.07 (0.05)	7.16 (0.04)	92199.83	92200.3	10.1	Unidentified
1.6 (0.4)	0.18 (0.11)	0.31 (0.17)	7.164 (0.021)	92201.25	92201.8	36.9	Unidentified
2.4 (0.3)	0.19 (0.07)	0.50 (0.18)	7.164 (0.013)	92201.73	92202.2	55.6	Unidentified
0.45 (0.16)	0.17 (0.13)	0.08 (0.07)	7.16 (0.04)	92202.22	92202.7	10.0	Unidentified
3.19 (0.09)	0.088 (0.019)	0.30 (0.07)	7.16 (0.08)	92219.24	92219.8	73.7	Unidentified
5.25 (0.09)	0.089 (0.012)	0.50 (0.07)	7.16 (0.08)	92219.73	92220.2	128.8	Unidentified
86.8 (1.5)	0.056 (0.013)	5.2 (0.9)	7.16 (0.08)	92258.49	92259.0	2300.6	Unidentified
10.9 (0.4)	0.102 (0.024)	1.2 (0.3)	7.16 (0.08)	92258.64	92259.1	290.6	Unidentified
0.62 (0.05)	0.012 (0.018)	0.008 (0.012)	7.1627178 (0.0000013)	92262.14	92262.7	18.6	Unidentified
0.19 (0.05)	0.7 (0.5)	0.14 (0.09)	7.16 (0.06)	92262.26	92262.8	5.6	Unidentified
0.32 (0.06)	0.04 (0.09)	0.01 (0.03)	7.1624 (0.0004)	92277.47	92278.0	4.6	Unidentified
0.70 (0.19)	0.18 (0.13)	0.14 (0.09)	7.16 (0.03)	92277.96	92278.5	10.0	Unidentified
0.31 (0.15)	0.17 (0.19)	0.06 (0.07)	7.16 (0.05)	92278.44	92279.0	4.3	Unidentified
0.6 (0.5)	0.19 (0.15)	0.13 (0.10)	7.16 (0.03)	92278.92	92279.4	8.4	Unidentified
2.8 (0.5)	0.22 (0.09)	0.7 (0.3)	7.162 (0.012)	92279.39	92279.9	37.8	Unidentified
2.5 (0.5)	0.18 (0.09)	0.49 (0.23)	7.162 (0.017)	92279.86	92280.4	33.9	Unidentified
0.58 (0.23)	0.17 (0.14)	0.10 (0.09)	7.16 (0.04)	92280.34	92280.9	7.5	Unidentified
1.51 (0.22)	0.21 (0.09)	0.33 (0.14)	7.162 (0.014)	92297.39	92297.9	23.0	Unidentified
5.88 (0.13)	0.092 (0.015)	0.58 (0.09)	7.16 (0.08)	92297.86	92298.4	90.8	Unidentified
0.21 (0.09)	0.18 (0.19)	0.04 (0.05)	7.16 (0.04)	92312.00	92312.5	4.1	Unidentified
0.31 (0.07)	0.5 (0.4)	0.17 (0.11)	7.16 (0.04)	92312.54	92313.0	6.0	Unidentified
0.44 (0.22)	0.15 (0.14)	0.07 (0.07)	7.16 (0.05)	92315.56	92316.1	7.5	Unidentified
0.34 (0.10)	0.24 (0.22)	0.08 (0.08)	7.16 (0.03)	92316.30	92316.8	5.5	Unidentified
0.55 (0.14)	0.20 (0.16)	0.12 (0.09)	7.162 (0.025)	92317.75	92318.3	9.0	Unidentified
0.155 (0.025)	0.19 (0.09)	0.031 (0.015)	7.159 (0.016)	92496.57	92497.1	15.5	Unidentified
0.054 (0.007)	0.57 (0.23)	0.033 (0.013)	6.98 (0.03)	93171.42	93171.88	4.3	N₂H⁺ 1→0 F=1→1
0.066 (0.007)	1.7 (0.4)	0.120 (0.022)	7.18 (0.04)	93173.18	93173.70	5.3	N₂H⁺ 1→0 F=1→2
0.070 (0.010)	0.32 (0.13)	0.024 (0.009)	6.879 (0.015)	93175.70	93176.13	5.7	N₂H⁺ 1→0 F=1→0
0.126 (0.011)	3.6 (0.5)	0.48 (0.05)	4.07 (0.05)	93849.14	93848.69	11.7	CNCHO 17(1,16)-17(0,17)
0.147 (0.011)	1.25 (0.21)	0.20 (0.03)	3.814 (0.022)	93849.22	93848.69	13.7	CNCHO 17(1,16)-17(0,17)
0.193 (0.013)	1.39 (0.21)	0.29 (0.04)	5.311 (0.022)	93959.99	93959.93	13.9	CH₃OOH (2)
0.141 (0.013)	3.9 (0.6)	0.58 (0.07)	5.06 (0.05)	93960.07	93959.93	10.2	CH₃OOH (2)
13.7 (1.8)	1.2 (0.4)	17 (5)	7.10 (0.04)	95606.42	95606.9	24.0	Unidentified
8.4 (1.2)	1.2 (0.4)	11 (4)	7.10 (0.05)	95616.64	95617.2	10.3	Unidentified
0.105 (0.015)	1.2 (0.5)	0.13 (0.05)	7.10 (0.05)	95800.87	95801.4	12.0	Unidentified
0.81 (0.15)	1.4 (0.6)	1.2 (0.5)	7.09 (0.06)	96232.87	96233.4	21.6	Unidentified
0.028 (0.010)	2.4 (1.6)	0.07 (0.04)	3.81 (0.16)	96241.35	96240.81	0.7	CNCHO 22(3,19)-23(2,22)
0.138 (0.010)	0.46 (0.09)	0.067 (0.013)	7.171 (0.011)	96412.41	96412.95	17.8	C³⁴S 2→1
0.317 (0.010)	0.51 (0.05)	0.171 (0.015)	7.178 (0.006)	96738.82	96739.36	42.3	CH₃OH 2_(-1,2)→1_(-1,1)
0.410 (0.011)	0.48 (0.04)	0.210 (0.015)	7.179 (0.004)	96740.83	96741.37	52.0	CH₃OH 2_(0,2)→1_(0,1) ++
0.032 (0.009)	0.3 (0.4)	0.011 (0.011)	7.08 (0.04)	96910.38	96910.9	4.5	Unidentified 96.911 GHz
0.046 (0.014)	0.4 (0.4)	0.017 (0.017)	7.16 (0.04)	97714.86	97715.40	4.7	³⁴SO 3₍₂₎→2₍₁₎
0.415 (0.019)	0.26 (0.04)	0.115 (0.014)	7.586 (0.004)	97980.27	97980.95	35.3	CS 2→1
0.474 (0.012)	0.68 (0.05)	0.341 (0.023)	7.049 (0.006)	97980.45	97980.95	40.1	CS 2→1
0.220 (0.025)	0.26 (0.08)	0.060 (0.017)	7.467 (0.009)	99299.24	99299.89	15.4	SO 3₍₂₎→2₍₁₎
0.795 (0.020)	0.367 (0.025)	0.310 (0.021)	7.133 (0.003)	99299.35	99299.89	55.5	SO 3₍₂₎→2₍₁₎
0.097 (0.012)	0.41 (0.15)	0.042 (0.015)	7.177 (0.017)	101477.24	101477.81	10.7	H₂CS 3_(1,3)→2_(1,2)
0.74 (0.23)	4.9 (2.2)	3.8 (1.3)	7.01 (0.19)	101741.81	101742.3	28.9	Unidentified
0.73 (0.23)	1.1 (0.9)	0.9 (0.6)	7.01 (0.09)	101741.88	101742.4	29.0	Unidentified
0.126 (0.018)	1.5 (0.5)	0.20 (0.06)	6.90 (0.05)	109564.22	109564.7	6.5	Unidentified 109.563 GHz
0.399 (0.018)	1.96 (0.17)	0.83 (0.07)	6.900 (0.017)	109564.89	109565.4	20.1	Unidentified 109.563 GHz
0.092 (0.018)	0.8 (0.5)	0.07 (0.04)	6.90 (0.05)	109565.46	109566.0	4.7	Unidentified 109.563 GHz
4.831 (0.022)	0.671 (0.009)	3.45 (0.05)	7.2376 (0.0010)	109781.54	109782.18	133.2	C¹⁸O 1→0
0.52 (0.04)	0.37 (0.06)	0.20 (0.04)	6.973 (0.009)	109781.64	109782.18	14.2	C¹⁸O 1→0
6.098 (0.017)	0.786 (0.007)	5.10 (0.04)	7.4082 (0.0007)	110200.65	110201.35	45.4	¹³CO 1→0
4.291 (0.019)	0.632 (0.008)	2.89 (0.04)	6.8376 (0.0009)	110200.86	110201.35	31.9	¹³CO 1→0
0.873 (0.017)	0.98 (0.05)	0.91 (0.05)	5.842 (0.006)	110201.23	110201.35	6.5	¹³CO 1→0

Backend 2mm (134.6 GHz)

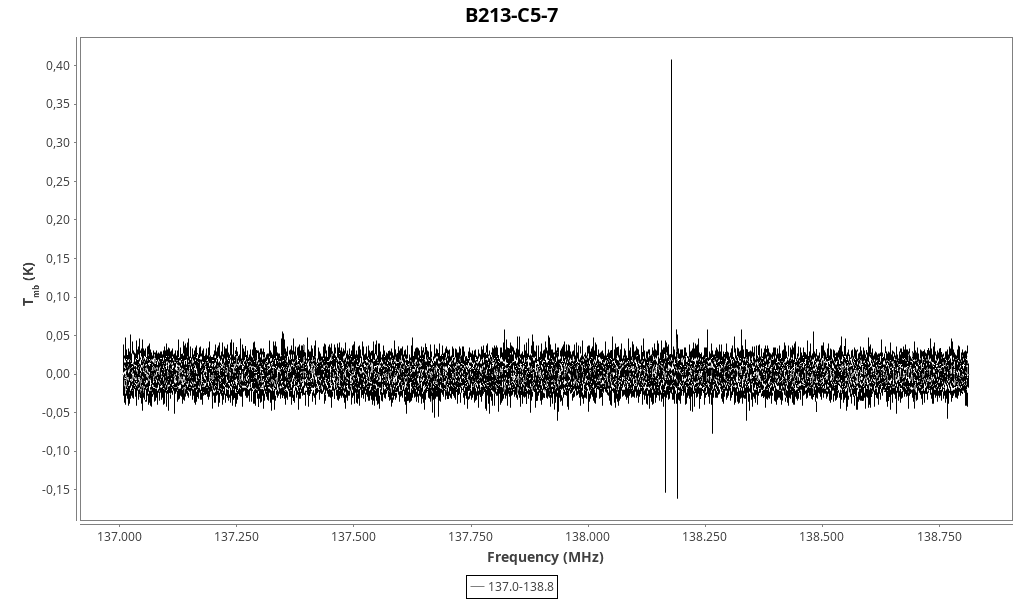

Backend 2mm (137.9 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.099 (0.024)	0.21 (0.18)	0.022 (0.019)	7.500 (0.014)	138177.74	138178.66	7.5	SO 4₃→3₂
0.430 (0.018)	0.30 (0.05)	0.136 (0.023)	7.186 (0.004)	138177.88	138178.66	32.4	SO 4₃→3₂
0.177 (0.015)	0.06 (0.06)	0.011 (0.012)	6.30 (0.06)	138252.80	138253.17	12.0	CH₃OOH (3)
0.07 (0.07)	0.12 (0.22)	0.009 (0.016)	7.18 (0.05)	138254.01	138254.8	4.8	Unidentified 138.254 GHz

Backend 2mm (144.1 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.21 (0.07)	0.11 (0.15)	0.02 (0.04)	5.454 (0.020)	143230.16	143230.1	8.7	Unidentified 143.229 GHz
1.9 (0.6)	1.2 (1.0)	2.4 (1.9)	5.45 (0.07)	144751.14	144751.12	3.2	C(50)</sup>\gamma</sup>
3.0 (0.6)	2.5 (0.9)	8 (3)	3.65 (0.07)	144752.01	144751.12	4.5	C(50)</sup>\gamma</sup>

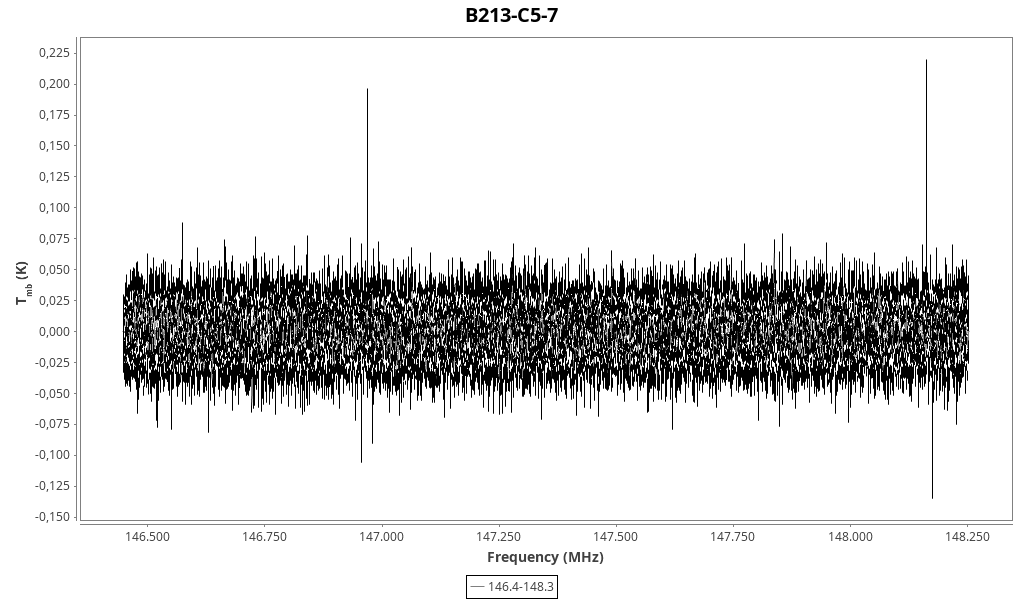

Backend 2mm (147.3 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.19 (0.04)	0.18 (0.14)	0.04 (0.03)	7.522 (0.009)	146968.03	146969.03	9.9	CS 3→2
0.197 (0.020)	0.48 (0.21)	0.10 (0.05)	7.062 (0.015)	146968.26	146969.03	10.2	CS 3→2
1.225 (0.023)	0.056 (0.013)	0.072 (0.017)	7.05 (0.05)	148162.86	148163.6	65.1	Unidentified

Backend 2mm (168.1 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
2.39 (0.04)	0.049 (0.009)	0.125 (0.023)	0.73 (0.05)	167275.07	167272.4	109.1	Unidentified
0.31 (0.09)	0.09 (0.10)	0.03 (0.04)	0.733 (0.016)	167540.58	167537.9	15.5	Unidentified
0.083 (0.023)	0.6 (0.8)	0.06 (0.07)	1.56 (0.05)	167580.00	167577.80	1.6	He(52)</sup>\delta</sup> (NO₂ in atmosphere?)
0.521 (0.023)	0.62 (0.12)	0.35 (0.07)	0.734 (0.008)	167580.46	167577.80	10.1	He(52)</sup>\delta</sup> (NO₂ in atmosphere?)

Backend 2mm (171.4 GHz)

Found 9 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.29 (0.04)	0.05 (0.09)	0.017 (0.025)	5.92 (0.05)	171000.39	171000.6	9.2	Unidentified 171.001 GHz
0.080 (0.017)	0.24 (0.04)	0.021 (0.003)	5.921 (0.016)	172102.97	172103.2	1.7	Unidentified 172.102 GHz
0.071 (0.004)	0.146 (0.006)	0.0110 (0.0004)	6.485 (0.003)	172105.00	172105.56	1.2	HS₂ 11(2,9)-10(2,8), J=21/2-19/2, F=11-10
0.025 (0.009)	0.5 (0.9)	0.014 (0.022)	5.72 (0.06)	172107.83	172107.96	0.6	HC¹⁵N 2→1
0.253 (0.006)	0.045 (0.014)	0.012 (0.004)	5.92 (0.05)	172213.86	172214.1	8.8	Unidentified 172.214 GHz
-0.005 (0.004)	2 (6)	-0.009 (0.006)	5.9 (0.8)	172222.83	172223.1	-0.2	Unidentified 172.223 GHz
0.092 (0.014)	0.139 (0.016)	0.0136 (0.0013)	5.921 (0.009)	172227.60	172227.8	3.1	Unidentified 172.227 GHz
0.160 (0.003)	0.059 (0.015)	0.0101 (0.0025)	3.92 (0.05)	172233.45	172232.55	5.1	S₂O 17(3,14)-17(2,15)
0.0599 (0.0011)	0.183 (0.016)	0.0117 (0.0010)	5.9211 (0.0011)	172235.28	172235.52	2.0	NaCN/NaNC 11(3,9)-10(3,8)
