DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B213-C6-5-0_0

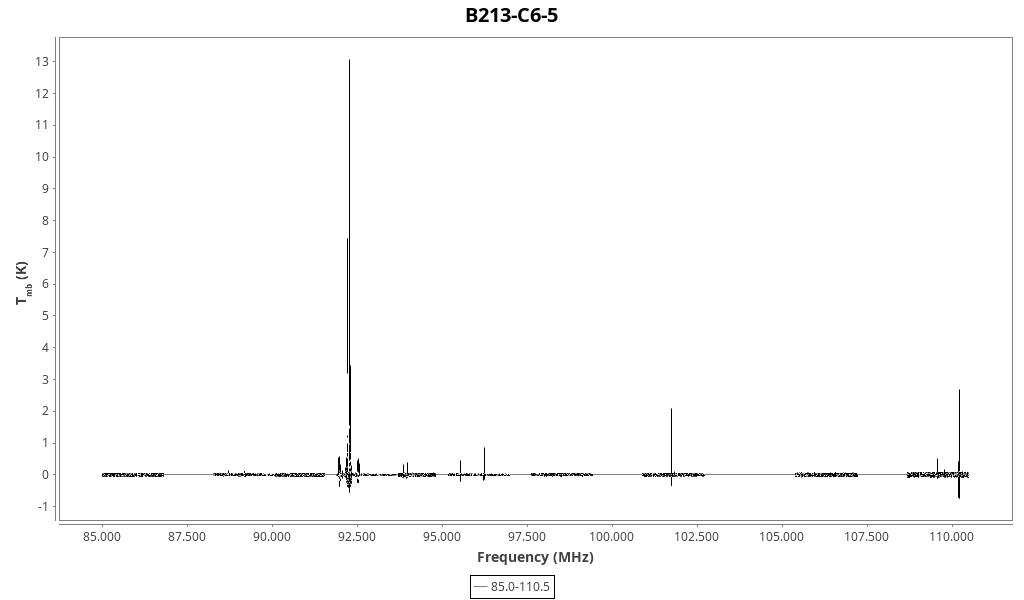

Backend 3mm (85.0-110.5 GHz)

Found 65 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.044 (0.010)	0.9 (0.6)	0.040 (0.024)	7.06 (0.06)	88631.39	88631.85	4.3	HCN 1→0 F=2→1
0.036 (0.010)	1.0 (0.8)	0.04 (0.03)	5.31 (0.08)	88631.90	88631.85	3.4	HCN 1→0 F=2→1
0.047 (0.013)	0.4 (0.4)	0.018 (0.015)	4.77 (0.04)	89045.80	89045.58	5.0	CCCN N=9-8, J=19/2-17/2 (3 components)
0.104 (0.009)	1.07 (0.25)	0.118 (0.025)	7.110 (0.024)	89188.05	89188.53	11.0	HCO⁺ 1→0
0.089 (0.009)	1.0 (0.3)	0.098 (0.025)	5.02 (0.03)	89188.67	89188.53	9.6	HCO⁺ 1→0
0.58 (0.15)	0.14 (0.07)	0.09 (0.04)	5.319 (0.024)	91952.55	91952.5	24.4	Unidentified
0.29 (0.09)	0.16 (0.10)	0.05 (0.03)	3.723 (0.024)	91980.54	91979.99	20.3	CH₃CN 5₂→4₂
0.62 (0.09)	0.15 (0.04)	0.096 (0.023)	8.017 (0.013)	91984.54	91985.31	42.9	CH₃CN 5₁→4₁
0.122 (0.022)	0.19 (0.11)	0.024 (0.014)	5.319 (0.017)	92048.55	92048.5	12.1	Unidentified
2.69 (0.06)	0.084 (0.016)	0.24 (0.05)	5.32 (0.08)	92183.29	92183.2	49.9	Unidentified
1.43 (0.17)	0.02 (0.05)	0.04 (0.07)	5.32 (0.08)	92199.83	92199.8	8.6	Unidentified
3.32 (0.17)	0.08 (0.04)	0.29 (0.13)	5.32 (0.08)	92200.77	92200.7	19.8	Unidentified
6.2 (2.4)	0.15 (0.08)	1.0 (0.5)	5.32 (0.04)	92201.25	92201.2	36.8	Unidentified
7.5 (1.2)	0.16 (0.07)	1.3 (0.6)	5.319 (0.014)	92201.73	92201.7	44.2	Unidentified
1.20 (0.15)	0.04 (0.06)	0.05 (0.08)	5.31915 (0.00004)	92202.22	92202.2	7.0	Unidentified
5.82 (0.15)	0.087 (0.019)	0.54 (0.12)	5.32 (0.08)	92203.17	92203.1	33.3	Unidentified
0.71 (0.10)	0.03 (0.07)	0.03 (0.05)	5.32 (0.08)	92217.36	92217.3	2.9	Unidentified
2.74 (0.11)	0.08 (0.03)	0.25 (0.09)	5.32 (0.08)	92217.82	92217.8	11.3	Unidentified
0.7 (0.3)	0.15 (0.15)	0.11 (0.11)	5.32 (0.04)	92218.77	92218.7	3.0	Unidentified
1 (7)	0.1 (0.5)	0.05 (0.15)	5.32 (0.08)	92219.22	92219.2	3.5	Unidentified
3.4 (0.3)	0.03 (0.04)	0.10 (0.13)	5.319183 (0.000008)	92219.26	92219.2	14.4	Unidentified
14.4 (0.3)	0.087 (0.015)	1.34 (0.23)	5.32 (0.08)	92219.73	92219.7	61.5	Unidentified
1.43 (0.11)	0.04 (0.04)	0.07 (0.06)	5.32 (0.08)	92220.24	92220.2	6.1	Unidentified
1.01 (0.24)	0.17 (0.12)	0.18 (0.13)	5.319 (0.022)	92221.16	92221.1	4.4	Unidentified
1.52 (0.12)	0.09 (0.06)	0.14 (0.09)	5.32 (0.08)	92221.64	92221.6	6.6	Unidentified
1.9 (1.9)	0.13 (0.13)	0.28 (0.14)	5.32 (0.07)	92258.07	92258.0	29.6	Unidentified
41.5 (0.7)	0.070 (0.012)	3.1 (0.5)	5.32 (0.08)	92258.46	92258.4	639.3	Unidentified
1.54 (0.12)	0.11 (0.07)	0.19 (0.11)	5.32 (0.08)	92258.63	92258.6	23.8	Unidentified
2 (4)	0.13 (0.21)	0.28 (0.24)	5.32 (0.09)	92259.04	92259.0	32.9	Unidentified
1.2 (0.3)	0.17 (0.12)	0.22 (0.15)	5.319 (0.022)	92277.95	92277.9	14.9	Unidentified
1.2 (1.6)	0.14 (0.17)	0.17 (0.14)	5.32 (0.09)	92278.90	92278.8	13.4	Unidentified
6.0 (0.9)	0.17 (0.07)	1.1 (0.5)	5.319 (0.014)	92279.38	92279.3	66.5	Unidentified
4.7 (0.9)	0.16 (0.09)	0.8 (0.5)	5.319 (0.018)	92279.86	92279.8	51.0	Unidentified
1.0 (0.4)	0.15 (0.12)	0.17 (0.13)	5.32 (0.03)	92280.35	92280.3	10.8	Unidentified
0.9 (0.3)	0.18 (0.15)	0.18 (0.14)	5.319 (0.025)	92281.29	92281.2	9.3	Unidentified
1.1 (0.4)	0.15 (0.12)	0.18 (0.13)	5.32 (0.03)	92281.77	92281.7	10.6	Unidentified
15.5 (0.3)	0.081 (0.012)	1.33 (0.19)	5.32 (0.08)	92297.37	92297.3	132.3	Unidentified
15.4 (0.3)	0.081 (0.012)	1.33 (0.19)	5.32 (0.08)	92297.86	92297.8	132.7	Unidentified
2.26 (0.11)	0.09 (0.04)	0.21 (0.09)	5.32 (0.08)	92299.27	92299.2	20.1	Unidentified
2.78 (0.11)	0.08 (0.03)	0.24 (0.09)	5.32 (0.08)	92299.76	92299.7	24.8	Unidentified
1.84 (0.05)	0.084 (0.018)	0.16 (0.04)	5.32 (0.08)	92315.82	92315.8	39.8	Unidentified
0.540 (0.017)	0.067 (0.023)	0.038 (0.012)	5.32 (0.08)	92492.55	92492.5	49.4	Unidentified
0.45 (0.06)	0.17 (0.08)	0.08 (0.04)	5.320 (0.013)	92496.57	92496.5	39.9	Unidentified
0.17 (0.08)	0.15 (0.14)	0.028 (0.024)	5.32 (0.04)	92500.58	92500.5	8.1	Unidentified
1.064 (0.025)	0.084 (0.017)	0.095 (0.019)	5.32 (0.08)	92514.57	92514.5	68.3	Unidentified
0.29 (0.07)	0.17 (0.10)	0.05 (0.04)	5.320 (0.020)	92524.56	92524.5	28.6	Unidentified
0.51 (0.09)	0.17 (0.09)	0.09 (0.06)	5.320 (0.016)	92528.55	92528.5	34.9	Unidentified
0.126 (0.012)	0.09 (0.07)	0.012 (0.009)	3.59 (0.08)	92544.49	92543.91	3.7	CH₃OCHO v=1 9(1,8)-8(2,7)
0.188 (0.022)	0.76 (0.21)	0.15 (0.04)	3.448 (0.021)	93849.33	93848.69	10.9	CNCHO 17(1,16)-17(0,17)
0.128 (0.017)	3.1 (0.7)	0.42 (0.08)	3.19 (0.06)	93849.41	93848.69	7.4	CNCHO 17(1,16)-17(0,17)
0.230 (0.019)	0.93 (0.19)	0.23 (0.05)	4.888 (0.019)	93960.12	93959.93	13.2	CH₃OOH (2)
0.152 (0.017)	3.2 (0.6)	0.53 (0.08)	4.78 (0.06)	93960.16	93959.93	8.7	CH₃OOH (2)
0.20 (0.07)	1.6 (1.2)	0.33 (0.22)	5.33 (0.11)	95531.49	95531.4	14.7	Unidentified
0.35 (0.07)	1.2 (0.6)	0.45 (0.19)	5.33 (0.06)	95531.73	95531.7	25.7	Unidentified
0.62 (0.12)	2.6 (0.9)	1.7 (0.5)	5.33 (0.08)	96232.99	96232.9	18.7	Unidentified
0.12 (0.04)	1.5 (1.0)	0.19 (0.11)	5.33 (0.09)	96234.00	96233.9	3.5	Unidentified
0.092 (0.020)	2.7 (1.1)	0.26 (0.09)	5.33 (0.10)	96234.79	96234.7	2.8	Unidentified
1.0 (0.3)	1.2 (0.9)	1.3 (0.9)	5.34 (0.09)	101741.99	101741.9	21.8	Unidentified
0.9 (0.3)	3.9 (2.1)	3.8 (1.6)	5.34 (0.17)	101742.09	101742.0	19.1	Unidentified
0.083 (0.016)	1.3 (0.6)	0.11 (0.05)	5.34 (0.06)	101840.56	101840.5	6.6	Unidentified
0.42 (0.08)	2.2 (0.8)	1.0 (0.3)	5.35 (0.07)	109565.11	109565.1	15.2	Unidentified
0.18 (0.03)	0.42 (0.20)	0.08 (0.04)	7.270 (0.021)	109781.53	109782.18	8.2	C¹⁸O 1→0
0.07 (0.03)	0.3 (0.5)	0.02 (0.04)	6.93 (0.05)	109781.65	109782.18	3.4	C¹⁸O 1→0
2.395 (0.022)	0.879 (0.023)	2.24 (0.06)	7.1474 (0.0022)	110200.75	110201.35	35.3	¹³CO 1→0
0.775 (0.022)	2.32 (0.13)	1.92 (0.09)	6.217 (0.012)	110201.09	110201.35	11.4	¹³CO 1→0

Backend 2mm (134.6 GHz)

Backend 2mm (137.9 GHz)

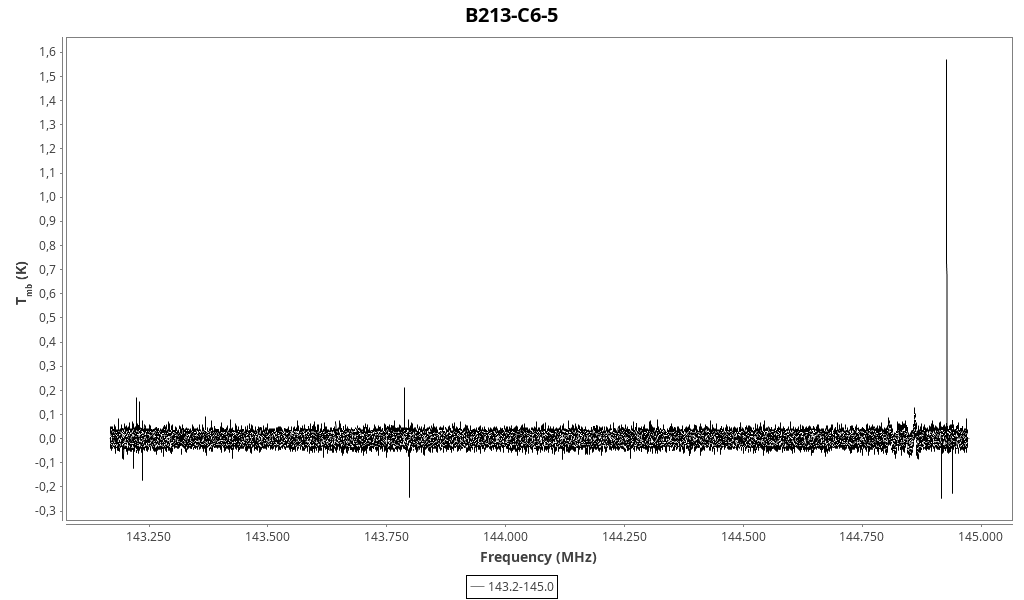

Backend 2mm (144.1 GHz)

Backend 2mm (147.3 GHz)

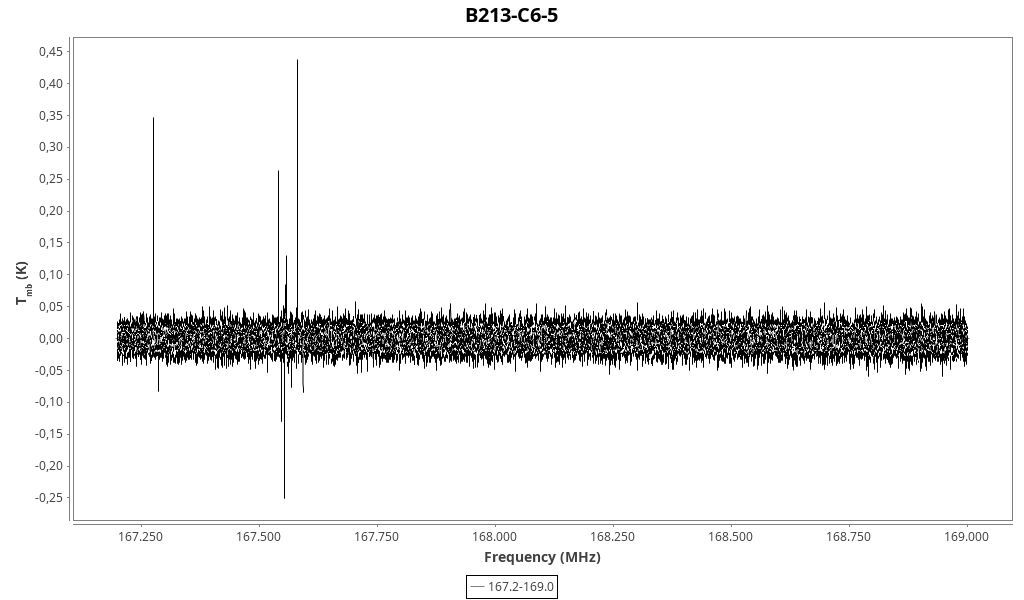

Backend 2mm (168.1 GHz)

Backend 2mm (171.4 GHz)

Found 12 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.17 (0.04)	0.13 (0.16)	0.02 (0.03)	3.976 (0.012)	171984.06	171983.2	8.0	Unidentified
0.35 (0.14)	0.08 (0.06)	0.031 (0.022)	3.977 (0.020)	172096.76	172095.9	17.6	Unidentified 172.097 GHz
0.35 (0.07)	0.10 (0.09)	0.04 (0.04)	3.977 (0.012)	172114.77	172113.9	16.6	Unidentified
0.056 (0.013)	0.13 (0.14)	0.008 (0.008)	3.978 (0.013)	172220.15	172219.3	2.8	Unidentified 172.220 GHz
0.016 (0.007)	2.4 (2.2)	0.04 (0.04)	3.98 (0.13)	172221.50	172220.6	0.8	Unidentified 172.220 GHz
0.015 (0.004)	0.8 (0.7)	0.013 (0.011)	3.98 (0.05)	172222.96	172222.1	0.7	Unidentified 172.223 GHz
0.060 (0.008)	0.27 (0.14)	0.0173 (0.0015)	3.978 (0.012)	172227.58	172226.7	3.2	Unidentified 172.227 GHz
0.058 (0.019)	0.12 (0.09)	0.0074 (0.0011)	3.978 (0.011)	172229.01	172228.1	3.1	Unidentified 172.227 GHz
-0.012 (0.006)	0.4 (1.1)	-0.0049 (0.0017)	3.98 (0.09)	172233.42	172232.55	-0.6	S₂O 17(3,14)-17(2,15)
0.07 (0.03)	0.12 (0.10)	0.0085 (0.0011)	7.758 (0.008)	172234.23	172235.52	3.1	NaCN/NaNC 11(3,9)-10(3,8)
0.0210 (0.0020)	2.1 (0.5)	0.047 (0.010)	2.99 (0.03)	172236.97	172235.52	0.9	NaCN/NaNC 11(3,9)-10(3,8)
0.053 (0.024)	0.09 (0.04)	0.0049 (0.0020)	1.461 (0.013)	172237.85	172235.52	2.3	NaCN/NaNC 11(3,9)-10(3,8)
