DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B213-C7-8-0_0

Backend 3mm (85.0-110.5 GHz)

Found 78 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.16 (0.03)	0.31 (0.14)	0.053 (0.024)	6.782 (0.017)	85138.74	85139.10	11.2	OCS 7→6
0.116 (0.024)	0.35 (0.20)	0.042 (0.024)	6.744 (0.023)	85161.87	85162.22	8.6	HC¹⁸O⁺ 1→0
0.46 (0.05)	0.36 (0.11)	0.17 (0.05)	6.815 (0.012)	85338.53	85338.90	34.7	c-C₃H₂ 2_1,2→1_0,1
0.06 (0.04)	0.2 (0.3)	0.014 (0.016)	1.62 (0.04)	85732.25	85731.14	4.6	C(42)</sup>\alpha</sup>
0.046 (0.017)	3.3 (2.0)	0.16 (0.08)	6.46 (0.22)	85926.00	85926.28	2.3	NH₂D 1_1,1→1_0,1 F=2-2
0.042 (0.018)	0.8 (0.9)	0.04 (0.04)	6.88 (0.13)	85927.33	85927.73	2.1	NH₂D 1_1,1→1_0,1 F=1-0
0.68 (0.08)	0.30 (0.08)	0.22 (0.06)	6.737 (0.009)	86093.60	86093.96	51.6	SO 2₂→1₁
0.05 (0.03)	0.4 (0.5)	0.024 (0.025)	6.75 (0.06)	86338.37	86338.73	3.6	H¹³CN 1₁→0₁
0.093 (0.024)	0.33 (0.23)	0.033 (0.022)	5.96 (0.03)	86339.79	86339.92	5.7	H¹³CN 1→0
0.077 (0.019)	0.4 (0.3)	0.035 (0.024)	7.11 (0.04)	86670.34	86670.80	5.8	HCO 1_0,1→0_0,0 J=3/2→1/2 F=2→1
1.09 (0.06)	0.43 (0.06)	0.49 (0.06)	6.752 (0.007)	86753.93	86754.29	77.1	H¹³CO⁺ 1→0
0.033 (0.016)	1.4 (1.5)	0.05 (0.05)	7.19 (0.17)	86776.95	86777.44	1.9	HCO 1_0,1→0_0,0 J=1/2→1/2 F=1→1
0.13 (0.05)	0.5 (0.4)	0.06 (0.06)	7.09 (0.05)	88629.95	88630.42	5.7	HCN 1→0 F=1→1
0.15 (0.04)	0.33 (0.24)	0.05 (0.04)	7.15 (0.03)	88631.36	88631.85	6.4	HCN 1→0 F=2→1
0.09 (0.04)	2.0 (1.3)	0.20 (0.11)	6.04 (0.14)	88631.69	88631.85	4.0	HCN 1→0 F=2→1
0.17 (0.03)	0.9 (0.4)	0.15 (0.06)	6.80 (0.05)	88633.55	88633.94	7.2	HCN 1→0 F=0→1
0.23 (0.06)	0.5 (0.4)	0.12 (0.08)	7.09 (0.04)	89188.05	89188.53	17.7	HCO⁺ 1→0
0.32 (0.05)	1.2 (0.4)	0.41 (0.12)	5.70 (0.05)	89188.47	89188.53	24.8	HCO⁺ 1→0
0.124 (0.012)	0.10 (0.07)	0.013 (0.009)	4.81 (0.09)	89235.09	89234.89	11.8	He(59)</sup>\gamma</sup>
0.662 (0.020)	0.52 (0.05)	0.37 (0.04)	7.189 (0.006)	90663.05	90663.56	30.0	HNC 1→0
0.629 (0.024)	0.49 (0.05)	0.33 (0.04)	6.492 (0.006)	90663.26	90663.56	28.4	HNC 1→0
0.11 (0.06)	0.19 (0.10)	0.022 (0.011)	6.720 (0.025)	91952.44	91952.8	12.0	Unidentified
0.14 (0.03)	0.26 (0.15)	0.038 (0.022)	6.717 (0.020)	92183.18	92183.6	8.6	Unidentified
0.81 (0.15)	0.30 (0.17)	0.26 (0.14)	6.717 (0.021)	92201.15	92201.5	14.8	Unidentified
1.44 (0.23)	0.25 (0.09)	0.39 (0.13)	6.717 (0.011)	92201.63	92202.0	26.1	Unidentified
2.80 (0.08)	0.098 (0.019)	0.29 (0.06)	6.72 (0.09)	92219.15	92219.5	60.7	Unidentified
1.0 (0.3)	0.22 (0.09)	0.23 (0.09)	6.716 (0.009)	92219.64	92220.0	22.1	Unidentified
1.22 (0.17)	0.28 (0.11)	0.36 (0.13)	6.716 (0.013)	92279.27	92279.6	23.1	Unidentified
1.1 (0.4)	0.22 (0.10)	0.26 (0.12)	6.716 (0.015)	92279.75	92280.1	20.5	Unidentified
1.04 (0.23)	0.25 (0.10)	0.27 (0.11)	6.715 (0.011)	92297.28	92297.7	22.8	Unidentified
0.84 (0.18)	0.26 (0.13)	0.24 (0.11)	6.715 (0.016)	92297.76	92298.1	18.7	Unidentified
0.067 (0.014)	0.37 (0.22)	0.026 (0.015)	6.803 (0.025)	92493.87	92494.27	8.1	¹³CS 2→1
0.208 (0.010)	0.10 (0.04)	0.023 (0.008)	-1.61 (0.09)	92496.46	92494.27	24.6	¹³CS 2→1
0.093 (0.017)	0.29 (0.17)	0.029 (0.017)	6.712 (0.021)	92528.47	92528.8	10.2	Unidentified
0.052 (0.012)	0.4 (0.3)	0.022 (0.015)	6.80 (0.04)	92981.20	92981.60	5.8	HDCS 3(0,3)-2(0,2) ? (CH3OCHO)
0.499 (0.008)	0.72 (0.04)	0.381 (0.016)	6.489 (0.004)	93171.57	93171.88	9.0	N₂H⁺ 1→0 F=1→1
0.398 (0.008)	1.78 (0.07)	0.754 (0.025)	6.649 (0.008)	93173.34	93173.70	7.2	N₂H⁺ 1→0 F=1→2
0.385 (0.011)	0.236 (0.023)	0.097 (0.009)	6.513 (0.004)	93173.39	93173.70	7.0	N₂H⁺ 1→0 F=1→2
0.422 (0.011)	0.39 (0.03)	0.173 (0.012)	6.346 (0.004)	93175.87	93176.13	7.6	N₂H⁺ 1→0 F=1→0
0.105 (0.014)	0.34 (0.14)	0.038 (0.015)	6.703 (0.017)	93267.00	93267.4	12.3	Unidentified
0.350 (0.018)	4.7 (0.4)	1.74 (0.09)	3.12 (0.04)	93849.43	93848.69	15.9	CNCHO 17(1,16)-17(0,17)
0.399 (0.019)	0.97 (0.11)	0.41 (0.05)	2.958 (0.013)	93849.49	93848.69	18.2	CNCHO 17(1,16)-17(0,17)
0.520 (0.023)	1.26 (0.13)	0.70 (0.07)	4.449 (0.014)	93960.26	93959.93	18.6	CH₃OOH (2)
0.351 (0.023)	4.4 (0.5)	1.64 (0.12)	3.99 (0.04)	93960.40	93959.93	12.5	CH₃OOH (2)
0.22 (0.04)	2.1 (0.7)	0.50 (0.13)	6.67 (0.07)	95532.28	95532.7	15.0	Unidentified
28 (4)	0.37 (0.13)	11 (4)	6.673 (0.018)	95604.59	95605.0	20.3	Unidentified
96.2 (2.5)	0.094 (0.019)	9.7 (1.9)	6.67 (0.09)	95604.79	95605.2	70.0	Unidentified
21.9 (2.3)	0.63 (0.19)	15 (5)	6.673 (0.022)	95614.83	95615.2	14.0	Unidentified
0.069 (0.018)	0.5 (0.4)	0.036 (0.022)	6.67 (0.04)	95801.93	95802.3	6.2	Unidentified
0.72 (0.13)	2.6 (0.8)	2.0 (0.5)	6.67 (0.08)	96233.94	96234.3	22.8	Unidentified
0.225 (0.014)	0.47 (0.09)	0.113 (0.019)	6.827 (0.009)	96412.53	96412.95	19.9	C³⁴S 2→1
0.08 (0.06)	0.15 (0.14)	0.013 (0.012)	6.66 (0.09)	96450.71	96451.1	6.8	Unidentified
0.684 (0.017)	0.381 (0.025)	0.278 (0.018)	6.772 (0.003)	96738.95	96739.36	59.4	CH₃OH 2_(-1,2)→1_(-1,1)
0.916 (0.016)	0.392 (0.019)	0.382 (0.018)	6.7710 (0.0022)	96740.96	96741.37	79.7	CH₃OH 2_(0,2)→1_(0,1) ++
0.050 (0.016)	0.3 (0.4)	0.017 (0.016)	5.86 (0.04)	96741.25	96741.37	4.4	CH₃OH 2_(0,2)→1_(0,1) ++
0.068 (0.016)	0.30 (0.23)	0.022 (0.016)	6.75 (0.03)	96744.15	96744.55	6.8	CH₃OH 2_(0,2)→1_(0,1)
0.540 (0.012)	0.372 (0.022)	0.214 (0.012)	6.735 (0.003)	97715.00	97715.40	68.4	³⁴SO 3₍₂₎→2₍₁₎
0.635 (0.009)	0.657 (0.025)	0.444 (0.016)	6.984 (0.003)	97980.47	97980.95	26.2	CS 2→1
0.271 (0.008)	1.49 (0.09)	0.431 (0.024)	5.964 (0.010)	97980.80	97980.95	11.2	CS 2→1
0.063 (0.016)	0.29 (0.20)	0.020 (0.013)	6.639 (0.025)	98493.23	98493.6	6.7	Unidentified
1.930 (0.012)	0.550 (0.009)	1.130 (0.018)	6.7487 (0.0011)	99299.48	99299.89	89.7	SO 3₍₂₎→2₍₁₎
0.306 (0.011)	0.54 (0.06)	0.176 (0.018)	5.843 (0.007)	99299.78	99299.89	14.3	SO 3₍₂₎→2₍₁₎
0.236 (0.015)	0.38 (0.07)	0.097 (0.016)	6.744 (0.008)	101477.39	101477.81	24.6	H₂CS 3_(1,3)→2_(1,2)
1.5 (0.3)	3.0 (0.9)	4.9 (1.2)	6.60 (0.09)	101742.31	101742.7	31.1	Unidentified
0.036 (0.011)	1.5 (0.9)	0.06 (0.04)	6.60 (0.10)	101840.86	101841.2	3.8	Unidentified
0.051 (0.012)	0.4 (0.4)	0.023 (0.016)	6.71 (0.04)	101981.02	101981.43	6.0	H₂CCO 5_(1,4)→4_(1,3)
0.14 (0.04)	0.4 (0.3)	0.06 (0.04)	6.71 (0.03)	108893.50	108893.95	5.8	CH₃OH 0_0,0→1_-1,1
0.73 (0.04)	0.40 (0.06)	0.31 (0.05)	6.742 (0.007)	109251.73	109252.18	29.3	SO 2₃→1₂
0.12 (0.05)	0.3 (0.4)	0.04 (0.04)	6.71 (0.04)	109462.62	109463.06	3.9	OCS 9→8
0.18 (0.04)	1.9 (0.7)	0.36 (0.12)	6.52 (0.08)	109564.72	109565.1	2.6	Unidentified 109.563 GHz
1.00 (0.04)	1.44 (0.11)	1.53 (0.10)	6.524 (0.012)	109565.26	109565.6	14.0	Unidentified 109.563 GHz
0.32 (0.06)	0.38 (0.16)	0.13 (0.06)	6.524 (0.022)	109565.56	109565.9	4.6	Unidentified 109.563 GHz
2.67 (0.04)	0.533 (0.019)	1.52 (0.05)	6.8477 (0.0022)	109781.68	109782.18	81.7	C¹⁸O 1→0
0.94 (0.03)	0.63 (0.06)	0.63 (0.06)	5.935 (0.007)	109782.02	109782.18	29.1	C¹⁸O 1→0
0.21 (0.04)	0.37 (0.20)	0.08 (0.05)	6.722 (0.023)	109905.30	109905.75	7.8	HNCO 5→4
0.47 (0.04)	0.73 (0.12)	0.36 (0.06)	7.978 (0.017)	110200.44	110201.35	3.4	¹³CO 1→0
3.89 (0.03)	0.818 (0.016)	3.39 (0.06)	6.9504 (0.0018)	110200.82	110201.35	28.0	¹³CO 1→0
3.67 (0.03)	1.69 (0.03)	6.58 (0.09)	5.851 (0.003)	110201.22	110201.35	26.4	¹³CO 1→0

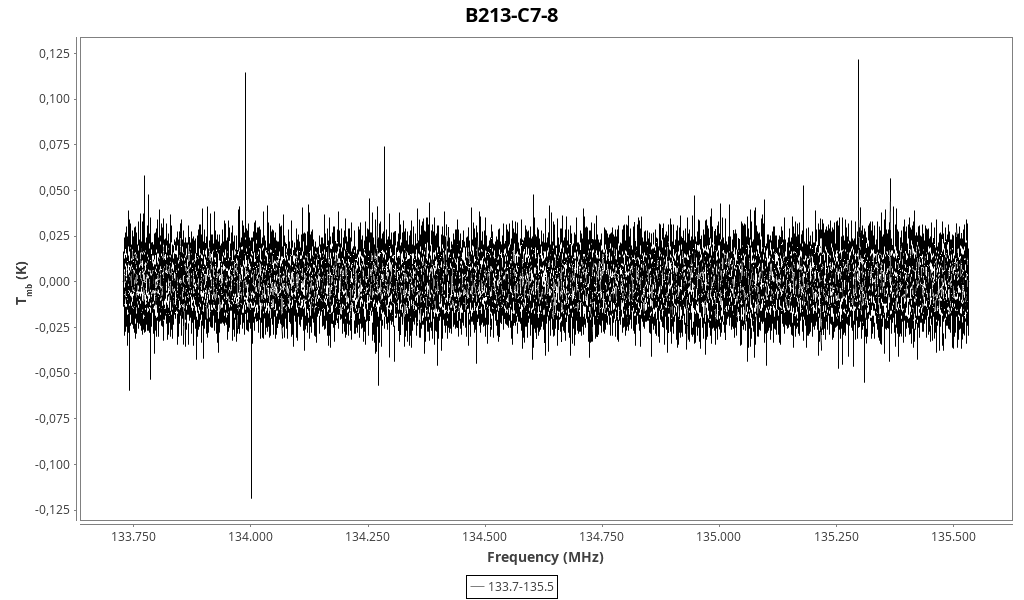

Backend 2mm (134.6 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.504 (0.014)	0.058 (0.019)	0.031 (0.010)	6.71 (0.06)	133988.69	133989.2	39.7	Unidentified
0.076 (0.014)	0.3 (0.3)	0.026 (0.021)	6.708 (0.020)	134284.36	134284.90	6.7	HDCO 2(1,1)-1(1,0)
0.119 (0.017)	0.27 (0.17)	0.034 (0.020)	6.724 (0.013)	135297.71	135298.26	9.4	H₂CS 4(1,4)-3(1,3)

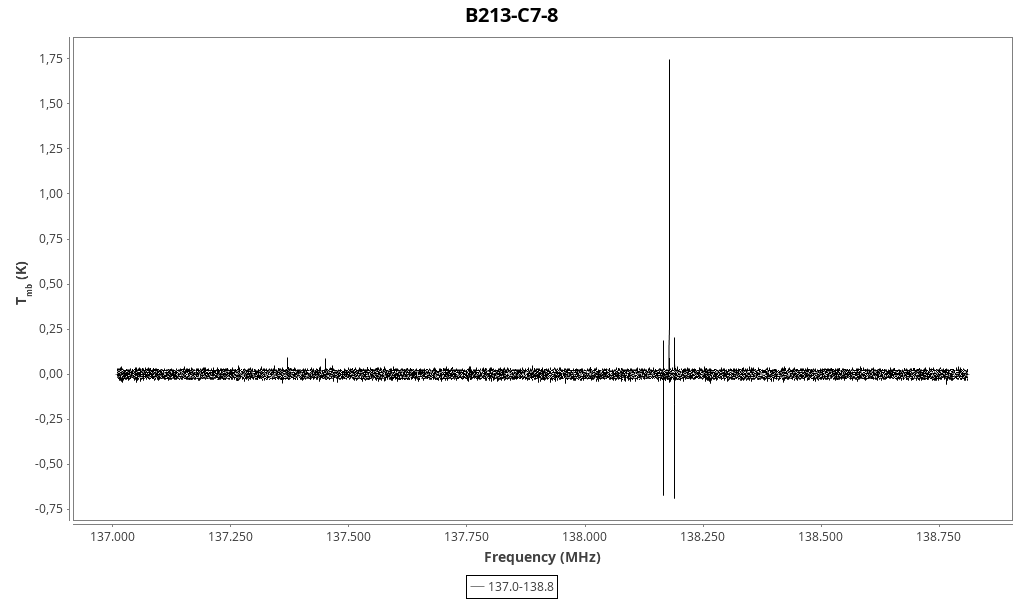

Backend 2mm (137.9 GHz)

Found 5 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.098 (0.018)	0.26 (0.20)	0.027 (0.021)	6.741 (0.016)	137370.64	137371.21	6.8	H₂CS 4(0,4)-3(0,3)
0.083 (0.015)	0.3 (0.3)	0.029 (0.023)	6.722 (0.020)	137449.39	137449.95	6.3	H₂¹³CO 2(1,2)-1(1,1)
1.844 (0.014)	0.395 (0.013)	0.775 (0.025)	6.7761 (0.0010)	138178.07	138178.66	64.9	SO 4₃→3₂
0.098 (0.016)	0.28 (0.20)	0.029 (0.021)	5.977 (0.016)	138178.44	138178.66	3.5	SO 4₃→3₂
0 (5)	0 (5)	0.01 (0.23)	7.0 (1.8)	138421.73	138422.43	5.5	p-D₂CS 5→4

Backend 2mm (144.1 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.583 (0.020)	0.060 (0.025)	0.037 (0.015)	6.46 (0.05)	143224.22	143224.7	30.3	Unidentified 143.224 GHz
1.485 (0.023)	0.44 (0.04)	0.69 (0.05)	6.3665 (0.0022)	144076.87	144077.29	45.7	DCO⁺ J=2-1 (multiple components around)
0.09 (0.03)	0.3 (0.5)	0.03 (0.04)	6.45 (0.03)	144616.64	144617.10	3.9	C³⁴S 3→2
0.15 (0.03)	1.1 (0.6)	0.17 (0.09)	7.94 (0.05)	144749.94	144751.12	1.6	C(50)</sup>\gamma</sup>

Backend 2mm (147.3 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.393 (0.022)	0.38 (0.10)	0.16 (0.05)	7.004 (0.008)	146968.29	146969.03	17.4	CS 3→2
0.52 (0.04)	0.22 (0.06)	0.12 (0.04)	6.588 (0.005)	146968.49	146969.03	22.9	CS 3→2
0.090 (0.021)	0.6 (0.6)	0.06 (0.06)	5.85 (0.05)	146968.86	146969.03	4.0	CS 3→2

Backend 2mm (168.1 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.30 (0.04)	0.05 (0.08)	0.017 (0.024)	6.98 (0.05)	167542.11	167542.9	8.7	Unidentified
1.22 (0.04)	0.048 (0.019)	0.062 (0.025)	6.98 (0.05)	167558.48	167559.3	41.0	Unidentified
0.50 (0.08)	1.4 (0.7)	0.7 (0.4)	6.98 (0.04)	167582.44	167583.3	17.6	Unidentified
0.07 (0.03)	0.6 (1.0)	0.05 (0.08)	6.97 (0.07)	168761.92	168762.75	2.4	H₂S 1_(1,0)→1_(0,1)

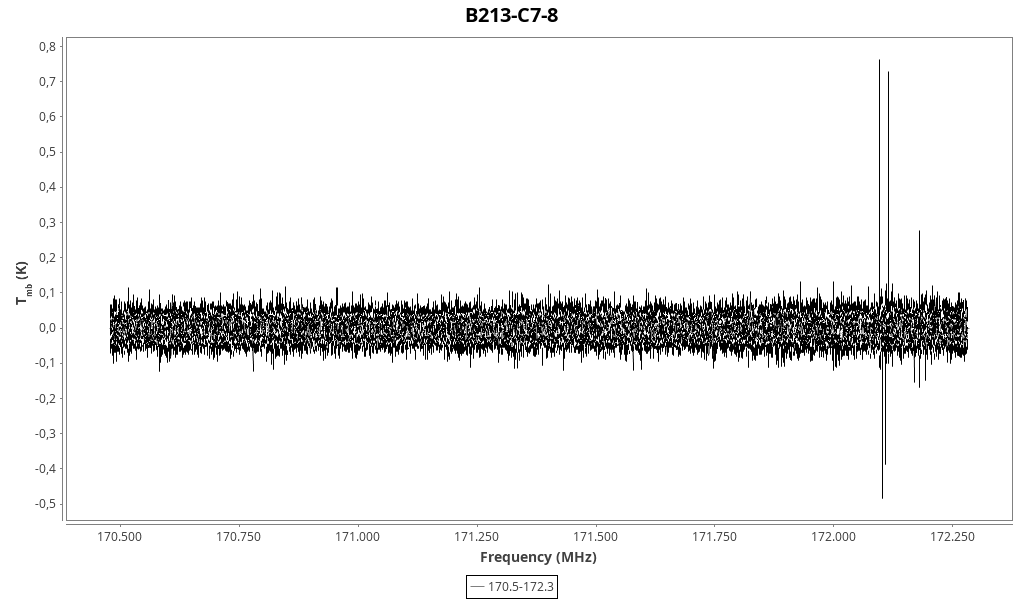

Backend 2mm (171.4 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
3.26 (0.05)	0.045 (0.009)	0.16 (0.04)	6.72 (0.05)	172096.89	172097.6	84.1	Unidentified 172.097 GHz
0.83 (0.07)	0.008 (0.022)	0.007 (0.020)	6.7247558 (0.0000024)	172114.89	172115.6	21.0	Unidentified
0.30 (0.05)	0.22 (0.20)	0.07 (0.07)	6.724 (0.013)	172180.70	172181.41	8.0	SO 4₍₄₎→3₍₃₎
