DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

B213-C7-9-0_0

Backend 3mm (85.0-110.5 GHz)

Found 58 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.147 (0.024)	0.32 (0.15)	0.049 (0.023)	6.774 (0.018)	85138.74	85139.10	10.2	OCS 7→6
0.084 (0.023)	0.4 (0.3)	0.036 (0.025)	6.71 (0.04)	85338.56	85338.90	6.5	c-C₃H₂ 2_1,2→1_0,1
0.25 (0.04)	0.36 (0.12)	0.10 (0.04)	6.768 (0.014)	86093.59	86093.96	18.1	SO 2₂→1₁
0.66 (0.05)	0.40 (0.08)	0.28 (0.06)	6.745 (0.009)	86753.93	86754.29	47.6	H¹³CO⁺ 1→0
0.07 (0.04)	2.0 (1.8)	0.14 (0.11)	6.42 (0.18)	88630.15	88630.42	2.2	HCN 1→0 F=1→1
0.18 (0.03)	0.9 (0.4)	0.17 (0.07)	5.51 (0.05)	88631.84	88631.85	5.6	HCN 1→0 F=2→1
0.13 (0.03)	0.6 (0.5)	0.09 (0.06)	6.89 (0.06)	88633.53	88633.94	4.1	HCN 1→0 F=0→1
0.03 (0.03)	0.2 (0.5)	0.006 (0.013)	2.71 (0.08)	88866.53	88865.70	2.1	H¹⁵NC 1→0
0.20 (0.06)	0.6 (0.5)	0.13 (0.10)	7.05 (0.06)	89188.06	89188.53	15.2	HCO⁺ 1→0
0.41 (0.05)	1.1 (0.4)	0.46 (0.13)	5.62 (0.04)	89188.49	89188.53	31.4	HCO⁺ 1→0
0.292 (0.020)	0.56 (0.12)	0.17 (0.04)	7.183 (0.013)	90663.05	90663.56	15.1	HNC 1→0
0.456 (0.022)	0.54 (0.07)	0.26 (0.04)	6.546 (0.009)	90663.25	90663.56	23.9	HNC 1→0
0.101 (0.024)	0.25 (0.13)	0.026 (0.014)	6.687 (0.018)	91952.44	91952.8	11.2	Unidentified
0.063 (0.022)	0.25 (0.19)	0.016 (0.012)	8.375 (0.025)	91984.43	91985.31	6.8	CH₃CN 5₁→4₁
0.022 (0.013)	0.3 (0.5)	0.007 (0.012)	7.58 (0.06)	92071.30	92071.94	2.5	He(41)</sup>\alpha</sup>
0.132 (0.025)	0.27 (0.17)	0.037 (0.022)	6.684 (0.021)	92183.18	92183.5	8.7	Unidentified
0.89 (0.15)	0.29 (0.14)	0.27 (0.13)	6.684 (0.016)	92201.15	92201.5	13.3	Unidentified
1.30 (0.19)	0.26 (0.09)	0.37 (0.12)	6.684 (0.010)	92201.63	92202.0	19.3	Unidentified
0.8 (0.4)	0.21 (0.10)	0.18 (0.09)	6.684 (0.010)	92219.15	92219.5	13.7	Unidentified
1.05 (0.19)	0.25 (0.09)	0.28 (0.09)	6.684 (0.009)	92219.64	92220.0	18.1	Unidentified
1.32 (0.19)	0.26 (0.09)	0.37 (0.12)	6.683 (0.011)	92279.27	92279.6	19.2	Unidentified
1.1 (0.3)	0.22 (0.09)	0.27 (0.11)	6.683 (0.013)	92279.76	92280.1	16.2	Unidentified
10 (220)	0.1 (1.1)	1 (21)	6.683 (0.007)	92297.28	92297.6	91.9	Unidentified
5.16 (0.07)	0.094 (0.010)	0.52 (0.06)	6.68 (0.09)	92297.77	92298.1	81.6	Unidentified
0.038 (0.011)	0.6 (0.6)	0.025 (0.021)	6.95 (0.07)	92493.82	92494.27	3.4	¹³CS 2→1
0.095 (0.020)	0.27 (0.18)	0.027 (0.018)	6.680 (0.023)	92528.46	92528.8	8.8	Unidentified
0.152 (0.007)	0.74 (0.09)	0.120 (0.014)	6.486 (0.011)	93171.57	93171.88	13.8	N₂H⁺ 1→0 F=1→1
0.156 (0.009)	0.34 (0.06)	0.056 (0.009)	7.468 (0.007)	93173.09	93173.70	14.5	N₂H⁺ 1→0 F=1→2
0.210 (0.009)	0.38 (0.05)	0.085 (0.010)	6.501 (0.006)	93173.39	93173.70	19.4	N₂H⁺ 1→0 F=1→2
0.065 (0.009)	0.30 (0.14)	0.021 (0.009)	5.873 (0.017)	93173.58	93173.70	6.0	N₂H⁺ 1→0 F=1→2
0.137 (0.009)	0.37 (0.07)	0.055 (0.010)	6.342 (0.009)	93175.87	93176.13	13.2	N₂H⁺ 1→0 F=1→0
0.639 (0.023)	1.73 (0.09)	1.17 (0.06)	3.308 (0.018)	93849.38	93848.69	8.2	CNCHO 17(1,16)-17(0,17)
0.589 (0.021)	1.17 (0.10)	0.73 (0.06)	4.437 (0.011)	93960.26	93959.93	27.1	CH₃OOH (2)
0.386 (0.021)	3.7 (0.4)	1.51 (0.10)	4.30 (0.03)	93960.31	93959.93	17.8	CH₃OOH (2)
0.30 (0.05)	1.7 (0.5)	0.56 (0.15)	6.64 (0.06)	95532.30	95532.7	21.8	Unidentified
63.3 (2.3)	0.10 (0.03)	6.9 (1.8)	6.64 (0.09)	95614.76	95615.1	37.8	Unidentified
40 (70)	0.15 (0.22)	7 (5)	6.64 (0.08)	95614.90	95615.3	24.4	Unidentified
0.050 (0.016)	3.3 (1.7)	0.18 (0.08)	6.64 (0.18)	95802.10	95802.5	4.1	Unidentified
0.59 (0.09)	2.0 (0.6)	1.3 (0.4)	6.63 (0.06)	96233.99	96234.4	19.4	Unidentified
0.08 (0.03)	1.5 (1.1)	0.13 (0.08)	6.63 (0.13)	96234.72	96235.1	2.6	Unidentified
0.120 (0.018)	0.50 (0.23)	0.06 (0.03)	6.86 (0.03)	96412.52	96412.95	8.0	C³⁴S 2→1
0.56 (0.07)	0.37 (0.12)	0.22 (0.07)	6.792 (0.014)	96738.94	96739.36	31.3	CH₃OH 2_(-1,2)→1_(-1,1)
0.73 (0.07)	0.38 (0.09)	0.29 (0.07)	6.795 (0.011)	96740.95	96741.37	38.6	CH₃OH 2_(0,2)→1_(0,1) ++
0.260 (0.013)	0.41 (0.06)	0.113 (0.014)	6.758 (0.007)	97714.99	97715.40	29.2	³⁴SO 3₍₂₎→2₍₁₎
0.558 (0.009)	0.79 (0.04)	0.470 (0.018)	7.005 (0.004)	97980.46	97980.95	23.0	CS 2→1
0.317 (0.009)	1.39 (0.08)	0.471 (0.024)	5.735 (0.009)	97980.88	97980.95	13.1	CS 2→1
1.701 (0.011)	0.580 (0.010)	1.050 (0.017)	6.7764 (0.0012)	99299.47	99299.89	75.7	SO 3₍₂₎→2₍₁₎
0.407 (0.009)	0.66 (0.05)	0.286 (0.018)	5.646 (0.006)	99299.84	99299.89	18.1	SO 3₍₂₎→2₍₁₎
0.097 (0.015)	0.39 (0.16)	0.040 (0.016)	6.787 (0.019)	101477.37	101477.81	10.2	H₂CS 3_(1,3)→2_(1,2)
0.046 (0.012)	2.0 (1.0)	0.10 (0.05)	6.57 (0.11)	101840.87	101841.2	4.2	Unidentified
0.09 (0.03)	0.4 (0.4)	0.04 (0.04)	6.67 (0.05)	108893.52	108893.95	4.2	CH₃OH 0_0,0→1_-1,1
0.23 (0.04)	0.39 (0.16)	0.10 (0.04)	6.797 (0.019)	109251.71	109252.18	9.6	SO 2₃→1₂
0.98 (0.17)	2.7 (0.9)	2.8 (0.7)	6.50 (0.09)	109565.27	109565.6	16.6	Unidentified
2.071 (0.025)	0.643 (0.023)	1.42 (0.05)	6.886 (0.003)	109781.67	109782.18	62.2	C¹⁸O 1→0
0.533 (0.024)	0.94 (0.11)	0.54 (0.06)	5.723 (0.012)	109782.09	109782.18	15.9	C¹⁸O 1→0
0.45 (0.03)	0.70 (0.11)	0.33 (0.05)	8.071 (0.016)	110200.41	110201.35	4.7	¹³CO 1→0
4.508 (0.024)	1.037 (0.014)	4.98 (0.06)	6.9327 (0.0015)	110200.83	110201.35	48.0	¹³CO 1→0
4.192 (0.024)	1.448 (0.018)	6.46 (0.07)	5.6485 (0.0019)	110201.30	110201.35	44.8	¹³CO 1→0

Backend 2mm (134.6 GHz)

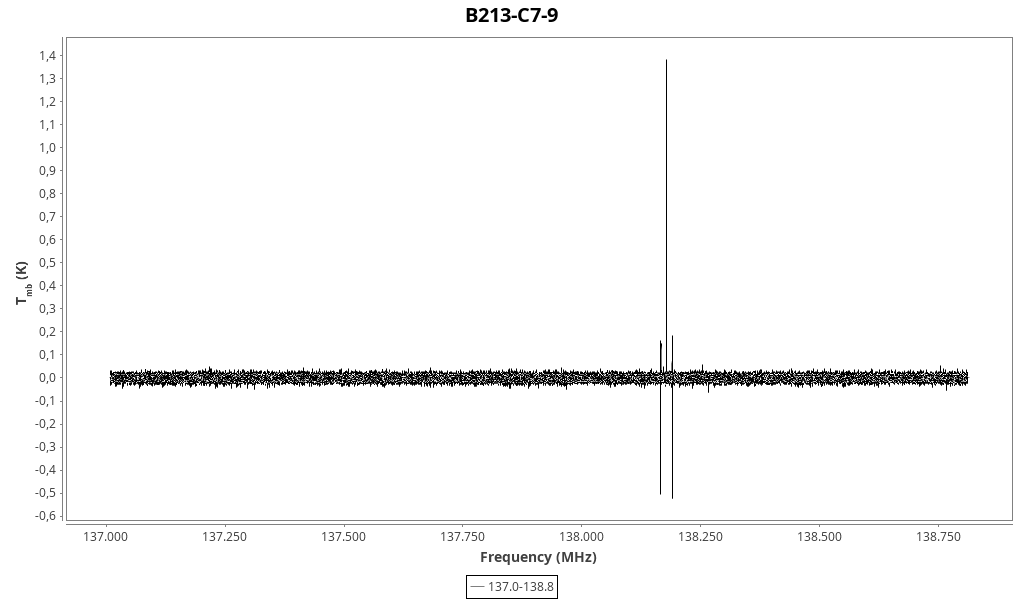

Backend 2mm (137.9 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
1.426 (0.014)	0.414 (0.018)	0.63 (0.03)	6.7967 (0.0014)	138178.06	138178.66	63.4	SO 4₃→3₂
0.136 (0.020)	0.32 (0.16)	0.046 (0.023)	5.741 (0.013)	138178.55	138178.66	6.0	SO 4₃→3₂
0.07 (0.18)	0.09 (0.23)	0.007 (0.013)	6.80 (0.15)	138254.00	138254.6	5.5	Unidentified 138.254 GHz

Backend 2mm (144.1 GHz)

Found 8 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.418 (0.020)	0.06 (0.04)	0.026 (0.016)	8.16 (0.05)	143224.22	143225.5	20.2	Unidentified 143.224 GHz
0.146 (0.020)	0.07 (0.11)	0.010 (0.017)	8.16 (0.05)	143228.22	143229.5	6.4	Unidentified 143.229 GHz
0.600 (0.024)	0.37 (0.08)	0.24 (0.05)	6.327 (0.006)	144076.89	144077.29	25.9	DCO⁺ J=2-1 (multiple components around)
0.265 (0.022)	1.9 (0.4)	0.54 (0.10)	9.98 (0.03)	144748.96	144751.12	9.1	C(50)</sup>\gamma</sup>
0.064 (0.022)	1.6 (1.5)	0.11 (0.09)	8.13 (0.11)	144749.85	144751.12	2.3	C(50)</sup>\gamma</sup>
0.44 (0.12)	1.4 (1.0)	0.7 (0.5)	8.13 (0.08)	144918.15	144919.4	1.9	Unidentified
0.33 (0.09)	1.5 (1.2)	0.5 (0.4)	8.13 (0.09)	144919.37	144920.6	1.4	Unidentified
0.48 (0.08)	0.5 (0.4)	0.25 (0.18)	8.13 (0.03)	144927.81	144929.1	16.9	Unidentified

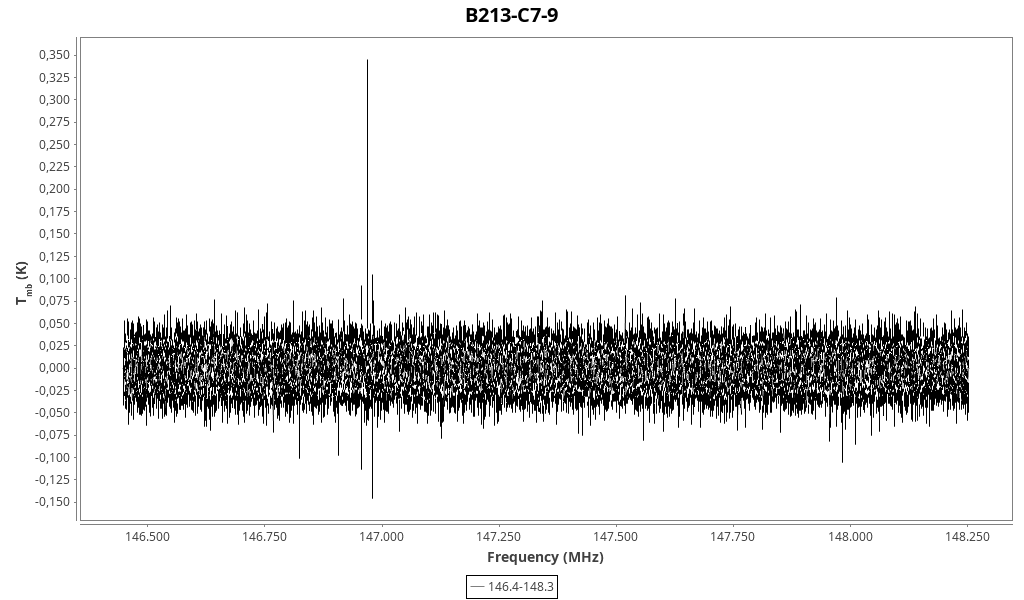

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.296 (0.022)	0.42 (0.15)	0.13 (0.05)	7.042 (0.011)	146968.27	146969.03	12.2	CS 3→2
0.36 (0.03)	0.27 (0.09)	0.10 (0.04)	6.613 (0.007)	146968.48	146969.03	15.0	CS 3→2

Backend 2mm (168.1 GHz)

Found 6 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.1584 (0.0011)	0.868 (0.020)	0.146 (0.004)	0.8501 (0.0013)	167580.40	167577.80	2.3	He(52)</sup>\delta</sup> (NO₂ in atmosphere?)
0.184 (0.022)	0.084 (0.009)	0.0163 (0.0010)	0.496 (0.003)	167580.60	167577.80	2.7	He(52)</sup>\delta</sup> (NO₂ in atmosphere?)
0.116 (0.025)	1.5 (0.9)	0.19 (0.11)	5.74 (0.07)	167589.83	167590.0	2.1	Unidentified 167.592 GHz
0.09 (0.04)	0.2 (0.5)	0.02 (0.04)	5.74 (0.03)	167591.21	167591.3	1.6	Unidentified 167.592 GHz
0.12 (0.03)	0.7 (0.7)	0.09 (0.08)	6.98 (0.05)	168761.92	168762.75	4.1	H₂S 1_(1,0)→1_(0,1)
0.12 (0.04)	0.3 (0.5)	0.04 (0.06)	5.74 (0.03)	168762.62	168762.75	4.3	H₂S 1_(1,0)→1_(0,1)

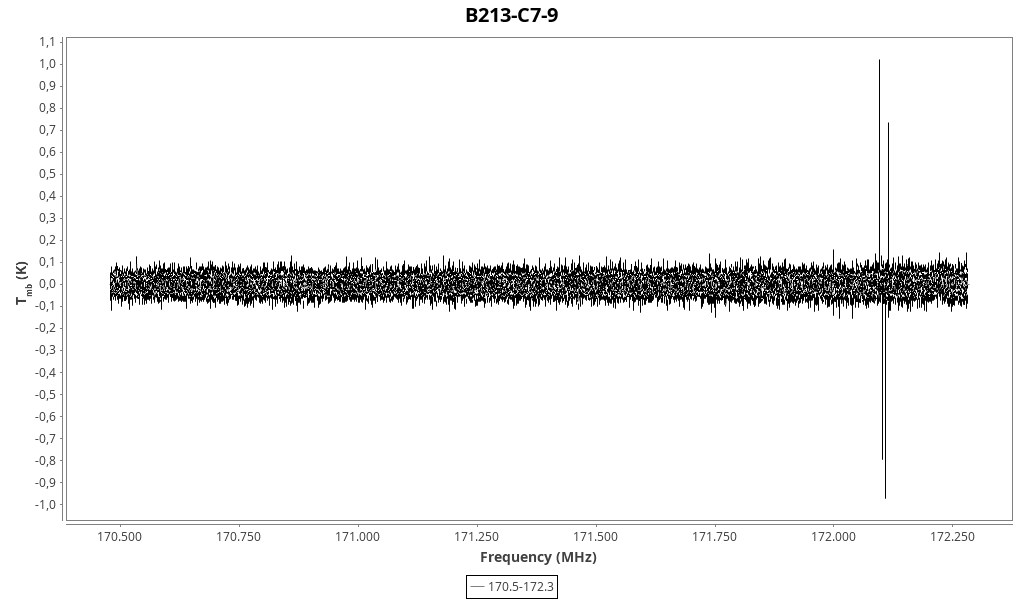

Backend 2mm (171.4 GHz)

Found 13 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
1.04 (0.04)	0.096 (0.015)	0.106 (0.016)	5.5396 (0.0020)	172096.65	172096.7	27.7	Unidentified 172.097 GHz
0.042 (0.008)	0.7 (0.6)	0.034 (0.022)	5.54 (0.04)	172100.98	172101.0	0.6	Unidentified 172.102 GHz
0.071 (0.010)	0.22 (0.16)	0.016 (0.012)	5.540 (0.011)	172102.07	172102.1	1.0	Unidentified 172.102 GHz
0.046 (0.015)	0.3 (0.6)	0.013 (0.025)	4.78 (0.04)	172105.98	172105.56	0.5	HS₂ 11(2,9)-10(2,8), J=21/2-19/2, F=11-10
0.068 (0.012)	0.3 (0.3)	0.022 (0.022)	5.540 (0.019)	172107.93	172107.96	0.8	HC¹⁵N 2→1
0.050 (0.011)	0.4 (0.5)	0.019 (0.003)	5.54 (0.03)	172213.04	172213.1	1.4	Unidentified 172.214 GHz
0.090 (0.022)	0.23 (0.18)	0.022 (0.003)	5.540 (0.013)	172214.13	172214.2	2.8	Unidentified 172.214 GHz
0 (17)	0.1 (0.7)	0.0 (0.9)	5.540 (0.004)	172217.08	172217.1	13.6	Unidentified 172.218 GHz
0.509 (0.023)	0.05 (0.04)	0.027 (0.018)	5.54 (0.05)	172218.06	172218.1	14.2	Unidentified 172.218 GHz
0.13 (0.04)	0.2 (0.3)	0.03 (0.04)	5.540 (0.021)	172222.06	172222.1	3.4	Unidentified 172.223 GHz
0.043 (0.021)	1.8 (2.2)	0.08 (0.09)	5.54 (0.14)	172227.01	172227.0	1.1	Unidentified 172.227 GHz
0.2628357162223897 (0.0)	0.0584863384600475 (0.0)	0.0163633049346835 (0.0)	7.26 (0.05)	172234.51	172235.52	6.2	NaCN/NaNC 11(3,9)-10(3,8)
0.019 (0.004)	4.5 (0.7)	0.091 (0.014)	4.6 (0.4)	172236.06	172235.52	0.5	NaCN/NaNC 11(3,9)-10(3,8)
