DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

IC348-6-0_0

Backend 3mm (85.0-110.5 GHz)

Found 63 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.128 (0.012)	0.82 (0.20)	0.11 (0.03)	8.707 (0.022)	85338.27	85338.90	12.0	c-C₃H₂ 2_1,2→1_0,1
0.046 (0.013)	0.9 (0.6)	0.04 (0.03)	6.54 (0.07)	85338.89	85338.90	4.4	c-C₃H₂ 2_1,2→1_0,1
0.053 (0.017)	0.3 (0.4)	0.020 (0.019)	8.71 (0.04)	86093.32	86093.96	4.4	SO 2₂→1₁
0.096 (0.015)	0.52 (0.24)	0.053 (0.023)	9.09 (0.03)	86670.05	86670.80	7.5	HCO 1_0,1→0_0,0 J=3/2→1/2 F=2→1
0.055 (0.022)	0.3 (0.4)	0.019 (0.019)	8.46 (0.04)	86670.23	86670.80	4.3	HCO 1_0,1→0_0,0 J=3/2→1/2 F=2→1
0.058 (0.012)	0.9 (0.5)	0.05 (0.03)	8.98 (0.06)	86707.64	86708.36	4.7	HCO 1_0,1→0_0,0 J=3/2→1/2 F=1→0
0.076 (0.015)	0.38 (0.22)	0.031 (0.018)	8.715 (0.025)	86753.65	86754.29	6.6	H¹³CO⁺ 1→0
0.055 (0.017)	0.4 (0.3)	0.021 (0.017)	8.16 (0.04)	86753.81	86754.29	4.8	H¹³CO⁺ 1→0
0.052 (0.011)	0.8 (0.5)	0.042 (0.024)	8.72 (0.05)	86776.80	86777.44	4.5	HCO 1_0,1→0_0,0 J=1/2→1/2 F=1→1
0.689 (0.009)	0.73 (0.03)	0.532 (0.019)	8.813 (0.003)	88629.74	88630.42	18.2	HCN 1→0 F=1→1
0.407 (0.012)	0.42 (0.04)	0.183 (0.015)	8.109 (0.005)	88629.94	88630.42	10.7	HCN 1→0 F=1→1
1.222 (0.009)	1.181 (0.020)	1.537 (0.024)	8.6078 (0.0022)	88631.22	88631.85	32.3	HCN 1→0 F=2→1
0.218 (0.009)	0.68 (0.09)	0.158 (0.018)	6.311 (0.009)	88631.90	88631.85	5.8	HCN 1→0 F=2→1
0.308 (0.009)	0.89 (0.07)	0.292 (0.021)	8.665 (0.008)	88633.30	88633.94	8.1	HCN 1→0 F=0→1
1.357 (0.009)	1.146 (0.019)	1.656 (0.024)	8.5509 (0.0020)	89187.92	89188.53	25.8	HCO⁺ 1→0
0.402 (0.009)	2.59 (0.11)	1.11 (0.04)	7.140 (0.010)	89188.34	89188.53	7.6	HCO⁺ 1→0
0.217 (0.009)	1.31 (0.13)	0.30 (0.03)	4.026 (0.013)	89199.28	89198.54	5.5	H(59)</sup>\gamma</sup>
0.345 (0.009)	0.76 (0.06)	0.280 (0.020)	3.074 (0.007)	89199.56	89198.54	8.8	H(59)</sup>\gamma</sup>
0.305 (0.009)	0.60 (0.06)	0.195 (0.018)	0.631 (0.007)	89200.29	89198.54	7.7	H(59)</sup>\gamma</sup>
0.707 (0.017)	1.10 (0.07)	0.83 (0.05)	8.613 (0.007)	90662.92	90663.56	34.6	HNC 1→0
0.132 (0.017)	2.9 (0.7)	0.40 (0.07)	7.13 (0.06)	90663.37	90663.56	6.4	HNC 1→0
0.15 (0.03)	0.29 (0.20)	0.05 (0.04)	8.297 (0.023)	92160.48	92161.0	4.2	Unidentified
1.11 (0.24)	0.24 (0.13)	0.29 (0.15)	8.296 (0.015)	92201.19	92201.7	21.2	Unidentified
1.6 (0.3)	0.25 (0.09)	0.43 (0.15)	8.296 (0.009)	92201.68	92202.2	31.3	Unidentified
3.53 (0.09)	0.098 (0.020)	0.37 (0.08)	8.30 (0.08)	92219.20	92219.8	78.3	Unidentified
1.25 (0.22)	0.24 (0.09)	0.32 (0.12)	8.295 (0.011)	92219.69	92220.2	28.7	Unidentified
1.65 (0.23)	0.32 (0.13)	0.56 (0.22)	8.294 (0.015)	92279.35	92279.9	18.8	Unidentified
1.8 (0.6)	0.21 (0.09)	0.39 (0.18)	8.294 (0.012)	92279.81	92280.4	20.1	Unidentified
1.51 (0.21)	0.30 (0.11)	0.48 (0.17)	8.294 (0.012)	92297.34	92297.9	13.7	Unidentified
1.02 (0.12)	0.05 (0.07)	0.06 (0.07)	8.2939 (0.0004)	92297.80	92298.3	9.3	Unidentified
0.058 (0.006)	0.73 (0.20)	0.045 (0.012)	8.129 (0.023)	93171.37	93171.88	8.5	N₂H⁺ 1→0 F=1→1
0.053 (0.006)	1.9 (0.4)	0.110 (0.019)	8.25 (0.04)	93173.16	93173.70	7.8	N₂H⁺ 1→0 F=1→2
0.033 (0.006)	0.7 (0.4)	0.025 (0.012)	8.04 (0.04)	93175.65	93176.13	5.1	N₂H⁺ 1→0 F=1→0
0.116 (0.016)	2.8 (0.7)	0.34 (0.07)	3.97 (0.07)	93849.48	93848.69	6.5	CNCHO 17(1,16)-17(0,17)
0.278 (0.016)	1.38 (0.18)	0.41 (0.05)	2.845 (0.018)	93849.83	93848.69	15.8	CNCHO 17(1,16)-17(0,17)
0.081 (0.016)	1.3 (0.6)	0.11 (0.05)	1.26 (0.07)	93850.33	93848.69	4.6	CNCHO 17(1,16)-17(0,17)
0.054 (0.024)	1.8 (1.6)	0.10 (0.08)	8.26 (0.16)	93959.25	93959.8	1.5	Unidentified 93.959 GHz
0.412 (0.024)	1.63 (0.20)	0.72 (0.08)	4.641 (0.023)	93960.51	93959.93	11.2	CH₃OOH (2)
0.04 (0.03)	0.3 (0.6)	0.010 (0.021)	9.07 (0.08)	93978.96	93979.77	2.3	PN 2→1 (?)
22.5 (2.5)	0.9 (0.3)	20 (6)	8.23 (0.03)	95606.13	95606.7	28.3	Unidentified
13.0 (1.6)	0.9 (0.3)	13 (4)	8.23 (0.04)	95616.32	95616.9	11.4	Unidentified
0.74 (0.20)	0.4 (0.3)	0.36 (0.23)	8.23 (0.04)	95618.26	95618.8	0.7	Unidentified
0.030 (0.009)	0.5 (0.5)	0.015 (0.015)	6.00 (0.06)	95947.50	95947.34	3.8	CH₃CHO 5_(0,5)→4_(0,4)
0.061 (0.017)	2.7 (1.3)	0.18 (0.07)	8.22 (0.14)	96232.36	96232.9	1.7	Unidentified
0.29 (0.05)	0.30 (0.15)	0.09 (0.05)	8.221 (0.017)	96233.37	96233.9	8.2	Unidentified
0.65 (0.10)	1.9 (0.6)	1.3 (0.4)	8.22 (0.06)	96233.38	96233.9	18.4	Unidentified
0.040 (0.009)	0.8 (0.6)	0.036 (0.022)	8.50 (0.06)	96412.31	96412.95	4.6	C³⁴S 2→1
0.061 (0.008)	0.9 (0.4)	0.058 (0.019)	8.21 (0.04)	96738.81	96739.36	7.2	CH₃OH 2_(-1,2)→1_(-1,1)
0.058 (0.008)	1.1 (0.4)	0.068 (0.021)	8.33 (0.04)	96740.78	96741.37	7.2	CH₃OH 2_(0,2)→1_(0,1) ++
0.453 (0.011)	0.59 (0.04)	0.283 (0.018)	8.790 (0.005)	97980.20	97980.95	42.5	CS 2→1
0.718 (0.009)	0.79 (0.03)	0.607 (0.021)	8.180 (0.004)	97980.40	97980.95	68.0	CS 2→1
0.078 (0.009)	0.7 (0.3)	0.062 (0.020)	6.08 (0.03)	97981.09	97980.95	7.4	CS 2→1
0.398 (0.012)	0.55 (0.05)	0.233 (0.019)	8.787 (0.006)	99299.13	99299.89	26.3	SO 3₍₂₎→2₍₁₎
0.551 (0.011)	0.78 (0.05)	0.458 (0.023)	8.170 (0.005)	99299.34	99299.89	36.2	SO 3₍₂₎→2₍₁₎
0.75 (0.24)	4.3 (2.1)	3.4 (1.3)	8.13 (0.19)	101742.52	101743.1	25.1	Unidentified
0.82 (0.24)	1.3 (0.9)	1.1 (0.7)	8.13 (0.09)	101742.54	101743.1	27.5	Unidentified
0.40 (0.07)	1.7 (0.6)	0.75 (0.21)	8.01 (0.06)	109565.60	109566.2	14.9	Unidentified
0.862 (0.025)	1.84 (0.11)	1.69 (0.09)	8.341 (0.012)	109781.50	109782.18	12.9	C¹⁸O 1→0
2.28 (0.04)	0.618 (0.021)	1.50 (0.05)	8.1074 (0.0024)	109781.59	109782.18	34.2	C¹⁸O 1→0
12.11 (0.03)	1.232 (0.007)	15.89 (0.08)	8.6079 (0.0007)	110200.58	110201.35	45.9	¹³CO 1→0
9.70 (0.03)	1.826 (0.010)	18.86 (0.09)	7.7481 (0.0010)	110200.89	110201.35	36.8	¹³CO 1→0
1.31 (0.03)	0.65 (0.05)	0.91 (0.06)	6.003 (0.005)	110201.54	110201.35	5.0	¹³CO 1→0
0.06 (0.05)	0.3 (0.7)	0.02 (0.04)	8.00 (0.08)	110204.03	110204.6	0.2	Unidentified 110.203 GHz

Backend 2mm (134.6 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.211 (0.014)	0.06 (0.05)	0.013 (0.010)	6.23 (0.06)	134024.01	134023.9	16.4	Unidentified 134.024 GHz
0.185 (0.013)	0.06 (0.05)	0.012 (0.010)	6.23 (0.06)	135249.61	135249.49	13.2	H(45)</sup>\beta</sup>
0.041 (0.018)	0.2 (0.4)	0.007 (0.016)	6.84 (0.03)	135316.82	135316.97	3.0	C(45)</sup>\beta</sup>

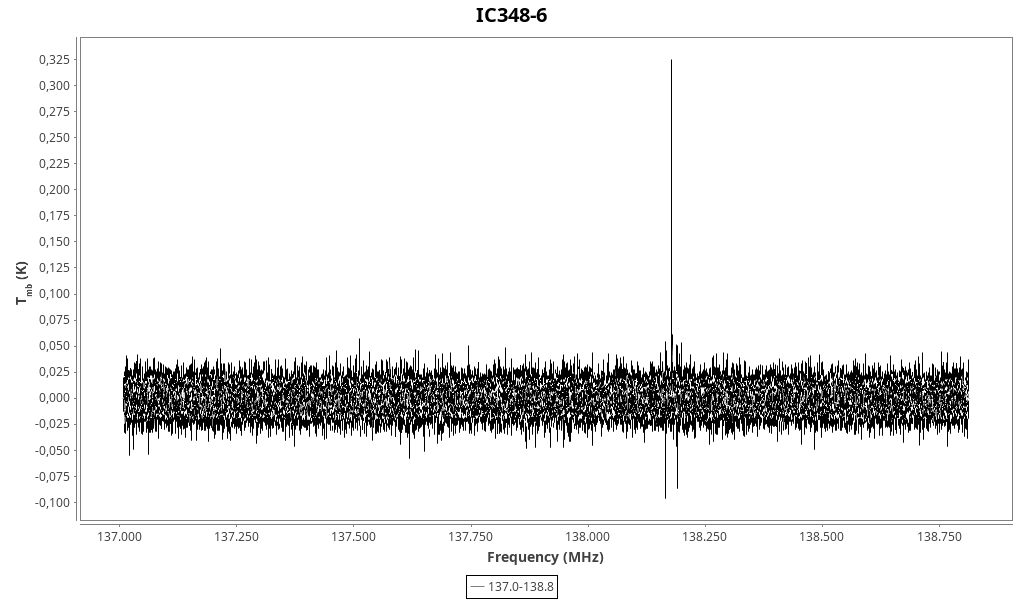

Backend 2mm (137.9 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.305 (0.014)	0.51 (0.09)	0.16 (0.03)	8.735 (0.007)	138177.63	138178.66	21.7	SO 4₃→3₂
0.292 (0.013)	0.55 (0.09)	0.17 (0.03)	8.127 (0.008)	138177.91	138178.66	20.7	SO 4₃→3₂
0.055 (0.014)	0.4 (0.5)	0.024 (0.025)	6.06 (0.04)	138178.86	138178.66	4.0	SO 4₃→3₂
0.045 (0.019)	0.2 (0.4)	0.008 (0.017)	8.12 (0.03)	138754.00	138754.7	3.5	Unidentified 138.754 GHz

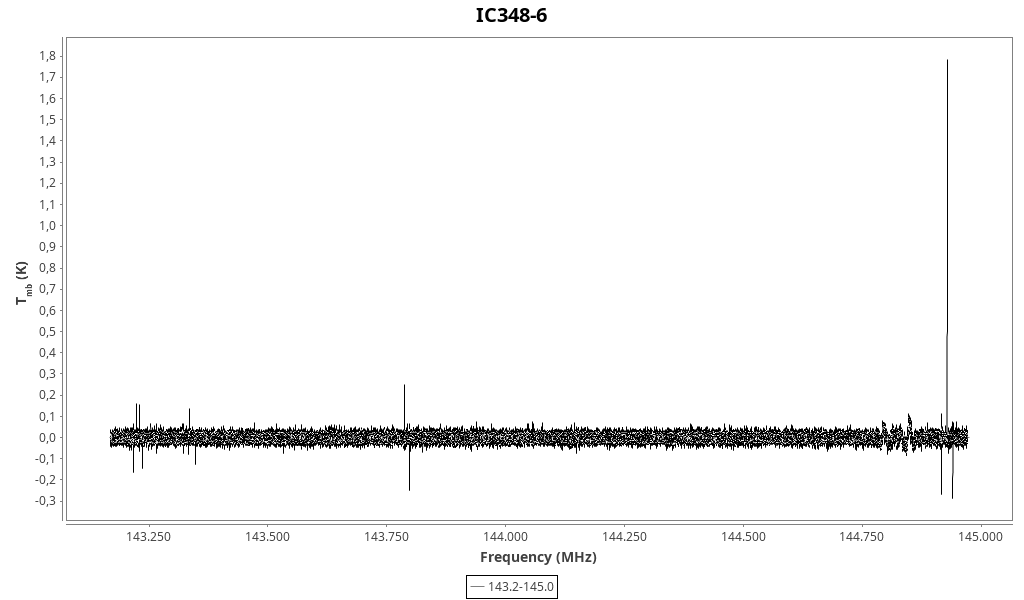

Backend 2mm (144.1 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.067 (0.020)	0.3 (0.5)	0.02 (0.04)	8.01 (0.04)	144076.56	144077.29	3.7	DCO⁺ J=2-1 (multiple components around)
1.6 (0.3)	1.4 (0.8)	2.4 (1.2)	8.00 (0.05)	144928.22	144928.9	37.5	Unidentified

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.314 (0.019)	1.03 (0.19)	0.34 (0.06)	8.446 (0.013)	146968.07	146969.03	13.1	CS 3→2
0.052 (0.022)	0.4 (0.7)	0.02 (0.04)	6.06 (0.05)	146969.24	146969.03	2.2	CS 3→2

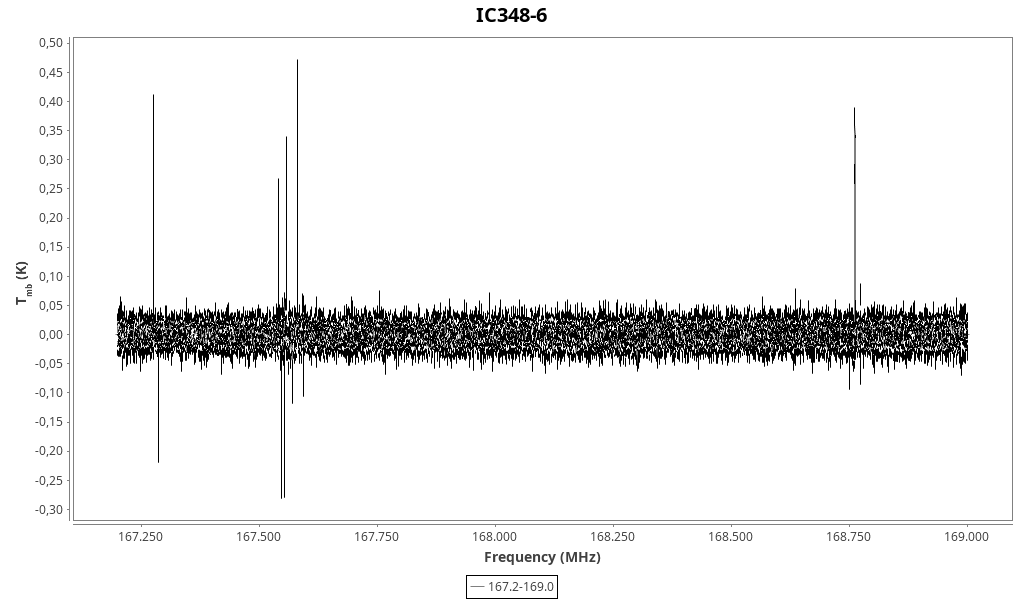

Backend 2mm (168.1 GHz)

Found 5 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.7 (0.5)	0.09 (0.07)	0.07 (0.04)	8.102 (0.007)	167275.07	167276.0	40.4	Unidentified
0.36 (0.14)	0.09 (0.09)	0.03 (0.04)	8.099 (0.022)	167558.54	167559.4	14.7	Unidentified
0.43 (0.06)	1.1 (0.5)	0.48 (0.21)	8.10 (0.03)	167581.43	167582.3	21.2	Unidentified
0.242 (0.020)	0.77 (0.24)	0.20 (0.06)	8.652 (0.016)	168761.54	168762.75	10.3	H₂S 1_(1,0)→1_(0,1)
0.280 (0.020)	0.64 (0.19)	0.19 (0.06)	8.088 (0.012)	168761.86	168762.75	12.2	H₂S 1_(1,0)→1_(0,1)
