DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

L1448-8-0_0

Backend 3mm (85.0-110.5 GHz)

Found 41 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.016 (0.008)	0.7 (1.1)	0.012 (0.016)	4.84 (0.12)	88630.91	88630.42	2.0	HCN 1→0 F=1→1
0.052 (0.011)	0.48 (0.24)	0.027 (0.013)	4.88 (0.03)	88632.33	88631.85	6.7	HCN 1→0 F=2→1
0.045 (0.008)	0.9 (0.5)	0.045 (0.020)	4.79 (0.06)	89189.03	89188.53	5.6	HCO⁺ 1→0
0.030 (0.010)	0.3 (0.4)	0.010 (0.012)	7.70 (0.05)	89234.53	89234.89	3.8	He(59)</sup>\gamma</sup>
0.188 (0.017)	0.02 (0.03)	0.004 (0.006)	4.93 (0.08)	91952.33	91951.9	14.2	Unidentified
0.138 (0.018)	0.09 (0.09)	0.014 (0.014)	4.93 (0.08)	91955.77	91955.3	9.8	Unidentified
0.461 (0.018)	0.09 (0.03)	0.044 (0.014)	4.93 (0.08)	91970.33	91969.8	33.4	Unidentified
0.08 (0.09)	0.16 (0.17)	0.014 (0.014)	4.93 (0.09)	91984.30	91983.8	7.0	Unidentified
0.29 (0.08)	0.18 (0.10)	0.06 (0.03)	4.938 (0.023)	92183.08	92182.6	12.0	Unidentified
1.66 (0.23)	0.19 (0.08)	0.34 (0.13)	4.938 (0.014)	92201.04	92200.6	17.7	Unidentified
2.0 (0.4)	0.19 (0.09)	0.40 (0.17)	4.938 (0.016)	92201.52	92201.0	21.0	Unidentified
1.9 (1.1)	0.009 (0.016)	0.02 (0.04)	4.938282 (0.000008)	92219.06	92218.6	19.2	Unidentified
2.3 (0.6)	0.18 (0.06)	0.44 (0.15)	4.938 (0.017)	92219.53	92219.1	23.4	Unidentified
2.2 (0.3)	0.21 (0.08)	0.49 (0.18)	4.939 (0.012)	92279.17	92278.7	22.0	Unidentified
1.7 (0.3)	0.20 (0.10)	0.35 (0.17)	4.939 (0.017)	92279.65	92279.2	16.5	Unidentified
2.4 (0.6)	0.19 (0.07)	0.49 (0.17)	4.940 (0.014)	92297.17	92296.7	22.9	Unidentified
2.0 (1.2)	0.18 (0.11)	0.38 (0.16)	4.940 (0.016)	92297.66	92297.2	18.7	Unidentified
0 (80)	0.1 (1.5)	0 (7)	4.940 (0.004)	92315.62	92315.1	43.0	Unidentified
0.360 (0.011)	0.093 (0.022)	0.036 (0.009)	4.94 (0.08)	92496.36	92495.9	36.9	Unidentified
0.09 (0.03)	0.21 (0.18)	0.021 (0.018)	4.94 (0.03)	92524.35	92523.9	6.0	Unidentified
0.996 (0.018)	0.090 (0.013)	0.095 (0.013)	4.94 (0.08)	92546.36	92545.9	82.8	Unidentified
0.063 (0.018)	2.6 (1.4)	0.18 (0.08)	4.97 (0.14)	93955.87	93955.4	3.9	Unidentified 93.956 GHz
0.037 (0.015)	1.0 (1.0)	0.04 (0.04)	4.97 (0.11)	93957.97	93957.5	2.2	Unidentified 93.959 GHz
0.27 (0.04)	1.8 (0.6)	0.52 (0.14)	4.99 (0.06)	95532.29	95531.8	21.1	Unidentified
0.086 (0.024)	0.35 (0.24)	0.033 (0.022)	4.99 (0.03)	95562.07	95561.6	6.2	Unidentified
31.9 (2.0)	0.13 (0.06)	4.4 (1.8)	4.99 (0.08)	95614.98	95614.5	16.2	Unidentified
23.0 (1.7)	0.12 (0.06)	2.9 (1.5)	4.99 (0.08)	95615.16	95614.7	11.7	Unidentified
0.75 (0.16)	0.9 (0.5)	0.7 (0.4)	5.00 (0.06)	96235.15	96234.7	33.7	Unidentified
0.47 (0.16)	3.7 (1.9)	1.9 (0.8)	5.00 (0.17)	96235.19	96234.7	21.2	Unidentified
0.045 (0.015)	0.3 (0.3)	0.014 (0.014)	5.03 (0.04)	96413.42	96412.95	4.6	C³⁴S 2→1
0.138 (0.012)	0.52 (0.12)	0.077 (0.017)	4.923 (0.014)	97981.47	97980.95	14.6	CS 2→1
0.039 (0.016)	0.3 (0.4)	0.011 (0.013)	8.26 (0.04)	97994.59	97995.17	3.2	l-C₃H J=9/2-7/2, Omega=1/2, F=5-4, l=e
0.11 (0.05)	2.8 (2.0)	0.34 (0.20)	5.21 (0.20)	101737.61	101737.17	0.8	CH₃OH 9(-2,8)-9(1,8)
0.13 (0.04)	0.5 (0.4)	0.06 (0.06)	5.14 (0.05)	105666.18	105665.7	8.0	Unidentified
0.26 (0.04)	0.68 (0.25)	0.19 (0.07)	5.14 (0.03)	105666.37	105665.9	16.1	Unidentified
0.25 (0.03)	0.8 (0.3)	0.23 (0.07)	5.14 (0.03)	105690.34	105689.9	15.7	Unidentified
0.053 (0.020)	0.6 (0.6)	0.03 (0.03)	5.19 (0.07)	109562.18	109561.7	3.5	Unidentified 109.563 GHz
0.112 (0.015)	0.8 (0.3)	0.09 (0.04)	4.87 (0.04)	109782.77	109782.18	8.2	C¹⁸O 1→0
0.244 (0.015)	3.2 (0.4)	0.82 (0.07)	5.64 (0.03)	110201.67	110201.35	5.1	¹³CO 1→0
1.734 (0.015)	0.978 (0.022)	1.81 (0.04)	4.8000 (0.0024)	110201.98	110201.35	35.8	¹³CO 1→0
0.03 (0.03)	0.3 (0.6)	0.009 (0.019)	5.19 (0.07)	110204.06	110203.6	0.6	Unidentified 110.203 GHz

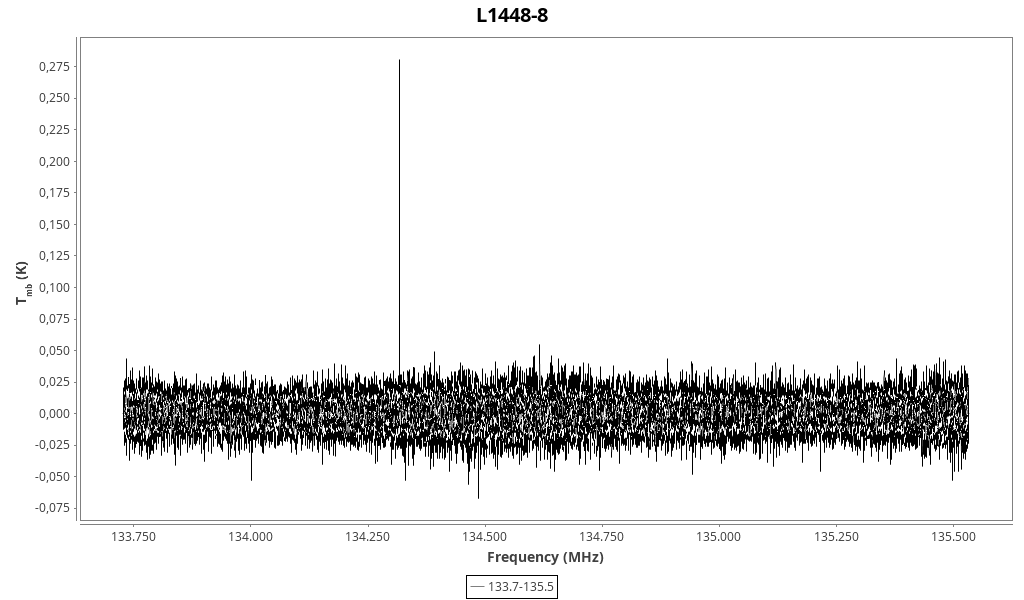

Backend 2mm (134.6 GHz)

Backend 2mm (137.9 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.043 (0.021)	0.2 (0.4)	0.007 (0.015)	6.95 (0.04)	137553.54	137553.75	3.6	CaNC N=17-16, J=33/2-31/2 (3x)
0.089 (0.015)	0.5 (0.4)	0.05 (0.04)	6.95 (0.03)	138723.09	138723.3	7.0	Unidentified

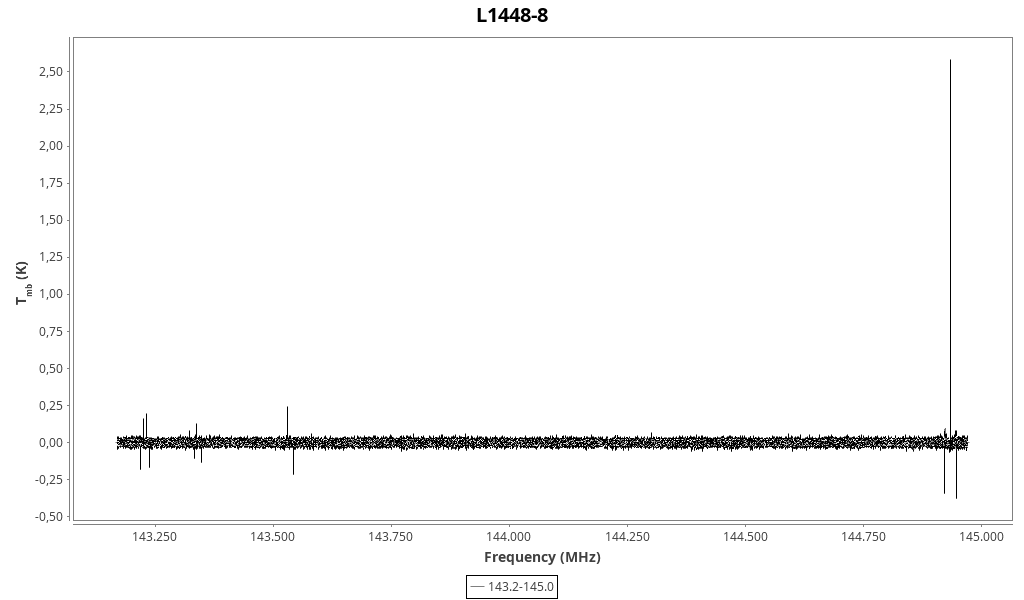

Backend 2mm (144.1 GHz)

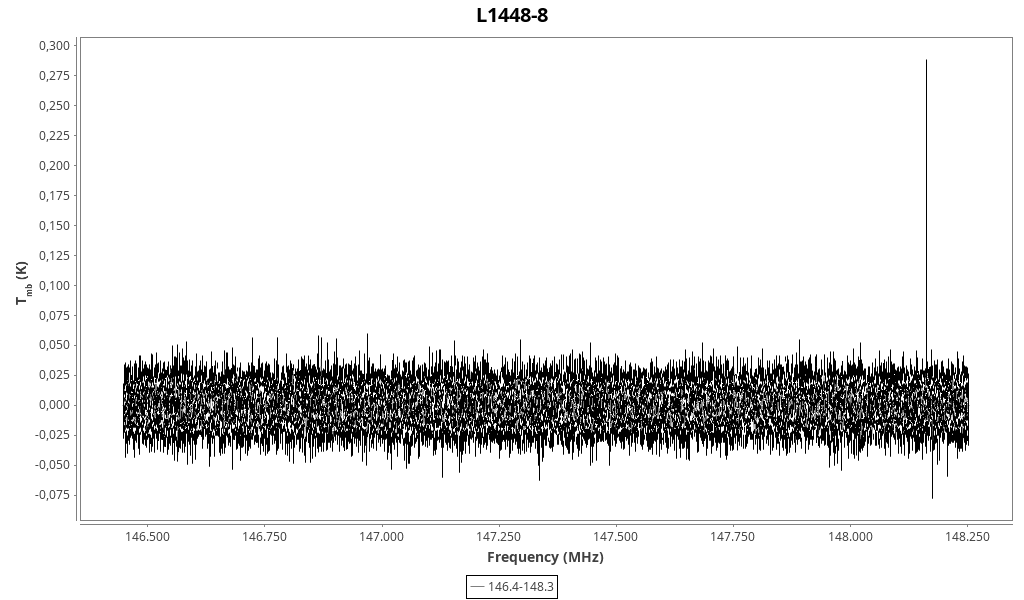

Backend 2mm (147.3 GHz)

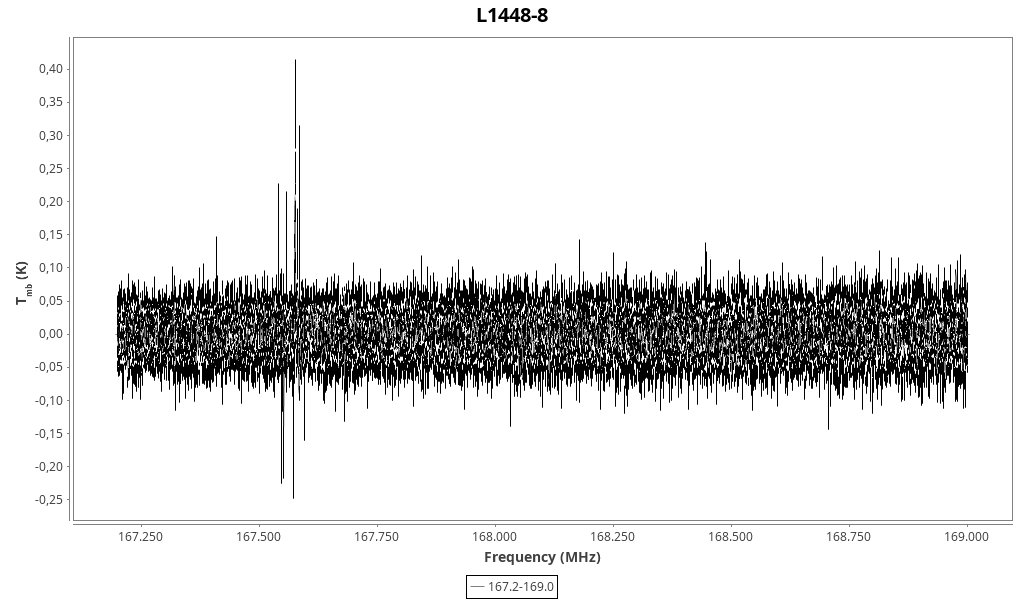

Backend 2mm (168.1 GHz)

Found 5 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.30 (0.04)	0.01 (0.05)	0.004 (0.014)	8.46485 (0.00020)	167540.38	167541.5	8.8	Unidentified
0.048 (0.011)	0.24 (0.12)	0.0122 (0.0019)	5.693 (0.023)	167573.98	167573.53	1.0	c-¹³CCCH 13(7,6)-13(7,7)
0.240 (0.017)	2.6 (0.4)	0.66 (0.09)	9.437 (0.023)	167576.16	167577.80	4.5	He(52)</sup>\delta</sup> (NO₂ in atmosphere?)
0.206 (0.017)	1.2 (0.4)	0.27 (0.07)	8.464 (0.019)	167576.70	167577.80	3.7	He(52)</sup>\delta</sup> (NO₂ in atmosphere?)
0.059 (0.017)	0.8 (0.9)	0.05 (0.06)	1.75 (0.07)	167580.46	167577.80	1.0	He(52)</sup>\delta</sup> (NO₂ in atmosphere?)

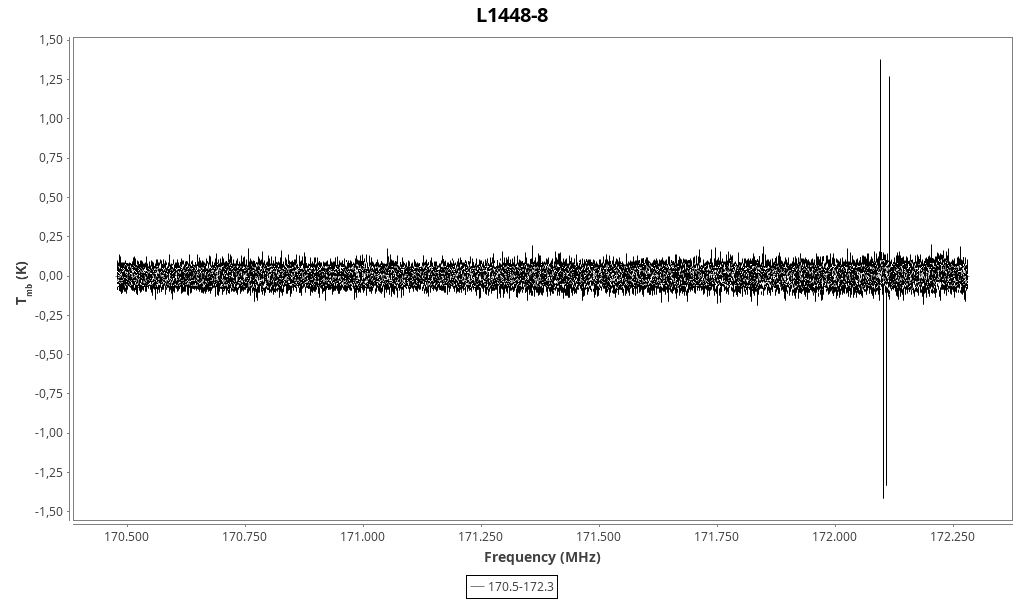

Backend 2mm (171.4 GHz)

Found 12 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.035 (0.015)	2.5 (2.4)	0.09 (0.08)	9.40 (0.16)	172103.90	172105.56	0.2	HS₂ 11(2,9)-10(2,8), J=21/2-19/2, F=11-10
0.134 (0.020)	0.23 (0.17)	0.033 (0.024)	6.420 (0.012)	172105.61	172105.56	0.9	HS₂ 11(2,9)-10(2,8), J=21/2-19/2, F=11-10
0.120 (0.016)	0.16 (0.16)	0.021 (0.020)	6.297 (0.010)	172108.07	172107.96	1.1	HC¹⁵N 2→1
0.138 (0.006)	0.14 (0.03)	0.021 (0.005)	6.4203 (0.0019)	172214.65	172214.6	2.5	Unidentified 172.214 GHz
0.045 (0.004)	1.9 (0.4)	0.093 (0.016)	6.42 (0.03)	172215.49	172215.4	0.8	Unidentified 172.214 GHz
0.14 (0.03)	0.11 (0.09)	0.016 (0.015)	6.420 (0.009)	172223.50	172223.5	2.6	Unidentified 172.223 GHz
0.033 (0.013)	2.2 (2.0)	0.08 (0.07)	6.42 (0.12)	172224.17	172224.1	0.6	Unidentified 172.223 GHz
0.13 (0.03)	0.15 (0.17)	0.020 (0.023)	6.420 (0.013)	172226.77	172226.7	2.3	Unidentified 172.227 GHz
0.105 (0.023)	0.15 (0.16)	0.016 (0.018)	6.207 (0.010)	172232.72	172232.55	2.0	S₂O 17(3,14)-17(2,15)
0.034 (0.009)	3.4 (0.8)	0.122 (0.019)	8.8 (0.3)	172234.22	172235.52	0.7	NaCN/NaNC 11(3,9)-10(3,8)
0.143 (0.024)	0.21 (0.03)	0.032 (0.004)	7.409 (0.013)	172235.00	172235.52	3.0	NaCN/NaNC 11(3,9)-10(3,8)
0.078 (0.023)	0.19 (0.04)	0.016 (0.004)	2.981 (0.023)	172237.55	172235.52	1.6	NaCN/NaNC 11(3,9)-10(3,8)
