DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

ORI-C1-3-0_0

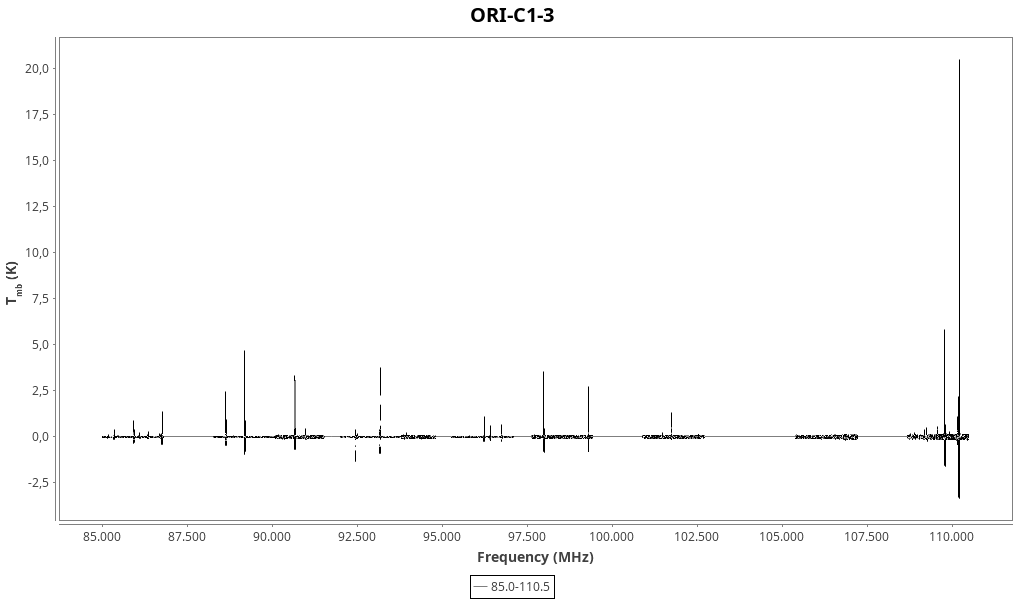

Backend 3mm (85.0-110.5 GHz)

Found 99 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.119 (0.015) 0.9 (0.3) 0.11 (0.04) 11.07 (0.04) 85161.92 85162.22 7.8 HC18O+ 1→0 ori-c1-3-0_0:3mm_red_0.png ori-c1-3-0_0:3mm_ori_0.png
0.05 (0.03) 0.2 (0.4) 0.011 (0.017) 7.05 (0.06) 85192.99 85192.15 3.5 o-D2CS 3→2 ori-c1-3-0_0:3mm_red_1.png ori-c1-3-0_0:3mm_ori_1.png
0.367 (0.015) 0.85 (0.10) 0.33 (0.04) 11.290 (0.011) 85338.53 85338.90 25.0 c-C3H2 21,2→10,1 ori-c1-3-0_0:3mm_red_2.png ori-c1-3-0_0:3mm_ori_2.png
0.204 (0.016) 0.77 (0.17) 0.17 (0.04) 10.557 (0.018) 85338.74 85338.90 13.6 c-C3H2 21,2→10,1 ori-c1-3-0_0:3mm_red_3.png ori-c1-3-0_0:3mm_ori_3.png
0.069 (0.016) 1.0 (0.6) 0.07 (0.04) 11.26 (0.06) 85347.52 85347.87 2.8 HCS+ 2→1 ori-c1-3-0_0:3mm_red_4.png ori-c1-3-0_0:3mm_ori_4.png
0.088 (0.013) 0.8 (0.3) 0.07 (0.03) 11.14 (0.04) 85455.34 85455.66 7.5 CH3C2H 51→41 ori-c1-3-0_0:3mm_red_5.png ori-c1-3-0_0:3mm_ori_5.png
0.076 (0.012) 1.2 (0.5) 0.10 (0.04) 11.08 (0.05) 85456.98 85457.29 6.5 CH3C2H 50→40 ori-c1-3-0_0:3mm_red_6.png ori-c1-3-0_0:3mm_ori_6.png
0.05 (0.03) 0.2 (0.4) 0.014 (0.017) 13.13 (0.04) 85810.65 85811.55 3.9 CH3NCO 10→9 ori-c1-3-0_0:3mm_red_7.png ori-c1-3-0_0:3mm_ori_7.png
0.389 (0.013) 0.56 (0.06) 0.230 (0.022) 11.340 (0.006) 85924.40 85924.79 23.0 NH2D 11,1→10,1 F=0-1 ori-c1-3-0_0:3mm_red_8.png ori-c1-3-0_0:3mm_ori_8.png
0.461 (0.013) 0.52 (0.05) 0.254 (0.021) 11.247 (0.005) 85925.35 85925.70 27.4 NH2D 11,1→10,1 F=2-1 ori-c1-3-0_0:3mm_red_9.png ori-c1-3-0_0:3mm_ori_9.png
0.842 (0.012) 0.60 (0.03) 0.537 (0.022) 9.294 (0.003) 85925.91 85925.70 50.1 NH2D 11,1→10,1 F=2-1 ori-c1-3-0_0:3mm_red_10.png ori-c1-3-0_0:3mm_ori_10.png
0.119 (0.012) 0.93 (0.24) 0.12 (0.03) 9.26 (0.03) 85925.92 85925.70 7.1 NH2D 11,1→10,1 F=2-1 ori-c1-3-0_0:3mm_red_11.png ori-c1-3-0_0:3mm_ori_11.png
0.440 (0.013) 0.55 (0.05) 0.258 (0.022) 9.185 (0.006) 85926.51 85926.28 26.3 NH2D 11,1→10,1 F=2-2 ori-c1-3-0_0:3mm_red_12.png ori-c1-3-0_0:3mm_ori_12.png
0.038 (0.015) 0.4 (0.5) 0.017 (0.019) 8.56 (0.06) 85927.30 85926.88 2.3 NH2D 11,1→10,1 F=1-2 ori-c1-3-0_0:3mm_red_13.png ori-c1-3-0_0:3mm_ori_13.png
0.361 (0.013) 0.52 (0.06) 0.198 (0.021) 11.219 (0.007) 85927.38 85927.73 21.5 NH2D 11,1→10,1 F=1-0 ori-c1-3-0_0:3mm_red_14.png ori-c1-3-0_0:3mm_ori_14.png
0.085 (0.013) 0.7 (0.3) 0.066 (0.025) 11.15 (0.04) 86054.64 86054.97 7.9 HC15N 1→0 ori-c1-3-0_0:3mm_red_15.png ori-c1-3-0_0:3mm_ori_15.png
0.220 (0.012) 0.70 (0.11) 0.165 (0.024) 11.288 (0.012) 86093.59 86093.96 19.8 SO 22→11 ori-c1-3-0_0:3mm_red_16.png ori-c1-3-0_0:3mm_ori_16.png
0.111 (0.012) 1.2 (0.3) 0.14 (0.04) 10.25 (0.04) 86093.89 86093.96 9.9 SO 22→11 ori-c1-3-0_0:3mm_red_17.png ori-c1-3-0_0:3mm_ori_17.png
0.168 (0.012) 1.11 (0.18) 0.20 (0.03) 11.117 (0.020) 86338.41 86338.73 12.3 H13CN 11→01 ori-c1-3-0_0:3mm_red_18.png ori-c1-3-0_0:3mm_ori_18.png
0.274 (0.012) 1.03 (0.11) 0.30 (0.03) 10.305 (0.012) 86339.83 86339.92 19.1 H13CN 1→0 ori-c1-3-0_0:3mm_red_19.png ori-c1-3-0_0:3mm_ori_19.png
0.064 (0.016) 0.4 (0.3) 0.030 (0.019) 11.32 (0.04) 86341.87 86342.25 4.6 H13CN 10→01 ori-c1-3-0_0:3mm_red_20.png ori-c1-3-0_0:3mm_ori_20.png
0.184 (0.013) 1.08 (0.19) 0.21 (0.04) 11.584 (0.020) 86670.34 86670.80 14.0 HCO 10,1→00,0 J=3/2→1/2 F=2→1 ori-c1-3-0_0:3mm_red_21.png ori-c1-3-0_0:3mm_ori_21.png
0.083 (0.013) 1.1 (0.5) 0.09 (0.04) 10.68 (0.05) 86670.60 86670.80 6.3 HCO 10,1→00,0 J=3/2→1/2 F=2→1 ori-c1-3-0_0:3mm_red_22.png ori-c1-3-0_0:3mm_ori_22.png
0.121 (0.012) 1.1 (0.3) 0.15 (0.04) 11.46 (0.03) 86707.94 86708.36 9.8 HCO 10,1→00,0 J=3/2→1/2 F=1→0 ori-c1-3-0_0:3mm_red_23.png ori-c1-3-0_0:3mm_ori_23.png
0.044 (0.012) 1.3 (0.9) 0.06 (0.04) 10.52 (0.09) 86708.21 86708.36 3.5 HCO 10,1→00,0 J=3/2→1/2 F=1→0 ori-c1-3-0_0:3mm_red_24.png ori-c1-3-0_0:3mm_ori_24.png
1.354 (0.011) 0.723 (0.017) 1.043 (0.023) 11.2910 (0.0018) 86753.91 86754.29 103.5 H13CO+ 1→0 ori-c1-3-0_0:3mm_red_25.png ori-c1-3-0_0:3mm_ori_25.png
0.776 (0.012) 0.65 (0.03) 0.539 (0.022) 10.454 (0.003) 86754.16 86754.29 59.5 H13CO+ 1→0 ori-c1-3-0_0:3mm_red_26.png ori-c1-3-0_0:3mm_ori_26.png
0.123 (0.013) 0.68 (0.21) 0.09 (0.03) 11.532 (0.023) 86777.00 86777.44 10.7 HCO 10,1→00,0 J=1/2→1/2 F=1→1 ori-c1-3-0_0:3mm_red_27.png ori-c1-3-0_0:3mm_ori_27.png
0.110 (0.015) 0.64 (0.23) 0.07 (0.03) 10.673 (0.025) 86777.25 86777.44 9.5 HCO 10,1→00,0 J=1/2→1/2 F=1→1 ori-c1-3-0_0:3mm_red_28.png ori-c1-3-0_0:3mm_ori_28.png
1.200 (0.012) 1.98 (0.04) 2.53 (0.05) 10.796 (0.004) 88630.18 88630.42 12.0 HCN 1→0 F=1→1 ori-c1-3-0_0:3mm_red_29.png ori-c1-3-0_0:3mm_ori_29.png
2.153 (0.012) 2.180 (0.023) 5.00 (0.05) 10.6997 (0.0023) 88631.64 88631.85 21.6 HCN 1→0 F=2→1 ori-c1-3-0_0:3mm_red_30.png ori-c1-3-0_0:3mm_ori_30.png
0.815 (0.012) 0.83 (0.04) 0.72 (0.03) 11.419 (0.004) 88633.52 88633.94 8.2 HCN 1→0 F=0→1 ori-c1-3-0_0:3mm_red_31.png ori-c1-3-0_0:3mm_ori_31.png
0.646 (0.012) 1.06 (0.05) 0.73 (0.04) 10.471 (0.006) 88633.80 88633.94 6.5 HCN 1→0 F=0→1 ori-c1-3-0_0:3mm_red_32.png ori-c1-3-0_0:3mm_ori_32.png
0.078 (0.015) 0.6 (0.4) 0.05 (0.03) 11.31 (0.04) 88865.31 88865.70 5.8 H15NC 1→0 ori-c1-3-0_0:3mm_red_33.png ori-c1-3-0_0:3mm_ori_33.png
3.464 (0.011) 0.943 (0.008) 3.48 (0.03) 11.5854 (0.0009) 89188.05 89188.53 91.2 HCO+ 1→0 ori-c1-3-0_0:3mm_red_34.png ori-c1-3-0_0:3mm_ori_34.png
4.475 (0.011) 0.983 (0.007) 4.68 (0.03) 10.3956 (0.0007) 89188.41 89188.53 117.7 HCO+ 1→0 ori-c1-3-0_0:3mm_red_35.png ori-c1-3-0_0:3mm_ori_35.png
0.672 (0.013) 0.69 (0.04) 0.491 (0.023) 9.367 (0.005) 89188.71 89188.53 17.7 HCO+ 1→0 ori-c1-3-0_0:3mm_red_36.png ori-c1-3-0_0:3mm_ori_36.png
0.506 (0.012) 1.47 (0.08) 0.79 (0.04) 6.933 (0.008) 89199.45 89198.54 3.8 H(59)</sup>\gamma</sup> ori-c1-3-0_0:3mm_red_37.png ori-c1-3-0_0:3mm_ori_37.png
0.808 (0.012) 0.84 (0.04) 0.72 (0.03) 5.915 (0.004) 89199.76 89198.54 6.1 H(59)</sup>\gamma</sup> ori-c1-3-0_0:3mm_red_38.png ori-c1-3-0_0:3mm_ori_38.png
0.671 (0.013) 0.52 (0.04) 0.372 (0.021) 2.733 (0.004) 89200.70 89198.54 5.0 H(59)</sup>\gamma</sup> ori-c1-3-0_0:3mm_red_39.png ori-c1-3-0_0:3mm_ori_39.png
3.17 (0.03) 1.14 (0.03) 3.83 (0.08) 11.463 (0.003) 90663.12 90663.56 103.5 HNC 1→0 ori-c1-3-0_0:3mm_red_40.png ori-c1-3-0_0:3mm_ori_40.png
2.51 (0.03) 0.88 (0.03) 2.35 (0.07) 10.488 (0.003) 90663.41 90663.56 82.1 HNC 1→0 ori-c1-3-0_0:3mm_red_41.png ori-c1-3-0_0:3mm_ori_41.png
0.17 (0.04) 0.5 (0.4) 0.09 (0.06) 9.31 (0.04) 90663.77 90663.56 5.4 HNC 1→0 ori-c1-3-0_0:3mm_red_42.png ori-c1-3-0_0:3mm_ori_42.png
0.47 (0.03) 0.68 (0.11) 0.34 (0.06) 11.227 (0.012) 90978.63 90979.00 16.9 HC3N 10→9 (3 components around) ori-c1-3-0_0:3mm_red_43.png ori-c1-3-0_0:3mm_ori_43.png
0.129 (0.025) 0.8 (0.5) 0.11 (0.06) 10.59 (0.05) 90978.82 90979.00 4.6 HC3N 10→9 (3 components around) ori-c1-3-0_0:3mm_red_44.png ori-c1-3-0_0:3mm_ori_44.png
0.08 (0.04) 0.21 (0.21) 0.018 (0.017) 11.05 (0.04) 92478.00 92478.3 5.4 Unidentified ori-c1-3-0_0:3mm_red_45.png ori-c1-3-0_0:3mm_ori_45.png
0.179 (0.016) 0.81 (0.19) 0.15 (0.04) 11.110 (0.021) 92493.93 92494.27 12.4 13CS 2→1 ori-c1-3-0_0:3mm_red_46.png ori-c1-3-0_0:3mm_ori_46.png
0.073 (0.023) 0.3 (0.3) 0.020 (0.019) 4.38 (0.04) 92496.01 92494.27 6.2 13CS 2→1 ori-c1-3-0_0:3mm_red_47.png ori-c1-3-0_0:3mm_ori_47.png
3.119 (0.010) 1.125 (0.009) 3.74 (0.03) 10.9498 (0.0009) 93171.58 93171.88 16.1 N2H+ 1→0 F=1→1 ori-c1-3-0_0:3mm_red_48.png ori-c1-3-0_0:3mm_ori_48.png
3.255 (0.010) 1.902 (0.012) 6.59 (0.04) 11.1197 (0.0012) 93173.35 93173.70 16.8 N2H+ 1→0 F=1→2 ori-c1-3-0_0:3mm_red_49.png ori-c1-3-0_0:3mm_ori_49.png
0.268 (0.010) 0.94 (0.09) 0.267 (0.024) 10.830 (0.010) 93173.44 93173.70 1.4 N2H+ 1→0 F=1→2 ori-c1-3-0_0:3mm_red_50.png ori-c1-3-0_0:3mm_ori_50.png
2.234 (0.011) 0.624 (0.009) 1.484 (0.020) 10.8421 (0.0009) 93175.87 93176.13 11.6 N2H+ 1→0 F=1→0 ori-c1-3-0_0:3mm_red_51.png ori-c1-3-0_0:3mm_ori_51.png
0.303 (0.011) 0.66 (0.07) 0.213 (0.020) 10.151 (0.008) 93176.08 93176.13 1.6 N2H+ 1→0 F=1→0 ori-c1-3-0_0:3mm_red_52.png ori-c1-3-0_0:3mm_ori_52.png
0.11 (0.03) 0.7 (0.6) 0.09 (0.07) 11.15 (0.07) 93869.74 93870.10 3.8 C2S N=7→6 J=8→7 ori-c1-3-0_0:3mm_red_53.png ori-c1-3-0_0:3mm_ori_53.png
0.13 (0.03) 3.8 (1.3) 0.54 (0.14) 11.04 (0.11) 93956.54 93956.9 4.7 Unidentified 93.956 GHz ori-c1-3-0_0:3mm_red_54.png ori-c1-3-0_0:3mm_ori_54.png
0.10 (0.03) 2.2 (1.2) 0.23 (0.11) 11.04 (0.12) 93956.93 93957.3 3.4 Unidentified 93.956 GHz ori-c1-3-0_0:3mm_red_55.png ori-c1-3-0_0:3mm_ori_55.png
0.052 (0.012) 0.8 (0.6) 0.04 (0.03) 10.91 (0.06) 95963.17 95963.46 4.5 CH3CHO 5(0,5)-4(0,4) ori-c1-3-0_0:3mm_red_56.png ori-c1-3-0_0:3mm_ori_56.png
0.66 (0.15) 0.8 (0.5) 0.6 (0.4) 11.01 (0.06) 96232.28 96232.6 30.0 Unidentified ori-c1-3-0_0:3mm_red_57.png ori-c1-3-0_0:3mm_ori_57.png
0.42 (0.14) 3.7 (1.9) 1.6 (0.7) 11.01 (0.17) 96232.29 96232.6 19.1 Unidentified ori-c1-3-0_0:3mm_red_58.png ori-c1-3-0_0:3mm_ori_58.png
0.567 (0.014) 0.75 (0.05) 0.45 (0.03) 11.213 (0.006) 96412.56 96412.95 44.1 C34S 2→1 ori-c1-3-0_0:3mm_red_59.png ori-c1-3-0_0:3mm_ori_59.png
0.157 (0.014) 0.76 (0.18) 0.13 (0.03) 10.498 (0.020) 96412.79 96412.95 12.1 C34S 2→1 ori-c1-3-0_0:3mm_red_60.png ori-c1-3-0_0:3mm_ori_60.png
0.076 (0.014) 1.6 (0.7) 0.13 (0.05) 14.16 (0.07) 96424.28 96425.62 2.4 CH3CHO 5(2,4)→4(2,3) (2) ori-c1-3-0_0:3mm_red_61.png ori-c1-3-0_0:3mm_ori_61.png
0.066 (0.014) 1.6 (0.8) 0.11 (0.05) 11.76 (0.09) 96425.05 96425.62 2.1 CH3CHO 5(2,4)→4(2,3) (2) ori-c1-3-0_0:3mm_red_62.png ori-c1-3-0_0:3mm_ori_62.png
0.417 (0.013) 1.00 (0.08) 0.44 (0.04) 11.186 (0.009) 96738.98 96739.36 25.7 CH3OH 2(-1,2)→1(-1,1) ori-c1-3-0_0:3mm_red_63.png ori-c1-3-0_0:3mm_ori_63.png
0.643 (0.013) 1.03 (0.06) 0.70 (0.04) 11.190 (0.006) 96740.99 96741.37 39.8 CH3OH 2(0,2)→1(0,1) ++ ori-c1-3-0_0:3mm_red_64.png ori-c1-3-0_0:3mm_ori_64.png
0.155 (0.013) 0.87 (0.20) 0.14 (0.03) 11.191 (0.021) 96744.17 96744.55 10.3 CH3OH 2(0,2)→1(0,1) ori-c1-3-0_0:3mm_red_65.png ori-c1-3-0_0:3mm_ori_65.png
0.093 (0.012) 1.1 (0.4) 0.10 (0.03) 16.26 (0.04) 96753.49 96755.51 2.4 CH3OH 2(1,1)→1(1,0) (1) ori-c1-3-0_0:3mm_red_66.png ori-c1-3-0_0:3mm_ori_66.png
0.054 (0.012) 0.7 (0.5) 0.038 (0.023) 11.18 (0.06) 96755.13 96755.51 1.4 CH3OH 2(1,1)→1(1,0) (1) ori-c1-3-0_0:3mm_red_67.png ori-c1-3-0_0:3mm_ori_67.png
0.153 (0.021) 0.8 (0.3) 0.13 (0.05) 11.25 (0.04) 97715.00 97715.40 7.6 34SO 3(2)→2(1) ori-c1-3-0_0:3mm_red_68.png ori-c1-3-0_0:3mm_ori_68.png
3.198 (0.020) 1.000 (0.016) 3.41 (0.05) 11.4171 (0.0017) 97980.49 97980.95 116.4 CS 2→1 ori-c1-3-0_0:3mm_red_69.png ori-c1-3-0_0:3mm_ori_69.png
2.569 (0.020) 0.880 (0.019) 2.41 (0.05) 10.6121 (0.0020) 97980.75 97980.95 93.0 CS 2→1 ori-c1-3-0_0:3mm_red_70.png ori-c1-3-0_0:3mm_ori_70.png
0.21 (0.03) 0.49 (0.17) 0.11 (0.04) 9.667 (0.023) 97981.06 97980.95 7.5 CS 2→1 ori-c1-3-0_0:3mm_red_71.png ori-c1-3-0_0:3mm_ori_71.png
2.34 (0.03) 0.94 (0.03) 2.34 (0.07) 11.315 (0.004) 99299.45 99299.89 71.2 SO 3(2)→2(1) ori-c1-3-0_0:3mm_red_72.png ori-c1-3-0_0:3mm_ori_72.png
0.86 (0.03) 1.32 (0.10) 1.20 (0.08) 10.584 (0.011) 99299.70 99299.89 26.1 SO 3(2)→2(1) ori-c1-3-0_0:3mm_red_73.png ori-c1-3-0_0:3mm_ori_73.png
0.227 (0.024) 0.60 (0.20) 0.15 (0.05) 11.232 (0.022) 101477.39 101477.81 9.8 H2CS 3(1,3)→2(1,2) ori-c1-3-0_0:3mm_red_74.png ori-c1-3-0_0:3mm_ori_74.png
0.07 (0.05) 0.5 (0.6) 0.04 (0.05) 10.84 (0.09) 101477.53 101477.81 2.7 H2CS 3(1,3)→2(1,2) ori-c1-3-0_0:3mm_red_75.png ori-c1-3-0_0:3mm_ori_75.png
0.13 (0.03) 0.7 (0.4) 0.09 (0.05) 11.32 (0.05) 102545.57 102546.02 5.5 CH3CCH 6(1)→5(1) ori-c1-3-0_0:3mm_red_76.png ori-c1-3-0_0:3mm_ori_76.png
0.15 (0.03) 0.7 (0.4) 0.11 (0.05) 11.23 (0.04) 102547.56 102547.98 6.7 CH3CCH 6(0)→5(0) ori-c1-3-0_0:3mm_red_77.png ori-c1-3-0_0:3mm_ori_77.png
0.16 (0.04) 0.6 (0.4) 0.10 (0.06) 11.22 (0.04) 108779.76 108780.20 5.5 13CN N=1→0 J=3/2→1/2 ori-c1-3-0_0:3mm_red_78.png ori-c1-3-0_0:3mm_ori_78.png
0.23 (0.04) 0.9 (0.4) 0.22 (0.08) 11.08 (0.04) 108893.55 108893.95 6.7 CH3OH 00,0→1-1,1 ori-c1-3-0_0:3mm_red_79.png ori-c1-3-0_0:3mm_ori_79.png
0.39 (0.04) 0.74 (0.19) 0.30 (0.08) 11.284 (0.021) 109173.17 109173.64 12.4 HC3N 12→11 ori-c1-3-0_0:3mm_red_80.png ori-c1-3-0_0:3mm_ori_80.png
0.15 (0.04) 0.7 (0.5) 0.11 (0.07) 10.57 (0.06) 109173.43 109173.64 4.8 HC3N 12→11 ori-c1-3-0_0:3mm_red_81.png ori-c1-3-0_0:3mm_ori_81.png
0.46 (0.04) 0.86 (0.16) 0.42 (0.08) 11.308 (0.017) 109251.71 109252.18 12.5 SO 23→12 ori-c1-3-0_0:3mm_red_82.png ori-c1-3-0_0:3mm_ori_82.png
0.06 (0.04) 1.3 (1.5) 0.09 (0.09) 10.69 (0.16) 109251.93 109252.18 1.7 SO 23→12 ori-c1-3-0_0:3mm_red_83.png ori-c1-3-0_0:3mm_ori_83.png
0.20 (0.04) 2.3 (0.8) 0.50 (0.15) 10.89 (0.08) 109561.15 109561.5 5.1 Unidentified 109.560 GHz ori-c1-3-0_0:3mm_red_84.png ori-c1-3-0_0:3mm_ori_84.png
0.33 (0.04) 4.4 (0.8) 1.55 (0.20) 10.89 (0.07) 109561.61 109561.9 8.2 Unidentified 109.560 GHz ori-c1-3-0_0:3mm_red_85.png ori-c1-3-0_0:3mm_ori_85.png
0.35 (0.06) 0.52 (0.23) 0.19 (0.08) 12.04 (0.03) 109781.43 109782.18 7.8 C18O 1→0 ori-c1-3-0_0:3mm_red_86.png ori-c1-3-0_0:3mm_ori_86.png
5.41 (0.05) 0.956 (0.021) 5.50 (0.11) 11.3276 (0.0022) 109781.69 109782.18 122.1 C18O 1→0 ori-c1-3-0_0:3mm_red_87.png ori-c1-3-0_0:3mm_ori_87.png
1.76 (0.05) 0.95 (0.07) 1.77 (0.11) 10.712 (0.007) 109781.92 109782.18 39.8 C18O 1→0 ori-c1-3-0_0:3mm_red_88.png ori-c1-3-0_0:3mm_ori_88.png
0.26 (0.05) 0.8 (0.4) 0.22 (0.09) 11.20 (0.04) 109905.31 109905.75 6.7 HNCO 5→4 ori-c1-3-0_0:3mm_red_89.png ori-c1-3-0_0:3mm_ori_89.png
0.42 (0.05) 0.55 (0.19) 0.25 (0.09) 11.324 (0.021) 110151.61 110152.09 8.3 NH2D 1(1,1)0a-1(0,1)0s, F=0-1 ori-c1-3-0_0:3mm_red_90.png ori-c1-3-0_0:3mm_ori_90.png
0.39 (0.05) 0.54 (0.21) 0.23 (0.09) 11.255 (0.023) 110152.56 110153.02 7.6 NH2D 1(1,1)0a-1(0,1)0s, F=2-1 ori-c1-3-0_0:3mm_red_91.png ori-c1-3-0_0:3mm_ori_91.png
1.13 (0.05) 0.66 (0.08) 0.79 (0.09) 9.727 (0.009) 110153.12 110153.02 21.9 NH2D 1(1,1)0a-1(0,1)0s, F=2-1 ori-c1-3-0_0:3mm_red_92.png ori-c1-3-0_0:3mm_ori_92.png
0.21 (0.09) 0.21 (0.24) 0.05 (0.06) 9.44 (0.04) 110153.23 110153.02 4.1 NH2D 1(1,1)0a-1(0,1)0s, F=2-1 ori-c1-3-0_0:3mm_red_93.png ori-c1-3-0_0:3mm_ori_93.png
0.41 (0.05) 0.52 (0.20) 0.23 (0.08) 9.660 (0.022) 110153.72 110153.59 8.2 NH2D 1(1,1)0a-1(0,1)0s, F=2-2 &amp; 1-1 ori-c1-3-0_0:3mm_red_94.png ori-c1-3-0_0:3mm_ori_94.png
0.37 (0.05) 0.66 (0.24) 0.26 (0.09) 8.86 (0.03) 110154.59 110154.17 7.3 NH2D 1(1,1)0a-1(0,1)0s, F=1-2 ori-c1-3-0_0:3mm_red_95.png ori-c1-3-0_0:3mm_ori_95.png
18.45 (0.05) 1.278 (0.007) 25.10 (0.12) 11.4773 (0.0008) 110200.81 110201.35 241.0 13CO 1→0 ori-c1-3-0_0:3mm_red_96.png ori-c1-3-0_0:3mm_ori_96.png
11.78 (0.05) 1.156 (0.010) 14.49 (0.12) 10.6510 (0.0011) 110201.11 110201.35 152.7 13CO 1→0 ori-c1-3-0_0:3mm_red_97.png ori-c1-3-0_0:3mm_ori_97.png
1.18 (0.05) 0.84 (0.09) 1.06 (0.10) 9.567 (0.009) 110201.51 110201.35 15.4 13CO 1→0 ori-c1-3-0_0:3mm_red_98.png ori-c1-3-0_0:3mm_ori_98.png

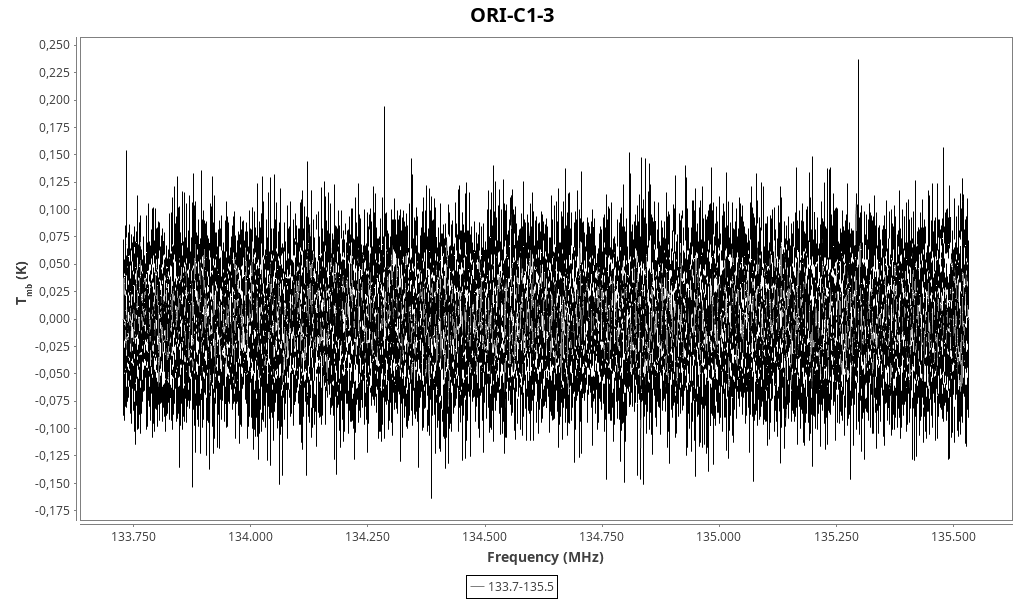

Backend 2mm (134.6 GHz)

Found 2 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.19 (0.12) 0.2 (0.4) 0.04 (0.06) 11.11 (0.03) 134284.40 134284.90 4.1 HDCO 2(1,1)-1(1,0) ori-c1-3-0_0:2mm_134.6_red_0.png ori-c1-3-0_0:2mm_134.6_ori_0.png
0.19 (0.05) 0.6 (0.5) 0.11 (0.09) 11.20 (0.04) 135297.72 135298.26 4.7 H2CS 4(1,4)-3(1,3) ori-c1-3-0_0:2mm_134.6_red_1.png ori-c1-3-0_0:2mm_134.6_ori_1.png

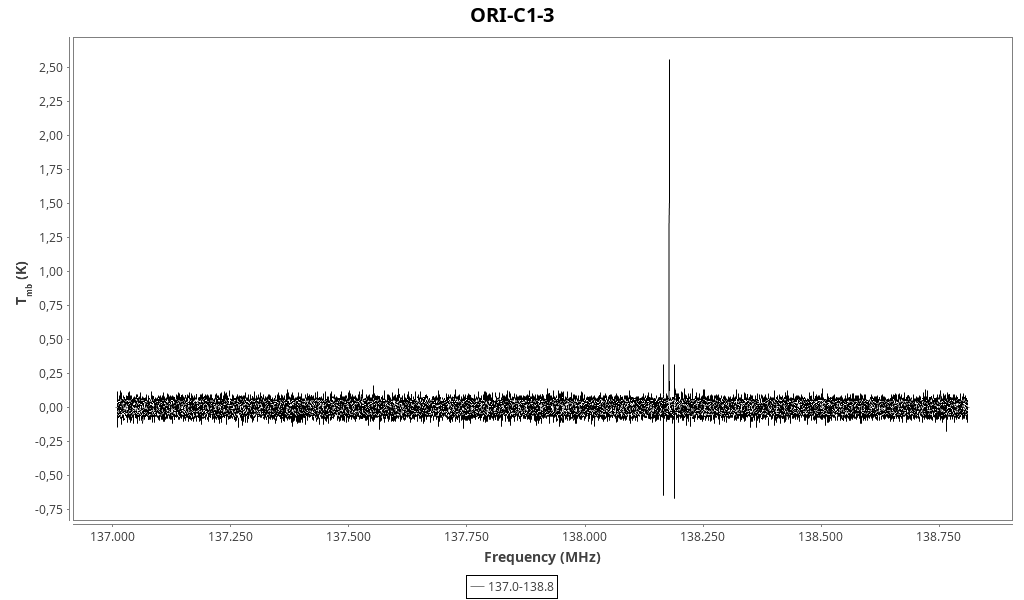

Backend 2mm (137.9 GHz)

Found 6 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
2.27 (0.04) 0.75 (0.05) 1.80 (0.11) 11.368 (0.004) 138178.03 138178.66 52.5 SO 43→32 ori-c1-3-0_0:2mm_137.9_red_0.png ori-c1-3-0_0:2mm_137.9_ori_0.png
0.80 (0.04) 1.00 (0.15) 0.85 (0.12) 10.673 (0.011) 138178.35 138178.66 18.6 SO 43→32 ori-c1-3-0_0:2mm_137.9_red_1.png ori-c1-3-0_0:2mm_137.9_ori_1.png
0.13 (0.04) 0.4 (0.6) 0.05 (0.08) 9.61 (0.05) 138178.84 138178.66 3.0 SO 43→32 ori-c1-3-0_0:2mm_137.9_red_2.png ori-c1-3-0_0:2mm_137.9_ori_2.png
0.54 (0.04) 0.06 (0.05) 0.04 (0.03) 10.67 (0.06) 138253.97 138254.3 14.6 Unidentified 138.254 GHz ori-c1-3-0_0:2mm_137.9_red_3.png ori-c1-3-0_0:2mm_137.9_ori_3.png
0.08 (0.05) 0.2 (0.7) 0.02 (0.05) 10.67 (0.06) 138254.19 138254.5 2.1 Unidentified 138.254 GHz ori-c1-3-0_0:2mm_137.9_red_4.png ori-c1-3-0_0:2mm_137.9_ori_4.png
0.34 (0.04) 0.06 (0.09) 0.02 (0.03) 10.67 (0.06) 138503.43 138503.7 9.4 Unidentified 138.504 GHz ori-c1-3-0_0:2mm_137.9_red_5.png ori-c1-3-0_0:2mm_137.9_ori_5.png

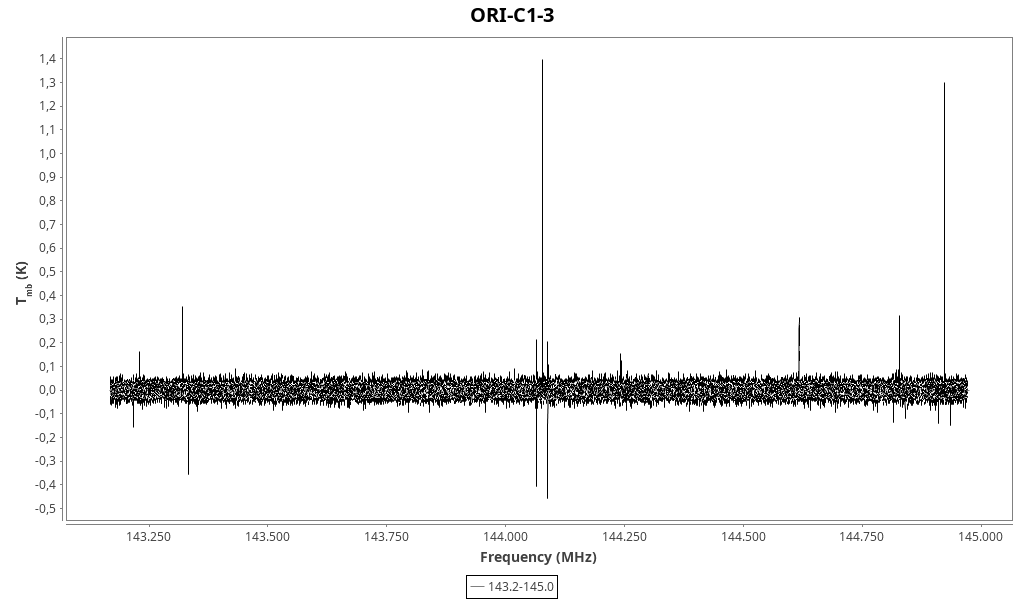

Backend 2mm (144.1 GHz)

Found 11 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.84 (0.03) 0.056 (0.024) 0.050 (0.021) 11.14 (0.05) 143229.89 143230.4 30.7 Unidentified 143.229 GHz ori-c1-3-0_0:2mm_144.1_red_0.png ori-c1-3-0_0:2mm_144.1_ori_0.png
0.36 (0.09) 0.10 (0.09) 0.04 (0.04) 11.143 (0.017) 143320.88 143321.4 14.9 Unidentified ori-c1-3-0_0:2mm_144.1_red_1.png ori-c1-3-0_0:2mm_144.1_ori_1.png
1.341 (0.024) 0.56 (0.04) 0.80 (0.06) 11.172 (0.003) 144076.73 144077.29 47.5 DCO+ J=2-1 (multiple components around) ori-c1-3-0_0:2mm_144.1_red_2.png ori-c1-3-0_0:2mm_144.1_ori_2.png
0.366 (0.024) 0.88 (0.19) 0.34 (0.07) 10.440 (0.014) 144077.08 144077.29 12.9 DCO+ J=2-1 (multiple components around) ori-c1-3-0_0:2mm_144.1_red_3.png ori-c1-3-0_0:2mm_144.1_ori_3.png
0.14 (0.04) 0.4 (0.5) 0.06 (0.06) 11.14 (0.03) 144241.37 144241.9 5.0 Unidentified ori-c1-3-0_0:2mm_144.1_red_4.png ori-c1-3-0_0:2mm_144.1_ori_4.png
0.245 (0.025) 0.63 (0.25) 0.17 (0.07) 11.133 (0.018) 144616.55 144617.10 10.0 C34S 3→2 ori-c1-3-0_0:2mm_144.1_red_5.png ori-c1-3-0_0:2mm_144.1_ori_5.png
0.166 (0.025) 0.7 (0.4) 0.12 (0.07) 10.52 (0.03) 144616.85 144617.10 6.7 C34S 3→2 ori-c1-3-0_0:2mm_144.1_red_6.png ori-c1-3-0_0:2mm_144.1_ori_6.png
0.08 (0.03) 0.5 (0.7) 0.04 (0.06) 11.13 (0.05) 144826.09 144826.6 3.2 Unidentified 144.828 GHz ori-c1-3-0_0:2mm_144.1_red_7.png ori-c1-3-0_0:2mm_144.1_ori_7.png
0.30 (0.03) 0.56 (0.20) 0.18 (0.07) 11.131 (0.014) 144827.51 144828.1 13.1 Unidentified 144.828 GHz ori-c1-3-0_0:2mm_144.1_red_8.png ori-c1-3-0_0:2mm_144.1_ori_8.png
0.63 (0.20) 1.8 (1.4) 1.2 (0.9) 11.13 (0.09) 144922.64 144923.2 21.4 Unidentified ori-c1-3-0_0:2mm_144.1_red_9.png ori-c1-3-0_0:2mm_144.1_ori_9.png
0.65 (0.20) 1.4 (1.2) 1.0 (0.8) 11.13 (0.08) 144922.65 144923.2 22.2 Unidentified ori-c1-3-0_0:2mm_144.1_red_10.png ori-c1-3-0_0:2mm_144.1_ori_10.png

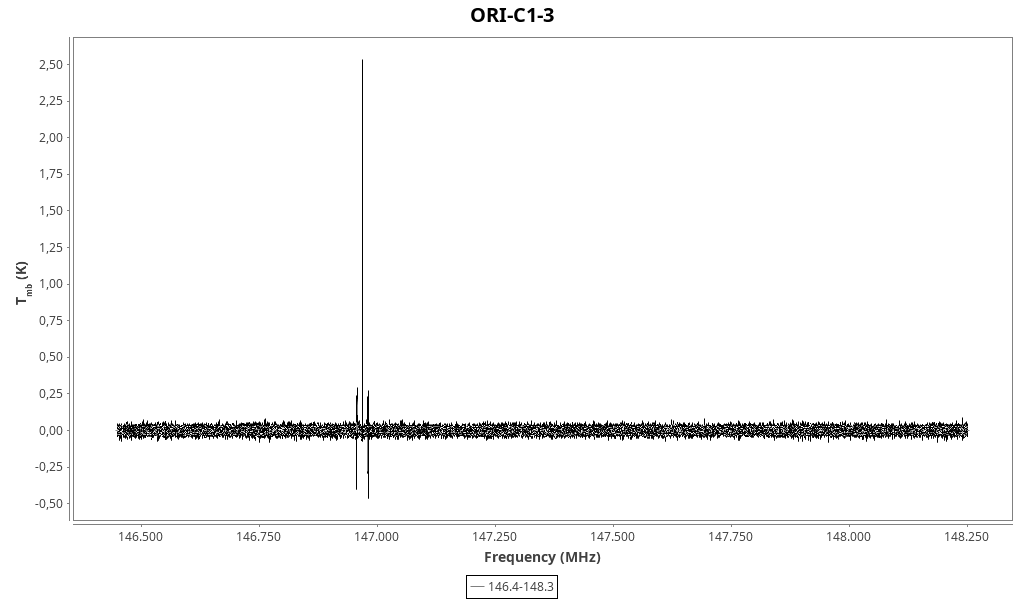

Backend 2mm (147.3 GHz)

Found 3 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
2.200 (0.024) 0.92 (0.04) 2.16 (0.08) 11.3389 (0.0023) 146968.37 146969.03 76.5 CS 3→2 ori-c1-3-0_0:2mm_147.3_red_0.png ori-c1-3-0_0:2mm_147.3_ori_0.png
2.340 (0.024) 0.70 (0.03) 1.75 (0.07) 10.5001 (0.0019) 146968.78 146969.03 81.2 CS 3→2 ori-c1-3-0_0:2mm_147.3_red_1.png ori-c1-3-0_0:2mm_147.3_ori_1.png
0.329 (0.024) 0.56 (0.17) 0.19 (0.06) 9.611 (0.012) 146969.22 146969.03 11.5 CS 3→2 ori-c1-3-0_0:2mm_147.3_red_2.png ori-c1-3-0_0:2mm_147.3_ori_2.png

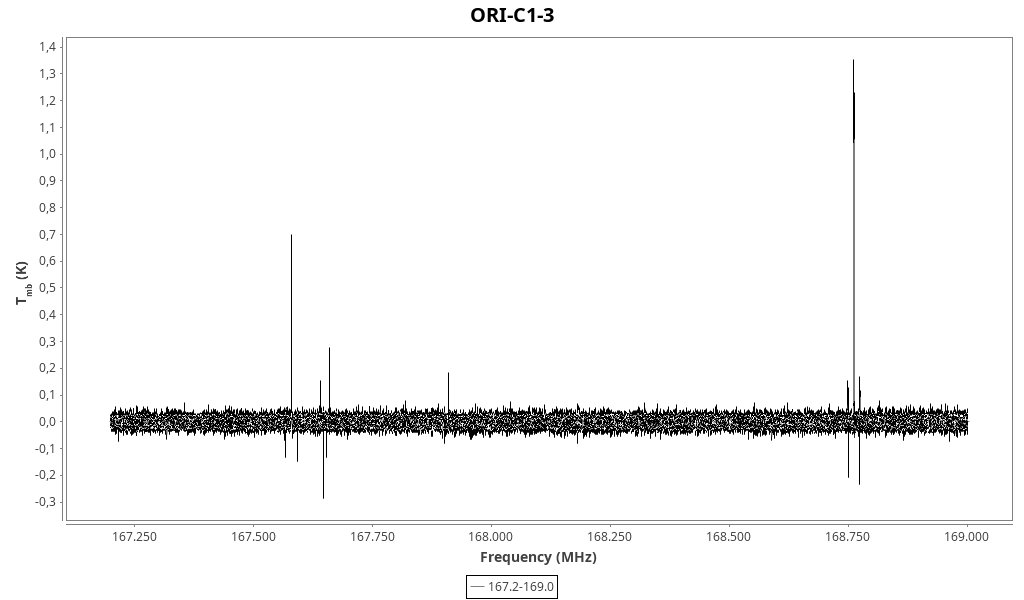

Backend 2mm (168.1 GHz)

Found 7 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.045 (0.019) 2.6 (2.4) 0.12 (0.11) 7.11 (0.15) 167579.41 167577.80 1.6 He(52)</sup>\delta</sup> (NO2 in atmosphere?) ori-c1-3-0_0:2mm_168.1_red_0.png ori-c1-3-0_0:2mm_168.1_ori_0.png
0.582 (0.019) 1.15 (0.12) 0.71 (0.07) 6.934 (0.008) 167579.51 167577.80 20.8 He(52)</sup>\delta</sup> (NO2 in atmosphere?) ori-c1-3-0_0:2mm_168.1_red_1.png ori-c1-3-0_0:2mm_168.1_ori_1.png
0.065 (0.019) 0.5 (0.7) 0.04 (0.05) 5.80 (0.05) 167580.15 167577.80 2.3 He(52)</sup>\delta</sup> (NO2 in atmosphere?) ori-c1-3-0_0:2mm_168.1_red_2.png ori-c1-3-0_0:2mm_168.1_ori_2.png
1.14 (0.03) 0.048 (0.016) 0.058 (0.020) 10.70 (0.05) 167658.62 167659.0 60.4 Unidentified ori-c1-3-0_0:2mm_168.1_red_3.png ori-c1-3-0_0:2mm_168.1_ori_3.png
0.158 (0.019) 0.7 (0.4) 0.13 (0.06) 11.238 (0.022) 167909.82 167910.52 7.8 H234S 1(1,0)→1(0,1) ori-c1-3-0_0:2mm_168.1_red_4.png ori-c1-3-0_0:2mm_168.1_ori_4.png
1.273 (0.019) 0.77 (0.05) 1.04 (0.06) 11.609 (0.003) 168761.85 168762.75 41.8 H2S 1(1,0)→1(0,1) ori-c1-3-0_0:2mm_168.1_red_5.png ori-c1-3-0_0:2mm_168.1_ori_5.png
1.200 (0.019) 0.89 (0.05) 1.14 (0.07) 10.698 (0.004) 168762.36 168762.75 39.2 H2S 1(1,0)→1(0,1) ori-c1-3-0_0:2mm_168.1_red_6.png ori-c1-3-0_0:2mm_168.1_ori_6.png

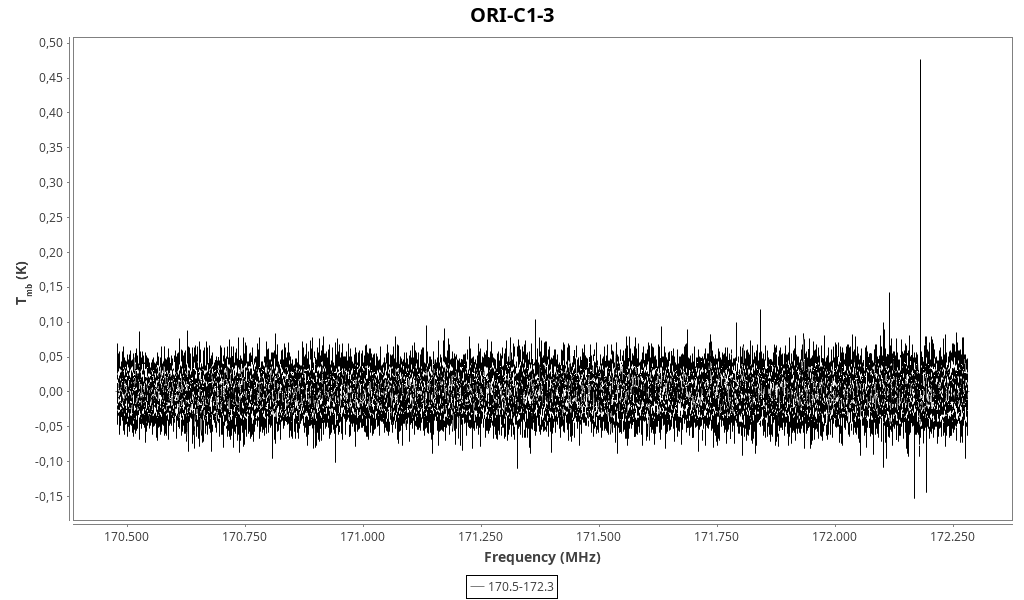

Backend 2mm (171.4 GHz)

Found 3 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.08 (0.06) 0.2 (0.5) 0.02 (0.04) 11.61 (0.04) 171687.19 171688.12 3.3 H2CS 5(0,5)→4(0,4) ori-c1-3-0_0:2mm_171.4_red_0.png ori-c1-3-0_0:2mm_171.4_ori_0.png
0.40 (0.03) 0.57 (0.17) 0.24 (0.07) 11.617 (0.011) 172180.48 172181.41 13.2 SO 4(4)→3(3) ori-c1-3-0_0:2mm_171.4_red_1.png ori-c1-3-0_0:2mm_171.4_ori_1.png
0.10 (0.03) 1.0 (0.9) 0.10 (0.09) 11.07 (0.06) 172180.79 172181.41 3.4 SO 4(4)→3(3) ori-c1-3-0_0:2mm_171.4_red_2.png ori-c1-3-0_0:2mm_171.4_ori_2.png
