DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

ORI-C1-7-0_0

Backend 3mm (85.0-110.5 GHz)

Found 58 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.073 (0.021)	0.34 (0.25)	0.026 (0.019)	11.50 (0.03)	85161.80	85162.22	5.7	HC¹⁸O⁺ 1→0
0.233 (0.014)	0.62 (0.11)	0.15 (0.03)	11.484 (0.011)	85338.48	85338.90	19.2	c-C₃H₂ 2_1,2→1_0,1
0.098 (0.016)	0.46 (0.22)	0.049 (0.023)	10.834 (0.024)	85338.66	85338.90	8.0	c-C₃H₂ 2_1,2→1_0,1
0.043 (0.014)	0.3 (0.4)	0.016 (0.017)	10.38 (0.04)	85731.03	85731.14	3.9	C(42)</sup>\alpha</sup>
0.113 (0.014)	0.42 (0.16)	0.051 (0.019)	11.521 (0.017)	85925.27	85925.70	7.3	NH₂D 1_1,1→1_0,1 F=2-1
0.320 (0.012)	0.51 (0.07)	0.174 (0.021)	9.538 (0.007)	85925.84	85925.70	20.5	NH₂D 1_1,1→1_0,1 F=2-1
0.102 (0.013)	0.47 (0.19)	0.051 (0.020)	9.495 (0.020)	85926.42	85926.28	6.6	NH₂D 1_1,1→1_0,1 F=2-2
0.102 (0.014)	0.42 (0.18)	0.046 (0.019)	11.438 (0.019)	85927.32	85927.73	6.9	NH₂D 1_1,1→1_0,1 F=1-0
0.067 (0.012)	0.5 (0.3)	0.037 (0.021)	11.69 (0.04)	86093.47	86093.96	5.5	SO 2₂→1₁
0.040 (0.016)	0.3 (0.4)	0.014 (0.017)	11.18 (0.05)	86093.62	86093.96	3.2	SO 2₂→1₁
0.09 (0.06)	0.16 (0.14)	0.015 (0.013)	10.92 (0.04)	86339.66	86339.92	6.8	H¹³CN 1→0
0.105 (0.020)	0.29 (0.16)	0.033 (0.017)	10.605 (0.018)	86339.75	86339.92	8.3	H¹³CN 1→0
0.094 (0.013)	0.9 (0.4)	0.09 (0.03)	11.89 (0.04)	86670.25	86670.80	7.0	HCO 1_0,1→0_0,0 J=3/2→1/2 F=2→1
0.051 (0.018)	0.4 (0.4)	0.019 (0.019)	11.18 (0.04)	86670.46	86670.80	3.8	HCO 1_0,1→0_0,0 J=3/2→1/2 F=2→1
0.075 (0.014)	0.7 (0.4)	0.06 (0.03)	11.79 (0.04)	86707.84	86708.36	6.3	HCO 1_0,1→0_0,0 J=3/2→1/2 F=1→0
0.072 (0.021)	0.28 (0.25)	0.021 (0.018)	11.04 (0.03)	86708.06	86708.36	6.0	HCO 1_0,1→0_0,0 J=3/2→1/2 F=1→0
0.741 (0.015)	0.44 (0.03)	0.349 (0.022)	11.482 (0.003)	86753.86	86754.29	54.8	H¹³CO⁺ 1→0
0.084 (0.015)	0.5 (0.4)	0.05 (0.03)	11.66 (0.04)	86776.96	86777.44	5.9	HCO 1_0,1→0_0,0 J=1/2→1/2 F=1→1
0.08 (0.04)	0.22 (0.20)	0.020 (0.018)	10.950 (0.019)	86777.17	86777.44	6.0	HCO 1_0,1→0_0,0 J=1/2→1/2 F=1→1
0.061 (0.016)	0.26 (0.23)	0.017 (0.015)	11.433 (0.025)	88380.78	88381.2	5.7	Unidentified
1.026 (0.009)	0.975 (0.021)	1.065 (0.021)	11.4732 (0.0021)	88629.98	88630.42	50.6	HCN 1→0 F=1→1
2.084 (0.009)	1.043 (0.011)	2.314 (0.022)	11.4598 (0.0011)	88631.42	88631.85	102.8	HCN 1→0 F=2→1
0.633 (0.009)	0.65 (0.03)	0.436 (0.017)	11.531 (0.003)	88633.49	88633.94	31.1	HCN 1→0 F=0→1
0.084 (0.008)	0.72 (0.21)	0.065 (0.018)	11.096 (0.021)	88633.62	88633.94	4.1	HCN 1→0 F=0→1
3.867 (0.012)	0.761 (0.007)	3.13 (0.03)	11.4443 (0.0007)	89188.10	89188.53	95.8	HCO⁺ 1→0
0.698 (0.012)	1.84 (0.07)	1.37 (0.04)	11.447 (0.006)	89188.10	89188.53	17.3	HCO⁺ 1→0
0.33 (0.03)	1.2 (0.3)	0.43 (0.09)	11.71 (0.03)	90663.05	90663.56	9.7	HNC 1→0
1.82 (0.03)	0.89 (0.04)	1.73 (0.08)	11.377 (0.004)	90663.15	90663.56	53.2	HNC 1→0
0.610 (0.011)	0.70 (0.04)	0.452 (0.024)	11.173 (0.004)	93171.52	93171.88	11.4	N₂H⁺ 1→0 F=1→1
0.546 (0.011)	1.48 (0.07)	0.86 (0.04)	11.297 (0.007)	93173.30	93173.70	10.2	N₂H⁺ 1→0 F=1→2
0.290 (0.015)	0.24 (0.05)	0.074 (0.014)	11.191 (0.006)	93173.33	93173.70	5.4	N₂H⁺ 1→0 F=1→2
0.460 (0.013)	0.41 (0.04)	0.201 (0.019)	11.041 (0.004)	93175.81	93176.13	8.6	N₂H⁺ 1→0 F=1→0
0.137 (0.022)	1.7 (0.6)	0.25 (0.08)	11.35 (0.06)	93956.82	93957.2	5.8	Unidentified 93.956 GHz
0.128 (0.022)	3.4 (1.0)	0.46 (0.11)	11.35 (0.09)	93956.98	93957.4	5.4	Unidentified 93.956 GHz
0.050 (0.019)	0.3 (0.4)	0.016 (0.020)	7.44 (0.04)	95811.23	95810.41	3.8	³⁴SO₂ 2(2,0)-3(1,3)
0.77 (0.18)	2.2 (1.0)	1.8 (0.7)	11.32 (0.09)	96232.28	96232.7	16.6	Unidentified
0.048 (0.017)	1.7 (1.3)	0.09 (0.06)	11.32 (0.13)	96236.60	96237.0	1.1	Unidentified 96.237 GHz
0.127 (0.015)	0.8 (0.3)	0.11 (0.04)	11.50 (0.03)	96412.47	96412.95	7.9	C³⁴S 2→1
0.339 (0.015)	0.08 (0.04)	0.031 (0.012)	3.29 (0.08)	96415.11	96412.95	20.9	C³⁴S 2→1
0.088 (0.015)	0.8 (0.4)	0.07 (0.04)	11.43 (0.04)	96738.90	96739.36	6.5	CH₃OH 2_(-1,2)→1_(-1,1)
0.147 (0.015)	0.77 (0.23)	0.12 (0.04)	11.496 (0.023)	96740.89	96741.37	11.0	CH₃OH 2_(0,2)→1_(0,1) ++
0.036 (0.009)	0.5 (0.5)	0.021 (0.018)	11.56 (0.06)	97714.90	97715.40	3.8	³⁴SO 3₍₂₎→2₍₁₎
0.069 (0.012)	0.46 (0.24)	0.034 (0.017)	12.277 (0.025)	97980.21	97980.95	6.6	CS 2→1
1.723 (0.009)	0.757 (0.013)	1.388 (0.022)	11.5647 (0.0013)	97980.44	97980.95	165.1	CS 2→1
0.571 (0.009)	0.74 (0.04)	0.448 (0.022)	11.015 (0.004)	97980.62	97980.95	55.8	CS 2→1
0.056 (0.014)	0.4 (0.4)	0.025 (0.020)	12.24 (0.04)	99299.15	99299.89	5.0	SO 3₍₂₎→2₍₁₎
0.910 (0.012)	0.66 (0.03)	0.643 (0.025)	11.618 (0.003)	99299.35	99299.89	80.5	SO 3₍₂₎→2₍₁₎
0.301 (0.012)	0.60 (0.08)	0.191 (0.023)	10.959 (0.008)	99299.57	99299.89	26.5	SO 3₍₂₎→2₍₁₎
0.054 (0.012)	0.7 (0.5)	0.040 (0.025)	11.40 (0.05)	101477.34	101477.81	4.9	H₂CS 3_(1,3)→2_(1,2)
1.42 (0.20)	1.5 (0.5)	2.2 (0.7)	11.24 (0.05)	101741.45	101741.9	15.7	Unidentified
0.122 (0.020)	1.4 (0.6)	0.18 (0.07)	11.24 (0.06)	101840.01	101840.4	9.7	Unidentified
0.11 (0.04)	0.3 (0.4)	0.03 (0.05)	8.28 (0.04)	106737.97	106737.36	3.7	H(39)</sup>\alpha</sup>
0.26 (0.04)	4.6 (1.1)	1.30 (0.22)	11.16 (0.09)	109561.24	109561.7	7.2	Unidentified 109.560 GHz
0.21 (0.04)	1.9 (0.8)	0.42 (0.15)	11.16 (0.07)	109561.31	109561.7	5.6	Unidentified 109.560 GHz
1.19 (0.04)	0.74 (0.08)	0.93 (0.09)	11.548 (0.008)	109781.61	109782.18	33.9	C¹⁸O 1→0
0.41 (0.05)	0.53 (0.18)	0.23 (0.08)	11.062 (0.018)	109781.79	109782.18	11.6	C¹⁸O 1→0
9.67 (0.05)	0.985 (0.011)	10.15 (0.11)	11.5340 (0.0011)	110200.79	110201.35	172.5	¹³CO 1→0
3.82 (0.05)	0.750 (0.024)	3.05 (0.09)	10.9843 (0.0025)	110200.99	110201.35	69.1	¹³CO 1→0

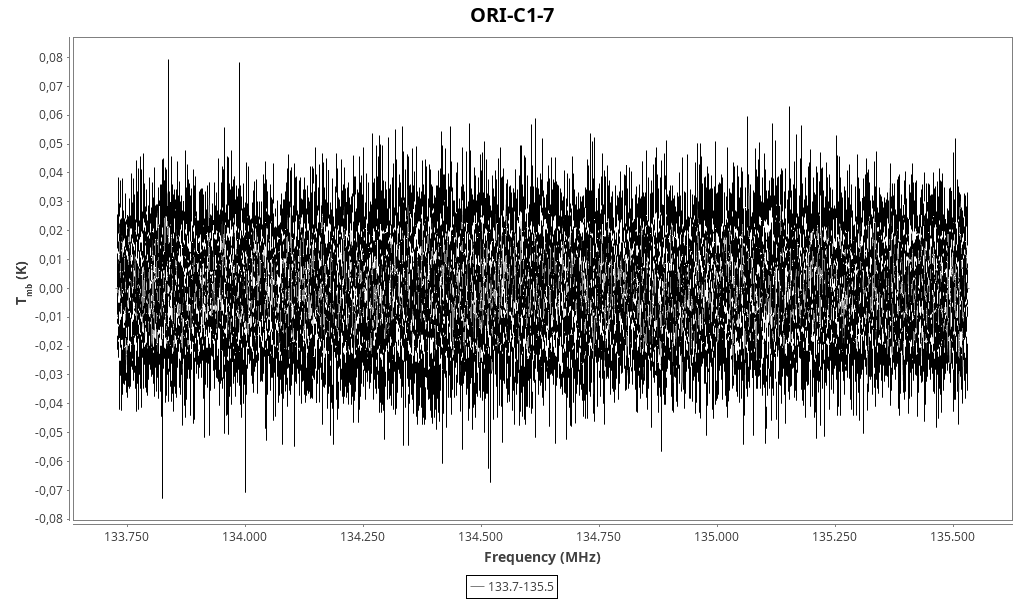

Backend 2mm (134.6 GHz)

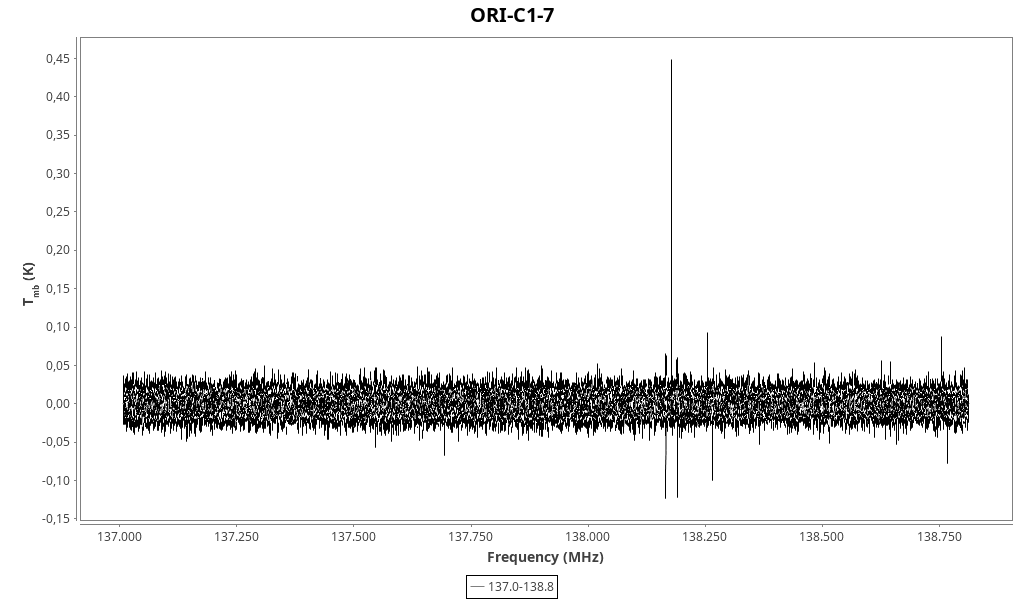

Backend 2mm (137.9 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.408 (0.015)	0.65 (0.09)	0.28 (0.04)	11.637 (0.007)	138177.90	138178.66	28.5	SO 4₃→3₂
0.205 (0.015)	0.61 (0.17)	0.13 (0.04)	11.022 (0.013)	138178.19	138178.66	14.1	SO 4₃→3₂
0.11 (0.09)	0.10 (0.12)	0.012 (0.014)	11.64 (0.05)	138254.02	138254.8	8.2	Unidentified 138.254 GHz
0.09 (0.05)	0.10 (0.15)	0.010 (0.014)	11.63 (0.04)	138754.04	138754.8	6.3	Unidentified 138.754 GHz

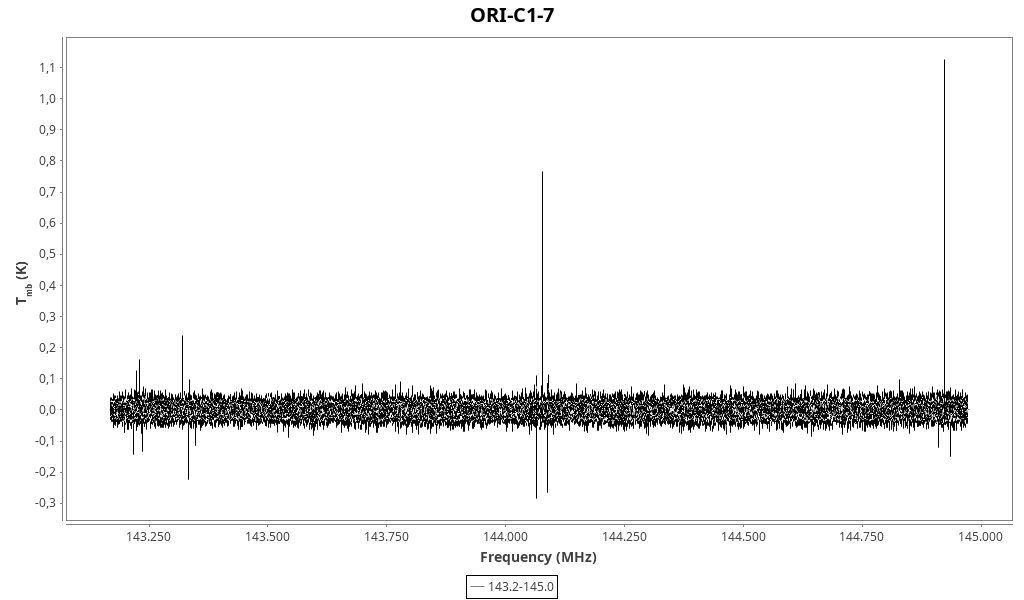

Backend 2mm (144.1 GHz)

Found 7 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.16 (0.05)	0.13 (0.19)	0.02 (0.04)	11.306 (0.019)	143229.86	143230.5	6.7	Unidentified 143.229 GHz
0.24 (0.09)	0.10 (0.11)	0.03 (0.03)	11.305 (0.023)	143320.88	143321.5	11.2	Unidentified
0.11 (0.04)	0.2 (0.4)	0.03 (0.04)	11.59 (0.03)	144076.52	144077.29	5.0	DCO⁺ J=2-1 (multiple components around)
0.800 (0.024)	0.47 (0.07)	0.40 (0.06)	11.298 (0.005)	144076.67	144077.29	35.8	DCO⁺ J=2-1 (multiple components around)
0.09 (0.03)	0.3 (0.5)	0.03 (0.04)	11.29 (0.04)	144827.49	144828.1	3.5	Unidentified 144.828 GHz
0.32 (0.09)	1.3 (1.1)	0.5 (0.4)	11.29 (0.08)	144922.16	144922.8	1.7	Unidentified
0.41 (0.09)	0.7 (0.6)	0.32 (0.24)	11.29 (0.04)	144922.93	144923.6	2.2	Unidentified

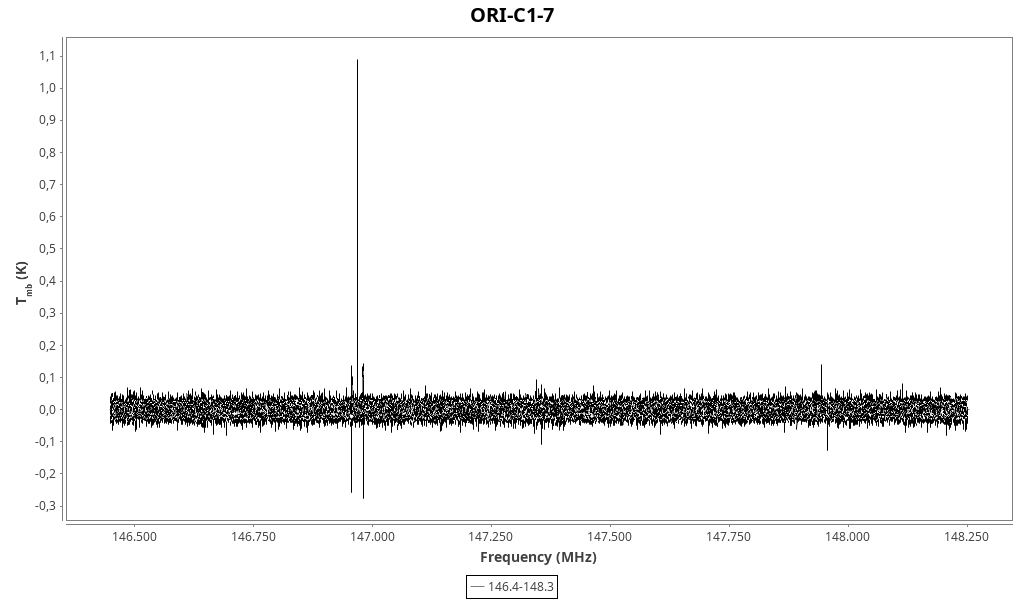

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.962 (0.022)	0.70 (0.06)	0.72 (0.06)	11.607 (0.005)	146968.24	146969.03	45.9	CS 3→2
0.421 (0.022)	0.76 (0.14)	0.34 (0.06)	11.120 (0.010)	146968.48	146969.03	19.5	CS 3→2

Backend 2mm (168.1 GHz)

Found 6 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.099 (0.023)	0.5 (0.6)	0.05 (0.06)	7.85 (0.04)	167579.00	167577.80	4.5	He(52)</sup>\delta</sup> (NO₂ in atmosphere?)
0.592 (0.023)	1.01 (0.13)	0.64 (0.08)	6.841 (0.008)	167579.57	167577.80	27.1	He(52)</sup>\delta</sup> (NO₂ in atmosphere?)
0.108 (0.023)	0.6 (0.6)	0.07 (0.06)	5.83 (0.04)	167580.13	167577.80	4.9	He(52)</sup>\delta</sup> (NO₂ in atmosphere?)
0.31 (0.09)	0.09 (0.09)	0.03 (0.04)	7.848 (0.016)	167658.64	167657.4	12.6	Unidentified
0.279 (0.024)	1.0 (0.3)	0.29 (0.08)	11.416 (0.018)	168761.96	168762.75	11.0	H₂S 1_(1,0)→1_(0,1)
0.190 (0.024)	1.0 (0.5)	0.20 (0.08)	11.37 (0.03)	168761.98	168762.75	7.5	H₂S 1_(1,0)→1_(0,1)

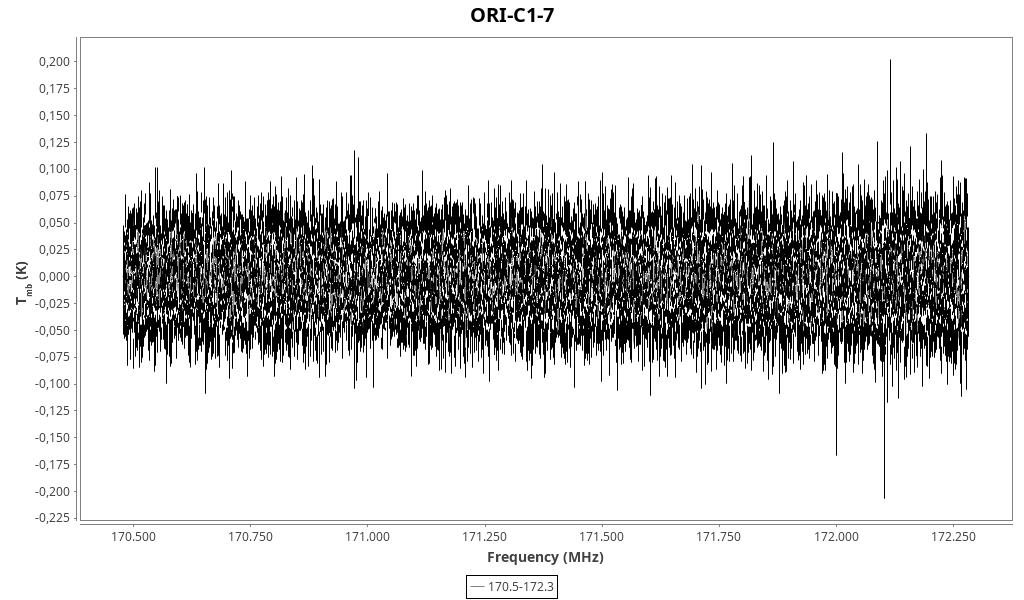

Backend 2mm (171.4 GHz)

Found 11 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.1 (1.4)	0.1 (0.5)	0.01 (0.08)	9.68 (0.14)	172095.60	172095.4	4.0	Unidentified 172.097 GHz
0.1 (0.4)	0.08 (0.19)	0.010 (0.011)	9.68 (0.09)	172099.42	172099.2	3.1	Unidentified 172.100 GHz
0.063 (0.017)	0.12 (0.15)	0.008 (0.010)	9.681 (0.014)	172102.06	172101.9	1.7	Unidentified 172.102 GHz
0.039 (0.012)	0.24 (0.24)	0.0098 (0.0022)	9.72 (0.03)	172105.72	172105.56	1.1	HS₂ 11(2,9)-10(2,8), J=21/2-19/2, F=11-10
0.045 (0.011)	0.31 (0.24)	0.015 (0.003)	8.12 (0.04)	172109.03	172107.96	1.5	HC¹⁵N 2→1
0.047 (0.009)	0.2 (0.3)	0.0110 (0.0014)	9.681 (0.016)	172214.01	172213.8	1.6	Unidentified 172.214 GHz
0.0326 (0.0009)	0.24 (0.04)	0.0082 (0.0014)	9.681 (0.004)	172217.57	172217.4	1.1	Unidentified 172.218 GHz
0.156 (0.007)	0.06 (0.04)	0.010 (0.006)	9.68 (0.05)	172218.36	172218.2	5.2	Unidentified 172.218 GHz
0.002 (0.004)	2 (16)	0.006 (0.007)	9.7 (1.5)	172222.12	172221.9	0.1	Unidentified 172.223 GHz
0.1994 (0.0018)	0.063 (0.008)	0.0134 (0.0016)	9.68 (0.05)	172226.21	172226.0	5.8	Unidentified 172.227 GHz
0.005 (0.004)	1.3 (0.6)	0.007 (0.005)	9.7 (0.4)	172235.71	172235.52	0.2	NaCN/NaNC 11(3,9)-10(3,8)
