DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

ORI-C2-8-0_0

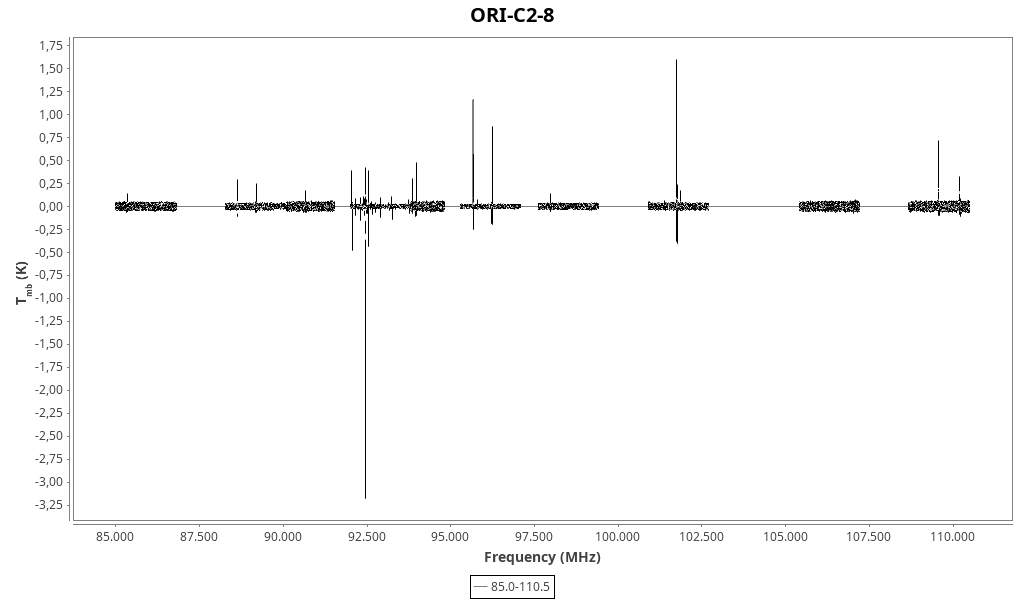

Backend 3mm (85.0-110.5 GHz)

Found 42 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.116 (0.017)	0.8 (0.4)	0.10 (0.04)	10.28 (0.04)	85338.82	85338.90	8.0	c-C₃H₂ 2_1,2→1_0,1
0.037 (0.017)	0.8 (1.0)	0.03 (0.04)	9.61 (0.11)	85339.01	85338.90	2.5	c-C₃H₂ 2_1,2→1_0,1
0.233 (0.014)	0.09 (0.05)	0.022 (0.011)	10.92 (0.08)	86754.02	86754.29	17.7	H¹³CO⁺ 1→0
0.219 (0.011)	0.77 (0.11)	0.181 (0.023)	10.203 (0.012)	88630.36	88630.42	18.1	HCN 1→0 F=1→1
0.289 (0.011)	0.82 (0.09)	0.253 (0.024)	10.142 (0.009)	88631.80	88631.85	23.2	HCN 1→0 F=2→1
0.216 (0.013)	0.77 (0.13)	0.18 (0.03)	10.179 (0.014)	89188.47	89188.53	17.0	HCO⁺ 1→0
0.182 (0.013)	1.31 (0.20)	0.25 (0.04)	9.084 (0.021)	89188.80	89188.53	14.2	HCO⁺ 1→0
0.167 (0.017)	0.85 (0.23)	0.15 (0.04)	10.199 (0.025)	90663.50	90663.56	10.5	HNC 1→0
0.39 (0.05)	0.17 (0.06)	0.072 (0.022)	10.173 (0.013)	92043.96	92044.0	60.8	Unidentified
0.10 (0.04)	0.17 (0.08)	0.019 (0.008)	10.173 (0.025)	92143.96	92144.0	16.9	Unidentified
0.626 (0.009)	0.088 (0.010)	0.059 (0.007)	10.17 (0.08)	92293.97	92294.0	93.9	Unidentified
0.11 (0.07)	0.14 (0.09)	0.017 (0.011)	10.17 (0.06)	92403.20	92403.3	15.1	Unidentified
0.09 (0.04)	0.17 (0.13)	0.016 (0.012)	10.17 (0.04)	92403.70	92403.7	11.4	Unidentified
0.404 (0.011)	0.087 (0.019)	0.038 (0.008)	10.17 (0.08)	92421.20	92421.3	57.2	Unidentified
0.070 (0.019)	0.19 (0.15)	0.014 (0.011)	10.17 (0.03)	92477.97	92478.0	10.6	Unidentified
0.068 (0.009)	0.21 (0.08)	0.015 (0.006)	10.941 (0.012)	92493.98	92494.27	7.5	¹³CS 2→1
0.09 (0.04)	0.16 (0.07)	0.015 (0.005)	4.483 (0.025)	92495.97	92494.27	12.1	¹³CS 2→1
0.423 (0.011)	0.226 (0.015)	0.102 (0.007)	9.7526 (0.0020)	92543.98	92543.91	76.1	CH₃OCHO v=1 9(1,8)-8(2,7)
0.183 (0.007)	0.10 (0.03)	0.019 (0.006)	10.17 (0.08)	92744.00	92744.1	28.4	Unidentified
0.100 (0.013)	0.22 (0.09)	0.023 (0.009)	10.172 (0.012)	92894.00	92894.1	19.3	Unidentified
0.05 (0.03)	0.18 (0.13)	0.010 (0.007)	10.17 (0.04)	93144.01	93144.1	8.5	Unidentified
0.112 (0.017)	0.19 (0.08)	0.022 (0.009)	10.171 (0.015)	93244.01	93244.1	19.8	Unidentified
0.028 (0.009)	0.24 (0.23)	0.007 (0.007)	10.17 (0.03)	93344.02	93344.1	5.6	Unidentified
0.013 (0.014)	0.3 (0.7)	0.004 (0.009)	11.05 (0.08)	93645.13	93645.46	1.9	He(51)</sup>\beta</sup>
0.083 (0.014)	0.23 (0.11)	0.020 (0.009)	10.170 (0.014)	93744.04	93744.1	13.2	Unidentified
0.25 (0.05)	2.3 (0.8)	0.60 (0.17)	10.17 (0.08)	93859.89	93859.9	14.1	Unidentified
0.37 (0.07)	2.4 (0.8)	0.93 (0.25)	10.17 (0.08)	93970.70	93970.7	14.0	Unidentified
1.15 (0.22)	3.2 (1.0)	3.9 (0.9)	10.17 (0.09)	95663.82	95663.9	103.9	Unidentified
0.062 (0.016)	1.0 (0.7)	0.07 (0.04)	10.17 (0.08)	95674.26	95674.3	1.1	Unidentified
0.58 (0.11)	2.6 (0.9)	1.6 (0.5)	10.17 (0.09)	95674.89	95674.9	10.2	Unidentified
0.057 (0.011)	1.5 (0.6)	0.09 (0.04)	10.17 (0.07)	95800.64	95800.7	7.9	Unidentified
0.32 (0.04)	0.38 (0.15)	0.13 (0.05)	10.166 (0.017)	96232.62	96232.7	10.1	Unidentified
0.62 (0.12)	2.8 (0.9)	1.9 (0.5)	10.17 (0.09)	96232.76	96232.8	19.9	Unidentified
0.130 (0.010)	0.74 (0.17)	0.101 (0.021)	10.188 (0.019)	97980.89	97980.95	12.5	CS 2→1
0.037 (0.014)	0.3 (0.4)	0.012 (0.013)	10.12 (0.04)	98163.01	98163.04	3.7	C₈H J=167/2-165/2, Omega=1/2, F=84-83 & 83-82, l=f
0.085 (0.013)	2.5 (0.7)	0.22 (0.06)	8.82 (0.07)	101745.37	101744.97	1.7	D₂CO 10(2,8)-10(2,9)
0.48 (0.12)	0.31 (0.24)	0.16 (0.12)	10.16 (0.03)	101753.97	101754.0	8.6	Unidentified
1.18 (0.25)	2.0 (0.9)	2.6 (0.9)	10.16 (0.09)	101753.99	101754.0	21.3	Unidentified
0.131 (0.025)	2.5 (0.9)	0.34 (0.10)	10.16 (0.09)	101852.56	101852.6	9.5	Unidentified
0.035 (0.025)	0.3 (0.8)	0.01 (0.03)	10.15 (0.09)	109563.65	109563.7	1.4	Unidentified 109.563 GHz
0.277 (0.020)	0.90 (0.18)	0.27 (0.05)	10.157 (0.020)	110201.30	110201.35	12.4	¹³CO 1→0
0.170 (0.020)	3.4 (0.7)	0.62 (0.09)	8.18 (0.06)	110202.02	110201.35	8.0	¹³CO 1→0

Backend 2mm (134.6 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.12 (0.04)	0.13 (0.16)	0.017 (0.021)	9.366 (0.021)	133729.36	133729.1	8.0	Unidentified 133.729 GHz
0.12 (0.05)	0.11 (0.16)	0.014 (0.020)	9.37 (0.03)	133735.37	133735.1	6.7	Unidentified 133.735 GHz
0.06 (0.04)	0.1 (0.3)	0.007 (0.018)	9.37 (0.05)	134023.99	134023.71	3.6	C₄H v₇=1 J=29/2-27/2

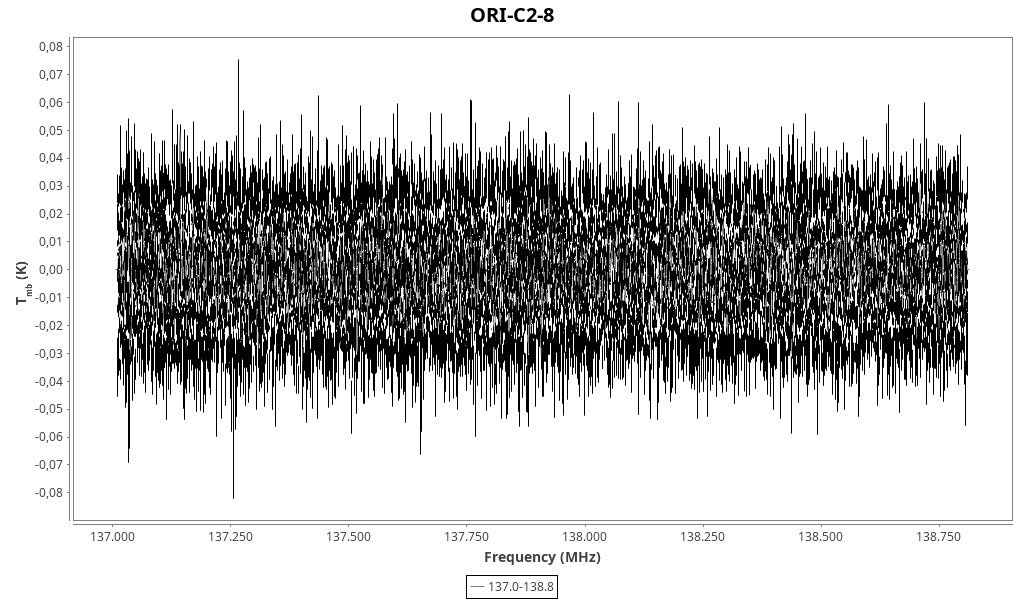

Backend 2mm (137.9 GHz)

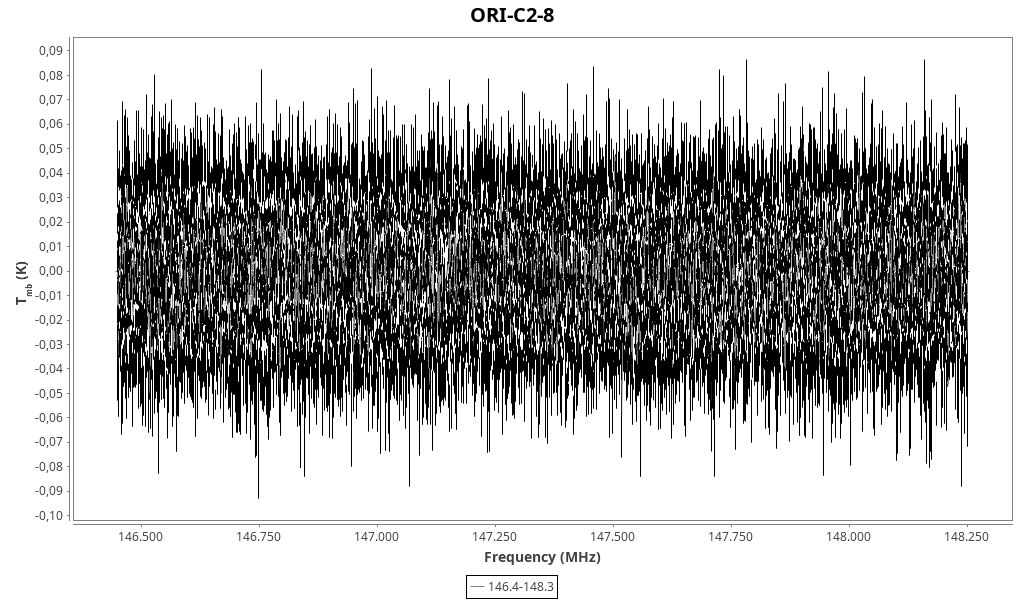

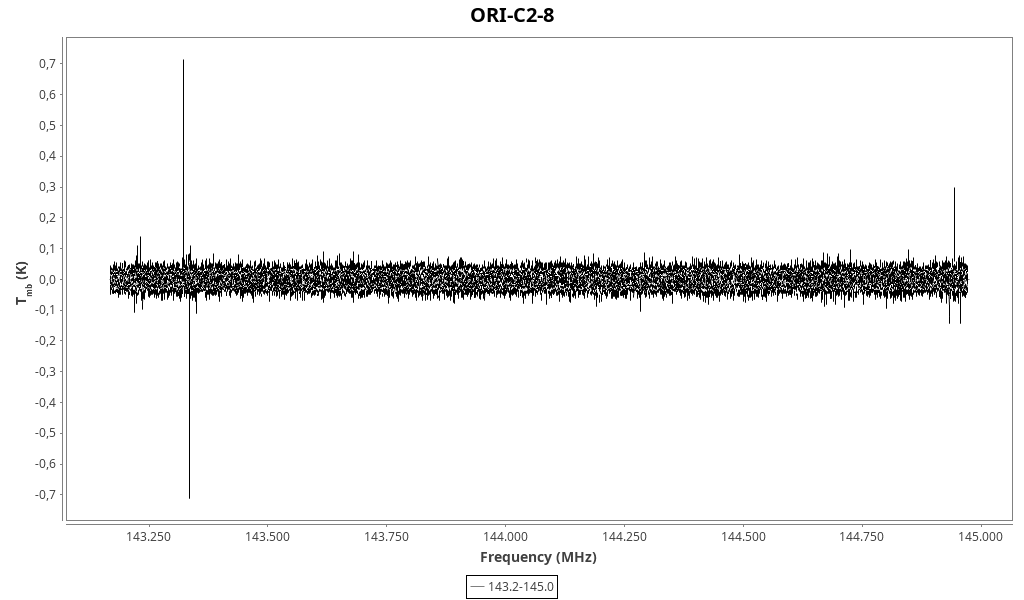

Backend 2mm (144.1 GHz)

Backend 2mm (147.3 GHz)

Backend 2mm (168.1 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.131 (0.024)	0.4 (0.4)	0.05 (0.05)	10.168 (0.023)	167580.14	167580.2	5.5	Unidentified
0.31 (0.07)	2.4 (1.2)	0.8 (0.4)	10.17 (0.07)	167580.45	167580.5	13.1	Unidentified
0.21 (0.04)	0.12 (0.12)	0.026 (0.025)	10.168 (0.009)	167658.59	167658.7	11.9	Unidentified
0.053 (0.016)	0.6 (0.8)	0.04 (0.05)	10.17 (0.05)	168762.66	168762.75	3.3	H₂S 1_(1,0)→1_(0,1)

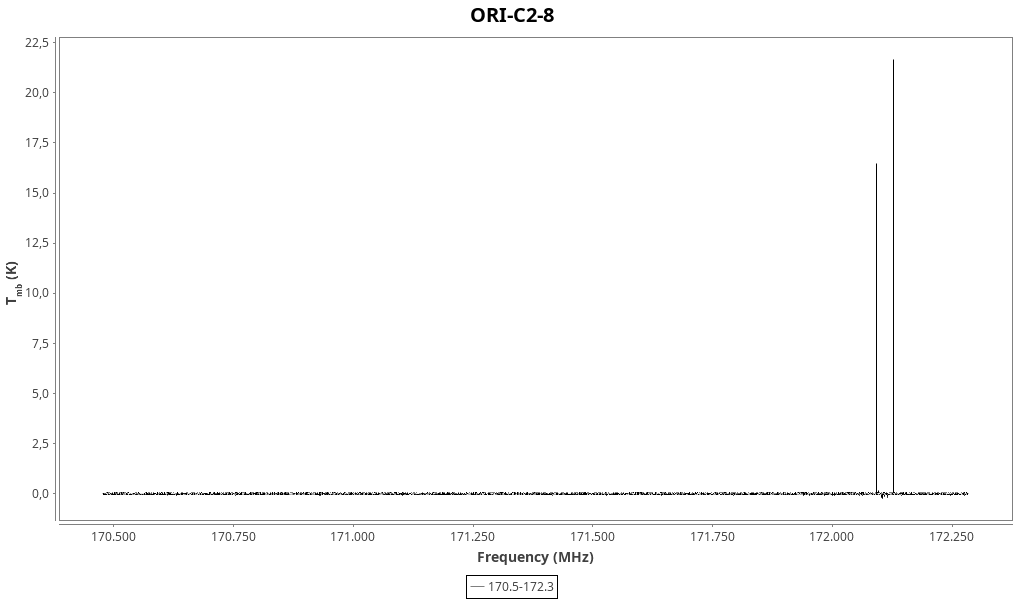

Backend 2mm (171.4 GHz)

Found 6 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
17.9 (2.2)	0.22 (0.15)	4 (3)	10.043 (0.009)	172091.40	172091.4	54.4	Unidentified
0.19 (0.06)	0.12 (0.14)	0.02 (0.03)	10.043 (0.011)	172096.96	172097.0	10.5	Unidentified 172.097 GHz
26.7 (1.6)	0.05 (0.05)	1.4 (1.2)	10.04 (0.05)	172127.33	172127.4	244.7	Unidentified
20.0 (0.4)	0.045 (0.012)	0.95 (0.24)	10.04 (0.05)	172127.33	172127.4	183.1	Unidentified
26 (5)	0.13 (0.08)	3.5 (2.0)	10.043 (0.005)	172127.43	172127.5	236.1	Unidentified
0.07 (0.03)	0.2 (0.4)	0.01 (0.03)	10.04 (0.03)	172181.38	172181.41	3.6	SO 4₍₄₎→3₍₃₎
