DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

ORI-C3-9-0_0

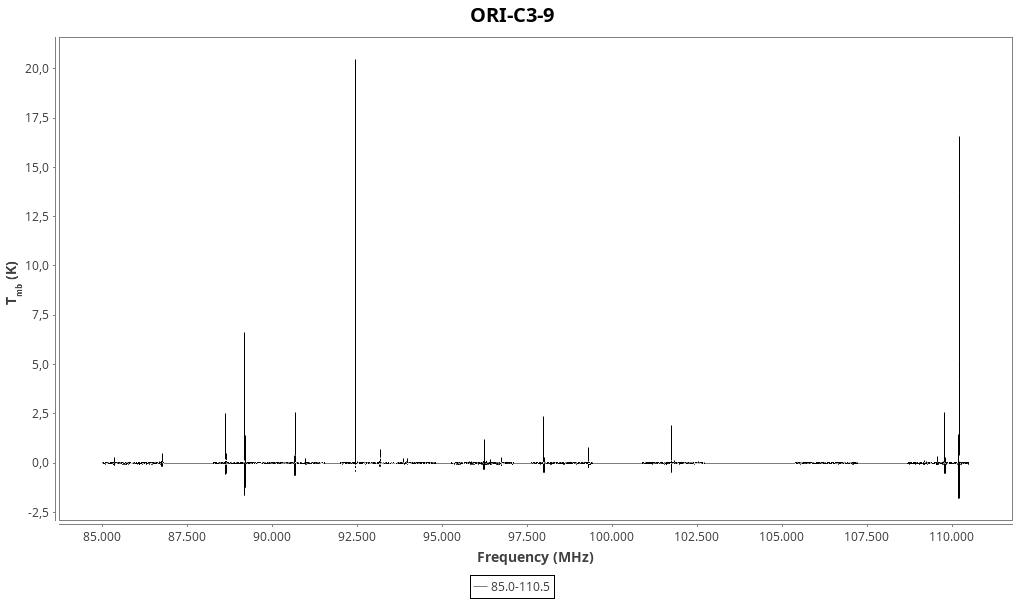

Backend 3mm (85.0-110.5 GHz)

Found 63 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.226 (0.016)	0.76 (0.16)	0.18 (0.04)	10.995 (0.017)	85338.62	85338.90	13.1	c-C₃H₂ 2_1,2→1_0,1
0.092 (0.016)	2.2 (0.8)	0.22 (0.07)	9.76 (0.07)	85338.97	85338.90	5.3	c-C₃H₂ 2_1,2→1_0,1
0.045 (0.024)	0.4 (0.6)	0.018 (0.025)	11.06 (0.09)	85455.36	85455.66	3.0	CH₃C₂H 5₁→4₁
0.076 (0.017)	0.4 (0.3)	0.031 (0.022)	10.49 (0.03)	86670.66	86670.80	5.9	HCO 1_0,1→0_0,0 J=3/2→1/2 F=2→1
0.506 (0.015)	0.69 (0.07)	0.37 (0.04)	11.051 (0.007)	86753.98	86754.29	34.8	H¹³CO⁺ 1→0
0.180 (0.016)	0.65 (0.18)	0.13 (0.04)	10.390 (0.018)	86754.18	86754.29	12.3	H¹³CO⁺ 1→0
0.050 (0.014)	0.7 (0.6)	0.04 (0.04)	10.34 (0.07)	86777.34	86777.44	3.5	HCO 1_0,1→0_0,0 J=1/2→1/2 F=1→1
0.055 (0.024)	0.2 (0.3)	0.012 (0.017)	2.08 (0.04)	86779.73	86777.44	3.7	HCO 1_0,1→0_0,0 J=1/2→1/2 F=1→1
1.12 (0.07)	2.1 (0.3)	2.5 (0.3)	10.36 (0.03)	88630.31	88630.42	8.6	HCN 1→0 F=1→1
0.35 (0.09)	0.4 (0.4)	0.15 (0.12)	7.98 (0.04)	88631.02	88630.42	2.7	HCN 1→0 F=1→1
1.90 (0.07)	1.13 (0.11)	2.28 (0.20)	10.818 (0.011)	88631.61	88631.85	14.6	HCN 1→0 F=2→1
0.93 (0.07)	3.0 (0.4)	2.9 (0.4)	9.52 (0.04)	88631.99	88631.85	7.2	HCN 1→0 F=2→1
5.905 (0.010)	0.780 (0.004)	4.903 (0.023)	11.0757 (0.0004)	89188.21	89188.53	78.0	HCO⁺ 1→0
1.941 (0.010)	0.594 (0.011)	1.229 (0.020)	10.2321 (0.0011)	89188.46	89188.53	25.6	HCO⁺ 1→0
1.831 (0.010)	2.82 (0.03)	5.50 (0.05)	9.2876 (0.0024)	89188.74	89188.53	24.2	HCO⁺ 1→0
0.257 (0.015)	0.50 (0.08)	0.136 (0.020)	7.207 (0.009)	89199.37	89198.54	0.9	H(59)</sup>\gamma</sup>
2.119 (0.009)	0.900 (0.012)	2.031 (0.024)	11.1304 (0.0012)	90663.22	90663.56	116.6	HNC 1→0
1.303 (0.009)	1.165 (0.022)	1.61 (0.03)	10.1905 (0.0021)	90663.50	90663.56	71.4	HNC 1→0
0.333 (0.009)	1.17 (0.09)	0.42 (0.03)	8.382 (0.009)	90664.05	90663.56	18.4	HNC 1→0
0.212 (0.011)	0.59 (0.09)	0.133 (0.020)	11.048 (0.009)	90978.68	90979.00	19.7	HC₃N 10→9 (3 components around)
0.105 (0.010)	0.59 (0.19)	0.066 (0.020)	10.158 (0.020)	90978.95	90979.00	9.9	HC₃N 10→9 (3 components around)
1.12 (0.06)	0.12 (0.05)	0.14 (0.05)	10.37 (0.08)	92440.48	92440.6	58.3	Unidentified
25.8 (1.1)	0.06 (0.07)	1.6 (0.7)	10.36615 (0.00024)	92440.64	92440.8	1344.4	Unidentified
0.059 (0.016)	0.7 (0.6)	0.04 (0.04)	10.87 (0.06)	92494.00	92494.27	3.9	¹³CS 2→1
0.451 (0.008)	0.95 (0.05)	0.456 (0.021)	10.844 (0.005)	93171.62	93171.88	13.1	N₂H⁺ 1→0 F=1→1
0.538 (0.008)	1.60 (0.06)	0.91 (0.03)	10.983 (0.005)	93173.39	93173.70	15.6	N₂H⁺ 1→0 F=1→2
0.19 (0.03)	0.17 (0.05)	0.034 (0.009)	10.968 (0.009)	93173.40	93173.70	5.4	N₂H⁺ 1→0 F=1→2
0.276 (0.009)	0.50 (0.06)	0.148 (0.016)	10.794 (0.006)	93175.88	93176.13	8.0	N₂H⁺ 1→0 F=1→0
0.068 (0.009)	0.7 (0.3)	0.051 (0.018)	10.22 (0.03)	93176.06	93176.13	2.0	N₂H⁺ 1→0 F=1→0
0 (9)	0 (3)	0.0 (0.8)	8.82 (0.05)	93849.06	93848.69	6.6	CNCHO 17(1,16)-17(0,17)
0.098 (0.018)	2.5 (0.9)	0.26 (0.08)	10.36 (0.08)	93958.59	93958.7	6.8	Unidentified 93.959 GHz
0.041 (0.018)	1.0 (1.1)	0.04 (0.05)	10.36 (0.11)	93959.29	93959.4	2.9	Unidentified 93.959 GHz
0.037 (0.014)	1.6 (1.3)	0.06 (0.05)	11.74 (0.12)	93979.22	93979.77	2.4	PN 2→1 (?)
0.092 (0.011)	0.09 (0.09)	0.009 (0.009)	10.42 (0.08)	94407.41	94407.54	8.7	CH₂¹³CHCN 10_(4,x)→9_(4,x-1) x=7,6
0.83 (0.13)	1.8 (0.6)	1.6 (0.5)	10.35 (0.06)	96232.89	96233.0	14.8	Unidentified
0.18 (0.05)	1.8 (1.0)	0.35 (0.18)	10.35 (0.09)	96233.78	96233.9	3.3	Unidentified
0.169 (0.016)	0.84 (0.22)	0.15 (0.04)	10.775 (0.022)	96412.70	96412.95	12.5	C³⁴S 2→1
0.094 (0.018)	0.5 (0.4)	0.05 (0.03)	10.08 (0.04)	96412.93	96412.95	7.0	C³⁴S 2→1
0.185 (0.015)	1.16 (0.23)	0.23 (0.04)	10.868 (0.024)	96739.08	96739.36	10.1	CH₃OH 2_(-1,2)→1_(-1,1)
0.265 (0.015)	1.06 (0.15)	0.30 (0.04)	10.929 (0.016)	96741.07	96741.37	14.5	CH₃OH 2_(0,2)→1_(0,1) ++
0.056 (0.015)	0.4 (0.5)	0.024 (0.024)	9.97 (0.05)	96741.38	96741.37	3.0	CH₃OH 2_(0,2)→1_(0,1) ++
0.041 (0.020)	0.2 (0.4)	0.009 (0.014)	10.35 (0.05)	96925.81	96925.9	3.9	Unidentified 96.926 GHz
2.105 (0.011)	0.949 (0.014)	2.13 (0.03)	10.9345 (0.0013)	97980.65	97980.95	111.4	CS 2→1
1.650 (0.011)	0.838 (0.016)	1.47 (0.03)	10.1558 (0.0016)	97980.90	97980.95	87.2	CS 2→1
0.242 (0.011)	1.33 (0.14)	0.34 (0.04)	9.009 (0.014)	97981.28	97980.95	12.8	CS 2→1
0.607 (0.015)	0.81 (0.06)	0.52 (0.04)	10.184 (0.006)	99299.83	99299.89	36.1	SO 3₍₂₎→2₍₁₎
0.172 (0.015)	2.4 (0.4)	0.43 (0.06)	9.80 (0.04)	99299.96	99299.89	10.3	SO 3₍₂₎→2₍₁₎
1.22 (0.24)	0.8 (0.5)	1.0 (0.6)	10.33 (0.05)	101741.72	101741.8	41.4	Unidentified
0.67 (0.23)	3.1 (1.8)	2.2 (1.1)	10.33 (0.16)	101741.78	101741.9	22.9	Unidentified
0.118 (0.019)	1.3 (0.5)	0.17 (0.06)	10.33 (0.05)	101840.27	101840.4	10.5	Unidentified
0.047 (0.011)	0.7 (0.5)	0.034 (0.023)	11.14 (0.05)	102545.63	102546.02	4.4	CH₃CCH 6₍₁₎→5₍₁₎
0.062 (0.011)	0.9 (0.5)	0.06 (0.03)	11.11 (0.05)	102547.61	102547.98	5.7	CH₃CCH 6₍₀₎→5₍₀₎
0.051 (0.013)	0.7 (0.6)	0.04 (0.03)	10.98 (0.07)	108893.59	108893.95	3.9	CH₃OH 0_0,0→1_-1,1
0.129 (0.016)	0.49 (0.17)	0.067 (0.023)	11.101 (0.018)	109173.24	109173.64	10.2	HC₃N 12→11
0.069 (0.013)	0.7 (0.4)	0.05 (0.03)	10.19 (0.05)	109173.57	109173.64	5.4	HC₃N 12→11
0.086 (0.016)	0.45 (0.25)	0.042 (0.022)	10.19 (0.03)	109252.11	109252.18	7.0	SO 2₃→1₂
0.181 (0.016)	4.1 (0.6)	0.78 (0.09)	10.31 (0.05)	109563.34	109563.5	10.9	Unidentified 109.563 GHz
0.105 (0.016)	2.9 (0.8)	0.33 (0.08)	10.31 (0.07)	109563.48	109563.6	6.2	Unidentified 109.563 GHz
2.349 (0.015)	0.907 (0.016)	2.27 (0.04)	10.8851 (0.0016)	109781.85	109782.18	122.4	C¹⁸O 1→0
1.923 (0.015)	0.893 (0.019)	1.83 (0.04)	10.0770 (0.0019)	109782.15	109782.18	100.6	C¹⁸O 1→0
0.166 (0.015)	0.96 (0.23)	0.17 (0.04)	9.087 (0.025)	109782.51	109782.18	8.6	C¹⁸O 1→0
9.587 (0.016)	1.699 (0.006)	17.34 (0.06)	10.4644 (0.0006)	110201.18	110201.35	26.1	¹³CO 1→0
7.884 (0.016)	2.777 (0.010)	23.30 (0.07)	9.8613 (0.0009)	110201.40	110201.35	21.5	¹³CO 1→0

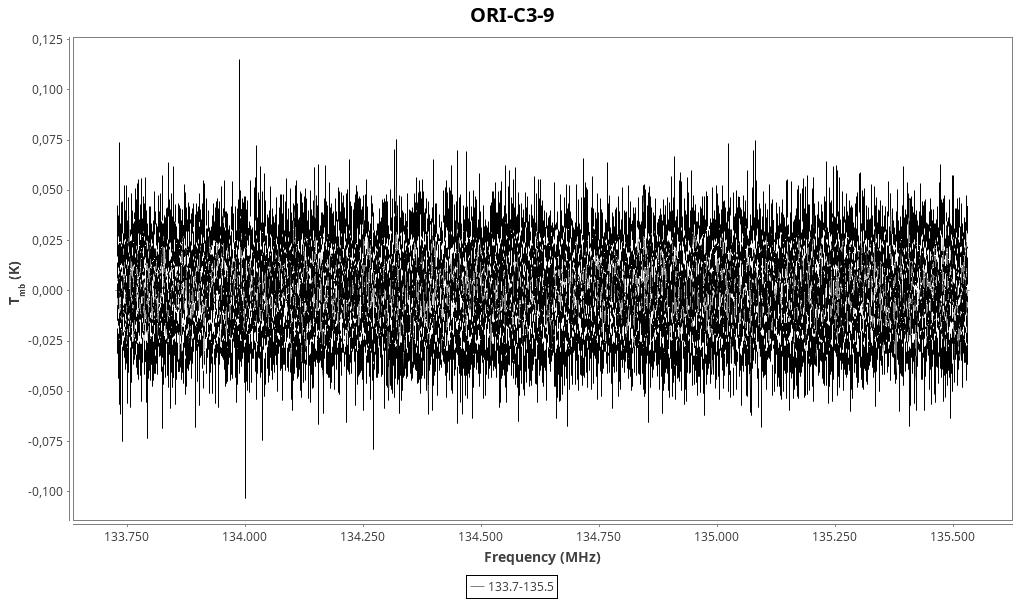

Backend 2mm (134.6 GHz)

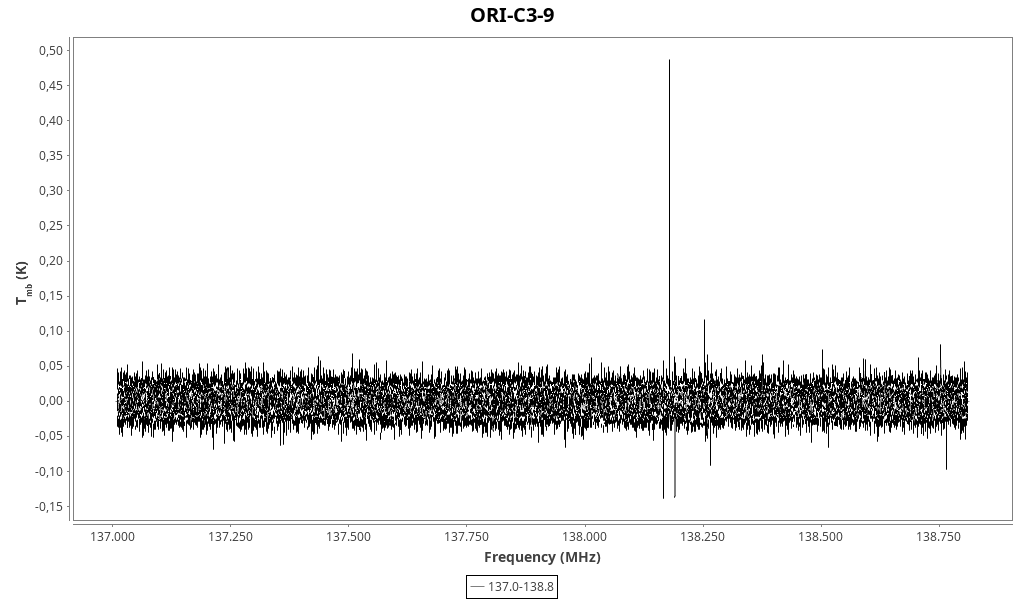

Backend 2mm (137.9 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.130 (0.016)	1.6 (0.5)	0.22 (0.07)	10.25 (0.04)	138178.54	138178.66	8.1	SO 4₃→3₂
0.345 (0.016)	0.59 (0.11)	0.22 (0.04)	10.178 (0.008)	138178.58	138178.66	21.3	SO 4₃→3₂
0.08 (0.06)	0.12 (0.21)	0.011 (0.018)	10.18 (0.04)	138504.01	138504.1	5.1	Unidentified 138.504 GHz

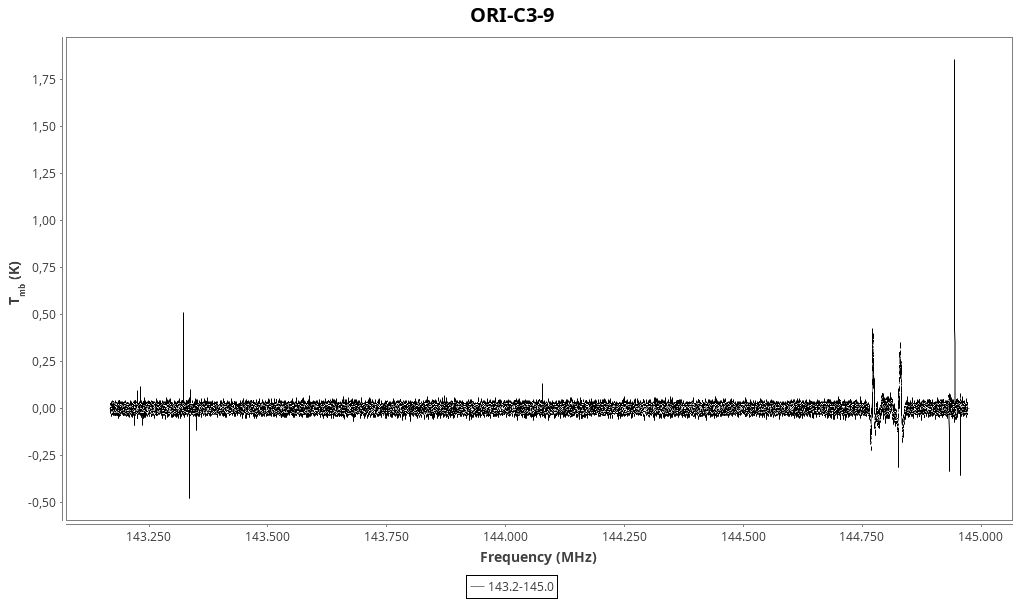

Backend 2mm (144.1 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
1.91 (0.04)	0.058 (0.014)	0.12 (0.03)	9.74 (0.05)	143322.31	143322.2	110.0	Unidentified
0.111 (0.019)	0.6 (0.4)	0.07 (0.05)	9.74 (0.03)	144077.42	144077.29	5.8	DCO⁺ J=2-1 (multiple components around)
1.72 (0.24)	1.3 (0.5)	2.3 (0.9)	9.74 (0.04)	144944.10	144944.0	49.9	Unidentified

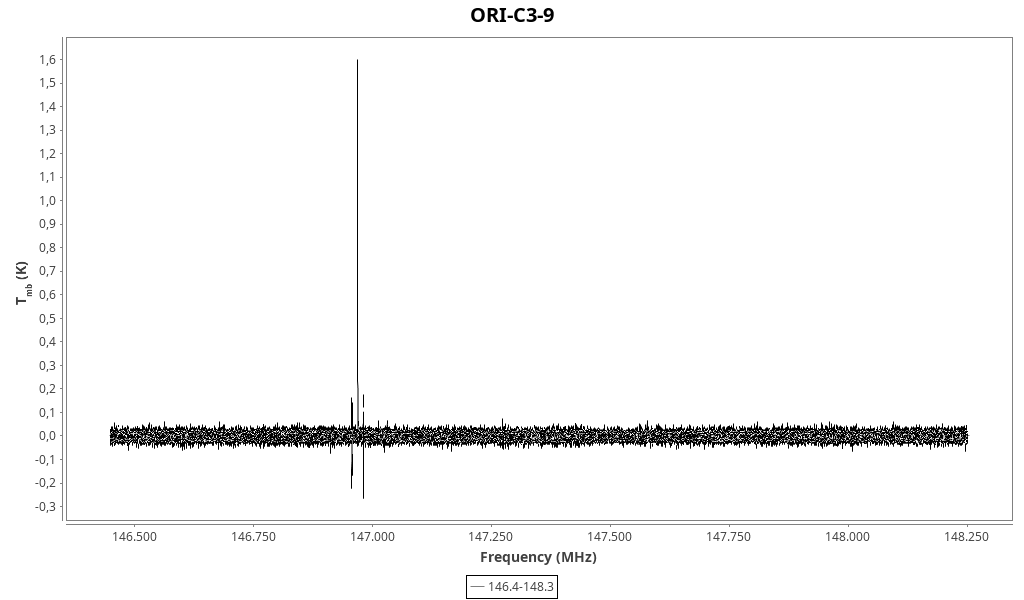

Backend 2mm (147.3 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
1.520 (0.015)	0.86 (0.03)	1.40 (0.05)	10.8712 (0.0020)	146968.60	146969.03	74.9	CS 3→2
1.212 (0.015)	0.79 (0.04)	1.01 (0.05)	10.0744 (0.0024)	146968.99	146969.03	59.6	CS 3→2
0.153 (0.015)	1.0 (0.4)	0.17 (0.05)	9.057 (0.023)	146969.49	146969.03	7.7	CS 3→2

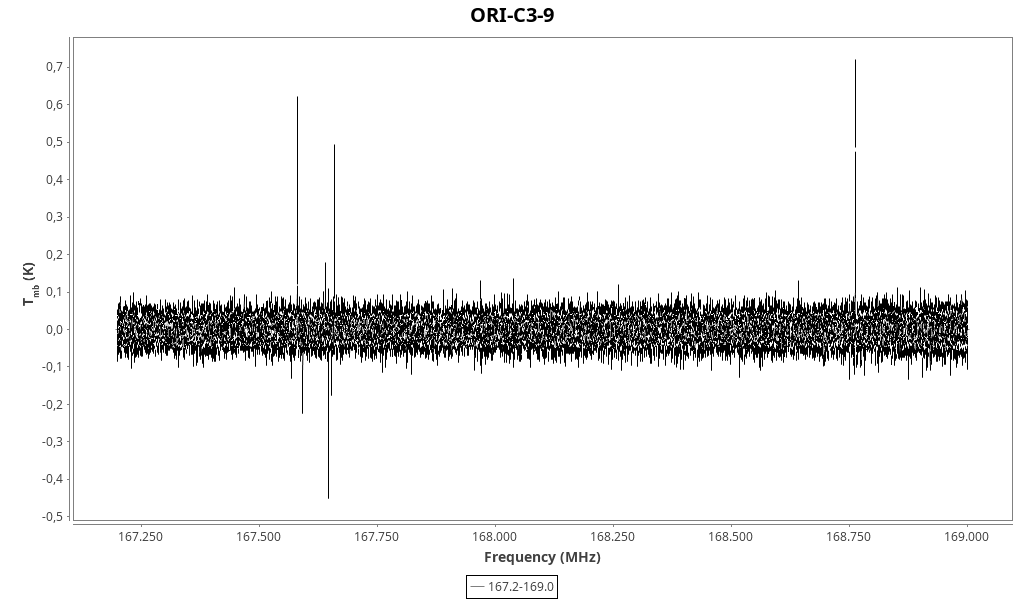

Backend 2mm (168.1 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.07 (0.07)	0.2 (0.6)	0.01 (0.05)	9.38 (0.04)	167578.15	167577.80	0.6	He(52)</sup>\delta</sup> (NO₂ in atmosphere?)
0.49 (0.08)	0.12 (0.11)	0.07 (0.06)	10.065 (0.008)	167658.59	167658.6	14.3	Unidentified
0.46 (0.04)	1.0 (0.3)	0.51 (0.12)	10.919 (0.016)	168762.24	168762.75	11.2	H₂S 1_(1,0)→1_(0,1)
0.55 (0.04)	0.94 (0.20)	0.55 (0.12)	10.065 (0.013)	168762.72	168762.75	13.6	H₂S 1_(1,0)→1_(0,1)
