DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

TMC1-C2--60_0

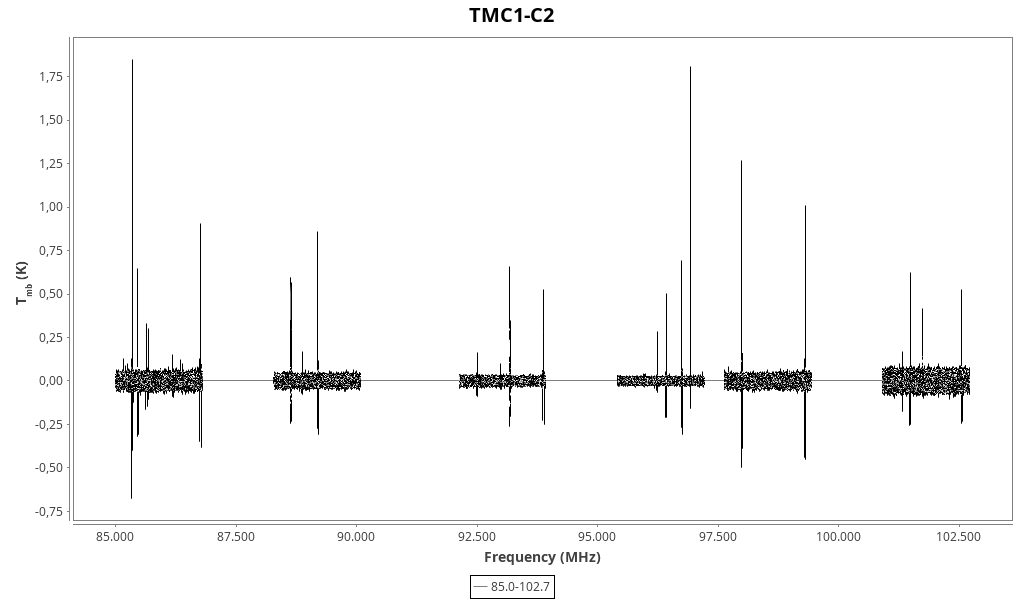

Backend 3mm (85.0-102.7 GHz)

Found 60 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.13 (0.03)	0.4 (0.3)	0.06 (0.04)	5.28 (0.03)	85162.43	85162.22	6.1	HC¹⁸O⁺ 1→0
0.09 (0.09)	0.18 (0.23)	0.017 (0.022)	3.59 (0.06)	85162.91	85162.22	4.3	HC¹⁸O⁺ 1→0
0.09 (0.03)	0.3 (0.3)	0.03 (0.03)	3.29 (0.03)	85192.92	85192.15	4.9	o-D₂CS 3→2
0.08 (0.05)	0.4 (0.4)	0.03 (0.04)	7.03 (0.07)	85232.50	85232.79	3.8	C¹³CH 3/2→1/2
0.55 (0.05)	0.18 (0.04)	0.106 (0.024)	5.623 (0.008)	85339.01	85338.90	19.9	c-C₃H₂ 2_1,2→1_0,1
1.89 (0.04)	0.291 (0.015)	0.59 (0.03)	5.2408 (0.0017)	85339.12	85338.90	68.5	c-C₃H₂ 2_1,2→1_0,1
0.34 (0.03)	0.37 (0.10)	0.13 (0.04)	5.409 (0.011)	85348.04	85347.87	7.1	HCS⁺ 2→1
0.08 (0.04)	0.2 (0.3)	0.02 (0.03)	5.26 (0.05)	85450.98	85450.77	4.0	CH₃CCH 5(2)-4(2)
0.69 (0.03)	0.30 (0.04)	0.22 (0.03)	5.266 (0.005)	85455.87	85455.66	34.7	CH₃C₂H 5₁→4₁
0.67 (0.04)	0.30 (0.05)	0.21 (0.03)	5.249 (0.005)	85457.50	85457.29	33.7	CH₃C₂H 5₀→4₀
0.36 (0.04)	0.34 (0.11)	0.13 (0.04)	5.399 (0.011)	85634.18	85634.01	14.3	C₄H 9→8 J=19/2→17/2
0.33 (0.03)	0.32 (0.09)	0.11 (0.03)	5.365 (0.009)	85672.76	85672.58	15.4	C₄H 9→8 J=17/2→15/2
0.08 (0.04)	0.3 (0.4)	0.03 (0.04)	5.25 (0.05)	86094.17	86093.96	3.8	SO 2₂→1₁
0.19 (0.06)	0.24 (0.14)	0.05 (0.03)	5.249 (0.015)	86181.61	86181.39	8.9	CCS 6→5, N=7-6
0.073 (0.022)	0.6 (0.6)	0.04 (0.04)	5.40 (0.07)	86338.91	86338.73	3.4	H¹³CN 1₁→0₁
0.14 (0.04)	0.29 (0.20)	0.04 (0.03)	4.377 (0.024)	86340.39	86339.92	6.7	H¹³CN 1→0
0.058 (0.023)	0.5 (0.7)	0.03 (0.04)	5.42 (0.08)	86708.53	86708.36	2.6	HCO 1_0,1→0_0,0 J=3/2→1/2 F=1→0
0.839 (0.023)	0.55 (0.05)	0.49 (0.04)	5.269 (0.005)	86754.50	86754.29	27.0	H¹³CO⁺ 1→0
0.329 (0.015)	0.78 (0.10)	0.27 (0.04)	5.391 (0.011)	88630.60	88630.42	10.6	HCN 1→0 F=1→1
0.464 (0.015)	0.84 (0.08)	0.41 (0.04)	5.443 (0.008)	88632.01	88631.85	15.0	HCN 1→0 F=2→1
0.307 (0.019)	0.30 (0.06)	0.097 (0.019)	5.626 (0.007)	88634.05	88633.94	10.0	HCN 1→0 F=0→1
0.552 (0.019)	0.35 (0.04)	0.204 (0.020)	5.176 (0.004)	88634.18	88633.94	17.9	HCN 1→0 F=0→1
0.176 (0.023)	0.33 (0.13)	0.061 (0.024)	5.293 (0.014)	88865.91	88865.70	11.0	H¹⁵NC 1→0
0.867 (0.020)	0.40 (0.03)	0.372 (0.025)	5.619 (0.003)	89188.64	89188.53	59.9	HCO⁺ 1→0
0.610 (0.019)	0.43 (0.04)	0.277 (0.025)	5.028 (0.005)	89188.82	89188.53	42.3	HCO⁺ 1→0
0.046 (0.017)	0.6 (0.8)	0.03 (0.04)	3.84 (0.08)	89419.95	89419.30	2.5	HCCNC J=9-8, F=9-8 (4 components around)
0.174 (0.018)	0.35 (0.11)	0.066 (0.020)	5.230 (0.012)	92494.51	92494.27	13.4	¹³CS 2→1
0.044 (0.019)	0.3 (0.4)	0.015 (0.019)	0.47 (0.05)	92495.98	92494.27	3.5	¹³CS 2→1
0.108 (0.017)	0.32 (0.15)	0.037 (0.017)	5.273 (0.016)	92981.83	92981.60	10.1	HDCS 3(0,3)-2(0,2) ? (CH3OCHO)
0.366 (0.012)	0.70 (0.07)	0.273 (0.025)	4.966 (0.007)	93172.20	93171.88	15.5	N₂H⁺ 1→0 F=1→1
0.463 (0.017)	0.35 (0.04)	0.171 (0.018)	5.943 (0.004)	93173.72	93173.70	19.9	N₂H⁺ 1→0 F=1→2
0.639 (0.015)	0.40 (0.03)	0.270 (0.018)	4.985 (0.003)	93174.02	93173.70	27.6	N₂H⁺ 1→0 F=1→2
0.322 (0.017)	0.29 (0.05)	0.100 (0.016)	4.365 (0.005)	93174.21	93173.70	13.9	N₂H⁺ 1→0 F=1→2
0.362 (0.016)	0.34 (0.05)	0.131 (0.016)	4.807 (0.005)	93176.50	93176.13	15.9	N₂H⁺ 1→0 F=1→0
0.039 (0.019)	0.2 (0.4)	0.010 (0.015)	5.24 (0.05)	93822.90	93822.66	3.7	C(58)</sup>\gamma</sup>
0.573 (0.014)	0.37 (0.03)	0.229 (0.016)	5.271 (0.003)	93870.33	93870.10	46.8	C₂S N=7→6 J=8→7
0.046 (0.013)	0.4 (0.3)	0.017 (0.014)	4.89 (0.04)	95947.70	95947.34	4.8	CH₃CHO 5_(0,5)→4_(0,4)
0.024 (0.011)	1.0 (1.2)	0.03 (0.03)	5.12 (0.14)	95963.74	95963.46	2.3	CH₃CHO 5(0,5)-4(0,4)
0.034 (0.009)	0.6 (0.6)	0.021 (0.018)	5.16 (0.06)	95994.33	95994.06	3.9	c-HCCCD 2(1,1)-1(1,0)
0.229 (0.010)	1.72 (0.16)	0.42 (0.04)	9.639 (0.017)	96226.40	96227.57	11.8	CH₃CHO vt=1 5(3,2)-4(3,1)
0.079 (0.014)	0.42 (0.20)	0.035 (0.017)	7.558 (0.024)	96227.07	96227.57	4.0	CH₃CHO vt=1 5(3,2)-4(3,1)
0.486 (0.015)	0.43 (0.04)	0.222 (0.019)	5.239 (0.005)	96413.20	96412.95	34.8	C³⁴S 2→1
0.026 (0.013)	0.5 (0.7)	0.015 (0.018)	5.97 (0.08)	96425.63	96425.62	1.1	CH₃CHO 5_(2,4)→4_(2,3) (2)
0.520 (0.013)	0.44 (0.04)	0.241 (0.017)	5.226 (0.004)	96739.61	96739.36	40.3	CH₃OH 2_(-1,2)→1_(-1,1)
0.687 (0.013)	0.432 (0.024)	0.316 (0.017)	5.2196 (0.0025)	96741.62	96741.37	54.7	CH₃OH 2_(0,2)→1_(0,1) ++
0.046 (0.014)	0.3 (0.3)	0.016 (0.014)	5.19 (0.04)	96744.81	96744.55	4.1	CH₃OH 2_(0,2)→1_(0,1)
0.030 (0.015)	0.3 (0.5)	0.010 (0.013)	3.65 (0.06)	96756.27	96755.51	0.7	CH₃OH 2_(1,1)→1_(1,0) (1)
1.58 (0.18)	0.28 (0.09)	0.47 (0.16)	5.265 (0.011)	96909.82	96909.6	69.1	Unidentified
1.97 (0.25)	0.21 (0.08)	0.44 (0.15)	5.265 (0.009)	96924.83	96924.6	97.2	Unidentified
0.040 (0.013)	0.3 (0.4)	0.014 (0.014)	5.25 (0.04)	97080.97	97080.73	4.1	CH₂DCCH 6(0,6)-5(0,5)
0.059 (0.013)	0.4 (0.3)	0.023 (0.016)	6.01 (0.03)	97172.06	97172.06	5.8	C³³S 2→1
0.066 (0.022)	0.3 (0.4)	0.022 (0.025)	3.86 (0.04)	97763.04	97762.35	4.3	S₄ 28(4,24)-27(5,23) ?
0.992 (0.024)	0.318 (0.024)	0.336 (0.025)	5.624 (0.003)	97981.08	97980.95	43.5	CS 2→1
1.272 (0.021)	0.470 (0.023)	0.64 (0.03)	5.1741 (0.0025)	97981.22	97980.95	55.9	CS 2→1
1.011 (0.025)	0.46 (0.04)	0.50 (0.04)	5.239 (0.004)	99300.14	99299.89	42.4	SO 3₍₂₎→2₍₁₎
0.47 (0.03)	0.09 (0.05)	0.042 (0.021)	5.30 (0.08)	101326.75	101326.5	16.7	Unidentified 101.327 GHz
0.59 (0.04)	0.45 (0.08)	0.28 (0.05)	5.257 (0.009)	101478.06	101477.81	21.0	H₂CS 3_(1,3)→2_(1,2)
0.62 (0.03)	0.08 (0.04)	0.053 (0.021)	4.48 (0.08)	102064.78	102064.27	22.1	NH₂CHO 5_(1,5)→4_(1,4)
0.53 (0.05)	0.34 (0.08)	0.19 (0.05)	5.264 (0.009)	102546.28	102546.02	19.7	CH₃CCH 6₍₁₎→5₍₁₎
0.57 (0.05)	0.29 (0.07)	0.17 (0.04)	5.284 (0.007)	102548.23	102547.98	21.4	CH₃CCH 6₍₀₎→5₍₀₎

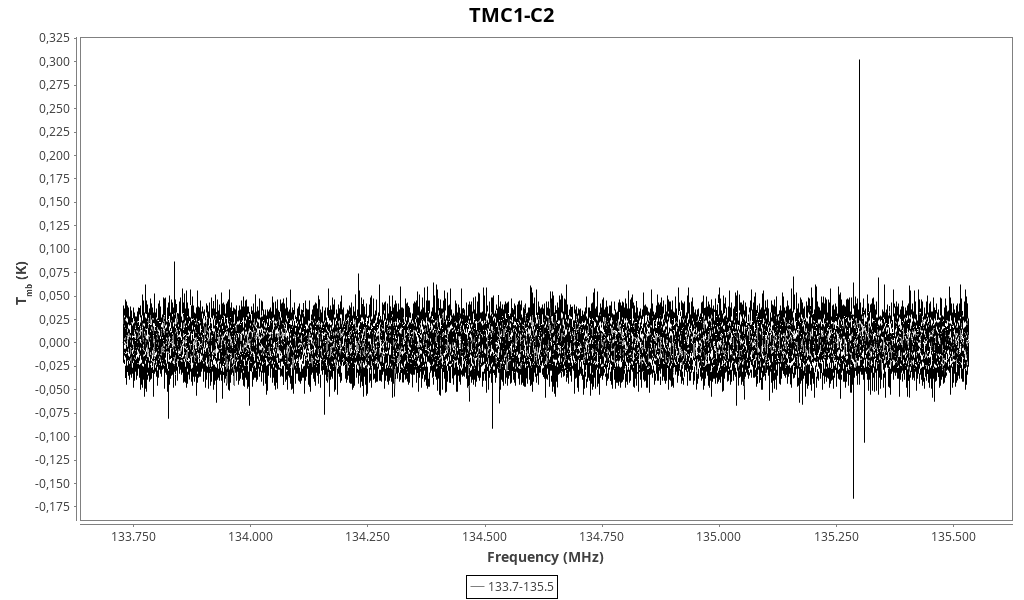

Backend 2mm (134.6 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.07 (0.23)	0.1 (0.4)	0.008 (0.017)	4.56 (0.11)	133854.74	133854.10	4.2	CH₃CHO 7_(0,7)→6_(0,6) (2)
0.336 (0.024)	0.27 (0.08)	0.10 (0.03)	5.310 (0.006)	135298.57	135298.26	19.5	H₂CS 4(1,4)-3(1,3)

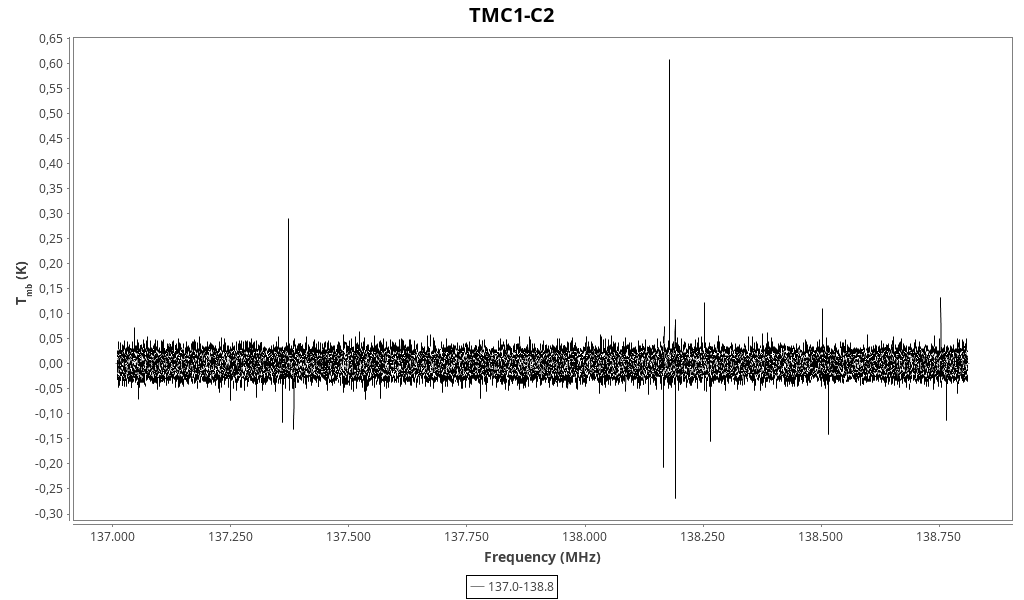

Backend 2mm (137.9 GHz)

Found 5 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.281 (0.021)	0.28 (0.09)	0.084 (0.025)	5.327 (0.007)	137371.52	137371.21	17.9	H₂CS 4(0,4)-3(0,3)
0.589 (0.024)	0.29 (0.05)	0.18 (0.03)	5.179 (0.004)	138179.04	138178.66	30.8	SO 4₃→3₂
0.14 (0.05)	0.13 (0.13)	0.018 (0.018)	5.332 (0.019)	138254.01	138253.7	8.5	Unidentified 138.254 GHz
0.399 (0.018)	0.06 (0.04)	0.024 (0.014)	5.33 (0.06)	138503.98	138503.7	24.6	Unidentified 138.504 GHz
0.811 (0.015)	0.059 (0.013)	0.051 (0.011)	5.33 (0.06)	138754.02	138753.7	51.3	Unidentified 138.754 GHz

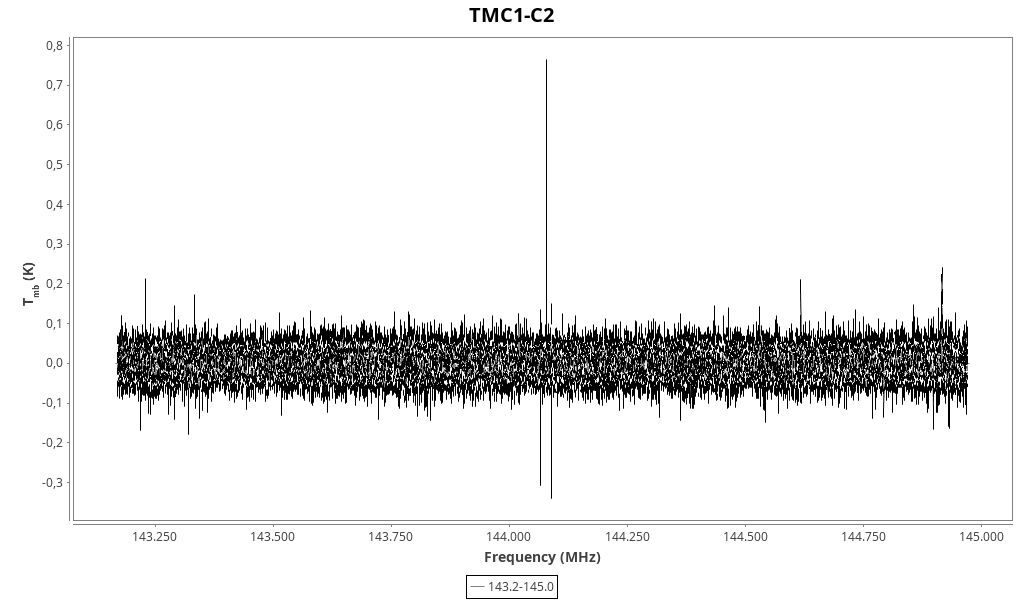

Backend 2mm (144.1 GHz)

Found 6 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.22 (0.07)	0.13 (0.19)	0.03 (0.05)	5.371 (0.020)	143229.57	143229.3	5.9	Unidentified 143.229 GHz
0.78 (0.05)	0.35 (0.08)	0.29 (0.07)	5.279 (0.006)	144077.64	144077.29	20.7	DCO⁺ J=2-1 (multiple components around)
0.13 (0.04)	0.4 (0.6)	0.06 (0.09)	5.38 (0.06)	144617.40	144617.10	3.3	C³⁴S 3→2
0.15 (0.07)	0.2 (0.3)	0.02 (0.05)	6.500 (0.024)	144750.88	144751.12	4.2	C(50)</sup>\gamma</sup>
0 (70)	0.1 (2.5)	0 (4)	5.38 (0.06)	144914.60	144914.3	7.2	Unidentified 144.914 GHz
0.16 (0.06)	0.8 (1.1)	0.15 (0.17)	5.38 (0.08)	144916.19	144915.9	2.4	Unidentified 144.916 GHz

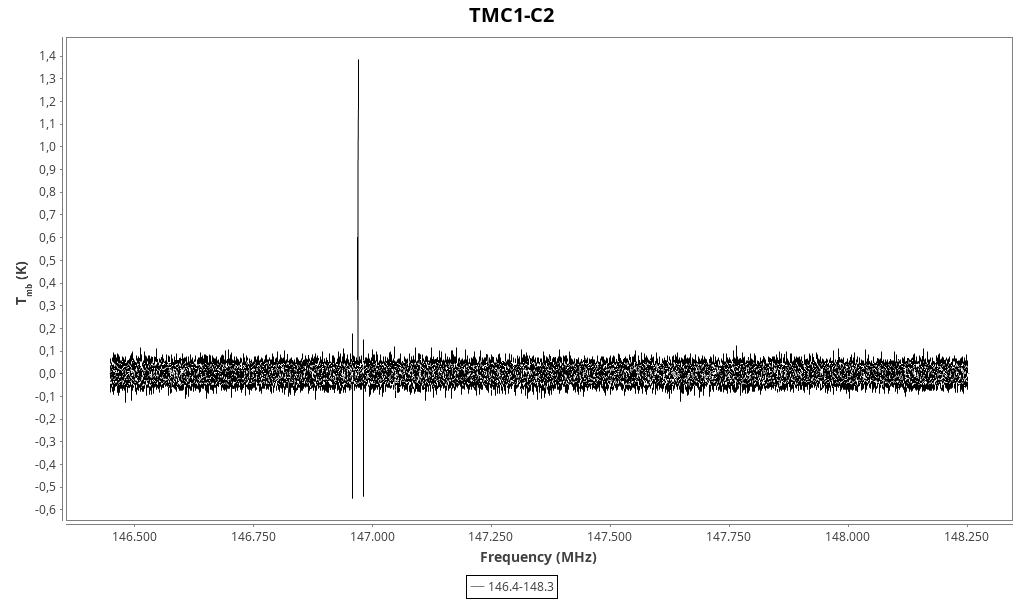

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.60 (0.04)	0.34 (0.09)	0.22 (0.06)	5.593 (0.007)	146969.23	146969.03	19.0	CS 3→2
1.50 (0.05)	0.25 (0.03)	0.39 (0.05)	5.1357 (0.0022)	146969.45	146969.03	46.9	CS 3→2
