DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

TMC1-C2-120_0

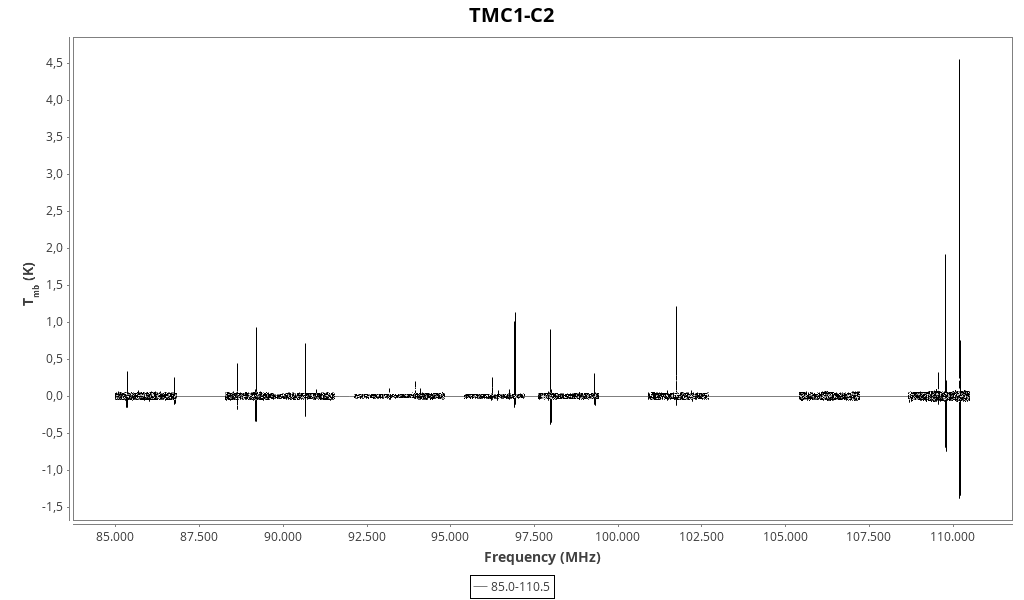

Backend 3mm (85.0-110.5 GHz)

Found 58 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.386 (0.021)	0.34 (0.06)	0.138 (0.021)	5.169 (0.006)	85339.14	85338.90	27.2	c-C₃H₂ 2_1,2→1_0,1
0.085 (0.021)	0.32 (0.24)	0.029 (0.021)	5.26 (0.03)	85672.79	85672.58	5.8	C₄H 9→8 J=17/2→15/2
0.031 (0.018)	0.4 (0.7)	0.012 (0.020)	5.83 (0.10)	85759.25	85759.20	2.3	²⁹SiO 2→1
0.04 (0.06)	0.2 (0.5)	0.009 (0.019)	5.94 (0.05)	86181.41	86181.39	2.6	CCS 6→5, N=7-6
0.061 (0.024)	0.4 (0.4)	0.023 (0.024)	4.26 (0.05)	86340.42	86339.92	3.9	H¹³CN 1→0
0.256 (0.023)	0.38 (0.09)	0.103 (0.025)	5.129 (0.011)	86754.54	86754.29	16.2	H¹³CO⁺ 1→0
0.328 (0.016)	0.52 (0.07)	0.180 (0.023)	5.108 (0.008)	88630.68	88630.42	22.1	HCN 1→0 F=1→1
0.509 (0.013)	0.084 (0.017)	0.046 (0.009)	5.57 (0.08)	88631.97	88631.85	34.3	HCN 1→0 F=2→1
0.437 (0.016)	0.56 (0.06)	0.259 (0.024)	5.070 (0.007)	88632.12	88631.85	29.4	HCN 1→0 F=2→1
0.296 (0.016)	0.47 (0.08)	0.149 (0.022)	5.164 (0.008)	88634.19	88633.94	21.2	HCN 1→0 F=0→1
0.05 (0.03)	0.3 (0.4)	0.014 (0.017)	1.41 (0.04)	88635.30	88633.94	3.8	HCN 1→0 F=0→1
0.053 (0.023)	0.2 (0.4)	0.013 (0.019)	7.10 (0.05)	89064.03	89064.35	3.6	CCCN N=9-8, J=17/2-15/2 (3 components)
0.181 (0.021)	0.57 (0.18)	0.11 (0.04)	5.532 (0.020)	89188.67	89188.53	10.1	HCO⁺ 1→0
0.911 (0.023)	0.41 (0.03)	0.39 (0.03)	4.970 (0.004)	89188.83	89188.53	51.3	HCO⁺ 1→0
0.253 (0.015)	0.50 (0.09)	0.133 (0.022)	5.594 (0.009)	90663.68	90663.56	18.8	HNC 1→0
0.717 (0.015)	0.48 (0.03)	0.369 (0.022)	4.983 (0.004)	90663.87	90663.56	53.6	HNC 1→0
0.09 (0.03)	0.24 (0.16)	0.024 (0.016)	5.164 (0.018)	90979.25	90979.00	7.5	HC₃N 10→9 (3 components around)
0.031 (0.016)	0.4 (0.8)	0.014 (0.023)	5.15 (0.09)	91171.32	91171.07	2.1	HDCS 3(1,3)-2(1,2)
0.025 (0.008)	0.6 (0.7)	0.017 (0.016)	8.78 (0.08)	92871.51	92872.38	3.5	DC₃N J=11-10 (5 components around)
0.050 (0.009)	0.6 (0.4)	0.033 (0.017)	4.89 (0.04)	93172.23	93171.88	5.8	N₂H⁺ 1→0 F=1→1
0.067 (0.012)	0.38 (0.19)	0.027 (0.013)	5.864 (0.021)	93173.74	93173.70	7.7	N₂H⁺ 1→0 F=1→2
0.105 (0.013)	0.28 (0.11)	0.032 (0.012)	4.924 (0.012)	93174.03	93173.70	12.0	N₂H⁺ 1→0 F=1→2
0.035 (0.010)	1.7 (1.0)	0.07 (0.04)	5.12 (0.10)	93853.08	93852.8	3.7	Unidentified 93.853 GHz
0.037 (0.014)	0.3 (0.3)	0.010 (0.011)	5.10 (0.04)	93870.38	93870.10	4.6	C₂S N=7→6 J=8→7
0.077 (0.013)	2.1 (0.7)	0.18 (0.05)	5.12 (0.07)	93956.93	93956.7	4.9	Unidentified 93.956 GHz
0.098 (0.013)	3.4 (0.8)	0.36 (0.06)	5.12 (0.07)	93957.54	93957.3	6.1	Unidentified 93.956 GHz
0.071 (0.019)	0.5 (0.4)	0.038 (0.023)	5.12 (0.04)	93958.15	93957.9	4.3	Unidentified 93.959 GHz
0.154 (0.013)	1.4 (0.3)	0.22 (0.04)	5.12 (0.03)	93958.63	93958.4	9.3	Unidentified 93.959 GHz
0.18 (0.05)	0.21 (0.09)	0.039 (0.016)	5.122 (0.010)	93958.88	93958.6	10.7	Unidentified 93.959 GHz
0.142 (0.014)	1.06 (0.25)	0.16 (0.04)	5.12 (0.03)	93959.07	93958.8	8.7	Unidentified 93.959 GHz
0.093 (0.014)	1.3 (0.5)	0.13 (0.04)	5.12 (0.05)	93959.46	93959.2	5.7	Unidentified 93.959 GHz
0.103 (0.016)	0.41 (0.18)	0.045 (0.019)	5.885 (0.020)	94083.73	94083.69	9.3	ONCN 9-8 in atmosphere ?
0.026 (0.015)	0.7 (0.8)	0.019 (0.021)	2.86 (0.13)	96228.58	96227.57	2.2	CH₃CHO vt=1 5(3,2)-4(3,1)
0.218 (0.019)	2.4 (0.4)	0.56 (0.08)	5.14 (0.04)	96237.37	96237.1	16.0	Unidentified 96.237 GHz
0.063 (0.019)	1.1 (0.9)	0.07 (0.06)	5.14 (0.09)	96238.13	96237.9	4.7	Unidentified 96.237 GHz
0.082 (0.019)	3.2 (1.3)	0.28 (0.09)	5.14 (0.12)	96238.63	96238.4	6.2	Unidentified 96.239 GHz
0.074 (0.013)	0.41 (0.20)	0.032 (0.015)	5.140 (0.022)	96413.23	96412.95	8.2	C³⁴S 2→1
0.072 (0.012)	0.40 (0.18)	0.031 (0.014)	5.069 (0.020)	96739.66	96739.36	8.0	CH₃OH 2_(-1,2)→1_(-1,1)
0.097 (0.011)	0.38 (0.12)	0.039 (0.012)	5.108 (0.014)	96741.66	96741.37	10.9	CH₃OH 2_(0,2)→1_(0,1) ++
1.35 (0.11)	0.154 (0.012)	0.222 (0.008)	5.149 (0.005)	96910.71	96910.4	74.1	Unidentified 96.911 GHz
1.132 (0.015)	0.204 (0.008)	0.246 (0.009)	5.1493 (0.0013)	96925.74	96925.5	82.2	Unidentified 96.926 GHz
0.032 (0.021)	0.3 (0.4)	0.011 (0.012)	5.15 (0.07)	96947.25	96947.0	3.7	Unidentified 96.947 GHz
0.621 (0.013)	0.085 (0.014)	0.056 (0.009)	5.59 (0.08)	97981.09	97980.95	49.7	CS 2→1
0.957 (0.016)	0.476 (0.023)	0.485 (0.022)	5.1194 (0.0025)	97981.24	97980.95	76.6	CS 2→1
0.039 (0.025)	0.4 (0.5)	0.015 (0.019)	7.79 (0.06)	98711.51	98712.10	3.4	He(57)</sup>\gamma</sup>
0.045 (0.021)	0.2 (0.3)	0.012 (0.013)	4.98 (0.04)	99265.98	99265.64	4.4	He(50)</sup>\beta</sup>
0.302 (0.014)	0.46 (0.06)	0.148 (0.019)	5.138 (0.007)	99300.18	99299.89	28.5	SO 3₍₂₎→2₍₁₎
0.086 (0.017)	0.35 (0.23)	0.033 (0.020)	5.07 (0.03)	101478.12	101477.81	7.5	H₂CS 3_(1,3)→2_(1,2)
0.15 (0.05)	2.0 (1.1)	0.31 (0.15)	2.70 (0.11)	101738.29	101737.17	0.4	CH₃OH 9(-2,8)-9(1,8)
0.24 (0.05)	1.5 (0.6)	0.38 (0.13)	1.10 (0.06)	101738.84	101737.17	0.7	CH₃OH 9(-2,8)-9(1,8)
0.18 (0.05)	0.5 (0.5)	0.10 (0.08)	0.43 (0.06)	101739.06	101737.17	0.5	CH₃OH 9(-2,8)-9(1,8)
0.07 (0.04)	0.16 (0.18)	0.013 (0.014)	5.19 (0.06)	102194.44	102194.2	5.6	Unidentified
0.18 (0.03)	1.3 (0.5)	0.24 (0.08)	5.25 (0.05)	109561.50	109561.2	7.1	Unidentified 109.560 GHz
0.17 (0.03)	3.1 (0.9)	0.56 (0.12)	5.25 (0.08)	109561.81	109561.5	6.6	Unidentified 109.560 GHz
0.26 (0.04)	0.32 (0.11)	0.09 (0.03)	5.489 (0.013)	109782.36	109782.18	13.6	C¹⁸O 1→0
1.913 (0.023)	0.542 (0.020)	1.10 (0.04)	5.1248 (0.0022)	109782.50	109782.18	97.0	C¹⁸O 1→0
0.697 (0.025)	1.41 (0.11)	1.05 (0.08)	5.974 (0.012)	110201.36	110201.35	6.9	¹³CO 1→0
4.806 (0.025)	0.878 (0.013)	4.49 (0.06)	5.1656 (0.0013)	110201.66	110201.35	47.6	¹³CO 1→0

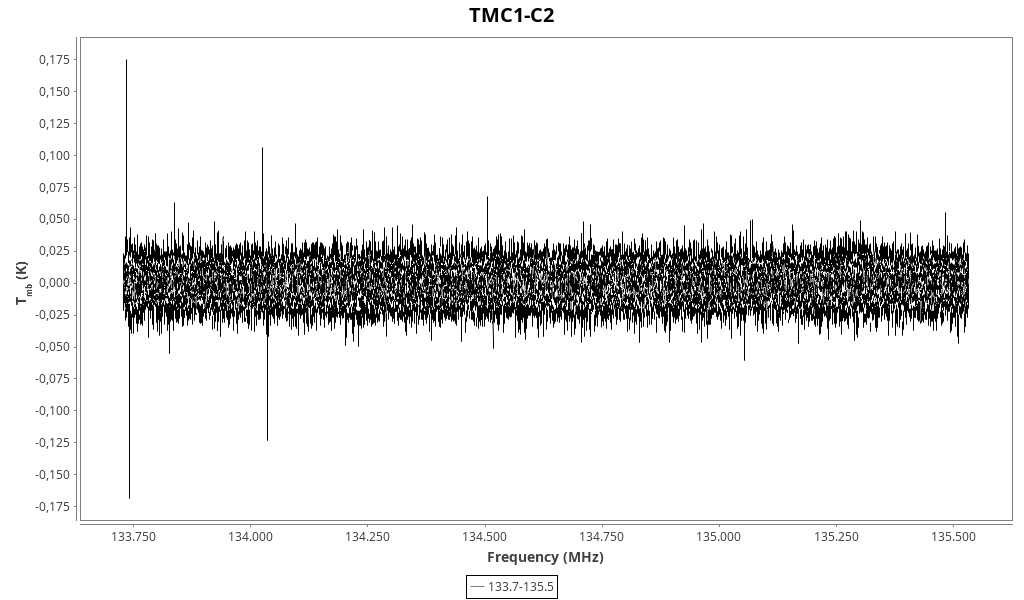

Backend 2mm (134.6 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.18 (0.06)	0.11 (0.09)	0.021 (0.017)	5.312 (0.022)	133734.63	133734.3	14.3	Unidentified 133.735 GHz
0.062 (0.023)	0.2 (0.3)	0.011 (0.017)	5.312 (0.022)	133837.62	133837.3	4.5	Unidentified 133.838 GHz
0.488 (0.014)	0.059 (0.020)	0.031 (0.011)	5.31 (0.06)	134024.01	134023.71	35.0	C₄H v₇=1 J=29/2-27/2
0.070 (0.020)	0.18 (0.24)	0.013 (0.018)	5.316 (0.019)	134504.85	134504.5	5.1	Unidentified 134.505 GHz

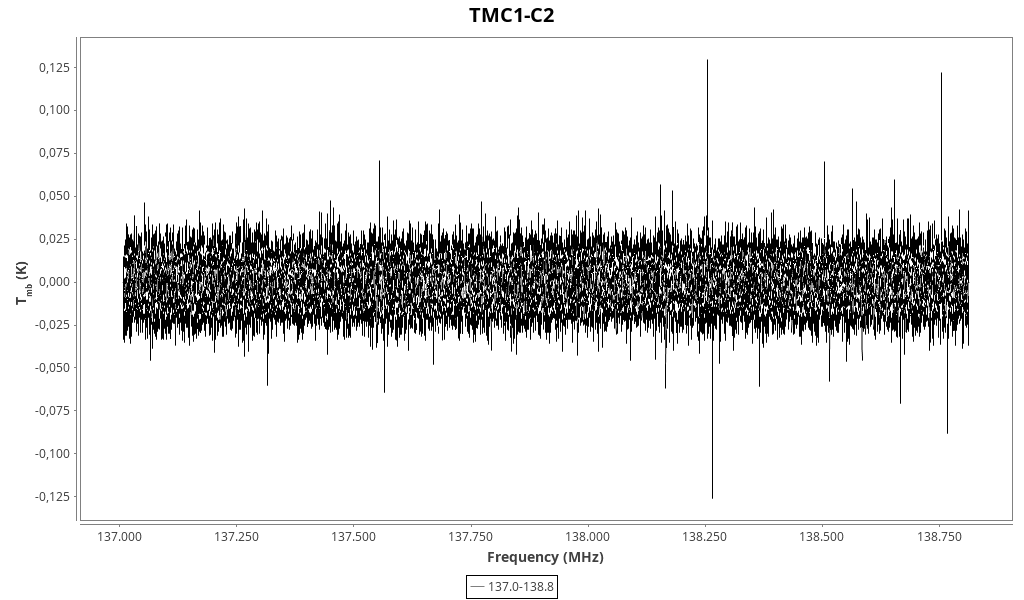

Backend 2mm (137.9 GHz)

Found 7 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.049 (0.016)	0.2 (0.3)	0.009 (0.015)	4.322 (0.024)	137450.72	137449.95	4.1	H₂¹³CO 2(1,2)-1(1,1)
0.08 (0.03)	0.15 (0.21)	0.012 (0.017)	5.491 (0.019)	137553.98	137553.75	5.8	CaNC N=17-16, J=33/2-31/2 (3x)
0.382 (0.013)	0.058 (0.023)	0.024 (0.009)	5.34 (0.06)	138154.02	138153.71	29.5	SiC₅ N=75-74, J=76-75
0.054 (0.014)	0.4 (0.5)	0.022 (0.025)	5.20 (0.04)	138179.03	138178.66	4.0	SO 4₃→3₂
0.405 (0.013)	0.056 (0.022)	0.024 (0.009)	5.34 (0.06)	138254.01	138253.7	31.9	Unidentified 138.254 GHz
0.187 (0.012)	0.06 (0.05)	0.012 (0.009)	5.34 (0.06)	138503.98	138503.7	15.8	Unidentified 138.504 GHz
0.13 (0.05)	0.11 (0.09)	0.016 (0.012)	5.341 (0.023)	138753.98	138753.7	11.1	Unidentified 138.754 GHz

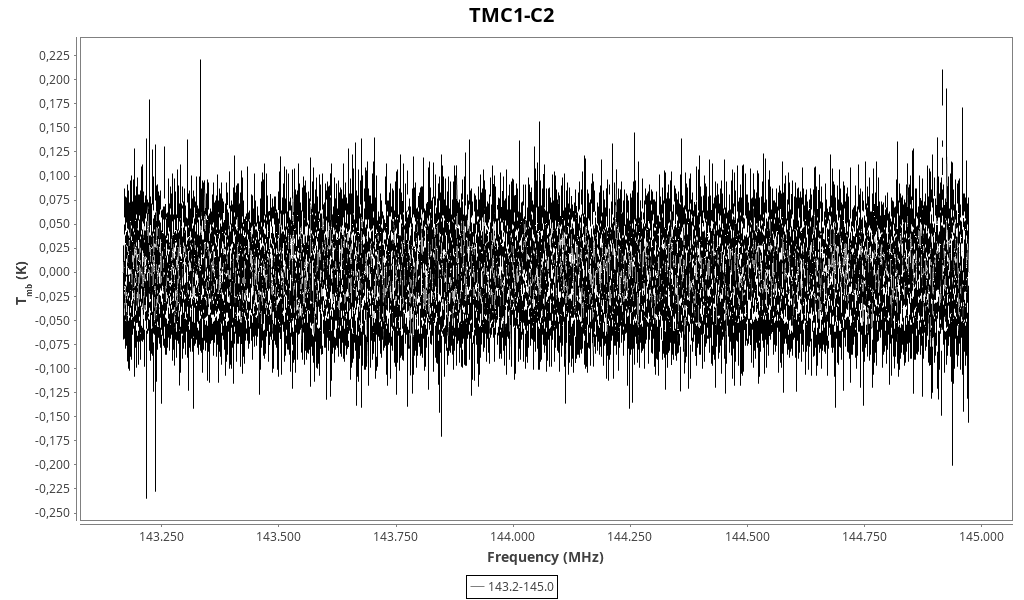

Backend 2mm (144.1 GHz)

Backend 2mm (147.3 GHz)

Found 1 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.39 (0.05)	0.35 (0.18)	0.15 (0.08)	5.091 (0.013)	146969.47	146969.03	10.2	CS 3→2

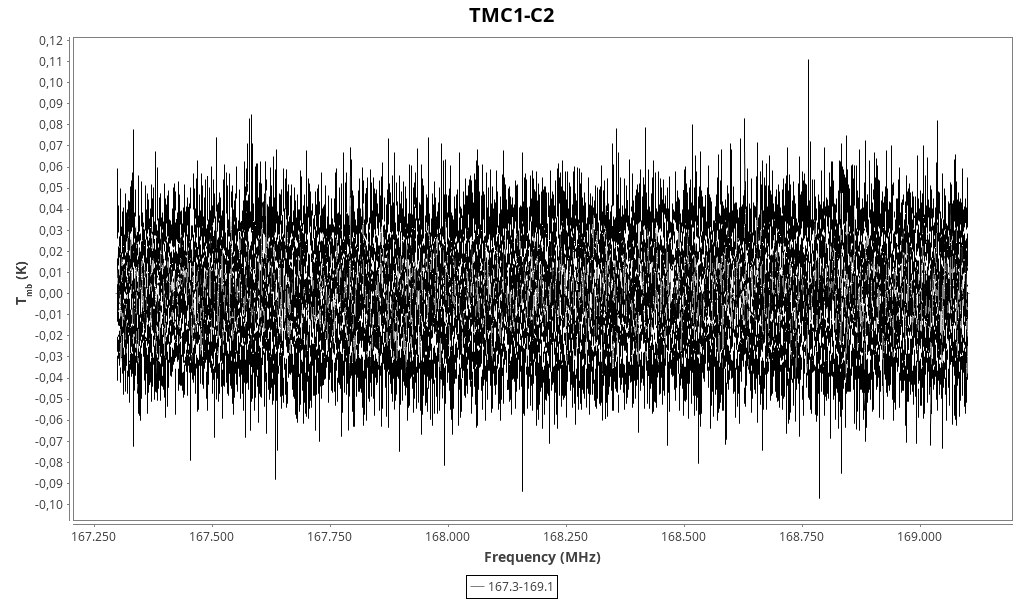

Backend 2mm (168.2 GHz)

Found 1 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.10 (0.03)	0.4 (0.5)	0.04 (0.05)	5.12 (0.03)	168763.25	168762.75	4.6	H₂S 1_(1,0)→1_(0,1)

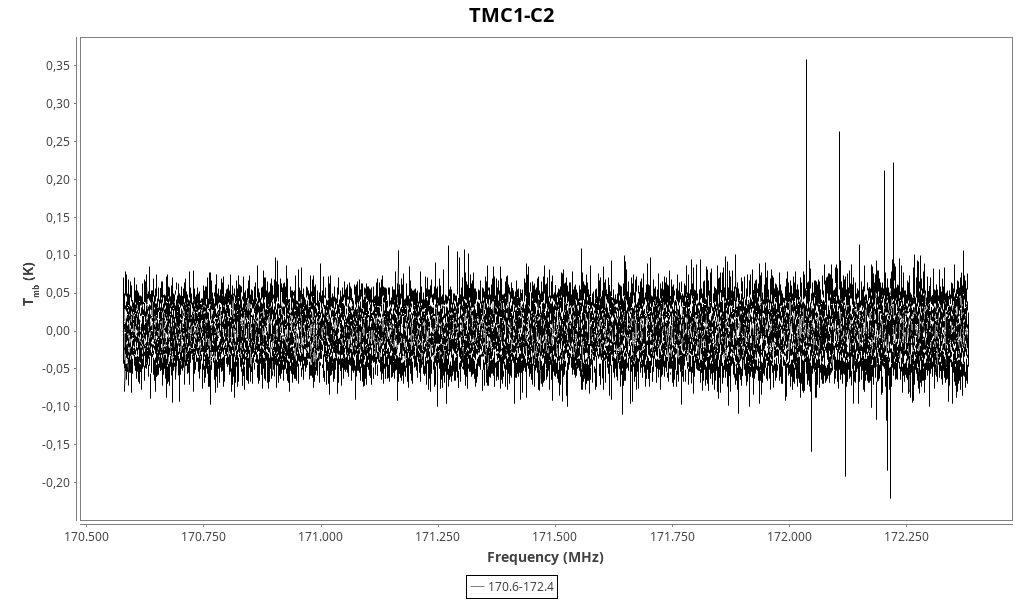

Backend 2mm (171.5 GHz)

Found 5 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.05 (0.06)	0.1 (0.6)	0.01 (0.04)	5.07 (0.05)	171000.77	171000.2	2.1	Unidentified 171.001 GHz
0.36 (0.12)	0.08 (0.08)	0.03 (0.03)	5.072 (0.019)	172035.37	172034.8	13.2	Unidentified 172.035 GHz
1.23 (0.03)	0.049 (0.018)	0.064 (0.023)	5.07 (0.05)	172106.09	172105.56	42.0	HS₂ 11(2,9)-10(2,8), J=21/2-19/2, F=11-10
0.80 (0.04)	0.05 (0.03)	0.041 (0.023)	5.07 (0.05)	172203.11	172202.6	26.8	Unidentified 172.203 GHz
0.23 (0.07)	0.11 (0.16)	0.03 (0.04)	5.073 (0.016)	172221.11	172220.6	7.3	Unidentified 172.220 GHz

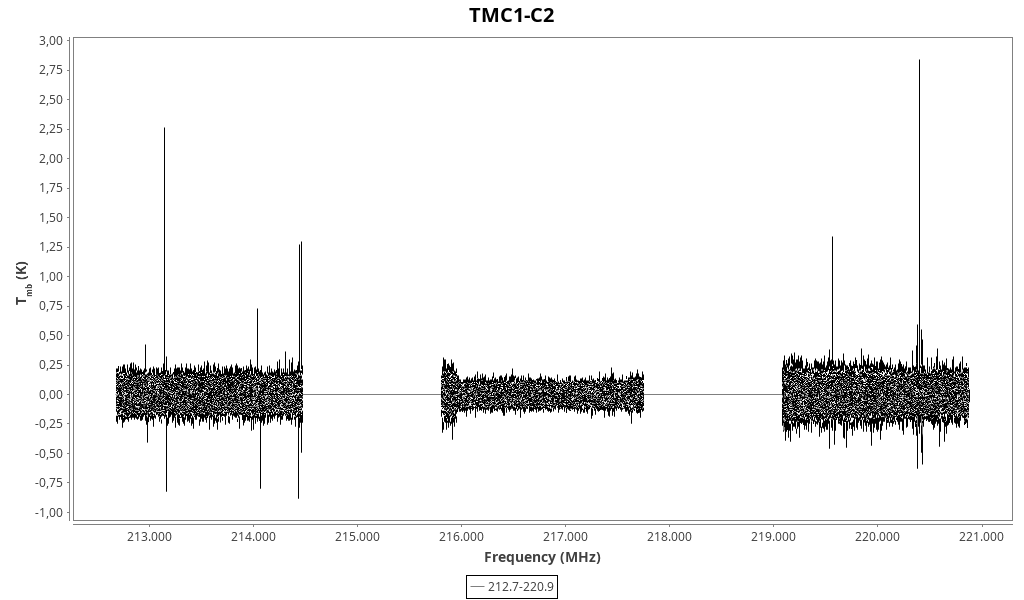

Backend 1mm (212.7-220.9 GHz)

Found 11 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
1 (4)	0.02 (0.12)	0.02 (0.05)	5.18 (0.04)	212960.83	212960.3	9.0	Unidentified
4 (10)	0.06 (0.11)	0.3 (0.4)	5.182 (0.016)	213141.09	213140.5	52.2	Unidentified 213.141 GHz
0.9 (0.4)	0.09 (0.10)	0.09 (0.10)	5.186 (0.005)	214040.88	214040.3	10.5	Unidentified 214.041 GHz
0.62 (0.09)	0.04 (0.11)	0.03 (0.07)	5.19 (0.04)	214040.98	214040.4	6.9	Unidentified 214.041 GHz
2.1 (1.9)	0.07 (0.06)	0.16 (0.09)	5.187 (0.006)	214439.19	214438.6	19.6	Unidentified 214.439 GHz
1 (6)	0.04 (0.08)	0.06 (0.20)	5.19 (0.11)	214459.24	214458.7	10.5	Unidentified 214.459 GHz
0.30 (0.12)	0.8 (1.3)	0.3 (0.4)	5.21 (0.06)	219560.94	219560.36	2.3	C¹⁸O 2→1
0.98 (0.16)	0.30 (0.24)	0.31 (0.24)	5.111 (0.012)	219561.01	219560.36	7.5	C¹⁸O 2→1
0.37 (0.21)	0.1 (0.4)	0.05 (0.13)	6.246 (0.017)	220398.50	220398.68	3.6	¹³CO 2→1
2.28 (0.09)	0.45 (0.10)	1.08 (0.24)	5.395 (0.005)	220399.12	220398.68	21.9	¹³CO 2→1
2.83 (0.09)	0.41 (0.08)	1.22 (0.23)	4.956 (0.004)	220399.45	220398.68	27.7	¹³CO 2→1
