DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

TMC1-C2-240_0

Backend 3mm (85.0-110.5 GHz)

Found 35 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.037 (0.015)	0.4 (0.5)	0.016 (0.018)	5.81 (0.06)	85450.82	85450.77	3.4	CH₃CCH 5(2)-4(2)
0.048 (0.010)	0.7 (0.5)	0.039 (0.021)	5.25 (0.05)	88630.64	88630.42	4.9	HCN 1→0 F=1→1
0.073 (0.011)	0.58 (0.25)	0.045 (0.019)	5.42 (0.03)	88632.02	88631.85	7.1	HCN 1→0 F=2→1
0.045 (0.013)	0.4 (0.4)	0.017 (0.016)	4.97 (0.04)	88632.15	88631.85	4.4	HCN 1→0 F=2→1
0.097 (0.013)	0.54 (0.17)	0.056 (0.017)	5.753 (0.020)	89188.60	89188.53	8.9	HCO⁺ 1→0
0.169 (0.009)	0.66 (0.11)	0.119 (0.018)	5.118 (0.012)	89188.79	89188.53	15.3	HCO⁺ 1→0
0.074 (0.011)	0.6 (0.3)	0.050 (0.020)	5.43 (0.03)	90663.73	90663.56	7.5	HNC 1→0
0.049 (0.013)	0.4 (0.3)	0.019 (0.015)	4.95 (0.04)	90663.88	90663.56	4.9	HNC 1→0
0.016 (0.007)	0.9 (1.0)	0.016 (0.016)	3.40 (0.11)	92072.74	92071.94	2.2	He(41)</sup>\alpha</sup>
24.1 (1.5)	0.09 (0.05)	2.2 (1.2)	5.28 (0.08)	92391.26	92391.0	1412.9	Unidentified
30 (130)	0.09 (0.16)	3 (12)	5.3 (0.4)	92391.43	92391.2	1555.2	Unidentified
0.023 (0.007)	0.9 (0.8)	0.022 (0.017)	8.17 (0.09)	92543.24	92543.91	3.3	CH₃OCHO v=1 9(1,8)-8(2,7)
0.032 (0.019)	0.19 (0.23)	0.006 (0.008)	5.69 (0.05)	92544.00	92543.91	4.5	CH₃OCHO v=1 9(1,8)-8(2,7)
0.017 (0.007)	0.3 (0.4)	0.006 (0.007)	7.06 (0.05)	93580.53	93580.86	3.6	CH₃CHO 5_(1,5)→4_(1,4) (1)
0.035 (0.012)	3.0 (1.8)	0.11 (0.06)	7.71 (0.18)	93851.53	93852.07	2.8	³⁴SO₂ 17(5,13)-18(4,14)
0.07 (0.04)	2.5 (2.1)	0.20 (0.14)	5.29 (0.22)	93956.72	93956.5	2.1	Unidentified 93.956 GHz
0.017 (0.008)	1.8 (1.8)	0.03 (0.03)	5.91 (0.18)	94083.72	94083.69	1.9	ONCN 9-8 in atmosphere ?
0.074 (0.008)	0.08 (0.08)	0.007 (0.006)	5.29 (0.08)	94084.24	94084.0	8.3	Unidentified 94.084 GHz
0.042 (0.012)	0.24 (0.21)	0.011 (0.009)	5.30 (0.03)	96165.88	96165.7	6.5	Unidentified
0.15 (0.04)	2.3 (0.9)	0.37 (0.13)	5.31 (0.09)	96225.12	96224.9	15.3	Unidentified
0.030 (0.010)	2.5 (1.5)	0.08 (0.04)	8.15 (0.15)	96226.88	96227.57	3.0	CH₃CHO vt=1 5(3,2)-4(3,1)
0.02 (0.03)	0.5 (0.6)	0.013 (0.013)	5.12 (0.24)	97062.39	97062.11	3.4	C₇H J=111/2-109/2, F=56-55 (2)
0.030 (0.019)	0.3 (0.4)	0.009 (0.012)	2.94 (0.06)	97763.34	97762.35	3.6	S₄ 28(4,24)-27(5,23) ?
0.077 (0.009)	0.70 (0.23)	0.058 (0.018)	5.224 (0.025)	97981.21	97980.95	9.3	CS 2→1
0.026 (0.011)	0.5 (0.6)	0.013 (0.015)	4.88 (0.06)	98012.89	98012.52	3.2	l-C₃H J=9/2-7/2, Omega=1/2, F=4-3, l=f
0.037 (0.016)	0.3 (0.4)	0.013 (0.016)	4.24 (0.05)	99072.94	99072.36	3.7	C(40)</sup>\alpha</sup>
0.17 (0.05)	0.6 (0.5)	0.12 (0.09)	8.95 (0.06)	101743.96	101744.97	1.2	D₂CO 10(2,8)-10(2,9)
0.16 (0.05)	2.0 (1.1)	0.35 (0.16)	8.01 (0.10)	101744.28	101744.97	1.1	D₂CO 10(2,8)-10(2,9)
0.023 (0.015)	0.4 (0.7)	0.009 (0.016)	4.24 (0.09)	106781.48	106780.85	2.2	He(39)</sup>\alpha</sup>
0.032 (0.012)	1.5 (1.2)	0.05 (0.04)	5.37 (0.12)	106835.76	106835.5	2.5	Unidentified 106.835 GHz
0.0 (0.4)	0.1 (1.1)	0.006 (0.025)	5.4 (0.5)	106836.17	106835.9	3.2	Unidentified 106.835 GHz
0.137 (0.013)	0.59 (0.17)	0.086 (0.024)	5.196 (0.019)	109782.47	109782.18	11.0	C¹⁸O 1→0
0.044 (0.017)	0.6 (0.6)	0.026 (0.025)	5.37 (0.07)	110154.40	110154.17	3.3	NH₂D 1(1,1)0a-1(0,1)0s, F=1-2
1.102 (0.011)	1.21 (0.03)	1.42 (0.03)	6.036 (0.003)	110201.34	110201.35	26.1	¹³CO 1→0
1.806 (0.011)	0.894 (0.015)	1.72 (0.03)	5.2155 (0.0016)	110201.64	110201.35	42.8	¹³CO 1→0

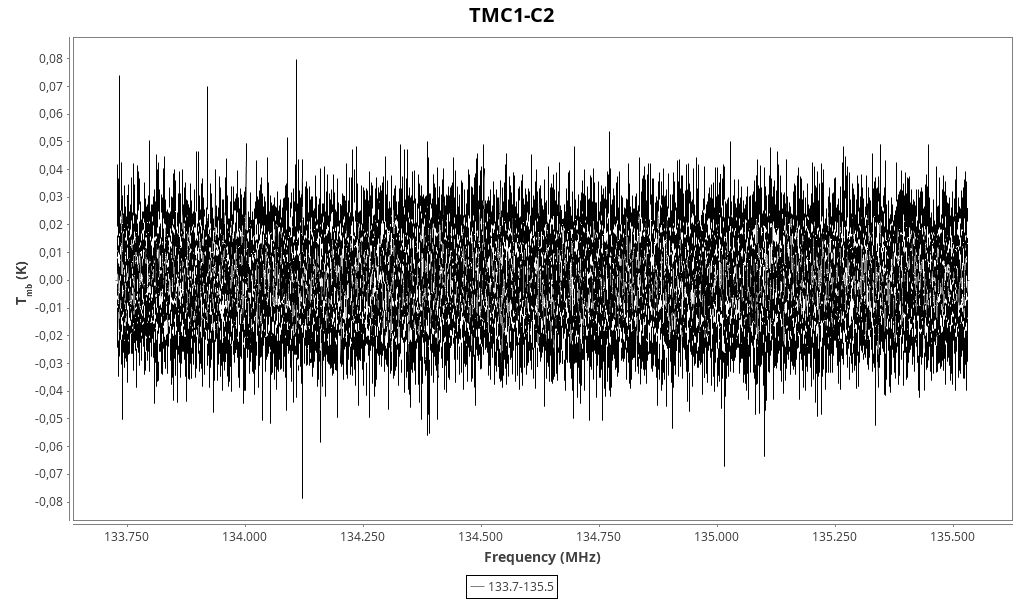

Backend 2mm (134.6 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.189 (0.015)	0.06 (0.06)	0.012 (0.012)	4.31 (0.06)	134505.51	134504.8	13.4	Unidentified 134.505 GHz
0.039 (0.024)	0.2 (0.5)	0.007 (0.019)	4.31 (0.04)	135111.34	135110.58	2.7	H(60)</sup>\epsilon</sup>

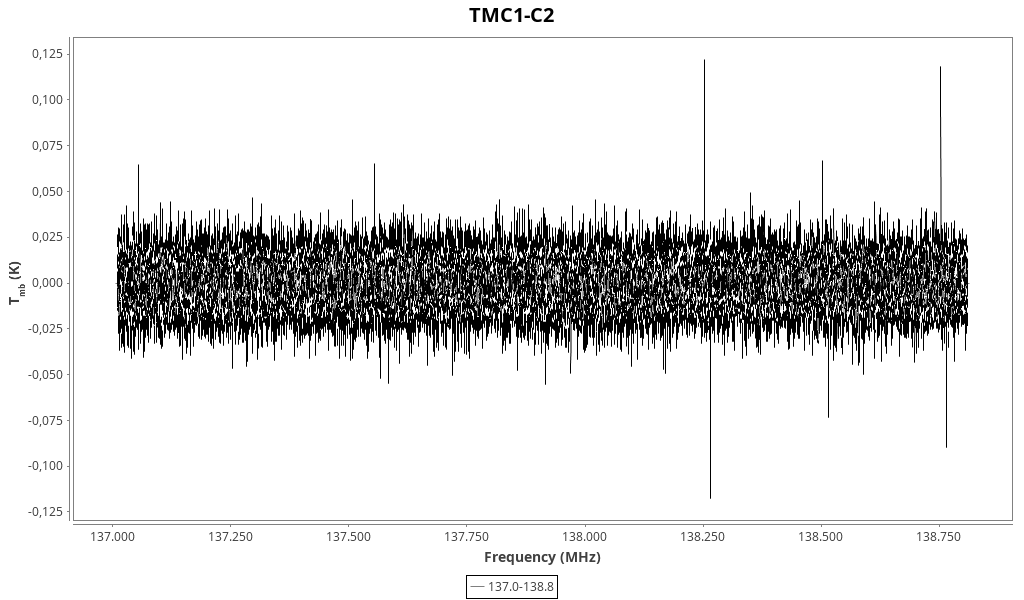

Backend 2mm (137.9 GHz)

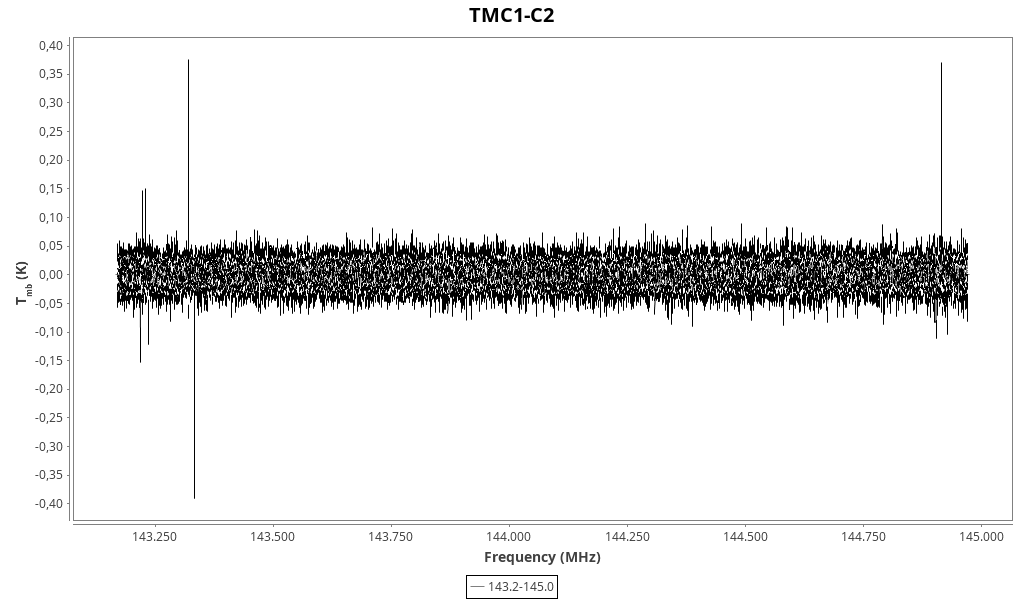

Backend 2mm (144.1 GHz)

Found 6 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.15 (0.05)	0.13 (0.21)	0.02 (0.04)	7.869 (0.020)	143223.41	143224.3	6.3	Unidentified 143.224 GHz
0.486 (0.024)	0.06 (0.04)	0.031 (0.018)	7.87 (0.05)	143229.44	143230.3	21.2	Unidentified 143.229 GHz
0.45 (0.04)	0.002 (0.010)	0.001 (0.005)	7.87 (0.05)	143320.39	143321.3	21.1	Unidentified
0.10 (0.07)	0.12 (0.25)	0.01 (0.03)	7.86 (0.04)	144287.69	144288.58	4.4	H(62)</sup>\zeta</sup>
0.27 (0.03)	0.9 (0.4)	0.25 (0.09)	7.847 (0.022)	144915.42	144916.3	9.5	Unidentified 144.914 GHz
0.14 (0.03)	0.9 (0.7)	0.14 (0.09)	7.85 (0.05)	144915.68	144916.6	5.1	Unidentified 144.916 GHz

Backend 2mm (147.3 GHz)

Backend 2mm (168.2 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.056 (0.017)	0.7 (0.8)	0.04 (0.05)	7.92 (0.05)	167576.72	167577.80	3.2	He(52)</sup>\delta</sup> (NO₂ in atmosphere?)
0.223 (0.017)	0.05 (0.06)	0.012 (0.013)	7.92 (0.05)	167710.18	167711.3	14.1	Unidentified
0.044 (0.018)	0.3 (0.7)	0.02 (0.03)	5.04 (0.06)	168578.40	168577.86	2.9	CH₃OH 4_(1,3)→3_(2,1)

Backend 2mm (171.5 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.571 (0.023)	0.024 (0.020)	0.015 (0.012)	3.77 (0.05)	172106.85	172105.56	27.2	HS₂ 11(2,9)-10(2,8), J=21/2-19/2, F=11-10
0.09 (0.04)	0.1 (0.4)	0.01 (0.03)	4.654 (0.019)	172108.73	172107.96	4.2	HC¹⁵N 2→1
0 (24)	0 (3)	0.0 (1.3)	4.65 (0.06)	172203.17	172202.4	6.9	Unidentified 172.203 GHz
0 (250)	0 (21)	0 (13)	4.65 (0.06)	172220.84	172220.1	7.3	Unidentified 172.220 GHz
