DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

TMC1-CAL--30_0

Backend 3mm (85.0-108.6 GHz)

Found 62 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.076 (0.020) 0.5 (0.4) 0.04 (0.03) 5.80 (0.05) 85139.16 85139.10 4.2 OCS 7→6 tmc1-cal--30_0:3mm_red_0.png tmc1-cal--30_0:3mm_ori_0.png
0.187 (0.022) 0.43 (0.16) 0.09 (0.03) 5.703 (0.018) 85162.31 85162.22 9.5 HC18O+ 1→0 tmc1-cal--30_0:3mm_red_1.png tmc1-cal--30_0:3mm_ori_1.png
2.401 (0.022) 0.444 (0.013) 1.14 (0.04) 5.7579 (0.0014) 85338.97 85338.90 54.9 c-C3H2 21,2→10,1 tmc1-cal--30_0:3mm_red_2.png tmc1-cal--30_0:3mm_ori_2.png
0.813 (0.022) 0.38 (0.04) 0.33 (0.03) 5.733 (0.004) 85347.95 85347.87 7.2 HCS+ 2→1 tmc1-cal--30_0:3mm_red_3.png tmc1-cal--30_0:3mm_ori_3.png
0.930 (0.023) 0.41 (0.04) 0.41 (0.03) 5.674 (0.004) 85455.75 85455.66 38.5 CH3C2H 51→41 tmc1-cal--30_0:3mm_red_4.png tmc1-cal--30_0:3mm_ori_4.png
0.989 (0.023) 0.39 (0.03) 0.41 (0.03) 5.666 (0.003) 85457.39 85457.29 41.1 CH3C2H 50→40 tmc1-cal--30_0:3mm_red_5.png tmc1-cal--30_0:3mm_ori_5.png
0.072 (0.025) 0.2 (0.3) 0.018 (0.021) 5.66 (0.04) 85531.61 85531.51 4.7 HOCO+ 4(0,4)-3(0,3) tmc1-cal--30_0:3mm_red_6.png tmc1-cal--30_0:3mm_ori_6.png
0.900 (0.022) 0.37 (0.03) 0.35 (0.03) 5.735 (0.003) 85634.09 85634.01 56.3 C4H 9→8 J=19/2→17/2 tmc1-cal--30_0:3mm_red_7.png tmc1-cal--30_0:3mm_ori_7.png
0.881 (0.022) 0.35 (0.03) 0.327 (0.024) 5.710 (0.003) 85672.66 85672.58 51.6 C4H 9→8 J=17/2→15/2 tmc1-cal--30_0:3mm_red_8.png tmc1-cal--30_0:3mm_ori_8.png
0.11 (0.03) 0.4 (0.4) 0.05 (0.04) 5.73 (0.04) 86055.04 86054.97 5.5 HC15N 1→0 tmc1-cal--30_0:3mm_red_9.png tmc1-cal--30_0:3mm_ori_9.png
0.187 (0.024) 0.37 (0.15) 0.07 (0.03) 5.640 (0.016) 86181.49 86181.39 9.8 CCS 6→5, N=7-6 tmc1-cal--30_0:3mm_red_10.png tmc1-cal--30_0:3mm_ori_10.png
0.199 (0.022) 0.41 (0.14) 0.09 (0.03) 5.719 (0.015) 86338.81 86338.73 9.5 H13CN 11→01 tmc1-cal--30_0:3mm_red_11.png tmc1-cal--30_0:3mm_ori_11.png
0.309 (0.020) 0.50 (0.10) 0.16 (0.04) 4.896 (0.011) 86340.24 86339.92 15.0 H13CN 1→0 tmc1-cal--30_0:3mm_red_12.png tmc1-cal--30_0:3mm_ori_12.png
0.086 (0.017) 1.2 (0.6) 0.11 (0.05) 5.98 (0.07) 86342.26 86342.25 4.3 H13CN 10→01 tmc1-cal--30_0:3mm_red_13.png tmc1-cal--30_0:3mm_ori_13.png
0.095 (0.024) 0.29 (0.21) 0.030 (0.021) 6.005 (0.024) 86670.80 86670.80 6.1 HCO 10,1→00,0 J=3/2→1/2 F=2→1 tmc1-cal--30_0:3mm_red_14.png tmc1-cal--30_0:3mm_ori_14.png
0.061 (0.017) 0.5 (0.5) 0.03 (0.03) 5.83 (0.05) 86708.41 86708.36 4.3 HCO 10,1→00,0 J=3/2→1/2 F=1→0 tmc1-cal--30_0:3mm_red_15.png tmc1-cal--30_0:3mm_ori_15.png
1.125 (0.017) 0.54 (0.03) 0.65 (0.03) 5.741 (0.003) 86754.36 86754.29 59.3 H13CO+ 1→0 tmc1-cal--30_0:3mm_red_16.png tmc1-cal--30_0:3mm_ori_16.png
0.084 (0.021) 0.4 (0.4) 0.04 (0.03) 5.79 (0.04) 86777.50 86777.44 5.5 HCO 10,1→00,0 J=1/2→1/2 F=1→1 tmc1-cal--30_0:3mm_red_17.png tmc1-cal--30_0:3mm_ori_17.png
0.32 (0.03) 0.47 (0.12) 0.16 (0.04) 5.717 (0.013) 87925.32 87925.24 14.5 HNCO 4(0,4)→3(0,3) tmc1-cal--30_0:3mm_red_18.png tmc1-cal--30_0:3mm_ori_18.png
0.767 (0.020) 0.367 (0.025) 0.299 (0.020) 5.508 (0.003) 88630.57 88630.42 26.9 HCN 1→0 F=1→1 tmc1-cal--30_0:3mm_red_19.png tmc1-cal--30_0:3mm_ori_19.png
0.114 (0.013) 0.9 (0.3) 0.11 (0.04) 5.90 (0.03) 88631.88 88631.85 4.0 HCN 1→0 F=2→1 tmc1-cal--30_0:3mm_red_20.png tmc1-cal--30_0:3mm_ori_20.png
1.089 (0.020) 0.257 (0.015) 0.298 (0.017) 5.4421 (0.0017) 88632.01 88631.85 38.2 HCN 1→0 F=2→1 tmc1-cal--30_0:3mm_red_21.png tmc1-cal--30_0:3mm_ori_21.png
1.131 (0.015) 0.488 (0.020) 0.587 (0.023) 5.6300 (0.0021) 88634.05 88633.94 39.3 HCN 1→0 F=0→1 tmc1-cal--30_0:3mm_red_22.png tmc1-cal--30_0:3mm_ori_22.png
0.242 (0.014) 0.43 (0.08) 0.111 (0.020) 5.761 (0.009) 88865.77 88865.70 19.7 H15NC 1→0 tmc1-cal--30_0:3mm_red_23.png tmc1-cal--30_0:3mm_ori_23.png
0.149 (0.016) 0.29 (0.10) 0.045 (0.016) 5.627 (0.011) 89045.69 89045.58 12.5 CCCN N=9-8, J=19/2-17/2 (3 components) tmc1-cal--30_0:3mm_red_24.png tmc1-cal--30_0:3mm_ori_24.png
0.169 (0.016) 0.31 (0.09) 0.057 (0.016) 5.629 (0.010) 89064.46 89064.35 13.9 CCCN N=9-8, J=17/2-15/2 (3 components) tmc1-cal--30_0:3mm_red_25.png tmc1-cal--30_0:3mm_ori_25.png
0.275 (0.014) 0.55 (0.09) 0.161 (0.025) 6.256 (0.009) 89188.45 89188.53 18.3 HCO+ 1→0 tmc1-cal--30_0:3mm_red_26.png tmc1-cal--30_0:3mm_ori_26.png
0.532 (0.017) 0.47 (0.05) 0.266 (0.023) 5.492 (0.005) 89188.68 89188.53 35.2 HCO+ 1→0 tmc1-cal--30_0:3mm_red_27.png tmc1-cal--30_0:3mm_ori_27.png
0.055 (0.019) 0.3 (0.4) 0.018 (0.020) 5.90 (0.04) 89419.33 89419.30 4.2 HCCNC J=9-8, F=9-8 (4 components around) tmc1-cal--30_0:3mm_red_28.png tmc1-cal--30_0:3mm_ori_28.png
0.305 (0.024) 0.45 (0.11) 0.15 (0.04) 5.756 (0.012) 91494.42 91494.35 17.3 c-C3H 2(1,2)-1(1,1), J=5/2-3/2, F=3-2 tmc1-cal--30_0:3mm_red_29.png tmc1-cal--30_0:3mm_ori_29.png
0.21 (0.03) 0.41 (0.15) 0.09 (0.04) 5.773 (0.016) 91497.68 91497.61 11.2 c-C3H 2(1,2)-1(1,1), J=5/2-3/2, F=2-1 tmc1-cal--30_0:3mm_red_30.png tmc1-cal--30_0:3mm_ori_30.png
0.10 (0.03) 0.3 (0.3) 0.03 (0.03) 5.59 (0.03) 91692.88 91692.75 5.5 c-C3H 2(1,2)-1(1,1), J=3/2-1/2, F=1-0 tmc1-cal--30_0:3mm_red_31.png tmc1-cal--30_0:3mm_ori_31.png
0.24 (0.03) 0.39 (0.14) 0.10 (0.04) 5.718 (0.015) 91699.56 91699.47 12.5 c-C3H 2(1,2)-1(1,1), J=3/2-1/2, F=2-1 tmc1-cal--30_0:3mm_red_32.png tmc1-cal--30_0:3mm_ori_32.png
0.050 (0.024) 0.3 (0.5) 0.014 (0.023) 5.47 (0.05) 91943.51 91943.35 2.7 CH313CN 5o→4o tmc1-cal--30_0:3mm_red_33.png tmc1-cal--30_0:3mm_ori_33.png
0.086 (0.022) 0.4 (0.4) 0.04 (0.04) 5.69 (0.04) 91985.40 91985.31 4.5 CH3CN 51→41 tmc1-cal--30_0:3mm_red_34.png tmc1-cal--30_0:3mm_ori_34.png
0.127 (0.022) 0.44 (0.25) 0.06 (0.04) 5.73 (0.03) 91987.17 91987.09 6.6 CH3CN 50→40 tmc1-cal--30_0:3mm_red_35.png tmc1-cal--30_0:3mm_ori_35.png
0.215 (0.022) 0.51 (0.17) 0.12 (0.04) 5.662 (0.018) 92494.37 92494.27 10.1 13CS 2→1 tmc1-cal--30_0:3mm_red_36.png tmc1-cal--30_0:3mm_ori_36.png
0.0485 (0.0022) 0.32 (0.11) 0.0168 (0.0006) Unavailable 92657.77 Unavailable 2.9 CH3CN 52→42 (image band) tmc1-cal--30_0:3mm_red_37.png tmc1-cal--30_0:3mm_ori_37.png
0.044 (0.005) 0.53 (0.13) 0.0248 (0.0018) Unavailable 92660.21 Unavailable 2.5 CH3CN 51→41 (image band) tmc1-cal--30_0:3mm_red_38.png tmc1-cal--30_0:3mm_ori_38.png
0.2104 (0.0016) 0.089 (0.006) 0.0199 (0.0013) Unavailable 92695.81 Unavailable 14.3 CH313CN 5o→4o (image band) tmc1-cal--30_0:3mm_red_39.png tmc1-cal--30_0:3mm_ori_39.png
0.056 (0.019) 0.6 (0.7) 0.03 (0.04) 5.94 (0.07) 97715.42 97715.40 2.9 34SO 3(2)→2(1) tmc1-cal--30_0:3mm_red_40.png tmc1-cal--30_0:3mm_ori_40.png
0.20 (0.03) 0.60 (0.23) 0.13 (0.05) Unavailable 97968.73 Unavailable 2.3 HCO 10,1→00,0 J=3/2→1/2 F=2→1 (image band) tmc1-cal--30_0:3mm_red_41.png tmc1-cal--30_0:3mm_ori_41.png
0.18 (0.04) 0.39 (0.21) 0.08 (0.04) 6.29 (0.03) 97980.86 97980.95 3.6 CS 2→1 tmc1-cal--30_0:3mm_red_42.png tmc1-cal--30_0:3mm_ori_42.png
1.86 (0.03) 0.526 (0.024) 1.04 (0.05) 5.624 (0.003) 97981.08 97980.95 36.3 CS 2→1 tmc1-cal--30_0:3mm_red_43.png tmc1-cal--30_0:3mm_ori_43.png
0.08 (0.03) 0.4 (0.6) 0.03 (0.05) 5.57 (0.06) 97995.31 97995.17 0.8 l-C3H J=9/2-7/2, Omega=1/2, F=5-4, l=e tmc1-cal--30_0:3mm_red_44.png tmc1-cal--30_0:3mm_ori_44.png
0.11 (0.04) 0.4 (0.4) 0.04 (0.04) 5.62 (0.04) 98011.74 98011.61 4.4 l-C3H J=9/2-7/2, Omega=1/2, F=5-4, l=f tmc1-cal--30_0:3mm_red_45.png tmc1-cal--30_0:3mm_ori_45.png
0.075 (0.022) 0.3 (0.4) 0.03 (0.03) 8.00 (0.04) 98162.39 98163.04 4.2 C8H J=167/2-165/2, Omega=1/2, F=84-83 & 83-82, l=f tmc1-cal--30_0:3mm_red_46.png tmc1-cal--30_0:3mm_ori_46.png
0.06 (0.04) 0.5 (0.7) 0.03 (0.05) 2.26 (0.09) 99024.18 99022.95 2.7 H(40)</sup>\alpha</sup> tmc1-cal--30_0:3mm_red_47.png tmc1-cal--30_0:3mm_ori_47.png
0.92 (0.03) 0.41 (0.04) 0.40 (0.04) 5.995 (0.004) 99299.89 99299.89 37.7 SO 3(2)→2(1) tmc1-cal--30_0:3mm_red_48.png tmc1-cal--30_0:3mm_ori_48.png
0.49 (0.03) 0.30 (0.06) 0.16 (0.03) 5.583 (0.007) 99300.03 99299.89 20.5 SO 3(2)→2(1) tmc1-cal--30_0:3mm_red_49.png tmc1-cal--30_0:3mm_ori_49.png
0.21 (0.05) 0.24 (0.14) 0.06 (0.04) 5.745 (0.016) 101325.98 101325.9 8.9 Unidentified 101.327 GHz tmc1-cal--30_0:3mm_red_50.png tmc1-cal--30_0:3mm_ori_50.png
0.89 (0.03) 0.49 (0.06) 0.47 (0.05) 5.708 (0.006) 101477.91 101477.81 31.5 H2CS 3(1,3)→2(1,2) tmc1-cal--30_0:3mm_red_51.png tmc1-cal--30_0:3mm_ori_51.png
0.71 (0.04) 3.0 (0.3) 2.27 (0.18) 10.69 (0.03) 101735.58 101737.17 28.2 CH3OH 9(-2,8)-9(1,8) tmc1-cal--30_0:3mm_red_52.png tmc1-cal--30_0:3mm_ori_52.png
0.19 (0.04) 2.6 (1.1) 0.53 (0.17) 8.87 (0.09) 101736.20 101737.17 5.7 CH3OH 9(-2,8)-9(1,8) tmc1-cal--30_0:3mm_red_53.png tmc1-cal--30_0:3mm_ori_53.png
0.108 (0.022) 0.5 (0.4) 0.05 (0.04) 5.66 (0.04) 101981.54 101981.43 5.3 H2CCO 5(1,4)→4(1,3) tmc1-cal--30_0:3mm_red_54.png tmc1-cal--30_0:3mm_ori_54.png
0.74 (0.04) 0.42 (0.06) 0.33 (0.05) 5.681 (0.006) 102546.13 102546.02 24.8 CH3CCH 6(1)→5(1) tmc1-cal--30_0:3mm_red_55.png tmc1-cal--30_0:3mm_ori_55.png
0.71 (0.03) 0.47 (0.06) 0.35 (0.05) 5.702 (0.007) 102548.09 102547.98 23.2 CH3CCH 6(0)→5(0) tmc1-cal--30_0:3mm_red_56.png tmc1-cal--30_0:3mm_ori_56.png
0.15 (0.03) 0.34 (0.19) 0.05 (0.03) 5.667 (0.021) 104187.22 104187.11 8.2 c-HCCCD 3(0,3)-2(1,2) tmc1-cal--30_0:3mm_red_57.png tmc1-cal--30_0:3mm_ori_57.png
0.831 (0.021) 0.52 (0.05) 0.46 (0.04) 5.947 (0.005) 104617.13 104617.11 37.6 H2CS 31,2→21,1 tmc1-cal--30_0:3mm_red_58.png tmc1-cal--30_0:3mm_ori_58.png
0.24 (0.04) 0.35 (0.14) 0.09 (0.04) 5.702 (0.015) 104666.67 104666.57 10.7 C4H N=11→10 J=23/2→21/2 tmc1-cal--30_0:3mm_red_59.png tmc1-cal--30_0:3mm_ori_59.png
0.25 (0.04) 0.35 (0.14) 0.09 (0.04) 5.705 (0.016) 104705.21 104705.11 12.0 C4H N=11→10 J=21/2→19/2 tmc1-cal--30_0:3mm_red_60.png tmc1-cal--30_0:3mm_ori_60.png
0.15 (0.04) 0.32 (0.25) 0.05 (0.04) 5.60 (0.03) 107423.80 107423.65 5.4 c-HCCCD 3(1,3)-2(0,2) tmc1-cal--30_0:3mm_red_61.png tmc1-cal--30_0:3mm_ori_61.png

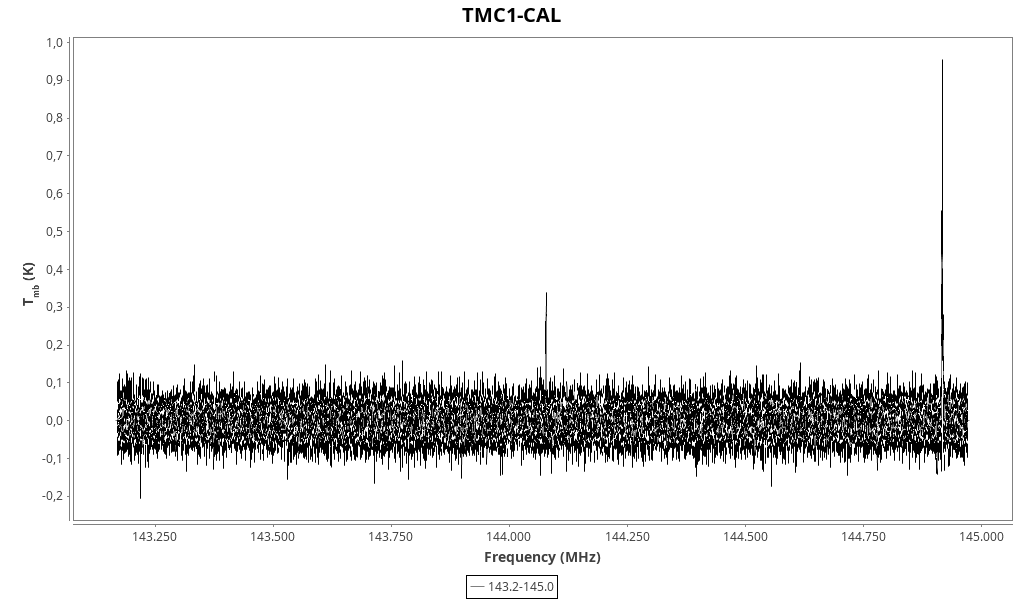

Backend 2mm (144.1 GHz)

Found 7 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.32 (0.04) 0.5 (0.3) 0.17 (0.09) 5.853 (0.019) 144077.36 144077.29 8.1 DCO+ J=2-1 (multiple components around) tmc1-cal--30_0:2mm_144.1_red_0.png tmc1-cal--30_0:2mm_144.1_ori_0.png
0.15 (0.05) 0.3 (0.5) 0.05 (0.07) 5.92 (0.04) 144617.14 144617.10 4.0 C34S 3→2 tmc1-cal--30_0:2mm_144.1_red_1.png tmc1-cal--30_0:2mm_144.1_ori_1.png
0.31 (0.05) 0.9 (0.5) 0.30 (0.14) 5.85 (0.04) 144915.68 144915.6 6.0 Unidentified 144.916 GHz tmc1-cal--30_0:2mm_144.1_red_2.png tmc1-cal--30_0:2mm_144.1_ori_2.png
0.33 (0.06) 0.27 (0.22) 0.09 (0.08) 5.854 (0.017) 144915.90 144915.8 6.3 Unidentified 144.916 GHz tmc1-cal--30_0:2mm_144.1_red_3.png tmc1-cal--30_0:2mm_144.1_ori_3.png
0.36 (0.06) 0.28 (0.21) 0.11 (0.08) 5.854 (0.016) 144916.06 144916.0 6.7 Unidentified 144.916 GHz tmc1-cal--30_0:2mm_144.1_red_4.png tmc1-cal--30_0:2mm_144.1_ori_4.png
0.41 (0.05) 1.0 (0.4) 0.44 (0.15) 5.854 (0.025) 144916.35 144916.3 7.6 Unidentified 144.916 GHz tmc1-cal--30_0:2mm_144.1_red_5.png tmc1-cal--30_0:2mm_144.1_ori_5.png
0.94 (0.05) 1.81 (0.22) 1.80 (0.20) 5.854 (0.015) 144917.53 144917.5 16.8 Unidentified 144.916 GHz tmc1-cal--30_0:2mm_144.1_red_6.png tmc1-cal--30_0:2mm_144.1_ori_6.png

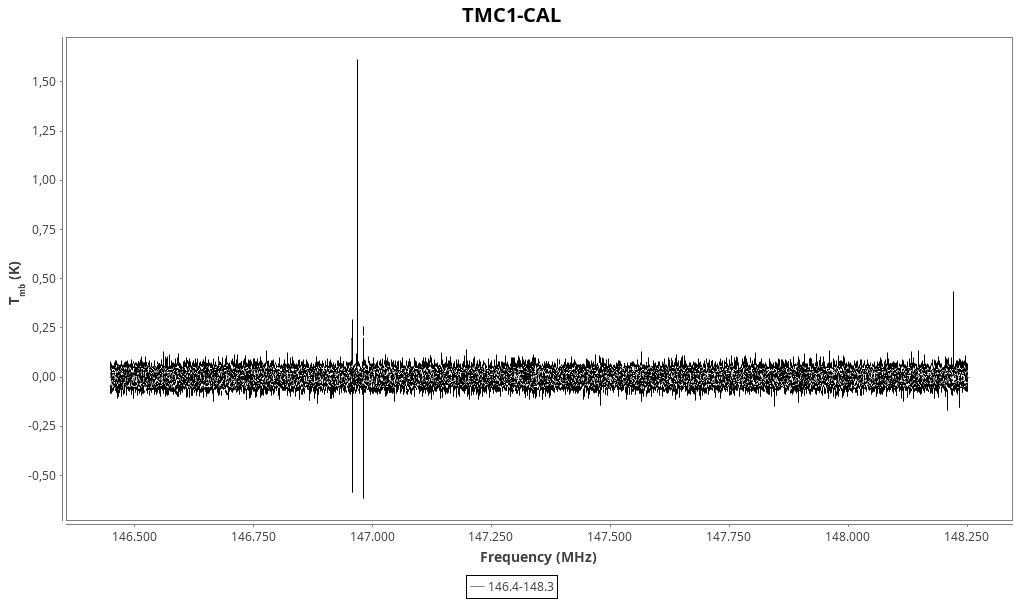

Backend 2mm (147.3 GHz)

Found 4 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.12 (0.05) 0.4 (0.6) 0.05 (0.07) 6.06 (0.08) 146968.99 146969.03 2.2 CS 3→2 tmc1-cal--30_0:2mm_147.3_red_0.png tmc1-cal--30_0:2mm_147.3_ori_0.png
1.82 (0.04) 0.47 (0.04) 0.91 (0.08) 5.692 (0.003) 146969.18 146969.03 34.7 CS 3→2 tmc1-cal--30_0:2mm_147.3_red_1.png tmc1-cal--30_0:2mm_147.3_ori_1.png
0.17 (0.05) 0.17 (0.23) 0.03 (0.05) 5.920 (0.018) 148221.49 148221.45 5.3 HCNH+ J=2-1 tmc1-cal--30_0:2mm_147.3_red_2.png tmc1-cal--30_0:2mm_147.3_ori_2.png
0.43 (0.04) 0.35 (0.14) 0.16 (0.07) 5.634 (0.010) 148221.63 148221.45 13.0 HCNH+ J=2-1 tmc1-cal--30_0:2mm_147.3_red_3.png tmc1-cal--30_0:2mm_147.3_ori_3.png

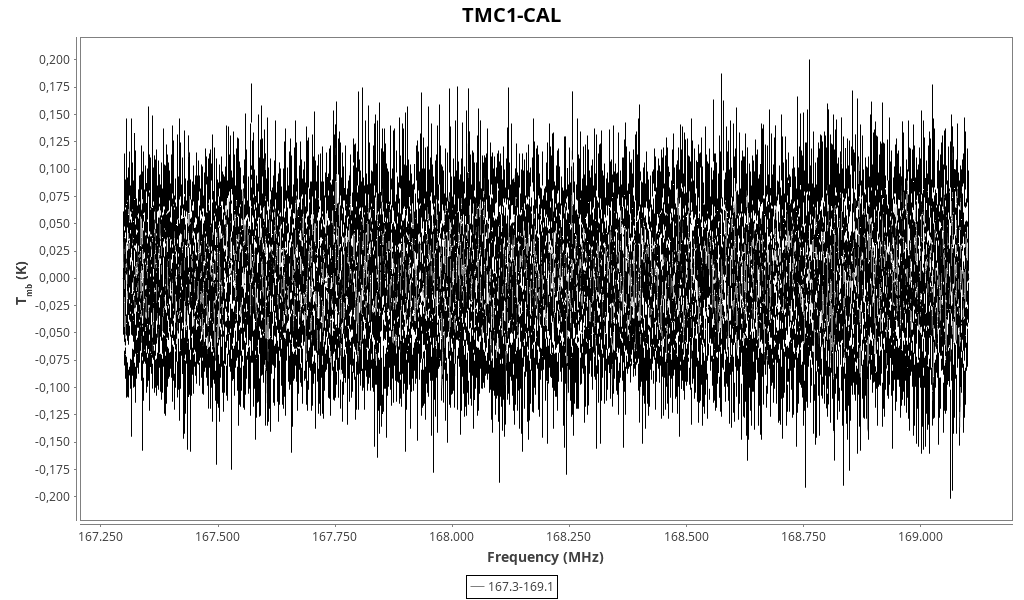

Backend 2mm (168.2 GHz)

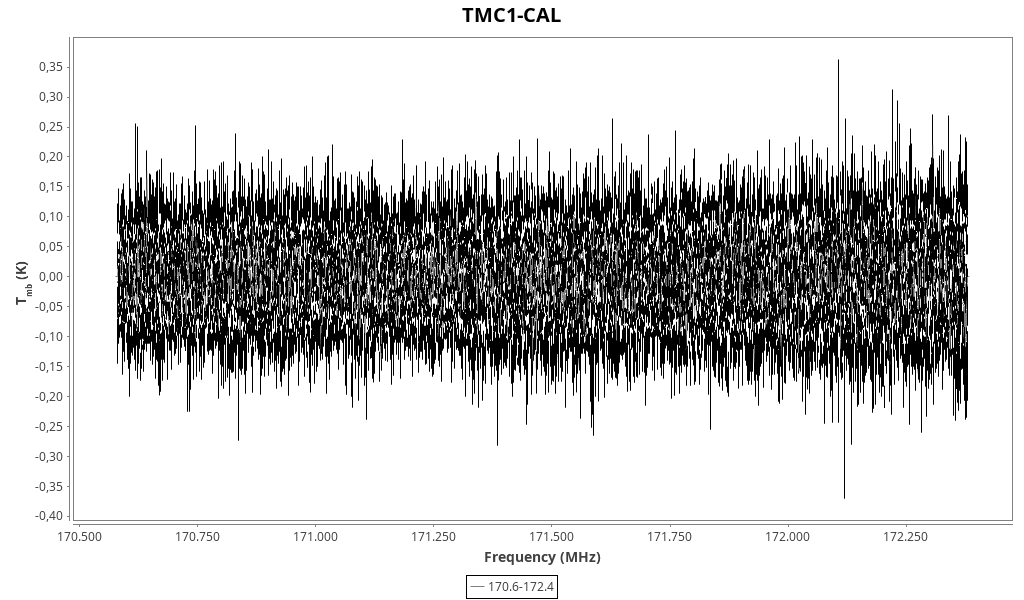

Backend 2mm (171.5 GHz)

Found 10 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.70 (0.08) 0.05 (0.08) 0.04 (0.06) 6.52 (0.05) 172105.27 172105.56 9.1 HS2 11(2,9)-10(2,8), J=21/2-19/2, F=11-10 tmc1-cal--30_0:2mm_171.5_red_0.png tmc1-cal--30_0:2mm_171.5_ori_0.png
0.06 (0.03) 0.8 (1.4) 0.05 (0.08) 7.38 (0.09) 172214.97 172215.8 0.7 Unidentified 172.214 GHz tmc1-cal--30_0:2mm_171.5_red_1.png tmc1-cal--30_0:2mm_171.5_ori_1.png
0.13 (0.04) 0.23 (0.05) 0.031 (0.006) 7.377 (0.020) 172217.50 172218.3 1.6 Unidentified 172.218 GHz tmc1-cal--30_0:2mm_171.5_red_2.png tmc1-cal--30_0:2mm_171.5_ori_2.png
1.320 (0.007) 0.046 (0.004) 0.064 (0.006) 7.38 (0.05) 172220.16 172221.0 17.6 Unidentified 172.220 GHz tmc1-cal--30_0:2mm_171.5_red_3.png tmc1-cal--30_0:2mm_171.5_ori_3.png
0.045 (0.007) 2.6 (0.9) 0.13 (0.04) 7.38 (0.06) 172221.53 172222.3 0.6 Unidentified 172.220 GHz tmc1-cal--30_0:2mm_171.5_red_4.png tmc1-cal--30_0:2mm_171.5_ori_4.png
0.185 (0.022) 0.20 (0.04) 0.039 (0.004) 7.377 (0.009) 172223.37 172224.2 2.7 Unidentified 172.223 GHz tmc1-cal--30_0:2mm_171.5_red_5.png tmc1-cal--30_0:2mm_171.5_ori_5.png
1.643 (0.013) 0.049 (0.006) 0.085 (0.009) 7.38 (0.05) 172227.83 172228.6 24.1 Unidentified 172.227 GHz tmc1-cal--30_0:2mm_171.5_red_6.png tmc1-cal--30_0:2mm_171.5_ori_6.png
0.026 (0.013) 2 (3) 0.07 (0.07) 7.38 (0.16) 172228.32 172229.1 0.4 Unidentified 172.227 GHz tmc1-cal--30_0:2mm_171.5_red_7.png tmc1-cal--30_0:2mm_171.5_ori_7.png
0.042 (0.014) 1.8 (1.6) 0.08 (0.07) 7.85 (0.10) 172231.49 172232.55 0.6 S2O 17(3,14)-17(2,15) tmc1-cal--30_0:2mm_171.5_red_8.png tmc1-cal--30_0:2mm_171.5_ori_8.png
0.30 (0.03) 0.10 (0.05) 0.033 (0.016) 7.377 (0.006) 172231.76 172232.55 4.2 S2O 17(3,14)-17(2,15) tmc1-cal--30_0:2mm_171.5_red_9.png tmc1-cal--30_0:2mm_171.5_ori_9.png

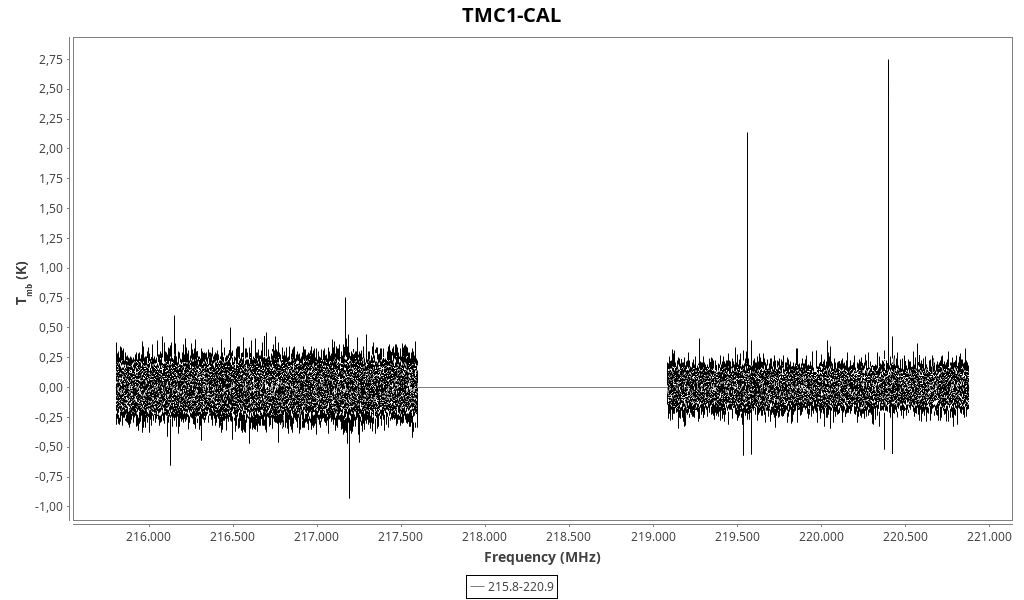

Backend 1mm (215.8-220.9 GHz)

Found 9 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
2.82 (0.14) 0.04 (0.04) 0.12 (0.11) 5.68 (0.04) 216153.11 216152.9 23.6 Unidentified 216.153 GHz tmc1-cal--30_0:1mm_red_0.png tmc1-cal--30_0:1mm_ori_0.png
1.69 (0.11) 0.04 (0.05) 0.08 (0.09) 5.68 (0.04) 216278.99 216278.76 14.8 c-HCCCH 3(3,0)-2(2,1) tmc1-cal--30_0:1mm_red_1.png tmc1-cal--30_0:1mm_ori_1.png
3.95 (0.15) 0.04 (0.03) 0.16 (0.11) 5.68 (0.04) 217167.89 217167.7 29.9 Unidentified 217.168 GHz tmc1-cal--30_0:1mm_red_2.png tmc1-cal--30_0:1mm_ori_2.png
1.08 (0.10) 0.46 (0.23) 0.5 (0.3) 6.065 (0.012) 219560.31 219560.36 10.3 C18O 2→1 tmc1-cal--30_0:1mm_red_3.png tmc1-cal--30_0:1mm_ori_3.png
2.11 (0.10) 0.31 (0.09) 0.70 (0.22) 5.589 (0.005) 219560.66 219560.36 20.3 C18O 2→1 tmc1-cal--30_0:1mm_red_4.png tmc1-cal--30_0:1mm_ori_4.png
0.34 (0.12) 0.1 (0.4) 0.05 (0.12) 5.599 (0.017) 219852.14 219851.85 4.0 H2CN 30,3→20,2 tmc1-cal--30_0:1mm_red_5.png tmc1-cal--30_0:1mm_ori_5.png
0.44 (0.09) 0.2 (0.3) 0.09 (0.12) 6.982 (0.013) 220397.96 220398.68 3.7 13CO 2→1 tmc1-cal--30_0:1mm_red_6.png tmc1-cal--30_0:1mm_ori_6.png
2.04 (0.07) 0.76 (0.11) 1.66 (0.24) 6.204 (0.006) 220398.53 220398.68 17.2 13CO 2→1 tmc1-cal--30_0:1mm_red_7.png tmc1-cal--30_0:1mm_ori_7.png
2.59 (0.07) 0.61 (0.08) 1.70 (0.21) 5.354 (0.004) 220399.15 220398.68 21.7 13CO 2→1 tmc1-cal--30_0:1mm_red_8.png tmc1-cal--30_0:1mm_ori_8.png
