DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

TMC1-CAL-180_0

Backend 3mm (85.0-110.5 GHz)

Found 50 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.155 (0.021) 0.41 (0.16) 0.068 (0.025) 5.658 (0.018) 85339.00 85338.90 9.5 c-C3H2 21,2→10,1 tmc1-cal-180_0:3mm_red_0.png tmc1-cal-180_0:3mm_ori_0.png
0.056 (0.016) 0.7 (0.6) 0.04 (0.04) 8.98 (0.07) 85449.92 85450.77 3.6 CH3CCH 5(2)-4(2) tmc1-cal-180_0:3mm_red_1.png tmc1-cal-180_0:3mm_ori_1.png
0.066 (0.023) 0.3 (0.4) 0.021 (0.023) 9.63 (0.05) 85567.05 85568.08 3.8 CH3OH 6(-2,5)→7(-1,7) tmc1-cal-180_0:3mm_red_2.png tmc1-cal-180_0:3mm_ori_2.png
0.234 (0.020) 0.47 (0.11) 0.118 (0.025) 5.591 (0.012) 88630.54 88630.42 16.9 HCN 1→0 F=1→1 tmc1-cal-180_0:3mm_red_3.png tmc1-cal-180_0:3mm_ori_3.png
0.091 (0.018) 0.5 (0.3) 0.05 (0.03) 6.28 (0.04) 88631.77 88631.85 6.5 HCN 1→0 F=2→1 tmc1-cal-180_0:3mm_red_4.png tmc1-cal-180_0:3mm_ori_4.png
0.353 (0.020) 0.47 (0.07) 0.178 (0.025) 5.519 (0.008) 88631.99 88631.85 25.5 HCN 1→0 F=2→1 tmc1-cal-180_0:3mm_red_5.png tmc1-cal-180_0:3mm_ori_5.png
0.140 (0.022) 0.52 (0.19) 0.08 (0.03) 5.632 (0.022) 88634.05 88633.94 9.8 HCN 1→0 F=0→1 tmc1-cal-180_0:3mm_red_6.png tmc1-cal-180_0:3mm_ori_6.png
0.133 (0.018) 0.45 (0.18) 0.064 (0.024) 6.312 (0.021) 89188.43 89188.53 8.2 HCO+ 1→0 tmc1-cal-180_0:3mm_red_7.png tmc1-cal-180_0:3mm_ori_7.png
0.532 (0.017) 0.62 (0.06) 0.35 (0.03) 5.502 (0.006) 89188.67 89188.53 32.5 HCO+ 1→0 tmc1-cal-180_0:3mm_red_8.png tmc1-cal-180_0:3mm_ori_8.png
0.058 (0.022) 0.3 (0.4) 0.019 (0.021) 5.24 (0.05) 90602.01 90601.78 3.9 HCC13CN J=10-9 (4 components around) tmc1-cal-180_0:3mm_red_9.png tmc1-cal-180_0:3mm_ori_9.png
0.062 (0.018) 0.6 (0.5) 0.04 (0.03) 6.19 (0.06) 90663.50 90663.56 3.8 HNC 1→0 tmc1-cal-180_0:3mm_red_10.png tmc1-cal-180_0:3mm_ori_10.png
0.479 (0.020) 0.46 (0.06) 0.236 (0.025) 5.468 (0.006) 90663.72 90663.56 29.8 HNC 1→0 tmc1-cal-180_0:3mm_red_11.png tmc1-cal-180_0:3mm_ori_11.png
0.045 (0.022) 0.4 (0.5) 0.018 (0.020) 5.88 (0.06) 91497.64 91497.61 3.4 c-C3H 2(1,2)-1(1,1), J=5/2-3/2, F=2-1 tmc1-cal-180_0:3mm_red_12.png tmc1-cal-180_0:3mm_ori_12.png
0.025 (0.008) 0.5 (0.5) 0.014 (0.012) 5.53 (0.06) 93173.85 93173.70 3.9 N2H+ 1→0 F=1→2 tmc1-cal-180_0:3mm_red_13.png tmc1-cal-180_0:3mm_ori_13.png
0.02 (0.04) 0.2 (0.4) 0.005 (0.009) 6.31 (0.08) 93822.56 93822.66 3.0 C(58)</sup>\gamma</sup> tmc1-cal-180_0:3mm_red_14.png tmc1-cal-180_0:3mm_ori_14.png
0.033 (0.009) 3.4 (1.4) 0.12 (0.04) 5.83 (0.14) 93856.72 93856.7 3.7 Unidentified 93.857 GHz tmc1-cal-180_0:3mm_red_15.png tmc1-cal-180_0:3mm_ori_15.png
0.061 (0.015) 2.1 (0.9) 0.14 (0.06) 5.83 (0.10) 93957.65 93957.6 4.0 Unidentified 93.959 GHz tmc1-cal-180_0:3mm_red_16.png tmc1-cal-180_0:3mm_ori_16.png
0.038 (0.015) 0.6 (0.8) 0.03 (0.03) 5.83 (0.09) 93957.99 93957.9 2.5 Unidentified 93.959 GHz tmc1-cal-180_0:3mm_red_17.png tmc1-cal-180_0:3mm_ori_17.png
0.065 (0.025) 0.3 (0.4) 0.023 (0.023) 5.83 (0.05) 93958.24 93958.2 4.3 Unidentified 93.959 GHz tmc1-cal-180_0:3mm_red_18.png tmc1-cal-180_0:3mm_ori_18.png
0.177 (0.016) 2.9 (0.5) 0.54 (0.07) 5.83 (0.05) 93958.91 93958.9 11.1 Unidentified 93.959 GHz tmc1-cal-180_0:3mm_red_19.png tmc1-cal-180_0:3mm_ori_19.png
0.079 (0.016) 4.6 (1.4) 0.39 (0.09) 7.66 (0.12) 93959.41 93959.93 5.1 CH3OOH (2) tmc1-cal-180_0:3mm_red_20.png tmc1-cal-180_0:3mm_ori_20.png
0.082 (0.021) 0.29 (0.22) 0.025 (0.018) 5.95 (0.03) 94083.71 94083.69 5.8 ONCN 9-8 in atmosphere ? tmc1-cal-180_0:3mm_red_21.png tmc1-cal-180_0:3mm_ori_21.png
0.14 (0.04) 0.19 (0.11) 0.028 (0.016) 5.83 (0.03) 94084.00 94083.9 9.3 Unidentified 94.084 GHz tmc1-cal-180_0:3mm_red_22.png tmc1-cal-180_0:3mm_ori_22.png
0.054 (0.021) 0.4 (0.4) 0.022 (0.022) 5.83 (0.05) 94085.33 94085.3 3.7 Unidentified 94.084 GHz tmc1-cal-180_0:3mm_red_23.png tmc1-cal-180_0:3mm_ori_23.png
0.042 (0.019) 5 (4) 0.21 (0.10) 2.1 (0.3) 94408.76 94407.54 2.0 CH213CHCN 10(4,x)→9(4,x-1) x=7,6 tmc1-cal-180_0:3mm_red_24.png tmc1-cal-180_0:3mm_ori_24.png
0.024 (0.011) 2.5 (2.0) 0.06 (0.05) 10.05 (0.20) 95809.12 95810.41 2.1 34SO2 2(2,0)-3(1,3) tmc1-cal-180_0:3mm_red_25.png tmc1-cal-180_0:3mm_ori_25.png
0.025 (0.011) 1.6 (1.4) 0.04 (0.04) 8.83 (0.15) 95809.51 95810.41 2.2 34SO2 2(2,0)-3(1,3) tmc1-cal-180_0:3mm_red_26.png tmc1-cal-180_0:3mm_ori_26.png
0.119 (0.008) 4.0 (0.4) 0.51 (0.04) 4.83 (0.04) 96241.18 96240.81 13.2 CNCHO 22(3,19)-23(2,22) tmc1-cal-180_0:3mm_red_27.png tmc1-cal-180_0:3mm_ori_27.png
0.149 (0.008) 1.45 (0.16) 0.231 (0.023) 4.433 (0.017) 96241.31 96240.81 16.5 CNCHO 22(3,19)-23(2,22) tmc1-cal-180_0:3mm_red_28.png tmc1-cal-180_0:3mm_ori_28.png
0.034 (0.009) 0.4 (0.4) 0.016 (0.013) 5.74 (0.05) 96413.03 96412.95 4.4 C34S 2→1 tmc1-cal-180_0:3mm_red_29.png tmc1-cal-180_0:3mm_ori_29.png
0.014 (0.007) 1.8 (1.7) 0.027 (0.022) 2.29 (0.18) 96633.82 96632.63 2.1 CH3CHO 5(2,3)→4(2,2) (2) tmc1-cal-180_0:3mm_red_30.png tmc1-cal-180_0:3mm_ori_30.png
0.023 (0.010) 1.6 (1.3) 0.04 (0.03) 5.83 (0.15) 96741.42 96741.37 2.3 CH3OH 2(0,2)→1(0,1) ++ tmc1-cal-180_0:3mm_red_31.png tmc1-cal-180_0:3mm_ori_31.png
1.471 (0.018) 0.261 (0.009) 0.409 (0.013) 5.8350 (0.0011) 96911.03 96911.0 78.6 Unidentified 96.911 GHz tmc1-cal-180_0:3mm_red_32.png tmc1-cal-180_0:3mm_ori_32.png
0.026 (0.009) 1.0 (0.8) 0.027 (0.019) 5.83 (0.11) 96923.32 96923.3 1.4 Unidentified 96.926 GHz tmc1-cal-180_0:3mm_red_33.png tmc1-cal-180_0:3mm_ori_33.png
1.66 (0.03) 0.218 (0.005) 0.385 (0.009) 5.8350 (0.0006) 96926.06 96926.0 91.3 Unidentified 96.926 GHz tmc1-cal-180_0:3mm_red_34.png tmc1-cal-180_0:3mm_ori_34.png
0.119 (0.015) 0.61 (0.20) 0.077 (0.024) 6.114 (0.023) 97980.92 97980.95 9.3 CS 2→1 tmc1-cal-180_0:3mm_red_35.png tmc1-cal-180_0:3mm_ori_35.png
0.435 (0.019) 0.36 (0.05) 0.165 (0.019) 5.605 (0.005) 97981.08 97980.95 33.5 CS 2→1 tmc1-cal-180_0:3mm_red_36.png tmc1-cal-180_0:3mm_ori_36.png
0.039 (0.011) 0.5 (0.4) 0.020 (0.016) 5.12 (0.06) 98199.67 98199.38 4.0 H(67)</sup>\epsilon</sup> tmc1-cal-180_0:3mm_red_37.png tmc1-cal-180_0:3mm_ori_37.png
0.042 (0.020) 0.4 (0.5) 0.016 (0.019) 6.03 (0.06) 99063.29 99063.30 3.1 He(40)</sup>\alpha</sup> tmc1-cal-180_0:3mm_red_38.png tmc1-cal-180_0:3mm_ori_38.png
0.095 (0.011) 0.86 (0.25) 0.087 (0.023) 5.78 (0.03) 99299.96 99299.89 8.7 SO 3(2)→2(1) tmc1-cal-180_0:3mm_red_39.png tmc1-cal-180_0:3mm_ori_39.png
0.05 (0.03) 0.5 (0.6) 0.03 (0.03) 9.99 (0.09) 106346.32 106347.73 3.0 C2S N=8→7 J=9→8 tmc1-cal-180_0:3mm_red_40.png tmc1-cal-180_0:3mm_ori_40.png
0.06 (0.03) 0.2 (0.4) 0.016 (0.022) 7.14 (0.05) 106347.33 106347.73 3.4 C2S N=8→7 J=9→8 tmc1-cal-180_0:3mm_red_41.png tmc1-cal-180_0:3mm_ori_41.png
0.044 (0.020) 0.8 (1.0) 0.04 (0.05) 8.42 (0.13) 106789.75 106790.61 2.2 C(39)</sup>\alpha</sup> tmc1-cal-180_0:3mm_red_42.png tmc1-cal-180_0:3mm_ori_42.png
0.041 (0.021) 0.4 (0.8) 0.02 (0.04) 5.17 (0.09) 109435.26 109434.96 2.0 C5N N=39-38, J=77/2-75/2, F=77/2-75/2 (2 components around) tmc1-cal-180_0:3mm_red_43.png tmc1-cal-180_0:3mm_ori_43.png
0.07 (0.04) 0.3 (0.4) 0.03 (0.03) 7.03 (0.05) 109535.62 109536.00 3.3 H(55)</sup>\gamma</sup> tmc1-cal-180_0:3mm_red_44.png tmc1-cal-180_0:3mm_ori_44.png
0.113 (0.022) 3.4 (1.1) 0.41 (0.10) 5.85 (0.11) 109563.83 109563.8 4.5 Unidentified 109.563 GHz tmc1-cal-180_0:3mm_red_45.png tmc1-cal-180_0:3mm_ori_45.png
0.22 (0.03) 0.60 (0.18) 0.14 (0.04) 6.211 (0.023) 109782.10 109782.18 8.1 C18O 1→0 tmc1-cal-180_0:3mm_red_46.png tmc1-cal-180_0:3mm_ori_46.png
0.61 (0.03) 0.73 (0.08) 0.48 (0.05) 5.635 (0.009) 109782.31 109782.18 22.4 C18O 1→0 tmc1-cal-180_0:3mm_red_47.png tmc1-cal-180_0:3mm_ori_47.png
2.09 (0.03) 2.19 (0.06) 4.86 (0.10) 6.277 (0.006) 110201.25 110201.35 17.5 13CO 1→0 tmc1-cal-180_0:3mm_red_48.png tmc1-cal-180_0:3mm_ori_48.png
2.94 (0.03) 1.45 (0.03) 4.54 (0.08) 5.462 (0.004) 110201.55 110201.35 24.7 13CO 1→0 tmc1-cal-180_0:3mm_red_49.png tmc1-cal-180_0:3mm_ori_49.png

Backend 2mm (134.6 GHz)

Found 6 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.360 (0.017) 0.06 (0.04) 0.023 (0.013) 5.60 (0.06) 133729.00 133728.8 29.8 Unidentified 133.729 GHz tmc1-cal-180_0:2mm_134.6_red_0.png tmc1-cal-180_0:2mm_134.6_ori_0.png
0.149 (0.015) 0.06 (0.07) 0.009 (0.011) 5.60 (0.06) 133735.05 133734.9 11.1 Unidentified 133.735 GHz tmc1-cal-180_0:2mm_134.6_red_1.png tmc1-cal-180_0:2mm_134.6_ori_1.png
0.06 (0.04) 0.1 (0.3) 0.009 (0.017) 5.596 (0.024) 133838.04 133837.9 4.4 Unidentified 133.838 GHz tmc1-cal-180_0:2mm_134.6_red_2.png tmc1-cal-180_0:2mm_134.6_ori_2.png
0.107 (0.015) 0.09 (0.12) 0.010 (0.014) 5.40 (0.06) 134023.98 134023.71 6.3 C4H v7=1 J=29/2-27/2 tmc1-cal-180_0:2mm_134.6_red_3.png tmc1-cal-180_0:2mm_134.6_ori_3.png
0.11 (0.05) 0.11 (0.13) 0.013 (0.015) 5.60 (0.03) 134505.20 134505.0 7.6 Unidentified 134.505 GHz tmc1-cal-180_0:2mm_134.6_red_4.png tmc1-cal-180_0:2mm_134.6_ori_4.png
0.1 (0.4) 0.1 (0.5) 0.009 (0.015) 5.60 (0.09) 135138.33 135138.15 5.8 H(56)</sup>\delta</sup> tmc1-cal-180_0:2mm_134.6_red_5.png tmc1-cal-180_0:2mm_134.6_ori_5.png

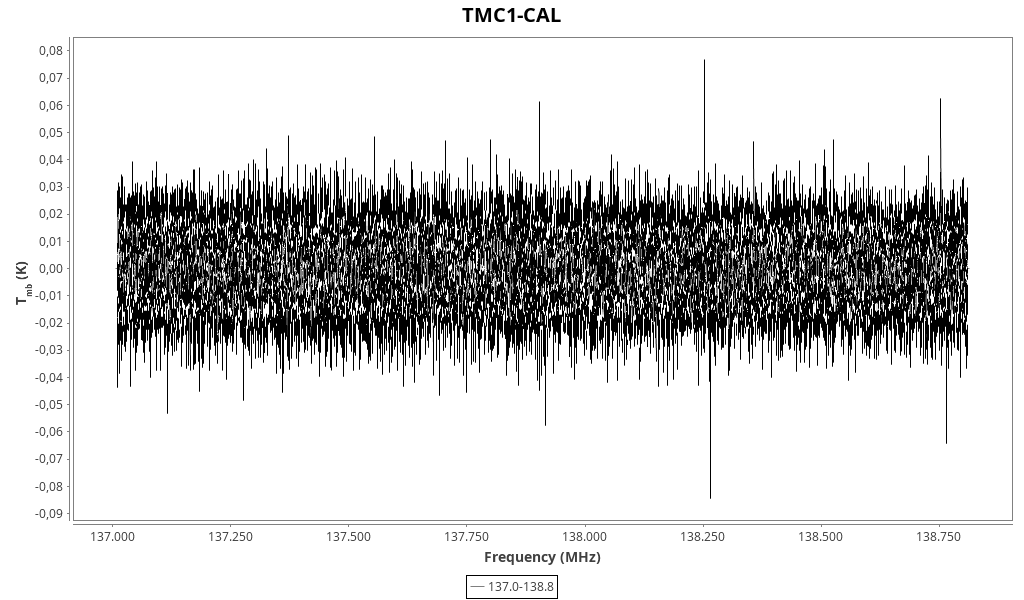

Backend 2mm (137.9 GHz)

Found 4 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.256 (0.012) 0.06 (0.04) 0.016 (0.009) 5.42 (0.06) 137554.02 137553.75 22.9 CaNC N=17-16, J=33/2-31/2 (3x) tmc1-cal-180_0:2mm_137.9_red_0.png tmc1-cal-180_0:2mm_137.9_ori_0.png
0.080 (0.014) 0.06 (0.13) 0.005 (0.011) 5.61 (0.06) 137903.24 137903.06 5.3 CH3OH 7(-4,4)-8(-3,6) (?) tmc1-cal-180_0:2mm_137.9_red_1.png tmc1-cal-180_0:2mm_137.9_ori_1.png
0.077 (0.021) 0.14 (0.18) 0.012 (0.015) 5.425 (0.018) 138254.00 138253.7 6.3 Unidentified 138.254 GHz tmc1-cal-180_0:2mm_137.9_red_2.png tmc1-cal-180_0:2mm_137.9_ori_2.png
0.080 (0.013) 0.0 (0.3) 0.003 (0.008) 5.43 (0.06) 138753.99 138753.7 6.3 Unidentified 138.754 GHz tmc1-cal-180_0:2mm_137.9_red_3.png tmc1-cal-180_0:2mm_137.9_ori_3.png

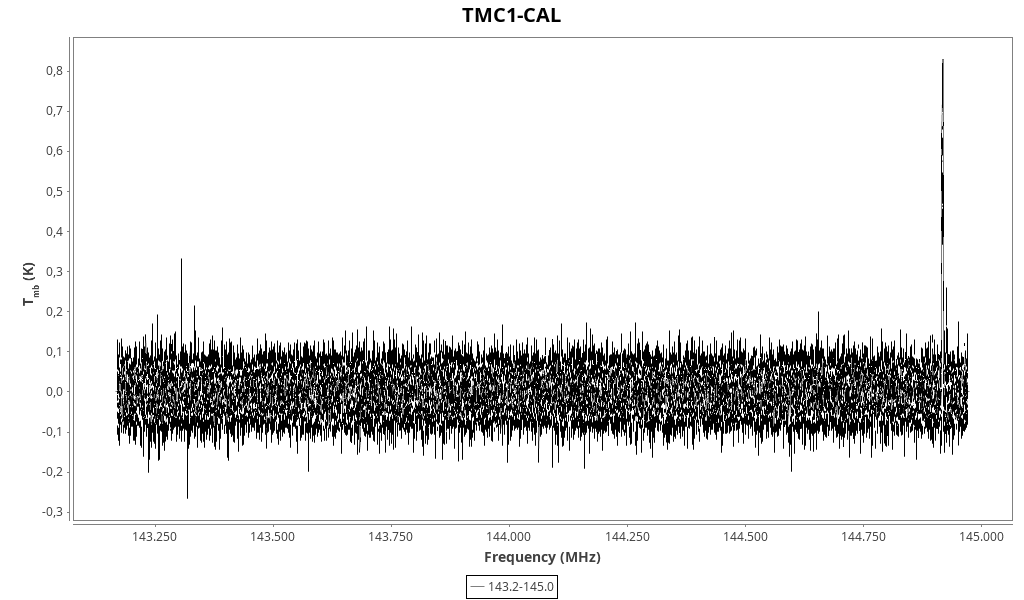

Backend 2mm (144.1 GHz)

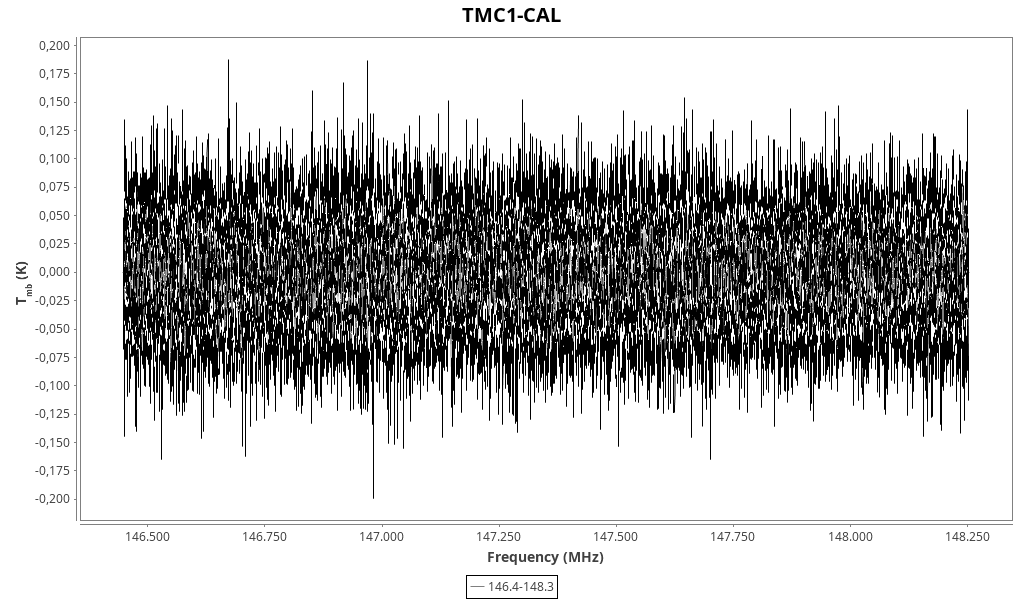

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.18 (0.06) 0.3 (0.5) 0.06 (0.08) 5.64 (0.04) 146969.20 146969.03 3.9 CS 3→2 tmc1-cal-180_0:2mm_147.3_red_0.png tmc1-cal-180_0:2mm_147.3_ori_0.png
0.14 (0.07) 0.2 (0.5) 0.03 (0.06) 5.77 (0.04) 147120.36 147120.25 3.3 C(35)</sup>\alpha</sup> tmc1-cal-180_0:2mm_147.3_red_1.png tmc1-cal-180_0:2mm_147.3_ori_1.png

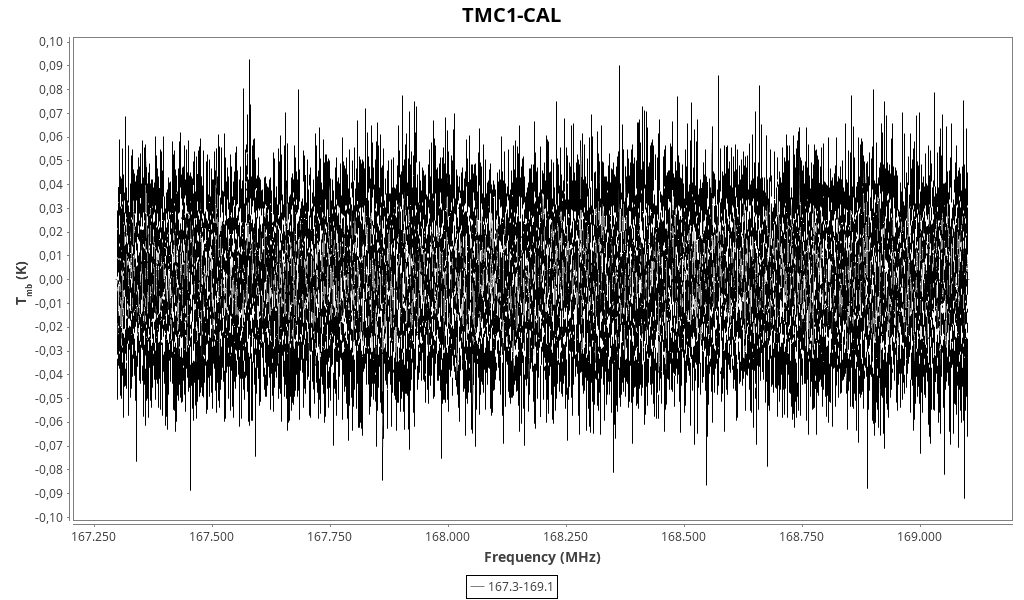

Backend 2mm (168.2 GHz)

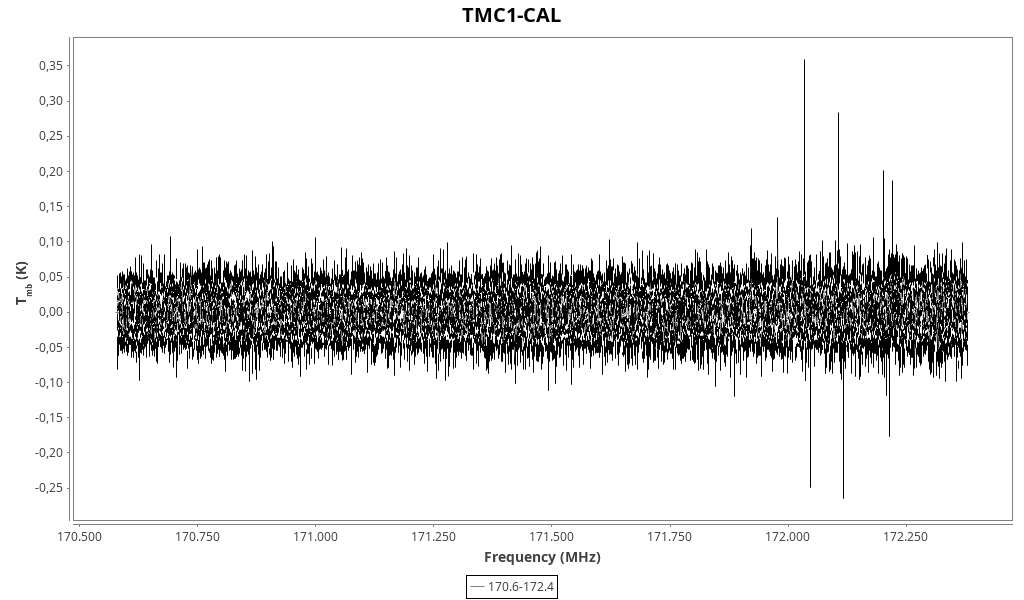

Backend 2mm (171.5 GHz)

Found 7 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.12 (0.20) 0.08 (0.21) 0.01 (0.03) 5.30 (0.09) 170692.02 170691.62 4.3 HCS+ 4→3 tmc1-cal-180_0:2mm_171.5_red_0.png tmc1-cal-180_0:2mm_171.5_ori_0.png
0.39 (0.04) 0.03 (0.06) 0.012 (0.022) 5.3013 (0.0003) 172035.37 172035.0 13.0 Unidentified 172.035 GHz tmc1-cal-180_0:2mm_171.5_red_1.png tmc1-cal-180_0:2mm_171.5_ori_1.png
0.29 (0.06) 0.11 (0.11) 0.03 (0.04) 5.103 (0.011) 172106.08 172105.56 9.8 HS2 11(2,9)-10(2,8), J=21/2-19/2, F=11-10 tmc1-cal-180_0:2mm_171.5_red_2.png tmc1-cal-180_0:2mm_171.5_ori_2.png
0.08 (0.04) 0.2 (0.5) 0.01 (0.04) 5.97 (0.04) 172181.43 172181.41 2.7 SO 4(4)→3(3) tmc1-cal-180_0:2mm_171.5_red_3.png tmc1-cal-180_0:2mm_171.5_ori_3.png
0.20 (0.05) 0.13 (0.17) 0.03 (0.04) 5.302 (0.013) 172203.10 172202.7 6.6 Unidentified 172.203 GHz tmc1-cal-180_0:2mm_171.5_red_4.png tmc1-cal-180_0:2mm_171.5_ori_4.png
0.12 (0.05) 0.2 (0.4) 0.02 (0.04) 5.302 (0.022) 172204.11 172203.7 3.8 Unidentified 172.203 GHz tmc1-cal-180_0:2mm_171.5_red_5.png tmc1-cal-180_0:2mm_171.5_ori_5.png
0.19 (0.06) 0.12 (0.20) 0.02 (0.04) 5.302 (0.016) 172221.12 172220.7 6.6 Unidentified 172.220 GHz tmc1-cal-180_0:2mm_171.5_red_6.png tmc1-cal-180_0:2mm_171.5_ori_6.png

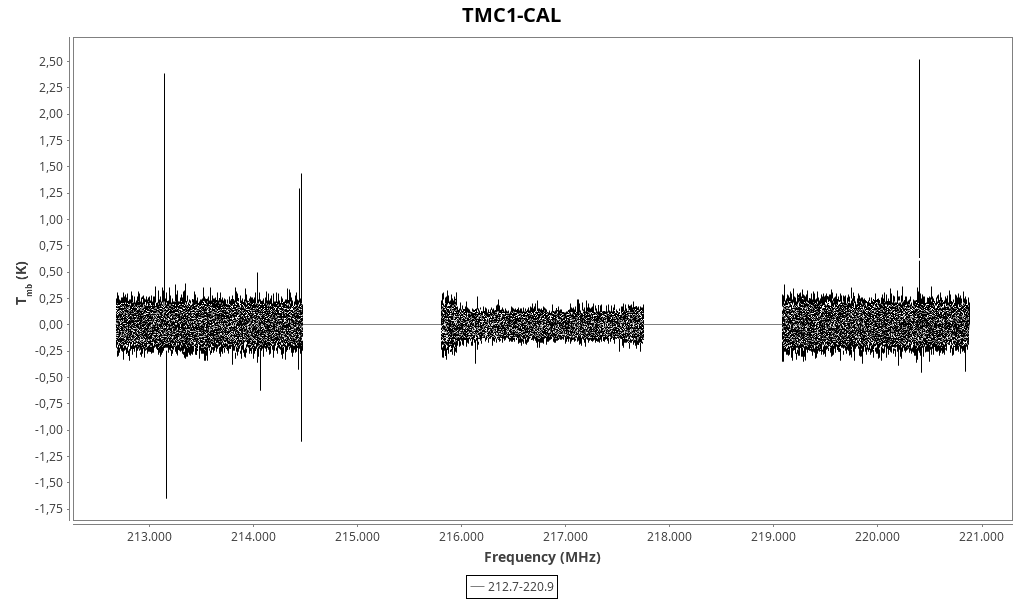

Backend 1mm (212.7-220.9 GHz)

Found 10 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
3.06 (0.21) 0.11 (0.04) 0.34 (0.12) 6.1927 (0.0018) 213141.10 213141.2 33.0 Unidentified 213.141 GHz tmc1-cal-180_0:1mm_red_0.png tmc1-cal-180_0:1mm_ori_0.png
0.6 (0.4) 0.08 (0.16) 0.06 (0.11) 6.192 (0.009) 214040.88 214041.0 7.0 Unidentified 214.041 GHz tmc1-cal-180_0:1mm_red_1.png tmc1-cal-180_0:1mm_ori_1.png
1.38 (0.14) 0.12 (0.09) 0.17 (0.12) 6.192 (0.005) 214439.21 214439.3 14.5 Unidentified 214.439 GHz tmc1-cal-180_0:1mm_red_2.png tmc1-cal-180_0:1mm_ori_2.png
11.31 (0.10) 0.037 (0.006) 0.44 (0.08) 6.19 (0.04) 214459.21 214459.3 78.7 Unidentified 214.459 GHz tmc1-cal-180_0:1mm_red_3.png tmc1-cal-180_0:1mm_ori_3.png
0.35 (0.18) 0.10 (0.24) 0.04 (0.09) 6.190 (0.013) 216153.12 216153.3 5.4 Unidentified 216.153 GHz tmc1-cal-180_0:1mm_red_4.png tmc1-cal-180_0:1mm_ori_4.png
0.42 (0.06) 0.04 (0.11) 0.02 (0.05) 6.19 (0.04) 217220.11 217220.2 7.1 Unidentified 217.220 GHz tmc1-cal-180_0:1mm_red_5.png tmc1-cal-180_0:1mm_ori_5.png
0.13 (0.06) 0.2 (0.8) 0.03 (0.11) 6.19 (0.04) 217467.01 217467.15 2.3 13CN N=2→1 J=5/2→3/2 F=k→k-1, k=4,3 tmc1-cal-180_0:1mm_red_6.png tmc1-cal-180_0:1mm_ori_6.png
0.68 (0.13) 0.15 (0.18) 0.11 (0.13) 7.150 (0.009) 220397.83 220398.68 5.5 13CO 2→1 tmc1-cal-180_0:1mm_red_7.png tmc1-cal-180_0:1mm_ori_7.png
1.37 (0.09) 1.4 (0.3) 2.0 (0.4) 5.940 (0.014) 220398.72 220398.68 11.1 13CO 2→1 tmc1-cal-180_0:1mm_red_8.png tmc1-cal-180_0:1mm_ori_8.png
1.23 (0.09) 0.87 (0.25) 1.1 (0.4) 5.365 (0.012) 220399.15 220398.68 9.9 13CO 2→1 tmc1-cal-180_0:1mm_red_9.png tmc1-cal-180_0:1mm_ori_9.png
