DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

TMC1-CAL-240_0

Backend 3mm (85.0-110.5 GHz)

Found 39 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.020 (0.009) 3.0 (2.2) 0.06 (0.04) 9.04 (0.21) 85153.06 85153.92 2.1 D2CS 3-2 tmc1-cal-240_0:3mm_red_0.png tmc1-cal-240_0:3mm_ori_0.png
0.061 (0.010) 0.7 (0.4) 0.048 (0.020) 5.77 (0.04) 85338.96 85338.90 6.6 c-C3H2 21,2→10,1 tmc1-cal-240_0:3mm_red_1.png tmc1-cal-240_0:3mm_ori_1.png
0.024 (0.023) 0.3 (0.5) 0.007 (0.013) 6.31 (0.06) 85672.49 85672.58 2.4 C4H 9→8 J=17/2→15/2 tmc1-cal-240_0:3mm_red_2.png tmc1-cal-240_0:3mm_ori_2.png
0.033 (0.012) 0.5 (0.5) 0.018 (0.017) 4.96 (0.07) 85926.00 85925.70 3.7 NH2D 11,1→10,1 F=2-1 tmc1-cal-240_0:3mm_red_3.png tmc1-cal-240_0:3mm_ori_3.png
0.168 (0.013) 0.52 (0.09) 0.093 (0.016) 5.625 (0.011) 88630.53 88630.42 16.4 HCN 1→0 F=1→1 tmc1-cal-240_0:3mm_red_4.png tmc1-cal-240_0:3mm_ori_4.png
0.041 (0.011) 0.5 (0.4) 0.021 (0.015) 6.27 (0.05) 88631.77 88631.85 4.0 HCN 1→0 F=2→1 tmc1-cal-240_0:3mm_red_5.png tmc1-cal-240_0:3mm_ori_5.png
0.209 (0.012) 0.55 (0.08) 0.123 (0.016) 5.550 (0.009) 88631.98 88631.85 20.6 HCN 1→0 F=2→1 tmc1-cal-240_0:3mm_red_6.png tmc1-cal-240_0:3mm_ori_6.png
0.112 (0.014) 0.37 (0.11) 0.044 (0.013) 5.632 (0.013) 88634.05 88633.94 11.6 HCN 1→0 F=0→1 tmc1-cal-240_0:3mm_red_7.png tmc1-cal-240_0:3mm_ori_7.png
0.131 (0.010) 0.48 (0.11) 0.067 (0.014) 6.340 (0.012) 89188.42 89188.53 13.1 HCO+ 1→0 tmc1-cal-240_0:3mm_red_8.png tmc1-cal-240_0:3mm_ori_8.png
0.330 (0.008) 0.82 (0.06) 0.286 (0.018) 5.501 (0.007) 89188.67 89188.53 33.0 HCO+ 1→0 tmc1-cal-240_0:3mm_red_9.png tmc1-cal-240_0:3mm_ori_9.png
0.023 (0.010) 0.8 (0.9) 0.019 (0.021) 3.35 (0.11) 89408.61 89407.82 2.3 CH2DOH 2(0,2)-1(0,1), e0 tmc1-cal-240_0:3mm_red_10.png tmc1-cal-240_0:3mm_ori_10.png
0.086 (0.013) 0.50 (0.20) 0.046 (0.018) 6.218 (0.023) 90663.50 90663.56 9.0 HNC 1→0 tmc1-cal-240_0:3mm_red_11.png tmc1-cal-240_0:3mm_ori_11.png
0.250 (0.011) 0.62 (0.08) 0.165 (0.020) 5.486 (0.009) 90663.72 90663.56 26.8 HNC 1→0 tmc1-cal-240_0:3mm_red_12.png tmc1-cal-240_0:3mm_ori_12.png
0.169 (0.006) 0.093 (0.024) 0.017 (0.005) 5.63 (0.09) 92544.02 92543.91 32.2 CH3OCHO v=1 9(1,8)-8(2,7) tmc1-cal-240_0:3mm_red_13.png tmc1-cal-240_0:3mm_ori_13.png
0.014 (0.007) 4 (4) 0.06 (0.04) 8.6 (0.3) 92980.79 92981.60 1.7 HDCS 3(0,3)-2(0,2) ? (CH3OCHO) tmc1-cal-240_0:3mm_red_14.png tmc1-cal-240_0:3mm_ori_14.png
0.021 (0.006) 4.2 (1.6) 0.10 (0.03) 6.42 (0.15) 93173.57 93173.70 3.4 N2H+ 1→0 F=1→2 tmc1-cal-240_0:3mm_red_15.png tmc1-cal-240_0:3mm_ori_15.png
0.014 (0.007) 0.4 (0.5) 0.006 (0.007) 5.05 (0.07) 93454.63 93454.33 2.4 CH3CCD 6(1)-5(1) tmc1-cal-240_0:3mm_red_16.png tmc1-cal-240_0:3mm_ori_16.png
0.08 (0.03) 4.4 (2.5) 0.37 (0.15) 5.65 (0.25) 93958.88 93958.8 2.6 Unidentified 93.959 GHz tmc1-cal-240_0:3mm_red_17.png tmc1-cal-240_0:3mm_ori_17.png
0.100 (0.020) 0.21 (0.11) 0.022 (0.012) 5.653 (0.020) 94084.01 94083.9 9.8 Unidentified 94.084 GHz tmc1-cal-240_0:3mm_red_18.png tmc1-cal-240_0:3mm_ori_18.png
0.013 (0.007) 0.5 (0.9) 0.007 (0.011) 5.04 (0.09) 95914.62 95914.31 2.2 CH3OH 2(1,2)→1(1,1) tmc1-cal-240_0:3mm_red_19.png tmc1-cal-240_0:3mm_ori_19.png
0.167 (0.012) 0.82 (0.15) 0.147 (0.024) 5.661 (0.019) 96234.53 96234.4 2.2 Unidentified 96.237 GHz tmc1-cal-240_0:3mm_red_20.png tmc1-cal-240_0:3mm_ori_20.png
0.194 (0.011) 2.7 (0.3) 0.56 (0.05) 5.66 (0.03) 96234.94 96234.8 2.5 Unidentified 96.237 GHz tmc1-cal-240_0:3mm_red_21.png tmc1-cal-240_0:3mm_ori_21.png
0.120 (0.011) 3.0 (0.5) 0.38 (0.05) 5.66 (0.05) 96235.83 96235.7 1.6 Unidentified 96.237 GHz tmc1-cal-240_0:3mm_red_22.png tmc1-cal-240_0:3mm_ori_22.png
0.019 (0.008) 3.5 (2.3) 0.07 (0.04) 2.14 (0.22) 96692.83 96691.59 2.1 CH2DCCH 6(1,6)-5(1,5) tmc1-cal-240_0:3mm_red_23.png tmc1-cal-240_0:3mm_ori_23.png
0.013 (0.007) 3 (3) 0.04 (0.03) 8.1 (0.3) 97061.42 97062.11 1.9 C7H J=111/2-109/2, F=56-55 (2) tmc1-cal-240_0:3mm_red_24.png tmc1-cal-240_0:3mm_ori_24.png
0.174 (0.013) 0.53 (0.09) 0.099 (0.016) 5.663 (0.011) 97981.06 97980.95 16.4 CS 2→1 tmc1-cal-240_0:3mm_red_25.png tmc1-cal-240_0:3mm_ori_25.png
0.032 (0.013) 0.4 (0.4) 0.013 (0.014) 2.75 (0.05) 99275.80 99274.72 3.0 C(50)</sup>\beta</sup> tmc1-cal-240_0:3mm_red_26.png tmc1-cal-240_0:3mm_ori_26.png
0.040 (0.009) 0.7 (0.5) 0.031 (0.020) 5.69 (0.06) 99299.99 99299.89 4.8 SO 3(2)→2(1) tmc1-cal-240_0:3mm_red_27.png tmc1-cal-240_0:3mm_ori_27.png
0.08 (0.04) 0.9 (0.9) 0.07 (0.07) 8.62 (0.12) 101736.28 101737.17 0.3 CH3OH 9(-2,8)-9(1,8) tmc1-cal-240_0:3mm_red_28.png tmc1-cal-240_0:3mm_ori_28.png
0.32 (0.04) 0.87 (0.22) 0.30 (0.07) 13.32 (0.03) 101742.48 101744.97 1.7 D2CO 10(2,8)-10(2,9) tmc1-cal-240_0:3mm_red_29.png tmc1-cal-240_0:3mm_ori_29.png
0.38 (0.03) 2.8 (0.4) 1.14 (0.13) 12.06 (0.04) 101742.91 101744.97 2.1 D2CO 10(2,8)-10(2,9) tmc1-cal-240_0:3mm_red_30.png tmc1-cal-240_0:3mm_ori_30.png
0.27 (0.03) 2.9 (0.6) 0.83 (0.13) 9.47 (0.06) 101743.79 101744.97 1.5 D2CO 10(2,8)-10(2,9) tmc1-cal-240_0:3mm_red_31.png tmc1-cal-240_0:3mm_ori_31.png
0.073 (0.016) 2.8 (1.0) 0.21 (0.07) 5.70 (0.10) 109562.07 109562.0 4.8 Unidentified 109.563 GHz tmc1-cal-240_0:3mm_red_32.png tmc1-cal-240_0:3mm_ori_32.png
0.098 (0.016) 3.6 (0.9) 0.37 (0.08) 5.70 (0.09) 109563.86 109563.8 6.6 Unidentified 109.563 GHz tmc1-cal-240_0:3mm_red_33.png tmc1-cal-240_0:3mm_ori_33.png
0.189 (0.015) 0.83 (0.16) 0.17 (0.03) 5.681 (0.018) 109782.29 109782.18 12.5 C18O 1→0 tmc1-cal-240_0:3mm_red_34.png tmc1-cal-240_0:3mm_ori_34.png
0.107 (0.016) 0.59 (0.22) 0.067 (0.024) 5.09 (0.03) 109782.51 109782.18 7.1 C18O 1→0 tmc1-cal-240_0:3mm_red_35.png tmc1-cal-240_0:3mm_ori_35.png
0.050 (0.023) 0.3 (0.4) 0.014 (0.019) 4.96 (0.05) 110154.56 110154.17 3.1 NH2D 1(1,1)0a-1(0,1)0s, F=1-2 tmc1-cal-240_0:3mm_red_36.png tmc1-cal-240_0:3mm_ori_36.png
2.087 (0.017) 2.03 (0.03) 4.51 (0.06) 6.218 (0.004) 110201.27 110201.35 23.6 13CO 1→0 tmc1-cal-240_0:3mm_red_37.png tmc1-cal-240_0:3mm_ori_37.png
2.316 (0.017) 1.380 (0.022) 3.40 (0.05) 5.3200 (0.0024) 110201.60 110201.35 26.2 13CO 1→0 tmc1-cal-240_0:3mm_red_38.png tmc1-cal-240_0:3mm_ori_38.png

Backend 2mm (134.6 GHz)

Found 2 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.204 (0.014) 0.06 (0.05) 0.014 (0.011) 5.32 (0.06) 134024.01 134023.71 14.5 C4H v7=1 J=29/2-27/2 tmc1-cal-240_0:2mm_134.6_red_0.png tmc1-cal-240_0:2mm_134.6_ori_0.png
0.112 (0.015) 0.06 (0.09) 0.007 (0.011) 5.32 (0.06) 135110.89 135110.58 7.5 H(60)</sup>\epsilon</sup> tmc1-cal-240_0:2mm_134.6_red_1.png tmc1-cal-240_0:2mm_134.6_ori_1.png

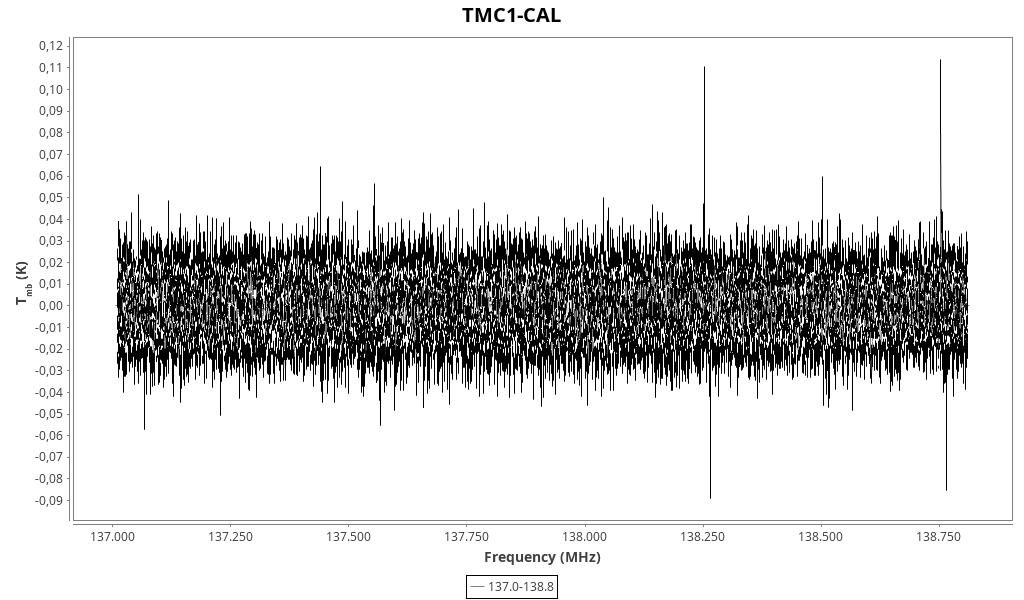

Backend 2mm (137.9 GHz)

Found 3 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.199 (0.014) 0.06 (0.05) 0.013 (0.011) 5.51 (0.06) 137553.97 137553.75 14.4 CaNC N=17-16, J=33/2-31/2 (3x) tmc1-cal-240_0:2mm_137.9_red_0.png tmc1-cal-240_0:2mm_137.9_ori_0.png
0.11 (0.04) 0.11 (0.11) 0.013 (0.013) 5.512 (0.022) 138254.00 138253.8 9.3 Unidentified 138.254 GHz tmc1-cal-240_0:2mm_137.9_red_1.png tmc1-cal-240_0:2mm_137.9_ori_1.png
0.418 (0.014) 0.057 (0.023) 0.025 (0.010) 5.51 (0.06) 138754.01 138753.8 30.7 Unidentified 138.754 GHz tmc1-cal-240_0:2mm_137.9_red_2.png tmc1-cal-240_0:2mm_137.9_ori_2.png

Backend 2mm (144.1 GHz)

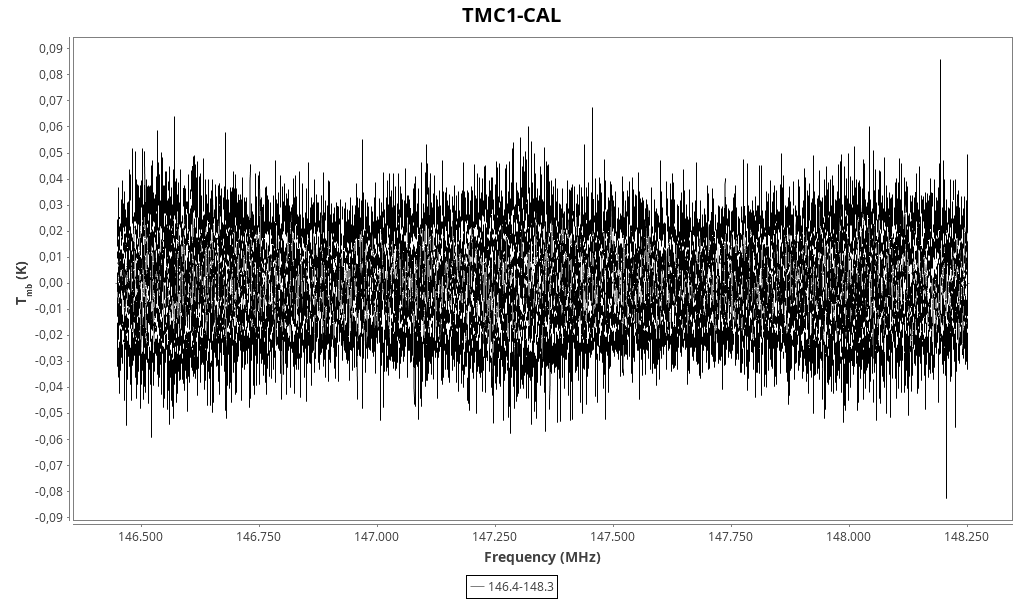

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
0.048 (0.014) 0.4 (0.6) 0.02 (0.03) 5.95 (0.06) 146969.05 146969.03 3.5 CS 3→2 tmc1-cal-240_0:2mm_147.3_red_0.png tmc1-cal-240_0:2mm_147.3_ori_0.png
0.088 (0.023) 0.16 (0.21) 0.015 (0.020) 5.954 (0.017) 148193.98 148194.0 6.4 Unidentified tmc1-cal-240_0:2mm_147.3_red_1.png tmc1-cal-240_0:2mm_147.3_ori_1.png

Backend 2mm (168.2 GHz)

Backend 2mm (171.5 GHz)

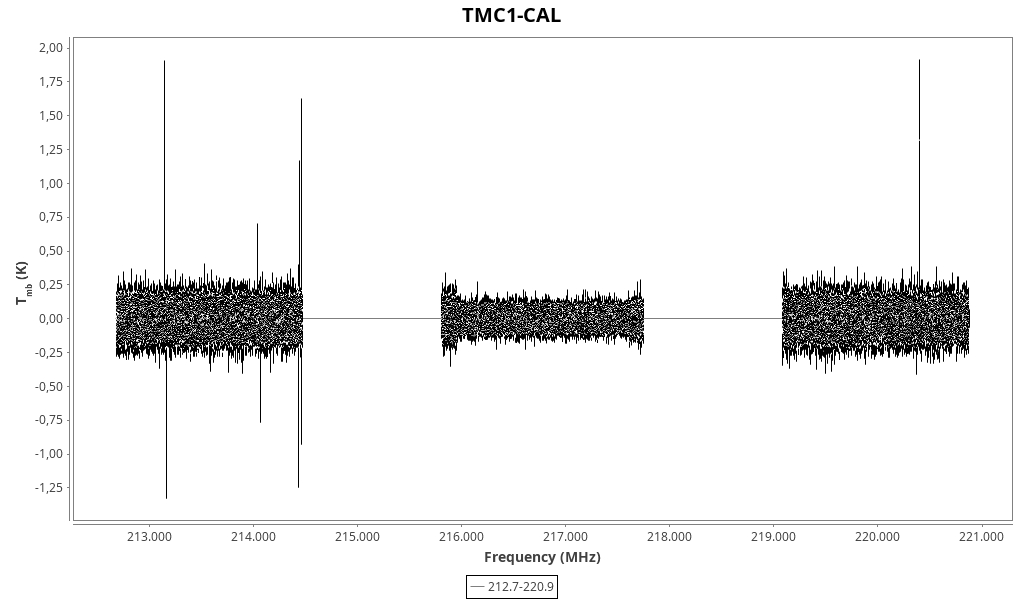

Backend 1mm (212.7-220.9 GHz)

Found 7 lines:

Tmb (K) Width (km/s) I (K km/s) Vlsr (km/s) Obs. freq (MHz) Rest freq (MHz) S/N ratio Transition Reduced spectrum Original spectrum
2.50 (0.20) 0.11 (0.05) 0.28 (0.12) 5.3741 (0.0020) 213141.09 213140.6 27.7 Unidentified 213.141 GHz tmc1-cal-240_0:1mm_red_0.png tmc1-cal-240_0:1mm_ori_0.png
0.9 (0.3) 0.10 (0.13) 0.10 (0.13) 5.377 (0.006) 214040.88 214040.4 9.5 Unidentified 214.041 GHz tmc1-cal-240_0:1mm_red_1.png tmc1-cal-240_0:1mm_ori_1.png
1.23 (0.14) 0.11 (0.09) 0.14 (0.11) 5.378 (0.005) 214439.21 214438.8 9.2 Unidentified 214.439 GHz tmc1-cal-240_0:1mm_red_2.png tmc1-cal-240_0:1mm_ori_2.png
9.67 (0.10) 0.039 (0.008) 0.40 (0.08) 5.38 (0.04) 214459.21 214458.8 73.9 Unidentified 214.459 GHz tmc1-cal-240_0:1mm_red_3.png tmc1-cal-240_0:1mm_ori_3.png
0.32 (0.10) 0.12 (0.22) 0.04 (0.08) 5.383 (0.013) 216153.12 216152.7 5.9 Unidentified 216.153 GHz tmc1-cal-240_0:1mm_red_4.png tmc1-cal-240_0:1mm_ori_4.png
1.17 (0.09) 1.4 (0.4) 1.8 (0.5) 5.912 (0.017) 220398.74 220398.68 10.7 13CO 2→1 tmc1-cal-240_0:1mm_red_5.png tmc1-cal-240_0:1mm_ori_5.png
0.85 (0.09) 1.0 (0.4) 0.9 (0.4) 5.395 (0.019) 220399.13 220398.68 7.9 13CO 2→1 tmc1-cal-240_0:1mm_red_6.png tmc1-cal-240_0:1mm_ori_6.png
