DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

TMC1-NH3--180_0

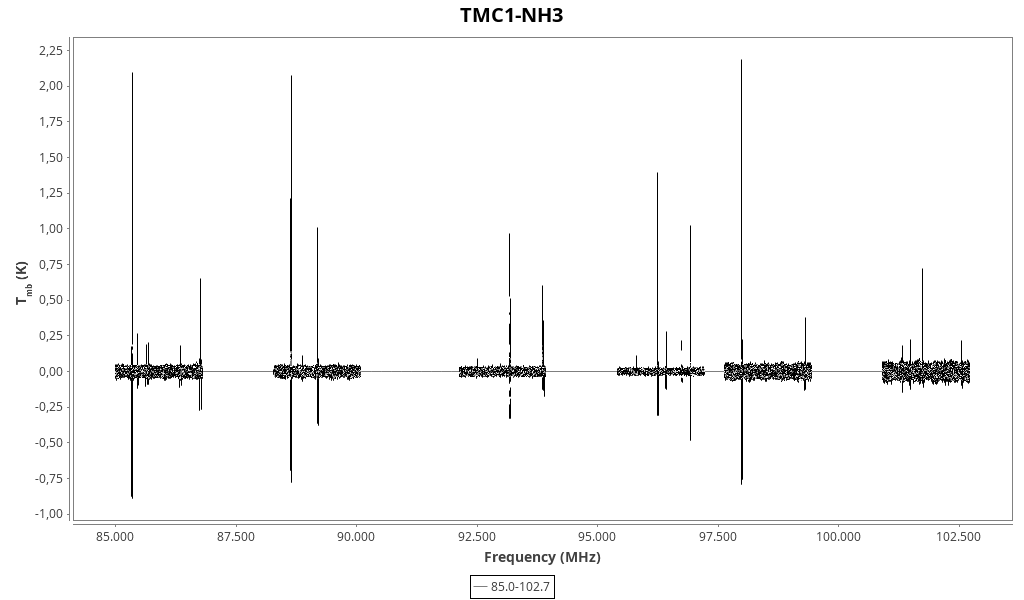

Backend 3mm (85.0-102.7 GHz)

Found 56 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.20 (0.03)	0.33 (0.14)	0.07 (0.03)	6.157 (0.015)	85338.86	85338.90	9.4	c-C₃H₂ 2_1,2→1_0,1
2.317 (0.025)	0.386 (0.013)	0.95 (0.04)	5.3605 (0.0014)	85339.08	85338.90	106.3	c-C₃H₂ 2_1,2→1_0,1
0.135 (0.023)	0.29 (0.19)	0.04 (0.03)	5.414 (0.020)	85348.04	85347.87	1.4	HCS⁺ 2→1
0.237 (0.020)	0.37 (0.09)	0.092 (0.024)	5.353 (0.011)	85455.84	85455.66	15.1	CH₃C₂H 5₁→4₁
0.269 (0.022)	0.36 (0.09)	0.102 (0.023)	5.348 (0.009)	85457.48	85457.29	17.8	CH₃C₂H 5₀→4₀
0.189 (0.021)	0.38 (0.15)	0.08 (0.03)	5.390 (0.016)	85634.18	85634.01	10.5	C₄H 9→8 J=19/2→17/2
0.197 (0.021)	0.38 (0.14)	0.08 (0.03)	5.355 (0.016)	85672.76	85672.58	10.0	C₄H 9→8 J=17/2→15/2
0.110 (0.020)	0.7 (0.4)	0.08 (0.05)	5.42 (0.04)	86338.90	86338.73	5.9	H¹³CN 1₁→0₁
0.20 (0.03)	0.33 (0.14)	0.07 (0.03)	4.510 (0.016)	86340.35	86339.92	10.5	H¹³CN 1→0
0.191 (0.021)	0.33 (0.11)	0.066 (0.022)	6.136 (0.012)	86754.25	86754.29	11.7	H¹³CO⁺ 1→0
0.708 (0.018)	0.47 (0.04)	0.36 (0.03)	5.371 (0.004)	86754.47	86754.29	43.3	H¹³CO⁺ 1→0
0.031 (0.020)	0.3 (0.7)	0.011 (0.021)	5.62 (0.08)	86777.55	86777.44	2.2	HCO 1_0,1→0_0,0 J=1/2→1/2 F=1→1
1.182 (0.018)	0.415 (0.018)	0.522 (0.021)	5.2343 (0.0019)	88630.65	88630.42	37.1	HCN 1→0 F=1→1
0.039 (0.016)	0.4 (0.6)	0.016 (0.021)	6.47 (0.07)	88631.71	88631.85	1.2	HCN 1→0 F=2→1
0.291 (0.015)	0.59 (0.09)	0.183 (0.025)	5.725 (0.009)	88631.93	88631.85	9.2	HCN 1→0 F=2→1
2.199 (0.018)	0.356 (0.009)	0.832 (0.020)	5.1613 (0.0009)	88632.09	88631.85	69.5	HCN 1→0 F=2→1
1.308 (0.016)	0.479 (0.017)	0.668 (0.023)	5.3149 (0.0019)	88634.14	88633.94	41.3	HCN 1→0 F=0→1
0.128 (0.024)	0.28 (0.15)	0.038 (0.020)	5.443 (0.016)	88865.87	88865.70	8.6	H¹⁵NC 1→0
0.288 (0.018)	0.86 (0.15)	0.26 (0.05)	5.811 (0.016)	89188.58	89188.53	14.6	HCO⁺ 1→0
0.95 (0.03)	0.32 (0.03)	0.32 (0.03)	5.113 (0.003)	89188.79	89188.53	47.9	HCO⁺ 1→0
0.045 (0.017)	0.3 (0.5)	0.016 (0.020)	5.46 (0.05)	89671.33	89671.17	3.3	HC₄NC J=32-31 (3 components)
0.101 (0.016)	0.35 (0.17)	0.037 (0.018)	5.319 (0.018)	92494.48	92494.27	9.2	¹³CS 2→1
0.031 (0.005)	0.19 (0.07)	0.0065 (0.0004)	Unavailable	92660.85	Unavailable	2.9	CH₃CN 5₂→4₂ (image band)
0.056 (0.020)	0.3 (0.4)	0.020 (0.019)	5.51 (0.04)	92981.75	92981.60	4.1	HDCS 3(0,3)-2(0,2) ? (CH3OCHO)
0.559 (0.012)	0.72 (0.05)	0.430 (0.025)	5.166 (0.005)	93172.14	93171.88	10.6	N₂H⁺ 1→0 F=1→1
0.481 (0.021)	0.22 (0.03)	0.113 (0.014)	6.220 (0.004)	93173.63	93173.70	9.1	N₂H⁺ 1→0 F=1→2
0.457 (0.012)	1.67 (0.09)	0.81 (0.04)	5.368 (0.009)	93173.90	93173.70	8.6	N₂H⁺ 1→0 F=1→2
0.527 (0.017)	0.27 (0.03)	0.153 (0.015)	5.224 (0.003)	93173.94	93173.70	9.9	N₂H⁺ 1→0 F=1→2
0.491 (0.017)	0.35 (0.04)	0.185 (0.018)	5.032 (0.004)	93176.43	93176.13	9.2	N₂H⁺ 1→0 F=1→0
0.51 (0.05)	2.0 (0.4)	1.08 (0.17)	5.42 (0.04)	93856.70	93856.5	7.6	Unidentified 93.857 GHz
0.374 (0.025)	0.22 (0.04)	0.088 (0.015)	5.424 (0.005)	93870.28	93870.10	18.6	C₂S N=7→6 J=8→7
0.024 (0.009)	0.4 (0.6)	0.011 (0.015)	5.98 (0.07)	95810.42	95810.41	1.1	³⁴SO₂ 2(2,0)-3(1,3)
0.53 (0.03)	4.3 (0.4)	2.40 (0.16)	5.20 (0.04)	96241.07	96240.81	24.2	CNCHO 22(3,19)-23(2,22)
0.83 (0.04)	0.80 (0.09)	0.70 (0.07)	4.950 (0.009)	96241.15	96240.81	37.9	CNCHO 22(3,19)-23(2,22)
0.296 (0.012)	0.35 (0.05)	0.111 (0.014)	5.385 (0.005)	96413.15	96412.95	25.7	C³⁴S 2→1
0.031 (0.010)	0.3 (0.4)	0.011 (0.013)	5.91 (0.05)	96632.65	96632.63	3.8	CH₃CHO 5_(2,3)→4_(2,2) (2)
0.024 (0.003)	0.219 (0.016)	0.0056 (0.0005)	Unavailable	96713.96	Unavailable	3.2	HNCO 4_(0,4)→3_(0,3) (image band)
0.148 (0.018)	0.36 (0.12)	0.057 (0.019)	6.136 (0.013)	96739.31	96739.36	14.0	CH₃OH 2_(-1,2)→1_(-1,1)
0.185 (0.013)	0.57 (0.13)	0.112 (0.024)	5.330 (0.013)	96739.57	96739.36	17.3	CH₃OH 2_(-1,2)→1_(-1,1)
0.190 (0.018)	0.35 (0.10)	0.071 (0.019)	6.137 (0.011)	96741.33	96741.37	15.5	CH₃OH 2_(0,2)→1_(0,1) ++
0.238 (0.014)	0.53 (0.10)	0.136 (0.024)	5.336 (0.011)	96741.59	96741.37	18.9	CH₃OH 2_(0,2)→1_(0,1) ++
1.40 (0.04)	0.199 (0.009)	0.297 (0.012)	5.4368 (0.0008)	96911.03	96910.8	30.5	Unidentified 96.911 GHz
0.679 (0.016)	0.292 (0.022)	0.211 (0.016)	5.4369 (0.0023)	96926.03	96925.9	23.9	Unidentified 96.926 GHz
0.05 (0.09)	0.2 (0.3)	0.008 (0.012)	5.44 (0.09)	96926.96	96926.8	1.7	Unidentified 96.926 GHz
0.211 (0.017)	0.87 (0.19)	0.19 (0.04)	Unavailable	97969.50	Unavailable	2.6	HCO 1_0,1→0_0,0 J=3/2→1/2 F=2→1 (image band)
0.541 (0.019)	0.90 (0.09)	0.52 (0.05)	6.020 (0.009)	97980.95	97980.95	20.3	CS 2→1
2.141 (0.025)	0.402 (0.014)	0.92 (0.03)	5.2355 (0.0015)	97981.20	97980.95	79.8	CS 2→1
0.1 (0.3)	0.1 (0.6)	0.011 (0.017)	5.31 (0.20)	97995.39	97995.17	0.8	l-C₃H J=9/2-7/2, Omega=1/2, F=5-4, l=e
0.381 (0.022)	0.38 (0.07)	0.153 (0.025)	6.142 (0.007)	99299.84	99299.89	21.7	SO 3₍₂₎→2₍₁₎
0.314 (0.018)	0.53 (0.09)	0.18 (0.03)	5.393 (0.010)	99300.09	99299.89	17.9	SO 3₍₂₎→2₍₁₎
0.172 (0.025)	0.09 (0.11)	0.017 (0.020)	5.46 (0.08)	101326.80	101326.6	6.1	Unidentified 101.327 GHz
0.22 (0.03)	0.36 (0.15)	0.08 (0.04)	5.360 (0.017)	101478.03	101477.81	9.9	H₂CS 3_(1,3)→2_(1,2)
0.31 (0.05)	0.44 (0.20)	0.14 (0.07)	8.988 (0.022)	101736.16	101737.17	1.9	CH₃OH 9(-2,8)-9(1,8)
0.15 (0.04)	1.1 (0.7)	0.18 (0.10)	8.36 (0.07)	101736.37	101737.17	1.0	CH₃OH 9(-2,8)-9(1,8)
0.21 (0.04)	0.35 (0.17)	0.08 (0.04)	5.416 (0.018)	102546.22	102546.02	9.4	CH₃CCH 6₍₁₎→5₍₁₎
0.19 (0.04)	0.35 (0.18)	0.07 (0.04)	5.434 (0.019)	102548.18	102547.98	8.9	CH₃CCH 6₍₀₎→5₍₀₎

Backend 2mm (134.6 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.10 (0.05)	0.13 (0.17)	0.014 (0.018)	4.578 (0.023)	133729.03	133728.4	8.3	Unidentified 133.729 GHz
0.13 (0.06)	0.11 (0.13)	0.015 (0.017)	4.58 (0.03)	133735.03	133734.4	8.1	Unidentified 133.735 GHz
0.315 (0.017)	0.06 (0.04)	0.020 (0.012)	4.58 (0.06)	133838.03	133837.4	21.1	Unidentified 133.838 GHz
0.099 (0.017)	0.4 (0.4)	0.04 (0.04)	4.595 (0.024)	135298.89	135298.26	5.8	H₂CS 4(1,4)-3(1,3)

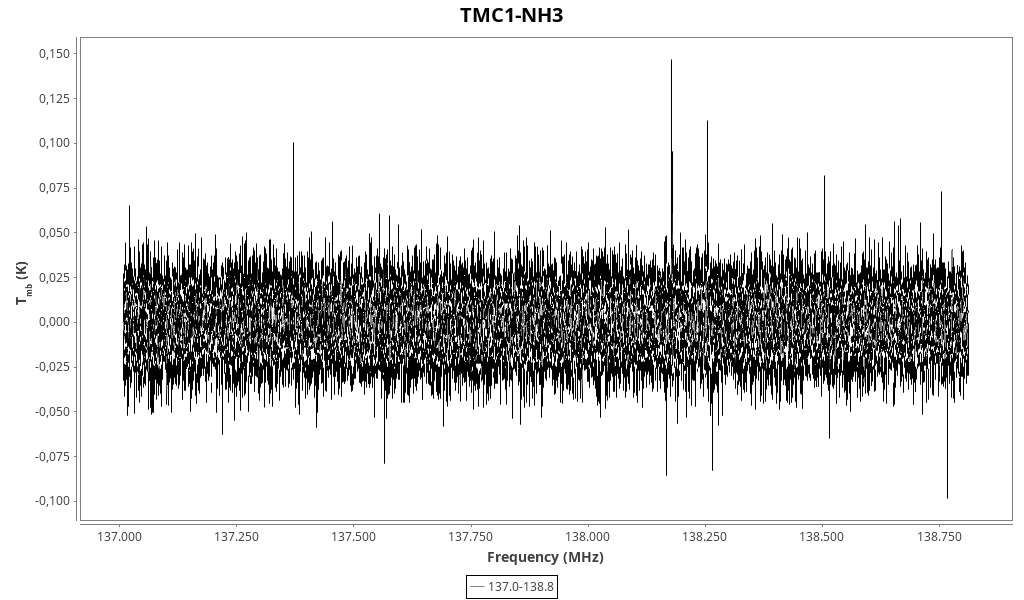

Backend 2mm (137.9 GHz)

Found 7 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.11 (0.03)	0.18 (0.16)	0.022 (0.019)	5.383 (0.012)	137371.49	137371.21	7.5	H₂CS 4(0,4)-3(0,3)
0.063 (0.018)	0.3 (0.4)	0.018 (0.024)	5.54 (0.03)	137454.68	137454.46	4.6	c-HCCCD 2(2,0)-1(1,1)
0.151 (0.022)	0.23 (0.15)	0.036 (0.024)	6.215 (0.012)	138178.56	138178.66	8.6	SO 4₃→3₂
0.083 (0.017)	0.3 (0.4)	0.03 (0.03)	5.46 (0.03)	138178.91	138178.66	4.7	SO 4₃→3₂
0.457 (0.019)	0.032 (0.021)	0.015 (0.010)	5.54 (0.06)	138253.98	138253.8	26.0	Unidentified 138.254 GHz
0.171 (0.016)	0.03 (0.09)	0.006 (0.009)	5.54 (0.06)	138503.99	138503.8	11.4	Unidentified 138.504 GHz
0.035 (0.022)	0.2 (0.6)	0.007 (0.020)	5.75 (0.05)	138739.38	138739.26	2.2	¹³CS 3→2

Backend 2mm (144.1 GHz)

Found 7 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.14 (0.06)	0.2 (0.3)	0.02 (0.05)	5.510 (0.023)	143223.56	143223.3	4.2	Unidentified 143.224 GHz
0.51 (0.04)	0.06 (0.05)	0.03 (0.03)	5.51 (0.05)	143229.55	143229.3	16.3	Unidentified 143.229 GHz
0.78 (0.04)	0.028 (0.023)	0.023 (0.018)	5.51 (0.05)	143332.56	143332.3	25.1	Unidentified 143.333 GHz
0.60 (0.04)	0.40 (0.11)	0.25 (0.07)	5.513 (0.008)	144077.52	144077.29	17.3	DCO⁺ J=2-1 (multiple components around)
0.17 (0.04)	0.3 (0.4)	0.05 (0.06)	5.226 (0.024)	144828.38	144828.00	5.1	DCN 2→1
0.34 (0.04)	3.9 (0.7)	1.39 (0.21)	5.52 (0.05)	144916.57	144916.3	6.1	Unidentified 144.916 GHz
0.63 (0.04)	1.43 (0.20)	0.96 (0.13)	5.516 (0.014)	144917.59	144917.4	11.5	Unidentified 144.916 GHz

Backend 2mm (147.3 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.25 (0.03)	0.8 (0.4)	0.21 (0.08)	5.995 (0.022)	146969.03	146969.03	7.7	CS 3→2
1.46 (0.04)	0.38 (0.04)	0.59 (0.06)	5.287 (0.003)	146969.38	146969.03	44.6	CS 3→2

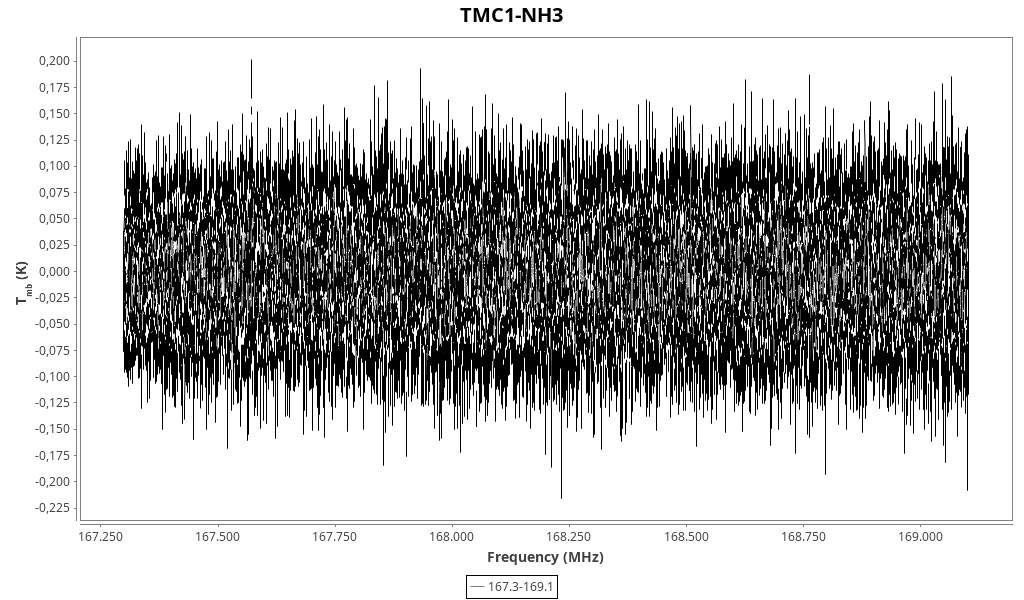

Backend 2mm (168.2 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.17 (0.06)	1.0 (1.1)	0.18 (0.19)	5.33 (0.07)	167570.97	167570.6	3.1	Unidentified 167.570 GHz
0.18 (0.07)	0.3 (0.6)	0.05 (0.10)	5.34 (0.04)	168763.13	168762.75	3.1	H₂S 1_(1,0)→1_(0,1)

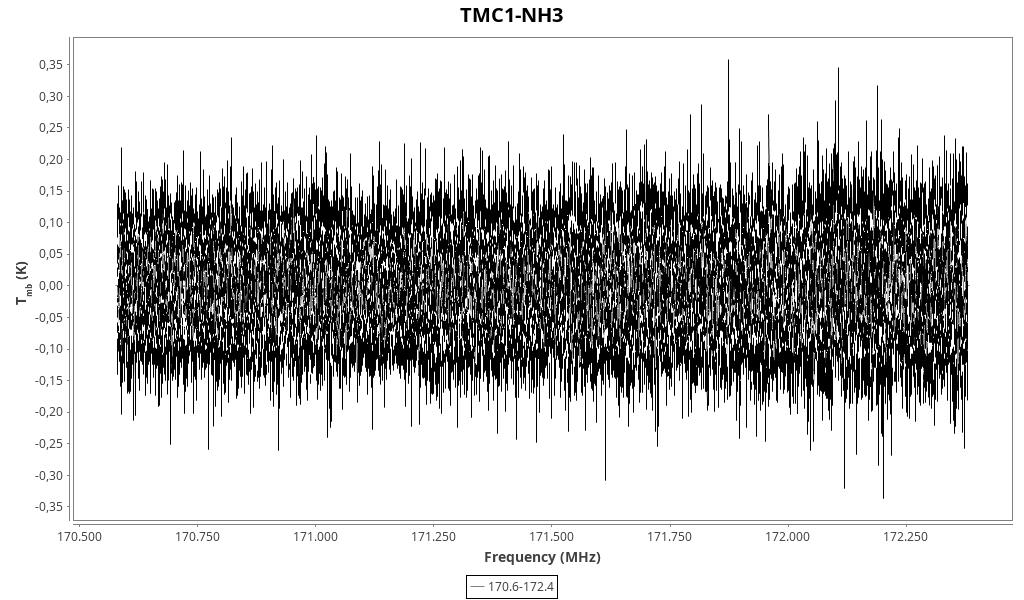

Backend 2mm (171.5 GHz)

Found 5 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.98 (0.07)	0.05 (0.05)	0.05 (0.06)	5.17 (0.05)	171000.44	171000.0	14.1	Unidentified 171.001 GHz
0.16 (0.08)	0.4 (1.0)	0.07 (0.17)	5.18 (0.07)	171874.78	171874.3	2.0	Unidentified 171.874 GHz
0.30 (0.12)	0.1 (0.3)	0.04 (0.09)	5.179 (0.021)	172100.41	172099.9	3.9	Unidentified 172.100 GHz
0.77 (0.08)	0.06 (0.08)	0.05 (0.06)	4.20 (0.05)	172106.59	172105.56	10.2	HS₂ 11(2,9)-10(2,8), J=21/2-19/2, F=11-10
0.17 (0.19)	0.1 (0.5)	0.02 (0.08)	5.18 (0.06)	172108.43	172107.96	2.2	HC¹⁵N 2→1
