DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

TMC1-NH3-120_0

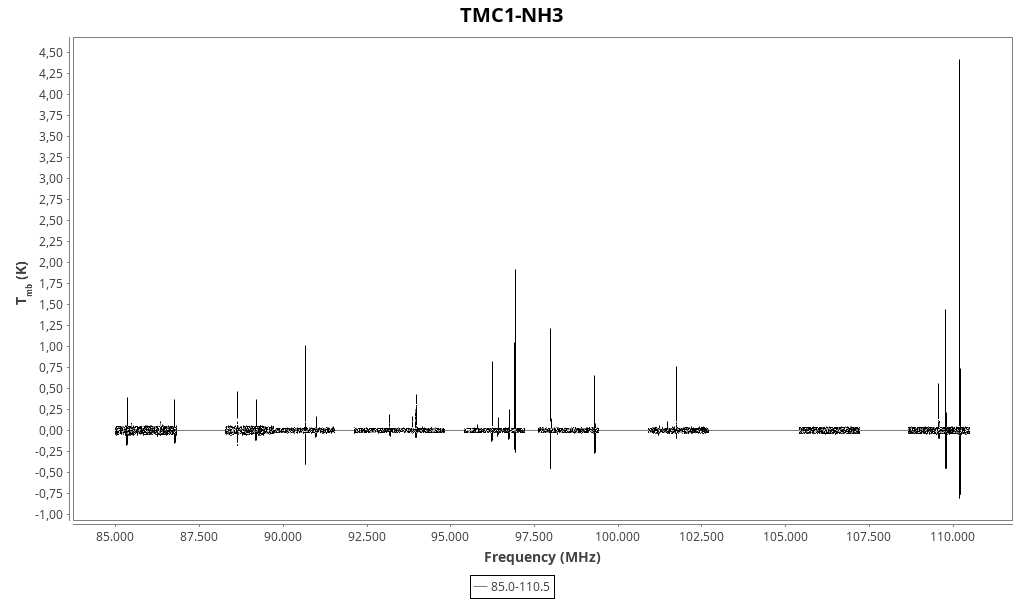

Backend 3mm (85.0-110.5 GHz)

Found 61 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.405 (0.020)	0.41 (0.06)	0.178 (0.024)	5.890 (0.007)	85338.93	85338.90	28.0	c-C₃H₂ 2_1,2→1_0,1
0.050 (0.018)	0.4 (0.5)	0.021 (0.022)	5.87 (0.05)	85347.91	85347.87	2.1	HCS⁺ 2→1
0.06 (0.03)	0.4 (0.5)	0.03 (0.03)	5.80 (0.06)	86055.02	86054.97	3.9	HC¹⁵N 1→0
0.368 (0.021)	0.41 (0.07)	0.161 (0.025)	5.867 (0.008)	86754.33	86754.29	25.6	H¹³CO⁺ 1→0
0.064 (0.020)	0.4 (0.4)	0.027 (0.023)	6.42 (0.04)	88630.30	88630.42	3.8	HCN 1→0 F=1→1
0.369 (0.019)	0.54 (0.08)	0.21 (0.03)	5.747 (0.008)	88630.49	88630.42	21.8	HCN 1→0 F=1→1
0.115 (0.016)	1.7 (0.5)	0.21 (0.06)	5.83 (0.05)	88631.90	88631.85	6.6	HCN 1→0 F=2→1
0.360 (0.023)	0.48 (0.08)	0.18 (0.03)	5.669 (0.009)	88631.94	88631.85	20.4	HCN 1→0 F=2→1
0.427 (0.019)	0.50 (0.06)	0.23 (0.03)	5.833 (0.007)	88633.99	88633.94	24.5	HCN 1→0 F=0→1
0.301 (0.014)	1.13 (0.12)	0.36 (0.04)	5.822 (0.013)	89188.58	89188.53	17.6	HCO⁺ 1→0
0.134 (0.020)	0.30 (0.13)	0.042 (0.018)	5.044 (0.015)	89188.81	89188.53	7.8	HCO⁺ 1→0
0.334 (0.011)	0.56 (0.06)	0.200 (0.018)	6.344 (0.006)	90663.46	90663.56	32.5	HNC 1→0
1.042 (0.012)	0.529 (0.017)	0.587 (0.018)	5.6366 (0.0019)	90663.67	90663.56	100.9	HNC 1→0
0.106 (0.014)	0.34 (0.13)	0.038 (0.014)	4.998 (0.015)	90663.87	90663.56	10.3	HNC 1→0
0.030 (0.015)	0.2 (0.4)	0.007 (0.011)	5.92 (0.05)	90686.40	90686.38	3.4	CCS N=7-6, J=7-6
0.031 (0.012)	0.5 (0.6)	0.015 (0.017)	3.73 (0.06)	90978.13	90977.44	3.1	HC₃N J=10-9, F=10-10
0.185 (0.014)	0.36 (0.08)	0.071 (0.015)	5.849 (0.009)	90979.05	90979.00	18.9	HC₃N 10→9 (3 components around)
0.058 (0.015)	0.28 (0.24)	0.017 (0.014)	5.92 (0.03)	91494.37	91494.35	5.5	c-C₃H 2(1,2)-1(1,1), J=5/2-3/2, F=3-2
0.028 (0.017)	0.5 (0.6)	0.015 (0.016)	5.93 (0.09)	92494.29	92494.27	3.4	¹³CS 2→1
0.095 (0.008)	0.67 (0.16)	0.068 (0.016)	5.624 (0.018)	93172.00	93171.88	11.1	N₂H⁺ 1→0 F=1→1
0.122 (0.011)	0.33 (0.09)	0.042 (0.011)	6.656 (0.009)	93173.50	93173.70	14.0	N₂H⁺ 1→0 F=1→2
0.27 (0.13)	0.15 (0.07)	0.045 (0.008)	5.784 (0.019)	93173.77	93173.70	31.2	N₂H⁺ 1→0 F=1→2
0.466 (0.008)	0.097 (0.012)	0.048 (0.006)	5.51 (0.08)	93173.85	93173.70	53.5	N₂H⁺ 1→0 F=1→2
0.075 (0.009)	0.41 (0.15)	0.033 (0.012)	5.107 (0.017)	93173.98	93173.70	8.6	N₂H⁺ 1→0 F=1→2
0.080 (0.010)	0.32 (0.12)	0.027 (0.009)	5.481 (0.013)	93176.29	93176.13	9.6	N₂H⁺ 1→0 F=1→0
0.028 (0.016)	0.3 (0.4)	0.008 (0.009)	3.44 (0.05)	93600.10	93599.30	3.8	CH₃OOH (1)
0.020 (0.010)	0.5 (0.7)	0.011 (0.014)	5.41 (0.09)	93654.20	93654.02	2.7	C(51)</sup>\beta</sup>
0.047 (0.011)	0.28 (0.21)	0.014 (0.011)	5.855 (0.024)	93870.15	93870.10	6.1	C₂S N=7→6 J=8→7
0.037 (0.008)	1.5 (0.7)	0.060 (0.024)	9.53 (0.07)	95809.28	95810.41	4.3	³⁴SO₂ 2(2,0)-3(1,3)
0.021 (0.008)	2.8 (1.7)	0.06 (0.04)	9.17 (0.16)	95809.40	95810.41	2.4	³⁴SO₂ 2(2,0)-3(1,3)
0.10 (0.03)	2.0 (1.2)	0.21 (0.11)	5.84 (0.15)	96239.93	96239.9	2.0	Unidentified 96.239 GHz
0.68 (0.04)	3.3 (0.3)	2.44 (0.15)	4.842 (0.025)	96241.18	96240.81	13.9	CNCHO 22(3,19)-23(2,22)
0.161 (0.010)	0.42 (0.08)	0.073 (0.013)	5.864 (0.009)	96413.00	96412.95	19.9	C³⁴S 2→1
0.015 (0.008)	3 (3)	0.05 (0.04)	2.28 (0.25)	96633.83	96632.63	1.9	CH₃CHO 5_(2,3)→4_(2,2) (2)
0.190 (0.009)	0.47 (0.07)	0.096 (0.013)	5.834 (0.008)	96739.41	96739.36	26.6	CH₃OH 2_(-1,2)→1_(-1,1)
0.255 (0.009)	0.50 (0.05)	0.137 (0.013)	5.853 (0.006)	96741.42	96741.37	35.4	CH₃OH 2_(0,2)→1_(0,1) ++
0.020 (0.009)	0.6 (0.7)	0.012 (0.014)	6.22 (0.08)	96755.44	96755.51	1.3	CH₃OH 2_(1,1)→1_(1,0) (1)
1.232 (0.012)	0.272 (0.007)	0.357 (0.009)	5.8380 (0.0008)	96911.03	96911.0	52.3	Unidentified 96.911 GHz
2.242 (0.019)	0.236 (0.005)	0.563 (0.011)	5.8380 (0.0006)	96926.06	96926.0	77.4	Unidentified 96.926 GHz
1.057 (0.009)	0.582 (0.014)	0.655 (0.015)	5.7994 (0.0015)	97981.02	97980.95	59.8	CS 2→1
0.128 (0.008)	1.63 (0.20)	0.222 (0.024)	5.799 (0.020)	97981.02	97980.95	7.3	CS 2→1
0.021 (0.009)	1.2 (1.2)	0.026 (0.024)	6.17 (0.13)	97995.86	97995.91	0.4	l-C₃H J=9/2-7/2, Omega=1/2, F=4-3, l=e
0.028 (0.011)	3.2 (2.0)	0.09 (0.05)	8.57 (0.19)	98900.10	98900.95	2.3	CH₃CHO 5_(1,4)→4_(1,3) (2)
0.694 (0.011)	0.533 (0.024)	0.394 (0.017)	5.829 (0.003)	99299.95	99299.89	69.0	SO 3₍₂₎→2₍₁₎
0.085 (0.014)	0.27 (0.14)	0.025 (0.013)	5.182 (0.016)	99300.16	99299.89	8.4	SO 3₍₂₎→2₍₁₎
0.033 (0.013)	0.3 (0.4)	0.011 (0.013)	8.45 (0.05)	101313.99	101314.82	4.0	DC₃N J=12-11
0.106 (0.011)	0.46 (0.14)	0.052 (0.016)	5.851 (0.016)	101477.86	101477.81	12.5	H₂CS 3_(1,3)→2_(1,2)
0.19 (0.05)	0.8 (0.5)	0.16 (0.09)	13.21 (0.06)	101742.52	101744.97	0.9	D₂CO 10(2,8)-10(2,9)
0.11 (0.04)	4.7 (2.5)	0.52 (0.21)	10.04 (0.22)	101743.59	101744.97	0.5	D₂CO 10(2,8)-10(2,9)
0.035 (0.014)	0.5 (0.6)	0.018 (0.020)	5.73 (0.06)	102546.12	102546.02	3.1	CH₃CCH 6₍₁₎→5₍₁₎
0.057 (0.021)	0.29 (0.25)	0.018 (0.015)	5.85 (0.03)	102548.04	102547.98	5.1	CH₃CCH 6₍₀₎→5₍₀₎
0.027 (0.019)	0.3 (0.6)	0.008 (0.016)	5.86 (0.07)	106079.58	106079.53	2.3	H(69)</sup>\zeta</sup>
0.040 (0.015)	0.4 (0.5)	0.017 (0.019)	5.87 (0.06)	106347.78	106347.73	3.5	C₂S N=8→7 J=9→8
0.044 (0.016)	0.4 (0.5)	0.017 (0.019)	3.43 (0.06)	106781.77	106780.85	3.6	He(39)</sup>\alpha</sup>
0.047 (0.016)	0.4 (0.4)	0.018 (0.019)	5.83 (0.05)	109173.70	109173.64	4.2	HC₃N 12→11
0.51 (0.09)	2.2 (0.8)	1.2 (0.4)	5.86 (0.08)	109575.33	109575.3	10.6	Unidentified
0.095 (0.012)	0.7 (0.3)	0.067 (0.025)	6.67 (0.03)	109781.93	109782.18	7.6	C¹⁸O 1→0
1.461 (0.012)	0.812 (0.019)	1.26 (0.03)	5.8312 (0.0020)	109782.24	109782.18	118.1	C¹⁸O 1→0
0.803 (0.016)	0.363 (0.022)	0.310 (0.018)	5.1645 (0.0024)	109782.48	109782.18	64.8	C¹⁸O 1→0
2.468 (0.020)	1.67 (0.03)	4.38 (0.07)	6.243 (0.003)	110201.26	110201.35	17.4	¹³CO 1→0
3.240 (0.020)	1.349 (0.019)	4.65 (0.06)	5.4969 (0.0021)	110201.54	110201.35	22.8	¹³CO 1→0

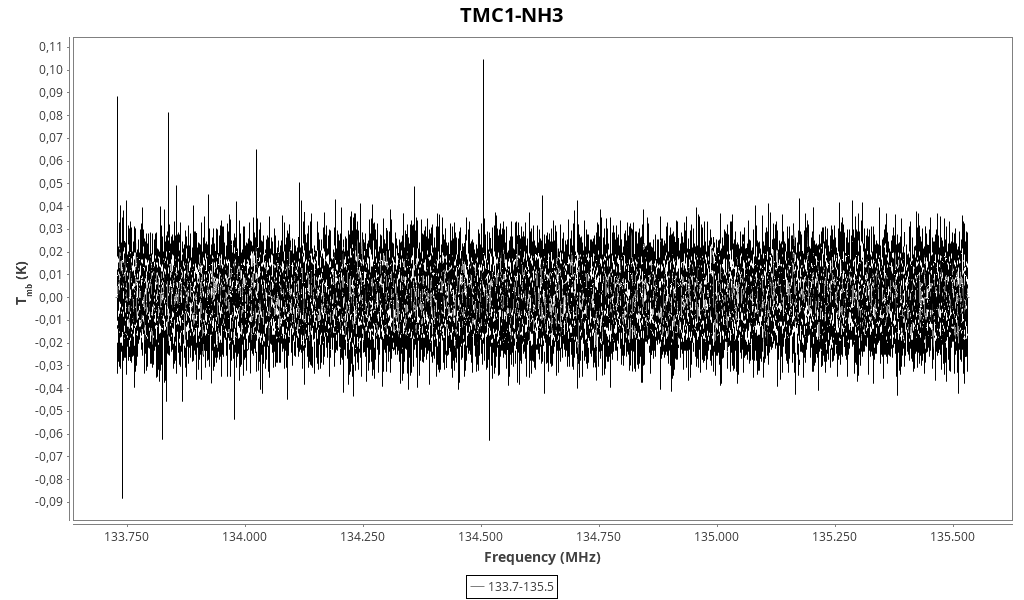

Backend 2mm (134.6 GHz)

Found 4 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.448 (0.014)	0.058 (0.022)	0.028 (0.011)	5.96 (0.06)	133729.04	133729.0	41.3	Unidentified 133.729 GHz
0.084 (0.014)	0.03 (0.08)	0.002 (0.007)	5.96 (0.06)	133838.06	133838.0	6.3	Unidentified 133.838 GHz
0.212 (0.014)	0.06 (0.05)	0.014 (0.011)	5.96 (0.06)	134023.73	134023.71	15.1	C₄H v₇=1 J=29/2-27/2
0.110 (0.023)	0.14 (0.12)	0.017 (0.013)	5.956 (0.012)	134505.20	134505.2	8.9	Unidentified 134.505 GHz

Backend 2mm (137.9 GHz)

Found 5 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.295 (0.012)	0.06 (0.03)	0.018 (0.009)	5.79 (0.06)	137371.31	137371.21	27.5	H₂CS 4(0,4)-3(0,3)
0.036 (0.015)	0.3 (0.5)	0.010 (0.018)	5.53 (0.04)	137553.96	137553.75	3.3	CaNC N=17-16, J=33/2-31/2 (3x)
0.223 (0.012)	0.06 (0.04)	0.014 (0.009)	5.34 (0.06)	138154.02	138153.71	21.3	SiC₅ N=75-74, J=76-75
0.256 (0.012)	0.38 (0.08)	0.104 (0.021)	5.927 (0.006)	138178.69	138178.66	22.6	SO 4₃→3₂
0.330 (0.012)	0.030 (0.018)	0.011 (0.007)	5.79 (0.06)	138754.00	138753.9	30.7	Unidentified 138.754 GHz

Backend 2mm (144.1 GHz)

Backend 2mm (147.3 GHz)

Found 1 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.70 (0.05)	0.39 (0.11)	0.29 (0.08)	5.809 (0.008)	146969.12	146969.03	19.0	CS 3→2

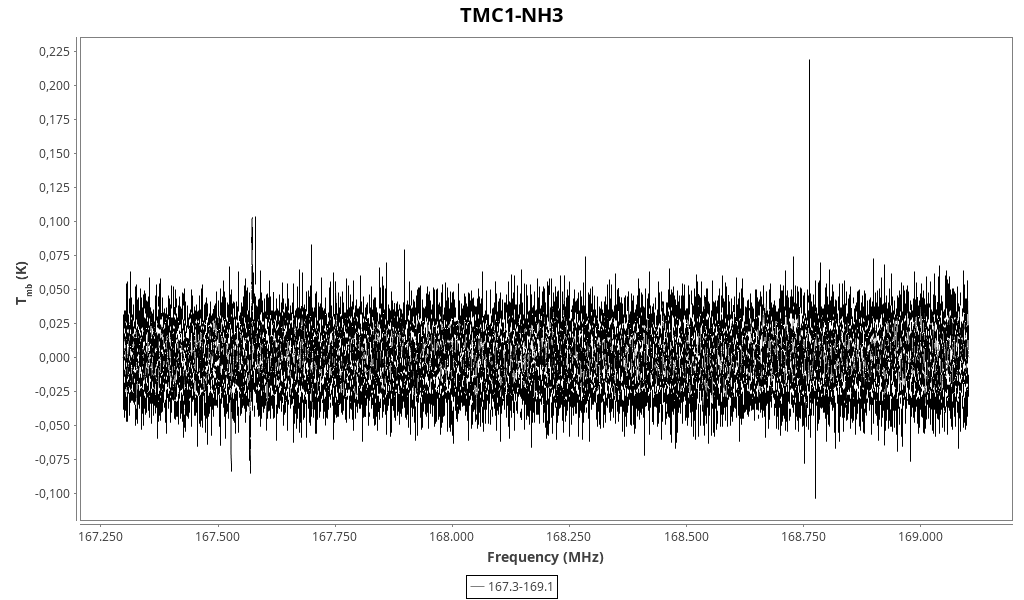

Backend 2mm (168.2 GHz)

Found 1 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.204 (0.022)	0.34 (0.19)	0.07 (0.05)	5.844 (0.013)	168762.84	168762.75	9.3	H₂S 1_(1,0)→1_(0,1)

Backend 2mm (171.5 GHz)

Found 3 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.31 (0.07)	0.10 (0.10)	0.03 (0.04)	5.097 (0.013)	172106.08	172105.56	10.8	HS₂ 11(2,9)-10(2,8), J=21/2-19/2, F=11-10
0.35 (0.04)	0.07 (0.09)	0.03 (0.04)	5.10 (0.05)	172221.05	172220.5	10.7	Unidentified 172.220 GHz
3.54 (0.04)	0.046 (0.006)	0.175 (0.023)	5.30 (0.05)	172232.95	172232.55	116.3	S₂O 17(3,14)-17(2,15)

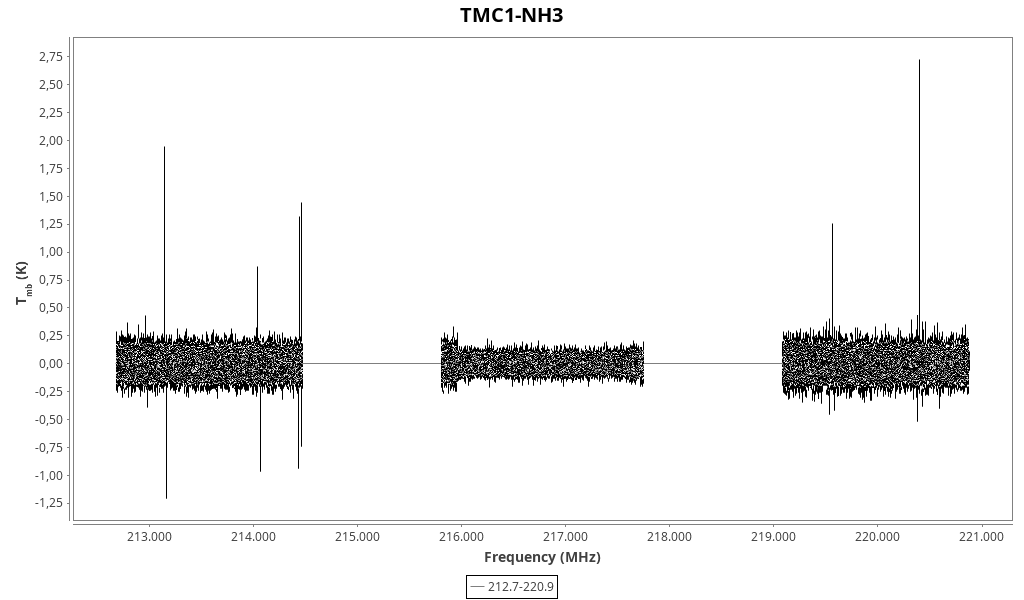

Backend 1mm (212.7-220.9 GHz)

Found 7 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
11.12 (0.09)	0.040 (0.006)	0.47 (0.07)	5.84 (0.04)	213141.09	213141.0	124.7	Unidentified 213.141 GHz
1.08 (0.22)	0.10 (0.09)	0.12 (0.11)	5.838 (0.005)	214040.88	214040.8	12.6	Unidentified 214.041 GHz
1.8 (0.4)	0.09 (0.07)	0.17 (0.13)	5.838 (0.003)	214439.19	214439.1	16.0	Unidentified 214.439 GHz
1.78 (0.22)	0.11 (0.08)	0.21 (0.14)	5.838 (0.004)	214459.21	214459.1	17.1	Unidentified 214.459 GHz
1.14 (0.12)	0.5 (0.3)	0.6 (0.4)	5.842 (0.013)	219560.48	219560.36	11.0	C¹⁸O 2→1
1.94 (0.10)	1.33 (0.23)	2.7 (0.5)	6.029 (0.011)	220398.66	220398.68	12.6	¹³CO 2→1
1.38 (0.10)	0.9 (0.3)	1.3 (0.4)	5.374 (0.013)	220399.14	220398.68	8.9	¹³CO 2→1
