DISCLAIMER: The detailed information for each source shown in this section has been generated with an automatic reduction process, line fitting, and line identification tool. There is no guarantee about the quality of this information, and for research purposes you should perform line fitting and identification yourself. The data was taken in frequency switching mode, so some atmospheric lines could appear in the data. The detailed report is provided because it could be useful to get an idea of the main lines detected in each position.

CAUTION: Do not trust in wide lines (line width > 2 km/s) that might be due to baseline problems and/or atmospheric lines. Do not trust in “exotic” line identifications that are more likely due to a spurious match with the line catalogue.

TMC1-NH3-240_0

Backend 3mm (85.0-110.5 GHz)

Found 37 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.108 (0.015)	0.09 (0.10)	0.010 (0.012)	6.59 (0.08)	85232.63	85232.79	6.9	C¹³CH 3/2→1/2
0.042 (0.024)	0.6 (0.8)	0.03 (0.04)	6.07 (0.09)	86754.27	86754.29	2.4	H¹³CO⁺ 1→0
0.087 (0.014)	1.0 (0.4)	0.09 (0.04)	5.98 (0.06)	88630.42	88630.42	5.9	HCN 1→0 F=1→1
0.114 (0.013)	1.1 (0.3)	0.13 (0.04)	5.96 (0.04)	88631.86	88631.85	7.4	HCN 1→0 F=2→1
0.048 (0.015)	0.4 (0.5)	0.022 (0.021)	6.05 (0.05)	88633.93	88633.94	3.2	HCN 1→0 F=0→1
0.057 (0.023)	0.3 (0.4)	0.019 (0.021)	8.11 (0.04)	88865.07	88865.70	3.7	H¹⁵NC 1→0
0.234 (0.016)	0.61 (0.13)	0.15 (0.04)	6.270 (0.014)	89188.45	89188.53	13.8	HCO⁺ 1→0
0.177 (0.016)	0.74 (0.19)	0.14 (0.04)	5.202 (0.021)	89188.76	89188.53	10.3	HCO⁺ 1→0
0.141 (0.011)	1.05 (0.21)	0.16 (0.03)	5.855 (0.022)	90663.61	90663.56	11.5	HNC 1→0
0.028 (0.014)	0.8 (1.2)	0.02 (0.04)	7.79 (0.13)	90685.84	90686.38	1.8	CCS N=7-6, J=7-6
0.050 (0.015)	0.7 (0.7)	0.04 (0.04)	7.36 (0.07)	93848.27	93848.69	3.2	CNCHO 17(1,16)-17(0,17)
0.036 (0.019)	0.3 (0.6)	0.013 (0.022)	6.83 (0.06)	93848.43	93848.69	2.3	CNCHO 17(1,16)-17(0,17)
0.066 (0.015)	3.5 (1.3)	0.25 (0.07)	Unavailable	93949.17	Unavailable	4.3	CCS N=7-6, J=7-6 (image band)
0.054 (0.016)	0.4 (0.4)	0.025 (0.021)	6.17 (0.05)	93958.44	93958.5	2.5	Unidentified 93.959 GHz
0.116 (0.013)	2.4 (0.5)	0.30 (0.05)	6.17 (0.05)	93958.96	93959.0	5.7	Unidentified 93.959 GHz
0.19 (0.09)	0.13 (0.07)	0.027 (0.014)	6.17 (0.06)	94084.00	94084.0	13.3	Unidentified 94.084 GHz
0 (4)	0 (3)	0.0 (0.4)	4.98 (0.04)	97691.06	97690.73	8.7	H(71)</sup>\zeta</sup>
0.016 (0.004)	0.5 (0.4)	0.008 (0.006)	6.12 (0.04)	97715.37	97715.40	4.6	³⁴SO 3₍₂₎→2₍₁₎
0.134 (0.004)	0.084 (0.022)	0.012 (0.003)	6.16 (0.08)	97913.98	97914.0	34.3	Unidentified
0.227 (0.005)	0.45 (0.03)	0.108 (0.007)	6.201 (0.003)	97980.89	97980.95	38.2	CS 2→1
0.080 (0.004)	0.76 (0.11)	0.065 (0.009)	5.262 (0.012)	97981.19	97980.95	13.5	CS 2→1
0.009 (0.007)	1.3 (1.5)	0.012 (0.012)	8.2 (0.3)	98198.67	98199.38	2.0	H(67)</sup>\epsilon</sup>
0.069 (0.006)	0.46 (0.11)	0.034 (0.008)	6.162 (0.012)	99299.84	99299.89	13.6	SO 3₍₂₎→2₍₁₎
0.037 (0.007)	0.35 (0.17)	0.014 (0.007)	5.119 (0.020)	99300.18	99299.89	7.3	SO 3₍₂₎→2₍₁₎
0.57 (0.06)	0.45 (0.14)	0.28 (0.08)	11.944 (0.016)	101735.16	101737.17	2.0	CH₃OH 9(-2,8)-9(1,8)
0.26 (0.05)	1.1 (0.5)	0.30 (0.13)	11.36 (0.05)	101735.35	101737.17	0.9	CH₃OH 9(-2,8)-9(1,8)
0.37 (0.05)	3.3 (0.7)	1.31 (0.22)	10.02 (0.06)	101735.81	101737.17	1.3	CH₃OH 9(-2,8)-9(1,8)
0.055 (0.007)	0.63 (0.24)	0.037 (0.014)	6.158 (0.025)	101833.41	101833.5	12.8	Unidentified
0.012 (0.004)	0.7 (0.7)	0.009 (0.008)	5.23 (0.07)	102064.53	102064.27	2.9	NH₂CHO 5_(1,5)→4_(1,4)
0.054 (0.018)	2.6 (1.6)	0.15 (0.08)	6.15 (0.15)	109561.99	109562.0	3.1	Unidentified 109.560 GHz
0.210 (0.018)	0.09 (0.06)	0.019 (0.014)	6.15 (0.08)	109562.47	109562.5	11.9	Unidentified 109.563 GHz
0.066 (0.021)	0.6 (0.6)	0.04 (0.04)	6.15 (0.06)	109563.89	109563.9	3.9	Unidentified 109.563 GHz
0.053 (0.014)	0.35 (0.24)	0.020 (0.013)	5.01 (0.03)	109581.00	109580.64	3.0	He(55)</sup>\gamma</sup>
0.45 (0.03)	0.39 (0.07)	0.19 (0.04)	6.224 (0.008)	109782.09	109782.18	21.8	C¹⁸O 1→0
0.775 (0.025)	0.44 (0.05)	0.36 (0.04)	5.069 (0.005)	109782.52	109782.18	37.8	C¹⁸O 1→0
3.254 (0.019)	0.970 (0.016)	3.36 (0.05)	6.2332 (0.0016)	110201.27	110201.35	39.8	¹³CO 1→0
3.771 (0.019)	0.782 (0.012)	3.14 (0.05)	5.1293 (0.0012)	110201.67	110201.35	46.1	¹³CO 1→0

Backend 2mm (134.6 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.387 (0.016)	0.06 (0.03)	0.024 (0.012)	5.31 (0.06)	133774.01	133773.7	26.1	Unidentified
0.396 (0.014)	0.060 (0.024)	0.025 (0.010)	5.31 (0.06)	134024.02	134023.71	32.0	C₄H v₇=1 J=29/2-27/2

Backend 2mm (137.9 GHz)

Backend 2mm (144.1 GHz)

Backend 2mm (147.3 GHz)

Backend 2mm (168.2 GHz)

Found 2 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition	Reduced spectrum	Original spectrum
0.15 (0.03)	0.34 (0.24)	0.05 (0.04)	5.152 (0.021)	167569.76	167569.3	5.2	Unidentified 167.570 GHz
0 (10)	0.1 (1.7)	0.0 (0.6)	5.154 (0.006)	167931.60	167931.13	9.7	CH₃OH 9_(1,8)→9_(0,9)

Backend 2mm (171.5 GHz)

Found 9 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
0.08 (0.03)	0.2 (0.3)	0.014 (0.025)	4.836 (0.019)	171780.68	171780.0	4.5	Unidentified 171.781 GHz
0.13 (0.03)	0.16 (0.18)	0.021 (0.023)	4.836 (0.012)	171874.84	171874.2	8.0	Unidentified 171.874 GHz
0.17 (0.05)	0.12 (0.14)	0.022 (0.024)	4.836 (0.009)	171881.70	171881.0	11.1	Unidentified
0.10 (0.04)	0.13 (0.22)	0.014 (0.023)	4.837 (0.015)	172035.52	172034.9	6.2	Unidentified 172.035 GHz
0.06 (0.04)	0.1 (0.4)	0.008 (0.021)	4.838 (0.022)	172097.26	172096.6	3.9	Unidentified 172.097 GHz
0.11 (0.04)	0.12 (0.20)	0.014 (0.023)	4.838 (0.017)	172106.23	172105.56	6.4	HS₂ 11(2,9)-10(2,8), J=21/2-19/2, F=11-10
0.857 (0.021)	0.049 (0.018)	0.045 (0.016)	4.84 (0.05)	172203.62	172203.0	42.2	Unidentified 172.203 GHz
0.14 (0.06)	0.12 (0.19)	0.02 (0.03)	4.839 (0.015)	172221.26	172220.6	6.4	Unidentified 172.220 GHz
0.22 (0.05)	0.14 (0.15)	0.03 (0.04)	4.839 (0.011)	172221.62	172221.0	9.9	Unidentified

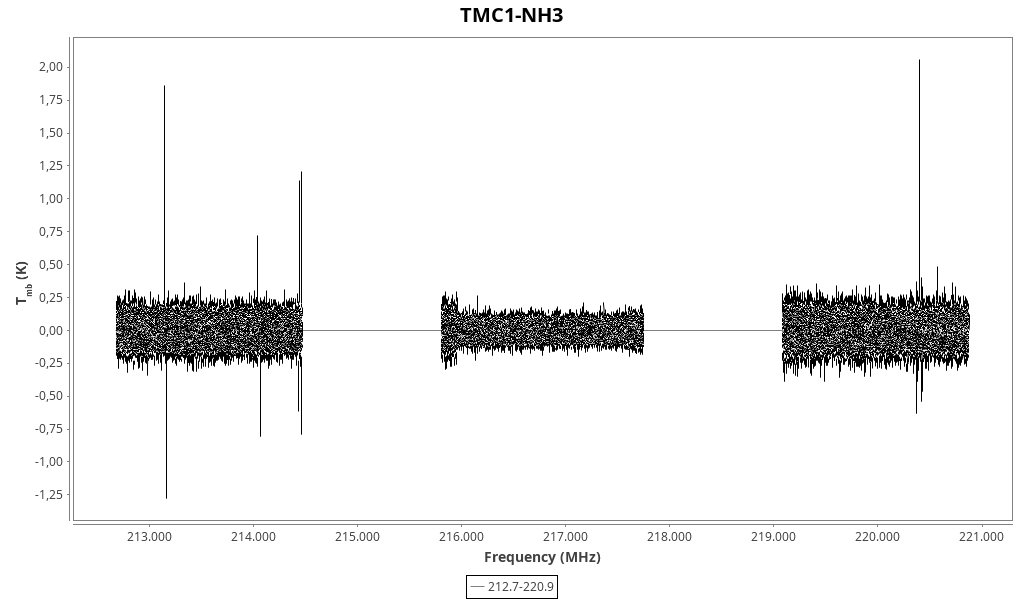

Backend 1mm (212.7-220.9 GHz)

Found 9 lines:

Tmb (K)	Width (km/s)	I (K km/s)	Vlsr (km/s)	Obs. freq (MHz)	Rest freq (MHz)	S/N ratio	Transition
2.17 (0.25)	0.10 (0.05)	0.24 (0.12)	6.2412 (0.0023)	213141.09	213141.3	23.2	Unidentified 213.141 GHz
3.85 (0.09)	0.041 (0.018)	0.17 (0.08)	6.24 (0.04)	214040.88	214041.1	41.6	Unidentified 214.041 GHz
1.42 (0.19)	0.11 (0.09)	0.17 (0.13)	6.240 (0.004)	214439.19	214439.4	14.2	Unidentified 214.439 GHz
1.59 (0.24)	0.10 (0.08)	0.18 (0.13)	6.240 (0.004)	214459.21	214459.4	15.1	Unidentified 214.459 GHz
0.37 (0.20)	0.09 (0.16)	0.04 (0.07)	6.238 (0.007)	216153.13	216153.3	7.1	Unidentified 216.153 GHz
0.22 (0.09)	0.1 (0.4)	0.03 (0.08)	6.237 (0.017)	217167.88	217168.0	3.8	Unidentified 217.168 GHz
1.93 (0.10)	0.63 (0.15)	1.3 (0.3)	6.233 (0.008)	220398.51	220398.68	15.7	¹³CO 2→1
1.80 (0.10)	0.74 (0.18)	1.4 (0.4)	5.160 (0.009)	220399.30	220398.68	14.7	¹³CO 2→1
0.50 (0.19)	0.08 (0.20)	0.04 (0.11)	6.233 (0.016)	220568.03	220568.2	5.1	Unidentified
